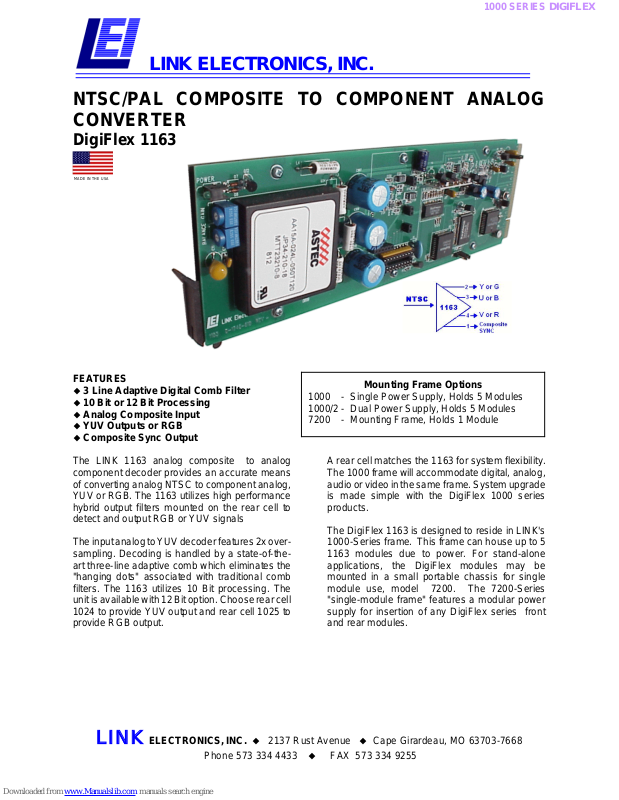

1000 SERIES DIGIFLEX
LINK ELECTRONICS, INC.
NTSC/PAL COMPOSITE TO COMPONENT ANALOG
CONVERTER
DigiFlex 1163
MADE IN THE USA
FEATURES
3 Line Adaptive Digital Comb Filter
10 Bit or 12 Bit Processing
Analog Composite Input
YUV Outputs or RGB
Composite Sync Output
The LINK 1163 analog composite to analog
component decoder provides an accurate means
of converting analog NTSC to component analog,
YUV or RGB. The 1163 utilizes high performance
hybrid output filters mounted on the rear cell to
detect and output RGB or YUV signals
The input analog to YUV decoder features 2x oversampling. Decoding is handled by a state-of-theart three-line adaptive comb which eliminates the
"hanging dots" associated with traditional comb
filters. The 1163 utilizes 10 Bit processing. The
unit is available with 12 Bit option. Choose rear cell
1024 to provide YUV output and rear cell 1025 to
provide RGB output.
Mounting Frame Options
1000 - Single Power Supply, Holds 5 Modules
1000/2 - Dual Power Supply, Holds 5 Modules
7200 - Mounting Frame, Holds 1 Module
A rear cell matches the 1163 for system flexibility.
The 1000 frame will accommodate digital, analog,
audio or video in the same frame. System upgrade
is made simple with the DigiFlex 1000 series
products.
The DigiFlex 1163 is designed to reside in LINK's
1000-Series frame. This frame can house up to 5
1163 modules due to power. For stand-alone
applications, the DigiFlex modules may be
mounted in a small portable chassis for single
module use, model 7200. The 7200-Series
"single-module frame" features a modular power
supply for insertion of any DigiFlex series front
and rear modules.
LINK ELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone 573 334 4433
FAX 573 334 9255
DIGIFLEX 1163 ANALOG TO YUV DECODER
SPECIFICATIONS
VIDEO INPUT
Number: ............................................................. ONE (1)
Standard: ........................................NTSC or PAL ANALOG Composite
Configuration: ....................................................... Differential
Connector: ........................................................... 75Ω BNC
Impedance: ..........................................................>75Ω±1%
Common Mode Rejection: ..................................................>60dB
Return Loss: ...................................................>40dB to 5.5MHz
Signal Level: ........................................................ 1Vpp ±3dB
COMPONENT ANALOG OUTPUT, Depends on rear cell
Number: ........................................ ONE EACH, Y,U,V, Rear cell 1024
Number: .........................................ONE EACH, RGB, Rear cell 1025
Y Frequency Response: ......................................... ±0.3dB to 5.5MHz
U, V Bandwidth: ........................................................1.0MHz
RGB Frequency Response: ...................................... ±0.3dB to 5.5MHz
Signal to Noise Ratio: .....................................................>55dB
Tilt: ..................................................................<0.5%
Overshoot: ..............................................................<0.5%
Luminance Non-Linearity: ..................................................<1.0%
Subcarrier Rejection:......................................................>45dB
DAC Resolution: ........................................................ 10 BIT
............................................................ 12 Bit Option
Composite SYNC ..................................................... 4.0 Vp-p
ENVIRONMENTAL
Temperature:................................................. 0° to 50°C Ambient
Humidity: .............................................10% to 90% non-condensing
Power:................................................................6 Watts
MECHANICAL:
Height:............................................................. 3.2 Inches
Width: ................................................................ 1 Inch
Length: ............................................................. 10 Inches
Weight: ................................................................ 8 Oz.
LINK ELECTRONICS, INC.
2137 Rust Ave.
Cape Girardeau, MO 63703
Phone: 573 334 4433
FAX: 573 334 9255
Rear Cell I/O
IN. Comp In
1. Sync Out
2. G Out
3. B Out
4. R Out
REAR CELL
1025 RGB
PROFESSIONAL SERIES--
modular system products--by
1163/042503
Rear Cell I/O
IN. Comp In
1. Sync Out
2. Y Output
3. U Out
4. V Out
REARCELL
LINK
1024-YUV
