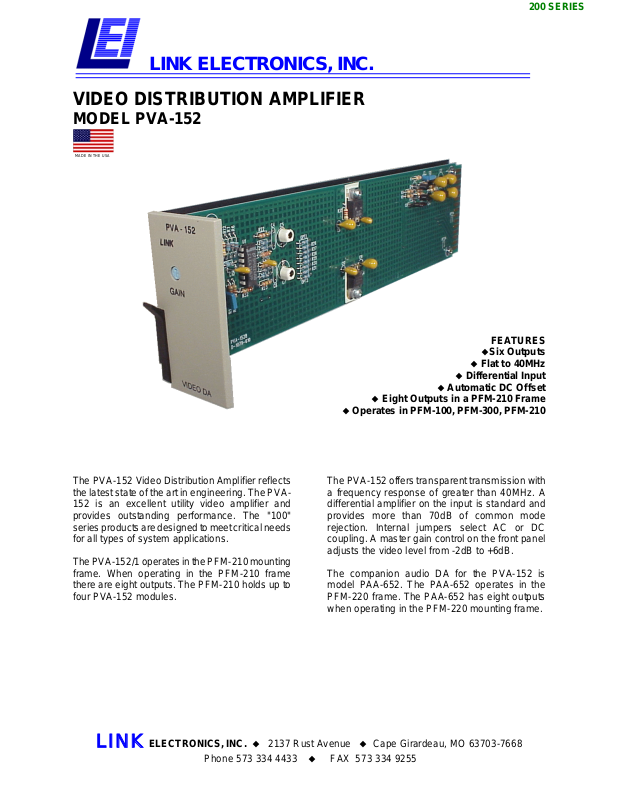

LINK ELECTRONICS, INC.
VIDEO DISTRIBUTION AMPLIFIER
MODEL PVA-152
MADE IN THE USA
200 SERIES
The PVA-152 Video Distribution Amplifier reflects
the latest state of the art in engineering. The PVA152 is an excellent utility video amplifier and
provides outstanding performance. The "100"
series products are designed to meet critical needs
for all types of system applications.
The PVA-152/1 operates in the PFM-210 mounting
frame. When operating in the PFM-210 frame
there are eight outputs. The PFM-210 holds up to
four PVA-152 modules.
FEATURES
Six Outputs
Flat to 40MHz
Differential Input
Automatic DC Offset
Eight Outputs in a PFM-210 Frame
Operates in PFM-100, PFM-300, PFM-210
The PVA-152 offers transparent transmission with
a frequency response of greater than 40MHz. A
differential amplifier on the input is standard and
provides more than 70dB of common mode
rejection. Internal jumpers select AC or DC
coupling. A master gain control on the front panel
adjusts the video level from -2dB to +6dB.
The companion audio DA for the PVA-152 is
model PAA-652. The PAA-652 operates in the
PFM-220 frame. The PAA-652 has eight outputs
when operating in the PFM-220 mounting frame.
LINK ELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone 573 334 4433
FAX 573 334 9255
MODEL PVA-152
SPECIFICATIONS
INPUT:
Video: .................. 1.0 V p-p ±3dB
Impedance: ........... >100K Ω, Bridging
Common Mode Range: ...... 5Vp-p (60Hz)
Maxmum DC In: ................ ±4VDC
CMRR: .................>70dB @ 60Hz
Coupling:............. AC, selectable DC
VIDEO DA
Ringing:........................<0.5%
High Freq. Overshoot: .............<0.5%
Coupling: . . . DC Servo, Avg. DC Output=0
Residual DC on Video: . <4mV, Typical 1mV
Low Freq. Bounce: . 10 to 90% APL @1Vp-p
Propagation Delay: .............. 10.2nS
OUTPUTS:
Number: ......................... Six
.............Eight outputs in PFM-210
Level:............ Unity Gain, +6dB, -2dB
AMPLIFIER PERFORMANCE:
Frequency Response: .... ±0.2dB to 20MHz
................... ±1.0dB to 30MHz
................... ±2.0dB to 40MHz
Differential Gain: .................<0.2%
Differentail Phase:.................<0.1°
DC Gain Stability: ............... ±0.1dB
Noise: ............ >60dB, below 1.0Vp-p
Hum: ............. >70dB, below 1.0Vp-p
Output solation:....... >-40dB at 3.59MHz
Return Loss: .............. >40dB to 6dB
.................... 39dB to 20MHz
Tilt: ...........................<0.5%
FRONT PANEL CONTROLS:
Gain: .................... +6dB to -2dB
ENVIRONMENTAL:
Temperature:........ 0° TO 50°C, Ambient
Humidity:......0% to 90% non-condensing
POWER:
DC Voltage ..............+8VDC (50mA)
.................... -15VDC (30mA)
MECHANICAL:
High: ..........................2.875"
Wide:........................... 1.5"
Deep: ........................ 11.875"
Weight: ........................ 7.5oz.
Mounting: Mounts in 100, 300, 600 or 210 frame.
(600 frame requires rear cells).
LINK ELECTRONICS, INC.
PROFESSIONAL SERIES-modular system products--by
2137 Rust Avenue
Cape Girardeau, MO 63703
Phone: 573 334 4433
FAX: 573 334 9255
LINK
PVA-152/072502
