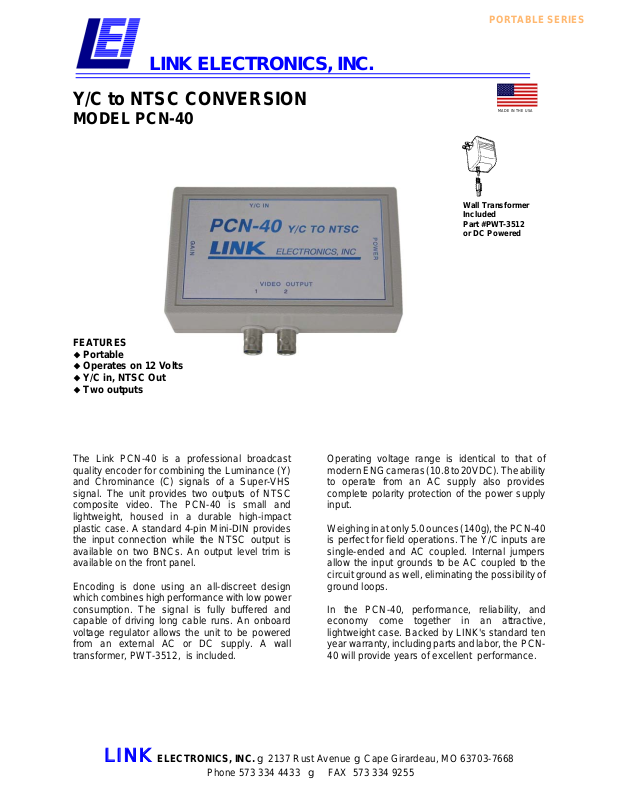

LINK ELECTRONICS, INC.

PORTABLE SERIES

Y/C to NTSC CONVERSION

MODEL PCN-40

FEATURES

 Portable
 Operates on 12 Volts
 Y/C in, NTSC Out
 Two outputs

Wall Transformer
Included
Part #PWT-3512
or DC Powered

MADE IN THE USA

The Link PCN-40 is a professional broadcast
quality encoder for combining the Luminance (Y)
and Chrominance (C) signals of a Super-VHS
signal. The unit provides two outputs of NTSC
composite video. The PCN-40 is small and
lightweight, housed in a durable high-impact
plastic case. A standard 4-pin Mini-DIN provides
the input connection while the NTSC output is
available on two BNCs. An output level trim is
available on the front panel.

Encoding is done using an all-discreet design
which combines high performance with low power
consumption. The signal is fully buffered and
capable of driving long cable runs. An onboard
voltage regulator allows the unit to be powered
from an external AC or DC supply. A wall
transformer, PWT-3512, is included.

Operating voltage range is identical to that of
modern ENG cameras (10.8 to 20VDC). The ability
to operate from an AC supply also provides
complete polarity protection of the power supply
input.

Weighing in at only 5.0 ounces (140g), the PCN-40
is perfect for field operations. The Y/C inputs are
single-ended and AC coupled. Internal jumpers
allow the input grounds to be AC coupled to the
circuit ground as well, eliminating the possibility of
ground loops.

In the PCN-40, performance, reliability, and
economy come together in an attractive,
lightweight case. Backed by LINK's standard ten
year warranty, including parts and labor, the PCN­40 will provide years of excellent performance.

LINK ELECTRONICS, INC. g 2137 Rust Avenue g Cape Girardeau, MO 63703-7668

Phone [phone]

g FAX [phone]

MODEL PCN-40 Y/C to NTSC ENCODER

SPECIFICATIONS

INPUT:

Y (Luminance): .......................................................... 1.0 Vpp ±3dB

C (Chrominance): ........................................................0.6 Vpp ±3 dB

Connector: ................................................. One Mini DIN 4 Pin Connector

Configuration: ................................................. Single Ended, AC Coupled

Impedance: ........................................................... 75 S Terminated

Maximum DC On Inputs: ........................................................ ±4VDC

OUTPUT:

Number: .................................................................. Two, BNC

Video Level: ............................................................ 1.0 Vpp ±3dB

Impedance: ................................................................ 75 S ±1%

Frequency Response: .................................................... ±0.5 to 18 MHz

................................................................... -3dB @ 30 MHz

Line Rate Tilt: ................................................................. <0.4%

Field Rate Tilt:................................................................. <0.4%

Output Offset: .............................................................AC Coupled

Signal to Noise Ratio: ........................................................... >65dB

Propagation Delay: .............................................................. 25nS

Differential Phase:............................................................... <0.1°

Differential Gain: ............................................................... <0.1%

ENVIRONMENTAL:

Temperature:........................................................ 0° to 50°C Ambient

Humidity:.................................................... 1% to 90% non-condensing

Power Consumption:...........................................................240 mW

Power Supply: ................................................. 10.8 to 20VDC or AC RMS

MECHANICAL:

Height:......................................................................1.4 Inch

Width: ...................................................................... 4.5 Inch

Depth: ...................................................................... 2.6 Inch

Weight: ..................................................................... 5.0 Oz.

LINK ELECTRONICS, INC.

2137 Rust Avenue

Cape Girardeau, MO 63703

Phone: [phone]

FAX: [phone]

PROFESSIONAL SERIES-­portable television system products--by

LINK

PCN-40/022608
