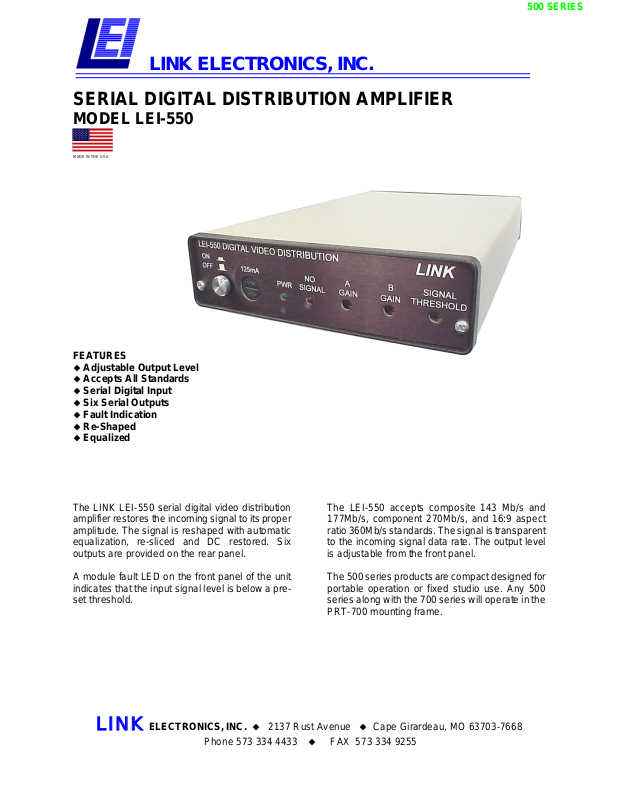

LINK ELECTRONICS, INC.
SERIAL DIGITAL DISTRIBUTION AMPLIFIER
MODEL LEI-550
MADE IN THE USA
500 SERIES
FEATURES
Adjustable Output Level Accepts All Standards Serial Digital Input Six Serial Outputs Fault Indication Re-Shaped Equalized
The LINK LEI-550 serial digital video distribution amplifier restores the incoming signal to its proper amplitude. The signal is reshaped with automatic equalization, re-sliced and DC restored. Six outputs are provided on the rear panel.
A module fault LED on the front panel of the unit indicates that the input signal level is below a pre­set threshold.
The LEI-550 accepts composite 143 Mb/s and 177Mb/s, component 270Mb/s, and 16:9 aspect ratio 360Mb/s standards. The signal is transparent to the incoming signal data rate. The output level is adjustable from the front panel.
The 500 series products are compact designed for portable operation or fixed studio use. Any 500 series along with the 700 series will operate in the PRT-700 mounting frame.
LINK ELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone 573 334 4433
FAX 573 334 9255
MODEL LEI-550 SERIAL DIGITAL DA
SPECIFICATIONS
SERIAL DIGITAL VIDEO INPUT:
Standard: ..............................................143Mb/s, SMPTE 259M-C
....................................................................177Mb/s
....................................................................270Mb/s
....................................................................360Mb/s
Impedance: ............................................................. 75
Return Loss:........................................................... >20dB
Signal Level .............................................800mV±10%, Adjustable
CMR: ...................................................... 30Vp-p, up to 60Hz
Connectors: .............................................................BNC
SERIAL VIDEO OUTPUTS:
Number of Outputs: ..........................................................6
Standards: ...................................................... Same as input
Connectors: .............................................................BNC
Impedance: ............................................................. 75
Return Loss:........................................................... >15dB
Signal Level: .................................................800mV to 1000mV
DC Offset: ...........................................................0V±0.5V
Rise & Fall Time: .................................................. 1nS ±250 ps
Equalization: ............................................. Automatic up to >30dB
Overshoot: .................................................. <10% of Amplitude
Through Delay:.......................................................... 10nS
FRONT CONTROLS & INDICATORS:
Power: ............................................................Green LED
No Signal: .......................................................... Red LED
ENVIRONMENTAL:
Temperature: ................................................ 0° to 50°C Ambient
Humidity: ............................................10% to 90% non-condensing
Power: ................................................................ 2.5W
DIMENSIONS:
Height: ................................................................1 Inch
Width:............................................................. 5.5 Inches
Depth: ........................................................... 9.25 Inches
Weight:.......................................................... 2 Lbs., 8 Oz.
LEI-550 REAR PANEL
PRT-700 RACK TRAY
LINK ELECTRONICS, INC.
2137 Rust Avenue
Cape Girardeau, MO 63703
Phone: 573 334 4433
FAX: 573 334 9255
PROFESSIONAL SERIES-­stand-alone system products--by
LINK
LEI-550/103102
