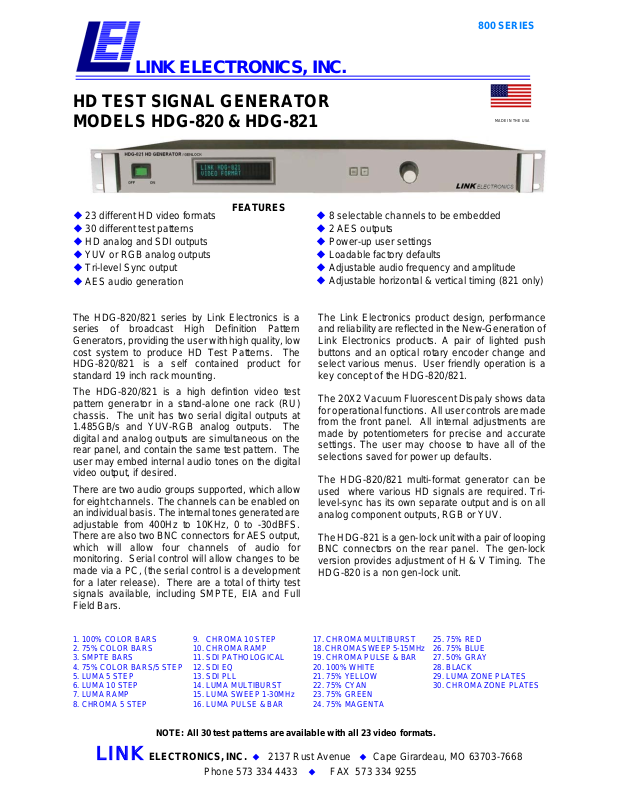

LINK ELECTRONICS, INC.
HD TEST SIGNAL GENERATOR
MODELS HDG-820 & HDG-821
800 SERIES
MADE IN THE USA
23 different HD video formats
FEATURES
30 different test patterns
HD analog and SDI outputs
YUV or RGB analog outputs
Tri-level Sync output
AES audio generation
The HDG-820/821 series by Link Electronics is a
series of broadcast High Definition Pattern
Generators, providing the user with high quality, low
cost system to produce HD Test Patterns. The
HDG-820/821 is a self contained product for
standard 19 inch rack mounting.
The HDG-820/821 is a high defintion video test
pattern generator in a stand-alone one rack (RU)
chassis. The unit has two serial digital outputs at
1.485GB/s and YUV-RGB analog outputs. The
digital and analog outputs are simultaneous on the
rear panel, and contain the same test pattern. The
user may embed internal audio tones on the digital
video output, if desired.
There are two audio groups supported, which allow
for eight channels. The channels can be enabled on
an individual basis. The internal tones generated are
adjustable from 400Hz to 10KHz, 0 to -30dBFS.
There are also two BNC connectors for AES output,
which will allow four channels of audio for
monitoring. Serial control will allow changes to be
made via a PC, (the serial control is a development
for a later release). There are a total of thirty test
signals available, including SMPTE, EIA and Full
Field Bars.
8 selectable channels to be embedded
2 AES outputs
Power-up user settings
Loadable factory defaults
Adjustable audio frequency and amplitude
Adjustable horizontal & vertical timing (821 only)
The Link Electronics product design, performance
and reliability are reflected in the New-Generation of
Link Electronics products. A pair of lighted push
buttons and an optical rotary encoder change and
select various menus. User friendly operation is a
key concept of the HDG-820/821.
The 20X2 Vacuum Fluorescent Dispaly shows data
for operational functions. All user controls are made
from the front panel. All internal adjustments are
made by potentiometers for precise and accurate
settings. The user may choose to have all of the
selections saved for power up defaults.
The HDG-820/821 multi-format generator can be
used where various HD signals are required. Trilevel-sync has its own separate output and is on all
analog component outputs, RGB or YUV.
The HDG-821 is a gen-lock unit with a pair of looping
BNC connectors on the rear panel. The gen-lock
version provides adjustment of H & V Timing. The
HDG-820 is a non gen-lock unit.
1. 100% COLOR BARS
2. 75% COLOR BARS
3. SMPTE BARS
4. 75% COLOR BARS/5 STEP
5. LUMA 5 STEP
6. LUMA 10 STEP
7. LUMA RAMP
8. CHROMA 5 STEP
NOTE: All 30 test patterns are available with all 23 video formats.
9. CHROMA 10 STEP
10. CHROMA RAMP
11. SDI PATHOLOGICAL
12. SDI EQ
13. SDI PLL
14. LUMA MULTIBURST
15. LUMA SWEEP 1-30MHz
16. LUMA PULSE & BAR
17. CHROMA MULTIBURST
18. CHROMA SWEEP 5-15MHz
19. CHROMA PULSE & BAR
20. 100% WHITE
21. 75% YELLOW
22. 75% CYAN
23. 75% GREEN
24. 75% MAGENTA
25. 75% RED
26. 75% BLUE
27. 50% GRAY
28. BLACK
29. LUMA ZONE PLATES
30. CHROMA ZONE PLATES
LINK ELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone 573 334 4433
FAX 573 334 9255
HDG-820/821 HIGH DEFINITION GENERATOR
OUTPUTS:
HD SDI:.................................................. Two 75Ω BNCs, 800mV ±10%
YUV or RGB:................................................ One set of three 75Ω BNCs
Y, G, B & R .............................................. 1Vpp, ±10% @ 100% Color Bar
U & V..................................................0.7Vpp, ±10% @ 100% Color Bar
Tri-Level Sync: ............................................. One 75Ω BNC, 0.6Vpp ±10%
AES/EBU Audio ............................................... Two, AES3-ID, 75Ω BNC
REFERENCE INPUT (HDG-821 ONLY):
Analog Black Burst:......................................High Impedance Loop, >50K ohms
Level:....................................................................1Vpp ±3dB
Configuration: ........................................................... Single ended
ELECTRICAL:
Input Power: ............................................... Auto Detection 90 to 264VAC
Frequency: ...............................................................47 to 63Hz
Consumption: .............................................................. 12 Watts
Compliance: .............................................. Designed to meet UL Approval
ENVIRONMENTAL:
Temperature:...................................................... 0° to 50°C (ambient)
Humidity:.................................................. 10% to 90% non-condensing
MECHANICAL:
Dimensions (HxWxD) ............................ 1.75 inches x 19 inches x 9 inches@4.75lbs
Active Samples Active Lines
1280 720 60 74.25MHz 1650 750 NTSC 296M
1280 720 59.94 74.175MHz 1650 750 NTSC 296M
1280 720 50 74.25MHz 1980 750 PAL 296M
1280 720 30 74.25MHz 3300 750 NTSC 296M
1280 720 29.97 74.178MHz 3300 750 NTSC 296M
1280 720 25 74.25MHz 3960 750 PAL 296M
1280 720 24 74.25MHz 4125 750 FILM 296M
1280 720 23.98 74.175MHz 4125 750 FILM 296M
Active Samples Active Lines
1920 1080 30 74.25MHz 2200 1125 NTSC 274M
1920 1080 29.97 74.175MHz 2200 1125 NTSC 274M
1920 1080 25 74.25MHz 2640 1125 PAL 274M
1920 1080 24 74.25MHz 2750 1125 FILM 274M
1920 1080 23.98 74.175MHz 2750 1125 FILM 274M
Active Samples Active Lines
1920 1080 60 74.25MHz 2200 1125 NTSC 274M
1920 1080 59.94 74.175MHz 2200 1125 NTSC 274M
1920 1080 50 74.25MHz 2640 1125 PAL 274M
Active Samples Active Lines
1920 1080 30 74.25MHz 2200 1125 NTSC RP 211
1920 1080 29.97 74.175MHz 2200 1125 NTSC RP 211
1920 1080 25 74.25MHz 2640 1125 PAL RP 211
1920 1080 24 74.25MHz 2750 1125 FILM RP 211
1920 1080 23.98 74.175MHz 2750 1125 FILM RP 211
Active Samples Active Lines
1920 1035 60 74.25MHz 2200 1125 NTSC 260M
1920 1035 59.94 74.175MHz 2200 1125 NTSC 260M
* Analog outputs not available with 1080PsF and 1035I formats
SPECIFICATIONS AND DESIGN ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE
Frame
Rate(Hz) Frequency Samples
Frame
Rate(Hz) Frequency Samples
Frame
Rate(Hz) Frequency Samples
1080 Progressive Segmented Frame Formats
Frame
Rate(Hz) Frequency Samples
Frame
Rate(Hz) Frequency Samples
HD Formats
720 Progressive Formats
1080 Progressive Formats
1080 Interlaced Formats
1035 Interlaced Formats
Total
Lines Standard Smpte
Total
Lines Standard Smpte
Total
Lines Standard Smpte
Total
Lines Standard Smpte
Total
Lines Standard Smpte
