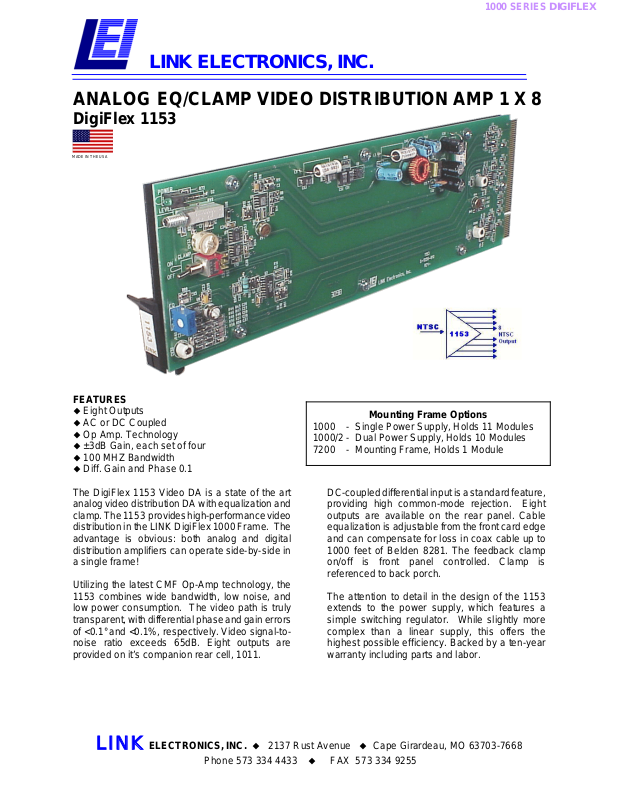

1000 SERIES DIGIFLEX
LINK ELECTRONICS, INC.
ANALOG EQ/CLAMP VIDEO DISTRIBUTION AMP 1 X 8
DigiFlex 1153
MADE IN THE USA
FEATURES
Eight Outputs
AC or DC Coupled
Op Amp. Technology
±3dB Gain, each set of four
100 MHZ Bandwidth
Diff. Gain and Phase 0.1
The DigiFlex 1153 Video DA is a state of the art
analog video distribution DA with equalization and
clamp. The 1153 provides high-p erformance video
distribution in the LINK DigiFlex 1000 Frame. The
advantage is obvious: both analog and digital
distribution amplifiers can operate side-by-side in
a single frame!
Utilizing the latest CMF Op-Amp technology, the
1153 combines wide bandwidth, low noise, and
low power consumption. The video path is truly
transparent, with differential phase and gain errors
of <0.1°
noise ratio exceeds 65dB. Eight outputs are
provided on it’s companion rear cell, 1011.
and <0.1%, respectively. Video signal-to-
Mounting Frame Options
1000 - Single Power Supply, Holds 11 Modules
1000/2 - Dual Power Supply, Holds 10 Modules
7200 - Mounting Frame, Holds 1 Module
DC-coupled differential input is a standard feature,
providing high common-mode rejection. Eight
outputs are available on the rear panel. Cable
equalization is adjustable from the front card edge
and can compensate for loss in coax cable up to
1000 feet of Belden 8281. The feedback clamp
on/off is front panel controlled. Clamp is
referenced to back porch.
The attention to detail in the design of the 1153
extends to the power supply, which features a
simple switching regulator. While slightly more
complex than a linear supply, this offers the
highest possible efficiency. Backed by a ten-year
warranty including parts and labor.
LINK ELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone 573 334 4433
FAX 573 334 9255
DIGIFLEX 1153 VIDEO DA
SPECIFICATIONS
INPUT:
Video Level: .............................................................1.0Vp-p±3dB
Impedance: ........................................................ 75 ohms terminating
Common Mode Range: .......................................................... 5Vp-p
Maximum DC In: .............................................................. ±5 VDC
CMRR: ....................................................................... 70dB
OUTPUTS:
Number: .............................................................. Eight (8), BNC
Level:................................................................ Unity Gain ±3dB
AMPLIFIER PERFORMANCE:
Frequency Response: .................................................. ±0.5dB to 55 MHz
....................................................................±1dB to 60MHz
.................................................................±3.0dB to 100 MHz
Differential Gain: ................................................ <0.1%, 10% to 90% APL
Differential Phase:................................................ <0.1°, 10% to 90% APL
Clamping action: ............................................... 40dB for 10% to 90% APL
..............................................................38dB for 60Hz AC hum
DC Gain Stability: ..............................................................±0.1dB
Noise: .......................................................... >70dB, below 1.0V p-p
Hum: ........................................................... >70dB, below 1.0V p-p
Output Isolation: .................................................... > 40dB at 3.58 MHz
Return Loss: ........................................................... 40dB to 6 MHz
Tilt: ......................................................................... <0.4%
Ringing:...................................................................... <0.4%
High Freq. Overshoot: ........................................................... <0.4%
Coupling:................................................DC Servo, Average DC output =0
Harmonic Distortion: ................................................ SC @ 3.58Hz, 2Vp-p
............................................................. Less than 0.4% ( 48dB)
FRONT PANEL CONTROLS:
Gain Control:................................................. ±3dB continuous from unity
Clamp ON/OFF: ...................................................... Switch Selectable
Cable Equalizer: ................................................. Equalizes up to 1000 Ft
ENVIRONMENTAL:
Temperature:....................................................... 0° to 50° C, ambient
Humidity:................................................... 10% to 90% non-condensing
POWER:
DC Voltages:
+5 VDC: .............................................................. 50mA
-5 VDC: .............................................................. 50mA
MECHANICAL:
Height: ................................................ 3.5 inches
Width :.................................................... 1 Inch
Depth: ................................................. 10 Inches
Weight: ............................................... 7.1 Ounces
LINK ELECTRONICS, INC.
2137 Rust Avenue
Cape Girardeau, MO 63703
Phone: 573 334 4433
FAX: 573 334 9255
PROFESSIONAL SERIES-modular system products--by
1153/110402
LINK
Rear Cell I/O
0. Input
1. Output
2. Output
3. Output
4. Output
5. Output
6. Output
7. Output
8. Output
1011 REARCELL
