LINK ELECTRONICS, INC.
HD SD SDI SWITCHER WITH AES AUDIO FOLLOW
MODEL AVS-816/HDD
800 SERIES
MADE IN THE USA
FEATURES
RS-232/RS-422
16 Video Inputs
16 Audio Inputs
Vertical Interval
HD Video
AES Audio
Includes 816 OP/HD
Includes 816 OP/C + OP/F
Computer Control Panel

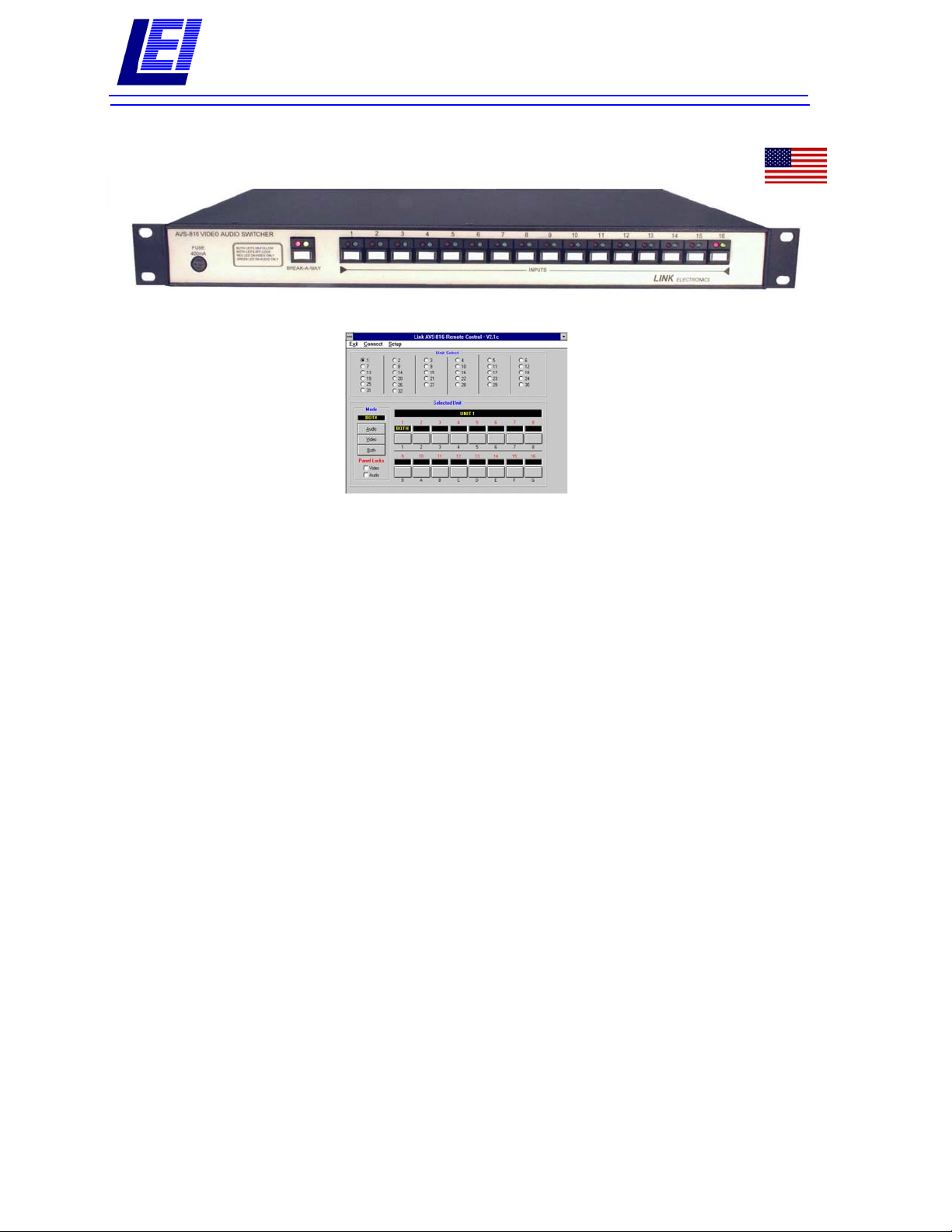

The AVS-816/HDD is an HD SD SDI video
switcher with AES audio follow. This unit is a
wide band-width video/audio vertical interval
switcher designed for the video professional in
mind. It features compact modular design which
allows it to handle video and AES audio. The unit
has sixteen channels of video and AES audio.
Digital and analog switching modules for both
video and audio may be mixed in any combination
for complete system flexibility. The inputs are nonlooping and offer outstanding return loss
performance.
Audio and video break-away are selected by a
single switch on the front panel. Dual LED’s on the
source selection and follow switch indicate follow
or break-away. The AVS-816/HDD allows the user
to efficiently and economically route or delegate
multiple video and audio signals.
The AES audio inputs use standard BNC
connectors. The Weco 3-pin connectors may be
ordered as an option for balanced audio.
FEATURES
GPI Control
One Video Output
One Rack Unit Cabinet
One AES Audio Output
Audio & Video Break-away
Controls Up to 32 Switchers
Individual I/O Audio Connection
Windows™ Based Control Software
The digital audio I/O features full transformer
isolation to eliminate the possibility of ground loop
interference. Switching is accomplished during the
vertical Interval by using the vertical sync derived
from the video at the output stage. In a similar
fashion, digital audio switching takes place during
the audio sample preamble. Up to 32 switchers
can be controlled by the computer software.
The AVS-816/HDD may be controlled by a serial
data feed of either RS-232 or RS-422/485
interface standards, selectable by a simple internal
DIP switch. A remote control panel is also
available which utilizes the common RJ-11
modular connector along with the RS-485 interface
standard. For automated system applications, an
optional GPI interface is available.
The serial communication protocol is compatible
with existing Link video and audio switchers and
remote control panels. For integration into existing
systems , the AVS-816/HDD can be preset to
respond to that instruction set as well.
LINK ELECTRONICS, INC.
Cape Girardeau, MO 63703
PROFESSIONAL SERIES-stand-alone system products--by LINK
2137 Rust Ave.
Phone: 573 334 4433
FAX: 573 334 9255
AVS-816/HDD, 16 X I VIDEO/AUDIO SWITCHER
RS-232/RS-422 CONTROLLED
SPECIFICATIONS
HD SD SDI VIDEO INPUTS:
Standard: ..... 270Mb/s, 1.4835/1.485Gb/s t
Number: ................... Sixteen (16)
Impedance: ....................75
Configuration: . . . Single-Ended, AC Coupled
Return Loss: .................... >18dB
Reference Input ..............Analog Blacl
Outputs:
Number: ............... One, HD SD SDI
Level:.....................800mV ±10%
Impedance: ...................75
Return Loss: .................... >18dB
Rise/Fall Time: ..............1ns ± 250ps
Overshoot: ............ <10% of Amplitude
Equalization: ....... Automatic up to >30dB
Propagation Delay: .................10ns
Input Cable Length, Max ........... 250m
S, 1%
S, ±1%
AES AUDIO INPUTS:
Number: ...........................16
Interface: ................... AES3-1992
Connector: ............ 3 Pin Term. Plug-in
Format........... Bi-Phase Mark Encoded
Impedance: .................. 110
Coupling:................... Transformer
Level:....................4.2Vpp Typical
Sample Freq. Range: .... 30 KHz to 50 KHz
Outputs:
Number: ............ One, Digital on BNC
. One, Analog for Monitoring, 3 pin connector
Interface: ................... AES3-1992
Connectors: ....... 3 Pin Plug-in Term Block
Format: .......... Bi-Phase Mark Encoded
Impedance: .................. 110
Coupling:................... Transformer
Level:...................4.2 Vp-p Typical
S ±1%
S ±1%
ENVIRONMENTAL:
Temperature:........... 0° to 50°, ambient
Humidity:.......0% to 90% non-condensing
POWER:
Input: ........ 120/240 VAC ±10% 50/60 Hz
Power:......................... 8 VAR
LINK ELECTRONICS, INC.
Cape Girardeau, MO 63703
Phone: 573 334 4433
FAX: 573 334 9255
PROFESSIONAL SERIES-stand-alone system products--by
LINK
MECHANICAL:
Size:
Height:.......................... 1.75"
Width: ........................... 19"
Depth: ........................... 8.7"
Weight: ....................... 6.8 lbs.
2137 Rust Ave.
