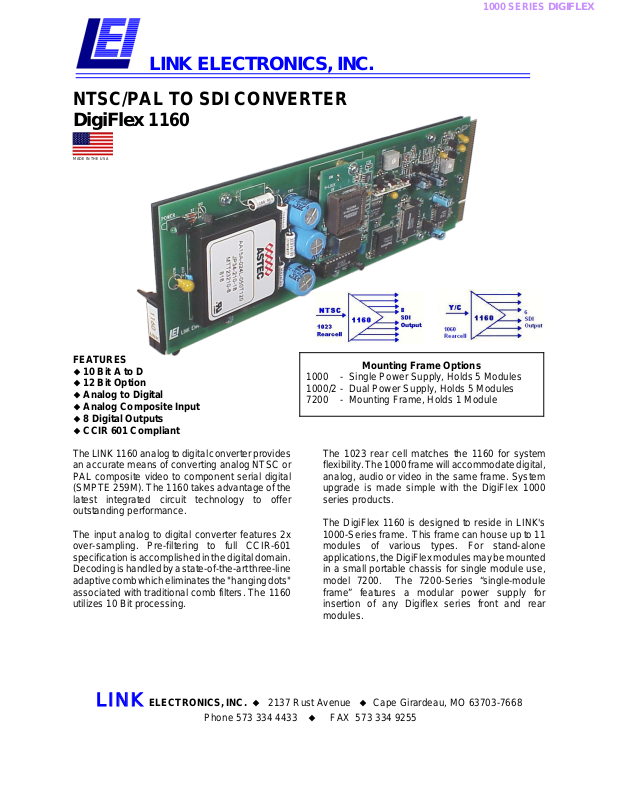

LINK ELECTRONICS, INC.
NTSC/PAL TO SDI CONVERTER
DigiFlex 1160
MADE IN THE USA
1000 SERIES DIGIFLEX
FEATURES
10 Bit A to D
12 Bit Option
Analog to Digital
Analog Composite Input
8 Digital Outputs
CCIR 601 Compliant
The LINK 1160 analog to digital converter provides
an accurate means of converting analog NTSC or
PAL composite video to component serial digital
(SMPTE 259M). The 1160 takes advantage of the
latest integrated circuit technology to offer
outstanding performance.
The input analog to digital converter features 2x
over-sampling. Pre-filtering to full CCIR-601
specification is accomplished in the digital domain.
Decoding is handled by a state-of-the-art three-line
adaptive comb which eliminates the "hanging dots"
associated with traditional comb filters. The 1160
utilizes 10 Bit processing.
Mounting Frame Options
1000 - Single Power Supply, Holds 5 Modules
1000/2 - Dual Power Supply, Holds 5 Modules
7200 - Mounting Frame, Holds 1 Module
The 1023 rear cell matches the 1160 for system
flexibility. The 1000 frame will accommodate digital,
analog, audio or video in the same frame. System
upgrade is made simple with the DigiFlex 1000
series products.
The DigiFlex 1160 is designed to reside in LINK's
1000-Series frame. This frame can house up to 11
modules of various types. For stand-alone
applications, the DigiFlex modules may be mounted
in a small portable chassis for single module use,
model 7200. The 7200-Series “single-module
frame” features a modular power supply for
insertion of any Digiflex series front and rear
modules.
LINK ELECTRONICS, INC. 2137 Rust Avenue Cape Girardeau, MO 63703-7668
Phone 573 334 4433
FAX 573 334 9255
DIGIFLEX 1160 ANALOG TO DIGITAL CONVERTER
SPECIFICATIONS
VIDEO INPUT:
Number: ................................ ONE (1), Composite or YC, Select Rear Cell
Standard: ........................................NTSC or PAL ANALOG Composite
Configuration: ....................................................... Differential
Connector: ........................................................... 75Ω BNC
Impedance: ...........................................................>75Ω1%
Common Mode Rejection: ..................................................>60dB
Return Loss: ...................................................>40dB to 5.5MHz
Signal Level: ........................................................ 1Vpp ±3dB
S-Video .........................................................with 1160/1060
DIGITAL OUTPUT:
Number: ............................................. Eight (8), on Rear Cell 1023
Number: ............................................... Six (6), on Rear Cell 1060
Standard: ................................... SMPTE 259M-C 270Mb/s COMPONENT
Connector: ........................................................... 75Ω BNC
Impedance: .......................................................... 75Ω ±1%
Return Loss: .................................................. >18dB to 270MHz
Signal Level: ...................................................... 800mV ±10%
ADC Resolution: .............................................. 10 BIT or 12 Option
ENVIRONMENTAL:
Temperature:................................................. 0° to 50°C Ambient
Humidity:.............................................10% to 90% non-condensing
Power:...............................................................10 Watts
MECHANICAL:
Height:............................................................. 3.2 Inches
Width: ................................................................. 1 Inch
Length: ............................................................. 10 Inches
Weight: ................................................................. 8 Oz
Rear Cell I/O
Y. Y Input
C. C Input
YC. YC Input
1. Output
2. Output
3. Output
4. Output
5. Output
6. Output
Rear Cell I/O
0. Input
1. Output
2. Output
3. Output
4. Output
5. Output
6. Output
7. Output
8. Output
REAR CELL 1060
PROFESSIONAL SERIES-modular system products--by
LINK ELECTRONICS, INC.
2137 Rust Ave.
Cape Girardeau, MO 63703
Phone: 573 334 4433
FAX: 573 334 9255
LINK
REARCELL 1023
1160/092602
