1. Basic description

1.1 Features

! Very slim module for surface mounting only. Supplied in 1, 2 or 4 button variants. ! Voice communication powered from analogue telephone line only. ! Pulse and tone (DTMF) dial ! Two 16 digits numbers saved under each button (includes *, #, RECALL and pause) ! DAY/NIGHT mode ! Call prolongation by dialling * or # ! Electrical (magnetic) lock compatible ! Code to hang up from phone ! Code to open the door by phone ! 3 different passwords for code lock (external code from buttons) ! Optional number of rings before picking up incoming call ! Optional time between code entry button-presses ! Optional delay time before redialling ! Optional time before dialling starts ! Optional parameters for DTMF tones, Recall and Pause duration ! 3 default levels ! Programming by remote control (DTMF) and by direct PC connection via USB cable (available

separately)

! Integrated heating of printed circuit (PCB) (option) ! Permanent lighting through visiting cards (option) ! Earthing outlet for better protection against static electricity ! Switchable audible confirmation tones

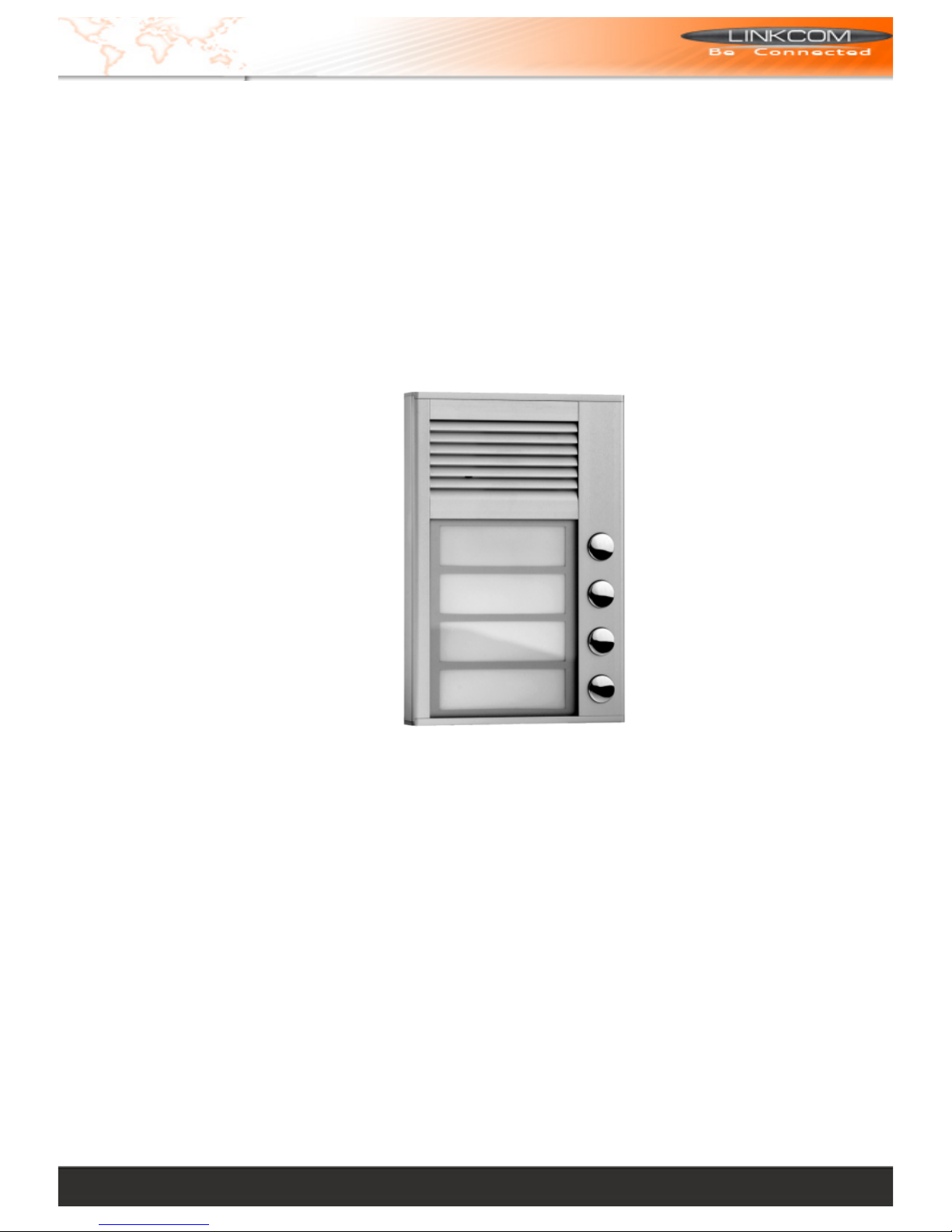

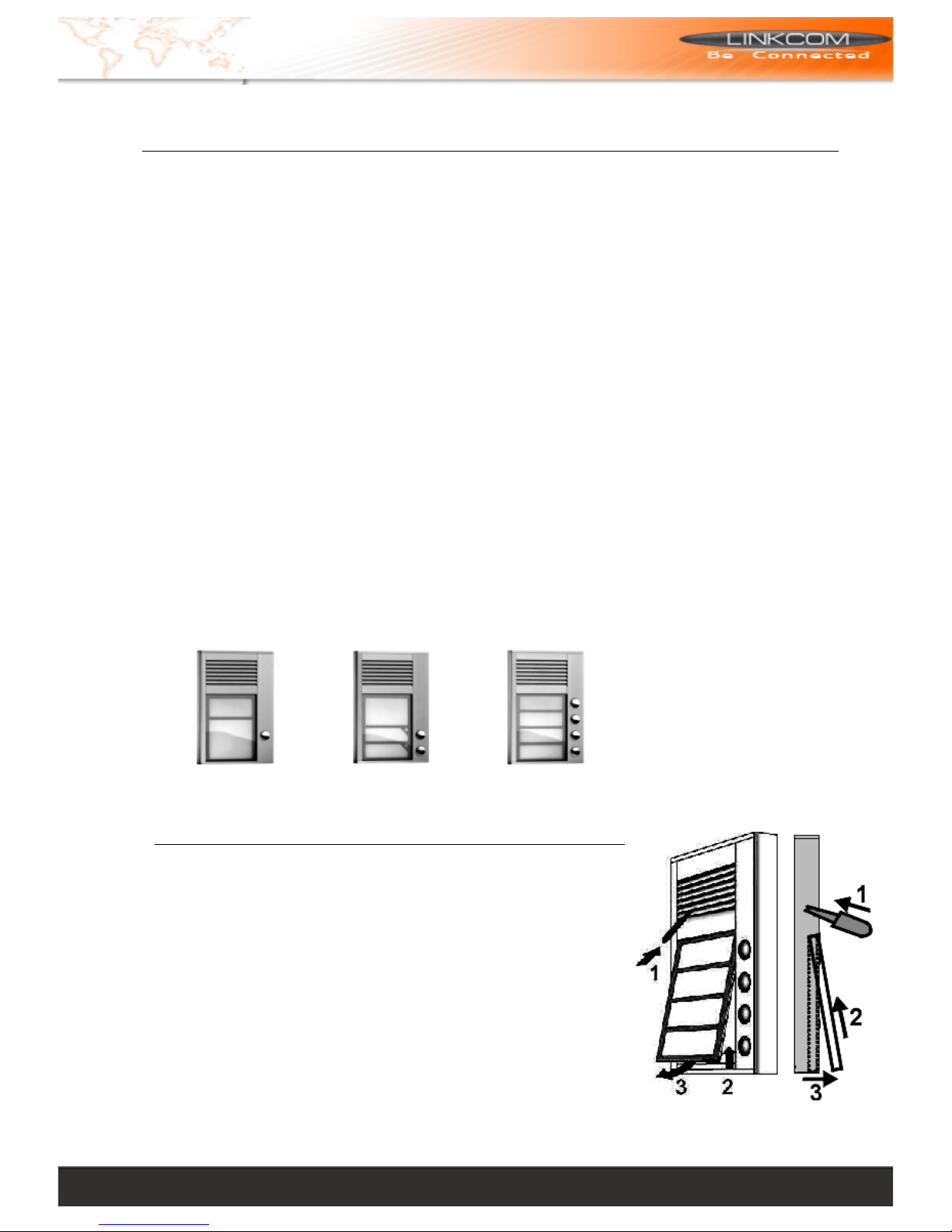

1.2 SlimDoorPhone models

Three versions are available :

1 button 2 buttons 4 buttons

2 Installation

This compact unit is fixed by 2 screws to the wall.

2.1 Opening, wiring, wall mounting and settings

2.1.1 Name card panel

1. Every unit is supplied with a special key which is used to

release the name cards on the front panel. Push the key into the hole in the speaker grille (see figure - 1).

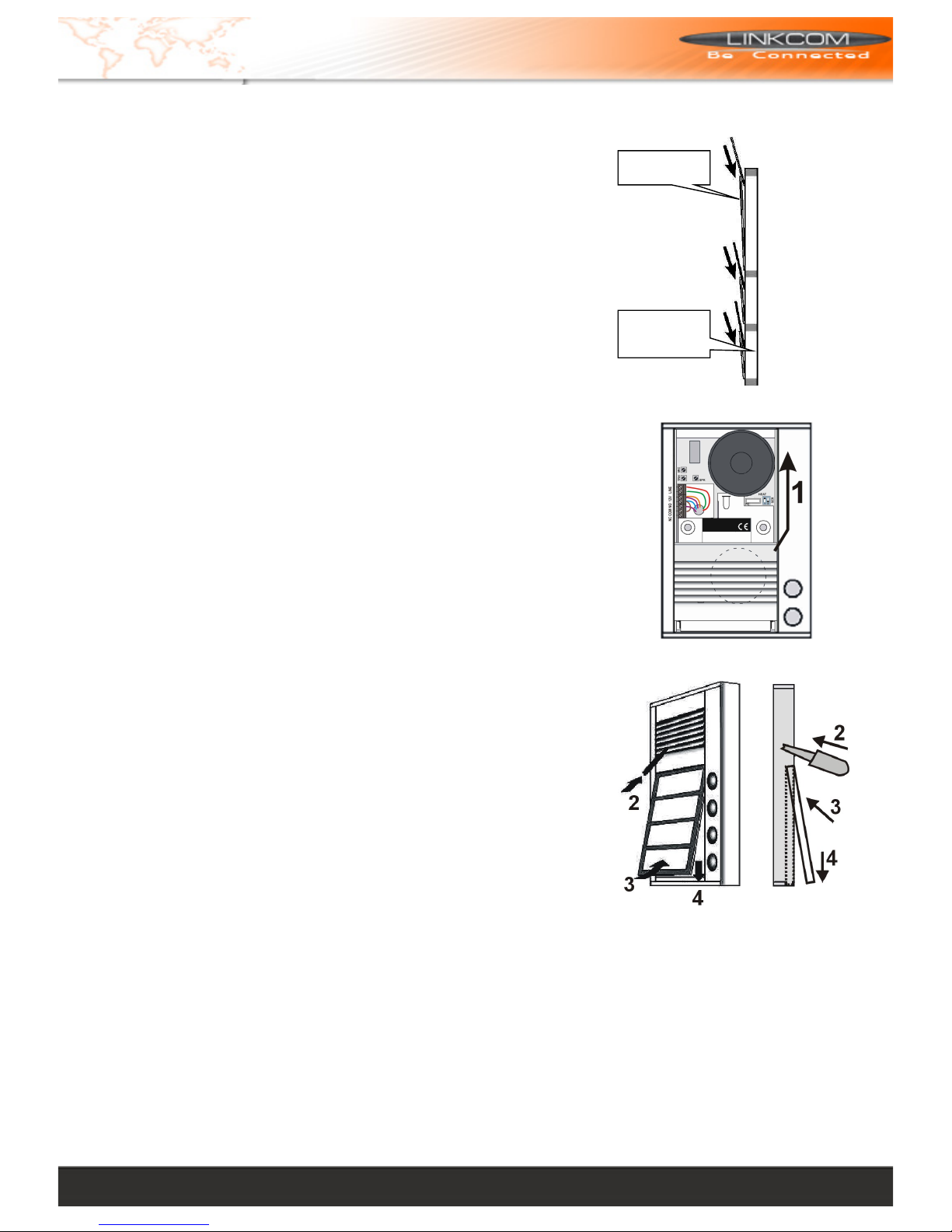

2. Push the name card panel down and then push it towards

to grille (see figure-2).

3. The panel will be released. Pull it towards you to remove

(see figure – 3).

Linkcom France

4

2.1.2 Uncover control elements

4. Push the aluminium speaker grille down (see figure – 4).

2.1.3 Wiring and wall mounting

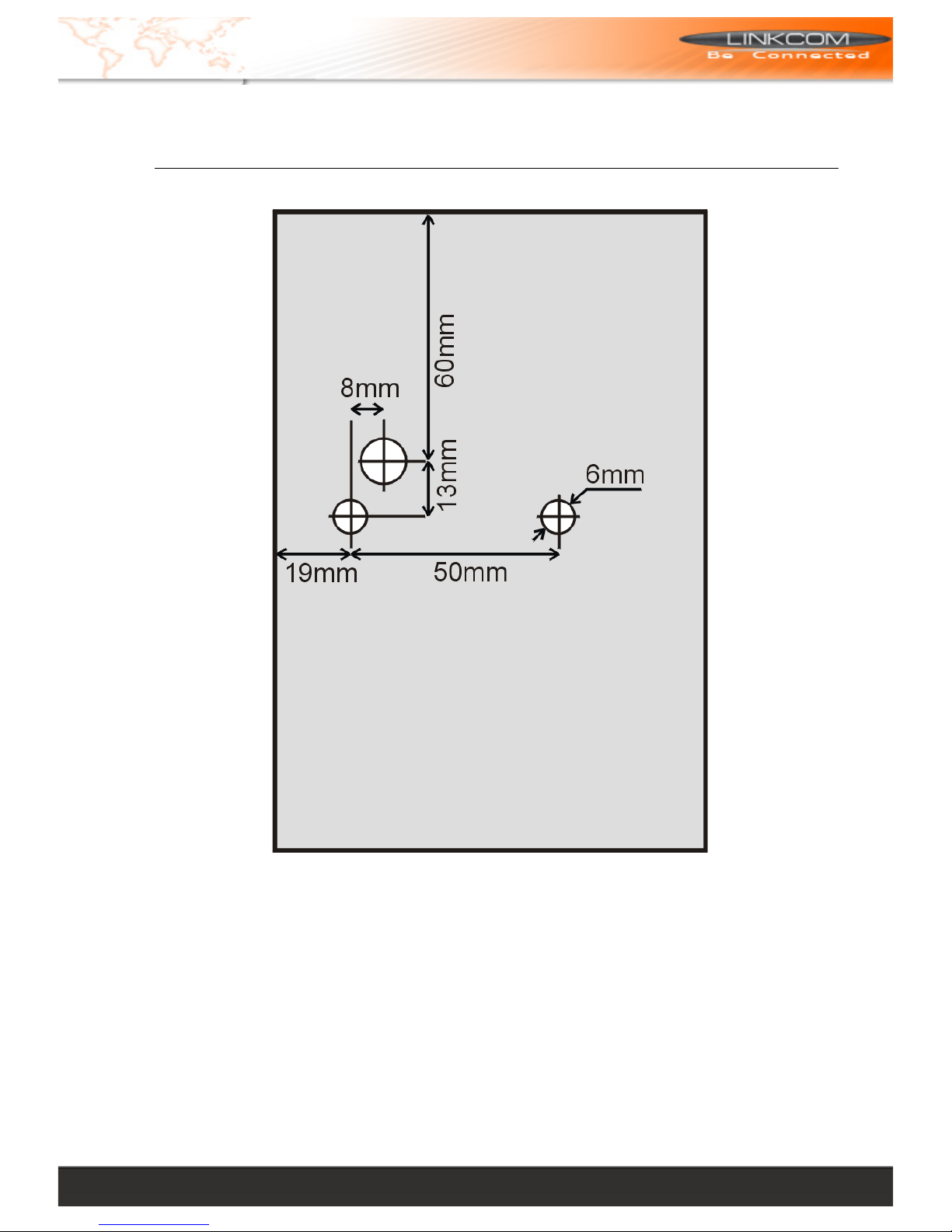

5. Use the wall mounting template at the end of the manual to mark the position for the screw holes and cable connection on the mounting surface. Drill the holes.

6. Feed the cable (analogue line, power supply, lock – see figure - 6) through the cable hole. Fix the panel to the wall using the screws and rawlplugs supplied.

Note: Some materials such as metal and wood may require special screw types.

To power the unit for voice, connect the telephone

wires into the terminal (on the right side). Using either a standard analogue phone line or an analogue extension on a PBX.

For the external power supply, connect to the terminal "12V" external power supply AC

min. 10V / max. 15V or DC min. 12V / max. 18V.

The energy consumption of a connected electrical (magnetic) lock (0,5A – 1,0A)

determines the load on the power supply. If you activate the heating feature the PCB current will climb to about 150mA. We recommend power supply AC 12V/1A.

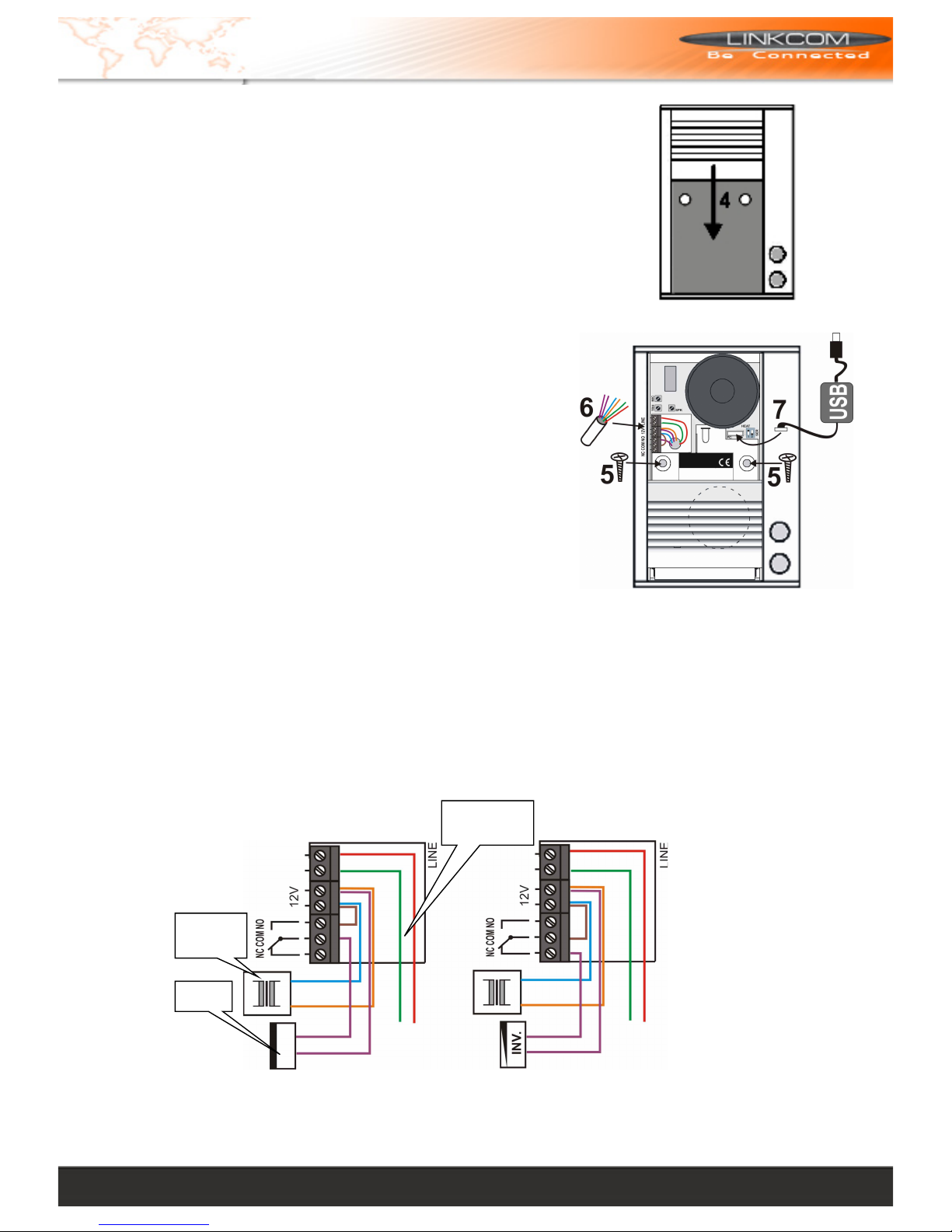

The wiring of relay contacts is explained in the next picture. The symbol "NO" means

contact normally open, "COM" means sharing output

(central) and "NC" means contact normally closed. The relay contact is isolated from the

other circuits on the board. For the variants of lock connection see the picture below.

Power supply

lock

Telephon e line

Linkcom France

5

Wiring of standard and magnetic (inverse) lock

6. A special USB cable enables the doorphone to be connected to a PC for programming of

individual parameters. A dedicated Windows program is included on the CD (requires version W98SE or higher).

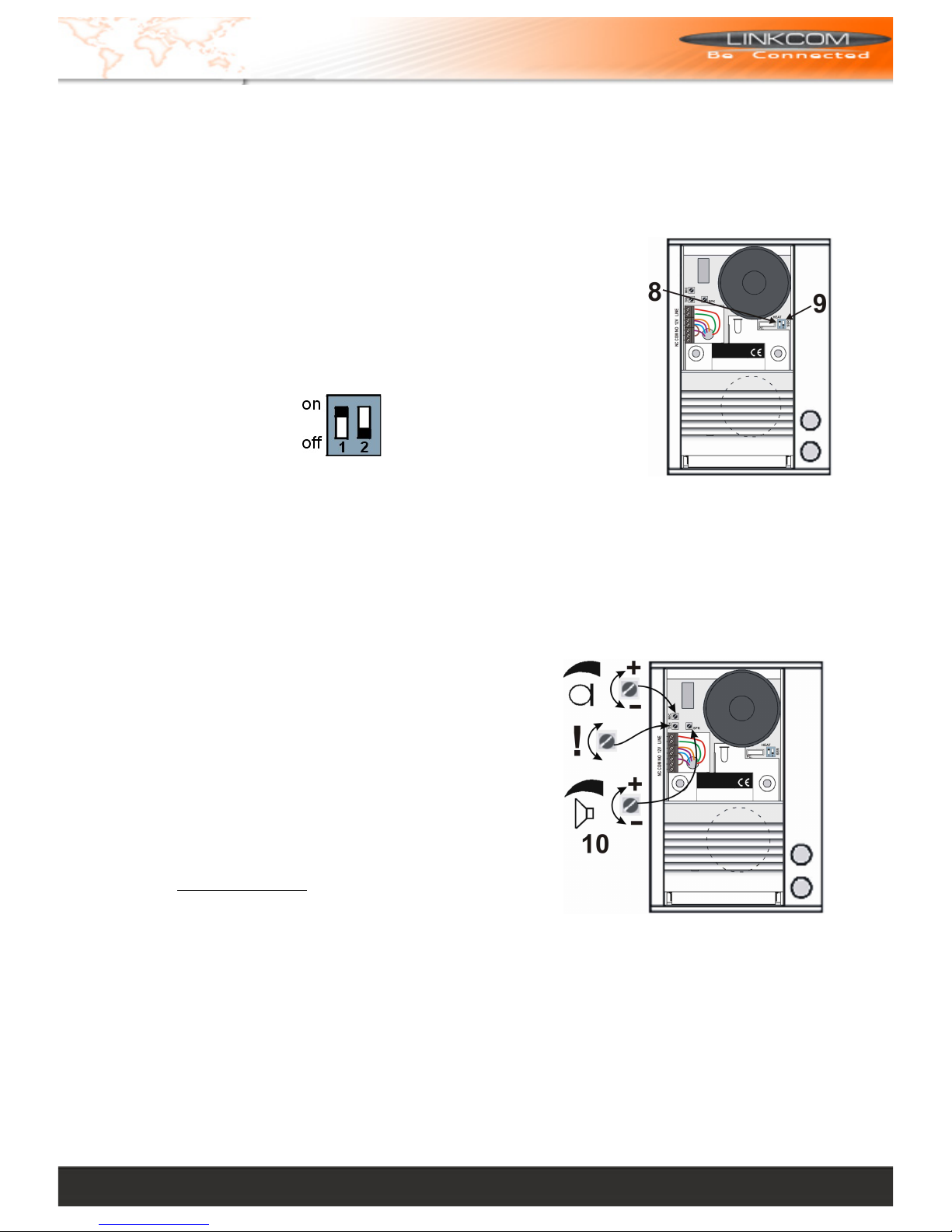

2.1.4 Switches

7. The switch number 1 (see figure – 8) activates heating of the PCB. This is for increased resistance against humidity. To use this feature you must connect an external 12V power supply.

8. The switch number 2 (see figure – 9) is required for programming the unit when the password is forgotten. It is performed by ordinary phone (DTMF – tone dial ).

The switch is

The PCB heating has two major benefits. Firstly, it warms the board during winter

time (temperatures under -20 C, most circuits have warranty operation down to -20 C) and secondly it helps to protect the PCB against humidity when installed outside.

2.1.5 Voice level

9. Voice communication – the trimmer position is factory and should be suitable for most installations. Change the trimmer position only when necessary.

The trimmer "MIC" is designed for microphone volume setting. The trimmer "SPK" is designed for loudspeaker volume setting.

The volume settings are more than adequate for most situations. Therefore we do not recommend setting the trimmer position more than ½. The most suitable position is 1/3 from minimum amplification.

The trimmer "TRH" is designed for setting the microphone activation level. It allows balancing between the microphone and speaker to eliminate feedback. This setting is also influenced by the noise of the surrounding environment. Set up Process: The trimmers MIC and SPK are set to ¼ position from minimum loudness level (turn fully anti-clockwise for minimum). The trimmer TRH is set to a central position. To fine tune, make a test call. Speak quietly, and by adjusting the trimmer TRH from the central position anticlockwise, your speech should be heard more clearly by the PBX user. The amplification of the speaker can be adjusted according to your requirements. Voice interruption might occur if you set the amplification too high. In this case you can use the trimmer TRH to correct the balance between the speaker and the microphone.

Linkcom France

6

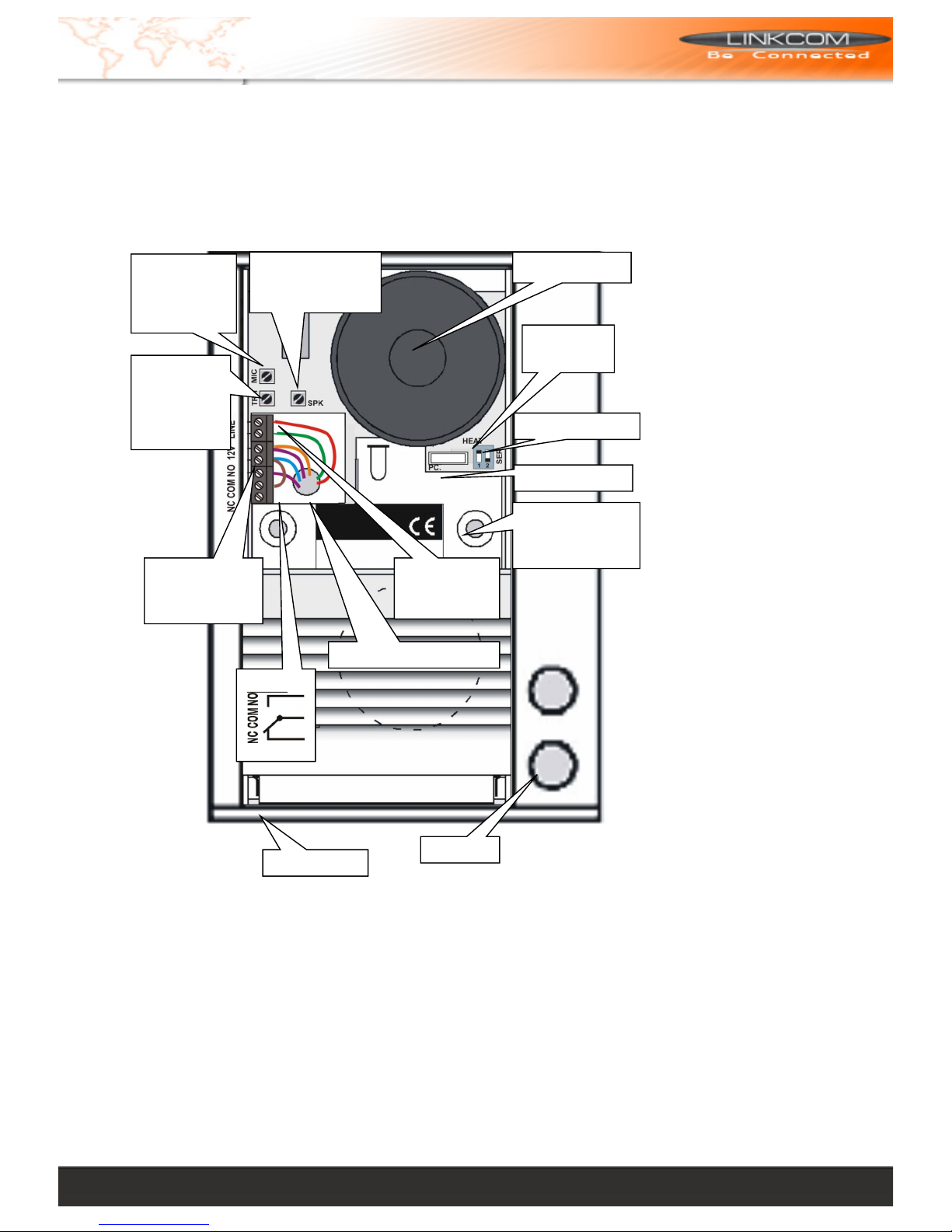

2.2 Location of ID Doorphone components

All mounting, control and setting elements are located under the speaker front aluminium grille.

.

PC

SlimDoorPhon

e fixing screw

hole

Service

Loudspeaker

MIC-

setting of microphon

TRH –

setting of micropho ne

SPK- setting

of speaker

Heating activatio

12V =/~ for

relay, light

and heating

Relay

Telephone

line

Microphon

Buttons

Hole for lead in

Linkcom France

7

2.3 Changing name cards

Name card panel (2on page 3) has spaces to insert printed name cards. Insert name cards from top (see picture). Cards can easily be printed with pictures as well as text using the included software. The card outline is marked for easy cutting .

2.4 Final closing of ID Doorphone

2.4.1 Covering control elements

1. Push aluminium speaker cover back up (see picture). Take care when re-covering the speaker. The aluminium edge of the speaker may be gently pressed if required.

2.4.2 Replacing name card panel

2. Push key into hole in speaker grille as far as possible. (see figure -2).

3. Push name card panel upwards and push the bottom edge in (see figure - 3).

4. Push the name card panel back down behind the lip of the casing (see figure - 4).

pocket

Panel with

Linkcom France

8

3 SlimDoorPhone Services

3.1 Signalling Overview

The unit signals acoustic conditions that may occur during operation. You can listen to

the signalling samples in the ID Manager program.

Condition

Tones

Tone

frequency

Pick up line

––––

425-850-1275

Hang up line

–––

1275-850-425

Confirm command

––––

425

Dialling

DTMF/Pulse

Call

Conversation end warning

––––

1275

Enter programming (phone or PC)

––––

850

Programming tone

––––––––

mod. 850

Parameter confirmation

––––

Programming from PC

Silent

Connection to line (Reset)

––––

1275-850-1275

Error

–––––

––

425….

Empty memory

–––––

––

850-1275-

1700…

Open lock



modul 50/1250

3.2 Visitor at the door

When a visitor presses a button the unit will lift up the line, either immediately (providing the button is not the first number from code lock), or with delay (parameter 53) and after period given by parameter 55, will dial the programmed phone number. The dialled number is dictated by the chosen mode, which is set in the unit (parameter 47):

- Day/night mode = If the unit is in Day mode, it will always dial the number set in parameter 1, In Night mode, it will always dial the number set in parameter 2. The mode switchover is set in parameters 45,46.

- Two-Group mode = on the first press the number set in parameter 1 will be dialled. By pressing of the same button twice, or on detection of busy tone after trying the first number, the unit will select the number from the second group (parameter 2). The next press of the same button again selects the number from the first group, etc..……

If the button is pressed after the line has been opened (but before the call is answered), the unit will hang up for the period given by parameter 54, lift up the line and dial the other group number.

The relay can be controlled by pressing the buttons in the combination that is set in the preprogrammed code (parameters 32-34). The time between presses must not be bigger than that set in parameter 53. The unit will lift up and close the corresponding relay or the period given by parameter 36 . Then it will hang up.

3.3 Telephone Caller

A Telephone Caller is a person that is in phone connection with SlimDoorPhone.

Linkcom France

9

3.3.1 Outgoing call

An “outgoing” call is a call from the unit (i.e. when a visitor presses a button). Once the visitor has pressed a button a telephone will ring. On answering the telephone, you will be able to converse with the visitor. 10 seconds before the maximum call duration (parameter

52) the unit will emit a tone to warn that the call will end. The call may be extended by pressing the key as set in parameter 42. A code may be dialled to close the relay (parameter

35), releasing the lock. Hanging up the telephone will end the call, as will the busy tone from the PBX.

3.3.2 Incoming call

An incoming call is a call to the unit. After dialling the PBX extension number to which the unit is connected, the unit will ring for the set number of rings (parameter 51), the unit will lift up and it is possible to speak. The possibilities are the same as with outgoing call (Chapter 3.3.1). It is also possible to switch between Day and Night service.

• If, within the first 10 seconds, the service password is entered, the unit will switch to programming mode and voice communication will cease.

• During an incoming call it is possible to restrict relay control (parameter 37). This can be useful in some special applications.

4 Parameter programming

4.1 Programming from a telephone by DTMF

4.1.1 Entering programming mode

The SlimDoorPhone may be set to programming mode in two ways:

1. by password – dial the unit‘s number (either extension number, if connected to a PBX or

telephone number, if connected to a PSTN line). The unit will answer (you will hear the

Pick up line tone – see Chapter 3.1 page8). Within 10 seconds dial #xxxx, where xxxx is the password for entry to programming and, if OK, the registration tone for programming mode will sound, and afterwards the Programming tone is heard (see Chapter 3.1 page 8).

2. by "SERVICE" switch – dial the unit in the same way as in 1, but when the SERVICE switch is connected, the unit will automatically enter programming mode. You will hear the call connection confirmation tone, the confirmation tone for programming mode and afterwards the Programming tone is heard. (see Chapter 3.1 page 8).

4.1.2 Parameter programming

The initial state for programming is signalled by the programming confirmation tone. The unit will always revert to this state after 5 seconds of inactivity, even if you have started to program a parameter.

When programming, there are two types of parameters. The majority are parameters with a fixed length. The parameter is always saved immediately and is confirmed by Parameter Confirmation tone. Parameters with variable length (parameters 1,2,32,33,34) are saved after the inactivity period expires (5 sec). However, a varaible length parameter will be saved immediately when maximum permitted number of digits is reached. For parameters 1 and 2 the maximum number of digits is 16, and for parameters 32,33,34 it is

6.

If, during programming, you enter a number which is not allowable, then the unit immediately emits an error tone. The parameter will not be recorded or changed, and the unit will return to its initial programming state and it will be possible to repeat the parameter setting or program another parameter.

The unit stays inactive in programming mode for 34 seconds and will then automatically hang up. Every time a DTMF tone is dialled, this period is reset. Alternatively, parameter 9 may also be selected to end programming mode.

Linkcom France

10

To program a parameter, enter the parameter number followed by the value you wish to set. The unit will either respond with the Parameter Confirmation Tone, or one of the Error Tones.

Note 1. if you wish to maintain the connection in programming mode (i.e. extend the 34 seconds

period) then it is necessary to occasionally press a key (e.g. *, # or 7). The unit will respond with an error tone but the connection will be kept alive.

Note 2. The # sign is not used in the values for parameters 32,33 and 34, and can be used to

immediately save the parameter.

Note 3. If you hang up the phone during programming mode without press 9, the doorphone will stay

in programming mode during 20 seconds.

4.2 Programming from a PC – ID Manager program

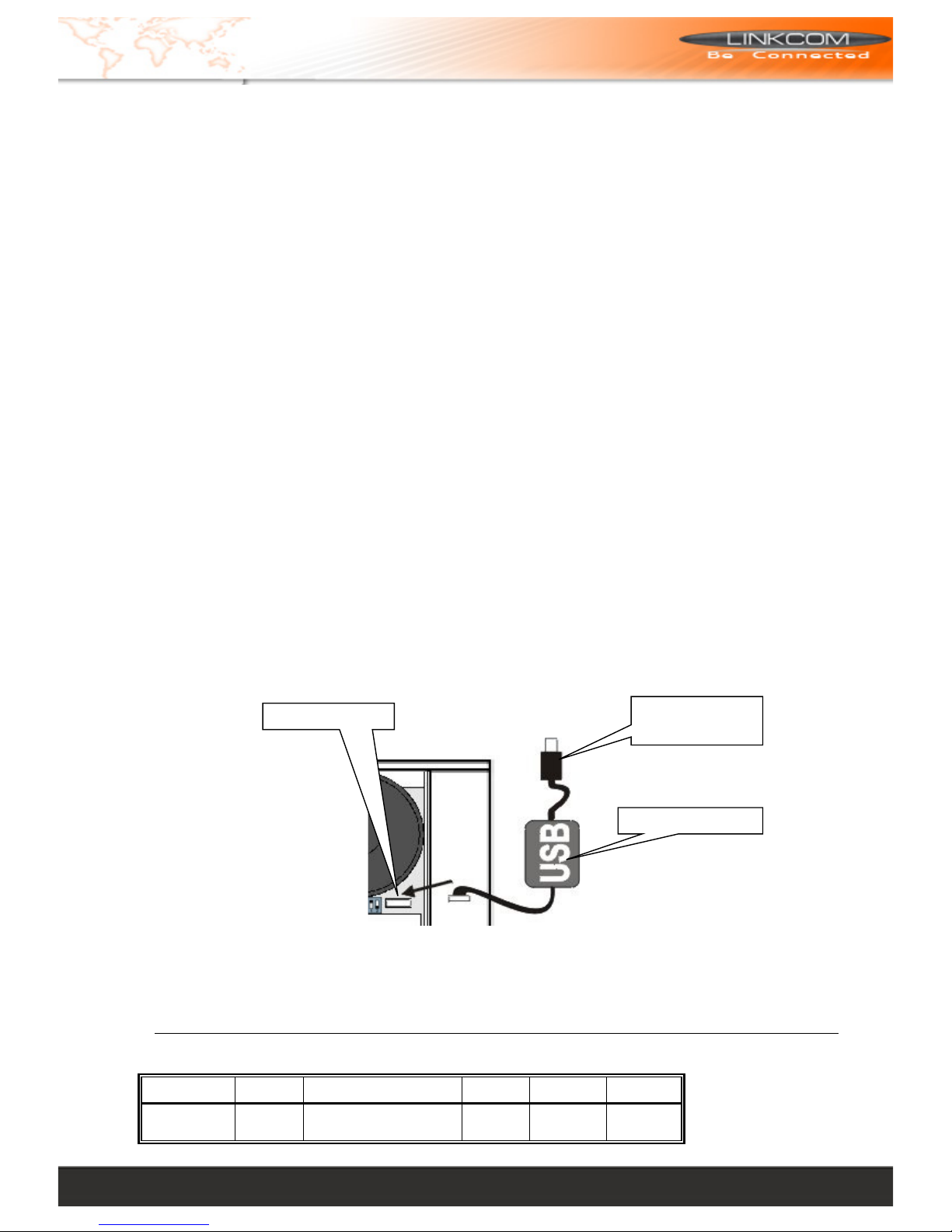

To setup the unit from a PC you will require a special USB tool cable, available separately, and must first install the USB driver and ID Manager software. Refer to the CD for more details. The unit must also be connected to the telephone line.

Procedure:

- Connect the ID Doorphone to the line

- Connect the unit to the PC with the USB tool cable.

- Run the ID Manager program. The unit will enter PC programming mode and emit the

Enter Programming tone (see chapter 3.1). If connection is lost, it is necessary to disconnect the USB cable from unit and connect it again. The unit will answer and, providing the ID Manager program is running, it will confirm its entry into programming mode again.

Refer to the ID Manager manual for more details.

5 Parameter description

5.1 Direct Dialling – Memories

Parameter

Value

Description

Default

Exam.1

Exam.2

1

t nn…

No. nn under

button t

- - -

USB – PC connection

USB – tool

Small

Linkcom France

11

t – Button number (memory) [1-4] nn – telephone number up to 16 digits to be stored. Refer to the table

for other choices. The number stored in parameter 1 is the number for the first group or the number for Day mode.

Parameter

Value

Description

Default

Exam.1

Exam.2

2

t nn…

No. nn under

button t

- - -

t – Button number (memory) [1-4] nn – telephone number up to 16 digits to be stored. Refer to the table

for other choices. The number stored in parameter 2 is the number for the second group or the number for Night mode

Note: The switchover to Day/Night mode remains set in the unit even after line disconnection.

5.2 Relay

Paramet er

Value

Description

Defaul t

Exam. 1

Exam.2

31

r m

Relay mode

1 1 2

m – relay mode [ 1-2] m=1 relay mode – relay will close on command or password for ss period (used for

electrical locks, gate opening, etc.)

m=2 button mode – (activated by button press e.g. external bell).

Paramet er

Value

Description

Defaul t

Exam. 1

Exam. 2

32

r

hhhhhh

External access code in

DAY + NIGHT mode

-

1212

1324

33

r

hhhhhh

External access code in

DAY mode

-

2211

34

r

hhhhhh

External access code in

NIGHT mode

-

1122

hhhhhh – password for relay closing from buttons [2 to 6 digits] The 3 passwords are controlled by Day/Night; the combination is entered using the unit buttons. It is influenced by the setting of Relay mode and Day/Night switchover. When set to 2-group mode the unit is permanently in DAY mode.

Follow these rules when choosing password combination:

" Select passwords carefully, to prevent their discovery from wear on buttons caused by

frequent use.

" Select the first password button from infrequently-used buttons for direct dialling (-

extends choice time)(-not valid for keyboard).

parameter

dial

0 - 9

0 - 9 # #

∗

∗∗

Recall

∗ #

Pause

∗ 0

parameter

choice

0 - 9

# # ∗

∗∗

Recall

∗ #

Pause

∗ 0

Linkcom France

12

Note: The switchover to Day/Night mode remains set in unit even after line disconnection.

Paramet er

Valu e

Description

Defaul t

Exam. 1

Exam. 2

35

aa

Internal access code

55

aa – command from phone to relay closing [2 digits] It is recommended to set the same command for Internal Access Code and End Call (parameter 43) aa=bb.

Paramet r

Value

Description

Default

Exam. 1

Exam. 2

36

ss

Relay closing time

05

02

05

ss – duration of relay closing [2 digits 01-99]

5.3 Basic parameters

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

41

v

Dialling type

0 0 0

v – dial type v=0 is DTMF tone dial, v=1 is pulse dial

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

42

z

Prolong call

∗ ∗ ∗

z – button for call prolongation ∗ or # (10 sec before Maximum Call Duration the unit will

emit a tone. Pressing this button will prolong the call)

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

43

bb

End call

55

bb – command for unit hanging up from phone [2 digits] It is recommended to set the same command for both Internal Access Code (parameter 35) and End Call aa=bb.

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

44

xxxx

Password

0000

xxxx – service password for entry to programming

Paramet er

Valu e

Description

Default

Exam. 1

Exam. 2

45

dd

DAY MODE switching

11

46

nn

NIGHT MODE switching

10

Linkcom France

13

dd – command for DAY MODE switching [2 digits] nn – command for NIGHT MODE switching [2 digits]

Note: The switchover to Day/Night mode remains set in unit even after line disconnection.

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

47

e

Dialling mode

1 1 0

e – operating mode of unit e=0 selects 2-Group mode, e=1 selects Day/Night mode.

5.4 Time parameters

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

51

q

Number of rings before

pick-up

2 1 2

q – Number of incoming call rings before a call is picked up. The number can be set from 1

to 9.

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

52

d

Maximum call duration

2 1 4

d – maximum time in minutes for which a call may last. This time can be

extended during a call by dialling Prolong Call digit from telephone

(∗ or #). Time setting is per table.

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

53

w

time between button

presses

2 2 2

w – max. time [sec] between button presses [range 1-9]

- relay closing – if time between two next presses is bigger than w time, the code is not evaluated correctly.

- dialling – if the button pressed is the first password number for switch closing, so the choice is delayed by this w time.

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

54

z

On hook time before

new call

2 2 2

z – time [sec] for which the unit will hang up, before repeat dialling (button pressing during

call or dialling, busy tone detection) [range 1-5]

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

55

z

Call start time

1 1 1

time

[min]

choice

0,5

0

1 - 9

15 ∗ 30

#

Linkcom France

14

z – time [sec] after unit goes on hook before dialling [range 1-5]. This time is different for

each PBX, but most PBXs usually manage to process dialling up to 2 seconds after line on hook.

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

56

h

Number of rings before

hanging up or group

mode switching

12

h – specifies the amount of time spent ringing before the unit hangs up and tries the next

number.

Paramet er

Value

Description

Default

Exam. 1

Exam.2 57

t

DTMF tone duration

(ms)

5

(100ms)

5

(100m

s)

5

(100m

s)

58

m

Space duration between

DTMF tones (ms)

5

(100ms)

5

(100m

s)

5

(100m

s)

59

f

Recall duration (ms)

1

(100ms)

1

(100m

s)

1

(100m

s)

50

p

Pause duration (ms)

8

(800ms)

8

(800m

s)

8

(800m

s)

t – DTMF tone duration is determined by the formula: (entered number + 5) x 10 = tone duration [ms]

[range 1-0 i.e. 60-150ms]

m – Space duration between DTMF tones is determined by the formula: (entered number + 5) x 10 = gap duration [ms]

[range 1-0 i.e. 60-150ms]

f – Recall duration is determined by the formula: entered number x 100 = Recall duration [ms]

[range 1-6 i.e. 100-600ms]

p – Pause duration is determined by the formula: entered number x 100 = pause duration [ms]

[range 5-0 i.e. 500-1000ms] – p time is simultaneously the duration of interdigit gap at pulse dialling.

Paramet er

Value

Description

Default

5*1

x

Number of busy tones before hahg

up

6

x – is number of busy tones before hahg up by next table:

x

number of busy tones

x

number of busy tones

1 4 5 8 2 4 6

8

3 6 7

10

4 6 8

10

Linkcom France

15

Paramet er

Value

Description

Default

5*2

y

Frequency of tone detection

4

y – setting range frequency of tone detection from telephone line, value is in next table:

y

frequency range

y

frequency range

1

200-350Hz

7

500-650Hz

2

250-400Hz

8

550-700Hz

3

300-450Hz

9

600-750Hz

4

350-500Hz

0

650-800Hz

5

400-550Hz

*

700-850Hz

6

450-600Hz

#

750-900Hz

Paramet er

Value

Description

Default

5*3

z

Time of continuous tone before hang

up

0

z – time of continuous tone before hang up. Hang up on dial tone, setting the time by next

table:

z

time of continous tone

z

time of continous tone

1

1,2sec

7

3,3sec

2

1,6sec

8

3,6sec

3

2,0sec

9

3,9sec

4

2,3sec

0

4,2sec

5

2,6sec

*

4,6sec

6

3,0sec

#

5,0sec

5.5 Presetting and Deleting

Paramet er

Value

Description

Default

Exam.1

Exam.2

8#

#

Default setting

executes

8#

1

Setting per exam.

1

executes

8#

2

Setting per exam.

2

executes

This setting does not influence 1 and 2 (numbers stored in memory)

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

81

Deletes all numbers in

group 1 (Day mode)

82

Deletes all numbers in

group 2 (Night mode)

83

Default setting only

for parameters 3x

only 3..

84

Default setting only

for parameters 4x

only 4..

85

Default setting only

for parameters 5x

only 5..

The parameters 81 and 82 will delete all numbers stored in memories for buttons. The parameters 83 – 85 will execute a selective basic setting only for parameters starting with 3.. – 5..

Linkcom France

16

ATTENTION !!! the deletion is non-reversible!!! Numbers must be programmed again.

5.6 Exit programming

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

9

E N D

After dialling 9 the unit will hang up. If you hang up the phone during programming mode without

press 9, the doorphone will stay in programming mode during 20 seconds.

5.7 System setting

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

6#

s

Number of fitted buttons

of basic module

The basic module is fitted with 4 buttons as standard, i.e. s = 1 is set up for basic module with one button and s = 2 for module with 2 buttons. This setting is a factory one, no service can change it and so it is recommended not to change this parameter.

Note: Connecting to the line the value of this parameter is checked and if not satisfactory for unknown reasons, so it is set up to s = 4 (fitted with 4 buttons).

ATTENTION !!! This parameter can cause the unit to function incorrectly.

Paramet r

Value

Description

Default

Exam. 1

Exam. 2

6

z

Acoustic signalling

3 and 9

3 and

9

3 and

9

In default the unit produces acoustic signals. It can occasionally cause a problem of incorrect detection of tones by PBX. By changing parameter „z“ you can switch off this acoustic signalization. The values are: z=0 – all signalling is switched off z=1 – pick up and hang up tones are active only z=2 – other tones active only (except pick up and hang up)

z=3 – all tones are active – (default)

It is possible to generate an audible signal (only in mode m=1) to alert visitors that the door is unlocked so that they can enter. This is especially useful when using a DC power source, as lock release may be silent. z=8 – signalling is active z=9 – signalling is unactive

Paramet er

Value

Description

Default

Exam. 1

Exam. 2

6∗

t

Delay of line connection

(Siemens PBX)

1 1 1

Setes a delay for line pick-up (OFF HOOK) for new PBX types (particularly Siemens): t=1 – standard operation t=0 – delayed start

5.8 Overview of Parameters

Parameter

Value

Description

Default

Exam.1

Exam.2

1

t nn…

No. nn under

button t

- - -

Linkcom France

17

2

t nn…

No. nn under

button t

- - -

31

r

Relay mode

1 1 2

32

hhhhhh

External access

code in

DAY + NIGHT

mode

-

2211

1324

33

hhhhhh

External access

code in

DAY mode

-

2211

34

hhhhhh

External access

code in

NIGHT mode

-

1122

35

aa

Internal access

code

55

36

r ss

Relay closing time

05

02

05

41

v

Dialling type

0 0 0

42

z

Proling call

* * *

43

bb

End call

55

44

xxxx

Password

0000

45

dd

DAY MODE

switching

11

46

nn

NIGHT MODE

switching

10

47

e

Dialling mode

1 1 0

51

q

Number of rings

before pick-up

2 1 2

52

d

Maximum call

duration

2 1 4

53

w

Time between

button presses

2 2 2

54

z

On hook time

before new call

2 2 2

55

z

Call start time

1 1 1

56

h

Number of rings

before hanging up

or group mode

switching

12

57

t

DTMF tone

duration (ms)

5

(100ms)

5

(100ms)

5

(100ms)

58

m

Space duration

between DTMF

tones (ms)

5

(100ms)

5

(100ms)

5

(100ms)

59

f

Recall duration

(ms)

1

(100ms)

1

(100ms)

1

(100ms)

50

p

Pause duration

(ms)

8

(800ms)

8

(800ms)

8

(800ms)

6#

s

Number of fitted buttons on basic

module

6*

t

Delay of line

connection

(Siemens PBX)

1 1 1

6

z

Acoustic signalling

3 and 9

8#

#

Default setting

executes

Linkcom France

18

8#

1

Setting per exam.

1

executes

8#

2

Setting per exam.

2

executes

81

Deletes all

numbers in

group 1 (Day

mode)

82

Deletes all

numbers in

group 2 (Night

mode)

83

Default setting

only

for parameters 3x

only 3..

84

Default setting

only

for parameters 4x

only 4..

85

Default setting

only

for parameters 5x

only 5..

9

E N D

6 Technical parameters

6.1 Electrical parameters

Parameter

Value

Conditions

Minimum line current

18mA

line answered

Minimum line voltage

18V

line hang up

Voltage on line while off hook (VA characteristics)

< 8V

< 12V

I = 20mA

I = 60 mA

Leakage in hang up status

< 50uA

U = 60V

Impedance of line termination

130R +

820R paral. 220n

line answered

Bandwidth

300Hz – 3400 Hz

20 - 60mA

Impedance of ringing

> 2Kohm

25 – 60 Hz

Sensitivity of ringing detector

min. 10 – 25 V

Pulse choice

40 / 60 ms

Tone choice level

4 - 6 dB

20 – 60 mA

Tone choice sensitivity

40 dB

20 – 60 mA

Sensitivity of tone detector

30 dB

20 – 60 mA

Power supply of lighting through, switches and heating

12V ± 2V , 10-12V ± 2V

Max. consumption of lighting through and heating

300mA

12V

Max. voltage of switch contact

48V

at I < 1A

Max. current of switch contact

2A

at U < 30 V

Operational temperature

- 20 to + 50°C

Linkcom France

19

6.2 Mechanical dimensions

Dimensions WxHxD 104mm x 153mm x 16mm Weight 360g Unit material elox aluminium profile Name card panel material acrylglas (plexiglass)

7 Table for easy programming

Complete the values you want to program in the empty part of table on the next page. All programming commands are located in the double-framed area, to simplify programming. Retain a copy for future reference.

Use

Programming sequence

digits

Description

Detail

par.

Fill values

Number under button 1

Day/Gr.1

101 16

Number under button 2

Day/Gr.1

102 16

Number under button 3

Day/Gr.1

103 16

Number under button 4

Day/Gr.1

104 16

Number under button 1

Night/Gr.2

201 16

Number under button 2

Night/Gr.2

202 16

Number under button 3

Night/Gr.2

203 16

Number under button 4

Night/Gr.2

204 16

Relay mode

m=1 - 2

31 1

External access code

Day+Night

32 6

External access code

Day

33 6

External access code

Night

34 6

Internal access code

35 2

Relay closing time

[sec]

36 2

Dialling type

1 / 0

41 1

Prolong call

∗ / #

42 1

End call

43 2

Password

44 4

DAY MODE switching

45 2

NIGHT MODE switching

46 2

Dialling mode

1 / 0

47 1

No. of rings before pickup

51 1

Maximum call duration

[min]

52 1

Time between button press

[sec]

53 1

On hook time before new call

[sec]

54 1

Call start time

[sec]

55 1

Number of rings before hang up or group mode switching

56 2

DTMF tone duration

(n+5)x10

57

ms

1

Linkcom France

20

Gap between DTMF tones

(n+5)x10

58

ms

1

Recall duration

nx100

59

ms

1

Pause duration

nx100

50

ms

1

Linkcom France

21

8 Drilling master board

Linkcom SlimDoorPhone 1 button, SlimDoorPhone 4 buttons, SlimDoorPhone 2 buttons User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
