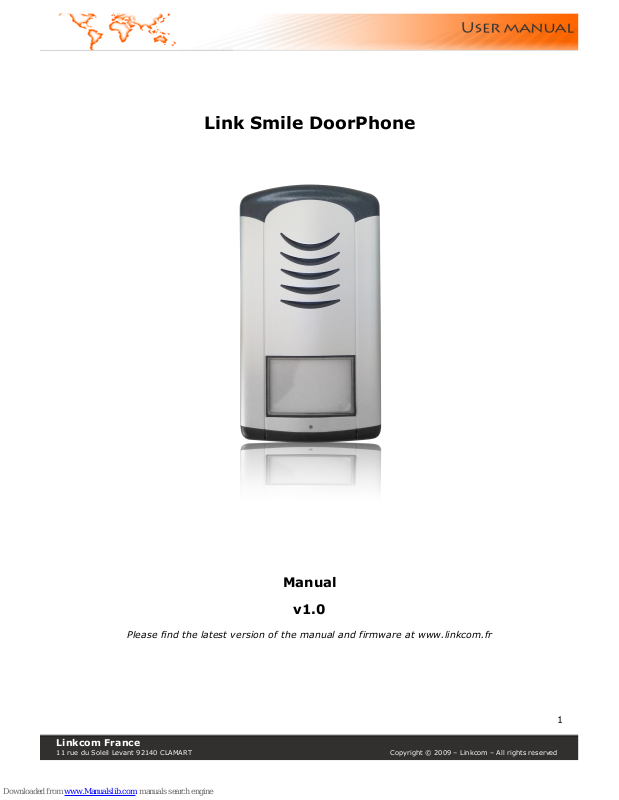

Link Smile DoorPhone
v1.0
Please find the latest version of the manual and firmware at www.linkcom.fr
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2009 – Linkcom – All rights reserved
2
Table of Contents
!
1.#Basic#Description#....................................................................................................................................................#3!
1.#PCB#Schematics#.....................................................................................................................................................................#3!
2.#Installation#................................................................................................................................................................#4!
2.1#Assembly#...............................................................................................................................................................................#4!
2.2#Wall#mounting#....................................................................................................................................................................#5!
2.3#Connection#...........................................................................................................................................................................#6!
3.#Smile#DoorPhone#Service#.....................................................................................................................................#7!
3.1.#Signaling#overview#...........................................................................................................................................................#7!
3.2.#Visitor#at#the#door#.............................................................................................................................................................#7!
3.3.#Telephone#Caller#...............................................................................................................................................................#8!
3.3.1.#Outgoing(call#...................................................................................................................................................................#8!
3.3.2.#Incoming(call#...................................................................................................................................................................#8!
4.#Parameter#programming#.....................................................................................................................................#8!
4.1#Programming#from#a#telephone#by#DTMF#.................................................................................................................#8!
4.1.1#Parameter#programming#.............................................................................................................................................#9!
4.2#PC#programming#–#Smile#DoorPhone#Config#programm#......................................................................................#9!
5. Parameter#description#........................................................................................................................................#10!
5.1.#Direct#numbers#dial#–#memories#...............................................................................................................................#10!
5.2.#Relay#....................................................................................................................................................................................#10!
5.3.#Basic#parameters#............................................................................................................................................................#11!
5.4.#Time#parameters#............................................................................................................................................................#12!
5.5.#System#parameters#........................................................................................................................................................#14!
5.6.#HandsFree#Parameteres#setting#................................................................................................................................#16!
5.7.#Default#setting#and#erasing#..........................................................................................................................................#18!
5.8.#Exit#programming#...........................................................................................................................................................#18!
5.9.#Parameters#ove r v ie w#....................................................................................................................................................#19!
6.#Technical#parameters#.........................................................................................................................................#21!
6.1.#Electrical#parameters#....................................................................................................................................................#21!
6.2.#Mechanical#dimensions#................................................................................................ ................................................#21!
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
3
1. Basic Description
1. PCB Schematics
1. Connector for USB programming cable
2. Speaker connection
3. Microphone connection
4. DIP switch: 1: Service, when the programming password is forgotten, the incoming call is going directly to programming mode and you can set new password. 2: Heating, switch ON integrated heating of motherboard to increase resistance against
condensation water.
5. Connector for PBX analog extension port or PSTN line.
6. Ground - connection to ground for static electricity protection
7. Relays connector (max. 48V / 1,5A)
8. 12V power supply connector. The power supply is necessary for the relay, the motherboard heating
and cards backlighting.
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
4
2. Installation
2.1 Assembly
Open and close the cover:
Dismounting lighting of nameplate:
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
5
2.2 Wall mounting
The installation is made by a screwing and dowels.
Return lighting nameplate after mounting on the wall.
Each button has its separate nameplate hold by means of plastic flag (see figure).
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
6
2.3 Connection
Line :
The basic functionality of intercom (voice communication) needs connection of telephone line only. When you connect the line, the Link Smile DoorPhone announces by sound signal. We not recommend connecting the Link Smile DoorPhone in parallel with other analog phone.
Attention: The line is necessary to program the Link Smile DoorPhone by the software.
12V Power supply:
The power supply might be AC and also DC, not depends on polarity. For 12V, the max consumption is 250mA. Power supply might be used also for electrical lock powering. Then we recommend power supply 12V/1A. You can also use 24V DC power supply. It is useful mainly at installations where power supply is already installed and it is used for sliding doors, RFID, etc..
Attention: The power supply is necessary for the correct operation of the relay.
Relay : The Relay have many possibilities in practice usage. The 12V power supply must be connected for correct operation. The intercom unit has galvanically isolated all important parts. Telephone line is isolated from power supply and relay contacts are also galvanically isolated from other electronic parts. In any case must not be activated directly main voltage 120V or 230V ! When you need control main devices please use contactors (power relays).
Wiring of standard and magnetic (inverse) lock :
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
7
3. Smile DoorPhone Service
3.1. Signaling overview
The Smile DoorPhone signaling acoustically stages which are happening during operation. Samples of acoustical sounds you can play in Smile DoorPhone Config.
Stage
Tones
Tone
frequency
Line pick up (OFF HOOK) type 1
▄■▄■▀
980-1333-1650
Line hang up (ON HOOK) type1
▀■▄■▄
1650-1333-980
Line pick up (OFF HOOK) type 2
▄■▀
800-1067-1200-
1333
Line hang up (ON HOOK) type2
▀■▄
1333-1200-1067-
800
Command confirmation by phone
––––
800
Alerting (knocking) into call
─┴─┴─
Call ending alert
1333
Relay activation signal
─▒▒▒▒▒▒─
Modulovaný
Programming enter by phone
▄■▀
980-1067-1180
Programming by phone
––▓–▓–––––
Modulovaný
Parameter confirmation
––––
800
Programming enter by PC
▄■▀
980-1067-1180
Line connection (Reset)
1850-1067-1850
Error (generally all incorrects)
800
Memory empty (no number programmed)
▄■▄■▄■▄■
1300-2100
For the problems identification is very good when you know the tones. It helps you monitor how door intercom works and where from comes the problem. The signaling might be switch of in a few levels (Parameters 61,62,63 and 65).
3.2. Visitor at the door
When the visitor finds the desired name and push it, the Smile DoorPhone pick up the line and play the tone line pick up (when is not switch off by parameter 62) and calls the phone number saved under the button (parameter 1). On the Smile DoorPhone speaker you hear ringing tone and the destination phone ringing. As soon as the destination phone pick up, you can talk to visitor at the door. When is electrical lock is connected to the Smile DoorPhone, you can open the door for visitor by dial DTMF code on the destination phone. When the destination phone hang-up the line then the Smile DoorPhone hangs up after busy tone detection. When the call duration is longer then setup limit (parameter 52) 10 sec before hang up, the Smile DoorPhone sends a alerting tone of call ending, dial * or # (parameter 42) to prolong the call.
The dialed number is dictated by the chosen mode, which is set in the unit (parameter 47):
Day/Night mode: If the unit is in Day mode, it will always dial the number set in parameter 1, In Night mode, it will always dial the number set in parameter 2. The mode switchover is set in parameters 45,46.
2 groups numbers mode: On the first press the number set in parameter 1 will be dialed. When the same button is pushed or 10 seconds after dial busy tone is detected, or setup number of
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
8
rings is out (parameter 56), the unit will select the number from the second group (parameter 2). The next press of the same button again selects the number from the first group, etc.…
When visitor push the button after line is picked up the Smile DoorPhone hangs up for time setup by parameter 54 and then picks up the line and dial new number. The dialing number is either by tone dial (DTMF) or pulse dial up setting by parameter 41. There is one more option: the line hangs up by again pushing of same button (parameter 4*).
3.3. Telephone Caller
A Telephone Caller is a person that is in phone connection with Smile DoorPhone.
3.3.1. Outgoing call
An “outgoing” call is a call from the unit (i.e. when a visitor presses a button). Once the visitor has pressed a button a telephone will ring. On answering the telephone, you will be able to converse with the visitor. 10 seconds before the maximum call duration (parameter 52) the unit will emit a tone to warn that the call will end. The call may be extended by pressing the key as set in parameter 42. A code may be dialed to close the relay (parameter 35), releasing the lock. Hanging up the telephone will end the call, as will the busy tone from the PBX.
3.3.2. Incoming call
An incoming call is a call to the unit. After dialing the PBX extension number to which the unit is connected, the unit will ring for the set number of rings (parameter 51), the unit will lift up and it is possible to speak. The possibilities are the same as with outgoing call (Chapter 3.3.1). It is also possible to switch between Day and Night service.
If, within the first 10 seconds, the service password is entered (#0000), the unit will switch to programming mode and voice communication will cease.
Second exception is when DIP1 is switch to position ("SERVIS"). Then you enter in programming mode directly without dialing service password.
During an incoming call it is possible to restrict relay control. This can be useful in some special applications.
4. Parameter programming
4.1 Programming from a telephone by DTMF
The Smile DoorPhone may be set to programming mode in two ways:
by password : dial the unit‘s number (either extension number, if connected to a PBX or telephone number, if connected to a PSTN line). The unit will answer (you will hear the Pick up
line tone – see Chapter 3.1). Within 10 seconds dial #xxxx, where xxxx is the password for entry to programming and, if OK, the registration tone for programming mode will sound, and afterwards the Programming tone is heard (see Chapter 3.1).
By "SERVICE" switch – dial the unit in the same way as in 1, but when the SERVICE switch is connected, the unit will automatically enter programming mode. You will hear the call connection confirmation tone; the confirmation tone for programming mode and afterwards the Programming tone is heard. (see Chapter 3.1).
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
9
4.1.1 Parameter programming
The initial state for programming is signaled by the programming confirmation tone. The unit will always revert to this state after 5 seconds of inactivity, even if you have started to program a parameter.
When programming, there are two types of parameters. The majority are parameters with a fixed length. The parameter is always saved immediately and is confirmed by Parameter Confirmation tone. Parameters with variable length (parameters 1,2,32,33,34) are saved after the inactivity period expires (5 sec). However, a variable length parameter will be saved immediately when maximum permitted number of digits is reached. For parameters 1 and 2 the maximum number of digits is 16, and for parameters 32,33,34 it is 6.
If, during programming, you enter a number that is not allowable, then the unit immediately emits an error tone. The parameter will not be recorded or changed, and the unit will return to its initial programming state and it will be possible to repeat the parameter setting or program another parameter.
The unit stays inactive in programming mode for 34 seconds and will then automatically hang up. Every time a DTMF tone is dialed, this period is reset. Alternatively, parameter 9 may also be selected to end programming mode. To program a parameter, enter the parameter number followed by the value you wish to set. The unit will either respond with the Parameter Confirmation Tone, or one of the Error Tones.
Note 1. if you wish to maintain the connection in programming mode (i.e. extend the 34 seconds period) then it is necessary to occasionally press a key (e.g. *, # or 7). The unit will respond with an error tone but the connection will be kept alive.
Note 2. The # sign is not used in the values for parameters 32,33 and 34, and can be used to immediately save the parameter.
Note 3. If you hang up the phone during programming mode without press 9, the doorphone will stay in programming mode during 30 seconds.
4.2 PC programming – Smile DoorPhone Config programm
To setup the unit from a PC you will require a special USB tool cable, available separately, and must first install the USB driver and software. Refer to the CD for more details. The unit must also be connected to the telephone line.
Procedure:
Connect the Smile Doorphone to the phone line
Connect the unit to the PC with the special USB cable.
Run the software program. The unit will enter PC programming mode and emit the Enter
programming tone If connection is lost, it is necessary to disconnect the USB cable from unit and connect it again. The unit will answer and, providing the program is running, it will confirm its entry into programming mode again.
When the connection is correct, you can the firmware version of Smile DoorPhone (visible in bar).
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
10
5. Parameter description
5.1. Direct numbers dial – memories
Parameter
Value
description
Default
1
tt nn…
nn=destination Number. tt=button number (01)
-
tt – button number (memory), always has 2 digits [01-99] nn – telephone number up to 24 digits to be stored. Refer to the table for other choices. The number stored in parameter 1 is the number for the first group or the number for Day mode.
Parameter
Value
Description
Default
2
tt nn…
nn=destination Number. tt=button number (01)
-
tt – button number (memory), always has 2 digits [01-99] nn – phone number up 24 digits to be stored. Refer to the table for other
choices. Numbers saved in parameter 2 are numbers of second group, or numbers of Night mode.
Default settings doesn’t erase as same as changed those saved numbers.
Note:
The switchover to Day/Night mode remains set in the unit even after line disconnection. For the Smile DoorPhone, tt is always 01
5.2. Relay
Parameter
Value
Description
Default
31
r m
Relay mode
11
r – relay number [1-2] m=1 relay mode – relay will close on command or password for ss period (used for electrical locks, gate opening, etc.) m=2 button mode–(activated by button press, external bell).
Parameter
Value
Description
Default
35
r aa
First code aa from phone for relay activating r (00-99,*0-*9)
1 55
36
r cc
Second code aa from phone for relay activation r (00-99,*0-*9)
1 50
description
dial
0 - 9
0 - 9
#
#
*
**
Flash
* #
Pause
* 0
description
Dial
0 - 9
0 - 9
#
#
*
**
Flash
* #
Pause
* 0
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
11
r – relay number [1-2]. Always 1 for Smile DoorPhone aa – command from phone to relay closing [2 digits]
Parameter
Value
Description
Default
37
r ss
Relay closing time (01-99)
105
r – relay number ss – duration of relay closing [2 digits 01-99]. (time 00 means 0,5sec)
5.3. Basic parameters
Parameter
Value
Description
Default
41
v
Dial type
0
v – dial type v=0 is DTMF tone dial, v=1 pulse dial
Parameter
Value
Description
Default
42
z
Character to prolong the call (* / #)
*
z – button for call prolongation or # (10 sec before Maximum Call Duration the unit will emit a tone.
Pressing this button will prolong the call).
Parameter
Value
Description
Default
43
g bb
End call (00-99,*0-*9)
155
g – command order [1-2] (they are two to be possibility hang up the doorphone when each relay is
used) bb – command to and call by phone [2 digits] It is profitable setup the same command to hang up the doorphone as same as activate relay (Parameter
35)
Note: The command has always 2 digits but if you want use 1 digit then you have possibility insert "*a" where a is just one number.
Parameter
Value
Description
Default
44
xxxx
Service password (0000-9999)
0000
xxxx – service password for entry to programming by phone (DTMF)
Parameter
Value
Description
Default
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
12
45
dd
Day mode switching (00-99,*0-*9)
11
46
nn
Night mode switching (00-99,*0-*9)
10
dd – command to switch into DAY mode [2 digits] nn – command to switch into NIGHT mode [2 digits] Note. The switchover to Day/Night mode remains set in unit even after line disconnection.
Parameter
Value
Description
Default
47
e
Dialing mode (0/1)
1
e – operating mode of unit e=0 for 2 Group mode, e=1 for Day/Night mode.
Parameter
Value
Description
Default
4*
k
End call by push again the same button (0/1)
1
k – line hanging up by push of same button: k=0 feature is switch off k=1 again button push hang up the line
5.4. Time parameters
Parameter
Value
Description
Default
51
q
Number of rings before picks up (1-9)
2
q – number of incoming call rings .
Parameter
Value
Description
Default
52
d
Maximal call duration (0-9,*,#)
2
D – Maximum time in minutes for which a call may last. This time can be extended during a call by dialing Prolong Call digit from telephone (or #). Time setting is per table.
time[min]
Dial
0,5
0
1 - 9
1 -
9
15
*
30
#
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
13
Parameter
Value
Description
Default
53
w
Time between button push (1-9)
2
w – maximal time [sec] between button push [range 1-9] relay closing – if time between two next presses is bigger than w time, the code is not evaluated
correctly.
Parameter
Value
Description
Default
54
z
On hook time before new call (1-5)
2
z – time [sec] for which the unit will hang up, before repeat dialing (button pressing during call or dialling, busy tone detection) [range 1-5]
Parameter
Value
Description
Default
55
z
Call start time (1-5)
1
z – time [sec] after unit goes on hook before dialing [range 1-5]. This time is different for each PBX, but most PBXs usually manage to process dialing up to 2 seconds after line on hook.
Parameter
Value
Description
Default
56
hh
Number of rings before hanging up or group mode switching. (04-99)
12
h – specifies the amount of time spent ringing before the unit hangs up and tries the next number.
Parameter
Value
Description
Default
500
x
Middle frequency of tones detector (1-0)
3
(375-475Hz)
501
y
Number of busy tones (2-
0)
4
502
z
Time of permanent tone duration (1-
5)
3 (3s)
x – middle frequency of tones detector – is suitable when PBX signaling is unusual: y – minimal number of busy tones necessary for detection [2-0], where 0 means 10 busy tones z – minimal time of permanent tone duration (for dial tone detection on PBX) [1-5 sec]
Parameter
Value
Description
Default
503
tt
Time of tone duration DTMF (tone) dial (04-16)
10 (100ms)
504
mm
Time of space duration between DTMF tone (04-16)
10 (100ms)
505
f
Time of Flash duration (1-6)
1 (100ms)
506
p
Time of pause duration / pause between numbers (1-0)
4 (800ms)
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
14
tt – Time of tone duration DTMF (tone) dial is calculated up: (Inserted number) x 10 = tone duration time [ms]
[range 04-16 correspond to 40-160ms]
m – Time of space duration between DTMF tones is calculated up: (Inserted number) x 10 =pause duration time [ms]
[range 04-16 correspond to 40-160ms]
f – Time of Flash duration is calculated: Inserted number x 100 = Flash duration time [ms]
[range 1-6 correspond to 100-600ms]
p – Time of pause duration is calculated: Inserted number x 100 + 400 = pause duration time [ms]
[Range 1-0 correspond to 500-1400ms] – Time p is also time of pause between numbers at pulse dialing
Parameter
Value
Description
Default
507
uu
Level of sending tone DTMF dial in [-dBm](04-16)
10
uu – level of sending tone (DTMF) dial into line, range is -4 to -16dBm. You insert desired level, uu=04 is
-4dBm, uu=10 is -10dBm
Parameter
Value
Description
Default
508
p
preemphase DTMF (0/1)
0
509
S
Listening –in DTMF - level (1-4)
2
p – preemphase is rate between upper and lower groups of DTMF frequency. You can select rate 2,2
dB with p=0 (Europe) or rate 3,2dB with p=1 (Australia). s – listening –in DTMF level you can select in four levels:
Level of listening in DTMF
[dB]
s - dial
-15 1 -9
2
-3
3
+3
4
5.5. System parameters
frequency
[Hz]
x - dial
275-375
1
325-425
2
375-475
3
425-525
4
475-575
5
525-625
6
575-675
7
625-725
8
675-775
9
725-825
0
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
15
Parameter
Value
Description
Default
61
z
Acoustic signaling (confirmation, error, empty
memory, call termination...) (0/1)
1
In default the stages of door intercom are acoustically signalling.
z=0 – signaling is off z=1 – signaling is on
Parameter
Value
Description
Default
62
v
Acoustic signaling off hook/on hook (0/1)
1
In default is signaling pick up and hang up of the line. If you identify some problems at certain PBXs you can switch it off.
z=0 – signaling OFF HOOK / ON HOOK is off z=1 – signaling OFF HOOK / ON HOOK is on
Parameter
Value
Description
Default
63
u
Acoustic signaling knocking to call (0/1)
0
With this feature, you can identify at PBX calling from the doorphone just up knocking into call.
u=0 – knocking to call is off u=1 – knocking to call is on
Parameter
Value
description
Default
65
z
Acoustic signalling of relay activation (0/1)
0
When you activate this feature z=1, you hear a special sounds that simulating the relay activation. During relay activation you hear special sounds simulating relay activation.
Parameter
Value
Description
Default
66
i
Suppression of DTMF reception from microphone (0/1)
0
In default the suppression of DTMF reception from MIC is off i=0. Due this you can activate relay by personal dialer without ringing to person inside building. To increase security you can activate suppression of DTMF reception from microphone i=1.
Parameter
Value
Description
Default
67
b
BabyCall – call without necessity program phone number (0/1)
0
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
16
By activation this feature (b=1) is cancelled acoustic signaling of empty memory. After pushing of button with empty memory you get just beep (confirmation) and call is established as normal dialed number Caution: first 10sec of call is not active tone detector (it waits on reaction of PBX and number dialing by PBX)
Parameter
Value
Description
Default
6*
t
Delay of line connection (Siemens pbx) (0/1)
0
Sets a delay for line pick-up (OFF HOOK) for new PBX types (particularly Siemens): t=1 – standard operation t=0 – delayed start
5.6. HandsFree Parameteres setting
Parameter
Value
Description
Default
71
gg
Reception loudness (01-16) (TRH)
07
72
ff
Transmission loudness (01-16) (MIC)
07
73
rr
Speaker loudness (01-16) (SPK)
07
gg / ff / rr – 2 digits in range [01-16] After reception of confirmation, the new value is active and you can test it. Help: you can also add / decrease the amplification with the phone buttons:
* = - and # = +.
The Limits of maximal and minimal loudness are acoustically signaling by 3 tones. When you don’t press any digit during 5 seconds, the setup value is saved and you hear confirmation tone.
Parameter
Value
Description
Default
74
c
Soft pass of switching (0/1)
0
It is going about character of on line operation semiduplex switching. In case where character of depressed is too steep you can make it softer by c=1.
Parameter
Value
Description
Default
75
n
Depression of background sound (0/1)
0
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
17
When door intercom is installed in noisy environment (noisy streets, subway stations, parking…), you can activate the depression of background sound.
Parameter
Value
Description
Default
76
b
Level of microphone (1-4)
3
On the line, there is simultaneously signal from microphone and speaker..The basic one is circuit of semiduplex operation when incoming signal decrease microphone amplification as same as signal from microphone decrease incoming signal. The level of microphone start is setup by this Parameter. As lower value as higher microphone sensitivity is. In noisy environment we recommend higher value with combination of parameters 71,75, 77.
Parameter
Value
Description
Default
77
s
Fast switching voice automatic 1-4 (4 is slowest)
2
At Parameters 75, 76 is described principal of acoustic shock suppression. Speed of circuit switching between incoming and outgoing sound is setup by Parameter 77.
Parameter
Value
Description
Default
78
l
Volt Amper (VA) characteristic of line connection (0/1)
1
Almost every country around the world has different telephone directives and this parameter allows decrease voltage at doorphone line interface about 1V during OFF HOOK. Where directive requires decreasement of line voltage I=0 decrease voltage about 1V.
Parameter
Value
Description
Default
79
k
Compensation of wires losses depends on line current (0/1/2)
0
The Smile DoorPhone includes circuit for long distance installations (100m and more from PBX) that can compensate losses on wiring. You can setup in two levels depending on line current of PBX (short circuit current I0).
PBX current I0
k - dial
Feature is off
0
20mA-50mA
1
45mA-75mA
2
Switching time
[ms]
S - dial
1 1 2
2
4 3 8
4
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
18
Parameter
Value
Description
Default
70
uu
Transmission signaling level in [-dBm] (04-16)
10
uu – transmission signaling level to the line, range -4 to -16dBm. You insert desired level, uu=04 is -
4dBm, uu=10 is -10dBm ...
5.7. Default setting and erasing
Parameter
Value
Description
Default
8#
#
Default setting
execute
This setting does not influence 1 and 2 (numbers stored in memory)
Parameter
Value
Description
Default
81
Deletes all numbers in group 1 (Day mode)
82
Deletes all numbers in group 2 (Night mode)
83
Default settings only for parameters 3x
84
Default settings only for parameters 4x
85
Default settings only for parameters 5x
86
Default settings only for parameters 6x
87
Default settings only for parameters 7x
80
Default settings only for parameters 0x
The parameters 81 and 82 will delete all numbers stored in memories for buttons.
Attention: the deletion is non-reversible!!! Numbers must be programmed again.
5.8. Exit programming
Parameter
Value
Description
Default
9
Enf of programming
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
19
5.9. Parameters overview
Parameter
Value
Description
Default
1
tt nn…
number nn under button tt
- 2 tt nn…
number nn under button tt
-
31
r m
relay r works in mode m (1-8)
11 21
35
r aa
command aa from phone for closing relay r 1 pulse (00-99,*0­*9)
155 266
36
r cc
command aa from phone for closing relay r 2 pulses (00­99,*0-*9)
150 260
37
r ss
time ss [sec] relay closing r for time t1/t4 (01-99)
105 205
41
v
Dial type v – tone / pulse (0/1)
0
42
z
Character for call prolongation (* / #)
*
43
g bb
Command to hang up door intercom by phone (00­99,*0-*9)
155 266
44
xxxx
Service password (0000-
9999)
0000
45
dd
Command to switch into DAY (00-99,*0­*9)
11
46
nn
Command switch into NIGHT (0099,*0­*9)
10
47
e
Door intercom dial mode (0/1)
1
4*
k
Feature of line hanging up by again push of the same button (0/1)
1
51
q
Number of rings before door intercom pick up incoming call (1-9)
2
52
d
Maximal call duration (0­9,*,#)
2
53
w
Time between button push (1-
9)
2
54
z
Hang up time before REDIAL (1-
5)
2
55
z
Time before dial start (1-5)
1
56
hh
Number of ringing before hang up (04-
99)
12
500
x
Middle frequency of tone detector (1-
0)
3 (375-
475Hz)
501
y
Number of busy tones (2-0)
4
502
z
Duration time of permanent tone (1-5)
3 (3s)
503
tt
Duration time of tone DTMF of tone dial
(04-16)
10 (100ms)
504
mm
Time of space between each DTMF tones (04-16)
10 (100ms)
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
20
505
f
Flash duration time (1-6)
1 (100ms)
506
p
Pause duration time / space between numbers (1-0)
4 (800ms)
507
uu
Transmitting level of DTMF dial in [-dBm]
(04-16)
10
508
p
preemphase DTMF (0/1)
0
509
S
Listening in DTMF – level (1-
4)
2
61
z
Acoustic signaling (confirmation, error, empty memory, call termination...) (0/1)
1
62
v
Acoustic signaling OFF HOOK /ON HOOK (0/1)
1
63
u
Acoustic signaling of beeping into call (0/1)
0
65
z
Acoustic signaling of relay activation (0/1)
0
66
i
Depression of DTMF reception from microphone (0/1)
0
67
b
BabyCall – call without necessity to insert phone number (0/1)
0
6*
t
Delay start for PBX´s with extension test (Siemens) (0/1)
0
71
gg
Reception loudness 01-16 (16 is highest) (TRH)
07
72
ff
Transmission loudness 01-16 (16 is highest) (MIC)
07
73
rr
Speaker loudness 01-16 (16 is highest) (SPK)
07
74
c
Soft pass of switching (0/1)
0
75
n
Depression of background sound (0/1)
0
76
b
Level of microphone start 1-4 (4 is highest)
3
77
s
Fast switching voice automatic 1-4 (4 is slowest)
2
78
l
Volt-ampere (VA) characteristic of line connection (0/1)
1
79
k
Compensation of wires losses depends on line current (0/1/2)
0
70
uu
Transmission signaling level in [-dBm] (04-
16)
10
8#
#
default
81
Erase all numbers in group 1
(DAY mode)
82
Erase all numbers in group 2
(NIGHT mode)
83
Default setting for Parameters 3x only
84
Default setting for Parameters 4x only
85
Default setting for Parameters 5x only
86
Default setting for Parameters 6x only
Linkcom France
11 rue du Soleil Levant 92140 CLAMART Copyright © 2011 – Linkcom – All rights reserved
21
87
Default setting for Parameters 7x only
80
Default setting for Parameters 0x only
9
END
6. Technical parameters
6.1. Electrical parameters
Parameter
Value
Conditions
Minimal line current
18mA
Line OFF HOOK
Minimal line voltage
18V
Line ON HOOK
Line voltage during OFF HOOK (VA characteristic)
< 8V
< 12V
I = 20mA
I = 60 mA
Downlead during ON HOOK
< 30uA
U = 60V
Line termination impedance
220R +
820R
paral. 115nF
Line OFF HOOK
Bandwidth
300Hz – 3400 Hz
20 - 60mA
Ringing impedance
> 2Kohm
25 – 60 Hz
Sensitivity of ringing detector
min. 10 – 25 V
Pulse dial
40 / 60 ms
Tone dial level
-6 and -8 dB
20 – 60 mA
Sensitivity of tone dial
min. -40 dB
20 – 60 mA
Sensitivity of tones detector
min. -30 dB
20 – 60 mA
Powering of backlight, relays and heating
12Vss ± 2V , 10-12Vst ± 2V
Max consumption of backlight and heating
250mA
12Vss
Max voltage of relay contact
48V
when I < 1A
Max current of relay contact
1,5A
when U < 30 V
Operation temperature
-20 to +60°
IP rate
IP44
Weight
max. 350g
6.2. Mechanical dimensions
Model
dimension HxWxD [mm]
Brave Slim
185 x 99 x 40
Screw 2x
Screw 3.5x30 half round head
Wall plug 2x
UPA,UPP pr. 5 x 25
Loading...
