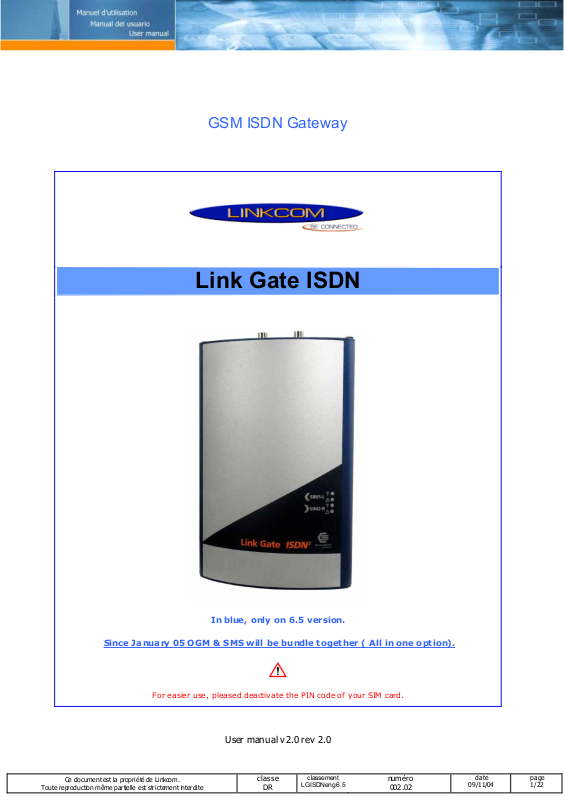

Since Ja nuary 05 OG M & S MS will be bundle together ( All in one option).
For easier use, pleased deactivate the PIN code of your SIM card.
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
In blue, only on 6.5 version.
User manual v2.0 rev 2.0
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
1/22
Table of content
1. Specifications of Link Gate ISDN 3
1.1 Product overview 3
1.2 Specifications 3
1.3 Link Gate router 4
1.4 Optional modules 4
1.5 Package content 4
2. Installation of the Link Gate ISDN 5
2.1 Installation step by step for SIM cards and cables. 5
3. Initialisation of the Gateway 7
3.1 Indication of Leds 7
3.2 Possible problems when putting into operation 8
4. Link Gate ISDN configuration 9
4.1 Installation of GSM Set 9
4.2 Start GSM Set 10
4.3 Setting of Link Gate ISDN 11
4.4 Direct Dialling Code selection 13
4.4.1 DISA 13
4.5 Recording outgoing message (OGM) 13
4.5.1 Recording through an internal phone 13
4.5.2 Recording with OGM Rec. Software and « serial/jack » adaptor 14
4.5.3 Benefits of the software 14
4.6 ISDN parameters selection 14
4.7 Save and restore parameters 15
4.8 Remote configuration module 16
4.9 SMS Mail 18
5. Appendix 21
5.1 Range of values 21
5.2 Editing the selected values of individual parameters 21
5.3 Editing in parameters field 21
5.4 Editing in tables 21
5.5 RS 232 interconnection cable 22
5.6 Hardware reset 22
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
2/22
1. Specifications of ISDN Link Gate IS DN
Note:
ISDN 1 and 2 have same basic features, the difference is that ISDN 2 have 2 module instead ISDN 1
have only 1 GSM module.
1.1 Product overview
LINK GATE ISDN is a Gateway with 1 or 2 GSM modules (Siemens TC 35i)
LINK GATE ISDN connected to your PABX, will redu ce your phone bills.
The gateway is a metallic box, including the following connections and signalizations
1 power supply 230V / 50Hz AC/DC.
1 RJ 45 for PABX connection.
1 RJ 45 for synchronization connection.
1 or 2 mini fme connections for antennas
1 or 2 SIM card holder
Leds for indications of use.
1.2 Specifications
Connection to the exchange through ISDN S0 interface with DSS1 signaling in NT mode
POINT TO POINT or POINT TO MULTIPOINT exchange S0 interface
Connection to DTMF extension line through direct dialing
Connection directly to 2 operators or determined lines up called SIM card
Connection to the 2 operators after a time period elapse (adjustable) to select an extension line
Transfer of the number of the calling subscriber in the exchange (CLIP)
Limitation of outgoing calls in GSM network
Limitation of incoming calls from GSM network
Priority connection through either the 1st or the 2nd GSM module (LCR)
Switchable automatic channels changing
Smart Call back – automatic incoming calls routing up CLIP
Volume setting in both directions separately for each GSM module
Setting own time rate by 1 second or only in case of establishing connection
Selection of the GSM service provider separately for each GSM module
OGM module recordable message from PC ( MP3, Wav)
SIM card protection using PIN
Detailed gate parameters setting from PC through a program for Windows 3.1/95/98/2000/XP
Power supply 9-15 V DC or 8-12 V AC
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
3/22
Precaution for synchronization
Some PABX having several ISDN lines which are not able to ensure synchronization on the various lines
with a simple configuration.
The marks of PABX concerned known to date are: Alcatel, Ericsson and Siemens.
1.3 Link Gate Router
The gate is provided with ISDN input. The cable leading from this input must be connected to the former
ISDN line (exchange line). The other connector (output ISDN line) is used as a standard ISDN line
(connection to the exchange).
In this way, the user does not lose the former IDSN line. After proper LCR setting, the selected calls are
routed in GSM networks; the other calls pass further in the former ISDN line. The incoming calls are merged
from both directions in the ISDN output.
1.4 Optional modules
Some modules are now available for the GSM Link Gate ISDN:
a) OGM module
Recording available with the software provide or through an ISDN phone.
10 seconds recording (see p 16)
b) .SMS Server
Send and received SMS through POP mail software. (For more details see SMS server manual. (p 21)
c) Remote configuration
Remote control of the Gateway, with a SIM card having data option.
1.5 Package content
ISDN 1 ISDN 2
1 gateway Link Gate ISDN 1 1 gateway Linkgate ISDN 2
1 magnetic ant enna 2 magnetic ant ennas
1 SIM card holder 2 SIM card holders
1 power supply 1 power supply
1 installation C D 1 installation C D
1 RS 232 cable 1 RS 232 cable
1 RJ 45 / RJ 45 cable for synchronization 1 RJ 45 / RJ 45 cable for synchronization
1 T f or RJ 45 1 T f or RJ 45
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
4/22
2. Installation of the L ink Gate IS DN
In thi s chapter we will see how to i nstal l the gateway in your telephone insta ll ation.
2.1 Ins tallation step by step, for SIM cards and cables
a. Insert SIM card
Care full with PIN code
Check as a preliminary if the SIM cards are protected by PIN code, if such is the case, you can use the
software provided to program the PIN codes. (See 3.1.1. page 12) before inserting the cards.
With a pencil or similar push the yellow button on the card holder to extract it, then install on the holder
the card as bellow and replace it.
Figure 1 Figure 2 Figure 3 Figure 4
b. Connection of antennas
Figure 5
c. Connection of Bri to the Link Gate ISDN
Figure 6
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
5/22
Some PBX don’t deliver Synch you can get it fro the land line.
PBX needing synchronisation (no exhaustive list):
Alcatel – Ericsson - Siemens
Sy nchro is ac tive
Connection for
synchronization
_______________________________
Figure 1 Figure 2 Figure 3
CAUTION (for synchronization)
You can get synchronization from SO port of your PBX.
Indicate
communication is
activ e
Connection for
communication with
PABX
How to use the T
provide in the
package.
e. Connection router version
f. Connection of the Link Gate w ith a PBX
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
LGISDNeng 6.5
classement
numéro
002.02
date
09/11/04
page
6/22
g. Pow er supply connection
3. Initialisation of the Gateway
3.1 Indications of the leds
a. LEDs up of the gatew ay
Note :
If you insert 2 SIM cards they will be activated in the following order , 1 then 2.
Near each card holder you’ll find a red and green LED :
SIM card inserted
Connected t o GSM net work
Green LED indicates SIM card inserted.
Red LED (flashing slowly) indicates connection to the GSM network.
Green LED must be always solid ON.
Red LED will fla sh slo wly i n STD by mode and q uickly when line is busy.
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
7/22
b. Leds on the front
Si tous fonctionnent correctement, la ou les DEL vertes sont allumées et clignote de manière régulière sur la
face avant du Linkgate ISDN. En communication celle-ci devient fixe.
Operation of GSM1,2 modules (green):
LED is flas hing – module logged in the network, rest
condition
LED lit up permanently – connection in process (call)
Indication of error conditions in channels (red):
LED extinguished – rest condition
LED is flas hing – error (more det ailed information on
the error can be f ound out by listing conditions after
depressing the “t est” pushbut ton in the positioning
routine – see below)
Signalisation Signification
Green LED flashing Gateway is in std by mode
Green LED solid ON Gateway is in communication
Red LED is ON There is a problem on the gateway
When a red LED flashing on the front face, then there is a problem w ith the gatew ay. It is possible
to create a f ile w hich w ill c ontain all inf or mati on making it pos s ible to diagnose the problem, to
generate this file, click on the button "test" of the GSM set panel .
The progr a m w ill open in a new window all information relating to the gatew ay. It is possible to
copy to stick and to print this test.
3.2 Possible problems when putting into operation
Here be llow find the current .
Problem Solutio n
No LED are lit up Power supply error. Check connection to the mains and connec tion
of the mains’ adapter to th e g ate
Quick “logging in” flashing of the red
LED has not occurred.
The module is not logged in the network:
De fective SIM ca rd (or the card is i n correctly inserted i n its
compartment)
Obsolete 5V SIM card (the module supports cards for 3V and
lower voltage);
Logging in GSM with PIN has been set and the PIN has not
been set in the gate by the positioning routine;
GSM signal is too weak.
The dev ice is o perating, howev er , the
call contains a humming sound.
Unsuitable positio nin g of th e aerial with respect to any of the
analogue telephone lines or an analogue telephone apparatus into
which GSM transmission is induced (identical as in case of a car
radio). It is necessary to test mutual po sitio n o r totally relo cate it.
The dev ice is operating, howev er, an
“echo” can be heard in the call.
Ec ho is automatical ly eliminated by electronic means in the gate. If
you hear a beep despite this measure, it could be caused by:
Too improper impedance adaptation of the BTS channel to
which either you or your counterpart are connected;
Mobile telephone, which you are calling (some older types,
so m e t y pe s o f p ro t e c ti ve c a se s).
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
8/22
4. Link Gate IS DN conf iguration
The routine is intended for setting all the necessary gate parameters and detecting error
conditions. The parameters are being set as w ell as the error conditions can be saved for later
utilization. It is intended for Window s 3.1 to 2000 systems.
Note :
LINK GATE ISDN is c onfigured by def ault without baring call f or the numbers with 10 digits, default password, and
does not com pose PIN code to starting. Each time you safeguard new parameters in Linkgat e ISDN, that will start
again automatic ally.
Pleased check connection w ith serial cable, then install the GSMSet sof tw are.
4.1 Installation of « GsmSET »
GSMSet software is on the CD prov ide in the package, when y ou insert the CD y ou see the window abov e, you can
choose also your language.
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
9/22
If you can’t see this w indow click on the « autorun» icone:
Click on « Installing GS M SET », you’ll have this w indow :
Clic k on ‘Contin ue’. The s of tw are w ill be installed on th e GSMSet d irectory.
4.2 Start GSM Set
Note :
Check if serial cable is connected to com 1 or 2 of your computer.
Start the progra m from the shortcut on your deck or from start/ program/ gsm set.
Link Gate ISDN use a protection code, def ault is 0000..
We recomen d, if u ar e the PBX a d ministrator to c hange it in the „ New passw ord“ put, then click
on „SAVE“.
Note :
A wrong connection will display the f ollowing message « Wrong password »
Note :
In case of problem or password lost s ee appendix 5
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
10/22
To obtain the state of the Gatew ay to click it on the butt on "statut". All information concerning
the gatew ay is posted w ith the screen:Caution! version of the software and not of the
footbridge, to press on statute for version of the gatew ay.
4.3 Setting of the LINK GATE ISDN
During data transfer from or in the gate, the corresponding button w ill alw ays “turn grey” and
the colour indic ators in the button w ill indic ate the type of the transf er (yellow f or data send,
green f or data receive).
If any error occurs during transfer or the access passw ord does not w ork, the program w ill
react w ith an error message.
Do not forget to turn the appropriate com1 or com4 on!
Configure the GSM modules
Configuration of module 1 and 2 is the same, pleased verify wish one you configure.
a. Set the PIN Code
If your SIM card have a PIN code indicate it in the PIN
b. Programming MSN of the gatew ay
In MSN pleased indicate the extention w here the call be route if necessary
.
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
11/22
c. Set the impulsion for taxation
Generate a taxe impu lsion beetween 0 to 99 seconds.
d. Setting of outgoing (GSM) et incoming( ISDN) volume
The “ Volu me ” fie ld allows adjust ing ca ll v olu me in both the outgoing direction (“ GSM “ fiel d)
and the inco ming direction (“ISD N“ field). Volume in the out going directio n can be set in
degrees 1 to 7 while in the inco ming direction f rom 1 to 4.
e. Call baring
Permission of outgoing or incoming calls
f . Red ir ec t ion to G S M mo d ule
In case of marking the”Re-route in GS M2“(GSM1 ) f ield, “overflow” of the enabled d irections
(selection see below) in the adjacent channel is allowed. If the channel with the enabled
direct ion is already busy calling, the gate wil l not refuse the cal l, but it wi ll ut i lize the other
channel (even if the d irection is not on the list of enabled directions f or this c hannel). .
g. Baring Call Configuration
On each module you can allow incoming and / or outgo ing calls.
Up to 12 blocks of enabled directions can be selected in each GSM module. The table of the
enabled directions is accessible after clicking on the “ Enabled directions” button. If the table is
not filled in, all directions are enab led. 1- up to 8-digit nu mbers can be w ritten in the first
column of the table. The progra m substitutes any digits instead of not f illed in digits from the
right w hich checking the enabled direction. This means, instead of w riting the numbers
601,602,…609, it is possible to w rite only 60. Listing of enabled directions in groups is new in
this program version. If the operator has three successive numbers diff ering from each other
only by the last digit, this direction can be w ritten as a group on a single line: the f irst column
contains up to 8-digit nu mber of the f irst direction (“from”) as in the case mentioned above and
the last digit of the last direction is stored in the second column (i.e. the last digit of “to”) – see
Fig. A group may be created only w ithin the range of one order of the last position – i.e. from 0
to 9! By proper filling in the ta bles of both modules (one module e.g. T-Mobile code, the other
mod ule Orange code), it is possible to achieve automatic re-routing of the outgoing call in the
mod ule allow ing cheaper calling through t he given operator (LCR).
Caution! The values are loaded in the table only after pressing the Enter button, marking
it w ith cursor or by mouse clicking on another field of the table!
After clicking on the “Enabled directions” button, the tab le w ill be verified before closing. The
operator is notified of wrong numbers or duplicate selection of values. In order the verified
data can be sent to the gate from the table, close the tables before transfer! If they
remain open, they will be closed automatically and a check of data w ill be performed
before transfer. In the event of e rrors in the tables, transfer w ill be blocked. After
clearing the errors, transfer has to be repeated.
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
12/22
Number of digits of
direct dialling code
4.4. Dir e ct dialling code se lection
The incoming calls can be handled in tw o ways:
All calls can be automatically connected to a selected extension in the connected exchange
4.4.1. DISA
Connection takes place in accordance w ith the selected MSNs (DDI) or direct dialling numb ers of
the operator separately for each channel. In this w ay, it is even possible to distinguish the calls
incoming to individual telephone numbers of the GSM channels of the gate – the calls incoming to
the telephone number of the f irst channel w ill be c onnected to the d irect dia lling code 11, incoming
calls to the number of the other channel e.g. to the d irect dialling code 12.
If a number of digits in the direct dialling code are being set, the number w ill be higher than zero
(max. 4 –
Caution: the number should correspond w ith the number of digits of the direct dialling code of the
exchange and selected MSNs or DDIs of individual GSM modules!),
the callers may themselves dial directly using tone selection by preset numb er of digits to the
required extension. The auto matic operator w aits for a pre-selected number of seconds for direct
dialling code selection. If it is not selected, the pre-selected nu mber of the operator (according to a
channel the call is inco ming f rom) is dialled again.
4.5. Re cording Outgoing mes s age (OGM)
Option
You can choose to dial directly an internal phone (DISA). Y ou can leave the messsage to invite the
caller to compose an internal phone number or to indicate that he w ill be route to operator.This is
usef ul to guide the caller.
4.5.1. Recording through an internal phone
The gate can be provided additionally w ith a board w ith a digital recorder of “messages” for
individual GSM channe ls. When collecting an inco ming call through direct dialling, these messages
are alw ays replayed. If the “rec” field has been checked, 2 extensions accessible from a number in
GSM1 module are added in the system: message for GSM1 w ith the nu mber 1 and a message for
GSM2 w ith the number 2. After establishing connection w ith the number for the GSM1 module
dialling the corresponding direct dialling code (*1 or *2), a short tone w ill sound – alerting to start of
recording. After message recording (max. 10 sec.), the record is terminated by hanging up.
Caution! You must select a 2-digit direct dialling code!
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
13/22
4.5.2. Recor d w ith OGMRec software and « serial-jack » adaptor
)
Name of the audio file 1
Percent of memory used by
mod u le
Stop record
Search the audio file
Rec button for 2nd module
Rec button for 1st module
Adaptator« Série-Jack »
4.5.3. Bene fits of the software
The qua lity w ill be better than through a nor mal phone, and also it w ill be easier to mix voice
and music before recording it on the modu le.
4.6 ISDN parameters selection
Point to Point ( PPP) & Point to Multipo int ( PTMP)
The telephones connected to the GSM gate mostly do not include a pushbutton f or
establishing connection by the dialled number as GSM telephones. This “def ect” is by-passed
by selecting a f ixed number of digits after which sending of the dialled number ( max. digits
parameter here) takes place in case of GSM gates. Sending the number if another digit is not
selected w ithin the preset time (w aiting para meter here) period is another w ay. Of course,
both parameters can be combined in a suitable w ay. The gate supports transfer of CLIP from
the GSM netw ork in ISDN, i.e. to a te lephone connected to an extension (if the device allow s
it). Here it is advantageous to use the para meter f or deleting the initial digits f rom CLIP (e.g.
deleting +42 in order not to “conf use” LCR exchanges w hen calling back to the d isplayed
number
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
.
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
14/22
Setting protoc ol on S0 – PTP or
PTMP. In case of PTPM, MSNs are
selected in direct dialling c ode, while a
direct dialling identifier for PTP.
The second w ay is the time elapsed betw een dialing 2 numbers, w hen the time is too long the
gatew ay w ill dialed the nu mber.
Setting a type of dialling tone w ith w hich the gate is signalled:
No tone (silence)
Continuous tone 440 HZ (default)
Morses R (pre set)
Morses A
The best w ay in numerous conf igurations in T0 is PTMP instead S0.
PTP or PTMP : Point to point or point to multipoint
Max digit: Numbers dialled before the gateway sends the call without wait.
Wai t: How many seconds the gatewa y will wait before sending the call if the diall ed numbers don’t
have the size preset in « max digits ».
Clear: The gateway support CLIP from GSM to ISDN. You can see incoming call numbers on internal
phones. (if PBX support this feature). You can erase first digits of numbers, for example: clear +33 –
country code). Most PBX doesn’t like + (ex +336…) so is better to put 1 to eliminate it.
-Route to ISDN (router) : Route a ca ll to ISDN w hen busy.(Only on “router“ version)
4.7 Save and res tore parameters.
You can easily save and restore your values on computer and recall them each time you need.
To save all new values, click on „SAV E TO PC“
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
15/22
File w ill be s ave at *.BG I f ormat
Find a file w here to save your actual configuration
To restore confiuration click on «Load from PC » chosse the file, click Ok then click on „save,
the gatew ay w ill accept the new conf iguration.
4.8 Remote configuration module
The gate can be add itionally provided w ith a board allow ing identical w ork at gate configuration
as through the RS-232 cable in a re mote w ay through a modem. Enabled data calling f or the
GSM1 module and a modem connected to PC in w hich the GSMset program of the version 5
and higher is running are the necessary conditions.
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
16/22
Require ments f or the modem:
GSM, ISDN or modem for analogue commutated line connected to COM1 or COM2 (it can be
even a virtual one f ormed through USB).
Auto-bauding or fixed communication rate set to 9,600 Bd.
Po tential other requirements for modem setting given by the communicat ion netw ork
connected that are usually to be set in the initialising cha in have t o be located in the initialising
chain in the national conf iguration file gsmset.cf g in the directory gsmset. The chain is added
behind the co mmand A TE0 (echo sw itching off):
Inimodem=“ATE0“
E. g. inimode m=“ATE0X3“ to sw itch off “dial tone“ detection.
Work from configuration through RS-232 can be turned on to configuration through modem by
marking the “mode m“ parameter in the GSMSET program. Another element – “ListBox“ f or
selection of the telephone number of the gate that w ill be configured in a remote w ay w ill
appear under the field for ISDN parameters setting.
The background informa tion for this list is read f rom the file “mode ms.csv“ in the directory of
the GSMSET progra m. The progra m w ill lis t the bac kground data in alphabetical order
automatically. The file can be created either manually in any text editor, by export from any
database or table program (csv f ormat separated w ith commas) or by exporting an Outlook
directory w ith the appropriate items (again, csv format separated w ith commas). The names of
individual items or columns should be “name“, “ modem“, “f ile“. The “na me“ f ield is to be used to
save an identifier (name of location, etc.) of the gate. The telephone n u mber of the first module
of the gate should be entered in the “ modem“ f ield. The “ref ” f ield is intended for a program f or
batch (mas s ) remote c onf igurations that utilizes the same bac kground data. If such
background data (f ile) do not exist, it is possible to w rite the required telephone number f or
connection directly in the w indow .
By conf irming your selection f rom the list (double-click) or by conf irmation of the w ritten
number (Enter), the system w ill take the te lephone number selected f or connection into
account. The valid selection is confirmed by a change of colour of the field w ith the selection.
To reduce the number of errors (accidental change of the number by unw anted clicking, etc.),
the colour of the f ie ld is turned to w hite in case of repeated selection and it is necessary to
conf irm your selection again.
After confirmed selection of the number of the gate configured in a remote w ay, it is possible to
work w ith the program in the same w ay as in case of local configuration. When clicking on the
corresponding button, the program w ill alw ays perf orm initi alisat ion of the mod e m at f irst, dial
the telephone number selected and establish connection w ith the selected gate. Af ter
connection is established, it reads or stores data. Operat ion is again indicated w ith LEDs in the
corresponding pushed button. Data transf er at remote conf iguration is slow er and for that
reason, also the LEDs flash slow er and conf iguration takes more time . After data transf er
termination, the progra m w ill interrupt connection auto matically and t he modem w ill hang up. If
any error occurs during communication w ith the modem, the program w ill report the error. If
any error (transfer error, w rong passw ord, etc.) occurs during connection, the program w ill
detect the error again w ith the corresponding error message and w ill terminate connection
automatically again and the modem w ill hang up.
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
17/22
or
MODEM error Insert a phone nu mber
Choose a number in the list
To route the calls to ISDN
when Gateway is busy
Not forget to choose the
Right port f or modem
4.9 SMS M ail
You can use the gatew ay in order to send and receive SMS through a PC equipped w ith the
SMS Server software.
You can send and receive SMS through the Gatew ay without licence, but all the send and
received mail w ill be limited to 10 charac ter s w ith a demo text
SMS Mail acts as a standard POP Server, so you can easily imp lement the SMS solution into
your computer netw ork.
Attention: Not compatible With Outlook Exchange
How does it work :
Like a classical POP server,you can create users(using aliases), in order to have a single Sim
card but several accounts.
Installation and configuration of SM S MA IL
You can install a copy of SMS Mail on a co mputer equipped w ith Microsoft Window s. Insert the
Linkgat e Disc in the PC. A w indow will show (html page) click on « SMS Server » and save the
file on your hard drive (w herever you w ant).
If you have purchase a licence, please insert it in the IMEI Key f ield
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
18/22
SMS licence key in the zone:
‘IMEI key’
You can only use one key per GSM module (the licence key is associated to the IMEI of the gsm
module)
You need to reboot the software in order to fully use SMS MAIL. If you want to start SMS Mail with
Windows, check Start at program beginning’ in ‘more settings’ options.
In order to use the memory of the computer instead of the SIM card, you have to define a
synchronisation period in order to send/receive the SMS. During this send/receive time the gateway
changes his state into DATA mode, so you are not able to call during a synchronisation.
You can also configure the incoming and outgoing port of the SMS Mail software (default: 25 and 110).
Click on ‘Start at progra m beginning’
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
19/22
For starting the mail server click on ‘start’:
Setup a mail client
Here are the settings of SMS MA IL:
POP: IP or na me of the co mputer w hich is connected to the Linkgate
SMTP: IP or na me of the computer w hich is connected to the Linkgate
Please make sure you are using the good communication ports.
Send and receive SMS :
If you w ant to correctly distribute the received SMS, you must respect the follow ing rules:
-the S MS should conta in the na me of the computer
OR
-the alias of the computer na me
In a received message the sender should w rite the name of the computer as follow :
#name_of_the_computer_or_alias# body of the S MS
You can send a SMS to multiple computers by separating the names w ith a coma:
#name01,name02,na me03… # body of the SMS
If you w ant to send a SMS from your pop client, please use the follow ing syntax:
SM S@XXXXXXXXXXX.sms
After a mail synchronisation the SMS MA IL server w ill extract the phone f rom the address
SM S@XXXXXXXXXXX.sms
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
, the X’s represents the phone nu mber of the receiver
and w ill send it through the GSM netw ork.
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
20/22
5 Appendix
5.1 Range of values
Function N° of digits Range
PIN 0000 - 9999
Pulse each 1 - 2 0 - 99
Volume GSM 1 1 - 7
Volume ISDN 1 1-4
Permitted directions 0 - 4 0 - 9999
Passw ord 4 0000 - 9999
DISA 1 0 - 4
Wait 1 0 - 9
MSN (DDI) 1 - 4 0 - 9999
Max digits ISDN 1 - 2 1 - 99
Wait for 1 - 2 1 - 99
Erase CLIP 1 0 - 9
Connexion via Clip 1 - 10 0 - 9999999999
Internal communication 1 - 4 0 - 9999
5.2 Editing the selected values of individual parameters :
With respect to the effort to ensure compatibility w ith the system base as large as possible
(Windows 3.1 up to XP), the w ay of editing is somehow archaic and unusual for the present
age.
5.3 Editing in parameters fields
The values can be w ritten in a standard w ay upon location of the cursor in the f ield. De le ti n g
values can be performed only from the back using the Backspace key. The complete
value can be rew ritten in a usual w ay, i.e. by marking the complete value and, consequently,
by loading a new data item.
.
5.4 Editing in Tables
A table cell is alw ays edited as a unit – i.e. individual digits may not be rew ritten. If you click
with the mouse (or cross with the cursor over) on the selected cell and start writing, the
comple te v alue in the cell w ill be r ew ritten. The complete v alue in a cell c an be aga in delete d
only using the Backspace key. The value in a cel l can be saved either using the Enter key or
only af ter crossing over w ith the cursor or mouse clicking on another cell. This rule is applied
also to deleting.
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
21/22
5.5 RS 232 inter connection cable
A standard series cable w ith 9-pin connector on both ends DTE-DCE ( mode m 9-9) is used to
interconnect the gate w ith your PC. It is also marketed under the designation “ mouse extension
cable”. The cable “zero modem” or “lapling“ has RX and TX crossed and cannot be used directly! If you wish to use this cable w ith an adapter, the adapter has to contain crossing
again! If this is not the case, the link DTE-DTE (for interconnection of 2 PCs) w ill be forme d
that w ill not operate. Non-operating cable w ill by indicated by the mess age “Invalid passw ord”
when attempting to communicate.
5.6 Hardw are Reset
In case of lost password, or inactive modifications in configuration use hard reset.
1 – Unplug the pow er supply
2 – Short-circuit pins 2 and 3 of DB 9 located under the GA TEWAY.
3 – Plug the pow er supply
4 – Wait 5 seconds
5 – Keep off the metalic piece from the DB 9
6 – Reboot the Gatew ay
www.linkcom.net
info@linkcom.net
Hot Line: 08 26 46 79 00 (France only)
Ce document est la propriété de Linkcom.
To ute reprodu ction même par tielle e st s tr i cteme nt inter di te
classe
DR
classement
LGISDNeng 6.5
numéro
002.02
date
09/11/04
page
22/22
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
