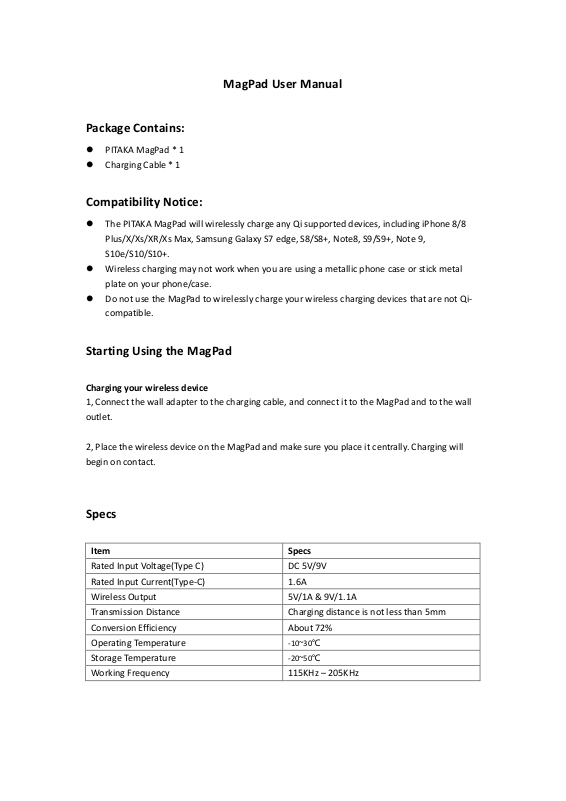

MagPad User Manual

Item

Specs

Rated Input Voltage(Type C)

DC 5V/9V

Rated Input Current(Type-C)

1.6A

Wireless Output

5V/1A & 9V/1.1A

Transmission Distance

Charging distance is not less than 5mm

Conversion Efficiency

About 72%

Operating Temperature

-10~30℃

Storage Temperature

-20~50℃

Working Frequency

Package Contains:

 PITAKA MagPad * 1
 Charging Cable * 1

Compatibility Notice:

 The PITAKA MagPad will wirelessly charge any Qi supported devices, including iPhone 8/8

Plus/X/Xs/XR/Xs Max, Samsung Galaxy S7 edge, S8/S8+, Note8, S9/S9+, Note 9,
S10e/S10/S10+.

 Wireless charging may not work when you are using a metallic phone case or stick metal

plate on your phone/case.

 Do not use the MagPad to wirelessly charge your wireless charging devices that are not Qi-

compatible.

Starting Using the MagPad

Charging your wireless device

1, Connect the wall adapter to the charging cable, and connect it to the MagPad and to the wall
outlet.

2, Place the wireless device on the MagPad and make sure you place it centrally. Charging will
begin on contact.

Specs

115KHz – 205KHz

Warranty:

The PITAKA MagPad is warranted for one year from date of purchase.

The MagPad is warranted to be free defects in materials and function under normal use. A defect is defined
as an imperfection or flaw that is produced by a manufacturing error, including malfunction of the wireless
charging.

The warranty is non-transferable and covers the original end-user/purchaser. PITAKA will only authorize the
warranty claim if the products were purchased from an official store or an authorized dealer.

MODIFICATION: Any change or modification of this device will void the warranty.

Exclusion & Limitations:

Except for the limited warranty expressly set forth or to the extent restricted or prohibited applicable law,
PITAKA expressly disclaims any and all other warranties express or implied, including any warranty of quality,
merchantability, or fitness for a particular purpose, and you specially agree that PITAKA shall not be liable for
any special incidental, indirect, punitive, or consequential damages of any type on any PITAKA product. In
additional to and without limiting the generality of the foregoing disclaimers, the limited warranty does not,
under any circumstances, cover the replacement or cost of any electronic device of personal property inside
or outside of the PITAKA product.

Important!

 Do not subject the MagPad to any high-temperature environment, including heat caused by

intense sunlight or other forms of heat. Do not place it in fire or other excessively hot
environments.

 Do not store or use the MagPad in humid environment.
 If the MasgPad is intended by the purchaser to be used by a minor, purchasing adult agrees

to provide detailed instructions and warnings to any minor prior to use. Failure to do so is the
sole responsibility of the purchaser, who agrees to indemnity manufacturer for any
unintended use/misuse by a minor.

Customer Service:

[phone]
[e-mail]

www.ipitaka.com

FCC WARNING

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and

operated with minimum distance between 20cm the radiator your body: Use only the supplied
antenna.
FCC ID: 2ARI5-MP1001
