LINGDU Auto Electronics A68X User Manual

Thank you very much for purchasing our car dash cams.

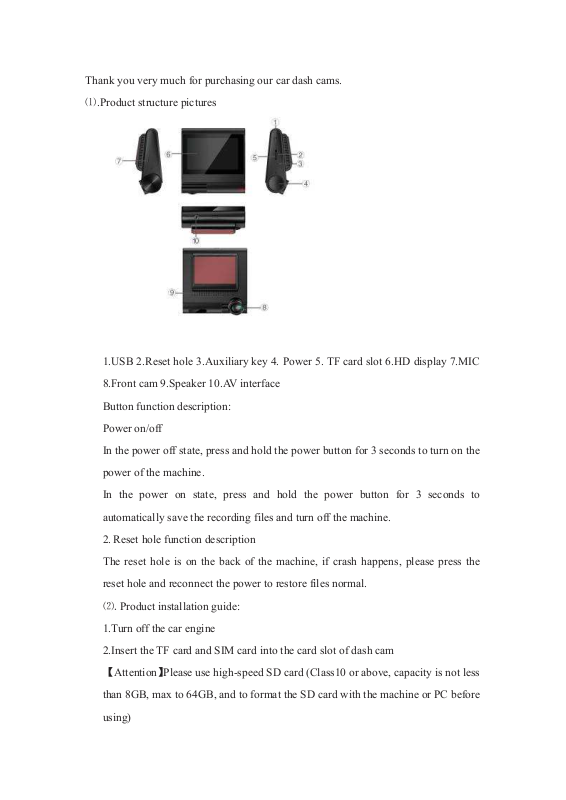

Ł.Product structure pictures
1.USB 2.Reset hole 3.Auxiliary key 4. Power 5. TF card slot 6.HD display 7.MIC
8.Front cam 9.Speaker 10.AV interface
Button function description:
In the power off state, press and hold the power button for 3 seconds to turn on the
power of the machine.
In the power on state, press and hold the power button for 3 seconds to
automatically save the recording files and turn off the machine.
2.
Reset hole function description
The reset hole is on the back of the machine, if crash happens, please press the
reset hole and reconnect the power to restore files normal.
łProduct installation guide:
1.Turn off the car engine
2.Insert the TF card and SIM card into the card slot of dash cam
ǏAttentionǐPlease use high-speed SD card (Class10 or above, capacity is not less
than 8GB, max to 64GB, and to format the SD card with the machine or PC before
using)
3.Fix the dash cam to the rear mirror of the car.
4.
Insert the car charger into the car cigarette lighter, and please use the standard
1.5A car charger.
5.Install the rear camera on the rear of the vehicle and pay attention to the
direction of the camera when installing. Pave the cable alongside the roof of the
vehicle. After the installation is completed, put the rear plug into the rear camera
interface of the dash cam, and connect the red reverse cable of the rear camera to
the positive pole of the reverse lamp.
6. Connect the dash cam USB interface to the car charger with a charging
extension cable.
ǏAttentionǐPave the cable alongside the edge of windshield.
7. Adjust the lens position to ensure that the lens are level with the ground.
8. Start the engine and check whether the machine is installed correctly.
Suggest to install the machine on the position of original rear mirror of the car.
(picture is just for reference)
The suggested position to get power supply.
The suggested route to pave the cable.
The picture shows you how to pave the rear cam cable---fix machine on A and fix
rear cam on B or C based on actual situation.
Ń.Product installation and use precautions
1.Before installation, please check the accessories carefully to ensure that the
products and accessories are correct and complete, and then start the installation.
2.During installation, be sure not to insert the car key into the power supply, and
do not insert or pull out any machine accessories in the status of Power-on,
including: rear camera, SIM card, SD card. These actions should be completed
when power is turned off.
3.When the car key is plugged into the vehicle, the dash cam will automatically
turn on. Please check whether the function of power on/off, the front and rear
cameras and the rear view display are normal.
4.When the machine is in use, it is forbidden and dangerous to pull and insert the
rear camera plug, GPS antenna and SD card, which will cause the recorded video
files to be damaged and the machine to be abnormal or damaged.
5.If you need to download the recording videos and images, press SD card directly
when the car is turned off. Then insert the SD card into the machine again when
the vehicle is turned off.
6.You must use C10 high-speed card (recommended capacity 8G-32G), lower
than C10 will cause problems like video stutter, black screen, video can not be
recorded or not be played or not automatically be covered.
ń.product function description
45 ,[TIZOUT *KYIXOVZOUT
1
Features
HD camera, HD video recording, two
-way
video recording
2
Touch screen Support (3 inch HD touch screen)
3
FOV HD wide viewing angle
4
GPS Integrated with holder
5
WiFi Built-in
6
Language Chinese
7
Take photos Support
8
G-sensor support
9
Date stamp support
10
Loop recording Support
11
Reverse image Support
Ņ.Product specification
Sensor CMOS sensor
Lens HD Lens
LCD 3 inch OLED display
MIC/Speaker
Built-in
Photo JPG format
Video AVI format
Audio Built-in microphone/speaker(AAC, MP3)
storage SD card (max to 64G)
Flash Electronic shutter
Car charger
5V/1.5A
Working
temperature
-10ć-50ć˄suggested˅
Working
humidity
10%-70%RH
Battery 400mAh 3.7V
Note: Product parameters may be changed due to product upgrades, updates, etc.,
subject to the actual products.
ņ. Simple troubleshooting
ķ: The machine shows that the memory card is full and cannot be loop recording.
1.The machine will reminder you to format the SD card when the new card is used
for the first time on the machine. Even thought there is no reminder, please format
SD card first and then use it.
2.Check the recording duration/loop recording settings: there are options 1
minute/2 minutes/5 minutes/off. If you select the Off option, the machine cannot
carry out loop recording.
3.Check if G-sensor is set to high, If so, the car will jolt and shake the machine
during the driving process, which will cause the file to be locked. The locked file
cannot be overwritten and if there are too many locked files accumulate, the SD
card will be full and stop loop recording.
ĸ: Power on/off automatically:
Please check if the parking mode is turned on. If so, the machine will
automatically turn on and record when it detects a collision or a shaking, and
automatically shut down after the recording time is due (depending on the
recording time setting).
Ĺ: The rear camera cannot show videos and images
1.Please check if the AV plug is connected correctly and whether the camera is
plugged in.
2.Check if the machine setting item is off, the default is open, and confirm
whether it is set to display only the front lens.
ĺ:Video stutter or button lag during recording
Please check whether the SD card is a high-speed card (class10). If not, you may
have problems such as missing seconds, video playback stutter, screen mess, and
crash. (Because the quality of high-speed cards is uneven in the market, you
should purchase branded SD card).
Ļ: Do not save the settings
1.After finishing settings, you must manually press the shutdown button, then the
settings will be saved.
2.When abnormal electricity blackout happens, the settings are too late to save the
current data.
ļ:When you change to reverse gear, the rear cam will have some problems on the
display like strip interference, black video, screen mess.
1.Please check if the cable of the camera is connected correctly. Correct
connection: the red cable is connected to the positive pole of the vehicle, the black
cable is the test one, do not need to connect! (Note: the rear cam only be
connected to 12V, and can not be connected to 24V truck ones, otherwise the
machine will be burned).
2.Please check whether the machine is low battery, if so, the above problems will
happen. Because of the interference of some car models rear lamp voltage pulse
signal (German car, American car, Toyota, etc.), there are problems like black
screen, screen mess, etc during reversing. If it happens during the installation,
users can install a RC reversing filter between the 12V power supply cable and the
car lamp power, as follows:
Specifications:
Parameters: resistance (value: 300Ω -8200Ω 1/4W) electrolytic capacitor 10 UF
(50V withstand voltage) (Red and blue cables twist together to connect the
positive pole, connect black one to the negative pole)
Connection method: red cable is connected to the positive pole of the reverse lamp,
black cable is connected to the car taillight iron case, blue one is connected to the
rear view camera reversing test cable, as close as possible to the taillights to form
the loop, and then fix and wrap the cable with insulating tape.
Seven: Automatically black screen or power off after booting for a while
The screen saver time is set or some models’ default is 3 minutes. If you don't
need a screen saver, you can choose to turn it off.
Warm prompt:
1.The machine is forbidden to be disassembled, impacted, squeezed or put into
fire. If the battery is severely inflated, do not continue to use it.
2. Please avoid high temperature and direct sun exposure when you use outdoor.
3. Please use original accessories
4. Do not disassemble this product. If you need any after-sales service or repair,
please contact the sales staff or customer service center to serve you.
Ň.Disclaimer:
Dash cam is a recording machine to record images, videos and sounds while the
vehicle is in motion. And it is only used as an auxiliary reference when an
accident happens.
Special note: The machine must be in normal recording mode to record video files.
However, the image may be damaged or lost in the following cases:
1.Pulling out the SD card during recording will cause the last video file to be
damaged or lost .
2.Abnormal electrical blackout during recording will cause the last video to be
damaged or lost.
3.Suffering from devastating collisions during recording will cause video files to
be damaged or lost.
4.A large collision occurred during the recording will cause the SD card to be
loose at the time, so that the video files will be damage at the time.
5.The videos recorded by the dash cam are only for reference. Our company is not
responsible for the bad files and data losses caused by the abnormal working
conditions of the machine.
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device should be keep 20cm away from people.
FCC ID: 2ASWV-A68X
