Rugged 3.3V RS485/RS422 Transceivers with Integrated Switchable Termination
by Steven Tanghe and Ray Schuler
Introduction
Medium and high speed RS485 net­works must be terminated to avoid data-corrupting reflections. This means a termination resistor is placed at each end of the bus. Of course, if the network is expanded or reconfig­ured, the termination resistors must also move. The 3.3V LTC2854 and LTC2855 transceivers eliminate the cumbersome task of shuffling termi­nation resistors. These devices have an integrated termination resistor connected across the receiver inputs that can be enabled or disabled with simple logical control of an input pin, making network configuration and reconfiguration a snap. These devices come in tiny packages and are extremely robust, withstanding ESD strikes of up to ±25kV HBM (LTC2854) on the line I/O pins—the industry’s highest protection level for an RS485 transceiver.
Other features of the LTC2854 and LTC2855 include a receiver with balanced thresholds for excellent duty cycle performance, high input
Figure 1. Photograph of the (left to right) LTC2854 3mm × 3mm DFN, LTC2855 4mm × 3mm DFN, and the LTC2855 SSOP
resistance allowing as many as 256 devices to be connected to one bus, and a full failsafe output. The driver offers low power operation, which in conjunction with the receiver and integrated termination resistor, pro­vide a single die impedance-matched network solution. Parts are available in half- and full-duplex configurations in tiny packages including 10- and 12-pin DFN as well as 16-lead SSOP (see Table 1 and photo in Figure 1).
Block diagrams for the LTC2854 and LTC2855 are shown in Figure 2.
Switchable Termination
Differential signals propagating down a twisted pair transmission line are partially reflected when an imped­ance mismatch is encountered. The reflected signal causes constructive and/or destructive interference on the line that can corrupt data. To prevent this condition and optimize system performance, transmission lines should be terminated at each end with a resistor matching the characteristic impedance of the cable.
The LTC2854 and LTC2855 trans­ceivers integrate this termination resistor so that it can be selectively included or excluded simply by con­trolling the Termination Enable pin (TE). The resistor is effectively con­nected across the receiver input pins by setting TE high and disconnected when TE is low or the device is un­powered. This arrangement is nearly ideal from a system management
14
Figure 2. Block diagrams of the LTC2854 and LTC2855
Linear Technology Magazine • March 2007
DESIGN FEATURES L
RO RE TE DE DI
120
LTC2854
R
D
RO RE TE DE DI
120
LTC2854
200 FEET
CAT 5 CABLE
100 FEET
CAT 5 CABLE
R
D
RO RE TE DE DI
120
LTC2854
NODE 1 - Tx NODE 2 - Rx NODE 3 - Rx
R
D
NODES 1 AND 2 PRESENT;
TE ON AT NODES 1 AND 2
NODE 2
NODE 2
NODES 1, 2 AND 3 PRESENT;
TE ON AT NODES 1 AND 2
NODE 3
NODES 1, 2 AND 3 PRESENT;
TE ON AT NODES 1 AND 3
NODE 2
NODE 3
Figure 3. Effects of termination placement with network expansion
standpoint, especially under condi­tions where a network configuration changes and the termination resistor needs to be moved to the new end of the bus. In this case, manual removal and placement of a discrete resistor is not necessary; rather the change is controlled digitally with the ap­propriate selection of TE pins on the LTC2854 or LTC2855.
To illustrate the importance of termination placement, consider the configuration shown in Figure 3 where the effects of network expansion are presented. The initial configuration consists of nodes 1 and 2, made up of LTC2854 transceivers connected with 200 feet of Cat 5 cable. The waveforms in the lower left of the figure show the signal received at node 2, driven
Table 1. Product selection
PART NUMBER DUPLEX PACKAGE
from node 1. Both ends of the cable are terminated by setting the TE pins high on both transceivers. The received signal looks clean because the bus is properly terminated. A small impedance mismatch between the cable characteristic impedance of 100 and the termination resistor of 120Ω, results in a slight bump in the waveform. This effect is minor and the figure serves to illustrate that the ter­mination resistor in the LTC2854 and LTC2855 is compatible with popular low cost 100 cables.
The second set of waveforms on the bottom of Figure 3 show the results of introducing a third node to the sys­tem through 100 feet of added cable but without moving the termination resistor to the new end location. The
ESD on Line I/O
(HBM)
LTC2854 HALF DFN-10 ±25kV
LTC2855 FULL SSOP-16, DFN-12 ±15kV
waveforms at node 3 and node 2 are both severely distorted from reflections caused by the improper termination.
In the third set of waveforms, the termination placement has been cor­rected by setting TE high at nodes 1 and 3 only, thereby cleaning up the signals received at nodes 2 and 3. The logic-selectable termination resistors in the LTC2854 permit this correc­tion with no physical intervention required.
The termination resistance is well maintained over temperature, com­mon mode voltage and frequency (as illustrated in Figure 4). Furthermore, the termination network adds only insignificant capacitive loading to the receiver pins. The input capacitance on the LTC2855’s A and B pins is ap­proximately 9pF measured to ground and 3.5pF differentially.
Balanced Threshold Receiver with Full Failsafe
The LTC2854 and LTC2855 feature a low power receiver that draws only 450µA. The single-ended input resistance to ground on each of the
Linear Technology Magazine • March 2007
15
L DESIGN FEATURES
200ns/DIV
A, B
100mV/DIV
(A-B)
100mV/DIV
RO
2V/DIV
20ns/DIV
2V/DIV
A-B
B
A
DI
0VRO65mV–65mV–200mV 200mV
RECEIVER
OUTPUT HIGH
FAILSAFE THRESHOLD
(DELAYED)
RECEIVER
OUTPUT LOW
V
AB
TEMPERATURE (˚C)
–40
RESISTANCE ()
120
125
130
80
115
110
0 40
–20 100
20 60 120
105
100
135
COMMON MODE VOLTAGE (V)
–10
RESISTANCE ()
130
140
150
10
120
110
100
–5
0
5
15
VAB = 2V
10
–1
10
0
FREQUENCY (MHz)
MAGNITUDE ()
PHASE (°)
10
1
80
95
110
125
140
155
170
185
–75
–60
–45
–30
–15
0
15
30
MAGNITUDE
PHASE
(a) (b) (c)
Figure 4. LTC2855 termination resistance vs (a) temperature, (b) common mode voltage, and (c) frequency.
receiver inputs is greater than 96k when the termination is disabled. This is eight times higher than the require­ments specified in the TIA/EIA-485-A standard and thus this receiver rep­resents a one-eighth unit load. This, in turn, means that 8× the standard number of receivers, or 256 total, can be connected to a line without load­ing it beyond what is called out in the standard.
The receiver implements a full fail­safe design that drives RO high when the inputs to the receiver are shorted, left open, or terminated (externally or internally) but not driven.
A key element of the LTC2854/ LTC2855 receiver is that it uses a window comparator with two voltage thresholds balanced around zero for excellent duty cycle performance. As illustrated in Figure 5, for a differential signal approaching from a negative direction, the threshold is +65mV. When approaching from the positive direction, the threshold is –65mV. Each of these thresholds has 20mV of hysteresis (not shown in the figure). This windowing around 0V preserves duty cycle for small inputs with heav­ily slewed edges. This performance is highlighted in Figure 6, where a
signal is driven through 4000 feet of Cat 5e cable at 3Mbps. The top set of traces show the signals coming into the receiver after traveling down the long cable. The middle trace is the dif­ference of the top two signals and the bottom trace is the resulting waveform out of the receiver at the RO pin. It is clear that even though the differential signal peaks at just over ±100mV and is heavily slewed, the output maintains a nearly perfect signal with almost no duty cycle distortion.
Few devices can match this level of performance because the balanced receiver thresholds are at odds with shorted failsafe requirements. Other parts typically include a negative threshold in the receiver so that when the inputs are shorted together (i.e., 0V differential) the receiver output drives high, indicating a failsafe condition. Unfortunately, the negative offset can cause severe duty cycle distortion for small, slow-edge rate signals like those presented in Figure 6.
The LTC2854 and LTC2855 avoid this problem by using a method to
detect the shorted failsafe condition that preserves normal signal integ­rity. In normal operation, the two thresholds shown in Figure 5 are used to determine the receiver output state. However, if the receiver inputs remain between thresholds for more than about 3µs, the receiver output is driven high, reflecting this failsafe condition.
Driver
The differential driver of the LTC2854 and LTC2855 easily delivers RS485/ RS422 signals at data rates up to 20Mbps. Figure 7 shows the clean edges and excellent zero crossings of the LTC2854 driver running at 20Mbps into a 54Ω load. Figure 8 shows a single 50ns pulse (equivalent to one bit at 20Mbps) delivered through 100 feet of standard unshielded Cat 5 cable and received by a second LTC2854 transceiver.
Driver outputs have current limit­ing that offers protection from short circuits to any voltage within the ab­solute maximum range of (VCC–15V)
Figure 5. Receiver input threshold characteristics
16
Figure 6. A 3Mbps signal driven down 4000 feet of Cat 5e cable. Top traces: received signals after transmission through cable; middle trace: math showing difference of top signals; bottom trace: receiver output.
Figure 7. The LTC2854 driver toggling at the maximum data rate of 20Mbps into 54Ω. A and B are the driver outputs.
Linear Technology Magazine • March 2007
100ns/DIV
2V/DIV
B
A
DI
RO
Figure 8. The LTC2854 driver delivering a single 50ns pulse through 100ft of Cat 5 cable, which is received by another LTC2854. Both parts have their on-chip termination enabled. Top trace is the input to the transmitting device and the middle and bottom traces are observed at the receiving part.
to +15V, with typical peak current not exceeding 180mA. Additionally, thermal shutdown protection disables the driver, receiver, and terminator if excessive power dissipation causes the device to heat to temperatures above 160°C. When the temperature drops below 140°C, normal operation resumes.
Extreme ESD Protection
The driver output pins and receiver input pins on the LTC2854 are pro­tected to ESD levels of ±25kV HBM with respect to ground or VCC. The full­duplex LTC2855 withstands ±15kV ESD. These protection levels exist for all modes of device operation including power-down, standby, receive, trans­mit, termination and all combinations of these. Furthermore, the protection level is valid whether VCC is on, shorted to ground, or disconnected.
When a line I/O pin on the
LTC2854/LTC2855 is hit with an
DESIGN FEATURES L

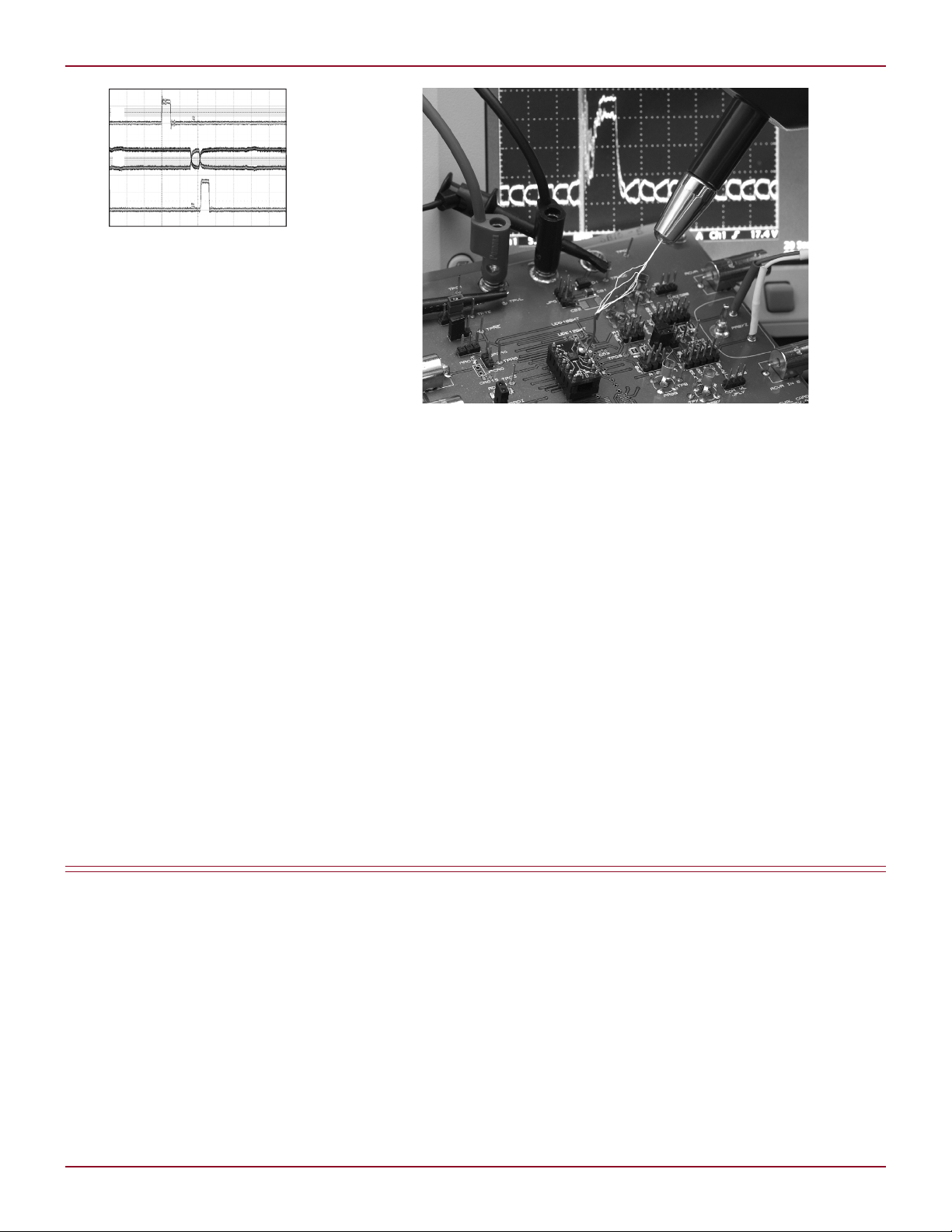

Figure 9. The LTC2854 sending data (see scope traces in background) while hit with multiple 30kV ESD strikes on the ‘A’ pin.
ESD strike during operation, the part undergoes a short disturbance of du­ration similar to the ESD event and then fully recovers. The device does not latch up and there is no need to toggle states or cycle the supply to recover. This is true whether the part is in a static state or sending/receiving data and for the full range of ground common mode voltages called out in the RS485 standard. The photo in Fig­ure 9 shows the LTC2854 absorbing the energy from an ESD gun (config­ured for IEC air discharge) delivering repeated 30kV strikes to the ‘A’ pin while transmitting data. The oscillo­scope traces in the background show data toggling happily on the A and B pins before and after a strike, with a positive glitch only during the ESD
event. This device can handle many such strikes without damage.
Conclusion
The LTC2854 and LTC2855 break new ground in the world of 3.3V RS485/RS422 transceivers. The in­clusion of a selectable termination resistor provides a complete solution to RS485 networking with the ability to remotely configure the network for optimal data transfer. Unparal­leled ESD performance provides outstanding ruggedness while a bal­anced-threshold receiver with full failsafe capability makes this family of small-footprint devices a natural choice for modern RS485/RS422 systems.
