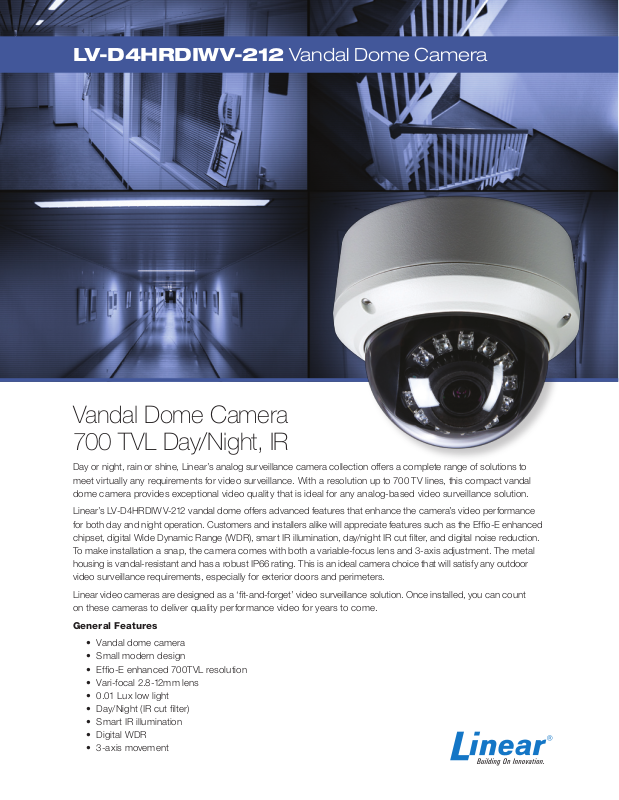

LV-D4HRDIW V-212 Vandal Dome Camera
Vandal Dome Camera
700 TVL Day/Night, IR
Day or night, rain or shine, Linear’s analog surveillance camera collection offers a complete range of solutions to
meet virtually any requirements for video surveillance. With a resolution up to 700 TV lines, this compact vandal
dome camera provides exceptional video quality that is ideal for any analog-based video surveillance solution.
Linear’s LV-D4HRDIWV-212 vandal dome offers advanced features that enhance the camera’s video performance
for both day and night operation. Customers and installers alike will appreciate features such as the Efo-E enhanced
chipset, digital Wide Dynamic Range (WDR), smart IR illumination, day/night IR cut lter, and digital noise reduction.
To make installation a snap, the camera comes with both a variable-focus lens and 3-axis adjustment. The metal
housing is vandal-resistant and has a robust IP66 rating. This is an ideal camera choice that will satisfy any outdoor
video surveillance requirements, especially for exterior doors and perimeters.
Linear video cameras are designed as a ‘t-and-forget’ video surveillance solution. Once installed, you can count
on these cameras to deliver quality performance video for years to come.
General Features
• Vandal dome camera
• Small modern design
• Efo-E enhanced 700TVL resolution
• Vari-focal 2.8-12mm lens
• 0.01 Lux low light
• Day/Night (IR cut lter)
• Smart IR illumination
• Digital WDR
• 3-axis movement
LV-D4HRDIWV-212 Vandal Dome Camera
Image Sensor:
Horizontal Resolution: >700 TVL (B/W) > 650 TVL (color)
Video Format: NTSC, PAL
Effective Pixels: NTSC: 976(H) x 494(V) PAL: 976(H) x 582(V)
Noise Reduction: 2d (Y and C Levels 0~15)
Wide Dynamic Range: D-WDR modes, with ATR-EX functions Clip and scale user settings
Day/Night Function:
IR LED Support: Smart IR technology / Sony Smart IR optimizer
IR Distance: 15 M
Lens: 2.8-12 mm, vari-focal, board mount / M14
Sync System: Internal / (Line lock with AC option)
Min. Illumination: 0.01 Lux/F1.2 IRE 40
S/N Ratio: >52 dB
Video Out: BNC CVBS 1V p-p 75Ω / External 2nd Video RCA with control board
Scanning System: 2:1 Interlace
Electronic Shutter: NTSC: 1/60 to 1/100,000 sec
Operating Temperature: -10°C - +50°C
Storage Temperature: -20°
White Balance: ATW/Push/User1/User2/Anti-CR/Push lock 1,800°k ~ 10,500°k
Iris Control: Auto
Backlight Compensation: BLC / HLC
OSD Control/Functions: Multi-language OSD menu w-joystick control
OSD Language: English, Japanese, German, French, Russian, Portuguese, Spanish, Chinese
Motion Detection:
Privacy Masking:
Display Mirror: Horizontal
Slow Shutter (Sense Up)*: n/a Low light gain multiplier
Input Power: 12VDC / 24VAC
Dimensions: 130 x 112 (D x H, mm)
Weight : 850 g
Warranty: 3 years and 3 months
Housing: IP66 rated
UL Listed, US & Canada
C - +60°C
Order #: LV-D4HRDIWV-212
For more information, please visit ww w.linearcorp.com.
Information contained in this document is preliminary.
Li near LLC | 1950 Cam ino Vida Roble | Su ite 150 | Carls bad, CA 9 200 8 | 800.421.1587 |
www.line arc o rp.com
P/N 235109
