Page 1

• For1/4,1/3&1/2-inchCCD

Now Part of

7.7

196

10.9 277

3.8 96

Cameras

• Feed-throughWiringOption

• AluminumandAdvanced PolymerConstruction

• EasyInstallation

• FullCameraAccessibility

• AvailableinMultipleSizes

• CostCompetitive

• MultipleAccessoriesAvailable

Designer Series Housings

HS948x Series

The HS948x Designer Series of indoor/outdoor housings offer a smooth, sleek, look that complements any environment. This series includes a variety of sizes to accommodate most camera/lens combinations and is both cost competitive and easy to install.

For quick installation or service, simply remove the two captive screws and slide off the cover to fully expose the camera and lens. This allows access to all camera and lens controls when the camera is in its mounted position. Power, video, and lens control cabling can be routed through liquid tight fittings in the bottom rear of the housing or can be routed through the mounting base. Feed-through mounts and J-mounts are available for these housings to hide the cabling. The base of the housings permits mounting to pan/tilts, adjustable heads, and various wall mounts.

These sturdily constructed housings are available with a preinstalled heater or a preinstalled heater and blower. The heater maintains the internal temperature of the housing in cold temperature conditions and the heater/blower combination minimizes fogging in high humidity locations and extends the temperature limits.

Page 2

S p e c i f i c a t i o n S

e l e c t r i c a l

Model No.

Indoor/Outdoor Units

HS9480 ---- ---- 24

HS9483 ---- ----

HS9488 ---- ----

Outdoor Units

HS9480 -2H

HS9483

HS9484

HS9488

Add TS for housing w/pre-installed Tamper Switch. Add E for housing w/an Extended Heater.

1. The heaters and blowers for all models operate at 50/60 Hz.

PreiNstalled

Heater or

Blower

Heater

-2H 24/23

-2HB Heater/Blower 24/25

-5H Heater

-6H 115/23

-6HB Heater/Blower 115/28

-2H Heater 24/23

-2HB Heater/Blower 24/25

-5H Heater

-6H 115/23

-6HB Heater/Blower 115/28

-2H Heater 24/40

-2HB Heater/Blower 24/42

-5H Heater

-6H 115/40

-6HB Heater/Blower 115/45

Voltage/

Power V/w

24/15

230/23 230

230/40 230

m e c h a n i c a l

Use CaMeras

witH Voltage

ratiNgs sHowN

24, 115, 230HS9484 ---- ----

115

Window: 0.12 in (3 mm) thick UV-stabilized polycarbonate.

Housing Mounting: Four (4) available 1/4-20 tapped holes.

Only one set of two is required for mounting.

Camera Mounting: Removable camera bracket. Mounted with two screws.

Construction: Aluminum cover, aluminum base, aluminum mounting foot, polycarbonate faceplate, glass reinforced polycarbonate end caps, neoprene gasket, ethylene propylene seal, and all stainless steel hardware.

Finish: Light Gray.

Dimensions: See drawings.

Weight (approx.):

HS9480 Series: 3 lb (1.4 kg).

HS9483 Series: 4 lb (1.8 kg).

HS9484 Series: 5 lb (2.3 kg).

HS9488 Series: 7 lb (3.2 kg).

e n v i r o n m e n t a l

Temperature: At external temperature of –40 °F to 122 °F (–40 °C to 50 °C) maintains internal temperatures between –4 °F to 131°F (–20 °C and 55 °C) with heater/blower.

Extended Heater/Blower: At external temperature of

-75º F to 122º F (-60ºC to 50º C) maintains internal temperature between - 4º F to 131º F (- 20º C tp 55º C).

Salt Atmosphere: MIL-STD-810E, Method 509, Procedure 1.

Enclosure Protection: IP65, Designed to meet NEMA 4.

e l e c t r o m a g n e t i c c o m p a t i b i l i t y

Safety: UL, cUL, CE.

Maximum Camera and Lens:

HS9480

HS9483

HS9484

HS9488

no Htr/Blwr

Heater

no Htr/Blwr

Heater

Heater/Blower 2.68 x 2.1 x 8.5 in (68 W x 54 H x 216 L mm)

no Htr/Blwr

Heater

Heater/Blower 2.8 x 2.8 x 9 in (71 W x 71 H x 229 L mm)

no Htr/Blwr

Heater

Heater/Blower 2.8 x 2.8 x 12.5 in (71 W x 71 H x 318 L mm)

2.68 x 2.1 x 7.75 in (68 W x 54 H x 197 L mm)

2.68 x 2.1 x 10.5 in (68 W x 54 H x 267 L mm)

2.8 x 2.8 x 11 in (71 W x 71 H x 279 L mm)

2.8 x 2.8 x 14.0 in (71 W x 71 H x 356 L mm)

Cable Entry:

HS9480 & HS9483 Series: Two liquid tight rear fittings

accept cable diameters from 0.17 in to 0.47 in (4.3 mm to

11.9 mm). Two bottom feed-through liquid tight fittings accept cable diameters from 0.18 in to 0.31 in (4.6 mm to

7.9 mm).

HS9484 & HS9488 Series: Three liquid tight rear fittings, two of which accept cable diameters from 0.17 in to 0.47 in (4.3 mm to 11.9 mm) and one that accepts cable diameters from 0.18 in to 0.31 in (4.6 mm to 7.9 mm). Two bottom feed-through liquid tight fittings accept cable diameters from

0.18 in to 0.31 in (4.6 mm to 7.9 mm).

a c c e S S o r i e S

Sunshield: Provides protection from the direct rays of sun and promotes cooling to reduce internal housing temperatures. Strongly recommended for housings to be used outdoors.

HS9480SS: For HS9480 Series housings. HS9483SS: For HS9483 Series housings. HS9484SS: For HS9484 Series housings.

HS9488SS: For HS9488 Series housings.

-TS  Tamper Switch Model: Contains a pre-installed

tamper switch that is activated when cover is removed from housing. Max operating voltage - 250VAC or 28VDC / 5 amp.

-EExtendedHeaterversion: Houses extra heating power to extend the temperature range. Available only in the 60Hz HS9484 series.

HS9480TKTamperResistantKit: Includes 10 screws and insertion tool to permit tamper resistance for five housings.

MT9215Mount: Feed-through mount attached to the foot of housing for HS9483, HS9484 & HS9488 Series housings.

MT9215SMount: Feed-through mount attached to the foot of housing for HS9480 Series housings.

MT9219J-mount: Feed-through J-mount allows housing to be mounted from ceiling.

HS9480HHeater: 15 W heater for HS9480.

Page 3

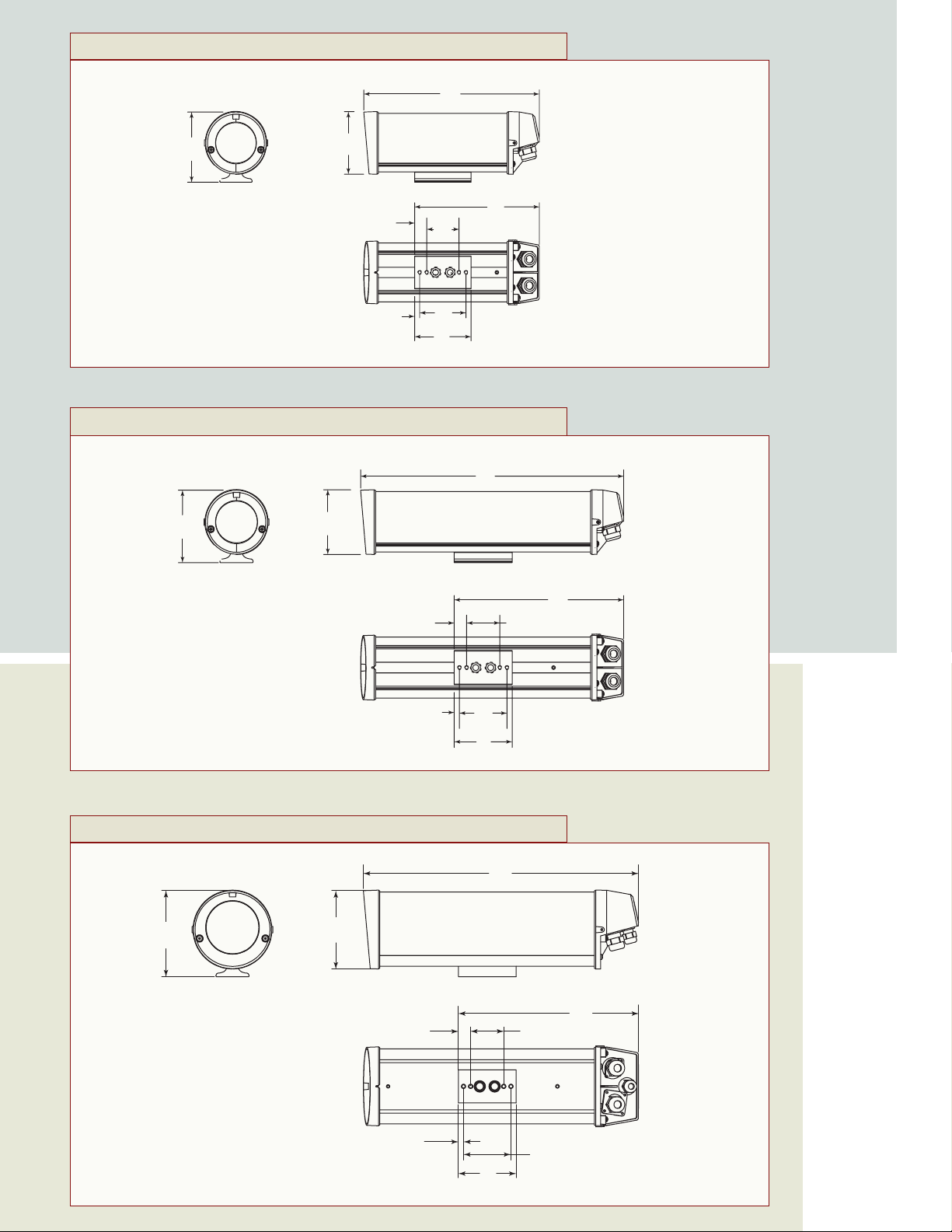

hS9480 SerieS - DimenSional Drawing

10.9 277

4.2

107

hS9483 SerieS - DimenSional Drawing

4.2

107

3.8 96

0.8 20

0.3

7.7

2.0

50.8

2.9

73.7

3.5 89

196

15.9 404

hS9484 SerieS - DimenSional Drawing

5.2

132

4.8

122

0.8 20

0.3

10.2 259

2.0

50.8

2.9

73.7

3.5 89

16.6 422

10.9

2.0

277

50.8

0.3 8

3.5 89

2.9

73.7

Page 4

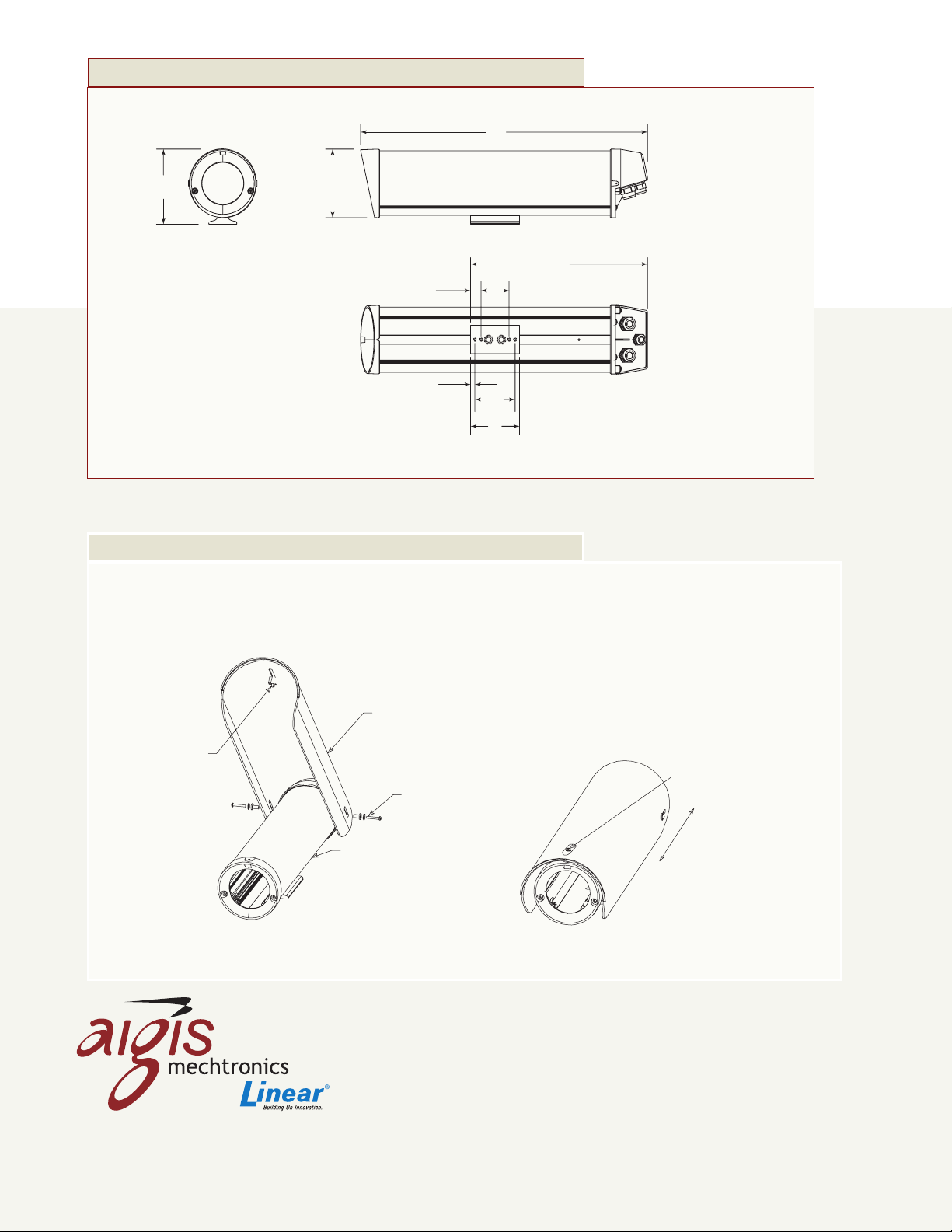

hS9488 SerieS - DimenSional Drawing

20.5 521

5.2

132

SunShielD acceSSory - hS948xSS

4.8

122

0.8

12.7 323

2.0

2.9

73.7

3.5 89

50.8

0.3 8

Attach to Top

of Front Cap

Now Part of

1950 Camino Vida Roble, Suite 150 Carlsbad, CA 92008 Tel: 760.438.7000 800.421.1587 www.aigismech.com • www.linearcorp.com

Sunshield Assembl

Housing

Screw,

Washer,

Bushing

Secure with screw as shown.
