Linear HDMI-SW-2X4M User Manual

2X4 Switcher/Splitter

For d

Model # HDMI-SW-2X4M

USER MANUAL

www.linearcorp.com

ASKING FOR ASSISTANCE

Technical Support:

Telephone [phone]
[phone]

Fax [phone]

Technical Support Hours:

6:30 AM - 4:30 PM PST Monday through Friday.

Email:

[e-mail]

Website:

www.linearcorp.com

Notice

Linear LLC reserves the right to make changes in the hardware, packaging

and any accompanying documentation without prior written notice.

© 2008 Linear LLC, All Rights Reserved

TABLE OF CONTENTS

Introduction / Operation Notes1.
Features2.

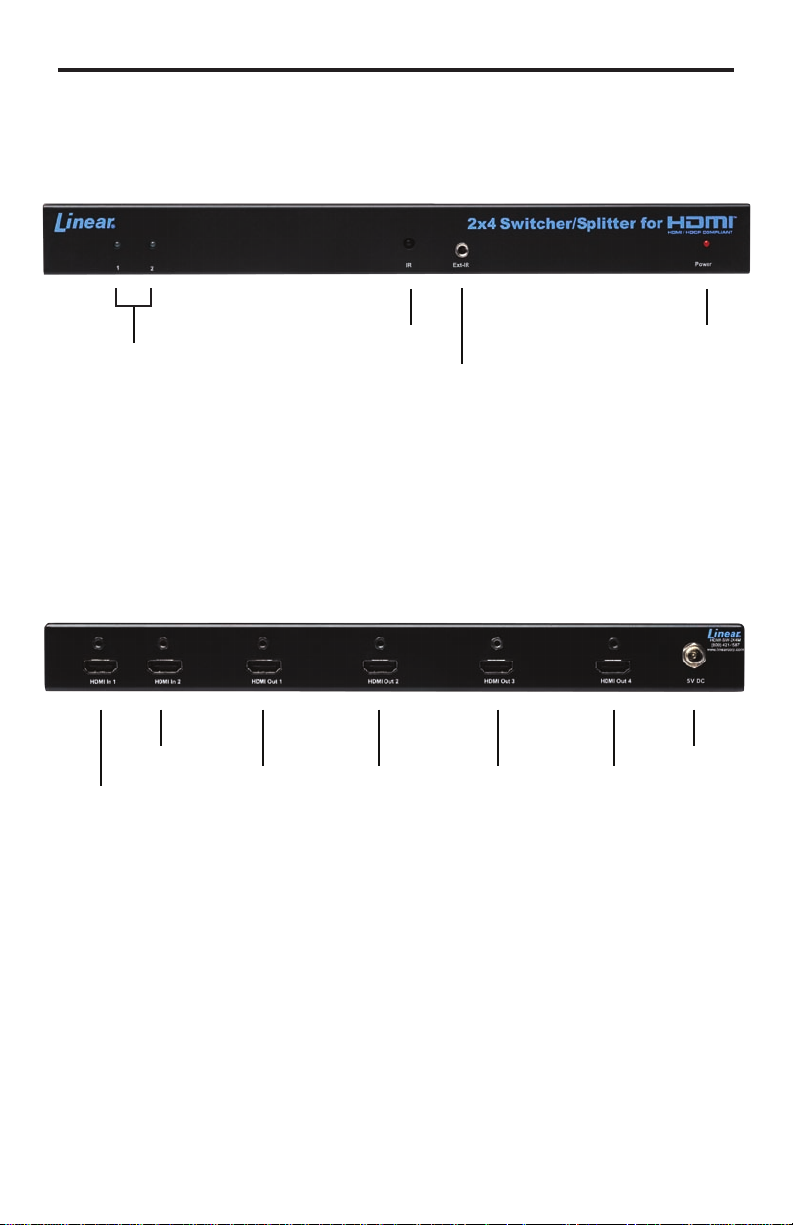

Panel Descriptions3.
Connecting and Operating the 2X4 Switcher/Splitter For HDMI4.

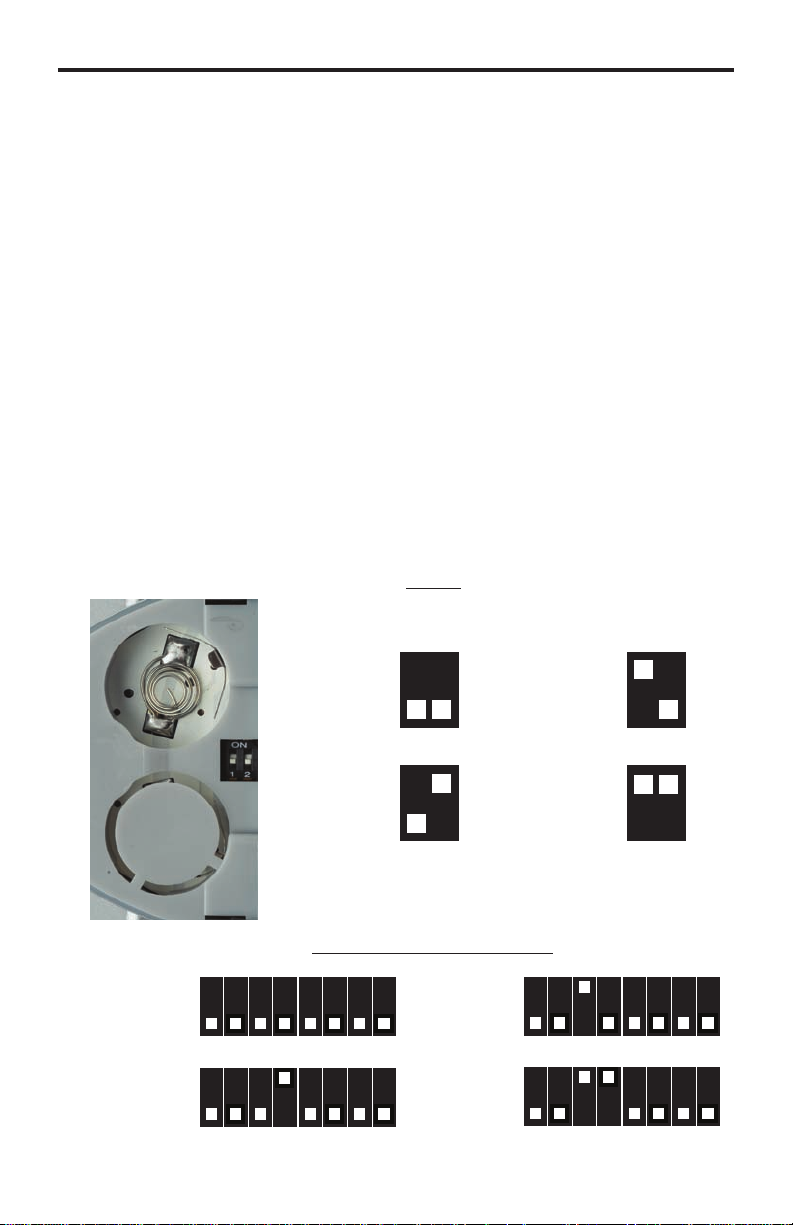

RMT-2 Installation5.
IR Code Conguration6.

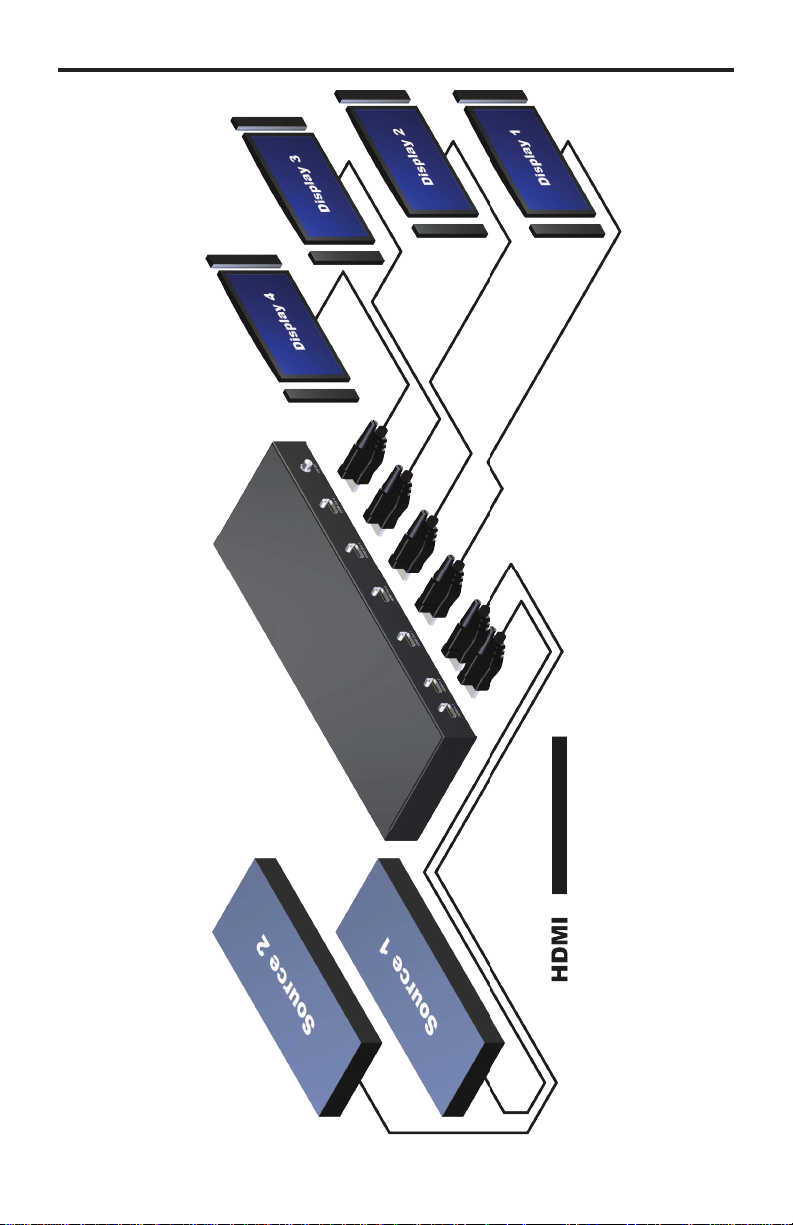

Wiring Diagram7.
Specications8.
Warranty9.

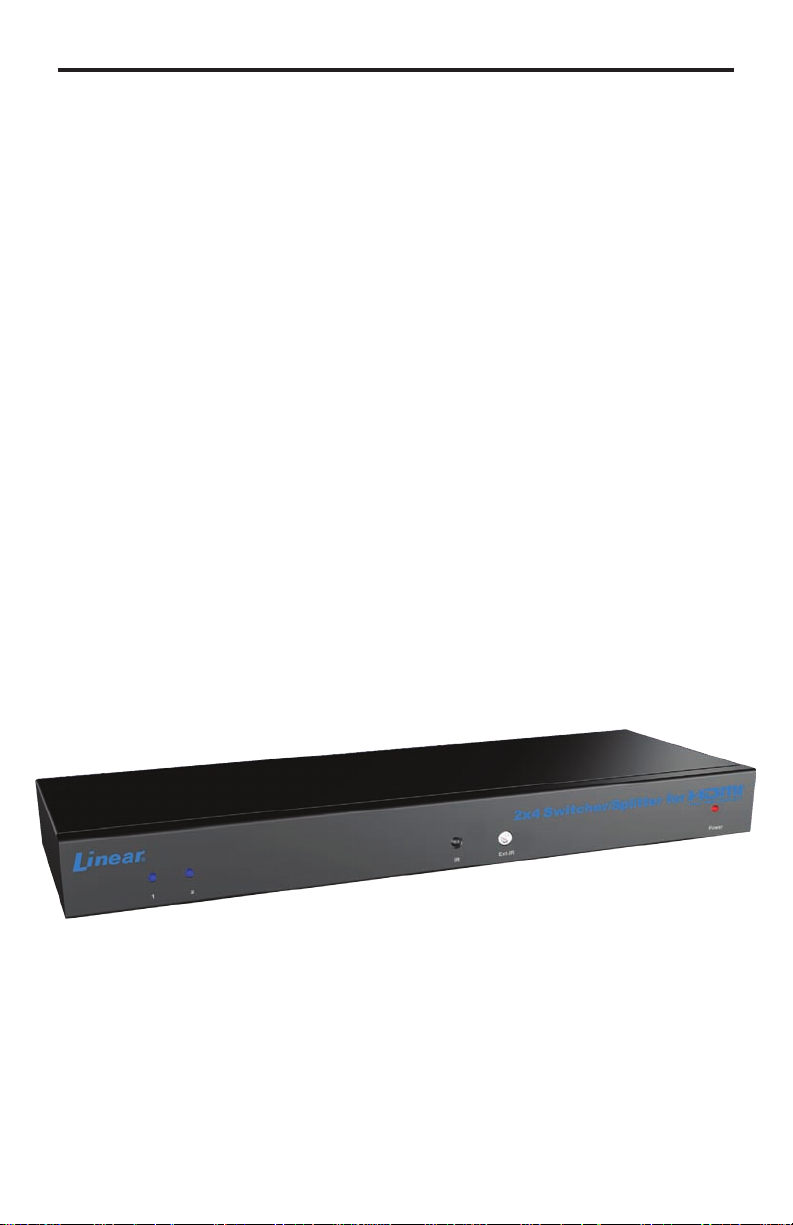

INTRODUCTION

The Linear 2x4 Switcher/Splitter for HDMI is equipped with two HDMI inputs and four
HDMI outputs. Two inputs accommodate the simultaneous connection of up to two

high denition video sources, such as satellite systems and HD DVD players. Four
outputs send the high denition audio/video signals to up to four high denition displays.

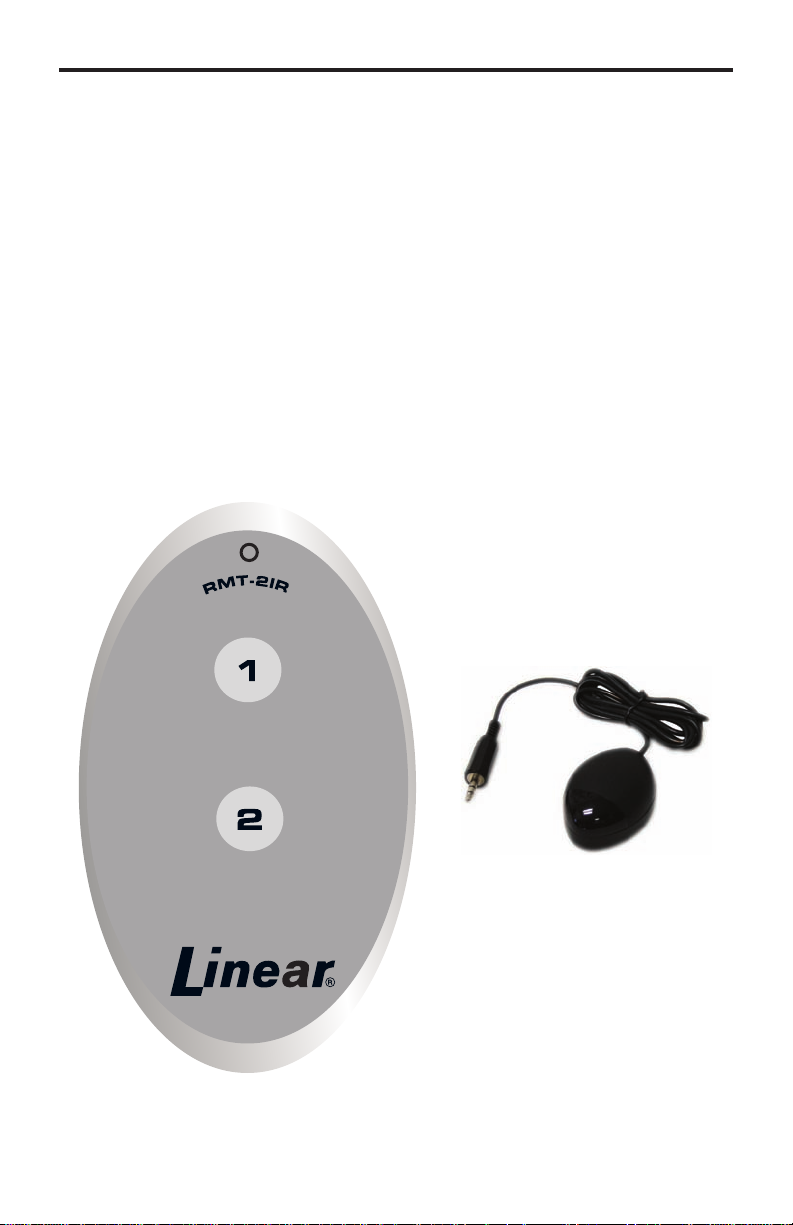

Switching is done via the IR remote that is provided with the unit.
How It Works
You simply connect all your sources to the switcher’s HDMI inputs. Then connect up

to four displays to the switcher’s HDMI outputs. Once the sources, the Switcher and
the display(s) are powered and connected, you simply select which source you want
to view using the IR remote.

OPERATION NOTES

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE 2X4 SWITCHER/SPLITTER FOR HDMI

Display information (EDID) is sent from the display connected to HDMI •
output port 1 to both of the sources connected to the 2X4 Switcher/
Splitter for HDMI. If there is no display connected to HDMI output port 1,
the remaining HDMI output ports will be scanned in succession for an
EDID to use. (See note on page 4 for additional information)

The 2X4 Switcher/Splitter for HDMI can only mirror one input video signal at a •
time to the four display outputs. The user can choose which of the two HDMI
inputs will be displayed on the four HDMI outputs

HDMI/HDCP compliant•

Compatible with all HDMI and DVI* displays•

NOTE: When used with a HDMI to DVI adapter.

1
