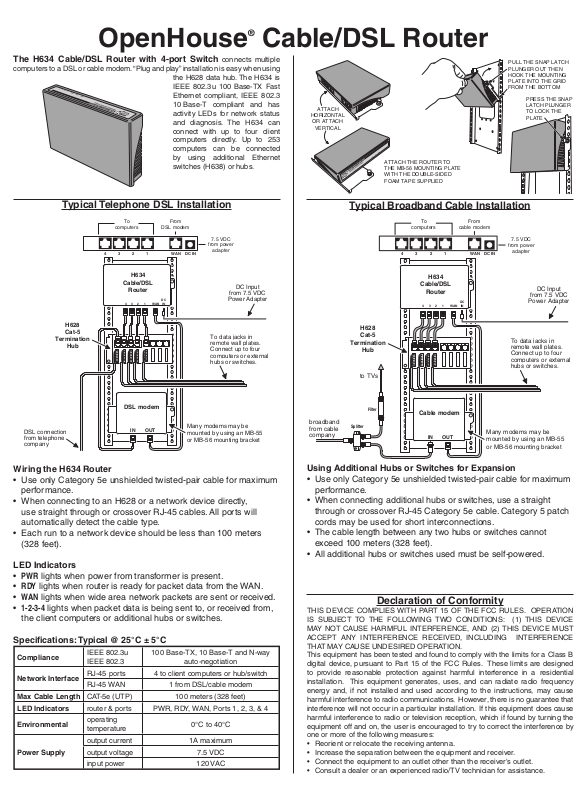

Linear H634 Owner's Manual
OpenHouse® Cable/DSL Router
The H634 Cable/DSL Router with 4-port Switch connects multiple
computers to a DSL or cable modem. “Plug and play” installation is easy when using
the H628 data hub. The H634 is
IEEE 802.3u 100 Base-TX Fast
Ethernet compliant, IEEE 802.3
10 Base-T compliant and has
activity LEDs for network status
and diagnosis. The H634 can
connect with up to four client
computers directly. Up to 253
computers can be connected
by using additional Ethernet
switches (H638) or hubs.
Typical Telephone DSL Installation
To
computers
4 3 2 1 WAN DC IN
From
DSL modem
7.5 VDC
from power
adapter
ATTACH
HORIZONTAL
OR ATTACH
VERTICAL
PULL THE SNAP LATCH
PLUNGER OUT THEN
HOOK THE MOUNTING
PLATE INTO THE GRID
FROM THE BOTTOM
ATTACH THE ROUTER TO
THE MB-56 MOUNTING PLATE
WITH THE DOUBLE-SIDED
FOAM TAPE SUPPLIED
Typical Broadband Cable Installation
To
computers
4 3 2 1 WAN DC IN
From
cable modem
7.5 VDC
from power
adapter
PRESS THE SNAP
LATCH PLUNGER
TO LOCK THE
PLATE
H634
Termination
DSL connection
from telephone
company
H628
Cat-5
Hub
Cable/DSL
Router
4321
DSL modem
WAN
IN OUT
DC
IN
To data jacks in
remote wall plates.
Connect up to four
computers or external
hubs or switches.
Many modems may be
mounted by using an MB-55
or MB-56 mounting bracket
DC Input
from 7.5 VDC
Power Adapter
Wiring the H634 Router
• Use only Category 5e unshielded twisted-pair cable for maximum
performance.
• When connecting to an H628 or a network device directly,
use straight through or crossover RJ-45 cables. All ports will
automatically detect the cable type.
• Each run to a network device should be less than 100 meters
(328 feet).
LED Indicators
• PWR lights when power from transformer is present.
• RDY lights when router is ready for packet data from the WAN.
• WAN lights when wide area network packets are sent or received.
• 1-2-3-4 lights when packet data is being sent to, or received from,
the client computers or additional hubs or switches.
Specifi cations: Typical @ 25°C ± 5°C
Compliance
Network Interface
Max Cable Length
LED Indicators
Environmental
Power Supply
IEEE 802.3u
IEEE 802.3
RJ-45 ports 4 to client computers or hub/switch
RJ-45 WAN 1 from DSL/cable modem
CAT-5e (UTP) 100 meters (328 feet)
router & ports PWR, RDY, WAN, Ports 1, 2, 3, & 4
operating
temperature
output current 1A maximum
output voltage 7.5 VDC
input power 120 VAC
100 Base-TX, 10 Base-T and N-way
auto-negotiation
0°C to 40°C
H634
broadband
from cable
company
H628
Cat-5
Termination
Hub
to TVs
Filter
Splitter
Cable/DSL
Router
4321
Cable modem
WAN
IN OUT
DC
IN
To data jacks in
remote wall plates.
Connect up to four
computers or external
hubs or switches.
Many modems may be
mounted by using an MB-55
or MB-56 mounting bracket
DC Input
from 7.5 VDC
Power Adapter
Using Additional Hubs or Switches for Expansion
• Use only Category 5e unshielded twisted-pair cable for maximum
performance.
• When connecting additional hubs or switches, use a straight
through or crossover RJ-45 Category 5e cable. Category 5 patch
cords may be used for short interconnections.
• The cable length between any two hubs or switches cannot
exceed 100 meters (328 feet).
• All additional hubs or switches used must be self-powered.
Declaration of Conformity
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION
IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE
MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE
THAT MAY CAUSE UNDESIRED OPERATION.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used according to the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which if found by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet other than the receiver’s outlet.
• Consult a dealer or an experienced radio/TV technician for assistance.
222323 A Copyright © 2004 Linear LLC
3 RG-6
2 RG-6
2 RG-6
3 Cat-5
2 Cat-5
1 Cat-5
3 RG-6
3 RG-6
3 RG-6
®
2 RG-6
3 Cat-5
1 RG-6
2 Cat-5
1 RG-6
1 Cat-5
run from the various rooms of the house directly to
®
Typical Room Media Center Home Offi ce
2 Cat-5
2 Cat-5
1 Cat-5
Home offi ce - phone, TV, ethernet, satellite receiver, cable modem, hi-speed data
Media center - phone, TV, ethernet, satellite receiver, AV modulators, hi-speed data
Best
Better
Good
Typical room - phone, TV, ethernet, satellite receiver
Best …
Home offi ce - phone, TV, ethernet, cable modem
Media center - phone, TV, ethernet, satellite receiver, AV modulators
Typical room - phone, TV, ethernet
Better …
Home offi ce - phone, TV, cable modem
Media center - phone, satellite receiver, AV modulators
Typical room - phone, TV
Good ...
Starter systems
RF splitters and telephone punch downs.
When it is time to upgrade, just snap this
module out and replace with one or more of
the more sophisticated units.
Compatible
OpenHouse® Enclosures, Modules,
service center to the rooms indicated.
We recommend the following pre-wire schemes. Run these wires from the
camera, DVD player, a VCR or a satellite receiver.)
modulator signals. (An AV modulator creates new TV channels for front door
coax handles television (antenna or cable), satellite dish, cable modem, or AV
(4 Unshielded Twisted Pairs) wire handles data or 1 to 4 telephone lines. RG-6
Two types of wire are used for communication and entertainment: Cat-5, 4-UTP
the service center location. (This is known as ‘home run’ wiring.)
The cables in an OpenHouse
Wiring a house for OpenHouse
Telephone hubs
Connections for 1-4 phone lines to every
room. Starter hub adds RJ-31X jack for
security system dialer.
®
Accessories & Wall Plates
Service center
enclosures
A full line of OpenHouse® compatible enclosures,
from simple, inexpensive mounting plates to
high capacity in-wall cabinets. AC outlets can be
mounted inside the cabinets.
Data hubs
Termination blocks for the CAT-5e cables, Ethernet
switches. Bring the Internet to any room in the home. Or
create a home data network.
Model H634
Linear LLC
Wall plates
Wall plate systems for all rooms. The typical room gets TV and
telephone. The home offi ce wall plate adds data ports. The media
center wall plate adds satellite feeds.
Cable/DSL Router
Coax panels
Distribute antenna or cable TV to every room of the
house. Some models include bi-directional amplifi ers
for interactive cable systems. Some models include
modulator inputs and IR engines.
AV modulators
(for service center)
Create a new TV channel for a front door
camera. Some models feature Cat-5 input
connections.
2055 Corte Del Nogal, Carlsbad, CA 92009, USA
760-438-7000
800-999-5225
fax: 760-931-1340
www.openhousesystem.com
© 2004 Linear LLC, Carlsbad, CA, USA
Linear LLC warrants this OpenHouse product to be free from defects in material and workmanship for 5 years. The time period will be measured using
the date code labeled on the product. Linear LLC is not responsible for damage to the product resulting from the buyer’s improper handling, stocking or
warehousing of the product. Any implied warranty arising from the sale of the product including implied warranties of merchantability and fi tness for purpose
are limited. Linear LLC shall not be responsible for any losses, damages or expenses, whether direct, consequential, or incidental arising from the use or
the inability to use the product. Some states and countries do not allow limitations or how long an implied warranty lasts or the exclusion or limitation or
incidental or consequential damages, so the above exclusions may not apply. The Linear LLC warranty gives specifi c legal rights in addition to other rights,
which may exist and vary from state to state and country to country.
The warranty is limited to repair or replacement of products returned, freight prepaid, to Linear LLC, there is NO PROVISION FOR LABOR COST OR OTHER
REIMBURSEMENTS OF ANY KIND.
1. Failures due to product abuse, such as negligence, improper use, and electrical surge including damage from lightning, water damage or other damage
due to natural disasters are not covered by the warranty. The most common form of product abuse is surge damage caused by lightning.
2. The warranty shall also be voided by any tampering with the date code, labels or other markings on the product.
3. Products that are damaged in transit to Linear LLC due to improper packaging or by the carrier (shipping company) will not be covered under the
warranty. If the product was damaged or lost by the carrier, it is the sender’s responsibility to create a claim against the carrier.
4. The user is responsible for all labor costs associated with removing, reinstalling and returning the product to Linear LLC.
Linear LLC, at its option, will repair or replace the defective product. Replacements will be made from B-Stock, if an exact replacement is not available,
Linear LLC, at its option, will select the nearest equivalent product. The user is responsible for freight charges to Linear LLC. Linear LLC will return warranted
repaired or replacements by UPS Ground or an equivalent service. A customer may pay the additional costs for second-day or next-day service.
All products returned for warranty service require a Return Product Authorization Number (RPA#). Contact Linear Technical Services at 1-800-999-5225
for an RPA# and other important details.
Warranty
AV modulators
(for media center)
Create new TV channels for DVD, VCR, or a satellite
receiver. These modulators sit in the media center.
Some offer true MTS stereo.
IR Accessories
Control video devices from any room.
New OpenHouse® products are added all the time.
Visit our website to learn more:
www.openhousesystem.com
