Page 1

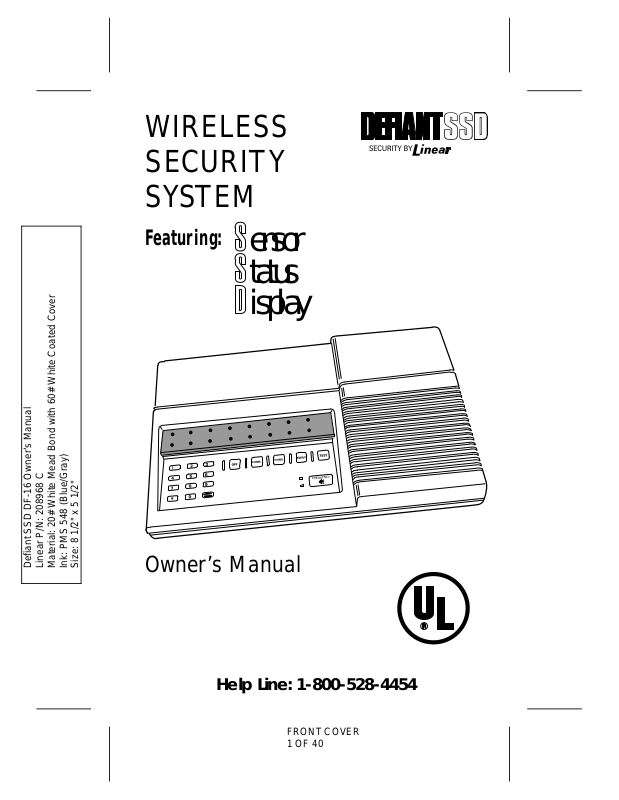

WIRELESS SECURITY SY S TEM

Featuring:

ensor tatus isplay

Owner’s Manual

Help Line: 1-800-528-4454

Page 2

INTRODUCTION

CONGRATULATIONS for selecting the DEFIANT SSD Security System. The DEFIANT SSD Console incorporates many of the advanced and sophisticated

features of professionally ins talled systems, yet it is wireles s, and you can easily install it yourself. You can also expand and customize the DEFIANT SSD Security System to fit your specific needs.

Please refer to the enclosed video tape for an easy to understand, step-by-step installation and operation demonstration.

This system is a Residential Security System. Many insurance companies offer discounts on homeowners and renters policies when a security system i s installed. Discount credits vary with different companies and generally increase in savings with an increase in the level of protection. Ask your insurance agent about available savings for you.

For a UL smoke alarm system, you must add at least one smoke detector to the DEFIANT SSD Console to meet National Fire Protection Association (NFPA) Rule 74 and UL 217 requirements. Many insurance companies require you to m eet these requirements to qualify for a discount. Use only the SSD compatible smoke detector as described in Section 3 (Defiant SSD Accessories) of this manual.

NOTE: Some cities and municipalities may require an alarm system permit. Check with your local authorities before installing this system.

The DEFIANT SSD Console and its accessories are designed and manufactured by the oldest wireless security company in North America. You can look ahead to many years of reliable service and peace of mind with DEFIANT SSD on guard for you and your family.

In this manual, the bullets preceding the text help to define the step. For example:

★This symbol indicates a feature. ☞This symbol indicates an action to perform. ◗ This symbol is for lighted indications or

system sounds.

✍This symbol is for important notes.

TECHNICAL SERVICE 24-HOUR HELP LINE

1-800-528-4454

7 DAYS-A-WEEK

Page 3

TABLE OF CONTENTS

1. YOUR KEEPSAFER SSD SECURITY SYSTEM . . . . . 2

CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . 3

DOOR/WINDOW SENSORS . . . . . . . . . . . . . . 3

WIRELESS KEYPAD . . . . . . . . . . . . . . . . . . 3

2. SECURITY SYSTEM FLOOR PLAN . . . . . . . . . . . . 4

EXAMPLE SYSTEM . . . . . . . . . . . . . . . . . . . 4

DESIGN YOUR SYSTEM . . . . . . . . . . . . . . . . 4

3. KEEPSAFER SSD ACCESSORIES . . . . . . . . . . . . 5

4. CONSOLE FEATURES . . . . . . . . . . . . . . . . . . 6

5. SYSTEM SENSORS . . . . . . . . . . . . . . . . . . . . 8

DOOR/WINDOW SENSOR . . . . . . . . . . . . . . . 8

WIRELESS KEYPAD . . . . . . . . . . . . . . . . . . 8

6. CONSOLE INSTALLATION . . . . . . . . . . . . . . . . 9

PLACE CONSOLE . . . . . . . . . . . . . . . . . . . . 9

ERECT ANTENNA . . . . . . . . . . . . . . . . . . . . 9

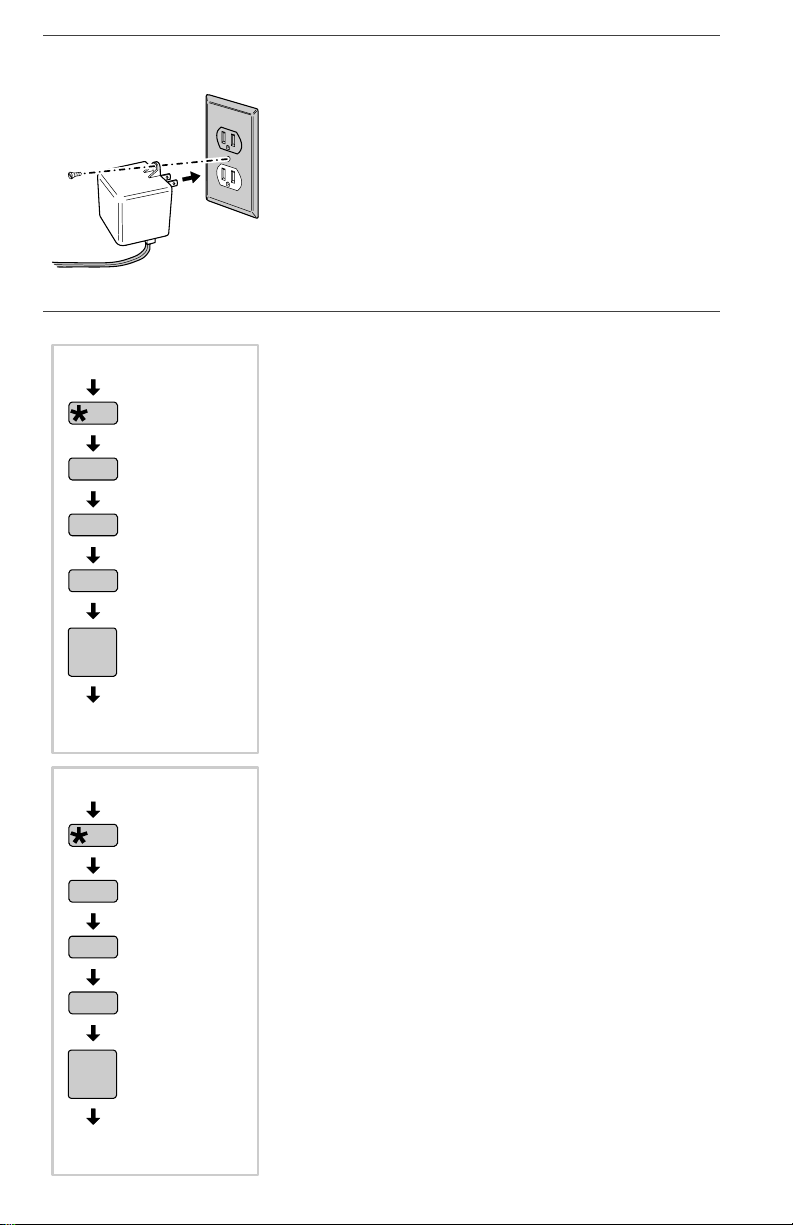

PLUG IN AC ADAPTER . . . . . . . . . . . . . . . . 10

CREATE YOUR SECRET KEYPAD CODE . . . . . . 10

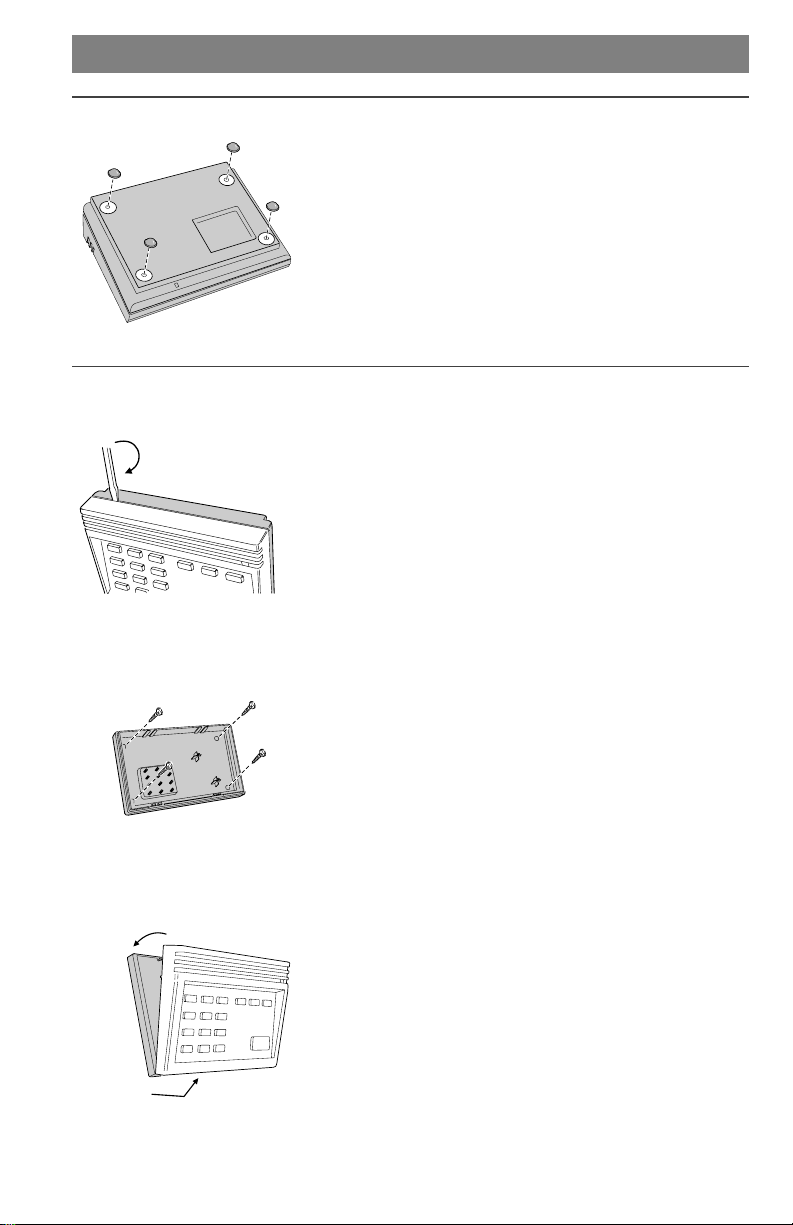

7. MOUNT WIRELESS KEYPAD . . . . . . . . . . . . . . 11

TABLE-TOP USE . . . . . . . . . . . . . . . . . . . 11

WALL MOUNT USE . . . . . . . . . . . . . . . . . . 11

8. MOUNT S ENSORS . . . . . . . . . . . . . . . . . . . . 12

SET SENSOR SWITCH . . . . . . . . . . . . . . . . 12

APPLY DOUBLE-STICK TAPE . . . . . . . . . . . . 12

ATTACH SENSORS AND MAGNETS . . . . . . . . 13

TEST SENSORS . . . . . . . . . . . . . . . . . . . . 13

9. PREPARING THE CONSOLE . . . . . . . . . . . . . . 14

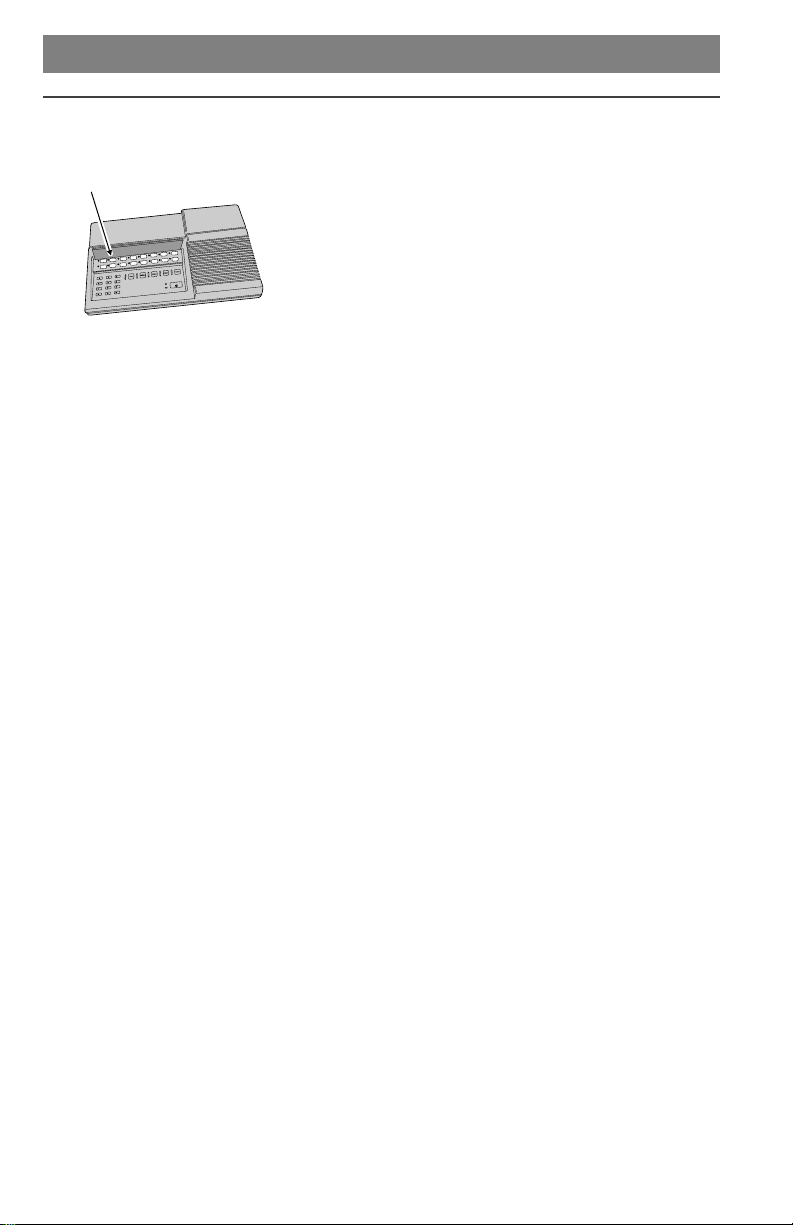

LABELING YOUR SENSORS . . . . . . . . . . . . . 14

10. DISARMING THE CONSOLE . . . . . . . . . . . . . . 15

OFF MODE . . . . . . . . . . . . . . . . . . . . . . 15

11. USING THE SYSTEM AT HOME . . . . . . . . . . . . . 16

HOME MODE . . . . . . . . . . . . . . . . . . . . . 16

SECURE EXIT . . . . . . . . . . . . . . . . . . . . . 17

AUTOMATIC BYPASSING OF SENSORS . . . . . . 17

12. USING THE SYSTEM WHEN LEAVING . . . . . . . . . 18

AWAY MODE . . . . . . . . . . . . . . . . . . . . . 18

AUTOMATIC BYPASSING OF SENSORS . . . . . . 19

13. USING THE SYSTEM AS DOOR CHIME . . . . . . . . 20

CHIME MODE . . . . . . . . . . . . . . . . . . . . . 20

14. BI-WEEKLY SYSTEM TESTING . . . . . . . . . . . . . 21

TEST MODE . . . . . . . . . . . . . . . . . . . . . . 21

SENSOR LOW BATTERIES . . . . . . . . . . . . . . 21

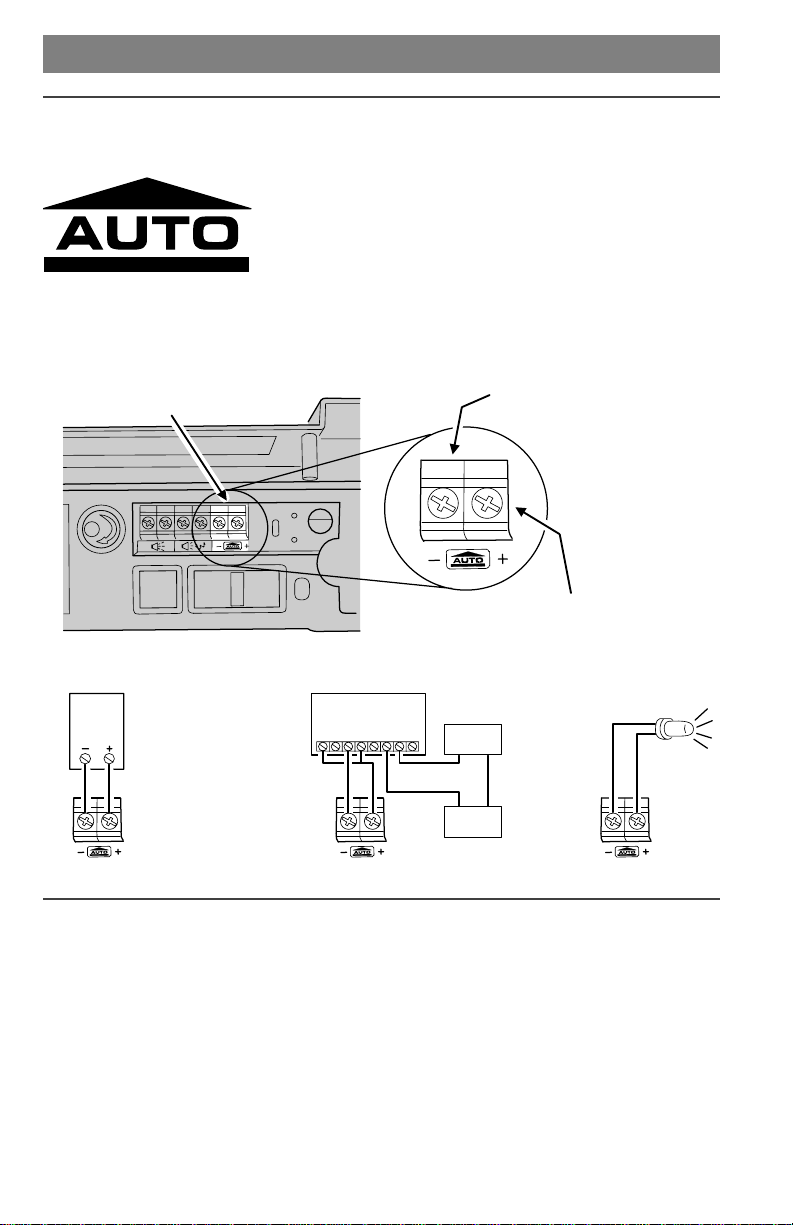

15. HOME AUTOMATION OUTPUT . . . . . . . . . . . . . 22

HOME AUTOMATION INTERFACE . . . . . . . . . . 22

PROGRAMMABLE OPTIONS . . . . . . . . . . . . . 22

16. EXPANDING YOUR SYSTEM . . . . . . . . . . . . . . 23

ADDING SENSORS TO THE SYSTEM . . . . . . . . 23

REMOVING SENSORS FROM THE SYSTEM . . . . 24

MAKING A SENSOR A 24-HOUR DOOR CHIME . . 24

MAKING A SENSOR INTERIOR . . . . . . . . . . . 25

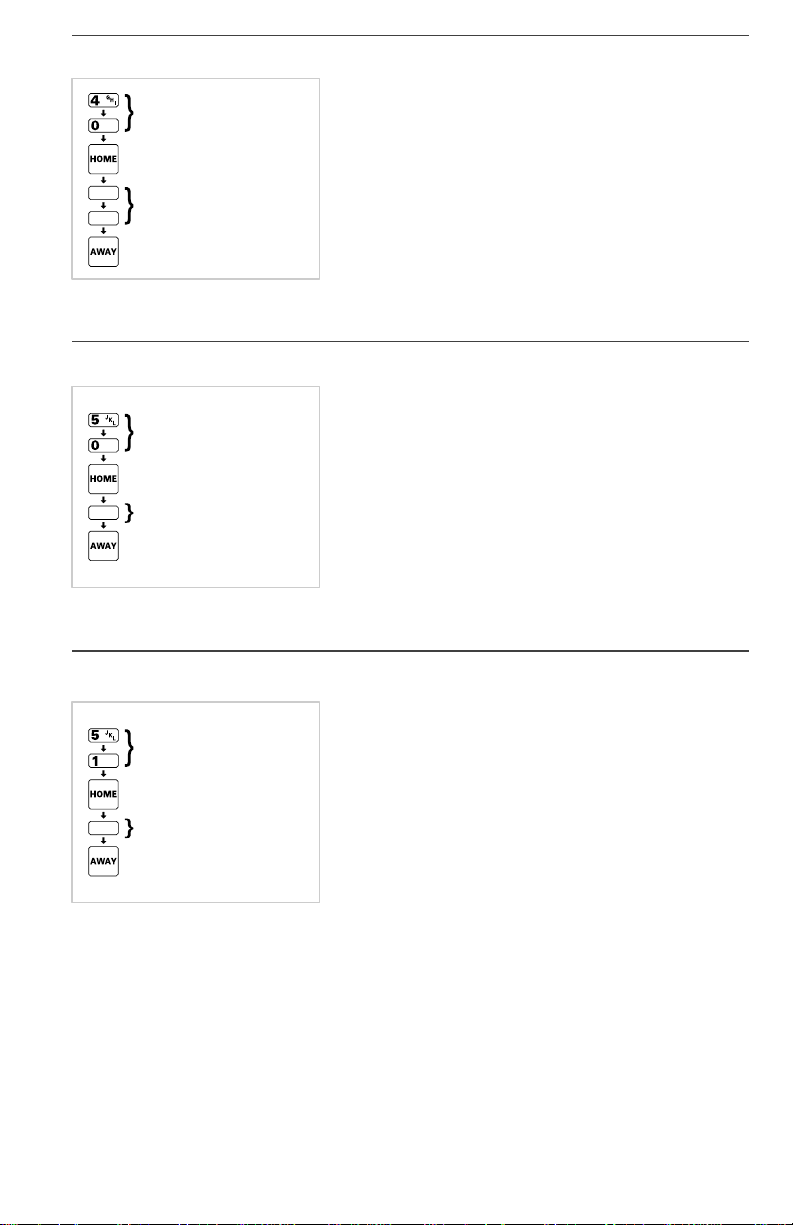

17. ADVANCED PROGRAMMING . . . . . . . . . . . . . 26

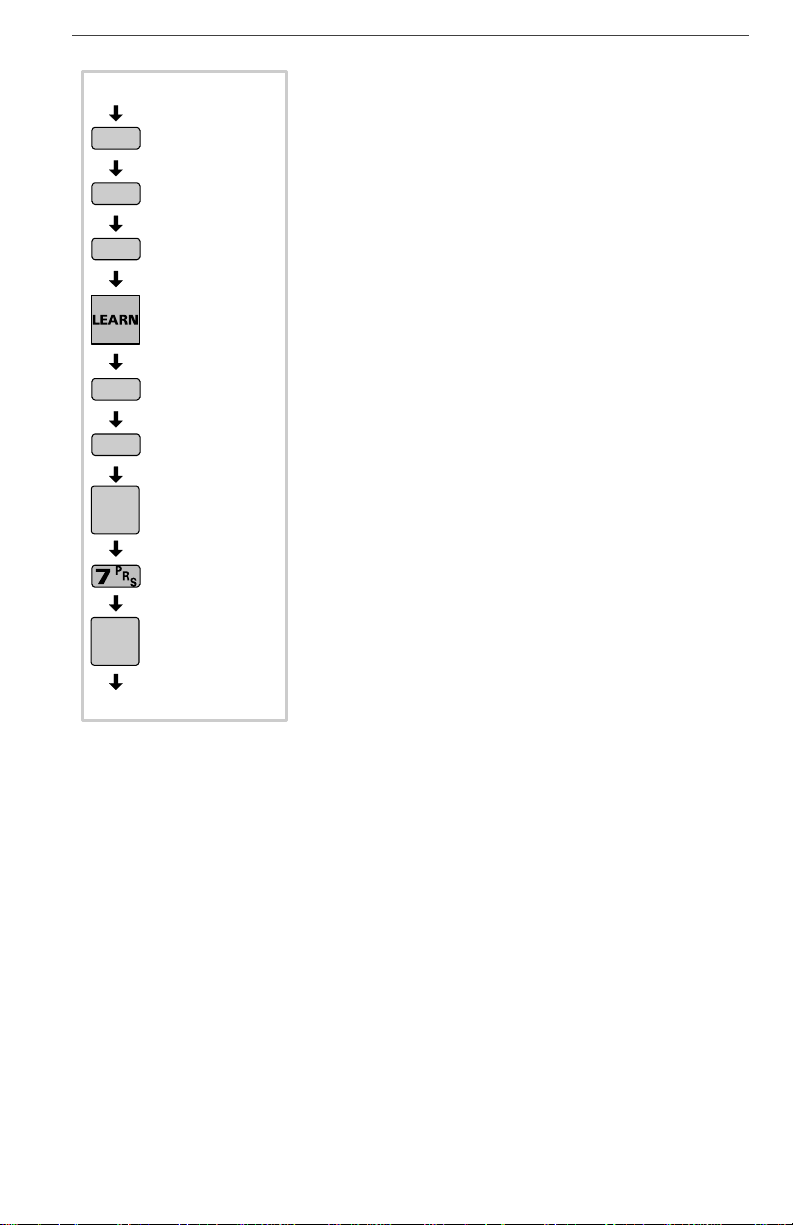

LEARN MODE . . . . . . . . . . . . . . . . . . . . 26

ENTRY DELAY TIME . . . . . . . . . . . . . . . . . 26

EXIT DELAY TIME . . . . . . . . . . . . . . . . . . 26

HOME AUTOMATION OUTPUT TIME . . . . . . . . 27

REMOTE CONTROL ARMING LEVEL . . . . . . . . 27

REMOTE CONTROL DISARMING LEVEL . . . . . . 27

AUTOMATIC BYPASSING OF OPEN SENSORS . . 28 AUTOMATIC RESTORAL OF BYPASSED SENSORS 28

DISABLING QUICK ARMING . . . . . . . . . . . . . 28

EXIT DELAY BEEPS . . . . . . . . . . . . . . . . . 29

TEST SENSORS LIGHT . . . . . . . . . . . . . . . 29

HOME AUTOMATION OUTPUT POLARITY . . . . . 29

HOME AUTOMATION OUTPUT DURING EXIT/ENTRY

DELAYS . . . . . . . . . . . . . . . . . . . . . . . . 30

HOME AUTOMATION OUTPUT WHILE ARMED . . 30 HOME AUTOMATION OUTPUT FLASHES DURING

ALARM . . . . . . . . . . . . . . . . . . . . . . . . 30

HOME AUTOMATION OUTPUT FLASHES DURING

AND AFTER ALARM . . . . . . . . . . . . . . . . . 31

REMOTE CONTROL ARM/DISARM CHIRP . . . . . 31

HOME AUTOMATION ACTIVATION TONE . . . . . 31

RESTRICTED SECRET CODE . . . . . . . . . . . . 32

MASTER SECRET CODE . . . . . . . . . . . . . . 32

CONSOLE MASTER RESET . . . . . . . . . . . . . 32

18. ADVANCED PROGRAMMING TABLE . . . . . . . . . 33

19. ADDITIONAL SYSTEM ACCESSORIES . . . . . . . . 34

Page 4

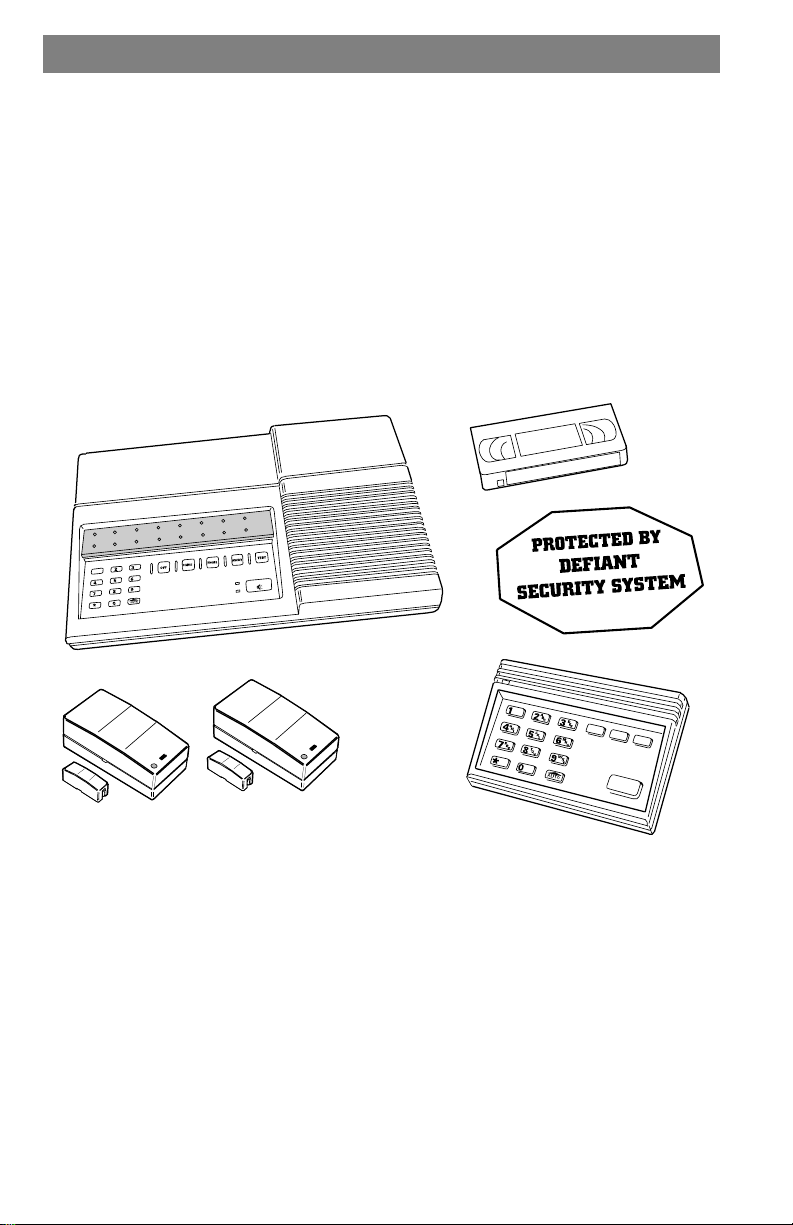

1. YOUR DEFIANT SSD SECURITY S YSTEM

Your DEFIANT SSD Security System package consists of:

★One Control Console ★Two Door/Window Sensors ★One Wireless Keypad ★One AC Power Adapter ★One Installation and Operation Video Tape ★One DEFIANT SSD Yard Warning Sign

DEFIANT SSD

CONSOLE

VIDEO

TAPE

DOOR/WINDOW

SENSORS

YARD

SIGN

WIRELESS

KEYPAD

✍NOTE: An SSD Smoke Detector is required

to create a UL Listed smoke alarm system. See Section 16 (Expanding Your System) for details of how to program the SSD Smoke Detector into the Console.

Page 5

CONSOLE

The DEFIANT SSD Console is the heart of the system. It monitors all of the system’s wireless sensor s and controls the alarm sirens.

The Console constantly monitors the condition of the system’s sensors, displaying which protected doors and windows are open or closed. If an alarm occurs, the Console displays which sensor caused it. When a sensor ha s a low battery, the Console displays which sensor needs a new battery.

Two different custom secret keypad codes can be used to operate the system. For security, a secret code must be entered to disarm (turn off) the system. The system can be armed (turned on) by entering a secret code, or with the unique “Quick Arm” feature.

The internal memory will “remember” your secret codes and all of the system’s programming, even during a total power loss. An optional backup battery is available to power the system during short power failures and is highly recommended.

An optional Emergency Dialer can be easily installed to connect the Console to a Central Alarm Monitori ng Station through you r teleph one. The Em ergency Di aler is also highly recommended. With a monitored system, the central station can dispatch authorities in case of burglary, fire or other emergency. The central station can also call y our famil y, frie nds, neig hbors, or anyone el se you design ate on your custom call list.

The Console has “panic button” capabilities that are alwa ys ready to operate, even when the Console is disarmed. They can be triggered by a button on the Console, the Wireless Keypad and portable remote controls. Pressing the [EMERGENC Y] button for two seconds will cause an immediate siren and call the central station

For personal emergency use

(if the optional dialer is installed).

IMPORTANT:

only. Not for use as a UL Listed Medical Alert System.

DOOR/WINDOW SENSORS

The sensors monitor your doors and windows. They send radio signals to the Console. One type of signal is sent when the door or window is opened, and a different type of signal is sent when the door or window is closed. If the Console is armed, a sensor can trigger the Console’s burglary siren when its door or window is opened. Up to 16 sensors can be used with the DEFIANT SSD Console.

WIRELESS KEYPAD

The wireless keypad is used to control the Console remotely. It can be placed in a convenie nt sp o t s o you d on’ t ha v e to go to th e Con so le to c ont ro l th e sy s tem . The wireless keypad can also trigger the 24-hour emergency siren and actuate the Home Automation Output . Pressing the [∗] key will cause the Console to sound

For

beeps corresponding to the current operating mode.

IMPORTANT:

personal emergency use only. Not for use as a UL Listed Medical Alert System.

Page 6

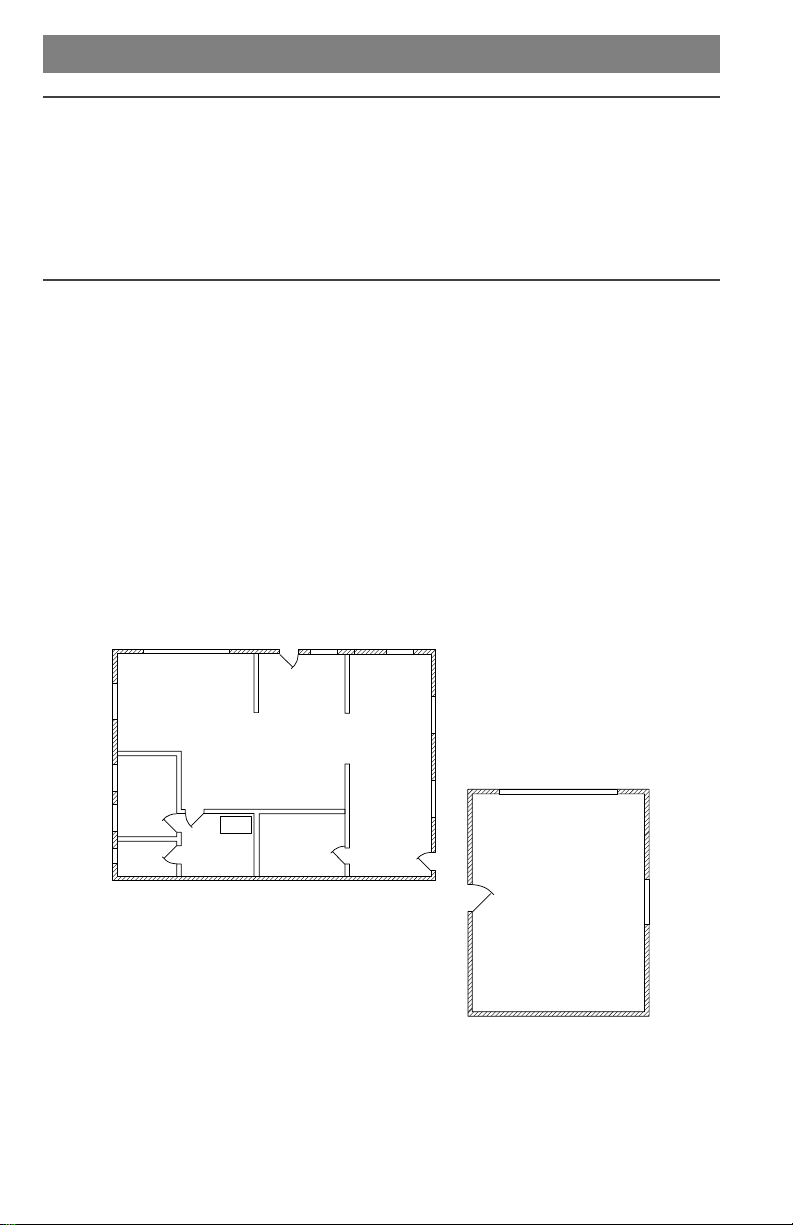

2. SECURITY SYSTEM FLOOR PLAN

EXAMPLE SYSTEM

★The example below shows a typical

DEFIANT SSD sy stem.

★Any or all of the accessories shown can be

used.

★A total of 16 sensors (including keypads) can

be used with each Console.

DESIGN YOUR SYSTEM

☞Create a floor plan of your residence. ☞Consider the security needs of your premises. ☞Determine which doors and windows are

vulnerable to intrusion.

☞Figure which interior areas an intruder might

go to if unlawful entrance is gained.

☞Indicate locations for door window sensors,

interior motion detectors and external siren speakers.

☞Decide on a centralized location for the

security Console.

BED

BATH

LIVING

CON

ENTRY

DINING

DEN

KITCHEN

CON - DEFIANT SSD CONSOLE S - DOOR/WINDOW SENSOR WK - WIRELESS KEYPAD MD - MOTION DETECTOR ES - EXTERNAL SIREN

SD - SMOKE DETECTOR GB - GLASS BREAK SENSOR MS - EXTERNAL MAGNETIC SWITCH

Example Residential Security System Floor Plan

GARAGE

Page 7

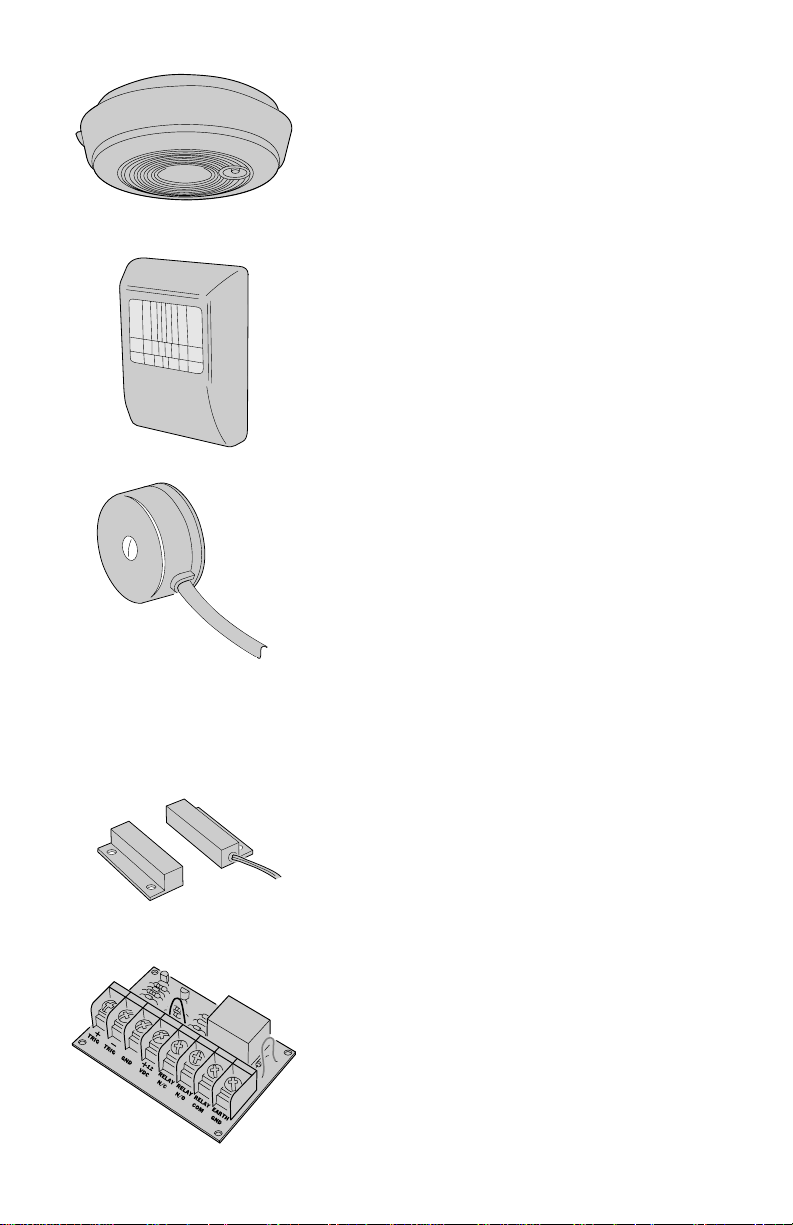

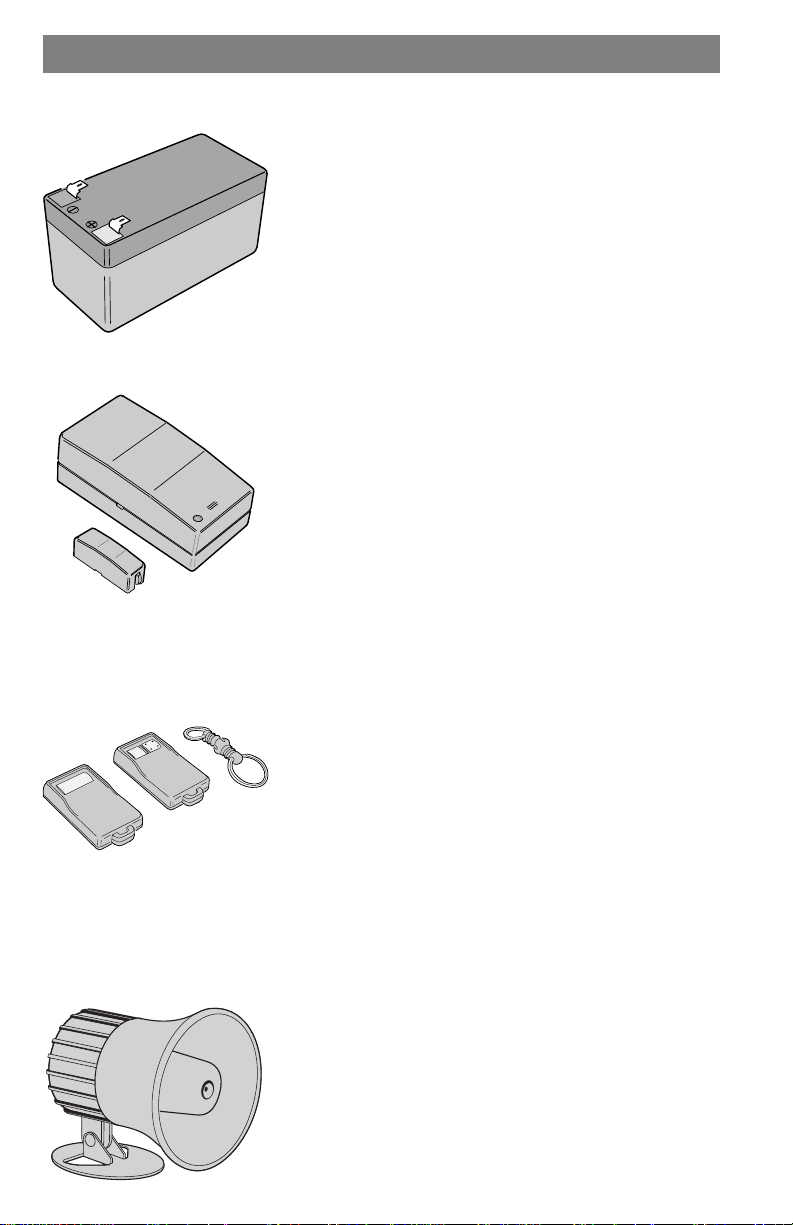

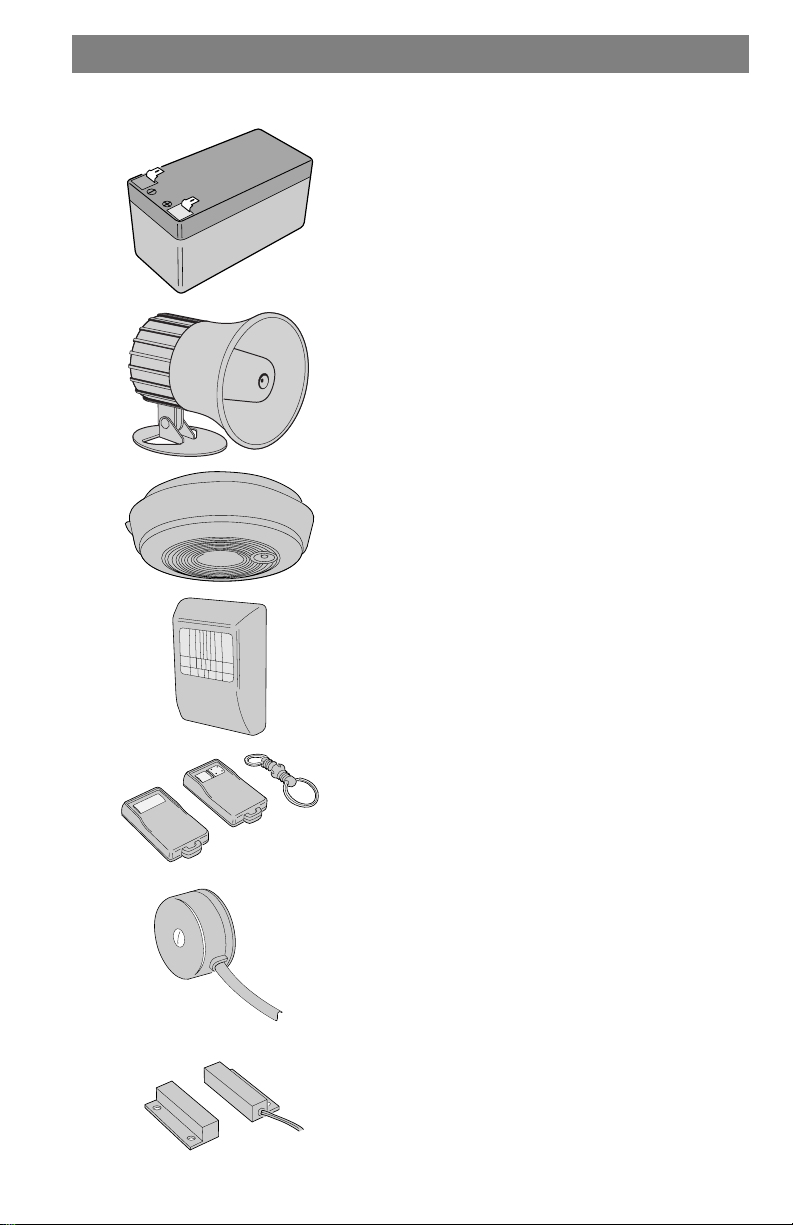

3. DEFIANT SSD ACCESSORIES

(See Section 19 for detailed descriptions)

★Backup Battery ✍UL NOTE: Normal estimated life should

be 3 to 4 years.

★Remote Siren

★Smoke Detector

★Motion Detector ✍UL NOTE: Not tested by UL.

★One-button Key chain Remote Control ★Two-button Key chain Remote Control ✍UL NOTE: Not tested by UL.

★Glass break detector

★External Magnetic Switch

Page 8

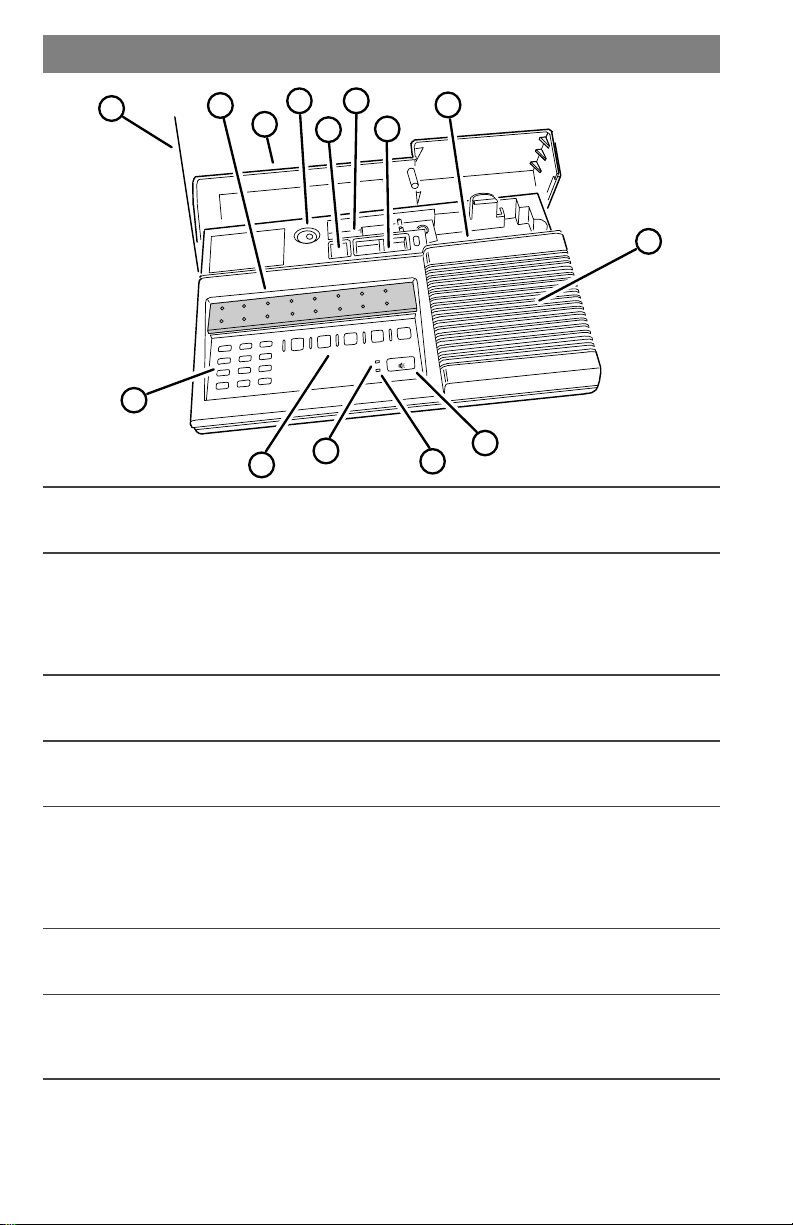

4. CONSOLE FEATURES

1ANTENNA

2 STATUS INDICATORS

3 HINGED TOP COVER

4 VOLUME CONTROL

5 LEARN BUTTON

6 TERMINAL BLOCK

7 FUSE HOLDER

8 BACKUP BATTERY LOCATION

★

Receives signals from the system’s sensors.

★

Can be rotated towards the top of the Console case for wall mounting.

★

Indicates the status of each of the system’s sensors.

★

Lights show which doors and windows are open.

★

Lights flash to display sensors that have caused an alarm.

★

Lights blink to show any sensors that have a low battery.

★

Stick-on labels are provided to identify your custom sensor locations.

★

Flips open to access special system features.

★

Can be locked closed for system security.

★

Varies the volume of the advisory tones that come from the speaker.

★

★ ★ ★ ★

★ ★

★ ★ ★

not

Does

Used to place the Console into the Learn Mode. Learn Mode is used to add additional sensors to the system (up to 16 total). Your secret code can be changed using Learn Mode. Various advanced system programming options can be made in Learn Mode.

Terminals for connection to an optional external siren speaker. Home Automation Output to connect to a Home Automation controller.

Holds fuse for the backup battery. If the POWER light is flashing and the optional backup battery is installed and charged, check this fuse. (Pull fuse holder straight up.)

Space for optional backup battery. (Highly recommended.) Backup battery is automatically charged and monitored by the Console. Backup battery can power the Console for up to 6 hours.

affect internal or accessory sirens (they are always full volume).

Page 9

9 SIREN SPEAKER

10 EMERGENCY BUTTON

11 TEST SENSORS LIGHT

12 POWER LIGHT

13 MODE BUTTONS

OFF ★

CHIME ★

HOME ★

AWAY ★

TEST ★

14 KEYPAD

★

Makes unique sounds for burglary, fire and emergencies.

★

Alarm siren stops automatically after five minutes.

★

Sounds advisory tones to confirm keystrokes from the Console.

★

Sounds mode selections tones.

★

Sounds alarm memory tones.

★

Beeps when Home Automation Output is activated.

★

Optional external siren available for louder alarms (one or two may be used).

★

Pressing the [ siren.

★

Can send an “emergency” message to a central monitoring station if the optional Emergency Dialer is installed.

★

Works 24-hours, even when system is disarmed.

★

IMPORTANT: For personal emergency use only. Not for use as a UL Listed Medical Alert System.

★

Lights every two weeks to remind you to test the system’s sensors.

★

Glows when AC power is on.

★

Dims when AC power is off and backup battery is installed.

★

Blinks when the optional backup battery is low, recharging or missing.

★

Off when AC power is off and no backup battery is installed (system disabled).

★

Used to control the Off Mode disarms the system.

★

Switching to Off Mode stops the alarm siren.

✔ ☞

Chime Mode disarms the system.

★

Switching to Chime Mode stops the alarm siren.

✔ ☞

★

Chime Mode is for monitoring doors and windows.

✔ ✔

Home Mode arms the perimeter sensors, but not the interior sensors.

✔ ✔

Away Mode arms the entire system.

✔ ✔

✔

Test Mode is for testing the system sensors.

✔ ✔

★

Hold the [

★

For entering your secret code (numerically or alphabetically).

★

Secret code must be entered before switching to Off, Test or Learn Modes.

★

Used when programming system options.

★

Press [

★

Press the [∗] key to clear keypad if you press the wrong key.

EMERGENCY

Multiple beeps sound and status lights flash if an alarm has occurred.

Multiple beeps mean caution. AN INTRUDER MAY STILL BE IN YOUR HOME.

Multiple beeps sound and status lights flash if an alarm has occurred.

Multiple beeps mean caution. AN INTRUDER MAY STILL BE IN YOUR HOME.

Use this mode as an “automatic door chime” when at home. Opening any protected door or window causes Console to “ding-dong”.

Use this mode when anyone is staying behind. Interior motion detectors and interior door sensors are not armed.

Use this mode when leaving home. Door sensors set for delayed will have a delay that allows you to leave and enter the premises without sounding the alarm. Entry Delay beeps warn you to disarm the system before the siren starts.

All sensor status lights blink when the Test Mode is entered. Each sensor status light will stop blinking when its sensor is tested.

TEST

] button down to test all of the Console’s indicator lights.

AUTO

] key to activate Home Automation Output.

] button for two seconds sounds the emergency

DEFIANT SSD

Console.

Page 10

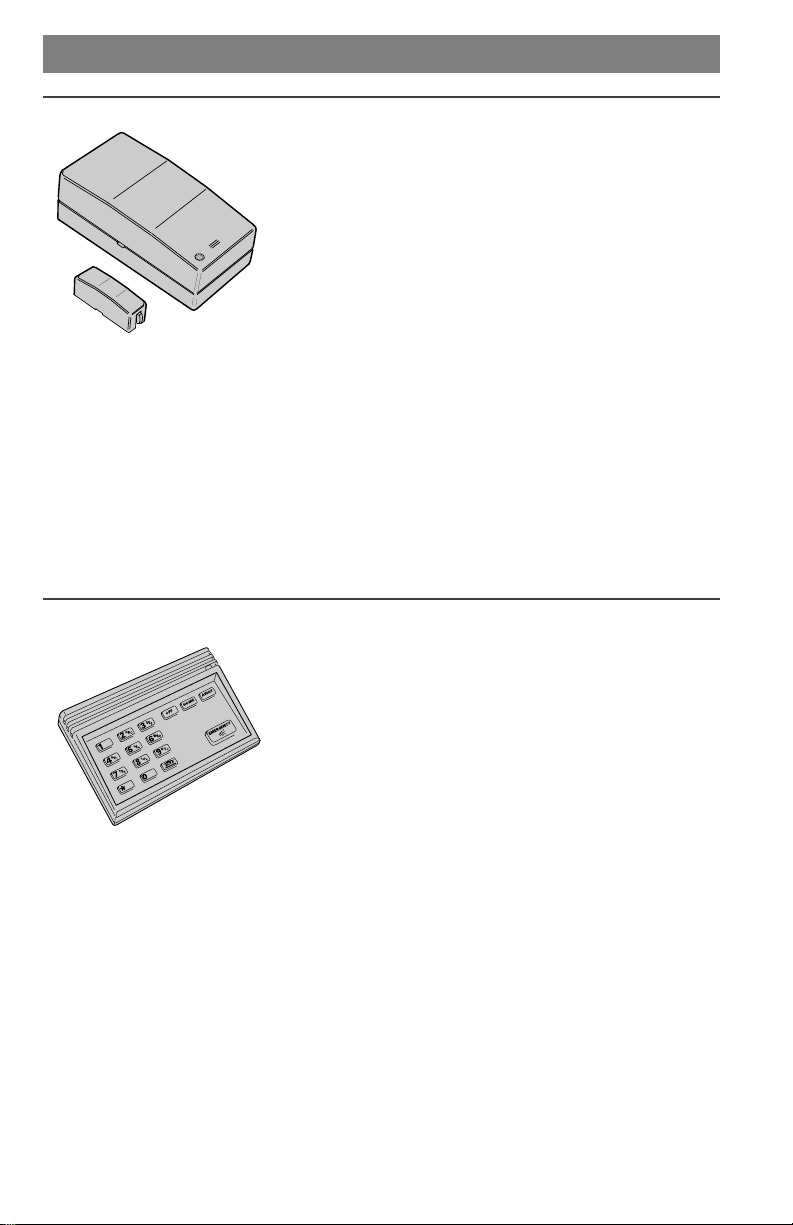

5. SYSTEM SENSORS

DOOR/WINDOW SENSOR

★Sensor mounts on door or window with ★Opening door or window moves magnet ★Pressing the case causes sensor to send a ★Sensors should be tested when the TEST ★Switch on back of sensor for INSTANT or ★Red transmit light shows that battery is in ★Internal batterie s are mon itor ed by th e ★Up to 3 years battery life (depends on ★Sensor contains internal ter min al s for

WIRELESS KEYPAD

★For controlling the system without having to ★Emergenc y alarm can be triggered from

★Green operation light. ★Internal 9-volt battery is monitored by the

★Keypad will sound a beep when its battery is ★Pressing [

★Holding [

★Up to 3 years battery life (depends on

adjacent magnet.

away, triggering sensor.

test signal.

SENSORS light on the Console goes on.

DELAYED alarm setting.

good condition.

Console.

frequency of activation).

connection to glass break detector and external magnetic switch accessories.

go to the Cons ole.

wireless keypad at any time. UL NOTE: For personal emergency use only. Not for use as a UL Listed Medical Alert System.

Console.

low.

] clears the keypad.

∗

] for two seconds sounds the

∗

mode beeps from the Console.

✔ Off Mode: 1 “Gong” ✔ Chime Mode: 1 “Gong” & 1 “Beep”. ✔ Home Mode: 1 “Gong” & 2 “Beeps”. ✔ Away Mode: 1 “Gong” & 3 “Beeps”. ✔ Test Mode: 1 “Bing” & 4 “Beeps”.

frequency of activation).

Page 11

6. CONSOLE INSTALL ATION

PLACE CONSOLE

✍NOTE: Sensor signals must be able to reach

the Console.

✔ Try to centrally locate the Console. ✔ Keep Console away from large metal

BOTTOM OF CONSOLE

LOCKING SCREW HOLE FOR WALLMOUNTING

Y C

E G R

E M E

LOCKING SCREW HOLE FOR SECURING TOP COVER

appliances.

✔ Maximum sensor range is 400 feet

under ideal conditions.

✍NOTE: If you don’t use the Wireless Keypad,

the Console should be easily accessible to your usual entrance.

✔ When the Console is set in the Away

Mode, you have 45 secon ds to switch to Off Mode before the burglary siren sounds.

✍NOTE: Make sure the Console is in a place

where you can hear the alarm during the night hours.

✔ Optional remote external sirens (up to

150 feet from the Console) can be used to make alarms louder and remote their location.

☞Locate the Console near a 115 VAC outlet

not controlled by a light switch.

☞Locate the Console within 8 feet of a

telephone outlet (for the optional Emergency Dialer).

★A cover locking screw is provided to lock

down the hinged top cover.

☞If desired, the Console can be mounted on

the wall with screws.

✔ A wall mount template is provided on

the back of the Quick Operation Guide.

✔ NOTE: If monitoring by the central

station is desired, do not wall mount until the Emergency Dialer is installed.

ERECT ANTENNA

FREE ANTENNA FROM CLAMPS POSITION ANTENNA IN

UPRIGHT POSITION

Y C N

G R E

☞Free the antenna from the retaining clamps

and pivot it to the upright position.

☞When wall mounting the Console, pivot the

antenna so it points up when the Consol e is mounted on the wall.

Page 12

PLUG IN AC ADAPTER

☞Plug AC Adapter into the AC outlet.

PLUG AC ADAPTER INTO 115 VAC OUTLET THAT IS NOT CONTROLED BY A LIGHT SWITCH

☞Secure AC Adapter with screw to prevent

un-plugging.

☞IMPORTANT: Be sure to plug the AC

SCREW

115 VAC

AC ADAPTER

OUTLET

CREATE YOUR SECRET KEYPAD CODE

START HERE

adapter into a 115 VAC outl et th at is not controlled by a wall switch.

★When power is first applied, a secret code

must be entered.

✍NOTE: Your secret code must be entered on

the Console’s keypad, not the wirel ess keypad.

☞Choose a one to five digit secret code to use

CHOOSE A SECRET CODE

for arming and disarmin g th e Console.

✍NOTE: For maximum security, a three t o

five digit code is recommended.

☞Press [

have been pressed).

☞Enter any combination of 1-5 digits for your

OFF

secret code, then press [OFF].

☞Test your new secret code by entering it then

DONE

pressing [TEST].

★Don’t forget your secret code, write it down. ✍NOTE: If you forget your code, see the

START HERE

Advanced Programming section of this manual.

★The Console will treat your secret code as a

“master” secret code. To create a “restricted” secret code, see the Advanced Programming section of this manual.

TEST YOUR SECRET CODE

✍NOTE: The master secret code can be used

to enter Learn Mode. The restricted secret code cannot.

☞To prepare for the sensor installation, place

the system in Chime Mode by entering your secret code and pressing [CHIME].

TEST

] (clears keypad if any other keys

∗

DONE

Page 13

7. MOUNT WIRELESS KEYPAD

TABLE-TOP USE

USE THE FOUR SCRATCH DETERRENT PADS PROVIDED FOR TABLE TOP USE

WALL MOUNT USE

FROM TOP OF CASE TWIST SCREWDRIVER BETWEEN CASE HALVES UNTIL IT POPS OPEN

★The wireless keypad can be used as a

portable keypad.

★Four anti-mar pads are provided as scratch

deterrent “feet” for the keypad.

✍NOTE: Do not use the adhesive “feet” if the

keypad is going to be wall mounted.

☞Peel off the adhesive tape backing on the

“feet” and stick them to the back of the keypad.

★The wireless keypad can be wall mounted in

a convenient location.

☞Open the case as shown in the figure.

ATTACH REAR CASE TO WALL WITH THE FOUR SCREWS PROVIDED

MOUNT AT A CONVENIENT LOCATION NEAR PRIMARY ENTRY/EXIT DOOR

THEN, SNAP CASE SHUT

FIRST, HOOK BOTTOM EDGE TOGETHER

☞Attach the rear case to the wall usi ng the

four screws provided.

✍NOTE: The keypad should be mounted at

least three feet above ground level.

☞Hook the bottom edge of the keypad case

together an d snap the keypad onto the rear case.

✍WARNING: The wireless keypad is designed

for indoor use only.

Page 14

8. MOUNT SENSORS

MAGNET ON WINDOW

SENSOR ON FRAME

SET SENSOR SWITCH

★A switch on the bottom of the door/window ☞If the sensor is going to be used on your

SLIDE SWITCH TO THE INSTANT OR DELAYED POSITION

☞If the sensor is going to be used on a

SENSOR ON FRAME

MAGNET ON DOOR

sensor selects instant or delayed response.

primary entry/exit door make sure that the switch is in the DELAYED position.

window or a door that is not going to be used to enter and exit the premises, slide the sensor switch to INSTANT.

APPLY DOUBLE-STICK TAPE

APPLY DOUBLE-STICK TAPE TO BACK OF SENSOR AND MAGNET MOUNTING PLATES

☞Apply double-stick tape (supplied) to back of

sensors and magnets.

★Screws are also provided to mount sensors

and magnets.

★Screws are preferred over the double-stick

tape in permanent installations.

✍NOTE: Double-stick tape is not allowed in

UL installations.

Page 15

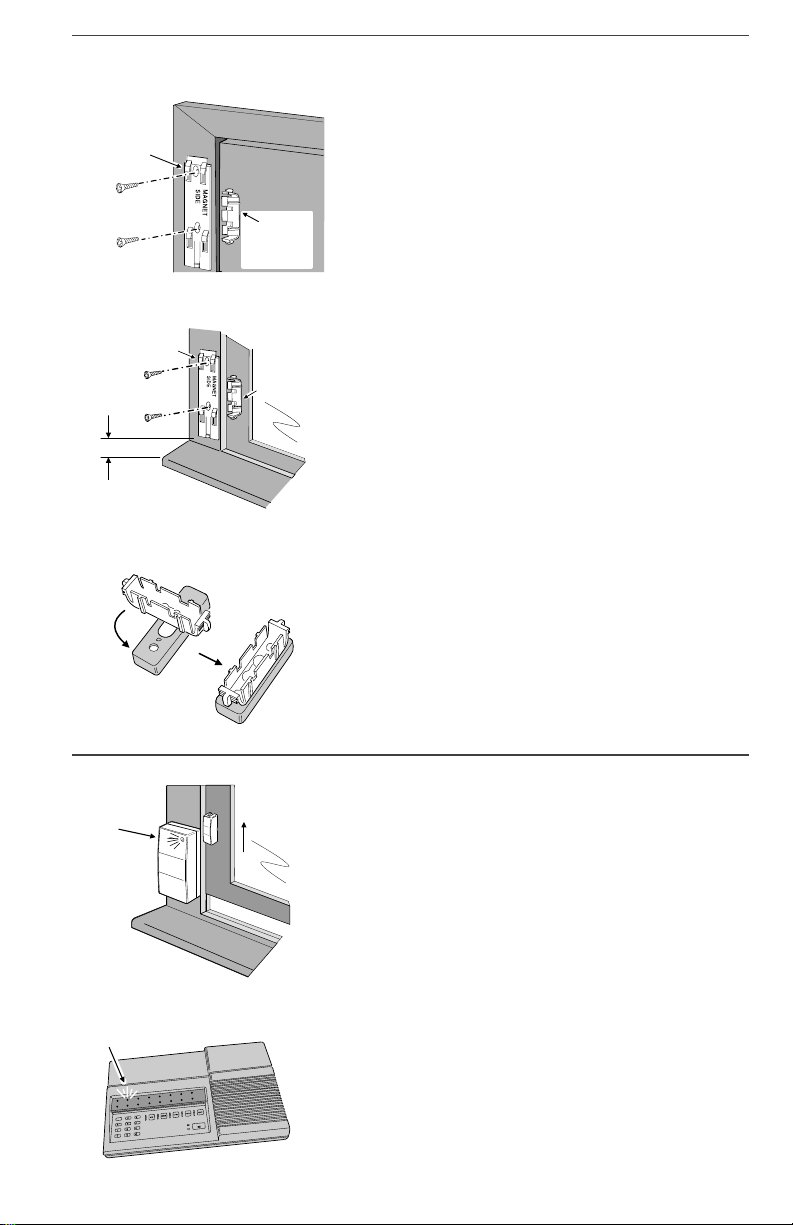

ATTACH SENSORS AND MAGNETS

✍On doors, mount sensor to door frame and

magnet to door.

✍NOTE: Magnet must line up with mark on

MOUNT SENSOR PLATE TO FRAME

sensor case both horizontally & vertically.

☞Allow a maximum of 1/2" between magnet

1/2" MAXIMUM SPACE BETWEEN SENSOR AND MAGNET PLATES

SNAP SENSOR ONTO MOUNTING PLATE

ALIGN MAGNET PLATE NEXT TO SENSOR PLATE AND ATTACH TO DOOR

and sensor when door/window is closed.

☞Snap sensor onto mounting plate.

MOUNT SENSOR PLATE TO FRAME

SPACE BELOW PLATE IS REQUIRED TO SNAP SENSOR ONTO PLATE

1/2" MINIMUM

SNAP SENSOR ONTO MOUNTING PLATE

HOOK SPACER TO MAGNET PLATE AND ROTATE TO LOCK IN PLACE

TEST SENSORS

SENSOR LIGHT SHOULD GLOW FOR TWO SECONDS

ALIGN MAGNET PLATE NEXT TO SENSOR PLATE AND ATTACH TO WINDOW

USE SPACER WHEN SURFACES ARE UNEVEN

OPEN DOOR OR WINDOW

☞On windows, mount sensor to window frame

and magnet to window.

☞Snap sensor onto mounting plate.

☞Use optional magnet spacer when surfaces

are uneven.

☞Open door or window. ◗ Verify that light on the sensor gl ows

momentarily when door/window is opened.

◗ Console in Chime Mode should “ding-dong”

when the sensor sends sig na l .

CONSOLE IN CHIME MODE SHOULD DING-DONG

STATUS INDICATOR SHOULD LIGHT WHEN SENSOR IS OPEN

◗ Status indicator on Console should remain

lit for each door/window sensor that is left open.

✍NOTE: The two door/window sensors

C N E

G R

supplied with the Console are pre-programmed into the Console’s memory as sensors #1 and #2.

Page 16

9. PREPARING THE CONSOLE

LABELING YOUR SENSORS

★The two sensors provided are

USE LABELS PROVIDED TO IDENTIFY SENSORS

Y C N

G R

pre-programmed as sensors 01 and 02.

★A label sheet with sensor location na mes is

provided with the Console.

☞Open one protected door/window. ☞Choose a label that describes the sensor

location, or write the location on a blank label, and stick it in the area to the right of the sensor light.

☞Close the protected opening that you just

labeled.

☞Repeat for each protected opening. ☞Press the [AUTO] key on the wireless keypad. ◗ The sensor 16 s tatus light should go on for a

few seconds.

☞Stick the KEYPAD label in the spot for

sensor 16.

Page 17

10. DISARMING THE CONSOLE

OFF MODE

★Use this mode to disarm the burglary por ti on

START HERE

(OPTIONAL)

YOUR SECRET CODE

OFF

1 GONG

DONE

of the system.

★Switching to Off Mode stops any alarms in

progress.

★The 24-hour emergency functions are still

active in Off Mode and can be triggered by pressing the [EMERGENCY] button.

☞Switch to Off Mode by entering your secret

code, and pressing [OFF].

◗ When the system is disarmed to Off Mode,

the Console will sound one “Gong”.

◗ If an alarm has occurred, multiple beeps will

sound after disarming and the sensor light for the sensor(s) that caused the alarm will flash.

✍NOTE: In Off Mode, protected doors and

windows cannot trigger the burglary alarm.

Page 18

11. USING THE SYSTEM AT HOME

HOME MODE

★Use this mode when sleeping or when

START HERE

(OPTIONAL)

YOUR SECRET CODE

HOME

1 GONG & 2 BEEPS

DONE

START HERE

HOLD

HOME

DOWN 1 GONG &

2 BEEPS

DONE

anyone is staying inside.

★Home Mode causes an instant alarm when

any perimeter sensor switched to INSTAN T is triggered.

★Home Mode causes a delayed alarm when

any perimeter sensor swit ched to DE LAY ED is triggered.

★Alarm siren stops automati ca l ly af ter fi ve

minutes and the system will remain armed.

★Home Mode ignores all interior sensors

(optional interior motion detectors).

☞Arm to Home Mode by entering your secret

code, and pressing [HOME].

☞You can “Quick Arm” to Home Mode from

Off or Chime Mode by holding down the [HOME] key for two seconds. (Quick arming can be disabled; see the Advanced Programming Section of this manual.)

◗ When the system is armed to the Home

Mode, the Console will sound a “Gong” and two “Beeps”.

☞Enter your secret code and press [OFF] or

[CHIME] to disarm from Home Mode and/or stop the alarm siren.

◗ If an alarm has occurred, multiple beeps will

sound after disarming and the sensor light for the sensor(s) that caused the alarm will flash (switch to Off Mode ag ain to stop flashing ala rm memor y l ight).

Page 19

SECURE EXIT

☞If the system is already in the Home Mode

and you want to exit the premises while leaving some o n e in si d e wi th t he sy stem still in Home Mode, press the [HOME] key for two seconds.

◗ A “gong” and two “beeps” will sound and the

HOME light will blink for 30 seconds.

★You can leave through a door with a delayed

perimeter sensor during the 30 second Exit Delay without causing the Console to beg i n an Entry Dela y.

✍NOTE: The Exit Delay time can be changed;

see the Advanced Programming section of this manual.

AUTOMATIC BYPASSING OF SENSORS

★The Console can be armed with open door

or window sensors.

★The system will automatically “bypass” open

doors and windows after sounding four high-low beeps to warn you that a protected door or window is open.

◗ Lit sensor status indicators show which

sensors are open.

★Bypassed sensors cannot cause an alarm

until they are “restored” (closed).

☞If you close the door or window after arming

the system, the sensor will be restored and can cause an alarm the next time it is opened.

★Automatic bypassing of sensors in the Home

Mode allows you to arm the system at night with open windows, while still having perimeter protection with other closed doors and windows.

Page 20

12. USING THE SYSTEM WHEN LEAVING

AWAY MODE

START HERE

(OPTIONAL)

YOUR SECRET CODE

AWAY

1 GONG & 3 BEEPS

DONE

START HERE

HOLD DOWN

1 GONG & 3 BEEPS

DONE

★Use this mode when no one will be staying

home.

★Away Mode causes an instant alarm when

any perimeter sensor switched to INSTAN T is triggered.

★Away Mode causes a delayed alarm when

any perimeter sensor swit ched to DE LAY ED is triggered.

★Away Mode causes an instant alarm when

any interior sensors (optional interior motion detectors) are triggered. The interior sensors will be delayed if a perimeter delayed sensor is triggered first.

★Alarm siren stops automati ca l ly af ter fi ve

minutes and the system will remain armed This can occur an unlimi ted n umber of times.

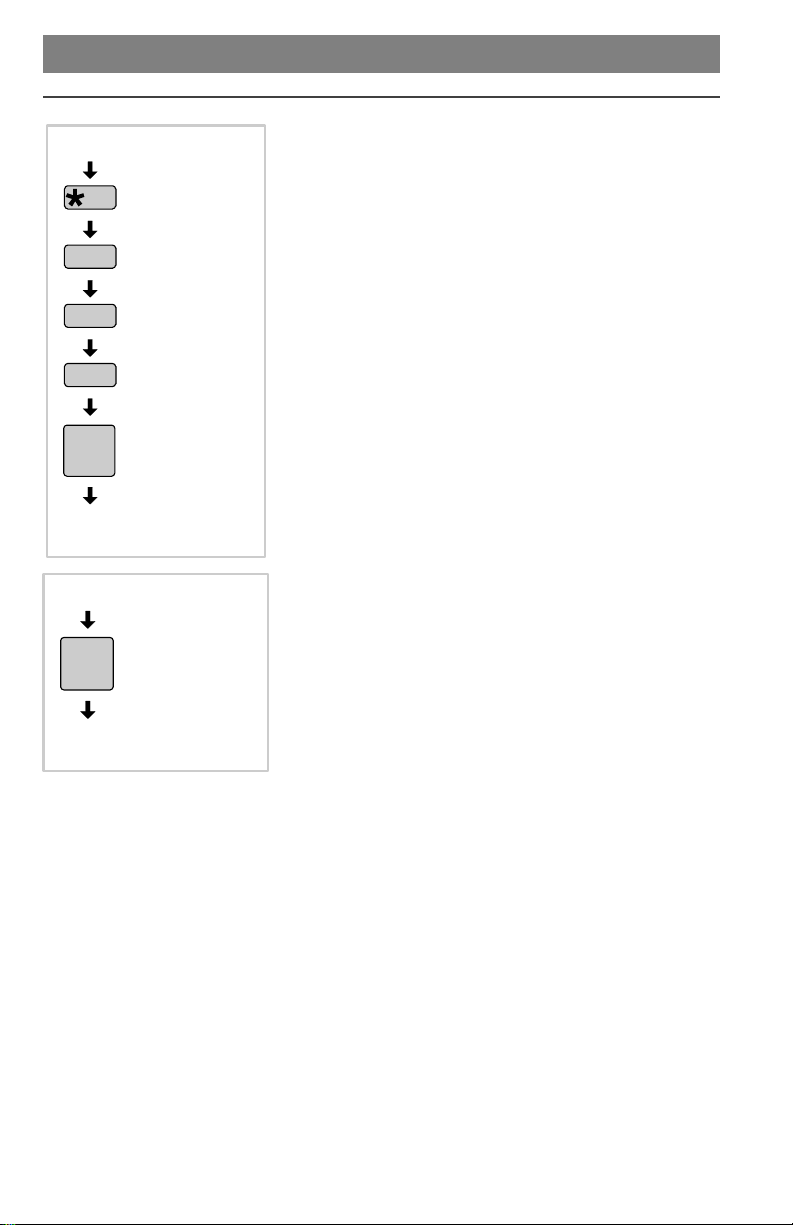

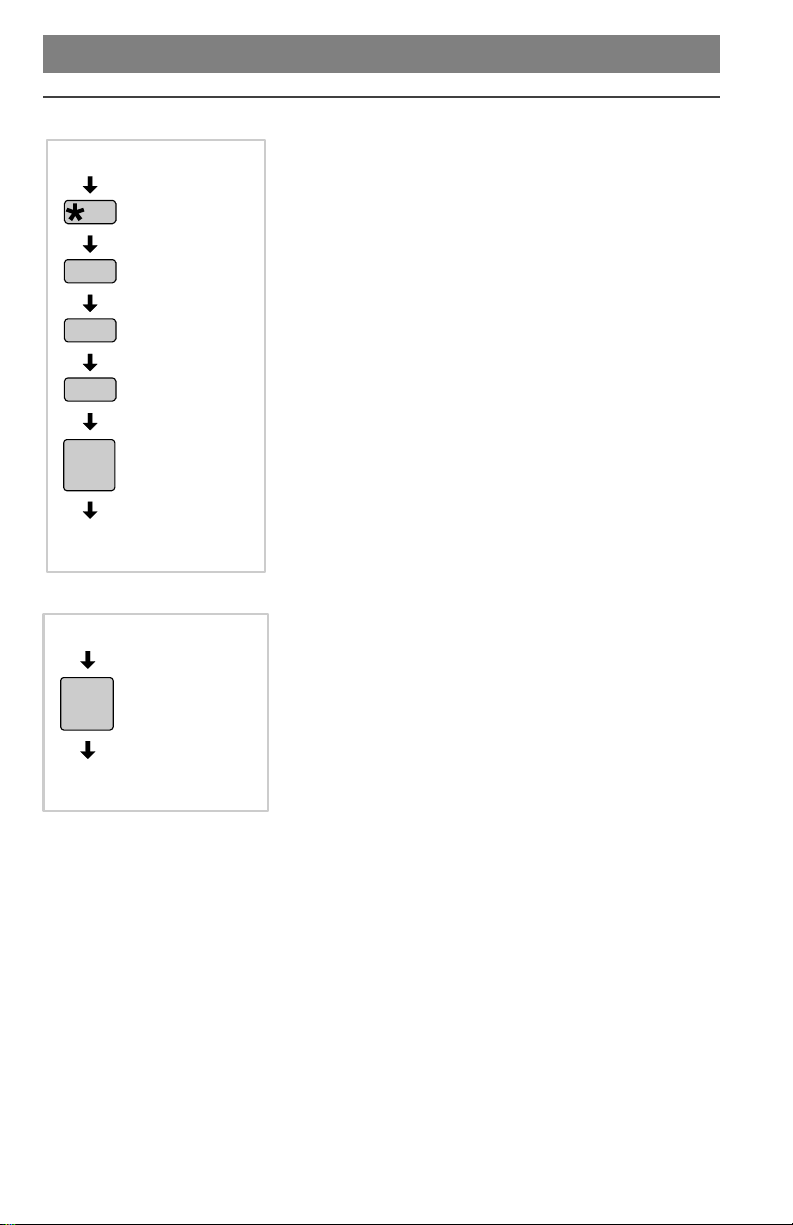

☞Arm to Away Mode by entering your secret

code, and pressing [AWAY].

☞You can “Quick Arm” to Away Mode from

Home, Chime or Off Mode by holding down the [AWAY] key for two seconds. (Quick arming can be disabled; see the Advanced Programming Section of this manual.)

EXIT DELAY (For Leaving the Premises)

SECONDS

◗ When the system is armed to the Away

Mode, the Console will sound a “Gong” and three “Beeps”.

◗ During the 30 second Exit Delay, the

Console will sound “beeps” and the AWAY light will blink.

★The Exit Delay gives you 30 sec o n d s to l e ave

the premises door without triggering an alarm.

through a delay ed perimeter

◗ When the Exit Delay is over, the Console will

sound one “gong” to warn you that the system is fully armed.

✍NOTE: The Exit Delay time can be changed;

see the Advanced Programming Section of this manual.

Page 21

ENTRY DELAY (For Entering the Premises)

★The Entry Delay gives you 45 seconds to

enter the premises perimeter door without triggering an alarm.

SECONDS

★If a perimeter delayed sensor is triggered,

starting the Entry Del a y, the in ter ior sen sor s will also become delayed (this allows motion in the premises during the Entry Delay).

◗ During the 45 second Entry Delay, the

Console will sound “beeps”.

★When the Entry Delay is over, the Console

will go into full alarm and sound the siren if it is not disarmed to the Off or Chime Mode.

✔ If an alarm has occurred while you

were gone, multiple beeps will sound after disarming and the sensor light for the sensor(s) that caused the alarm will flash (switch to Off Mode again to stop flashing alarm memory light).

If you hear the multiple beeps, use

☞

caution when entering. AN INTRUDER MAY STILL BE IN YOUR HOME.

✍NOTE: The Entry Delay time can be

changed; see the Advanced Programming Section of this manual.

through a delayed

AUTOMATIC BYPASSING OF SENSORS

★The Console can be armed with open door

or window sensors.

◗ The system will automatically “bypass” open

doors and windows after sounding four high-low beeps to warn you that a protected door or window is open.

◗ Lit sensor status indicators show which

sensors are open.

✍NOTE: Bypassed sensors cannot cause an

alarm until they ar e “rest ored”.

★If you close the door or window after arming

the system, the sensor will be restored and can cause an alarm the next time it is opened.

★Automatic bypassing of sensors in the Away

Mode allows you to arm the system with open doors and windows, while still having perimeter protection with other closed doors and windows.

Page 22

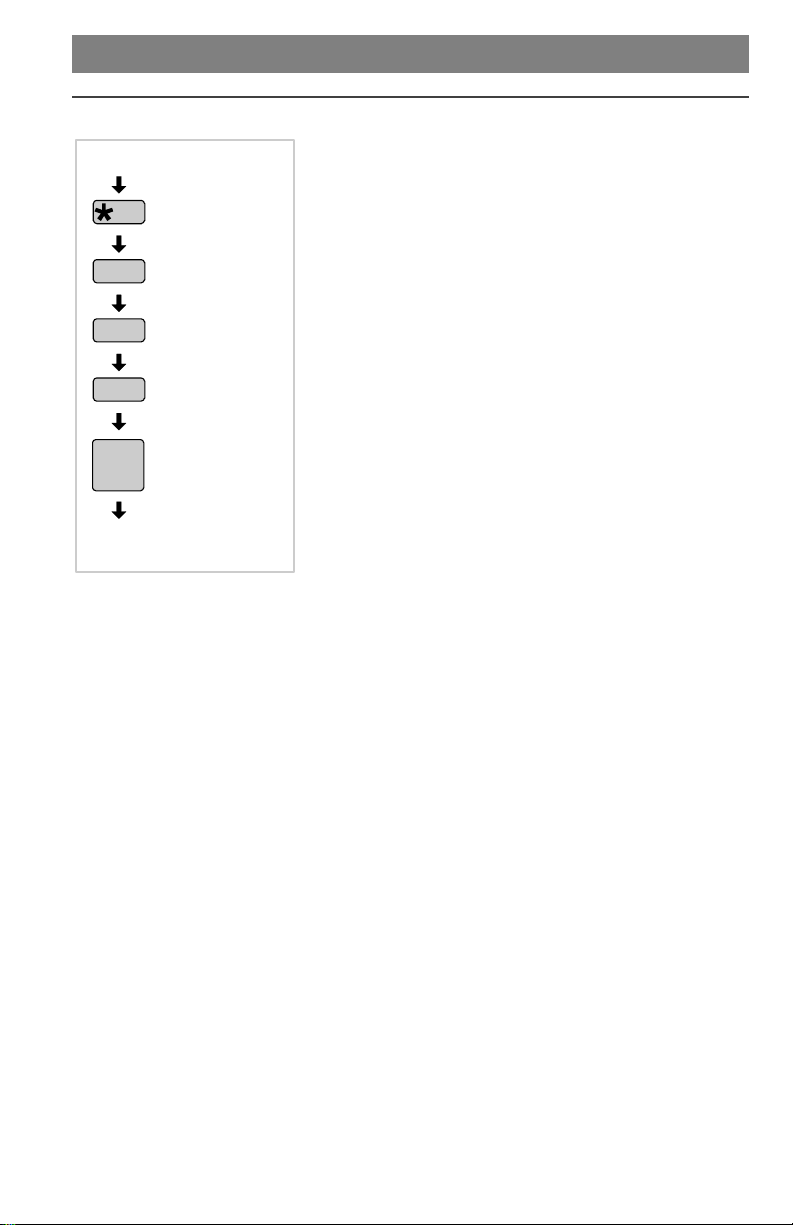

13. USING THE SYSTEM AS DOOR CHIME

CHIME MODE

START HERE

(OPTIONAL)

YOUR SECRET CODE

CHIME

1 GONG & 1 BEEP

DONE

START IN OFF

HOLD

CHIME

DOWN 1 GONG &

1 BEEP

DONE

★Chime Mode is for monitoring entries and

exits without causing alarms.

★Use Chime Mode as an “automatic door

chime” when at home.

◗ Opening any protected door or window

causes the Console to sound a “ding-dong”.

☞Select the Chime Mode by entering your

secret code, then press [CHIME].

☞You can enter Chime Mode from Off Mode

by holding down the [CHIME] key for two seconds.

◗ When the system is switched to the Chime

Mode, the Console will sound a “Gong” and one “Beep”.

★Going to Chime Mode disarms the system

and stops any alarm s in progress.

✍NOTE: In Chime Mode, protected doors and

windows cannot trigger the burglary alarm.

Page 23

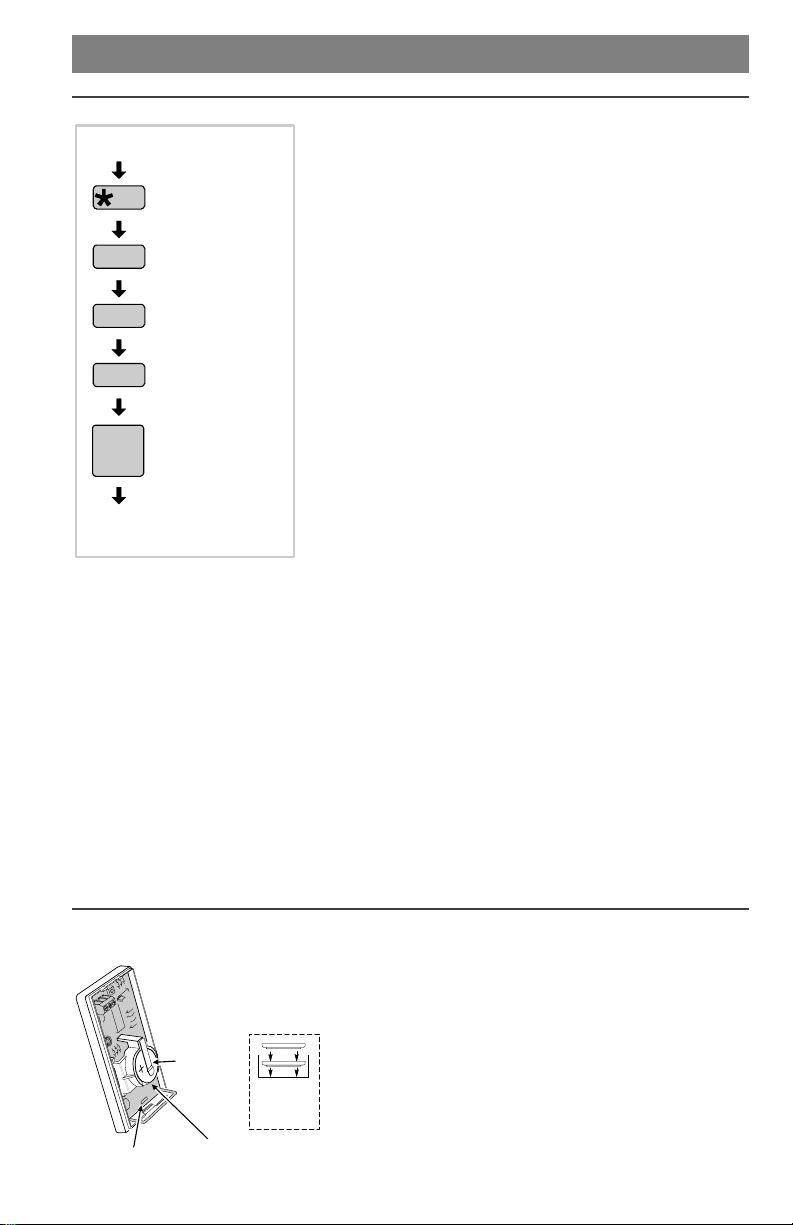

14. BI-WEEKLY SYSTEM TESTING

TEST MODE

START HERE

(OPTIONAL)

YOUR SECRET CODE

TEST

1 GONG & 4 BEEPS

DONE

◗ When the TEST SENSORS light comes on,

you should test each sensor in the system.

★The Console must be in Off Mode before

going to Test Mode.

☞Switch the Console into Test Mode by

entering your secret code and pressing [TEST].

◗ When the system is switched to the Test

Mode, the Console will sound a “Gong” and four “Beeps”.

◗ Placing the system in Test Mode will turn the

TEST SENSORS light off.

☞Holding down the [TEST] button will light all

of the Console’s indicators.

◗ The sensor status lights wi ll flash for each

sensor programmed into the Console.

☞Go to each sensor and press its test button

or open and close the protected opening.

☞To test the wireless keypad, press the

[AUTO] key.

◗ As each sensor is tested, the sensor status

light for the sensor will stop flashing and return to showing the current status of the sensor.

◗ The Console will make a “bing” sound as

each sensor is tested.

☞Continue testing until there are no flashing

status lights.

✍NOTE: If the Console is left unattended in

Test Mode, it will automatically switch back to Off Mode after 3 minutes.

SENSOR LOW BATTERIES

WHEN CONSOLE INDICATES A SENSOR LOW BATTERY, OPEN SENSOR CASE AND GENTLY LIFT UP END OF BATTERY CLAMP, SLIDE BATTERIES OUT

NOTE: USE OF EXCESSIVE FORCE ON BATTERY CLAMP WILL RESULT IN DAMAGE

LIFT

IF NECESSARY PUSH IN SLOT TO REMOVE SENSOR FROM MOUNTING PLATE

REMOVE BATTERIES FROM THIS END

INSTALL TWO DURACELL TYPE DL 2032 BATTERIES (+) SIDE UP

◗ When a sensor’s status light on the Console

blinks, the sensor has a l ow bat ter y.

✍NOTE: Don’t confuse a blinking status light

with a flashing status light (flashing light is faster and indicates alarm memory).

☞Refer to the figure when replacing

door/window sensor batteries.

Page 24

15. HOME AUTOMATION OUTPUT

HOME AUTOMATION INTERFACE

★The Console provides a Home Automation

Output to contro l lights, devices and appliances.

★Home Automation Output can connect to

most popular home automation devices and other simple electronic devices.

☞Press [AUTO] to turn the Home Automation

Output on, press [AUTO] again to turn it off.

HOME AUTOMATION OUTPUT TERMINALS

(INSIDE CONSOLE)

LEARN

EXAMPLE HOME AUTOMATION HOOK-UPS

X-10 BURGLAR ALARM

X-10

INTERFACE (CAN CONTROL HOUSE LIGHTS THROUGH X-10 SYSTEM)

PROGRAMMABLE OPTIONS

MINUS TERMINAL WILL SWITCH TO GROUND WHEN HOME AUTOMATION OUTPUT IS ACTIVATED

POSITIVE TERMINAL PROVIDES +12 VOLTS DC AND IS CURRENT LIMITED AT 30 MILLIAMPS MAXIMUM

DF-18

RELAY MODULE

YOUR LOAD

POWER

SOURCE

LIGHT EMITTING DIODE (L.E.D.)

★There are many programmable options for

the Home Automation Output. See the Advanced Programming Section of this manual for details.

Page 25

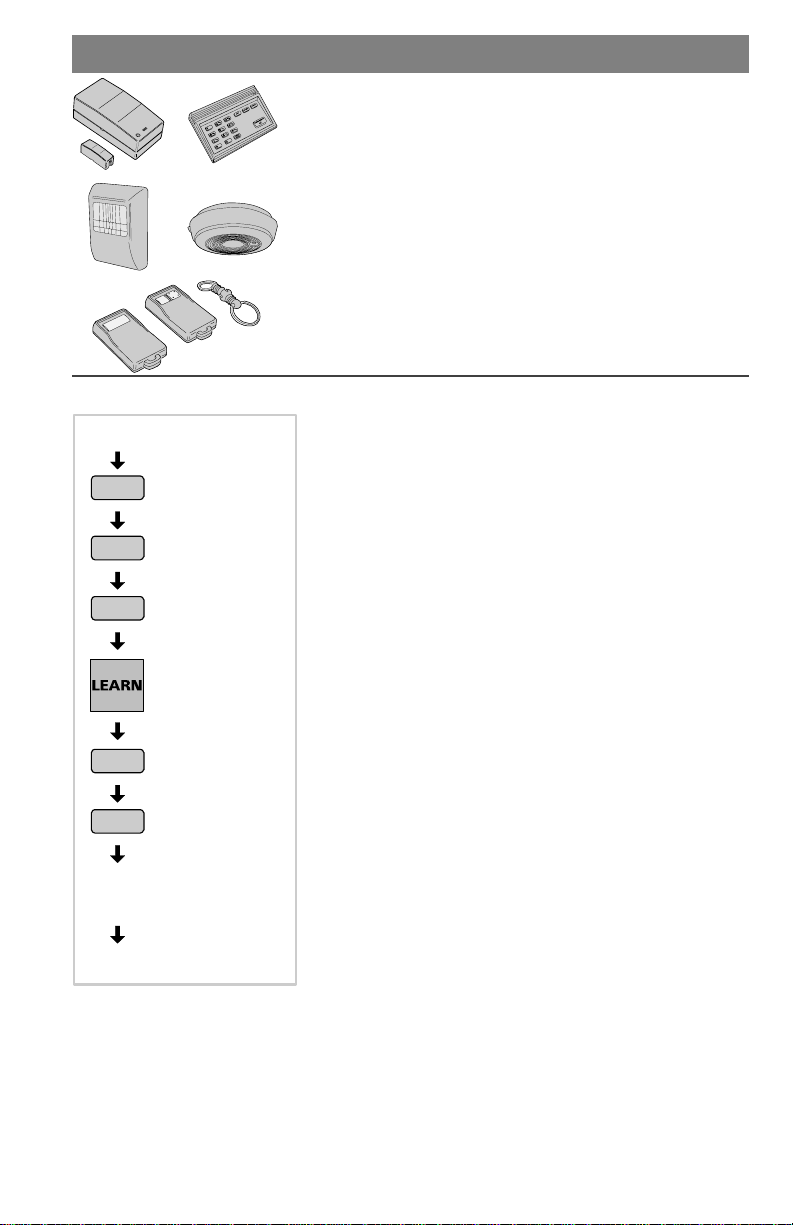

16. EXPANDING YOUR SYSTEM

★Adding additional sensors will increase the

protection provided by your system.

★All ground-level perimeter openings and

accessible upper-story openings need protection.

★Motion detectors can protect interior areas

and areas were valuables are kept.

★Wireless sensors make protecting a

detached garage easy (no wires to run).

★Each sensor has a unique ID code that is

recognized by the Console.

ADDING SENSORS TO THE SYSTEM

START IN OFF

YOUR SECRET CODE

1 GONG & 5 BEEPS

NEW SENSOR NUMBER

ACTIVATE SENSOR

DONE

☞Always start with the Console in Off Mode

(enter your secret code and press [OFF]).

☞Enter your secret code and press the

[LEARN] button.

◗ A “gong” and five “beeps” will sound. ◗ The sensor status indicators will light for

each sensor programmed into the Console.

☞Enter an unused sensor number from 01-1 6

(you must enter two digits, example: 5 = 05)

◗ The sensor indicator ligh t wi ll fl as h for the

sensor number selected.

☞Activate the sensor. (To add wireless

keypads, press the keypad’s [AUTO] key.)

◗ A single “bing” tone will sound when the

sensor is learned by the Console.

◗ A double “buzz” tone will sound if there is

already another sensor programmed to that sensor number.

☞Exit Learn Mode by holding the [OFF] button

for three seconds.

☞NOTE: A sensor can be learned into more

than one location. Be sure to choose an unused sensor number. If a sensor gets entered into more than one location, delete the duplicates. (See “Removing Sensors from the System”.)

Page 26

REMOVING SENSORS FROM THE SYSTEM

START IN OFF

YOUR SECRET CODE

★If a previously learned sensor isn’t goi ng to

be used with the system anymore, it should be removed from the Console’s memory.

★Start with the Console in Off Mode. ★Enter your secret code and press the

[LEARN] button.

◗ A “gong” and five “beeps” will sound. ◗ The sensor status indicators will light for

1 GONG & 5 BEEPS

SENSOR NUMBER TO REMOVE

each sensor programmed into the Console.

☞Enter the s ensor number (from 01-16) that

you want to remove (you must enter two digits, example: 5 = 05)

◗ The sensor indicator ligh t wi ll fl as h for the

sensor number selected.

☞Press the [TEST] button. ◗ A single “bing” tone will sound when the

TEST

1 BING

DONE

MAKING A SENSOR A 24-HOUR DOOR CHIME

START IN OFF

sensor has been removed and the sensor status indicator will turn off.

☞Exit Learn Mode by holding the [OFF] button

for three seconds.

★Sensors can be programmed to cause the

Console to chime any time they’re activated.

★Chime-only sensors wil l no t be ab l e to

YOUR SECRET CODE

trigger the alarm in any Console mode.

★The sensor must have already been learned

by the Console (see “Adding sensors to the System” for details).

☞Start with the Console in Off Mode.

1 GONG & 5 BEEPS

☞Enter your secret code and press the

[LEARN] button.

◗ A “gong” and five “beeps” will sound.

SENSOR NUMBER FOR CHIME

◗ The sensor status indicators will light for

each sensor programmed into the Console.

☞Enter the s ensor number from 01-16 (you

HOME

AWAY

DONE

1 BING

must enter two digits, example: 5 = 05)

◗ The sensor indicator ligh t wi ll fl as h for the

sensor number selected.

☞Press [HOME], 8, then [AWAY]. A “bing”

tone will sound.

☞Exit Learn Mode by holding the [OFF] button

for three seconds.

Page 27

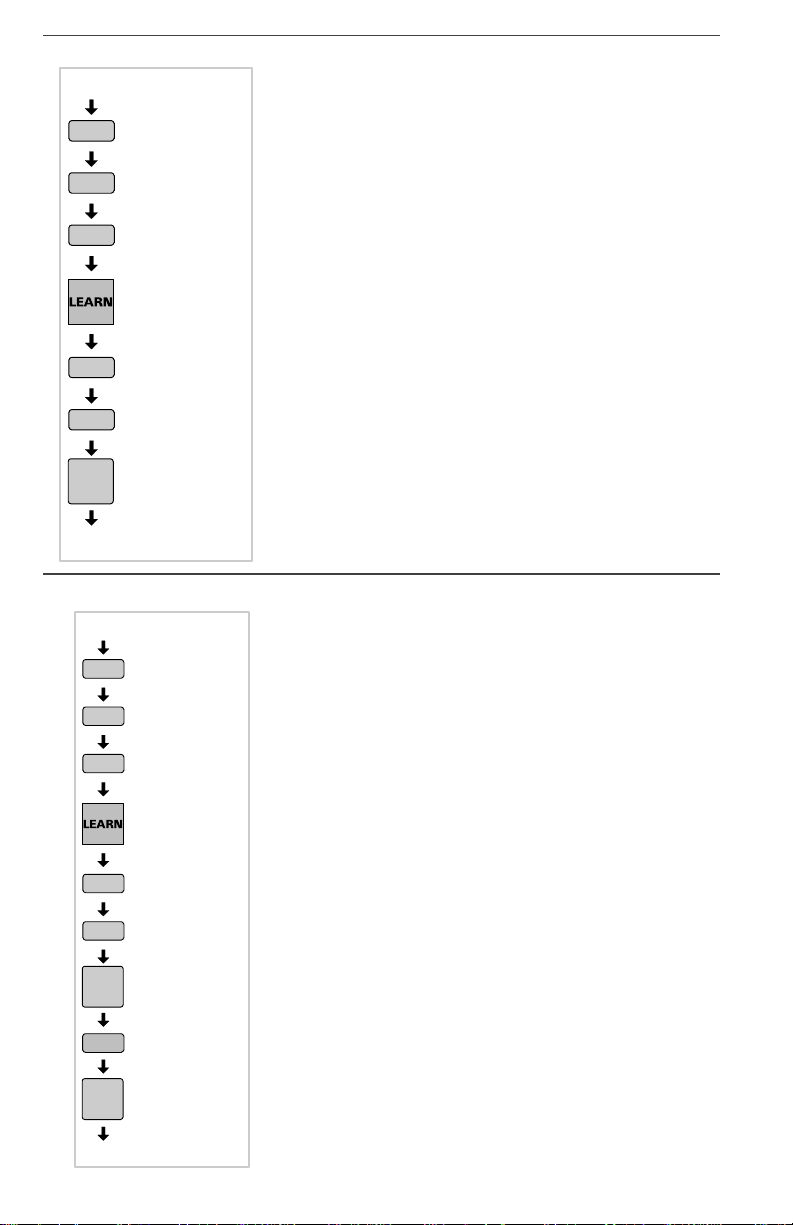

MAKING A SENSOR INTERIOR

START IN OFF

YOUR SECRET CODE

1 GONG & 5 BEEPS

SENSOR NUMBER FOR INTERIOR

HOME

AWAY

1 BING

★Motion detectors are automatically

programmed as interior sensors. Any other sensor can also be programmed as an interior sensor.

★Interior sensors can only trigger an alarm

when the Console is in Away Mode.

★The sensor must have already been learned

by the Console (see “Adding sensors to the System” for details).

☞Start with the Console in Off Mode. ☞Enter your secret code and press the

[LEARN] button.

◗ A “gong” and five “beeps” will sound. ◗ The sensor status indicators will light for

each sensor programmed into the Console.

☞Enter the s ensor number from 01-16 (you

must enter two digits, example: 5 = 05)

◗ The sensor indicator ligh t wi ll fl as h for the

sensor number selected.

☞Press [HOME], 7, then [AWAY]. A “bing”

tone will sound.

☞Exit Learn Mode by holding the [OFF] button

for three seconds.

DONE

Page 28

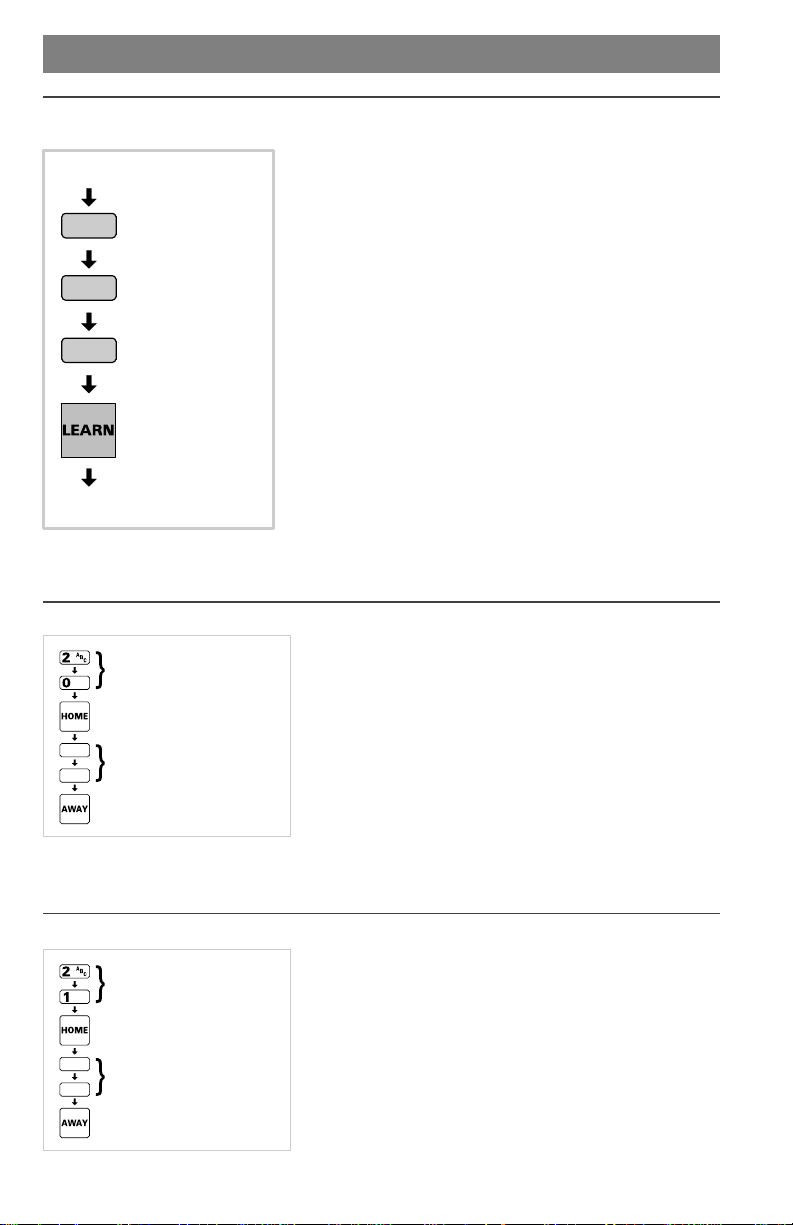

17. ADVANCED PROGRAMMING

LEARN MODE

★To perform any of the advanced

START IN OFF

YOUR SECRET CODE

1 GONG & 5 BEEPS

LEARN MODE

ENTRY DELAY TIME

PROGRAMMING STEP #20

PROGRAM

TIME IN SECONDS (1-255)

STORE PROGRAM

programming steps, the Console must be in the Learn Mode.

☞Start with the Console in Off Mode (Learn

Mode cannot be reached from any other mode).

☞Enter Learn Mode by entering your secret

code and pressing the [LEARN] button.

✍NOTE: Only the master secret code can be

used to put the Console into the Learn Mode. The restricted secret code cannot access Learn Mode.

◗ A “gong” and five “beeps” will sound,

signaling that the Console is in Learn Mode.

☞Hold the [OFF] key for three seconds when

you want to exit Learn Mode.

✍NOTE: If the Console is left unattended in

Learn Mode, it will automatica l ly switch back to Off Mode after three minutes.

★The factory-set Entry Delay time is 45

seconds.

★The Entry Delay time can be adju sted from

one to 255 second s.

✍NOTE: Don’t make yo ur Entry Delay too

short. You may not have enough time to disarm the system before an alarm.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

EXIT DELAY TIME

PROGRAMMING STEP #21

PROGRAM

TIME IN SECONDS (1-255)

STORE PROGRAM

★The factory-set Exit Delay time is 30 seconds. ★The Exit Delay time can be adjusted from

one to 255 second s.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

Page 29

HOME AUTOMATION OUTPUT TIME

★The factory setting causes the Home

PROGRAMMING STEP #40

PROGRAM

TIME IN SECONDS (1-2500) 0 = TOGGLE ON & OFF

STORE PROGRAM

Automation Output to toggle between on and off with each activation.

★The Home Automation Output can be

programme d to turn on, then auto matically turn off after one to 2500 seconds (42 minutes).

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

REMOTE CONTROL ARMING LEVEL

★The factory setting causes the portable

remote controls to arm to the Away Mode.

PROGRAMMING STEP #50

★Alternately, the portable remote controls can

arm to the Home Mode.

PROGRAM 2 FOR HOME MODE

3 FOR AWAY MODE STORE PROGRAM

★Changing this setting will affect all the

portable remote controls used with the system.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

REMOTE CONTROL DISARMING LEVEL

★The factory setting causes the portable

remote controls and wireless keypads to

PROGRAMMING STEP #51

disarm to the Off Mode.

★Alternately, the remote controls and wireless

PROGRAM 0 FOR OFF MODE

1 FOR CHIME MODE STORE PROGRAM

keypads can disarm to the Chime Mode.

★Changing this setting will affect all the

portable remote controls and wireless keypads used with the system.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

Page 30

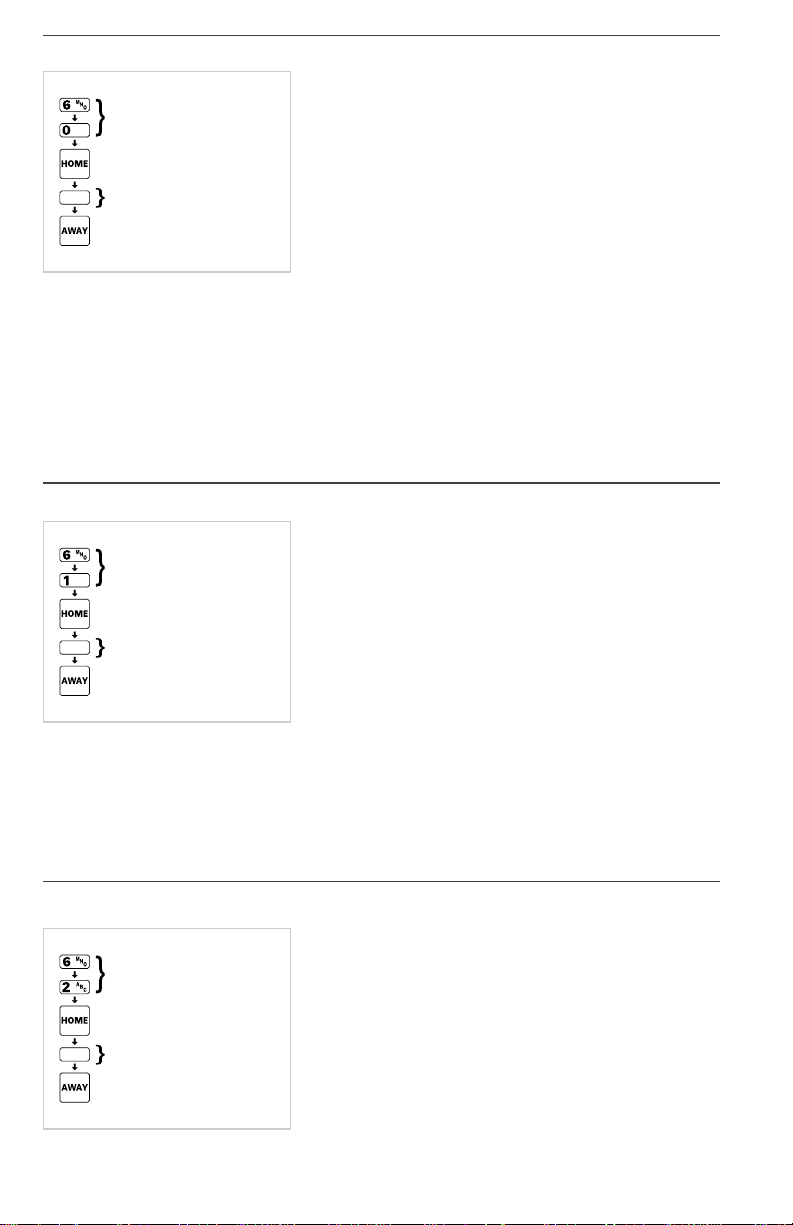

AUTOMATIC BYPASSING OF OPEN SENSORS

★The factory setting causes the Console to

PROGRAMMING STEP #60

PROGRAM 0 FOR AUTO BYPASS OFF

1 FOR AUTO BYPASS ON STORE PROGRAM

automatically bypass any open sensors when the system i s ar me d .

★Alternately, the Console can be programmed

to not arm on the first attempt if ther e are any open sensors.

★If automatic bypassing is turned off, and

arming is attempted with open sensors, the Console will sound five two-tone beeps and will not arm.

★Arming to the same mode again within five

seconds will bypass any open sensors and arm the Console.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

AUTOMATIC RESTORAL OF BYPASSED SENSORS

★If a sensor is open when the system is

PROGRAMMING STEP #61

PROGRAM 0 FOR AUTO RESTORAL OFF

1 FOR AUTO RESTORAL ON STORE PROGRAM

armed, the Console will bypass it.

★The factory setting causes the Console to

automatically restore (remove the bypass from) any bypassed sensor when the sensor closes. After it’s restored, the sensor is ready to cause an alarm the next time it is opened.

★Alternately, the Console can be programmed

to not automatically restore sensors that close. Bypassed sensors will remain bypassed until the system is disarmed.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

DISABLING QUICK ARMING

PROGRAMMING STEP #62

PROGRAM 0 FOR QUICK ARMING OFF

1 FOR QUICK ARMING ON STORE PROGRAM

★The factory setting allows the Console to be

armed by holding down the mode keys for two seconds.

★Alternately, the Console can be programmed

to not allow quick arming.

★If quick arming is disabled, your secret code

must be entered before pressing the mode buttons.

☞Exit Learn Mode when all programming

changes are complete.

Page 31

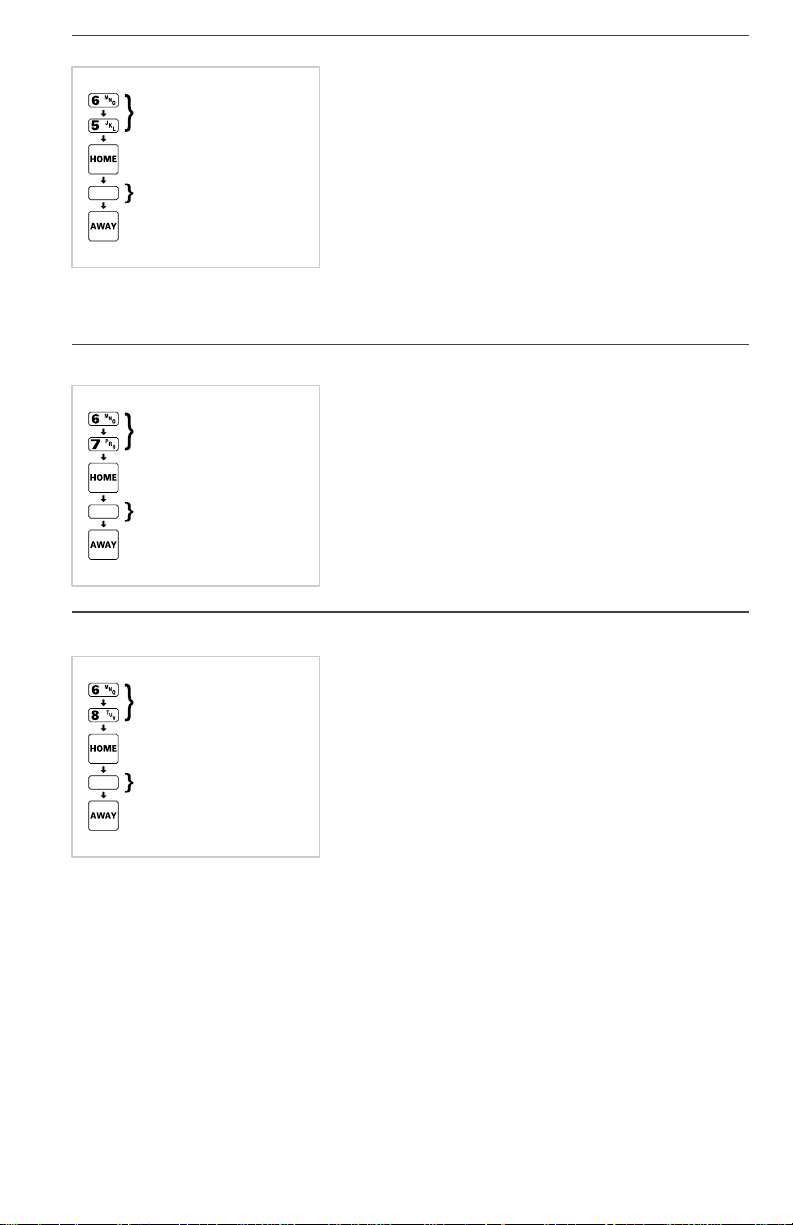

EXIT DELAY BEEPS

★The factory setting causes the Console to

PROGRAMMING STEP #65

beep during Exit Delays.

★Alternately, the Exit Delay beeps can be

PROGRAM 0 FOR EXIT BEEPS OFF

1 FOR EXIT BEEPS ON STORE PROGRAM

silenced.

★The Console will be silent after armi ng to the

Away Mode until the Exit Delay expires, then a single “gong” tone will sound.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

TEST SENSORS LIGHT

★The factory setting causes the Console’s

PROGRAMMING STEP #67

PROGRAM 0 FOR TEST SENSORS OFF

1 FOR TEST SENSORS ON STORE PROGRAM

HOME AUTOMATION OUTPUT POLARITY

TEST SENSORS indicator to light every two weeks.

★Alternately, the TEST SENSORS light can be

disabled.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

★The factory setting causes the Console’s

Home Automation Output to provide a

PROGRAMMING STEP #68

current limited voltage source when activated.

PROGRAM 0 FOR VOLTAGE WHEN OFF

1 FOR VOLTAGE WHEN ON STORE PROGRAM

★Alternately, the Console can be programmed

so the Home Automation Output provides a current limited voltage source when deactivated.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

Page 32

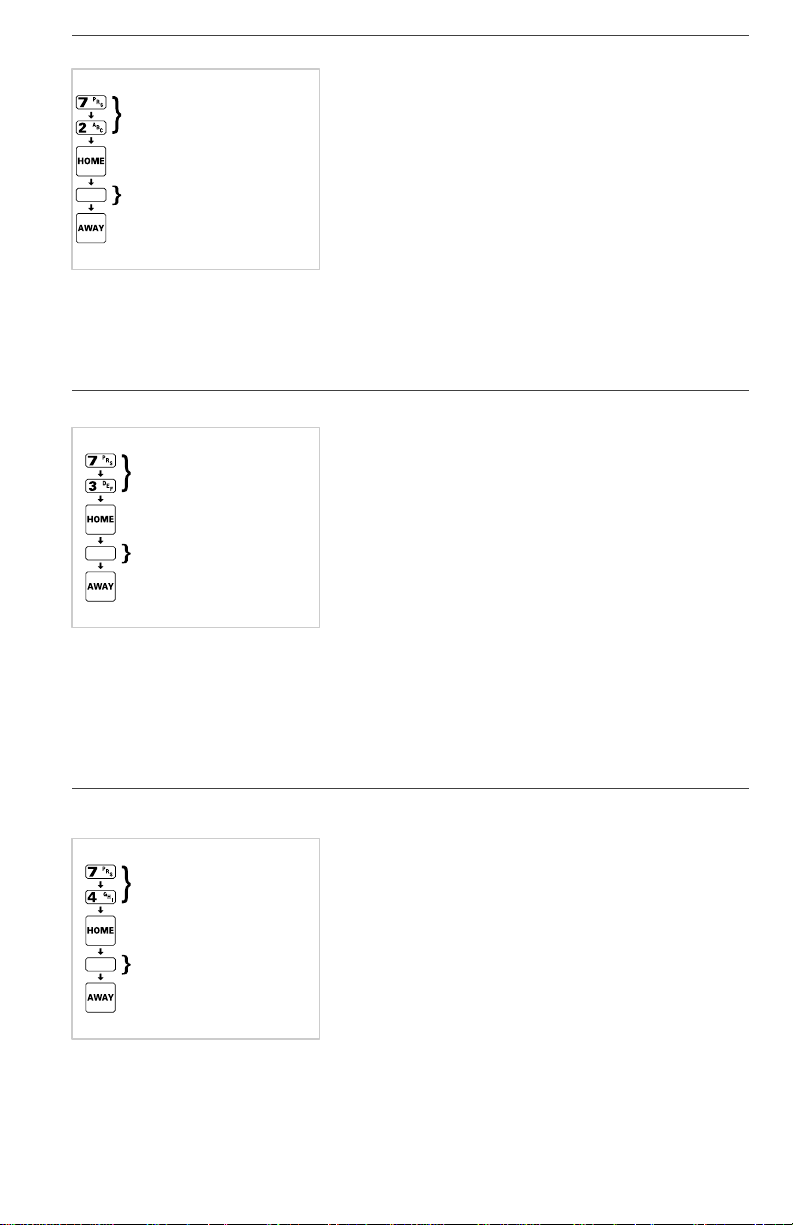

HOME AUTOMATION OUTPUT DURING EXIT/ENTRY DELAYS

★The factory setting causes the Console’s

PROGRAMMING STEP #69

PROGRAM

0 FOR STANDARD TRIGGER 1 FOR OUTPUT DURING DELAYS

STORE PROGRAM

Home Automation Output to activate when pressing the [AUTO] key, or when it’s triggered with a two-button remo te cont rol.

★In addition, the Console can be

programmed to activate the Home Automation Output during the exit and Entry Delays.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

HOME AUTOMATION OUTPUT WHILE ARMED

★The factory setting causes the Console’s

PROGRAMMING STEP #70

PROGRAM

0 FOR STANDARD TRIGGER 1 FOR OUTPUT WHEN ARMED

STORE PROGRAM

Home Automation Output to activate when pressing the [AUTO] key, or when it’s triggered with a two-button remo te cont rol.

★In addition, the Console can be

programmed to activate the Home Automation Output when the system is armed.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

HOME AUTOMATION OUTPUT FLASHES DURING ALARM

★The factory setting causes the Console’s

Home Automation Output to activate when

PROGRAMMING STEP #71

pressing the [AUTO] key, or when it’s triggered with a two-button remo te cont rol.

PROGRAM

0 FOR STANDARD TRIGGER 1 FOR FLASHING OUTPUT ON ALARM

STORE PROGRAM

★In addition, the Console can be

programmed to flash the Home Automation Output during alarms.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

Page 33

HOME AUTOMATION OUTPUT FLASHES DURING AND AFTER ALA RM

★The factory setting causes the Console’s

PROGRAMMING STEP #72

PROGRAM

0 FOR STANDARD TRIGGER 1 FOR FLASHING ON & AFTER ALARM

STORE PROGRAM

Home Automation Output to activate when pressing the [AUTO] key, or when it’s triggered with a two-button remo te cont rol.

★In addition, the Console can be

programmed to flash the Home Automation Output during an d aft e r an y al a rm s.

★The output will continue to flash until the

flashing status lights are cleared.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

REMOTE CONTROL ARM/DISARM CHIRP

★When arming with the portable remote

PROGRAMMING STEP #73

PROGRAM 0 FOR CHIRPS OFF

1 FOR CHIRPS ON STORE PROGRAM

control, the factory setting causes the Console to “chirp” once when armed, twice when disarmed, and three times when arming with se n so r s by pa ss e d .

★Alternately, these chirps can be silenced. ★If these chirps are silenced, it is

recommended to program the Home Automation Output to be active when the system is armed, so a light can be triggered displaying the arming status of the Console.

★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

HOME AUTOMATION ACTIVATION TONE

★The factory setting causes the Console to

sound a “bing” when the Home Automation

PROGRAMMING STEP #74

Output is activated by pressing the [AUTO] key, or when it’s triggered with a two-b ut ton

PROGRAM 0 FOR BING TONE OFF

1 FOR BING TONE ON STORE PROGRAM

remote control.

★Alternately, this sound can be silenced. ★The Console must be in Learn Mode to

make this change.

☞Exit Learn Mode when all programming

changes are complete.

Page 34

RESTRICTED SECRET CODE

PROGRAMMING STEP #98

PROGRAM

1-5 DIGIT RESTRICTED CODE (3-5 DIGITS RECOMMENDED)

STORE PROGRAM

PROGRAMMING STEP #98

REMOVES RESTRICTED SECRET CODE

MASTER SECRET CODE

PROGRAMMING STEP #99

PROGRAM

1-5 DIGIT MASTER CODE (3-5 DIGITS RECOMMENDED)

STORE PROGRAM

★The Console can be programmed with two

secret codes, one that can access Learn Mode and one that cannot.

★The restricted secret code cannot access

Learn Mode, the master secret code can.

★The restricted secret code is a good one to

give to children or any user that you want to restrict from programming the Console.

✍NOTE: For maximum security, a 3-5 dig i t

code is recommended.

★The Console must be in Learn Mode to

make or change the restricted secret code.

☞Exit Learn Mode when all programming

changes are complete.

★The master secret code is the code that was

entered when power was first applied to the Console.

★The master secret code can be changed

through programming to any 1-5 digit code.

✍NOTE: For maximum security, a 3-5 dig i t

code is recommended.

★The Console must be in Learn Mode to

make or change the master secret code.

☞Exit Learn Mode when all programming

changes are complete.

CONSOLE MASTER RESET

★Master resetting the Console will set all of the

programming options back to the factory values.

✍NOTE: Master resetting the Console will

erase the master and restricted secret codes and remove all programmed sensors.

☞Disconnect the backup battery (if installed). ☞Un-plug the Console’s wall transformer. ☞Press and hold down the [LEARN] button

while plugging in the wal l tra nsfor mer.

☞Release the [LEARN] button. ☞Create your secret code as described on

Page 10.

☞Re-connect the backup battery (if installed). ☞Re-program each sensor into the system.

Page 35

18. ADVANCED PROGRAMMING TABLE

SENSOR CODES OFF MODE CHIME MODE HOME MODE AWAY MODE

1 = HOME AUTOMATION ACTIVATES HOME AUTOMATION OUTPUT 2 = EMERGENCY EMERGENCY ALARM 3 = POLICE BURGLARY ALARM 4 = FIRE FIRE ALARM 5 = INSTANT NO ACTION CHIME INSTANT BURGLARY ALARM 6 = DELAYED NO ACTION CHIME DELAYED BURGLARY ALARM

INSTANT

BURGLARY

7 = INTERIOR NO ACTION NO ACTION NO ACTION

8 = CHIME CHIME

STEP # PROGRAMMING FUNCTION POSSIBLE VALUES

20 ENTRY DELAY 1-255 SECONDS 45 21 EXIT DELAY 1-255 SECONDS 30 40 HOME AUTOMATION TIME 0-2500 SECONDS 0

50 REMOTE ARMING MODE

51 REMOTE DISARMING MODE

60 AUTO BYPASS

61 AUTO RESTORE

62 QUICK ARMING

65 EXIT DELAY BEEPS

67 TEST SENSORS LIGHT

HOME AUTOMATION

POLARITY HOME AUTOMATION

DURING EXIT/ENTRY HOME AUTOMATION

WHILE ARMED HOME AUTOMATION

FLASHES DURING ALARM HOME AUTOMATION

FLASHES AFTER ALARM

73 REMOTE ARM/DISARM CHIRP

HOME AUTOMATION

BING TONE 98 RESTRICTED SECRET CODE 1-5 DIGITS REMOVED 99 MASTER SECRET CODE 1-5 DIGITS

2 = HOME MODE 3 = AWAY MODE

0 = OFF MODE 1 = CHIME MODE

0 = OFF 1 = ON

0 = DISABLE 1 = ENABLE

0 = + WHEN OFF 1 = + WHEN ON

0 = STANDARD, 1 = ON DURING EXIT/ENTRY

0 = STANDARD, 1 = ON WHILE ARMED

0 = STANDARD, 1 = FLASHING DURING ALARM

0 = STANDARD, 1 = FLASHING AFTER ALARM

0 = NO CHIRPS 1 = CHIRPS

0 = NO BINGS 1 = BINGS

ALARM UNLESS

ACTIVATED

DURING ENTRY

FACTORY

VALUE

DELAY

YOUR

VALUES

Page 36

19. ADDITIONAL SYSTEM ACCESSORIES

✍NOTE: Use only DEFIANT SSD accessories

with this system. Installation instru ctions are provided with each accessory.

★BACKUP BATTERY

✔ Highly recommended accessory. ✔ Powers Console if AC power fails. ✔ At least 6 hours backup time. ✔ Fits inside Console. ✔ Recharges automatically. ✔ 3 to 4 year battery life. ✔ Battery rated 12 volts, 1.2 AH

★DOOR/WINDOW SENSORS

✔ Can be used for instant or delayed

response.

✔ Used to protect vulnerable doors,

windows, gun cabinets, etc.

✔ Contains built-in magnetic switch. ✔ Can connect to external magnetic

switch contacts.

✔ Can connect to external glass break

sensor.

★ONE-BUTTON REMOTE CONTROL

✔ Arms and disarms system. ✔ Comes with a snap-action key chain.

★TWO-BUTTON REMOTE CONTROL

✔ Left button arms and disarms system. ✔ Right button activates the Console’s

Home Automation Output.

✔ Pressing both buttons triggers the

Console’s emergency alarm. (Not to be used as a UL Listed Medical Alert System.)

✔ Comes with a snap-action key chain. ✔ UL NOTE: Product not tested by UL.

★EXTERNAL SIREN

✔ Alerts occupants and neighbors with

loud siren.

✔ Wires to Console. ✔ Siren is weather-resistant. ✔ Up to two external sirens can be used

with the Console. (Only one external siren is allowed in UL installations.)

Page 37

★SMOKE DETECTOR

✔ High quality, fast acting detector. ✔ Triggers Console’s fire siren. ✔ Built-in low battery alert and reports low

battery to the Console.

★MOTION DETECTOR

✔ Uses passive infrared technology to

detect intruders.

✔ Signals alarm when monitored area is

entered (up to 40’ x 40’).

✔ Armed in Away Mode. ✔ Disarmed in Home Mode. ✔ UL NOTE: Product not tested by UL.

★GLASS BREAK SENSOR

✔ Triggers a door/window sensor the

instant glass breaks.

✔ Monitors up to a 32 square foot piece

of glass.

✔ Glass break sensor only, requires

door/window sensor.

✔ Can be used with magnetic switch

contacts to double-protect sliding glass doors.

★EXTERNAL MAGNETIC SWITCH

✔ External switch for door/window sensor. ✔ Functions as a remote switch for

existing sensor.

✔ Up to 5 magnetic switch contacts can

be used with one sensor.

✔ For dual protection on partially opened

windows.

★RELAY MODULE

✔ Connects to the Home Automation

Output.

✔ Provides circuit isolation between

Console and Home Automation device.

✔ Switches up to 5 Amps at 30 Volts. ✔ Contact WEMA to order. ✔ UL NOTE: Product not tested by UL.

Page 38

FCC NOTICE

This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manuf acturer’ s instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B digital device in accordance with Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Relocate the Console away from the TV/radio receiver. Plug the Console into a different wall outlet so that the Console is on a different branch circuit. Re-orient the TV/radio antenna. If necessary, the user should consult the dealer or an experienced radio/television technician

for additional suggestions.

IMPORTANT NOTICE

Linear radio controls provide a reliable communications link and fill an important need in portable wireless signaling. However, there are some limitations which must be observed.

For U.S. installations only: The radios are required to comply with FCC Rules and Regulations as Part 15 devices. As such, they have limited transmitter power and therefore limited range.

A receiver cannot respond to more than one transmitted signal at a time and may be blocked by radio signals that occur on or near their operating frequencies.

Changes or modifications to the device may void FCC compliance. Infrequently used radio links should be tested regularly to protect against undetected

interference or fault.

Evacuation Planning

For systems that include fire protection, UL requires that the following information be available to the users of the system.

★Draw up a floor plan showing two exits for each room.

The following procedures are to be discussed with the family:

➀

Status of bedroom doors.

➁

Familiarity with alarm signals.

➂

Testing of door during a fire and use of alternate escape route if door is hot to the touch.

➃

Crawling and holding breath.

➄

Escape fast. No stopping for packing.

➅

Meet at designated outdoor spot.

➆

Emphasize that no one is to return to a burning house.

➇

Fire department notification from a neighbor’s phone.

➈

Periodic rehearsal is to be conducted.

Page 39
