Linear BluePass User Manual

BluePass

2-N-1 BluePass Multi-Tech Reader Manual

User’s Guide

Copyright © 2018 Nortek Security and Control LLC

P/N: 10019180 X16

Contents

1234567890

Overview ...................................................................................ii

Setting up Your Dealer Portal Account .....................................ii

Setting Up your Organization and Readers ............................. 1

Setting up Your First Reader ................................................... 2

Performing a Factory Reset on the Reader ............................. 4

Issuing Your First BluePass Credential ................................... 4

Accepting Your First BluePass Credential as an End-User ..... 5

Frequently Asked Questions .................................................... 6

Troubleshooting ....................................................................... 7

Certifi cations ............................................................................ 7

Overview

The Linear BluePass Multi-Tech Reader provides a simple and
convenient way to leverage state of the art BLE mobile credentials
for access control. Whether a new site installation or an upgrade
of an existing system, realizing the power of mobile credentials
is a very simple process. In this guide, we will walk you through
setting up and confi guring the necessary to get started.

There are several major components in the Linear BluePass
ecosystem solution illustrated in this guide:

1. The Linear BluePass Portal – This is a web based portal used
by the dealer/installer/facility administrator to manage mobile
credentials.

Portal functionality includes:

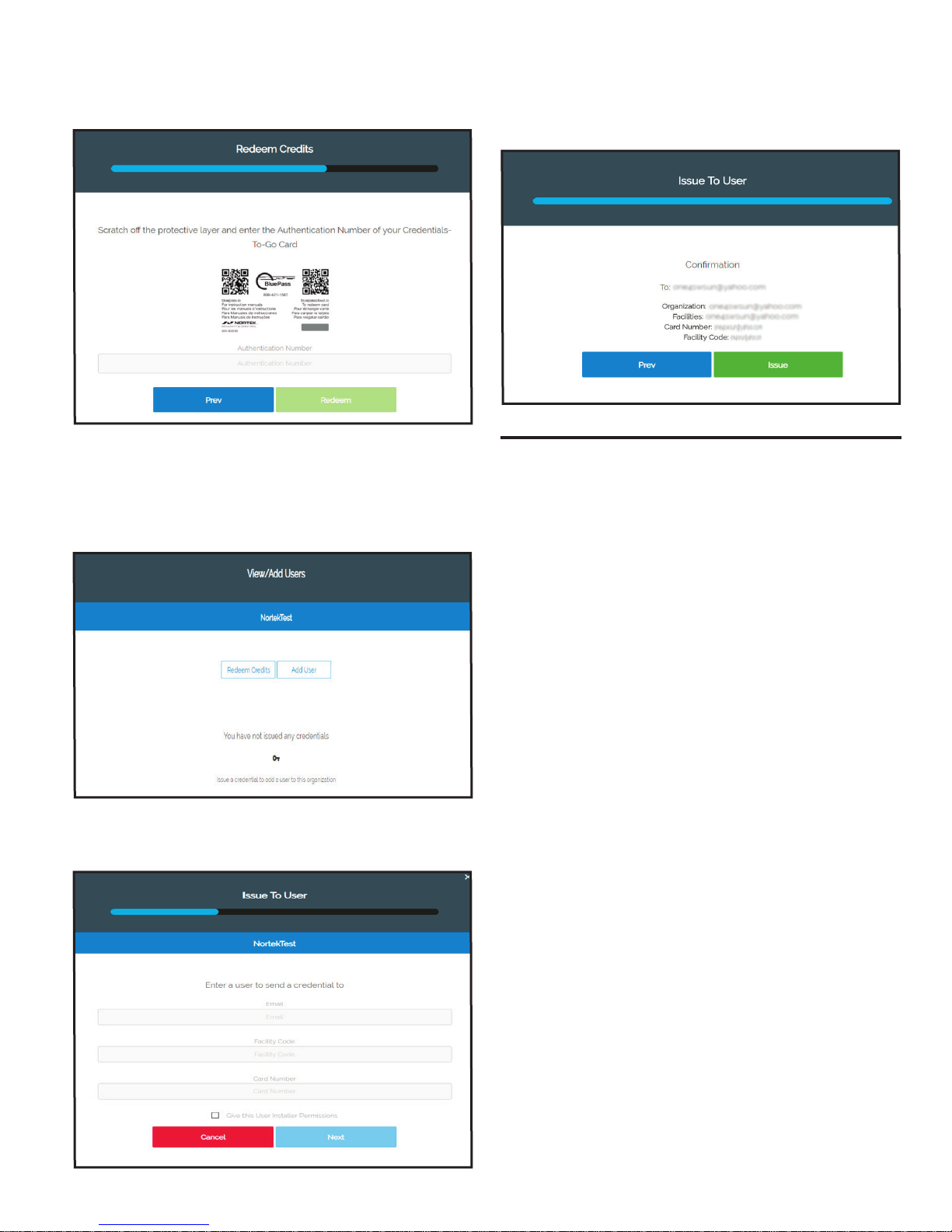

a. Redeem your Credential-To-Go™ cards for mobile

credential credits.

b. Defi ne top level Organizations in which end-users have

access to via mobile credentials.

c. Issue mobile credentials to end-users for access to an

Organization.

d. Manage existing BLE credentials, their associated

Wiegand IDs, and view reports on the number of
credential credits remaining for issuance.

2. The Linear Wallet Mobile Application – This mobile app is
available for both iOS and Android.

This Permission allows the Administrators/Installers to:

c. Enroll (assign) your reader to a specifi c Organization

confi gured in the Dealer Portal account.

i. Change setup confi gurations of individual reader

hardware, such as BLE range requirements for
acceptance of access requests, and the reader
power setting for LED intensity and animations.

ii. In-fi eld fi rmware upgrades and advanced version

reporting.

3. The Linear BluePass Multi-Tech Reader – This is the physical
reader hardware that supports a standard mullion-style or
U.S. single-gang mounting installation. The reader uses
standard 26 to 37-bit Wiegand formats and supporting legacy
125 KHz prox cards, as well as the Linear BluePass Mobile
Credential. The reader is confi gured using the Linear Dealer/
Installer Mobile Application during installation.

Setting up Your Dealer Portal Account

To begin, a Credential-To-Go™ card must be purchased. Once
a card is obtained, set up your dealer/installer account login by
visiting https://bluepasscloud.io.

The app serves two purposes:

a. Intended for use by end-users of an organization to

gain entry to a protected area using a BluePass Multi­Tech Reader. It displays virtual credentials assigned
for use when the app is opened. Under normal
circumstances, the app runs silently in the background
of the user’s mobile device, transmitting the end-user
BLE credential to the reader when the user activates
the reader’s capacitive touch sensor, typically by
touching the reader.

b. The Installer Permission Credential + The Linear

Wallet APP – To gain entry to a protected area using
BluePass, as well being designed specifi cally for the
dealer/installer to confi gure and manage BluePass
Multi-Tech Readers installed at the Organizations they
manage. This permission is granted by checking the
installer Permission box located at the bottom of the
“Add User” page.

ii

1. Click on the link at the bottom of the login page titled, “Are

you a new user? Sign Up.”

Notes: It is important to note that all accounts only have
one user name and password. An overview of our current
account options follows:

Option 1: Providing Credential Services:

If the dealer uses their e-mail address to set up the account
and then confi gures up different organizations under
their account. The dealer should not share the user

name and log in as any one logging in will see all the
organizations and credential information. This method

is for dealers who only want to provide the credentials via
a service for their customers or for their own building.

Option 2: End User Managed Credentials:

The dealer sets up the account with the end user’s
email address and generic password. The dealer then

goes into the account and issues themselves an installer
credential, sets up the readers and as part of the service
possibly issue credentials. When they transfer all the

systems over to the end-user they should inform the end
user user’s to change the password. Should the end user
want the dealer to have access, they can provide the
username and password and elect to change it after the
assistance is provided.

2. Enter your e-mail address, fi rst name, last name,
management company, dealer name, and a password.
Be sure to follow the password guidelines as listed on the
sign-up page.

Setting Up your Organization and Readers

Organization

An Organization is the top-level entity in the Access Control
hierarchy and represents the end-user company the system is
being installed into.

Reader

A reader is assigned to an Organization. The user’s credentials
are presented to the reader and passed along to the Access
Control System for validation. If the access request is valid,
entrance is granted at that reader access point.

Creating Your First Organization

You must fi rst add credentials, followed by assigning installer
credentials, which allow a reader to be assigned.

1. In the upper right hand corner of the portal, select
“Organizations.”

3. Click Sign Up.

4. The dealer/end user account is now set up.

Now that the dealer/end user account is established, some
Organizations must be set up within the portal by the dealer/
installer for managing the BluePass Credentials and Readers.

2. You are now on the “Organizations” page. Click “Create.”

Copyright © 2018 Nortek Security and Control LLC

1

You are now on the “New Organization” page.

3. In the “Name” fi eld, enter the name of the Organization you
wish to create.

Now that you have at least one Organization created, it is time to
install readers at the actual facility.

Setting up Your First Reader

You must now add credentials then assign an installer credentials
which allows a reader to be assigned.

• If you previously assigned readers to this Organization,
you will see the names of all the readers you previously
confi gured that are currently assigned to this Organization.

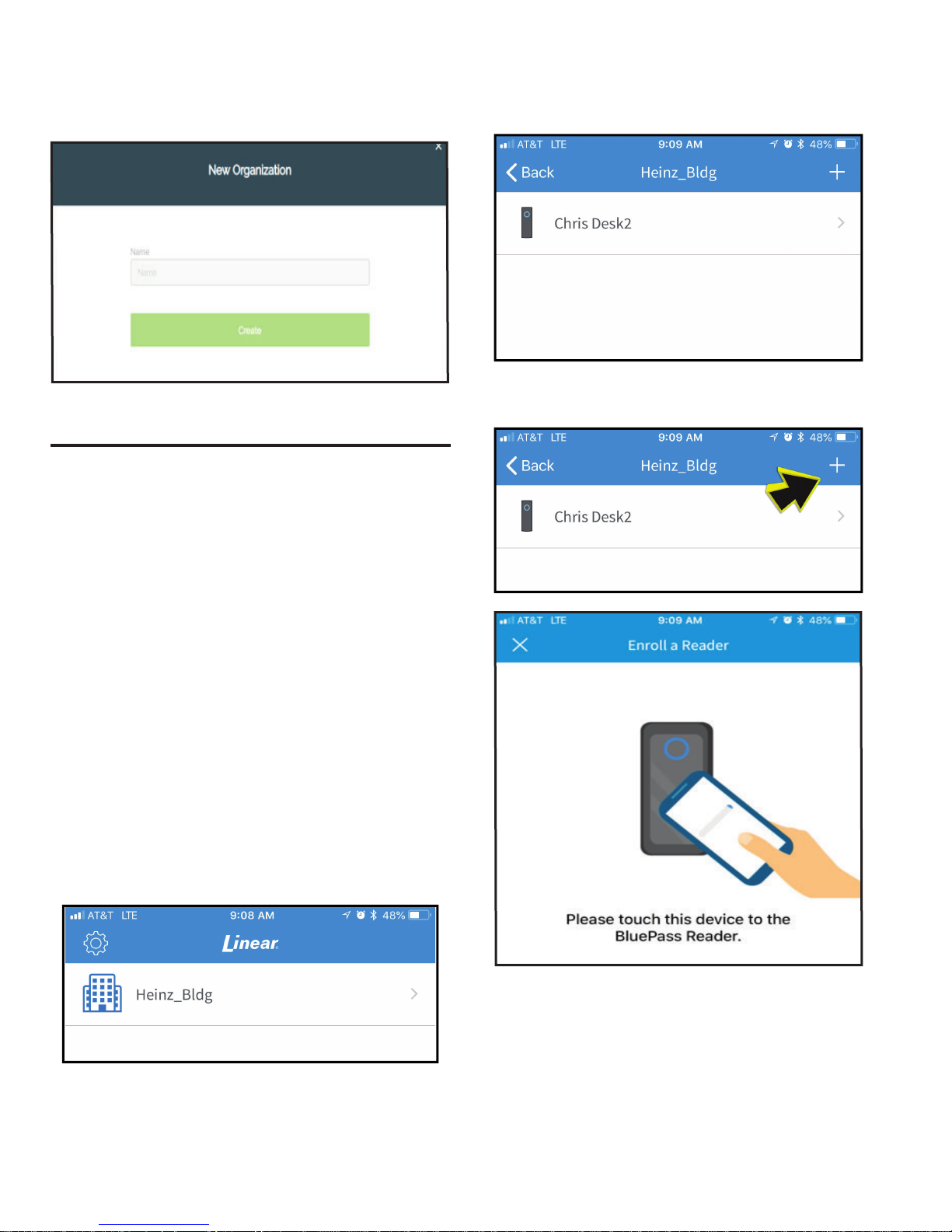

5. In the upper-right of your screen, click on the “+” icon to
add a new reader to this Organization.

1. Using the enclosed Getting Started guide found in your
reader packaging, follow all wiring and safety precautions
to connect the reader to your access control panel.

2. Once wired and mounted to the protected area, the reader
should be illuminated with a solid amber ring animation.
This animation indicates that the reader is powered, but
not yet confi gured to use BluePass Mobile Credentials.
The reader can, however, fully function as a standard 26
to 37-bit 125 KHz prox reader that is compatible with cards
and fobs commonly found in the marketplace.

3. From the Linear BluePass Web Portal you will need to
issue at least one credential with “Installer Permissions”
(This credential type will be needed for all steps below.)

4. After following the steps to Accept the BluePass credential
with ”Installer Permissions,“ open the Linear Wallet Mobile
Application and press the “>” located to the left of the
Organization Name.

Notes:

• If this is the fi rst reader you have assigned to this
Organization, you will now see a blank list.

2

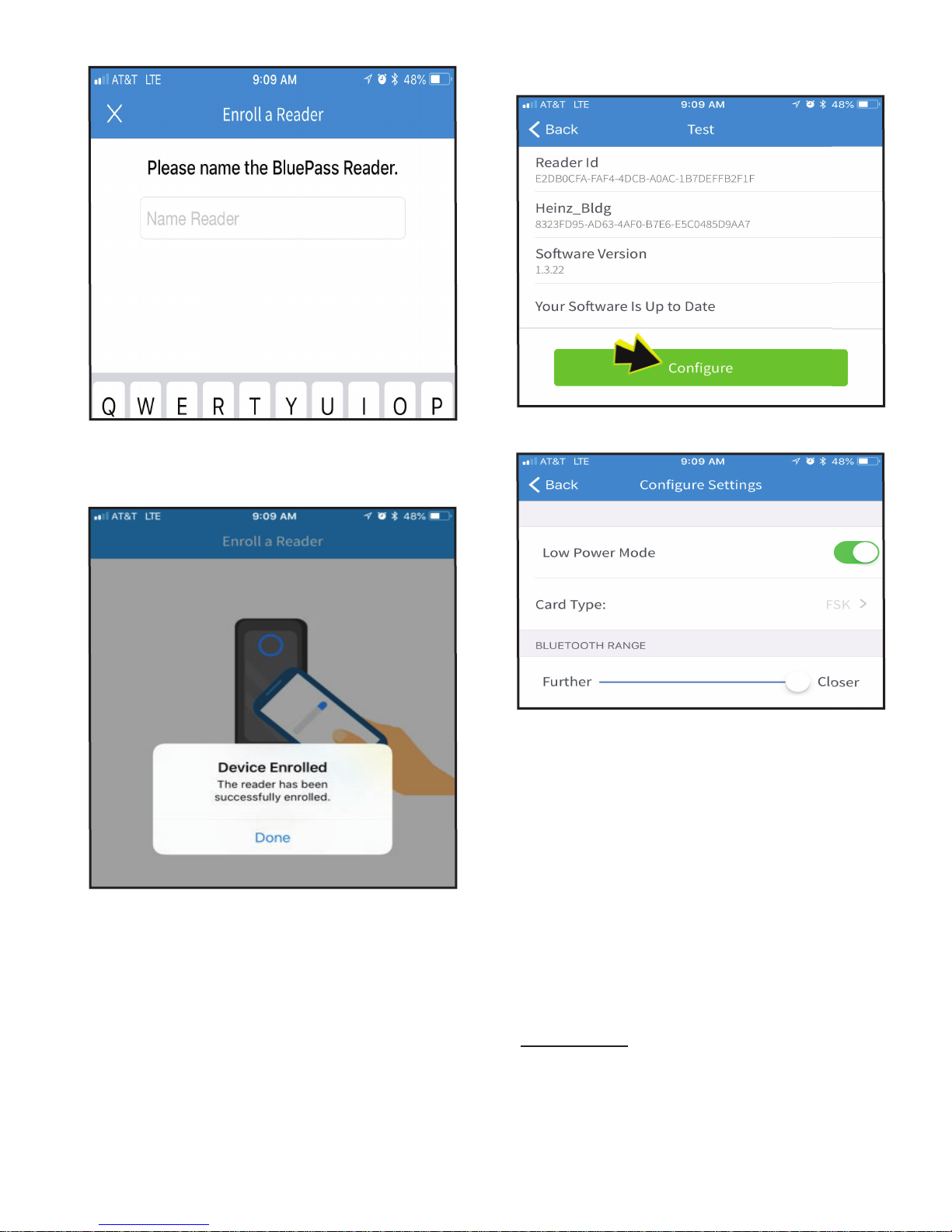

6. Enter a name for the reader or door that the reader is
installed for. We suggest a descriptive name that will
make management easier, such as “West Entrance Door”
or similar. It is also advised that the name used matches
the name of the door within the access control system (if
applicable), so that two different names do not exist for the
same door or entrance. Whatever name is chosen will be
displayed in the list of readers for that Organization later.

8. Tap the “Confi gure” button.

7. After naming your reader, click submit and you will receive
a message telling you enrollment of your reader was
successful.

- You can now check for any available fi rmware updates for
this reader. If an update is available, follow the prompts to
successfully do so. Continue to maintain a close physical
connection between the mobile device and reader, as
the fi rmware update process can take several minutes to
complete.

- You can now also confi gure your reader.

Copyright © 2018 Nortek Security and Control LLC

9. On the reader confi guration page, there are two options:

Option 1 - Sets the BLE range restrictions. This determines
whether the end-user’s mobile device must be presented to
the reader or if it can remain in their pocket. This is a very
important consideration, as it is advisable to set the range to
be as short as possible for building entrances that are in close
proximity to employees’ work spaces or break areas.

- If the reader’s Bluetooth reception strength is set too high,
it may inadvertently pair with an employee’s mobile device
and allow unauthorized entry into the building simply by
waiving a hand over, or touching, the reader.

- For maximum security, it is advisable to have to the
reader’s Bluetooth signal reception strength set to the
most minimal level, requiring the end-users to present their
mobile device to the reader in order to request access.

Entrances where security is less of a factor:

Interior doorways

- Locations where other employees are working far from the
doorway

- Bluetooth reception strength may be adjusted to allow
users to request access without having to present their
mobile device to the reader.(This will vary Phone to
Phone)

3

Option 2 - Controls the power mode which affects the LED
intensity and animation scenes.

- Choose the power mode settings you would like for the
reader and then select “BACK.”

- Future capabilities will be available in subsequent
versions for the administrator app, including the ability to
disable the 125 KHz RFID antenna for an added layer of
security.

The reader should now have a solid blue animation indicating it is
ready to process BluePass Credentials.

Performing a Factory Reset on the Reader

A factory reset is performed in order to clear the reader of existing
organizations and corresponding end-user credentials, as well
as to clear any fi rmware updates initiated on the reader since
manufactured. Access to any specifi ed organization will need to
be re-established, and fi rmware will need to be reinstalled to the
latest version before using the reader

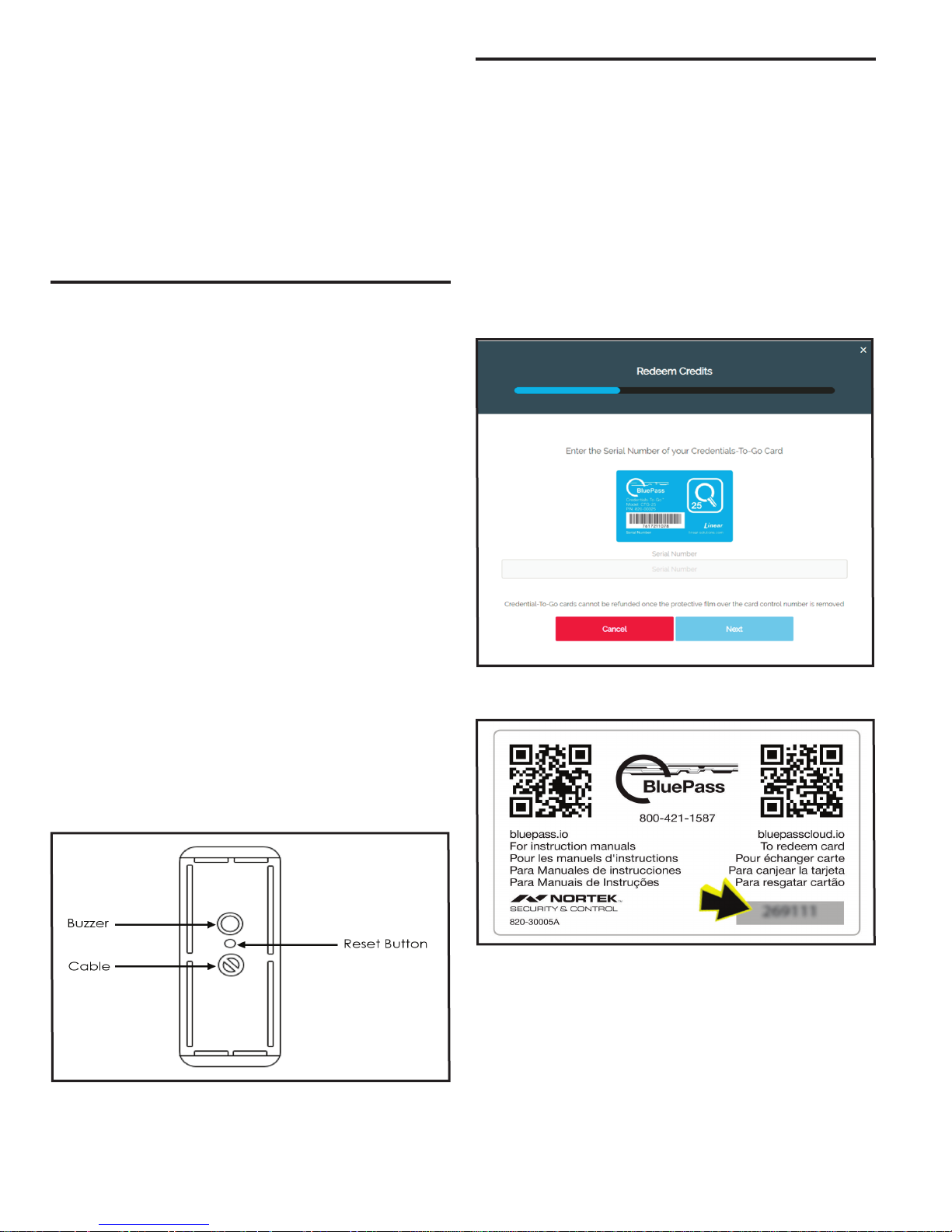

1. To locate the reset button on the reader, dismount from the
installation points. the reset button is located on the back
of the reader, as depicted in Figure 1.

2. Disconnect the reader from the power source.

Issuing Your First BluePass Credential

Now that you have confi gured at least one reader for an
Organization you are ready to send your fi rst BluePass Credential
to an end-user for access.

1. Create or locate a valid Wiegand credential in the
Organization’s access control panel and take note of the
ID and Reader Group Code values.

2. Login to the Dealer Portal using your previously confi gured
username and password.

3. Locate the intended Organization and click on the ellipsis
to open the pop up menu. Select “View/Add Users.” On
this page, click on “Redeem Credits.”

3. Begin holding down the reset button; while holding the
reset button, reconnect the reader to the power source.
Please note that the card-present line must be connected
to ground during this step.

4. Give the reader a minimum of 10 seconds to reset, and
release the reset button.

5. The LED on the front of the reader will momentarily be off
while the reader reconfi gures.

6. After the reader has completed the factory reset, the LED
ring will momentarily fl ash white, then change to amber.

7. The reader’s enrollment has now been cleared, along with
any fi rmware updates that have been initiated since it was
manufactured.

4. Enter the serial number from your previously purchased
Credential-To-Go™ card and click “Next.”

Fig. 1 Reset button is located on the back of the

reader between the buzzer and the cable.

4

5. Enter the authentication number on the back of the card
by scratching off the protective fi lm and entering it into the
Blue Cloud Portal.

9. Confi rm the information is correct and click the “Issue”
button. The end-user will receive an invitation e-mail with
instructions for installing and using their BluePass Mobile
credential.

6. Select the redeem button.

Your account has now been credited with mobile credential
credits.

7. Select “Issue Credential.” In the “View/Add Users” page,
click on “Add User.”

8. Enter the email address, facility code, and card number for
the user you would like to issue the mobile credential and
click “Next.”

Accepting Your First BluePass Credential as an
End-User

1. The email from the administrator will provide two links,
one for downloading the BluePass App, and the other for
downloading the BluePass Credential.

2. Download and install the BluePass App from the iOS App
Store or the Android Play Store as appropriate for your
device’s operating system.

3. Use the other link provided in the e-mail to obtain your
BluePass Mobile Credential.

4. A dialog box will appear asking if you would like to open the
link using the BluePass Application

5. Select “Open.” The BluePass Wallet App will open and after
a brief period of time a virtual “access card” will appear in
your Wallet App.

6. Once the access card icon has appeared in your BluePass
Wallet App, you may present your phone to the reader. The
light ring will display a blue spinning animation indicating
that the reader is actively searching for nearby BluePass
Credentials. You will then hear a beep indicating that
the Wiegand ID has been transmitted securely from the
mobile device to the reader followed by a green fl ash LED
animation sequence once access is granted by the on-site
access control panel.

Copyright © 2018 Nortek Security and Control LLC

5

Frequently Asked Questions

How much power does the BluePass Reader use?

• 100 - 200 mA typical, 225 mA max peak @ 12 VDC low-power
mode. Bright light power mode available.

• High power mode - 120 mA @ 12 VDC

What voltage does the reader require?

• +5.5 - 16 VDC at the reader. Regulated power supply and 12
VDC at the reader is recommended for best operation.

What prox cards does the reader support?

• The reader supports HID™ compatible 26 - 37-bit 125KHz
Wiegand formats
Other bit formats will be supported in the future with OTA
reader fi rmware updates.

What card technologies are supported?

• 125 KHz Prox and Bluetooth Low Energy

Which RFID modulations are supported?

• EM4102 (ASK modulation)

• ISOProx II (HID™ Prox II H10301 compatible FSK
modulation)

Does the reader support RS-485/OSDP?

• Not at this time.

How can it replace an existing reader?

• Swapping of an existing 26 to 37-bit 125 KHz reader with a
new BluePass Reader and is simple and easy with common
Wiegand wiring.

What do I do if I am replacing a single-gang reader
with this mullion reader?

• The mullion reader comes with a U.S. single-gang adaptor
plate. The mounting holes are aligned with the most common
mullion readers on the market.

Does the reader require any special access control
panel features to work?

• No. The Reader is compatible with most preexisting access
control panel that supports standard Wiegand protocol input/
output.

Mobile Applications

What phones/devices are supported?

• Any Apple device running iOS 10.0 or higher

• Android devices running Android v5.0 (Lollipop) or higher that
supports BLE peripheral mode.

Do I have to present my phone to the reader to enter
a door?

• The allowed distance between reader and mobile device is
confi gurable by the facility manager on a per reader basis.
The range can be restricted such that a user must present
the mobile device to the reader much like a legacy prox card.
Alternatively the range setting can be relaxed allowing the
user to simply wave their hand near the reader and leave
the mobile device in their pocket, backpack, or purse when
requesting access.

• We strongly recommend that in most cases the BLE range
settings of the readers be set to the shortest range possible
to prevent inadvertent access into the building and for the
highest level of security.

How do I receive Bluetooth Credentials to a building?

• You will receive an email from your facility manager to
download the mobile application and mobile credential.
Select the link for each step to successfully download the app
and accept the credential.

How do I get the mobile app?

• Typically, you will download the apps via the App Store for iOS
and the Play Store for Android.

Do I have to have an internet connection to enter a
door using a mobile key?

• No, once you have accepted the BluePass Mobile Credential
on your mobile device it is securely stored on the device and
requires no network connectivity to request access to a door.
Only Bluetooth is required.

Are mobile keys secure?

• The BluePass Mobile Credential uses the CORE™ platform
which features a robust security architecture. It is based on
the largest mobile key platform in the world with more than
135 million access transactions to date. Credentials feature
AES128 encryption using a PKI implementation that meets or
exceeds industry standard best practices.

As a facility manager, how do I issue, modify or
revoke mobile credentials for my users?

• Facility managers have access to a simple web portal that
allows them to redeem credential credits using Credential­To-Go™ cards, create new end-users, or modify existing end­users. These actions take effect immediately on the end-user
mobile device.

Does the Linear App have to be running in the
foreground or “active” to enter a door?

• No, as long as the app has been launched after the phone is
powered on, it can run silently in the background without any
further interaction by the user needed to enter a door, except
for presenting the phone to the reader.

6

Note: Additional FAQ information can be found by visiting
https://bluepasscloud.io.

Troubleshooting

Issue Corrective Action

The reader will not read cards and fobs. Check cards and fobs to ensure they are HID™ compatible

26 to 37-bit 125 KHz RFID.

End-user was issued credentials and replaced their mobile
device with a newer model. They downloaded the app and
used their original e-mail invite link to reinstall credentials on
their new device. The installation was unsuccessful.

I installed the system in a multi-tenant residential condominium
complex. The property management company wants to re-use
mobile credentials from departing tenants, reissuing them to
the new tenants moving in. Is there an option in the dashboard
to repurpose the same credentials without having to buy them
each time this happens?

Our customer wants to fully migrate away from 125 KHz cards
and fobs, turning off that portion of the reader so it will only read
the Bluetooth-based credentials. Can I turn off that portion of
the reader?

My customer has a home access control system and has
programmed it so he can use the same fob that he uses
to access the building at his work, he simply programmed
the same legacy credential ID number from his fob into his
home system. This makes it convenient, requiring him to
only need one credential. Does the BluePass system allow
for the same thing?

BluePass mobile credentials are only good for the life of the
original mobile device. Once a new device is purchased,
new credentials are required, even if the phone number has
not changed.

No. BluePass Credentials are tied to specifi c mobile devices.
The only way the property management fi rm could do this is
if they owned the mobile devices, repurposing the device
from a departing tenant to a new tenant. A more viable and
less expensive option would be to use BluePass Bluetooth
fobs.

Currently, you cannot turn off the 125 KHz portion of a reader.

No. The system is specifi c to each organization. Your
customer’s home reader will not read the employer’s
BluePass credential at all. The customer will need to
have two BluePass credentials; one for home and one for
work. When the customer replaces their mobile device,
two new credentials will need to be purchased.

Certifi cations

FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Product can be used without license conditions or restrictions in all European Union countries, including Austria, Belgium, Denmark,
Finland, France, Germany, Greece, Ireland, Luxembourg, The Netherlands, Portugal, Spain, Sweden, and the United Kingdom, as well
as other non-EU countries, including Iceland, Norway, and Switzerland.

Nortek Security and Control LLC reserves the right to change specifi cations without notice.

P/N: 10019180 X16Copyright © 2018 Nortek Security and Control LLC

7
