Page 1
The Lindy 20W USB Type C PD Charger is a compact, efficient solution for charging many devices. It provides fast charging for USB
Type C PD and PPS-enabled devices. Thanks to the small design the charger can easily be carried and is always available when
Type C charger supplied with many devices.

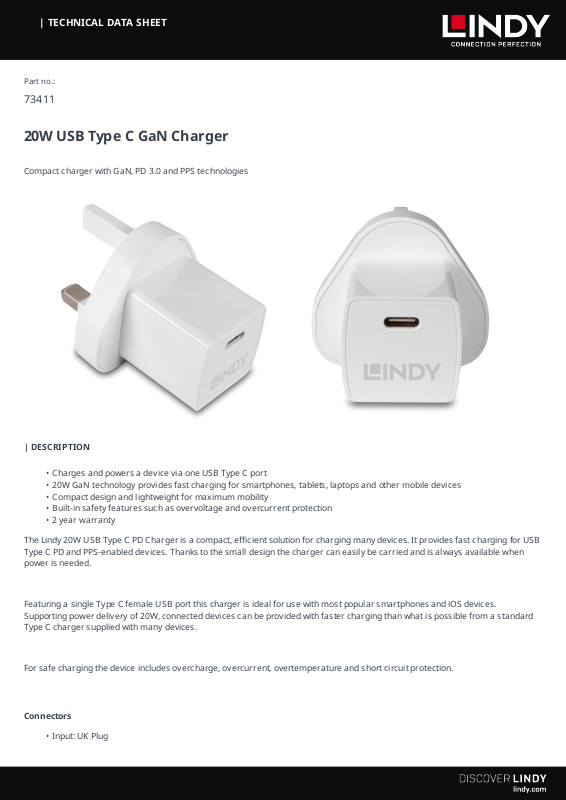

| TECHNICAL DATA SHEET
Part no.:
73411
20W USB Type C GaN Charger
Compact charger with GaN, PD 3.0 and PPS technologies
| DESCRIPTION
Charges and powers a device via one USB Type C port
•
20W GaN technology provides fast charging for smartphones, tablets, laptops and other mobile devices
•
Compact design and lightweight for maximum mobility
•
Built-in safety features such as overvoltage and overcurrent protection
•
2 year warranty
•
power is needed.
Featuring a single Type C female USB port this charger is ideal for use with most popular smartphones and iOS devices.
Supporting power delivery of 20W, connected devices can be provided with faster charging than what is possible from a standard
For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection.
Connectors
Input: UK Plug•
Page 2
| TECHNICAL DATA SHEET
•
Ouput: USB Type C Female
Specifications
•
Power Input: 100-240VAC, 50/60Hz 0.6A
•
Power Output:5V/3A, 9V/2.22A, 12V/1.67A
•
USB Power Delivery:PD 3.0
•
Max. Total Power: 20W
•
Output Voltage Accuracy: ± 5%
•
Average Active Efficiency:5V 83.37%, 9V 87.32%,12V 86.40%
•
Efficiency at Low Load (10%): 80.06%
•
No-load Power Consumption: 0.075 W
•
Additional Features:Overcurrent, overvoltage, overtemperature and short circuit protection
Physical Properties
•
Dimensions (approx.) WxDxH: 28x31x29.6mm (1.1x1.22x1.17in)
•
Connector Material:Copper
•
Housing Material: PVC
•
Net Weight: 0.04kg (0.09lb)
•
Operating Temperature:0°C - 25°C (32°F - 77°F)
•
Storage Temperature:-20°C - 80°C (-4°F - 176°F)
•
Humidity: 0 – 90% RH (non-condensing)
•
Colour: White
Miscellaneous
•
Packaging Type: Carton Box
•
Packaging Dimensions: 80x100x45mm (3.15x5.12x1.77in)
•
Gross Weight: 0.06kg (0.13lb)
•
Warranty (Years): 2
•
Product Compliance: CE, UKCA, RoHS, REACH, ErP
Package Contents
•
20W USB Type C GaN Charger
•
Lindy Manual
Purchasing Information
•
No.: 73411
•
EAN:4002888734110
