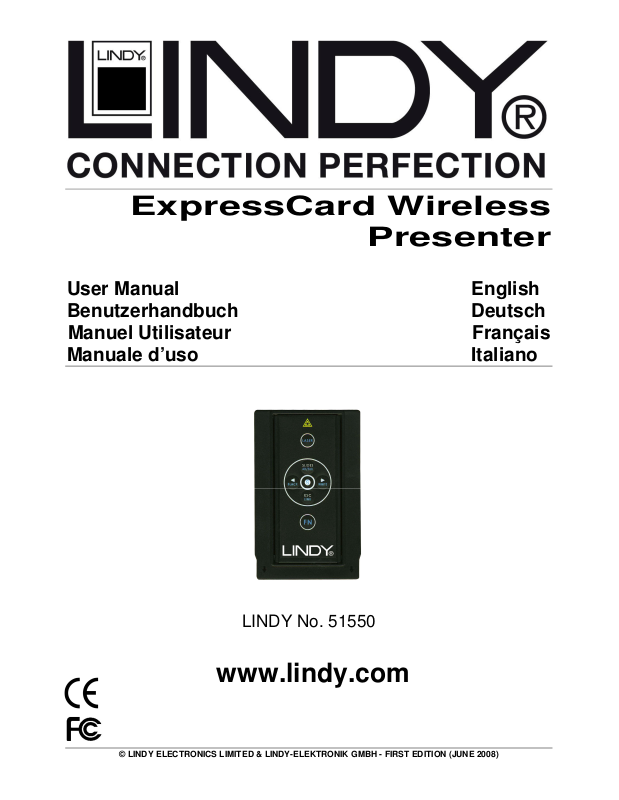

Lindy 51550 User Manual
ExpressCard Wireless
Presenter
User Manual English
Benutzerhandbuch Deutsch
Manuel Utilisateur Français
Manuale d’uso Italiano
LINDY No. 51550
www.lindy.com
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (JUNE 2008)
IMPORTANT HEALTH AND SAFETY INFORMATION
WARNING! RISK OF INJURY!
Laser beam can cause permanent damage to eyes. Do not look into the laser beam or shine
the laser beam into your eyes, other peoples’ eyes, or animals’ eyes.
Keep this device away from Children. This is a working tool, not a toy or entertainment
device. It should only be used by adults.
WICHTIGER SICHERHEITSHINWEIS!
ACHTUNG! VERLETZUNGSGEFAHR!
Laserstrahlen können Ihre Augen dauerhaft schädigen. Schauen Sie nicht direkt in den
Laserstrahl und richten Sie den Laserstrahl generell nicht auf die Augen von Menschen oder
Tieren!
Bewahren Sie dieses Gerät außerhalb der Reichweite von Kindern auf. Es ist nicht zum
Spielen bestimmt und sollte nur von Erwachsenen verwendet werden.
INFORMATION IMPORTANTE
ATTENTION! RISQUE DE BLESSURE!
Un faisceau laser peut causer des dommages permanents aux yeux. Ne regardez pas le
faisceau laser ou ne le pointez pas vers les yeux.
Gardez cet appareil loin des enfants. Ceci est un outil de travail, pas un jouet. Il ne doit être
utilisé que par des adultes
INFORMAZIONI IMPORTANTI SICUREZZA E SALUTE
ATTENZIONE! PERICOLO!
Laser può provocare danni permanenti agli occhi. Non guardare il raggio laser e non
lasciare che questo possa essere guardato da persone o animali.
Tenere questo dispositivo lontano dalla portata dei bambini. Questo oggetto non è un
giocattolo adatto per bambini, deve essere maneggiato da soli adulti.
- 2 -
User Manual English
Introduction
Thank you for purchasing the LINDY ExpressCard Wireless Presenter. This 2-in-1 remote
control and laser pointer allows you to wirelessly control your presentations at distances of up to
20m!
Package Contents
ExpressCard Wireless Presenter (with USB receiver)
PCMCIA Adapter
CR2032 Battery
This Manual
System Requirements
Windows® 2000/XP/Windows VistaTM or Mac OS 10.2 or above
An available USB Port
Features
Control your presentations from up to 20m away
Convenient, space saving design:
▫ Can be stored in ExpressCard/34, ExpressCard/54 or PCMCIA slots when not in use
▫ The USB receiver can be inserted into the back of the presenter for storage
Built in laser pointer, with 30m range and safety switch, to aid your presentation
Simple plug and play installation, no additional drivers required
- 3 -
User Manual
English
Installation
The LINDY ExpressCard Wireless Presenter is designed to fit directly into an ExpressCard/34
or ExpressCard/54 slot. However, if your computer is equipped with a PCMCIA port, you may
place the Presenter into the supplied PCMCIA Adapter before storing it.
Placing the Presenter in the Adapter
Insert the bottom of the Presenter into the
top of the PCMCIA Adapter and then push
the presenter into position, as shown.
Removing the Presenter from the Adapter
Push the Presenter up from beneath and
remove from the PCMCIA Adapter as
shown.
Initial Set Up
1. Remove the Battery Cover and insert
the supplied CR2032 battery with the
Positive (+) side facing towards you.
2. Remove the USB Receiver from the
back of the Presenter and plug it into an
available USB port on your Computer.
3. Your Computer will recognise the new
hardware and automatically install the
required drivers.
- 4 -
User Manual
4. Once your Computer has finished
installing the USB Receiver, you will
need to pair the Presenter and
Receiver. Press the ID Link button on
the USB Receiver. The Link indicator
will light up.
5. Press and hold FN and Link buttons on
the Presenter simultaneously for 3
seconds until the Link indicator on the
USB receiver blinks, to indicate that the
paring is complete.
English
Operating the Wireless ExpressCard Presenter
Front View Rear View
Button with
white character
Function How to operate
LASER Press and hold to use the laser beam
Slides Press to start a slide show
ESC Press to exit a slide show
Next Press to go to the next slide
Previous Press to go to the previous slide
- 5 -
User Manual
The FN button is used in combination with the other buttons (blue character) for special
functions as follows:
Button with blue
character
Fn + Black
Fn + White Screen White
Fn + Alt+Tab
Fn + Link
*
Please Note this functionality is not available when using a Mac OS.
Function How to operate
Screen Black
Change
program/window *
Change ID
Press to turn the whole screen black. Press Next,
Previous or ESC to return to the presentation
Press to turn the whole screen white. Press Next,
Previous or ESC to return to the presentation
Press and hold Fn, then click Alt+Tab to cycle through
the available programmes/windows, then release Fn
when the chosen program/window is displayed
Note: ONLY implement ID change when serious RF
interference causes the remote control to malfunction
English
Specification
System
Physical Dimensions
Environmental Requirements
▫
Frequency range: 2400~2483MHz
▫
(16 multi channels and 65535 ID channels)
▫
Remote range: Up to 66 feet (20 metres)
▫
Operating voltage: 2.6V~3.3V
▫
Power: CR2032 battery x 1
▫
Power consumption: Normal operation < 5mA
Laser operation < 30mA
Sleep < 10uA
▫
Output power: Under 1mW
▫
Size: 75(l) x 34(w) x 5(h) millimetres
▫
Weight: Approx. 14 grams (with the receiver and battery)
▫
Temperature
Operating: 0oC (32 oF) - 60 oC (140 oF)
Non-operation: -10 oC (14 oF) - 65 oC (149 oF)
▫
Humidity(non-condensing):
Operating: 10%~85% RH
Non-operating: 10%~95% RH
Laser
▫ Semiconductor laser(λ= 650 nm)
▫ Emission duration: continuous
▫ Output power: Max. 0.95mW
- 6 -
