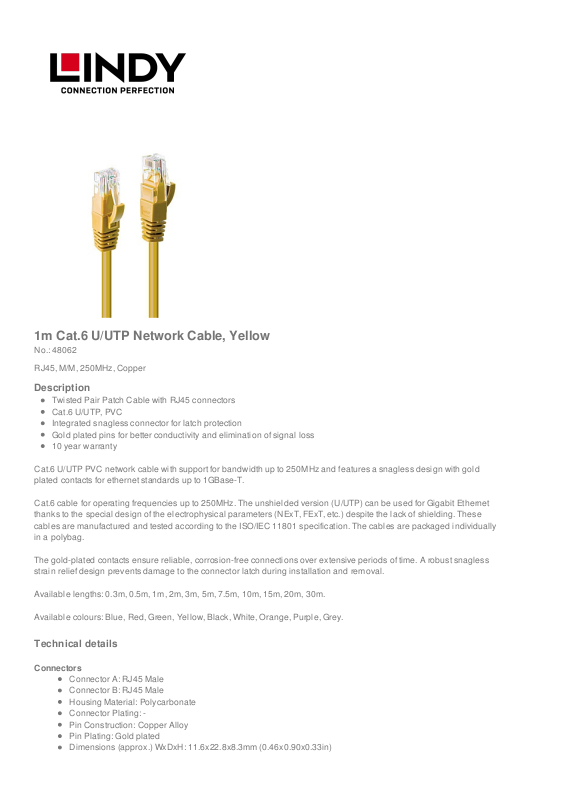

1m Cat.6 U/UTP Network Cable, Yellow
No.: 48062
RJ45, M/M, 250MHz, Copper
Description
Twisted Pair Patch Cable with RJ45 connectors
Cat.6 U/UTP, PVC
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Cat.6 U/UTP PVC network cable with support for bandwidth up to 250MHz and features a snagless design with gold
plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet
thanks to the special design of the electrophysical parameters (NExT, FExT, etc.) despite the lack of shielding. These
cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually
in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless
strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Blue, Red, Green, Yellow, Black, White, Orange, Purple, Grey.
Technical details
Connectors
Connector A: RJ45 Male
Connector B: RJ45 Male
Housing Material: Polycarbonate
Connector Plating: Pin Construction: Copper Alloy
Pin Plating: Gold plated
Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)
Page 2
Cable Construction
Length: 1m (3.28ft)
Colour: Yellow
Type: Cat.6
Jacket Diameter: 5.8mm (0.23in)
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge: 24AWG
Shielding: -
Specifications
Supported Bandwidth: 250MHz
Nominal Attenuation: 32.8dB/100m @250MHz
Minimum Band Radius: 69mm (2.72in)
Operating Temperature: -10°C - 60°C (14°F - 140°F)
Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL, California Proposition 65
Purchasing Information
No.: 48062
EAN: 4002888480628
This product is also available in other lengths
48060 - 0.3m (0.98ft)
48061 - 0.5m (1.64ft)
48062 - 1m (3.28ft)
48063 - 2m (6.56ft)
48064 - 3m (9.84ft)
48065 - 5m (16.44ft)
48066 - 7.5m (24.61ft)
48067 - 10m (32.81ft)
48068 - 15m (49.21ft)
48069 - 20m (65.62ft)
48070 - 30m (98.43ft)
