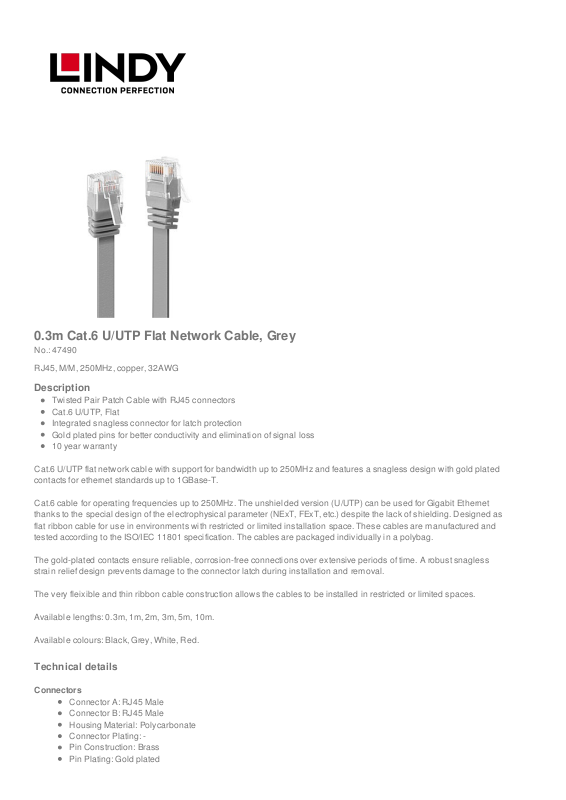

0.3m Cat.6 U/UTP Flat Network Cable, Grey
No.: 47490
RJ45, M/M, 250MHz, copper, 32AWG
Description
Twisted Pair Patch Cable with RJ45 connectors
Cat.6 U/UTP, Flat
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Cat.6 U/UTP flat network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated
contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz. The unshielded version (U/UTP) can be used for Gigabit Ethernet
thanks to the special design of the electrophysical parameter (NExT, FExT, etc.) despite the lack of shielding. Designed as
flat ribbon cable for use in environments with restricted or limited installation space. These cables are manufactured and
tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless
strain relief design prevents damage to the connector latch during installation and removal.
The very fleixible and thin ribbon cable construction allows the cables to be installed in restricted or limited spaces.
Available lengths: 0.3m, 1m, 2m, 3m, 5m, 10m.
Available colours: Black, Grey, White, Red.
Technical details
Connectors
Connector A: RJ45 Male
Connector B: RJ45 Male
Housing Material: Polycarbonate
Connector Plating: Pin Construction: Brass
Pin Plating: Gold plated
Page 2
Dimensions (approx.) WxDxH: 11.6x22.7x6.5mm (0.46x0.89x0.26in)
Cable Construction
Length: 0.3m (0.98ft)
Colour: Grey
Type: Cat.6
Jacket Diameter: 6.05x1.40mm (0.24x0.06in)
Jacket Material: PVC
Conductor Material: Bare Copper
Conductor Gauge: 32AWG
Shielding: -
Specifications
Supported Bandwidth: 250MHz
Nominal Attenuation: 35.9dB/100m @ 250MHz
Minimum Bend Radius: 60mm (2.36in)
Operating Temperature: -10°C - 60°C (14F - 140°F)
Storage Temperature: -10°C - 40°C (14F - 104°F)
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL, California Proposition 65
Purchasing Information
No.: 47490
EAN: 4002888474900
This product is also available in other lengths:
47490 - 0.3m (0.98ft)
47491 - 1m (3.28ft)
47492 - 2m (6.56ft)
47493 - 3m (9.84ft)
47494 - 5m (16.44ft)
47495 - 10m (32.81ft)
