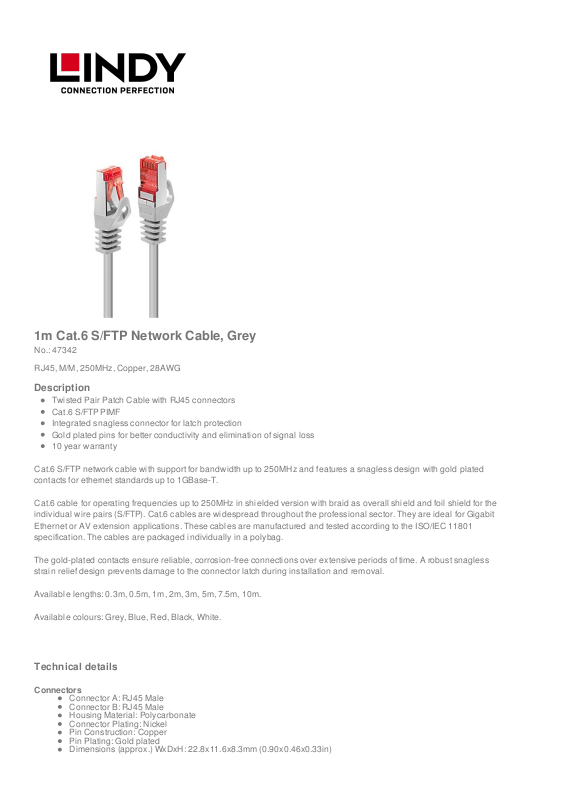

1m Cat.6 S/FTP Network Cable, Grey
No.: 47342
RJ45, M/M, 250MHz, Copper, 28AWG
Description
Twisted Pair Patch Cable with RJ45 connectors
Cat.6 S/FTP PIMF
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Cat.6 S/FTP network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated
contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the
individual wire pairs (S/FTP). Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit
Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801
specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless
strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m.
Available colours: Grey, Blue, Red, Black, White.
Technical details
Connectors
Connector A: RJ45 Male
Connector B: RJ45 Male
Housing Material: Polycarbonate
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: Gold plated
Dimensions (approx.) WxDxH: 22.8x11.6x8.3mm (0.90x0.46x0.33in)
Page 2
Cable Construction
Length: 0.3m (0.98ft)
Colour: Grey
Type: Cat.6
Jacket Diameter: 6.2mm (0.24in)
Jacket Material: PVC
Conductor Material: Copper
Conductor Gauge: 28AWG
Shielding: Aluminium Braid
Specifications
Supported Bandwidth: 250MHz
Nominal Attenuation: 32.8dB/100m @250MHz
Minimum Band Radius: 74mm (2.91in)
Operating Temperature: -10°C - 60°C (14°F - 140°F)
Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL, California Proposition 65
Purchasing Information
No.: 47340
EAN: 4002888473408
This product is also available in other lengths
47340 - 0.3m (0.98ft)
47341 - 0.5m (1.64ft)
47342 - 1m (3.28ft)
47343 - 1.5m (4.92ft)
47344 - 2m (6.56ft)
47345 - 3m (9.84ft)
47346 - 5m (16.44ft)
47347 - 7.5m (24.61ft)
47348 - 10m (32.81ft)
