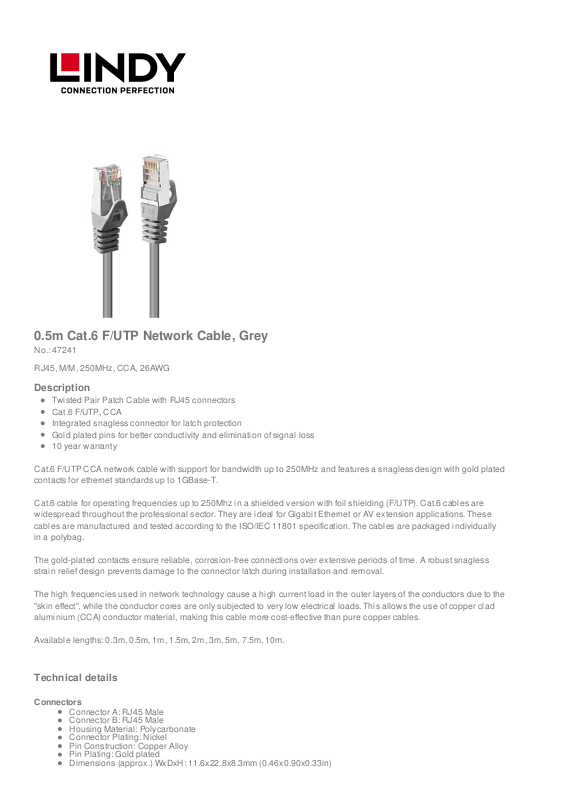

0.5m Cat.6 F/UTP Network Cable, Grey
No.: 47241
RJ45, M/M, 250MHz, CCA, 26AWG
Description
Twisted Pair Patch Cable with RJ45 connectors
Cat.6 F/UTP, CCA
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Cat.6 F/UTP CCA network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated
contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250Mhz in a shielded version with foil shielding (F/UTP). Cat.6 cables are
widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These
cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually
in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless
strain relief design prevents damage to the connector latch during installation and removal.
The high frequencies used in network technology cause a high current load in the outer layers of the conductors due to the
"skin effect", while the conductor cores are only subjected to very low electrical loads. This allows the use of copper clad
aluminium (CCA) conductor material, making this cable more cost-effective than pure copper cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m.
Technical details
Connectors
Connector A: RJ45 Male
Connector B: RJ45 Male
Housing Material: Polycarbonate
Connector Plating: Nickel
Pin Construction: Copper Alloy
Pin Plating: Gold plated
Dimensions (approx.) WxDxH: 11.6x22.8x8.3mm (0.46x0.90x0.33in)
Page 2
Cable Construction
Length: 0.5m (1.64ft)
Colour: Grey
Type: Cat.6
Jacket Diameter: 6.0mm (0.24in)
Jacket Material: PVC
Conductor Material: CCA
Conductor Gauge: 26AWG
Shielding: Aluminium Foil
Specifications
Supported Bandwidth: 250MHz
Nominal Attenuation: 32.8dB/100m @250MHz
Minimum Band Radius: 72mm (2.84in)
Operating Temperature: -10°C - 60°C (14°F - 140°F)
Storage Temperature: -20°C - 75°C (-4°F - 167°F)
Miscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, California Proposition 65
Purchasing Information
No.: 47241
EAN: 4002888472418
This product is also available in other lengths
47240 - 0.3m (0.98ft)
47241 - 0.5m (1.64ft)
47242 - 1m (3.28ft)
47243 - 1.5m (4.92ft)
47244 - 2m (6.56ft)
47245 - 3m (9.84ft)
47246 - 5m (16.44ft)
47247 - 7.5m (24.61ft)
47248 - 10m (32.81ft)
