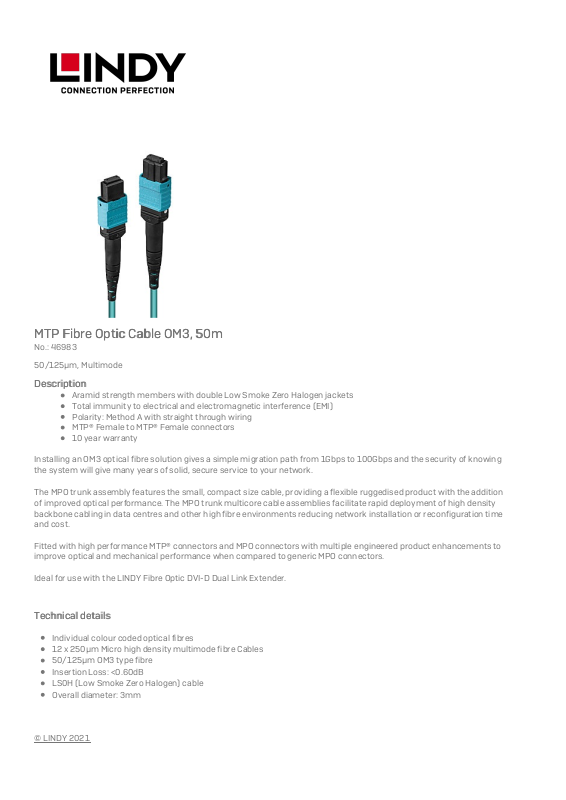

MTP Fibre Optic Cable OM3, 50mMTP Fibre Optic Cable OM3, 50m
No.: 46983
50/125µm, Multimode
DescriptionDescription
Aramid strength members with double Low Smoke Zero Halogen jackets
Total immunity to electrical and electromagnetic interference (EMI)
Polarity: Method A with straight through wiring
MTP® Female to MTP® Female connectors
10 year warranty
Installing an OM3 optical fibre solution gives a simple migration path from 1Gbps to 100Gbps and the security of knowing
the system will give many years of solid, secure service to your network.
The MPO trunk assembly features the small, compact size cable, providing a flexible ruggedised product with the addition
of improved optical performance. The MPO trunk multicore cable assemblies facilitate rapid deployment of high density
backbone cabling in data centres and other high fibre environments reducing network installation or reconfiguration time
and cost.
Fitted with high performance MTP® connectors and MPO connectors with multiple engineered product enhancements to
improve optical and mechanical performance when compared to generic MPO connectors.
Ideal for use with the LINDY Fibre Optic DVI-D Dual Link Extender.
Technical detailsTechnical details
Individual colour coded optical fibres
12 x 250µm Micro high density multimode fibre Cables
50/125µm OM3 type fibre
Insertion Loss: <0.60dB
LS0H (Low Smoke Zero Halogen) cable
Overall diameter: 3mm
