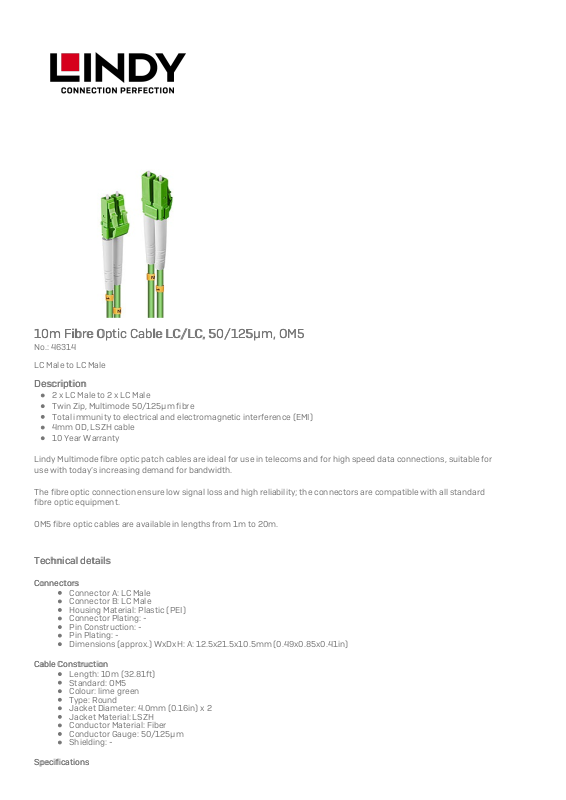

10m 10m Fibre Optic Cable LC/LC, 50/125µm, OM5Fibre Optic Cable LC/LC, 50/125µm, OM5
No.: 46314
LC Male to LC Male
DescriptionDescription
2 x LC Male to 2 x LC Male
Twin Zip, Multimode 50/125µm fibre
Total immunity to electrical and electromagnetic interference (EMI)
4mm OD, LSZH cable
10 Year Warranty
Lindy Multimode fibre optic patch cables are ideal for use in telecoms and for high speed data connections, suitable for
use with today’s increasing demand for bandwidth.
The fibre optic connection ensure low signal loss and high reliability; the connectors are compatible with all standard
fibre optic equipment.
OM5 fibre optic cables are available in lengths from 1m to 20m.
Technical detailsTechnical details
ConnectorsConnectors
Connector A: LC Male
Connector B: LC Male
Housing Material: Plastic (PEI)
Connector Plating: Pin Construction: Pin Plating: Dimensions (approx.) WxDxH: A: 12.5x21.5x10.5mm (0.49x0.85x0.41in)
Cable ConstructionCable Construction
Length: 10m (32.81ft)
Standard: OM5
Colour: lime green
Type: Round
Jacket Diameter: 4.0mm (0.16in) x 2
Jacket Material: LSZH
Conductor Material: Fiber
Conductor Gauge: 50/125µm
Shielding: -
SpecificationsSpecifications
Page 2
Supported Bandwidth: 100Gbps
Maximum Resolution: Nominal Attenuation:
< 2.4db@850nm
< 1.7db@953nm
< 0.6db@1300nm
Minimum Band Radius: 7.5mm (0.29in)
Operating Temperature: -40°C - 85°C (-40°F - 185°F)
Storage Temperature: -40°C - 85°C (-40°F - 176°F)
MiscellaneousMiscellaneous
Packaging Type: Polybag
Warranty (Years): 10
Certificated: RoHS, REACH, UL
Purchasing InformationPurchasing Information
No.: 46314
EAN: 4002888463140
This product is also available in other lengthsThis product is also available in other lengths
46310 - 1m (3.28ft)
46311 - 2m (6.56ft)
46312 - 3m (9.84ft)
46313 - 5m (16.44ft)
46314 - 10m (32.81ft)
46315 - 15m (49.21ft)
46316 - 20m (65.62ft)
