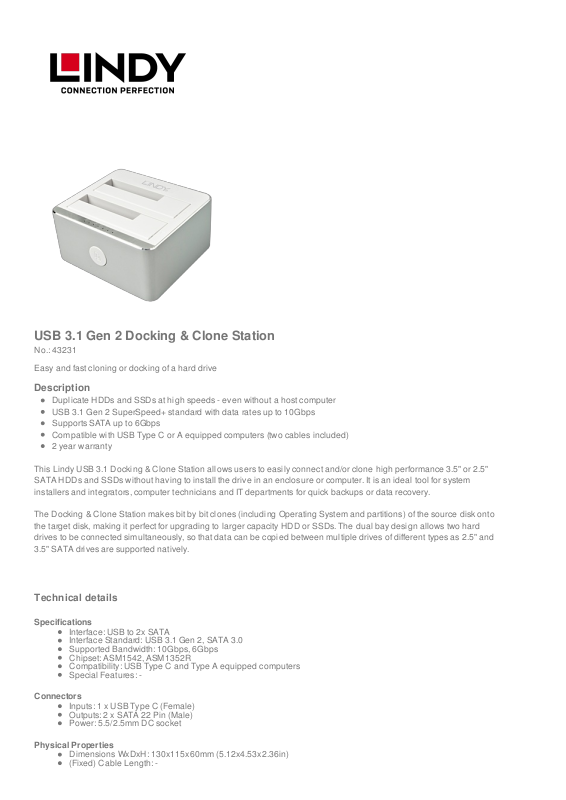

Lindy 43231 User Manual

USB 3.1 Gen 2 Docking & Clone Station

No.: 43231

Easy and fast cloning or docking of a hard drive

Description

Duplicate HDDs and SSDs at high speeds - even without a host computer
USB 3.1 Gen 2 SuperSpeed+ standard with data rates up to 10Gbps
Supports SATA up to 6Gbps
Compatible with USB Type C or A equipped computers (two cables included)
2 year warranty

This Lindy USB 3.1 Docking & Clone Station allows users to easily connect and/or clone high performance 3.5" or 2.5"
SATA HDDs and SSDs without having to install the drive in an enclosure or computer. It is an ideal tool for system
installers and integrators, computer technicians and IT departments for quick backups or data recovery.

The Docking & Clone Station makes bit by bit clones (including Operating System and partitions) of the source disk onto
the target disk, making it perfect for upgrading to larger capacity HDD or SSDs. The dual bay design allows two hard
drives to be connected simultaneously, so that data can be copied between multiple drives of different types as 2.5" and

3.5" SATA drives are supported natively.

Technical details

Specifications

Interface: USB to 2x SATA
Interface Standard: USB 3.1 Gen 2, SATA 3.0
Supported Bandwidth: 10Gbps, 6Gbps
Chipset: ASM1542, ASM1352R
Compatibility: USB Type C and Type A equipped computers
Special Features: -

Connectors

Inputs: 1 x USB Type C (Female)
Outputs: 2 x SATA 22 Pin (Male)
Power: 5.5/2.5mm DC socket

Physical Properties

Dimensions WxDxH: 130x115x60mm (5.12x4.53x2.36in)
(Fixed) Cable Length: -

Housing Material: Aluminium & Plastic
Net Weight: 0.8kg (1.76lb)
Operating Temperature: 5°C - 35°C (41°F - 95°F)
Storage Temperature: -20°C - 50°C (-4°F - 122°F)
Humidity: 0 - 80% RH (non-condensing)
Power Requirements: 12VDC 4A
Colour: Silver and white

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 125x295x62mm (4.92x11.61x2.44in)
Gross Weight: 1kg (2.2lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS, REACH

Package Contents

USB 3.1 Docking & Clone Station

0.9m USB 3.1 Gen 2 Type C to Type A cable

0.9m USB 3.1 Gen 2 Type C to Type C cable
External Power Supply with 1m DC cable
4 power cables (EU, UK, US & AUS)
Foam Pad for 7mm HDDs
Lindy Manual

Purchasing information

No.: 43231
EAN: 4002888432313

© LINDY 2020
