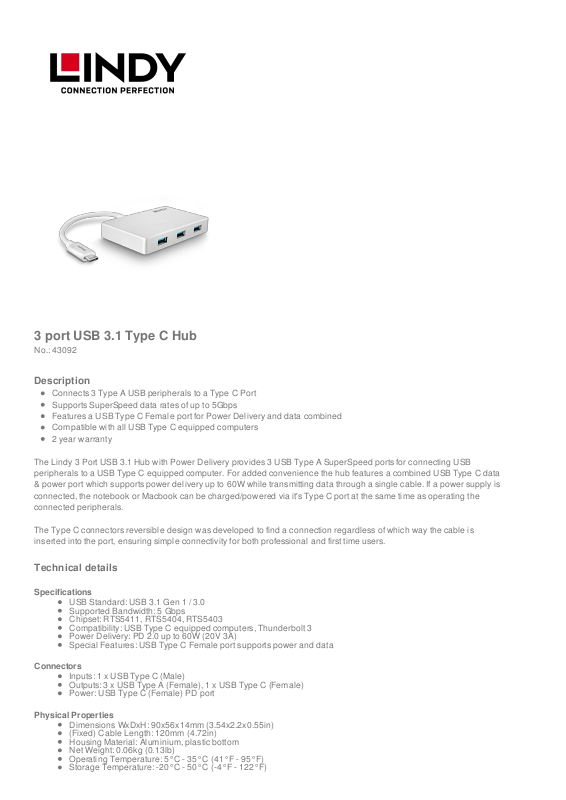

Lindy 43092 User Manual

Page 1
3 port USB 3.1 Type C Hub
No.: 43092
Description
Connects 3 Type A USB peripherals to a Type C Port Supports SuperSpeed data rates of up to 5Gbps Features a USB Type C Female port for Power Delivery and data combined Compatible with all USB Type C equipped computers 2 year warranty
The Lindy 3 Port USB 3.1 Hub with Power Delivery provides 3 USB Type A SuperSpeed ports for connecting USB peripherals to a USB Type C equipped computer. For added convenience the hub features a combined USB Type C data & power port which supports power delivery up to 60W while transmitting data through a single cable. If a power supply is connected, the notebook or Macbook can be charged/powered via it's Type C port at the same time as operating the connected peripherals.
The Type C connectors reversible design was developed to find a connection regardless of which way the cable is inserted into the port, ensuring simple connectivity for both professional and first time users.
Technical details
Specifications
USB Standard: USB 3.1 Gen 1 / 3.0 Supported Bandwidth: 5 Gbps Chipset: RTS5411, RTS5404, RTS5403 Compatibility: USB Type C equipped computers, Thunderbolt 3 Power Delivery: PD 2.0 up to 60W (20V 3A) Special Features: USB Type C Female port supports power and data
Connectors
Inputs: 1 x USB Type C (Male) Outputs: 3 x USB Type A (Female), 1 x USB Type C (Female) Power: USB Type C (Female) PD port
Physical Properties
Dimensions WxDxH: 90x56x14mm (3.54x2.2x0.55in) (Fixed) Cable Length: 120mm (4.72in) Housing Material: Aluminium, plastic bottom Net Weight: 0.06kg (0.13lb) Operating Temperature: 5°C - 35°C (41°F - 95°F) Storage Temperature: -20°C - 50°C (-4°F - 122°F)
Page 2
Humidity: 20 – 80% RH (non-condensing) Power Requirements: ­Colour: Silver, white bottom
Miscellaneous
Packaging Type: Carton Box Packaging Dimensions: 90x176x25mm (3.54x6.93x0.98in) Gross Weight: 0.1kg (0.22lb) Warranty (Years): 2 Certificated: CE, FCC, RoHS & REACH
Package Content
4 Port USB 3.1 Type C Hub Lindy Manual
Purchasing Information
No.: 43092 EAN: 4002888430920
© LINDY 2019
