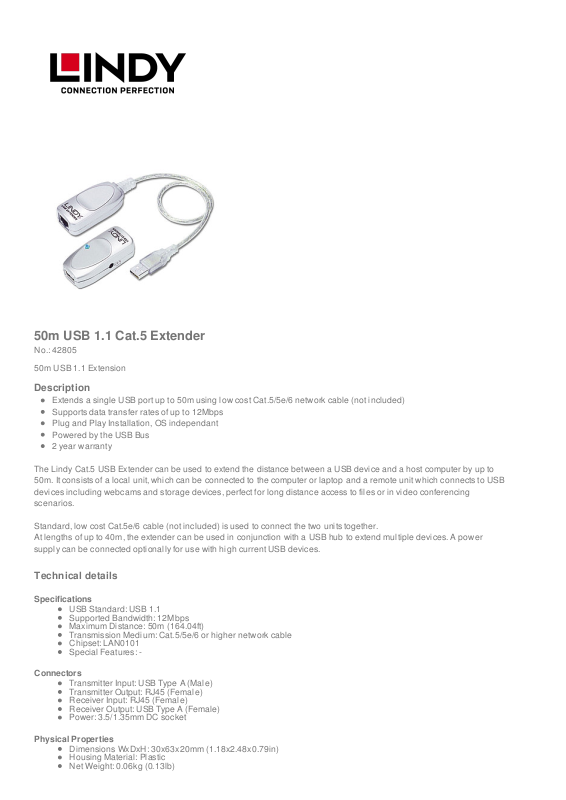

50m USB 1.1 Cat.5 Extender

No.: 42805

50m USB 1.1 Extension

Description

Extends a single USB port up to 50m using low cost Cat.5/5e/6 network cable (not included)
Supports data transfer rates of up to 12Mbps
Plug and Play Installation, OS independant
Powered by the USB Bus
2 year warranty

The Lindy Cat.5 USB Extender can be used to extend the distance between a USB device and a host computer by up to
50m. It consists of a local unit, which can be connected to the computer or laptop and a remote unit which connects to USB
devices including webcams and storage devices, perfect for long distance access to files or in video conferencing
scenarios.

Standard, low cost Cat.5e/6 cable (not included) is used to connect the two units together.
At lengths of up to 40m, the extender can be used in conjunction with a USB hub to extend multiple devices. A power
supply can be connected optionally for use with high current USB devices.

Technical details

Specifications

USB Standard: USB 1.1
Supported Bandwidth: 12Mbps
Maximum Distance: 50m (164.04ft)
Transmission Medium: Cat.5/5e/6 or higher network cable
Chipset: LAN0101
Special Features: -

Connectors

Transmitter Input: USB Type A (Male)
Transmitter Output: RJ45 (Female)
Receiver Input: RJ45 (Female)
Receiver Output: USB Type A (Female)
Power: 3.5/1.35mm DC socket

Physical Properties

Dimensions WxDxH: 30x63x20mm (1.18x2.48x0.79in)
Housing Material: Plastic
Net Weight: 0.06kg (0.13lb)

Operating Temperature: -0° - 70°C (32°F - 158°F)
Storage Temperature: -20°C - 80°C (-4°F - 176°F)
Humidity: 0 - 90% RH (non-condensing)
Power Requirements: ­Colour: Grey

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 249x156x27mm (9.8x6.14x1.06in)
Gross Weight: 0.119kg (0.26lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH

Package Contents

Transmitter unit
Receiver unit
Lindy Manual

Purchasing information

No.: 42805
EAN: 4002888428057
