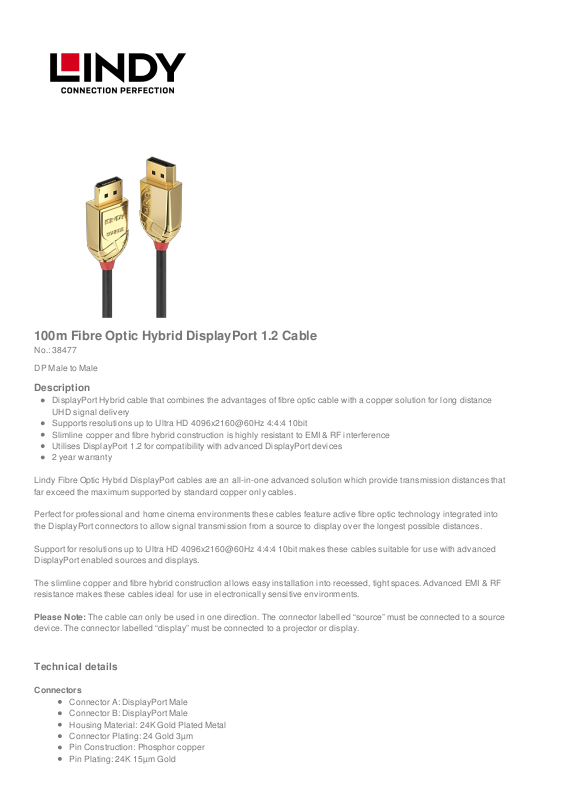

Lindy 38477 User Manual

100m Fibre Optic Hybrid DisplayPort 1.2 Cable

No.: 38477

DP Male to Male

Description

DisplayPort Hybrid cable that combines the advantages of fibre optic cable with a copper solution for long distance
UHD signal delivery
Supports resolutions up to Ultra HD 4096x2160@60Hz 4:4:4 10bit
Slimline copper and fibre hybrid construction is highly resistant to EMI & RF interference
Utilises DisplayPort 1.2 for compatibility with advanced DisplayPort devices
2 year warranty

Lindy Fibre Optic Hybrid DisplayPort cables are an all-in-one advanced solution which provide transmission distances that
far exceed the maximum supported by standard copper only cables.

Perfect for professional and home cinema environments these cables feature active fibre optic technology integrated into
the DisplayPort connectors to allow signal transmission from a source to display over the longest possible distances.

Support for resolutions up to Ultra HD 4096x2160@60Hz 4:4:4 10bit makes these cables suitable for use with advanced
DisplayPort enabled sources and displays.

The slimline copper and fibre hybrid construction allows easy installation into recessed, tight spaces. Advanced EMI & RF
resistance makes these cables ideal for use in electronically sensitive environments.

Please Note: The cable can only be used in one direction. The connector labelled “source” must be connected to a source
device. The connector labelled “display” must be connected to a projector or display.

Technical details

Connectors

Connector A: DisplayPort Male
Connector B: DisplayPort Male
Housing Material: 24K Gold Plated Metal
Connector Plating: 24 Gold 3µm
Pin Construction: Phosphor copper
Pin Plating: 24K 15µm Gold

Dimensions (approx.): 20x37x13mm (0.79x1.46x0.51in)

Cable construction

Length: 100m (328.08ft)
Standard: DisplayPort 1.2
Colour: Black
Type: Round
Jacket Diameter: 4.8mm (0.19in)
Jacket Material: PE LS0H
Conductor Material: Fibre / Copper

Specifications

Supported Bandwidth: 21.6 Gbps
Maximum Resolution: 4096 x 2160@60Hz 4:4:4 10bit
Nominal Attenuation: 850nm < 3.5dB, 1300nm < 1.2dB
Minimum Bend Radius: 60mm (2.36in)
Operating Temperature: 0°C - 50°C (32°F - 122°F)
Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Miscellaneous

Packaging Type: Carton Box
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH

Purchasing Information

No.: 38477
EAN: 4002888384773

This product is also available in other lengths

38470 - 10m (32.81ft)
38471 - 15m (49.21ft)
38472 - 20m (65.62ft)
38473 - 30m (98.42ft)
38474 - 40m (131.23ft)
38475 - 50m (164.04ft)
38476 - 70m (229.66ft)
38477 - 100m (328.08ft)
