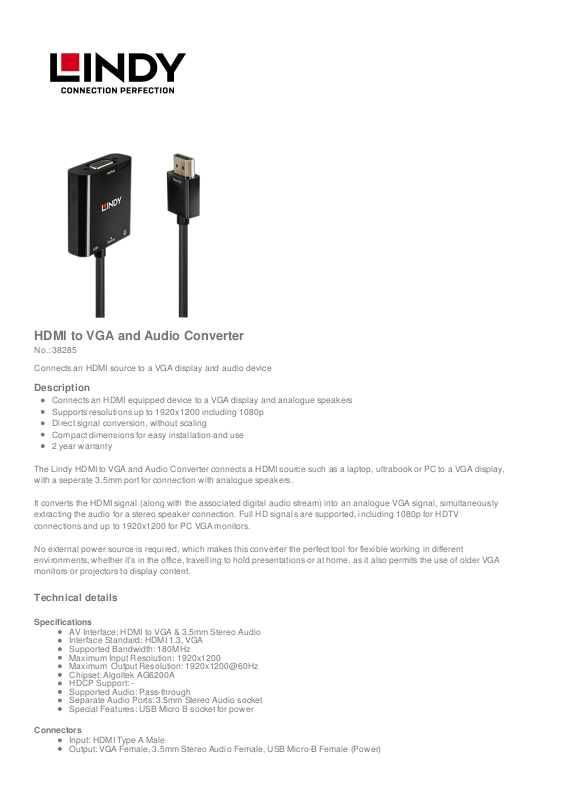

HDMI to VGA and Audio Converter
No.: 38285
Connects an HDMI source to a VGA display and audio device
Description
Connects an HDMI equipped device to a VGA display and analogue speakers
Supports resolutions up to 1920x1200 including 1080p
Direct signal conversion, without scaling
Compact dimensions for easy installation and use
2 year warranty
The Lindy HDMI to VGA and Audio Converter connects a HDMI source such as a laptop, ultrabook or PC to a VGA display,
with a seperate 3.5mm port for connection with analogue speakers.
It converts the HDMI signal (along with the associated digital audio stream) into an analogue VGA signal, simultaneously
extracting the audio for a stereo speaker connection. Full HD signals are supported, including 1080p for HDTV
connections and up to 1920x1200 for PC VGA monitors.
No external power source is required, which makes this converter the perfect tool for flexible working in different
environments, whether it’s in the office, travelling to hold presentations or at home, as it also permits the use of older VGA
monitors or projectors to display content.
Technical details
Specifications
AV Interface: HDMI to VGA & 3.5mm Stereo Audio
Interface Standard: HDMI 1.3, VGA
Supported Bandwidth: 180MHz
Maximum Input Resolution: 1920x1200
Maximum Output Resolution: 1920x1200@60Hz
Chipset: Algoltek AG6200A
HDCP Support: Supported Audio: Pass-through
Separate Audio Ports: 3.5mm Stereo Audio socket
Special Features: USB Micro B socket for power
Connectors
Input: HDMI Type A Male
Output: VGA Female, 3.5mm Stereo Audio Female, USB Micro-B Female (Power)
Page 2
Physical properties
Dimensions (approx.) WxDxH:
45x43x14.5mm (1.77x1.69x0.57in)
21x17.4x9.6mm (0.83x0.69x0.38in) / HDMI
Cable Length: 100mm (3.94in)
Housing Material: ABS
Jacket Material: PVC
Jacket Diameter: 4.8mm (0.19in)
Minimum Bend Radius: 4.8mm (0.19in)
Net Weight: 0.031kg (0.07lb)
Operating Temperature: 0°C - 70°C (32°F - 158°F)
Storage Temperature: -10°C - 80°C (14°F - 176°F)
Humidity: 5 - 95% RH (non-condensing)
Colour: Black
Miscellaneous
Packaging Type: Polybag
Packaging Dimensions: 160x160x20mm (6.3x6.3x0.79in)
Gross Weight: 0.041kg (0.09lb)
Warranty (Years): 2
Certificated: CE, FCC, RoHS & REACH
Package Contents
HDMI to VGA and Audio Converter
Purchasing Information
No.: 38285
EAN: 4002888382854
