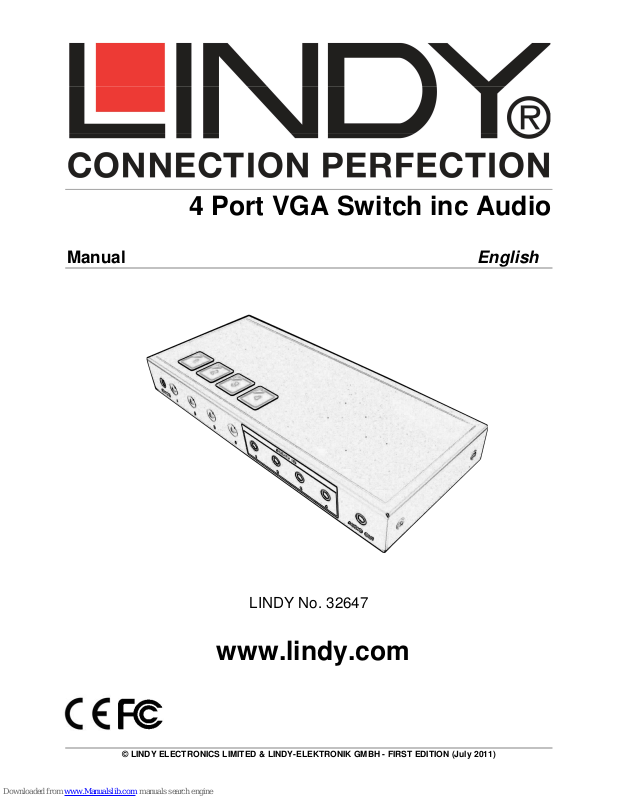

Page 1
4 Port VGA Switch inc Audio
Manual
English
LINDY No. 32647
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (July 2011)
www.lindy.com
Page 2
Manual English
Introduction
Thank you for purchasing the LINDY 4 Port VGA Switch with audio. This switch allows you to
connect the video & stereo audio output of 4 computers to a single monitor. The unit uses
electronic switching technology rather than mechanical switching, for maximum reliability and
durability.
Package Contents
• LINDY 4 Port VGA Switch
• 5V DC multi country power supply
• This manual
Features
• Supports VGA, XGA, SVGA, UXGA & Multisync monitors
• Electronic Switching Technology
• Allows the video output of four computers to be connected to a single monitor
• High resolution video support – up to 2048 x1536 @350Mhz
• Auto detect DDC, DDC2, DDC2B on each port
• Stereo audio supported
• Supports auto detect & select when new signals are attached
• Enhances video signals for long distance broadcasting (up to 50m)
• Computer selection via push button
Connections & Operation
Make sure all devices are switched off before making any connections! Once all the
connections have been made, switch on the devices in this order: displays, VGA/Audio Switch,
source device then any other devices.
Connect the 4 VGA & audio source devices to the input ports of the LINDY VGA Switch.
Connect the monitor and speakers to the output ports of the LINDY VGA Switch
Page 3
Manual English
When all the devices are powered on the switch will detect source signals and the LED will
display green.
Auto Switch: The switch will detect and new input signal and automatically switch to the live
port.
Manual Switch: Select the required source by pressing the relevant button on the top of the
switch.
Auto Scan (10 second intervals): To activate the auto scan function, press any of the top
buttons for 2 seconds. To stop the auto scan, press any button again.
Page 4
CE/FCC & Recycling Information
CE Certification
This equipment complies with the requirements relating to Electromagnetic Compatibility Standards EN55022/EN55024 and the
further Standards cited therein.
FCC Certification
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
You are cautioned that changes or modification not expressly approved by the party responsible for compliance could void your
authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
WEEE (Waste of Electrical and Electronic Equipment),
Recycling of Electronic Products
In 2006 the European Union introduced regulations (WEEE) for the collection and recycling of all waste electrical and electronic
equipment. It is no longer allowable to simply throw away electrical and electronic equipment. Instead, these products must
enter the recycling process.
Each individual EU member state has implemented the WEEE regulations into national law in slightly different ways. Please
follow your national law when you want to dispose of any electrical or electronic products. More details can be obtained from
your national WEEE recycling agency.
Germany
Die Europäische Union hat mit der WEEE Direktive umfassende Regelungen für die Verschrottung und das Recycling von
Elektro- und Elektronikprodukten geschaffen. Diese wurden im Elektro- und Elektronikgerätegesetz – ElektroG in deutsches
Recht umgesetzt. Dieses Gesetz verbietet das Entsorgen von Elektro- und Elektronikgeräten über die Hausmülltonne! Diese
Geräte müssen den lokalen Sammelsystemen bzw. örtlichen Sammelstellen zugeführt werden! Dort werden sie kostenlos
entgegen genommen. Die Kosten für den weiteren Recyclingprozess übernimmt die Gesamtheit der Gerätehersteller.
France
En 2006, l'union Européenne a introduit la nouvelle réglementation (DEEE) pour le recyclage de tout équipement électrique et
électronique.
Chaque Etat membre de l’ Union Européenne a mis en application la nouvelle réglementation DEEE de manières légèrement
différentes. Veuillez suivre le décret d’application correspondant à l’élimination des déchets électriques ou électroniques de
votre pays.
Italy
Nel 2006 l’unione europea ha introdotto regolamentazioni (WEEE) per la raccolta e il riciclo di apparecchi elettrici ed elettronici.
Non è più consentito semplicemente gettare queste apparecchiature, devono essere riciclate. Ogni stato membro dell’ EU ha
tramutato le direttive WEEE in leggi statali in varie misure. Fare riferimento alle leggi del proprio Stato quando si dispone di un
apparecchio elettrico o elettronico.
Per ulteriori dettagli fare riferimento alla direttiva WEEE sul riciclaggio del proprio Stato.
LINDY No. 32647
1st Edition July 2011
www.lindy.com
