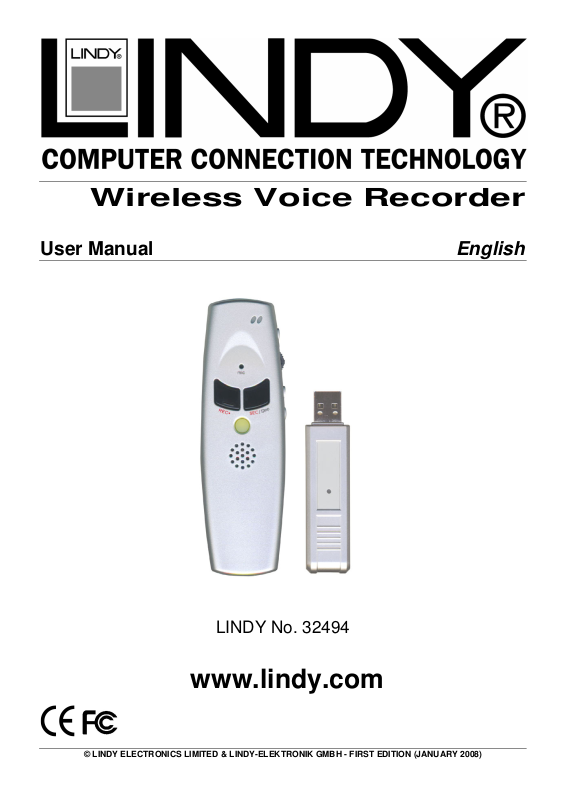

Lindy 32494 User Manual

Wireless Voice Recorder

User Manual English

LINDY No. 32494

www.lindy.com

© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (JANUARY 2008)

User Manual English

Introduction

Thank you for purchasing the LINDY Wireless Voice Recorder! Never again will you run out of
recording space, with this Wireless Voice Recorder you can record directly to your computer’s
hard disk, from a range of up to 30 metres.

Features

• Record Remotely

Thanks to integrated 2.4GHz RF technology you can control all functions of the recorder
remotely, giving you the ultimate in flexibility

• Organise and Playback your Recordings

Using the Section function you can easily create chapters as you record, with the touch
of a button. Once you have finished your recording you can then playback the chapters in
order, or skip between them, either on your PC or using the remote and its integrated
speaker.

• Virtually unlimited Recording disk space

All recordings are stored directly to the hard disk of your PC, meaning that you have
almost limitless recording disk space.

• Built-in high sensitivity microphone

Ensuring the clearest recordings, so you never miss a word!

• Range up to 30 metres indoors

From one side of the office to another, even through walls

• Rechargeable

Simply connect the Wireless Audio Recorder to a PC via the supplied USB cable. The
internal battery will be fully recharged in 2.5 hours, providing up to 12 hours of recording
time.

System Requirements

•

• One available USB port

A PC running Windows 2000, XP or Vista

Package Contents

• Wireless Voice Recorder with battery

• USB receiver dongle

• USB charging cable

• Installation CD

• User Manual

- 2 -

User Manual English

Installation

1. Charge the recorder for 3 hours, using the supplied USB
cable, before first use. After the first charge you only need to
charge the recorder for 2.5 hours.

2. Plug the USB receiver dongle into the USB port of your PC
and turn on the Voice Recorder.

3. Windows will recognise the dongle and install the necessary
drivers. Once Windows has finished installing the device
move to the next step.

4. Insert the CD and follow the instructions to install the
Recorder software. If the disk does not autorun then please go to My Computer, select your
CD drive and double click on setup.exe

5. Once the installation has completed, double click the Wireless Recorder icon on your
desktop to run the software.

6. Next you will need to pair the USB receiver dongle and the recorder:

6.1. Within the software, click the Setup button

6.2. Next, click the Link button. The link indicator on the USB dongle will

light up to show that it is ready to be paired.

6.3. Hold the recorder approximately 10cm away from the USB receiver

dongle until the Link Indicator blinks. The recorder will beep twice to
confirm that a connection has been made.

Key Map

- 3 -
