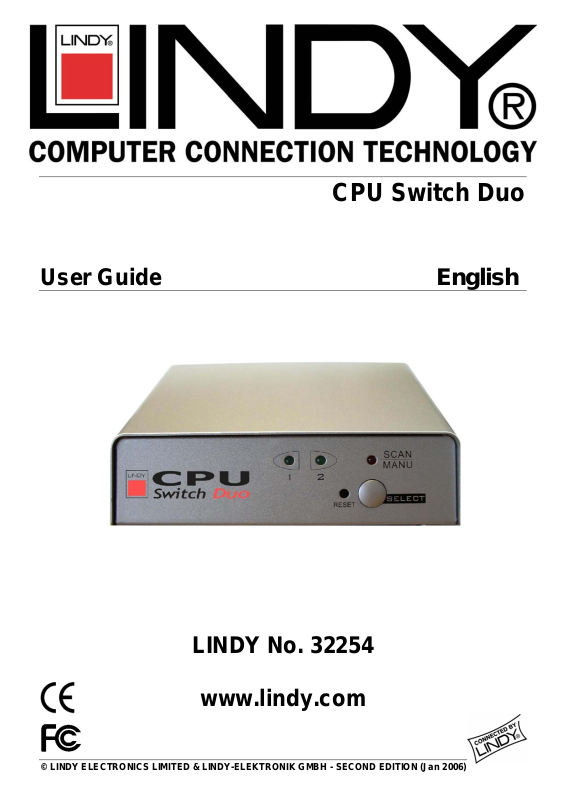

Page 1
CPU Switch Duo
User Guide English
LINDY No. 32254
www.lindy.com
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - SECOND EDITION ( Jan 2006)
Page 2
Introduction
Thank you for purchasing the LINDY CPU Switch Duo. This switch supports a dual monitor
output function which allows the user to control one PC and monitor the function of the other at
the same time. The LINDY CPU Switch Duo can also be used as a regular 2 port KVM switch
when there is only one monitor available.
Specifications:
• 2 PCs to one user
• PC connector: HD-15 male x 2
• Console connector: HD-15 female x 2, mini din 6 pin female x 2, 3.5 jack x 1
• Maximum resolution: 1600 x 1200
• Video bandwidth: 200 MHz
• Horizontal frequency: 30-100 KHz
• Vertical frequency: 43-120 Hz
• Transmission distance:
o PC to CPU Switch Duo – 5m
o CPU Switch Duo to console – 2m
Installation:
Monitor 1
Monitor 2
Second Screen
PC2
PC1
Page 3
Keyboard Hot Keys:
You can select a specific PC or activate the automatic scan mode using the keyboard hotkeys.
The keyboard hotkeys provide an instant and convenient way to control all your PC’s.
1. To select a PC directly using hot-keys:
2. To activate automatic scan mode:
3. To deactivate automatic scan mode:
Select Button:
1. To select a PC using the Select Button:
2. To activate Automatic Scan Mode:
3. To deactivate Automatic Scan Mode:
4. Reset Button:
Scroll
Lock
(Press 1 for the first PC, 2 for the second)
Scroll
Lock
A long beep will sound to confirm the activation of automatic scan mode. The
SCAN LED will be lit to indicate the operation of SCAN mode.
Press any key on the keyboard.
Press the SELECT button (and release within one second) to select the next PC.
The built in buzzer will beep once.
Press the SELECT button and hold for two seconds.
Press the SELECT button. The built in buzzer will beep once to confirm the
deactivation. The SCAN LED will go off.
Pressing the reset button will automatically reset the KVM switch’s keyboard and
mouse emulation processor. Do not move the mouse or touch the keyboard
during the reset process. You will hear a beep to confirm the activation of reset
process. The reset process will be complete within three seconds.
Scroll
Lock
Scroll
Lock
PC (1or2)
Space
Bar
Enter
Page 4
Radio Frequency Energy, Certifications
Shielded cables must be used with this equipment to maintain compliance with radio frequency
energy emission regulations and ensure a suitably high level of immunity to electromagnetic
disturbances.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
Consult the dealer or an experienced technician for help
You are cautioned that changes or modification not expressly approved by the party responsible
for compliance could void your authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
LINDY No. 32254
nd
2
Edition January 2006
