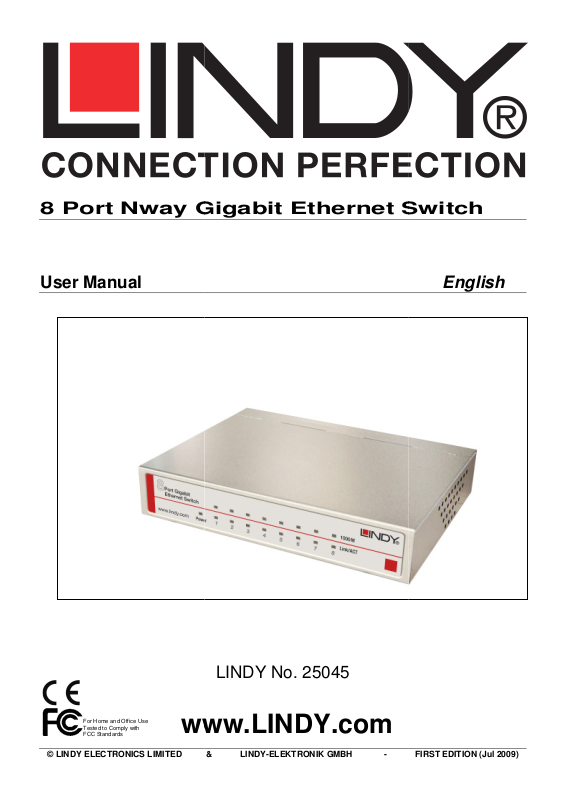

Page 1
8 Port Nway Gigabit Ethernet Switch
www.LINDY.com
User Manual
English
LINDY No. 25045
© LINDY ELECTRONICS LIMITED
For Home and Office Use
Tested to Comply with
FCC Standards
& LINDY-ELEKTRONIK GMBH -
FIRST EDITION (Jul 2009)
Page 2
English Manual
Introduction
This switch provides 8 10/100/1000M ports. It was designed for easy installation
and high performance in an environment where traffic is on the network and the
number of users increases continuously.
The small compact palm size was specifically designed for small to medium
workgroups. It can be installed where space is limited; moreover, it provides
smooth network migration and easy upgrade to network capacity.
Package Contents
Before you start to install this switch, please verify your package that contains the
following items:
One Gigabit Ethernet Switch
One Power Adapter
One User’s Manual
Note: If any of these items is found missing or damaged, please contact your local
supplier for replacement.
2
Page 3
English Manual
Key Features
8 Port 10/100/1000M Nway (Auto-negotiation) Switch
Palm size with metal case
Auto-learn of networking configurations
Auto-detect full/half-duplex modes for any port
Dedicated full-duplex 2000Mbps bandwidth
Store-and-Forward switching methods
IEEE 802.3x flow control for full-duplex and back-pressure flow control for half-
duplex
Non-blocking & Non-head-of-line blocking full wire speed forwarding
Auto-MDI/MDI-X function for any port
Smart plug & play
Power
Power is supplied through an external DC power adapter.
Front Panel (LEDs)
LED Indicators of 8 Port 10/100/1000M Switch
LED Status Operation
Power On Power is on.
Off Power is off.
LINK/ACT On Port is for connection
Off No connection.
Flashing Data is transmitted or received.
1000M On Port is on 1000M status
Off Port is on 10/100M status.
3
Page 4
English Manual
Rear Panel (Connections)
Switch/Hub to this 8 Port Gigabit Ethernet Switch
This switch provides automatic crossover detection functionality for any port. It is
simple and friendly to up-link to another switch without crossover cable.
PC/Other devices to this 8 Port Gigabit Ethernet Switch
Via a twisted pair cable straight through, this switch can be connected to PCs,
servers and other network devices.
4
Page 5
English Manual
Technical Specifications
IEEE 802.3 10BaseT
Standards
Features
Filtering/Forwarding
Rates
Transmission Media
LED Indicators
Power Supply DC 5V/2A
Power
Consumption
Dimensions 130 x 97 x 24 mm (L x W x H)
Weight 0.40 kg
Operating
Temperature
Storage
Temperature
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3x Flow control
Number of Ports: 8
MAC Address: 4K
Buffer Memory: 128 KB
Jumbo Frames: 9KB
Transmission Method: Store and Forward
1000Mbps port – 1,488,000pps
100Mbps port – 148,800pps
10Mbps – 14,880pps
10BaseT Cat. 3, 4, 5 UTP/STP
100BaseTX Cat. 5 UTP/STP
1000BaseT Cat. 5E UTP/STP
Per Port: LINK/ACT, 1000M
Per Unit: Power
7 Watts (Max)
0 to 55℃
-20 to 90℃
Humidity 10 to 90% RH (non-condensing)
Certifications FCC Class B, CE
5
Page 6
Radio
Frequency Energy, Certifications
This equipment has been tested and found to comply with the limits for a Class B Digital device,
pursuant to part 15 of the FCC Rules.
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be dete
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
e equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced technician for help
You are cautioned that changes or modifications not expressly approved by the party responsible for
liance could void your authority to operate the equipment.
CE Statement, EMC Compatibilty
This device complies with EN Standards EN55022 and EN55024 according to the relevant EC EMC
It must be used with shielded cables only to maintain EMC comp
Dieses Produkt entspricht den einschlägigen EMV Richtlinien der EU und darf nur zusammen mit
abgeschirmten Kabeln verwendet werden.
LINDY gewährt für dieses Produkt über die gesetzliche Regelung hinaus eine zweijährige
Herstellergarantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der
LINDY Website aufgelistet bei den AGBs.
WEEE (Waste of Electrical a
Recycling of Electronic Products
In 2006 the European Union introduced regulations (WEEE) for the collection and recycling of all waste
electrical and electronic equipment.
be disposed of with household waste. Instead the product must be recycled in a manner that is
environmentally friendly. For more information on how to dispose of this product, please contact your
local recycling centre or your household waste d
implemented the WEEE regulations into national law in slightly different ways. Please follow your
national law when you want to dispose of any electrical or electronic products.
obtained from your national WEEE recycling agency.
Die Europäische Union hat mit der WEEE Direktive umfassende Regelungen für die Verschrottung und
und Elektronikprodukten geschaffen. Diese wurden von der
und Elektronikgerätegesetz
verbietet vom 24.März 2006 an das Entsorgen von Elektro
Hausmülltonne! Diese Geräte müssen den lokalen Sammelsyst
zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren
Recyclingprozess übernimmt die Gesamtheit der Gerätehersteller.
These limits are designed to provide reasonable protection
rmined by turning the equipment off and on, the user is
atibility.
The wheelie bin symbol shown indicates that this produ
Each individual EU member state has
ElektroG in deutsches Recht umgesetzt. Dieses Gesetz
und Elektronikgeräten über die
emen bzw. örtlichen Sammelstellen
FCC Warning
Connect th
s, may
comp
Directive.
LINDY Herstellergarantie
nd Electronic Equipment),
ct must not
isposal service.
More details can be
Germany / Deutschland
das Recycling von Elektroim Elektro-
–
Bundesregierung
-
LINDY No 25045
st
Edition, July 2009
1
