Page 1

CATALOG 2

WWW. LINDSTROMTOOLS. COM

Page 2

WWW. LINDSTROMTOOLS.COM

Lindstrom Precision Tools invites you to visit our new web site. Our latest up to date information is now available to you either on screen or via download. Enjoy our always available comprehensive web site featuring the best in assembly, rework and repair tools.

Web site includes:

• Lindstrom’s complete range of products.

• Ergonomics.

• Trade show & product exhibition.

• New products.

• Literature availability (Catalogs, Brochures and Flyers).

• Quick link to downloadable high resolution product photographs.

• Where to find Lindstrom Distributors in your area.

• How to contact a local Lindstrom Manufacturing Representative.

• And much more.

Log on today and discover Lindstrom Precision Tools. We stand ready to solve your assembly, rework and repair needs.

Page 3

Lindstrom Precision Tools Catalog 2

ML-9013-UK

Graphic Design • Newton Communications AB • Printed in Sweden

Enköping • May 2002

Page 4

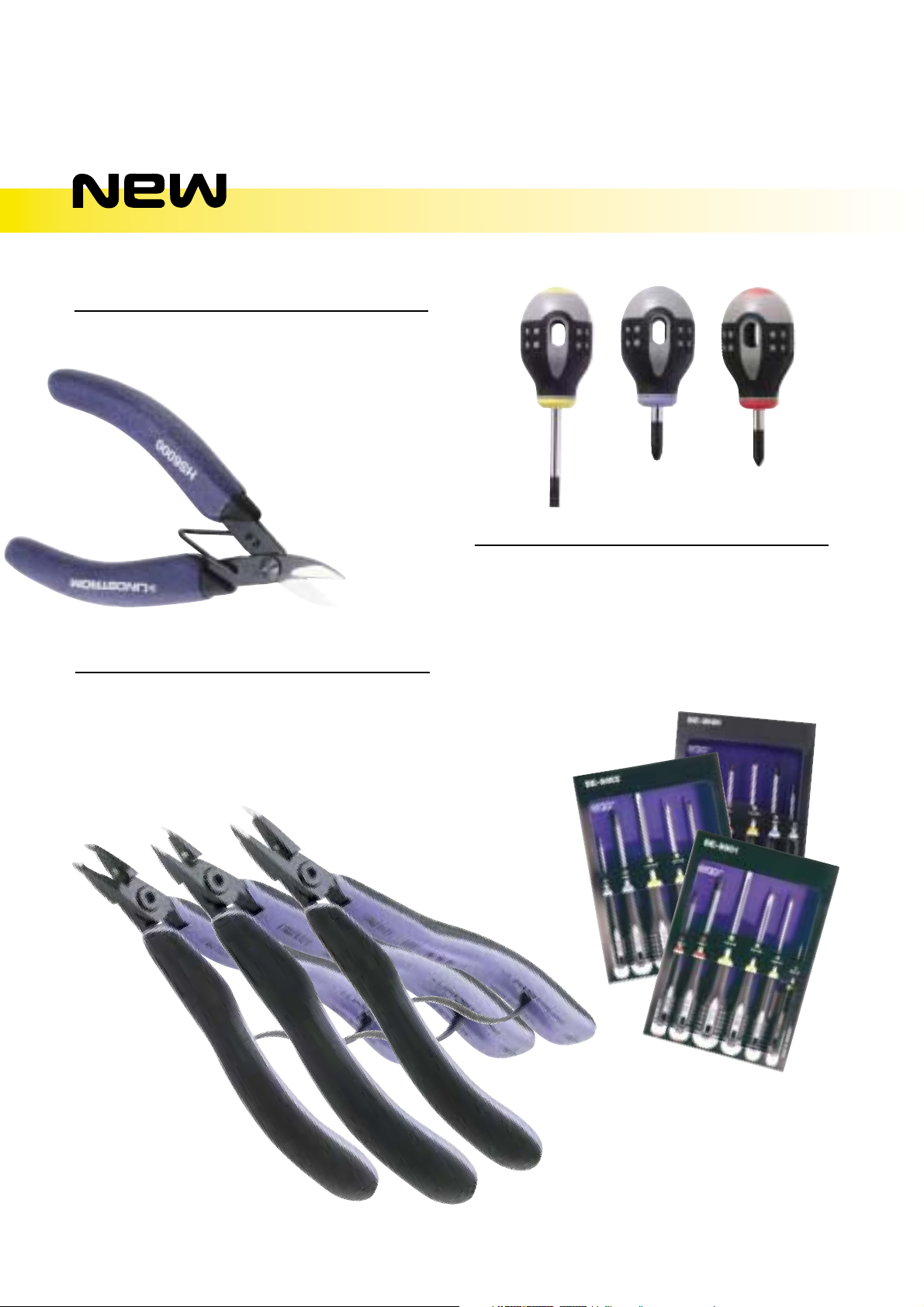

S TUBBY S CREWDRIVERS AND S ETS

Stubby screwdrivers allow users to access restrictive areas with ease and retain all the excellent ergonomic properties of the full range of screwdrivers offered by Lindstrom. See pages 34, 35, 91, 93 and 94 for more information on our Stubby range and our expanded selection of screwdriver sets.

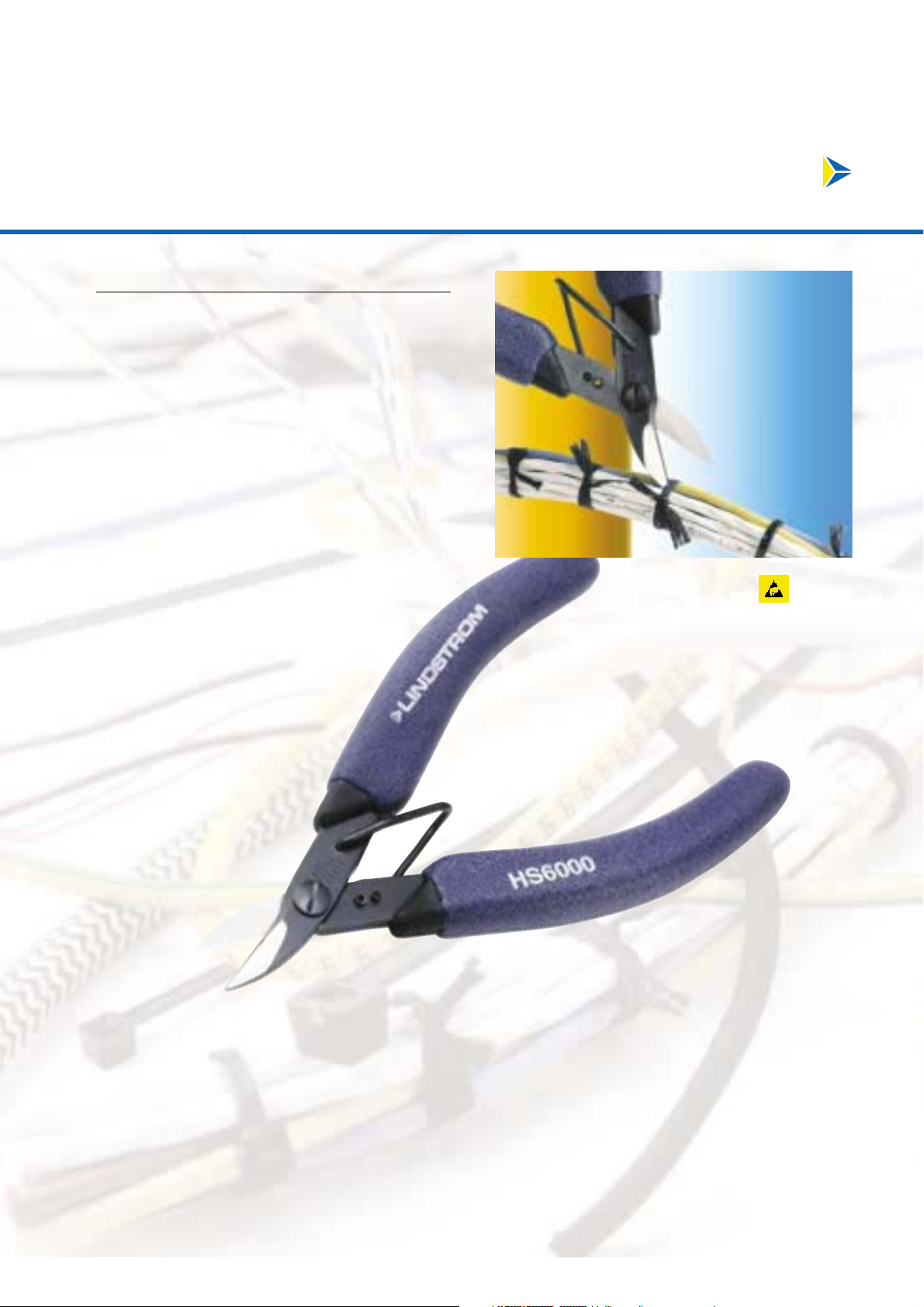

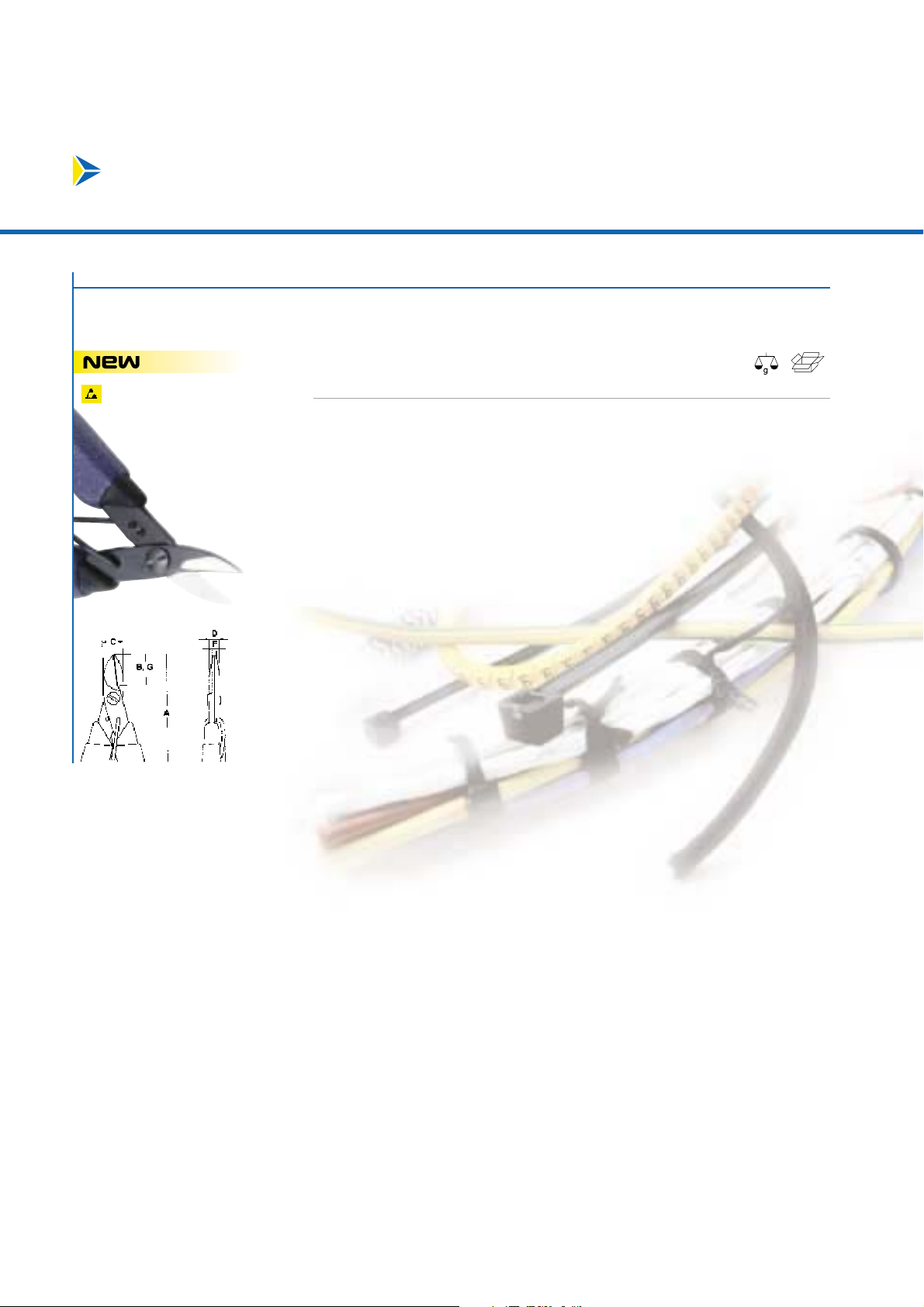

HS6000 MULTI-PURPOSE S HEAR

The HS6000 is a shear action multi-purpose cutter

primarily designed to cut through Kevlar

elements used in fiber optic and other

types of cables. See pages 31 and

60 for more information.

R X M ICRO T IP CUTTERS

The Rx Micro Tip cutter is ideal for cutting extremely fine wires and leads, in many types of applications. Available in both straight and angled tip versions. See pages 44, 45 and 46 for more information.

Page 5

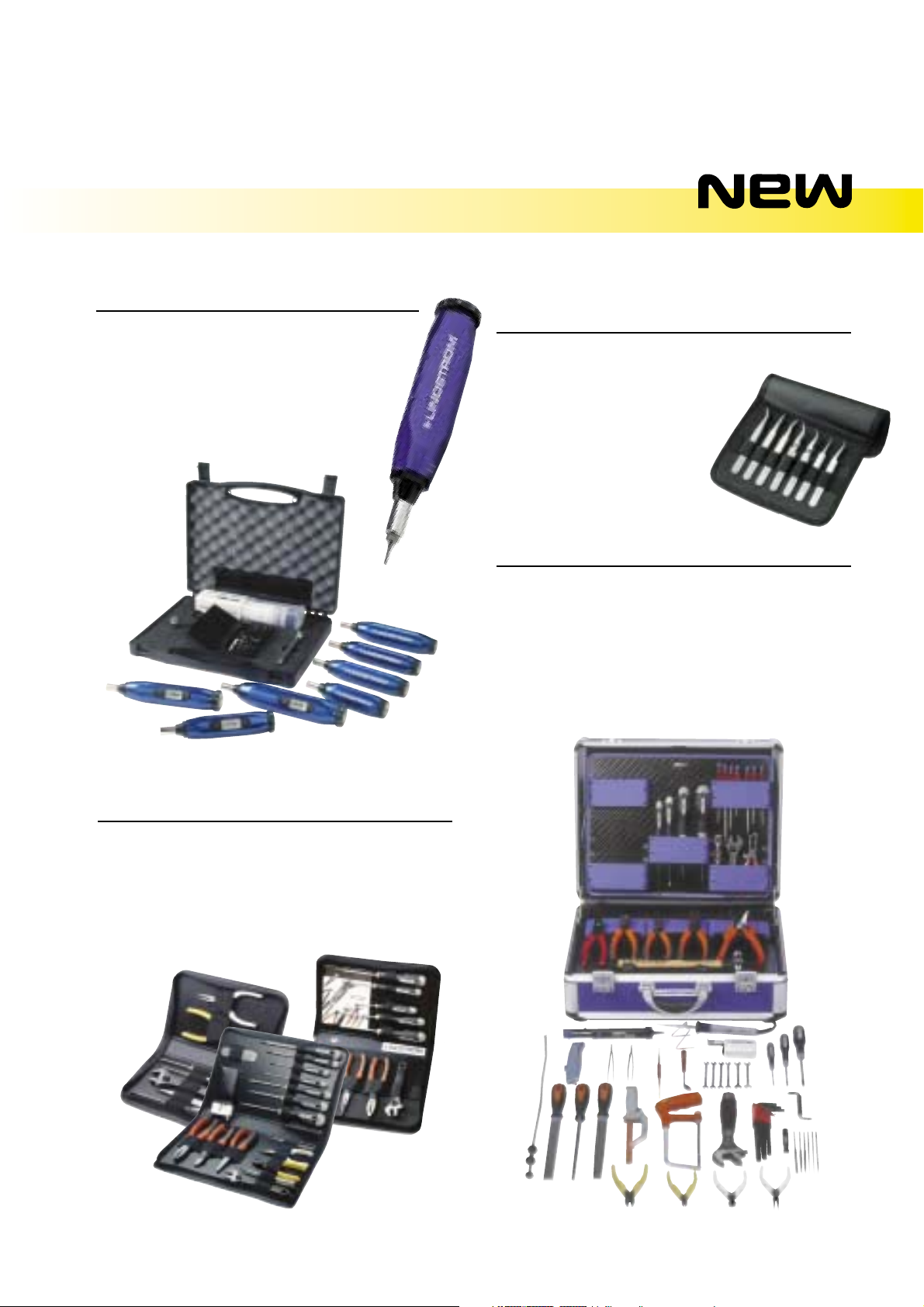

TOOL KITS

9841, 9846, 9848, 9852

A range of high quality service kits containing a variety of tools such as cutters and pliers, screwdrivers, tweezers, adjustable wrenches and more, supplied in a zipper wallet. See pages 100 and 101 for more information.

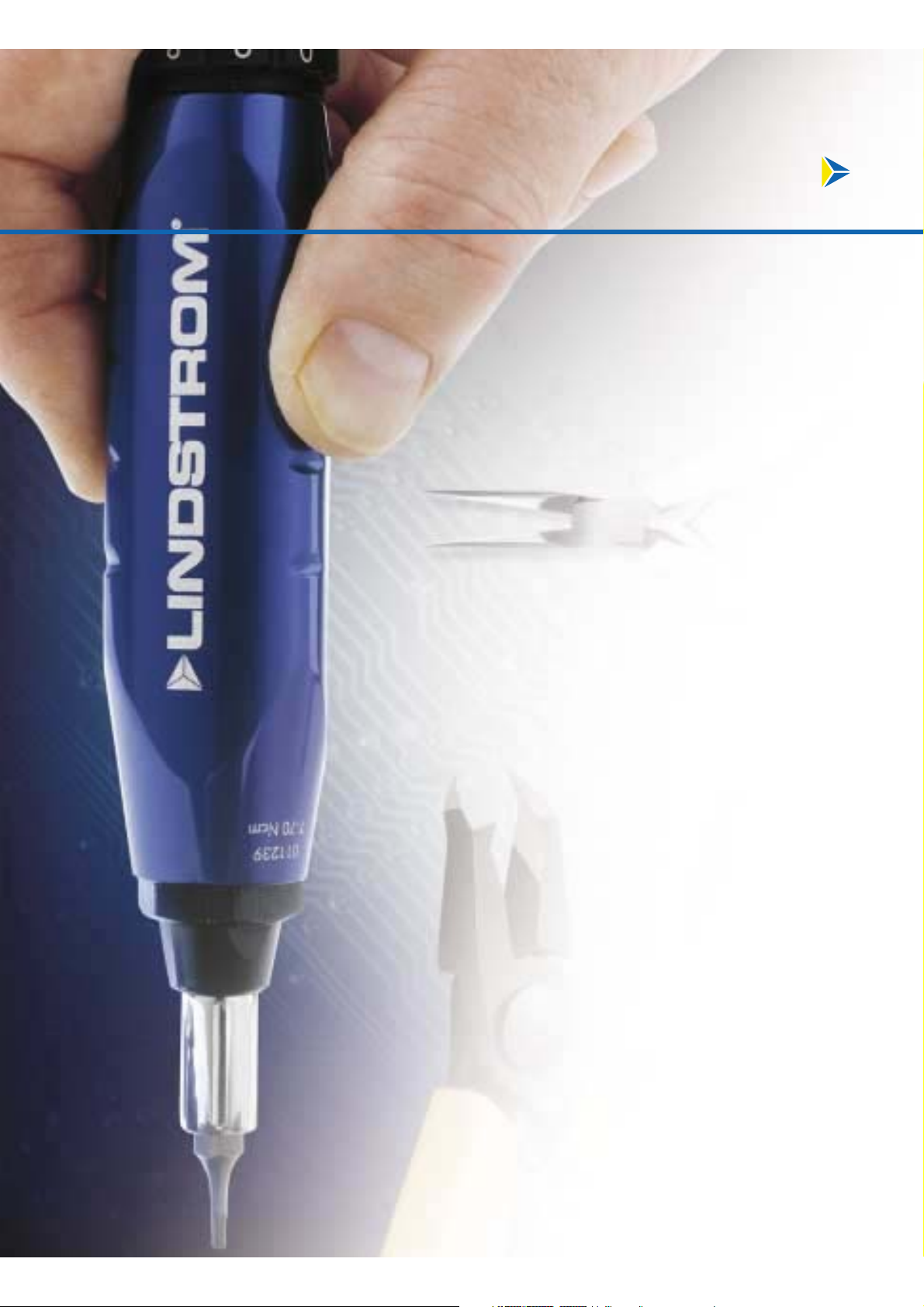

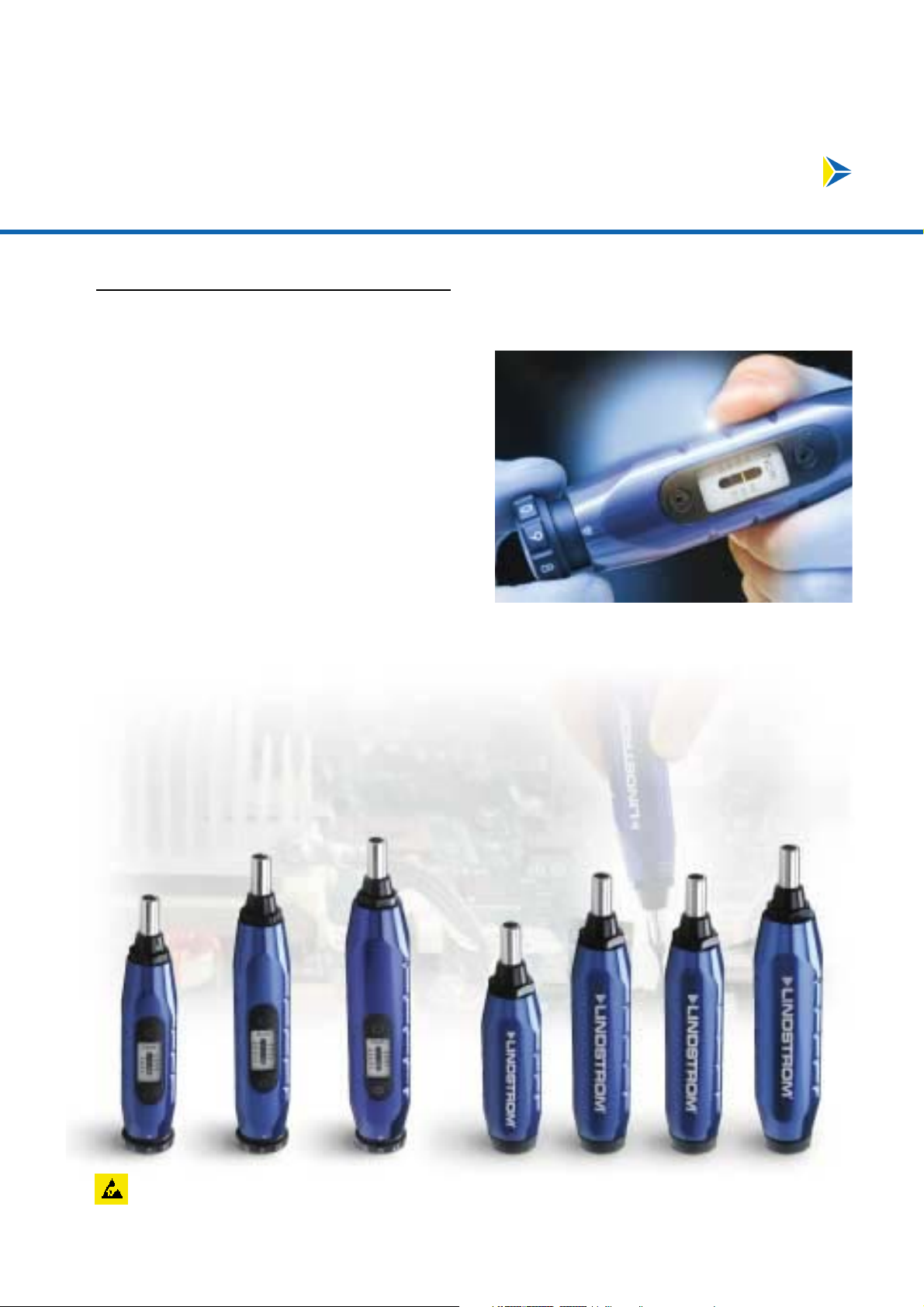

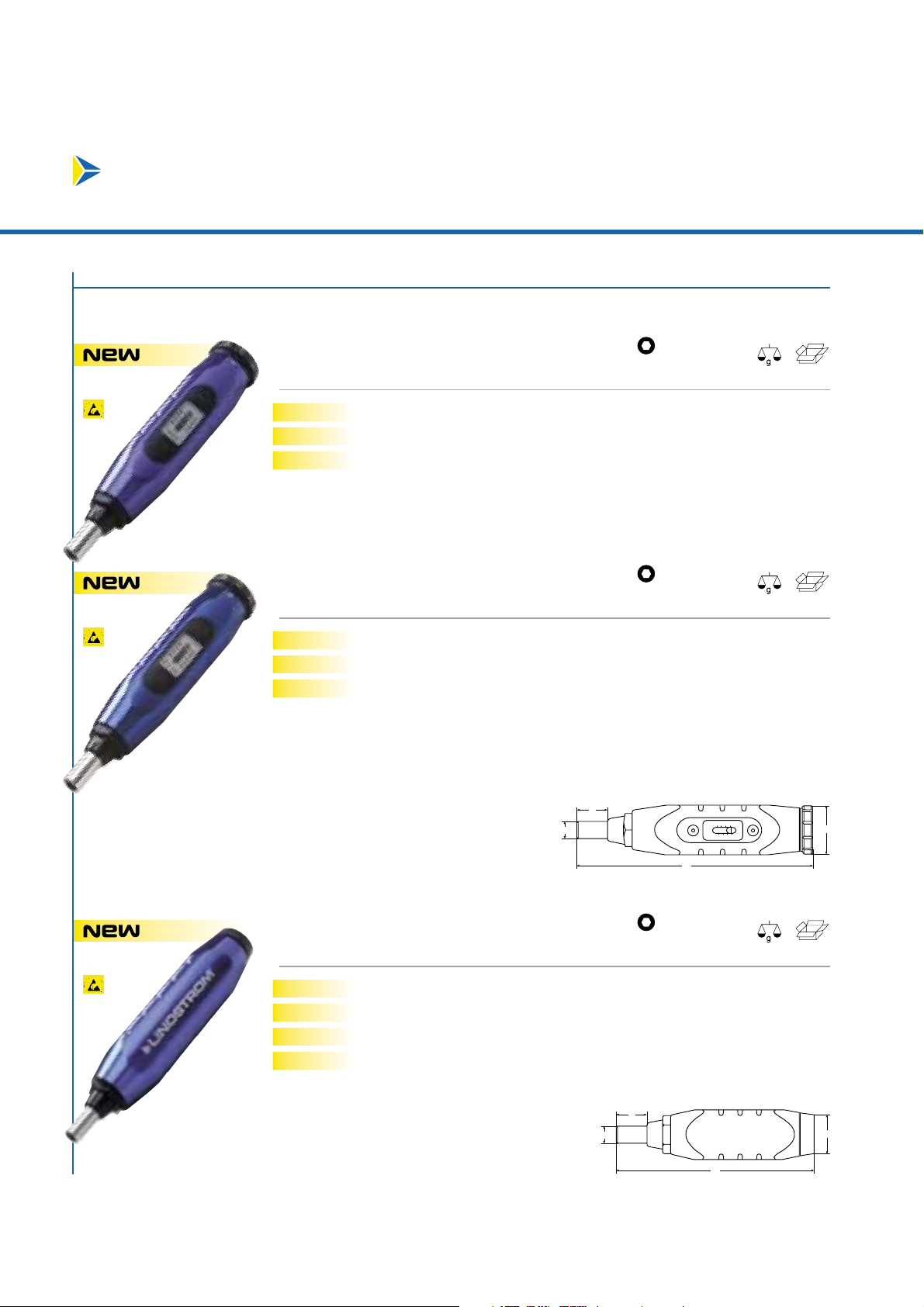

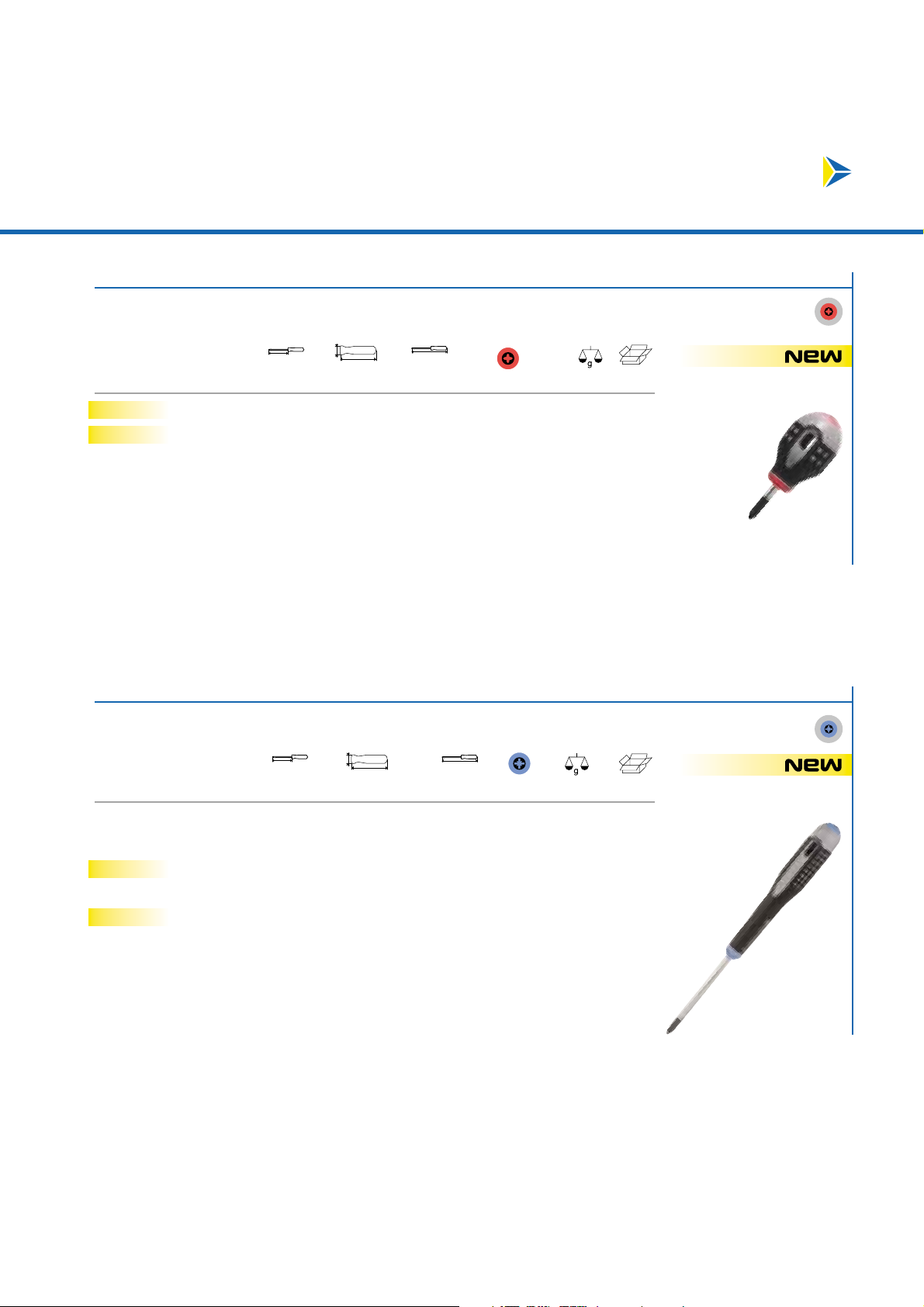

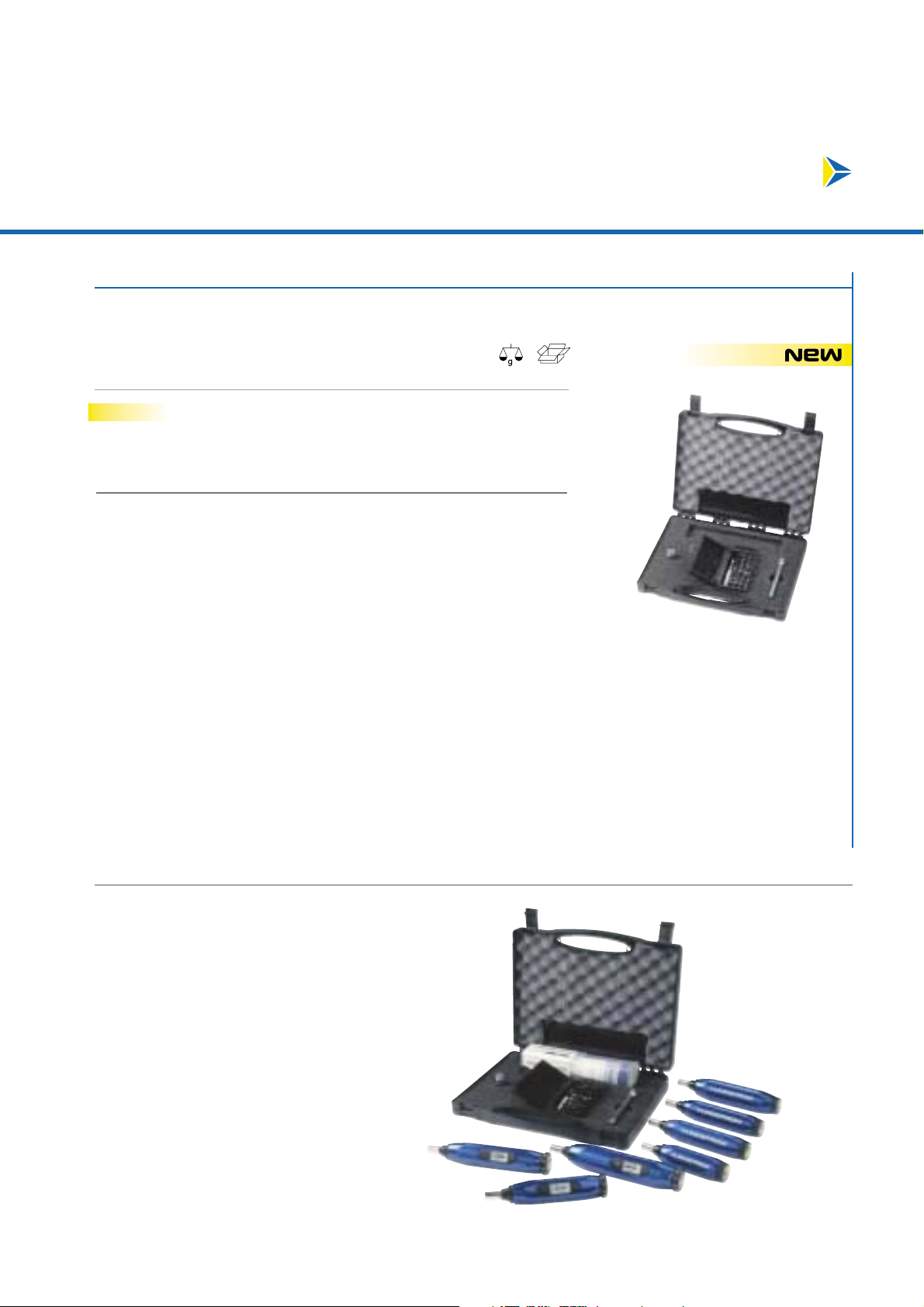

TORQUE SCREWDRIVERS

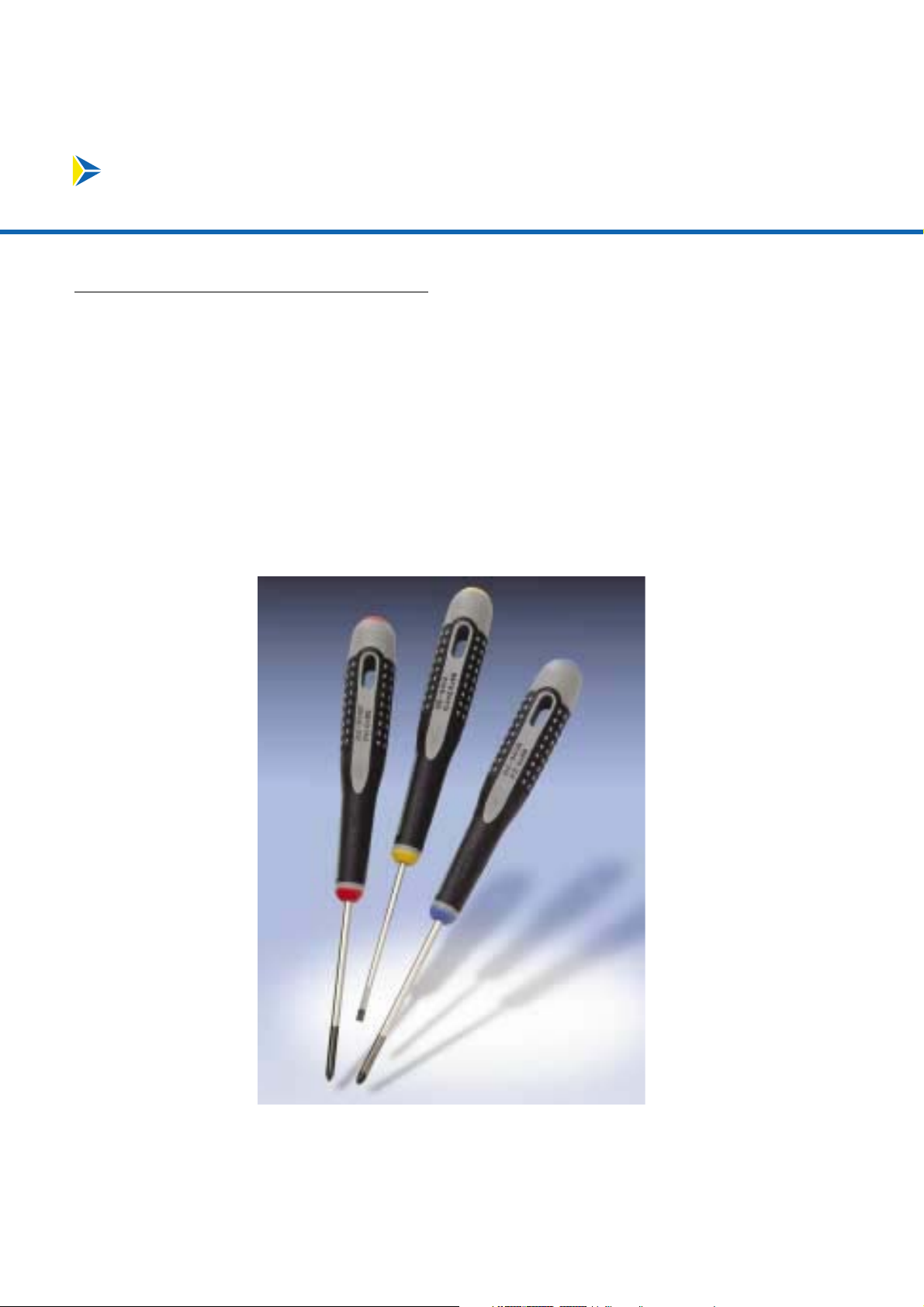

Lindstrom’s new line of torque screwdrivers combine user friendliness with a high degree of precision. Available in microadjustable and preset torque versions. See pages 33 and 88 for more information.

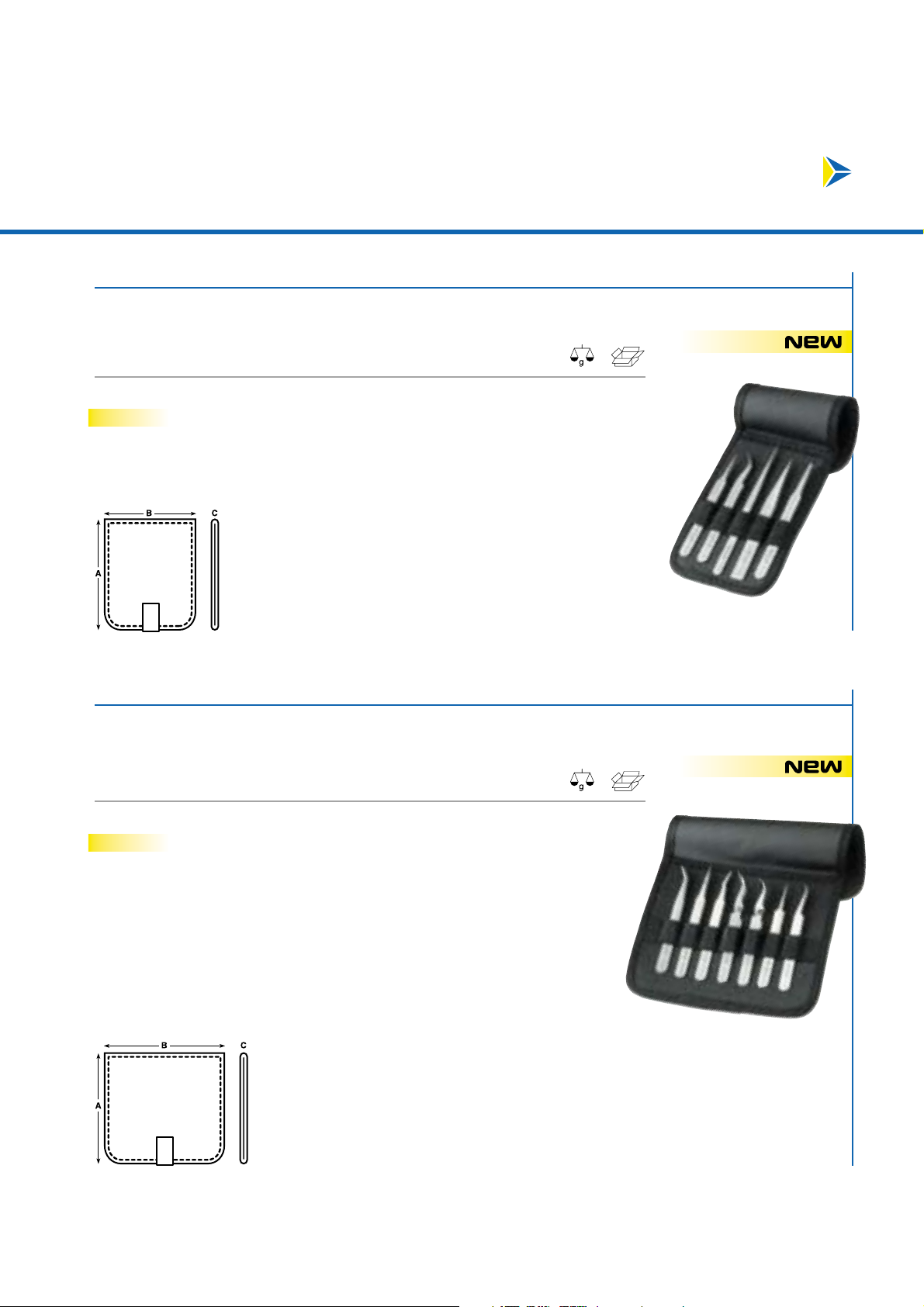

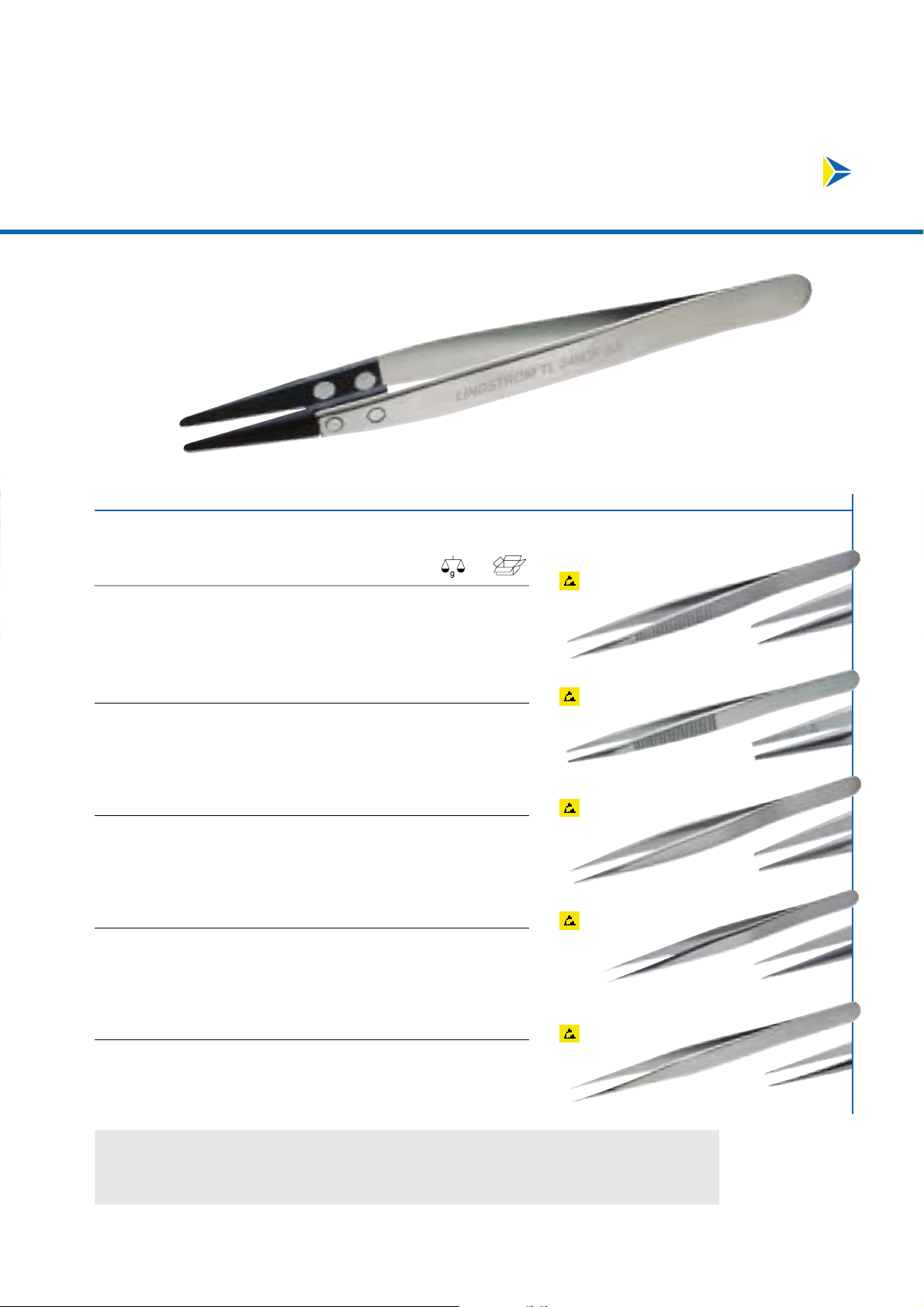

WEEZER WALLET SETS FOR

PRECISION WORK

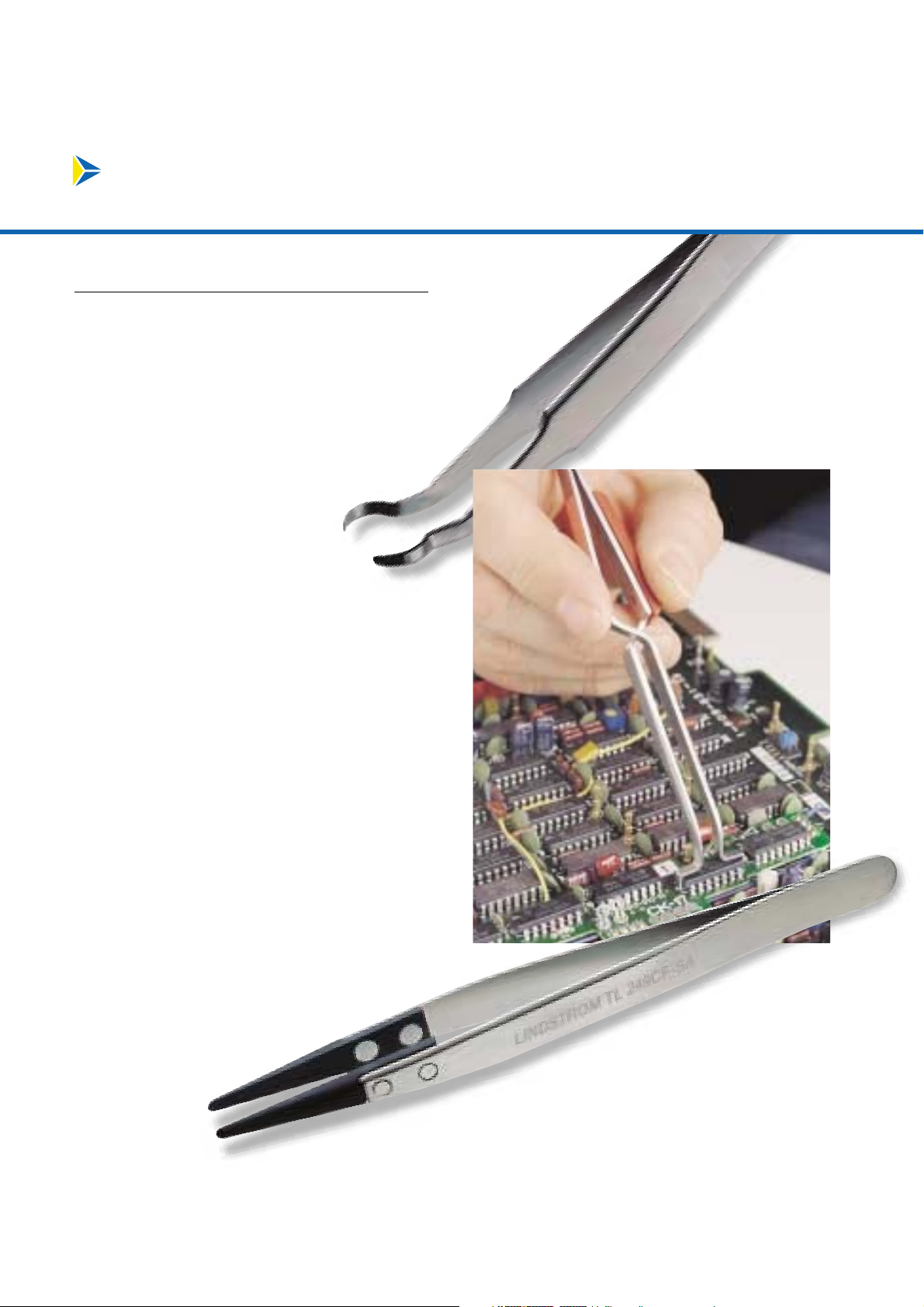

Tweezer wallets are available for a broad range of precision applications, including SMD and handling of ESD-sensitive components. See pages 85 to 87 for detailed information.

TOOL CASE 9850, 9851

A high quality service case containing a variety of tools such as cutters and pliers, screwdrivers, tweezers, files, soldering iron, pick & place tools, adjustable wrench and much more supplied in a aluminium/plastic case. See page 101 for more information.

Page 6

L INDSTROM P RECISION T OOLS

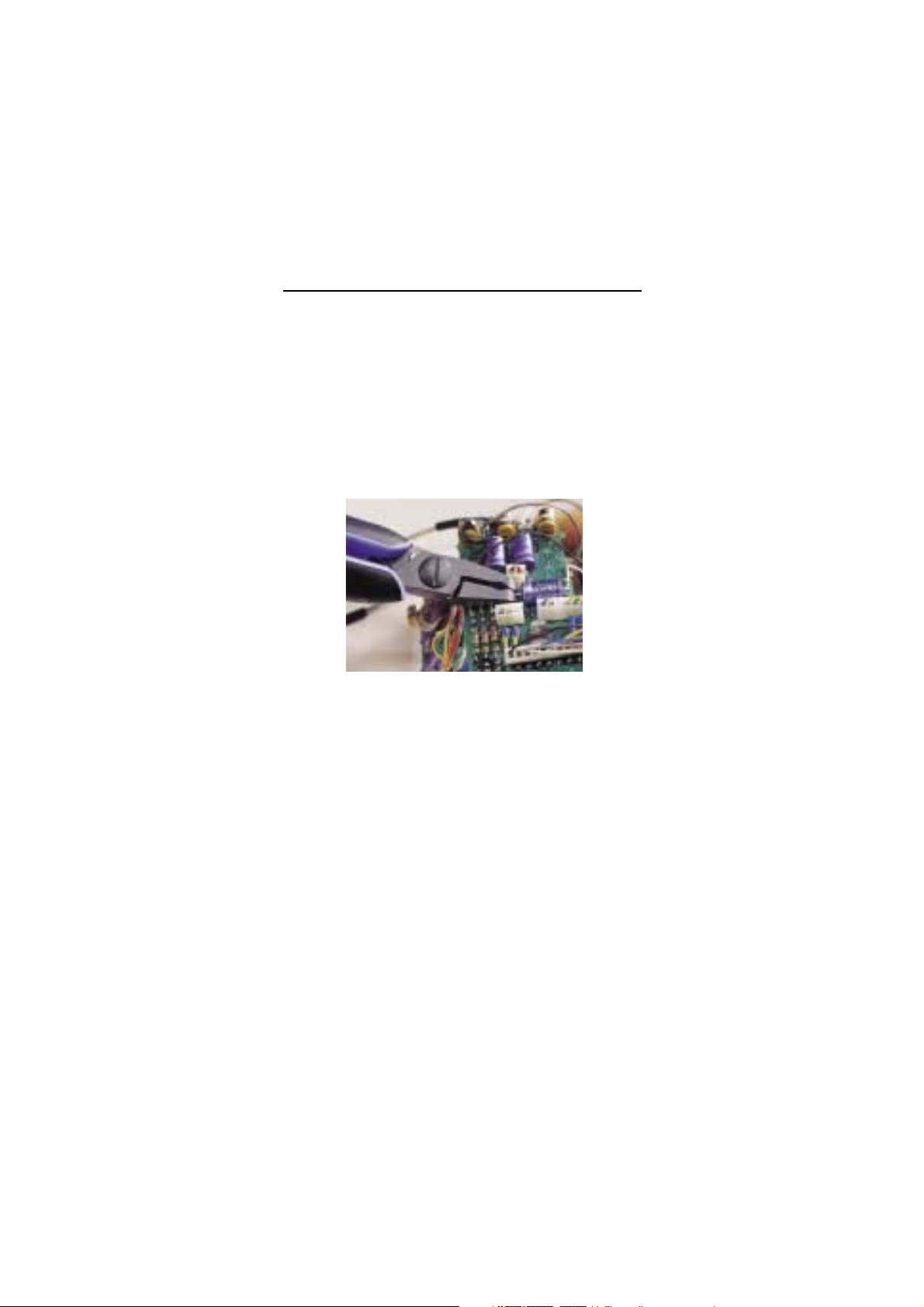

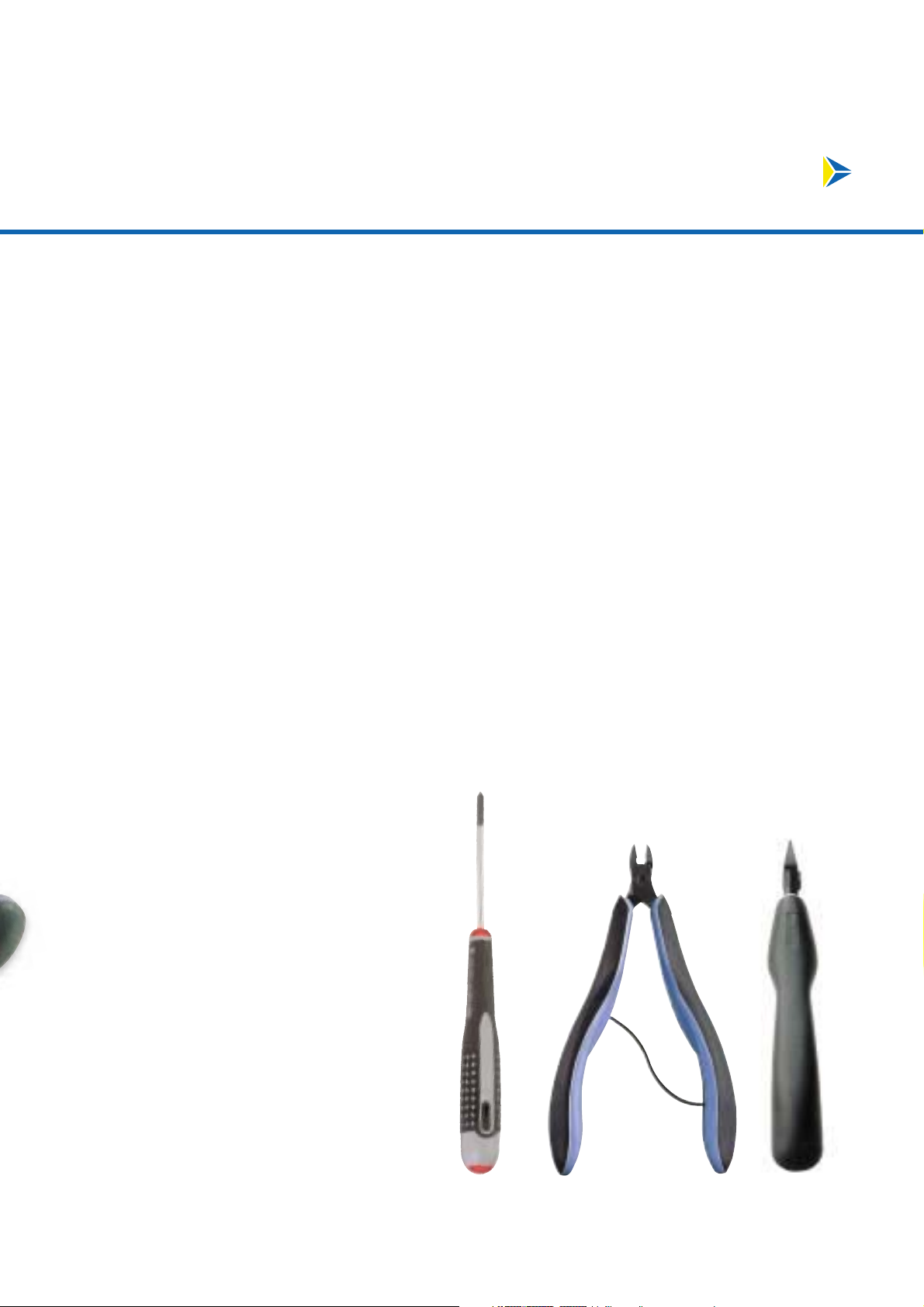

The expression “the right tool for the job” could not be more appropriate than in a discussion about handtools. Whether in the hands of a skilled professional or a new operator, the right tool can make the most difficult operation a simple task. Lindstrom Precision Tools is your source for the right handtool for electronic, electromechanical and medical device assembly, rework and repair.

Page 7

Contents

HANDTOOL APPLICATIONS AND TECHNOLOGY

Cutters

____________________________________

Pliers

_____________________________________

Tweezers

__________________________________

Design

____________________________________

PRODUCT RANGES

Rx Cutters and Pliers

________________________

80-Series Cutters

___________________________

Supreme Cutters and Pliers

___________________

Multi-Purpose Shear

_________________________

Tweezers

__________________________________

Torque Screwdrivers

_________________________

Ergo Screwdrivers

__________________________

Special Engineered Tools

_____________________

INDIVIDUAL LISTINGS AND SPECIFICATIONS

How To Choose

____________________________

Capacity and Options

________________________

Rx Cutters and Pliers

________________________

80-Series Cutters

___________________________

Supreme Cutters and Pliers

___________________

Multi-Purpose Shear

_________________________

Tweezers

__________________________________

Tweezers Sets

______________________________

Torque Screwdrivers

_________________________

Torque Screwdrivers Sets

_____________________

Screwdrivers

_______________________________

Screwdrivers Sets

___________________________

Tool Kits

_________________________________

100

Spare Parts

_______________________________

102

REFERENCE

Warranty

_________________________________

103

Index by Type

_____________________________

104

Index by Alphanumeric Sequence

_____________

107

Conversion Tables

_________________________

109

Capacity and Options

_______________________

111

Page 8

C HOOSING THE RIGHT HANDTOOL

In today's complex assembly environment, it is important to understand and consider the different requirements and conditions that affect your choice of handtools.

For example:

•

How frequently are you going to use the tool?

•

What type of result are you trying to achieve?

•

What kind of material are you going to cut or bend?

•

Can you use one tool instead of two?

•

Do you have concerns about ESD or other specialized standards?

These questions and many more should be considered in making your choice. We have included additional information to assist you in choosing the right tool for your application.

Page 9

HANDTOOL APPLICATIONS AND TECHNOLOGY

WWW.LINDSTROMTOOLS.COM

Cutters

L INDSTROM HISTORY

Started in 1856, Lindstrom has set the standard in precision tool manufacturing. The oldest continuous producer of handtools in existence today, Lindstrom maintains its edge over the competition through its technical understanding, response to market needs, and commitment to advanced technology. Metallurgy , manufacturing techniques, and tremendously skilled crafts people (particularly in the hardening of steel) are the hallmarks of this world renowned Sw edish manufacturer.

Some companies have been able to implement one facet or another of the Lindstrom manufacturing cycle. Others have attempted to copy the form, appearance and even the actual part numbers of Lindstrom cutters. However, none has been able to successfully blend all the elements that are required to achieve the level of performance recognized worldwide as belonging to a true Lindstrom cutter.

B ACKGROUND

Many years ago, cutters were primarily used in heavy-duty work, i.e., cutting heavy electrical wire and wires used in the telecom field. In order to meet the requirements of linemen and other general use

workers, tool manufacturers designed a cutter that left a wide, pyramid-shaped lead end after cutting. Its hardness was adequate for the strain put on the cutter blades. Moreover, the cutters had to be designed with an overall ruggedness: capable of withstanding a drop from a ten-story building without being severely damaged.

However, as the electronics and other related industries developed, the requirements on tools, and in particular cutters, became far different. For example, many people believe that an electrician must do a lot of cutting. Yet, an electrician may make

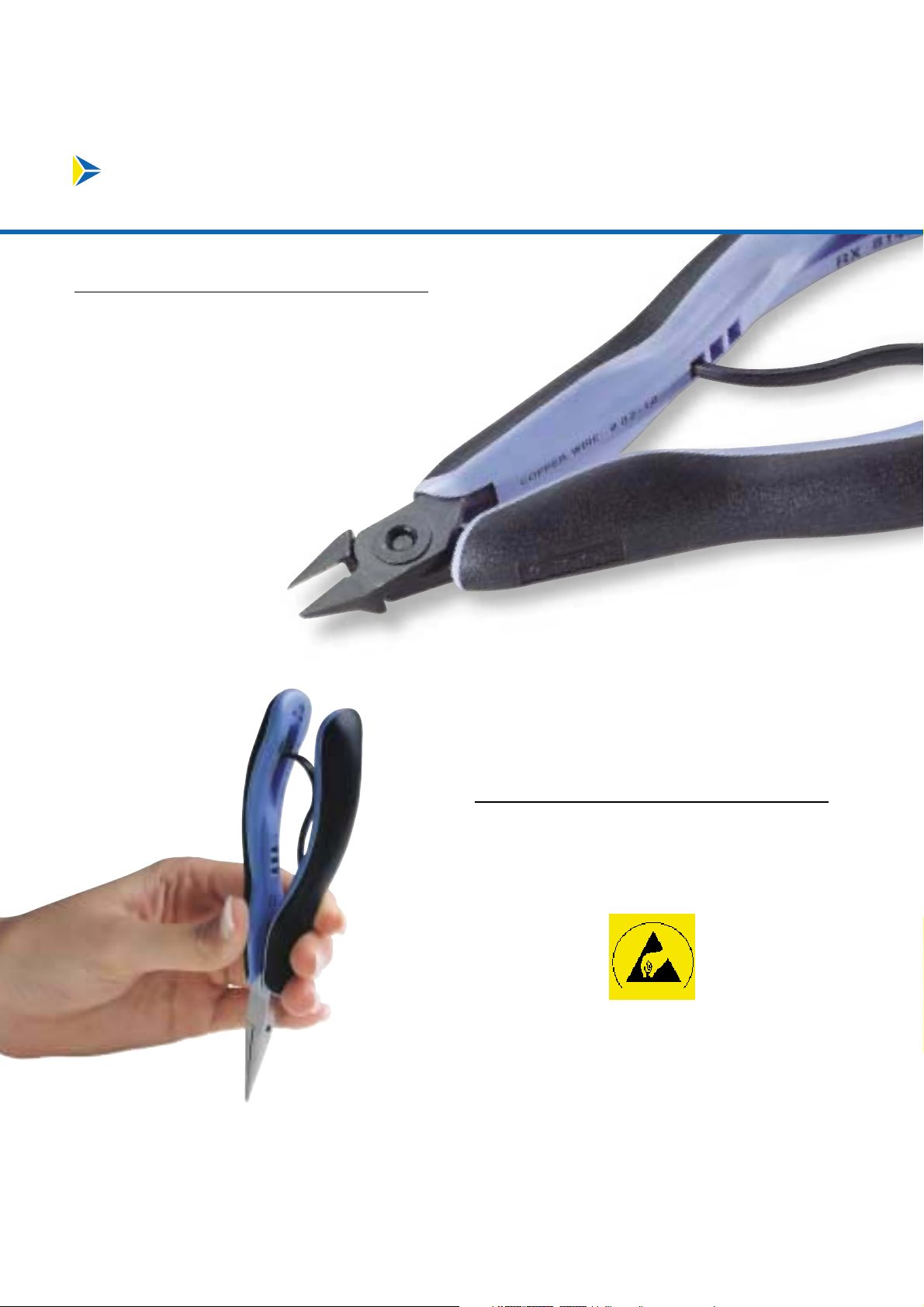

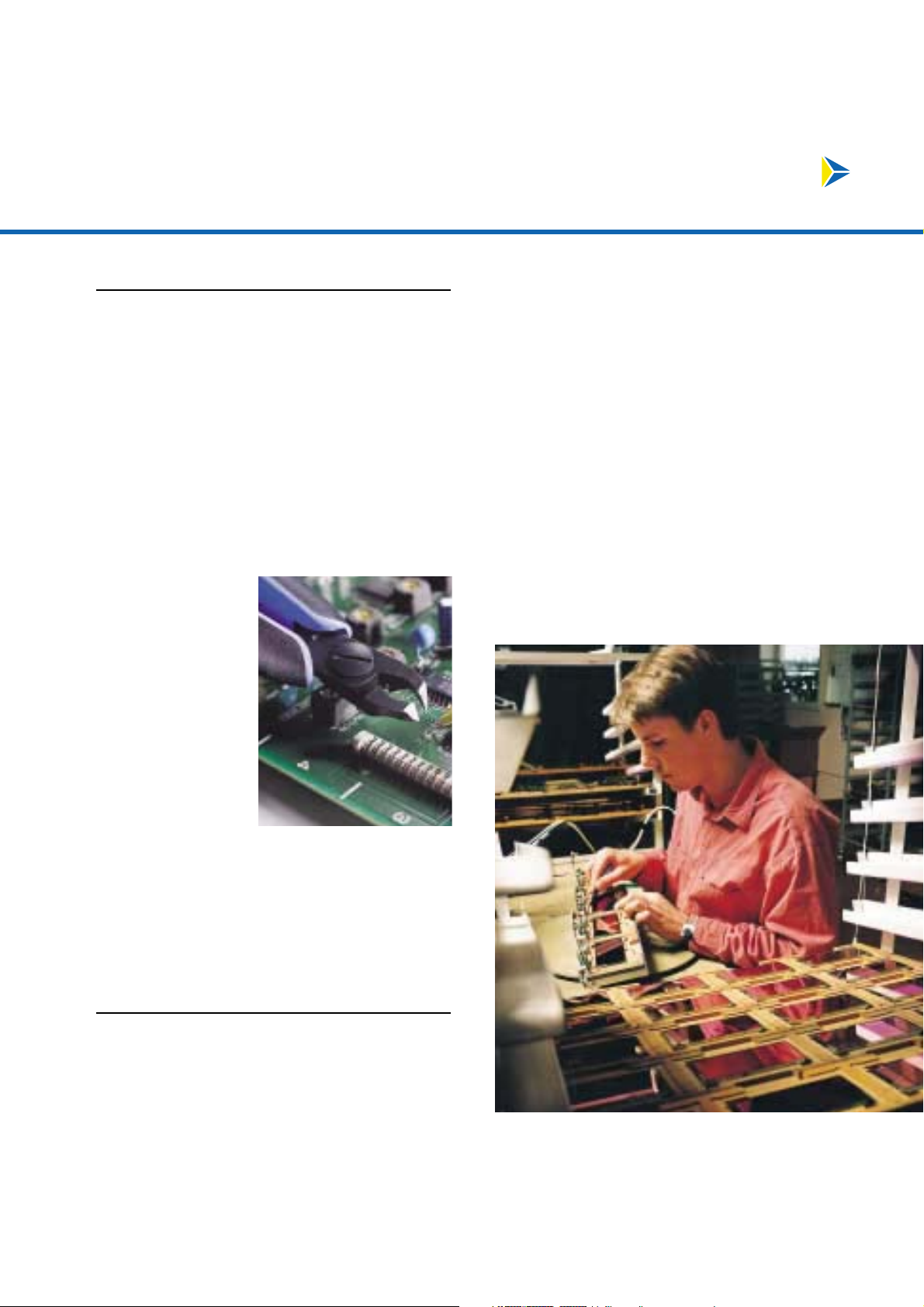

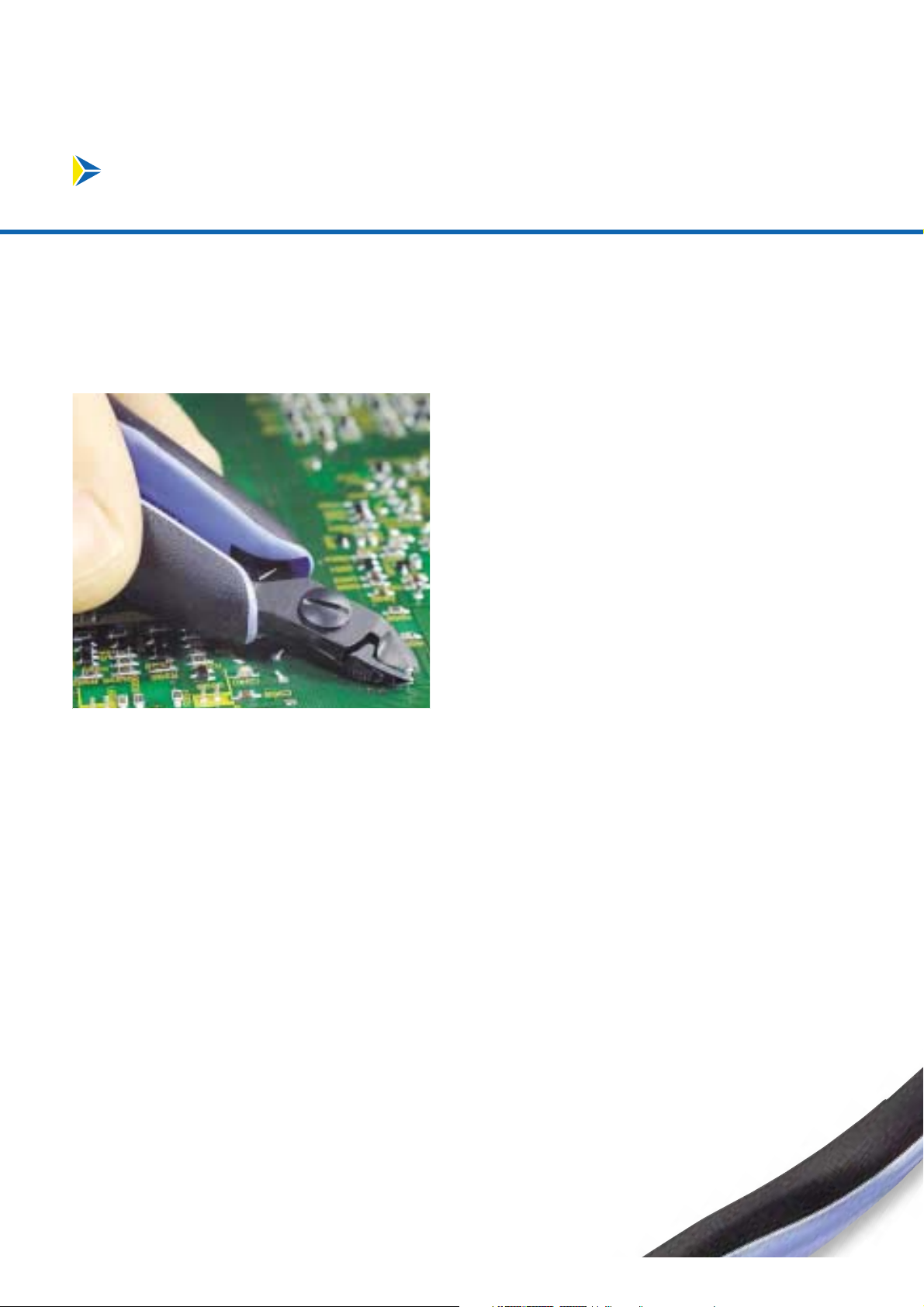

The Rx8211 combines good application visibility, hand and tool positioning capability and small size with great strength. It is among one of the best angle head tools on the market and a prime example of that which is truly Lindstrom – precision with power. See page 45 for more on Rx8211.

An electronic assembly operator may make more cuts in one month than an electrician makes in a lifetime.

Page 10

HANDTOOL APPLICATIONS AND TECHNOLOGY WWW.LINDSTROMTOOLS.COM

Cutters

fewer cuts in his lifetime than some electronic assembly workers make in one month! Therefore, the need for cutting small wires thousands and thousands of times necessitated a radically new and innovative technology.

Small cutters were needed that could cut both extremely small and relatively large diameter wires, often of quite different materials. In addition, the lead ends had to be quite different since the solderability of these wires was of paramount importance. These lead ends had to be covered completely and properly with no bare copper (or basis material) exposed.

Compounding the problem was the accessibility issue, as not all cutters could get into the same area. Transmission of the mechanical shock of cutting to sensitive semiconductors added even more cutter design challenges. However, despite some manufacturers’ claims to the contrary, there are no secret or “magic” materials or processes that can give

you some kind of “super” cutter for all applications. Some inherent “trade-offs” in the design of tools and choices must be made in order to meet certain application requirements. For example:

At what point is the cutter head small enough to gain access and still be able to withstand the impact of cutting wires (of various sizes) innumerable times?

How flush should the cutting edges be in order to meet tough specifications yet still keep tool life extended to the maximum? And what about resistance to edge damage due to occasional misuse?

To what degree of hardness should the tool be made in order to extend tool life and still limit breakage due to being too brittle?

What type of joint should be put into a tool to extend the precision of the cutting edges and still be cost effective for you to use?

Understanding these trade-offs is the key to making an objective and cost-effective choice of tools for your specific application.

MATERIALS

Every cutter begins with basic materials. However, materials can vary greatly with just a minute change in the mixture. Aslight adjustment to the ingredients can affect how a particular steel reacts, and Lindstrom has been refining this mixture for almost 150 years.

The 1% Carbon, combined with a pinch of chrome and various other materials, is very similar to the steel grade and mixture used for high quality ball bearings. This is the material used for Lindstrom Rx and 80-Series cutters.

The Rx8140 used in traditional over-hand grip. see page 42 for more on Rx8140.

Page 11

HANDTOOL APPLICATIONS AND TECHNOLOGY

Cutters

WWW.LINDSTROMTOOLS.COM

RESILIENCY

One of the challenges in tool design and usage alike is the search to increase tool life. Decreased life is caused generally by usage beyond the limits of the material and its corresponding hardness.

The use of ball bearing grade steel together with proper heat treatment offers the possibility of a cutter of tremendous resiliency and toughness with the ability to withstand greater impact, yet with the ability to return to its original form without damage. This is one of the reasons why Lindstrom cutters offer greater life and have less breakage than other brands used in the same applications.

LUBRICITY

Another characteristic that emerges from a Lindstrom cutter is the ease with which the tool makes its cut. It is as if there is a built-in lubricant, which makes the cutting easier. This not only helps to make a better cutter, but also reduces operator fatigue.

HARDNESS

Different steels have different personalities – each allowing a certain level of hardness. If a specific steel is hardened too much for its composition, it will break easily. On the other hand, not enough hardening can sharply reduce tool life. How a steel is

cooled (after hardening) and recognizing the different strength capacities of that steel are some of the key factors that make the hardening process a difficult science to master.

Measuring the hardness on a Rockwell Hardness Scale, Lindstrom cutters are elevated to a hardness of 63-65 on the cutting edge, as marked on the “C” scale of the tester. This hardness ranks among the highest of any cutters made. For most manufacturers, this hardness level would create a high breakage rate.

Yet, because of the steel and proper control and consistency of the hardening area, and even when used beyond the rated capacity (as they often are!) Lindstrom cutters have remarkably little breakage.

Page 12

HANDTOOL APPLICATIONS AND TECHNOLOGY WWW.LINDSTROMTOOLS.COM

Cutters

Despite automation, any production process can be extremely limiting if not utilized effectively. Lindstrom effectiveness is directly related to the use of forgings of exact dimensions. When forgings are not uniform, it becomes nearly impossible to obtain the repeatability necessary to produce a consistent quality tool. Attempts have been made by others in the industry to automate the manufacturing process without such forgings, but the tools produced are physically erratic. The result is an increased breakage level or rapid deterioration of the cutting edges – expensive tools at any price.

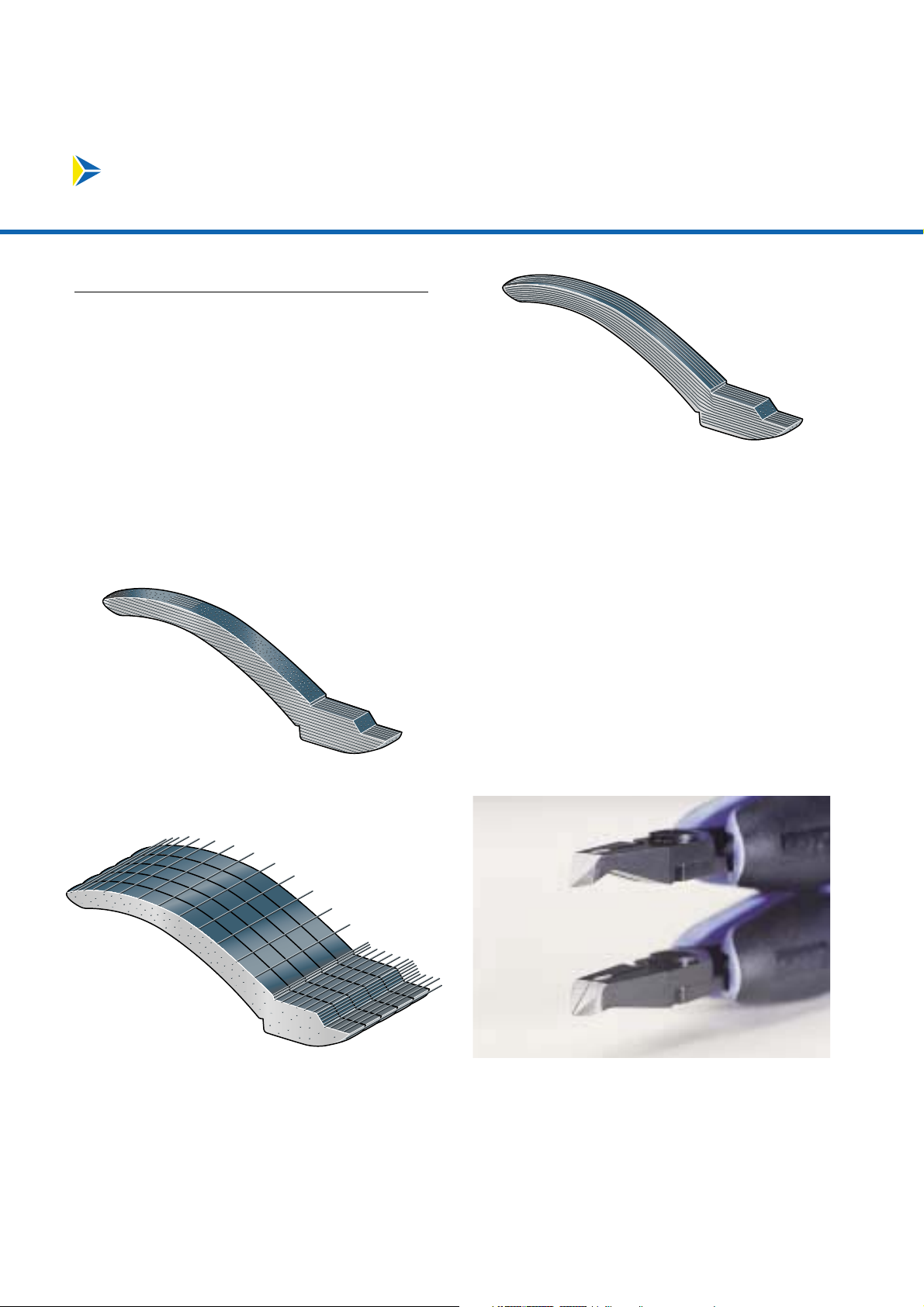

Stamped tools have a straight grain; this construction is useful for certain applications but ultimate tool life and strength can be compromised.

Forged cutters are usually the strongest. Their grain structure follows the profile of the cutter.

Cutters produced by an extrusion method have a cross grain structure; thus, they are susceptible to greater breakage, particularly along the cutting edges and the joint.

The Rx8247 and even more refined Rx8248 (top), extend the range of applications for angle head cutters. See page 46 and 47 for more on Rx8247 and Rx8248.

M ETHODS OF M ANUFACTURING

FORGINGS

One of the major breakthroughs in Lindstrom technology is the ability to produce exact, precision forgings. Without that capability, the automated production process cannot be utilized effectively. Therefore, as the first step in the manufacturing cycle, forgings are a key element in the total production process. To maintain interchangeability, every forging must be perfectly precise and compatible to one another.

Page 13

HANDTOOL APPLICATIONS AND TECHNOLOGY

Cutters

WWW.LINDSTROMTOOLS.COM

PROCESSES

Anyone involved in manufacturing knows that to attain a quality process, there are no shortcuts – learning must be by doing. Subsequent steps in the Lindstrom cutter production process have been painstakingly developed over a 30-year period backed by 150 years of precision tool production and know-how. Lindstrom is constantly seeking the best way to achieve consistent quality results. These results are seen in the perfect symmetry of the cutter components, the exactness of the grinding, and the consistent hardening. The reliability and consistency of these details are the Lindstrom hallmark.

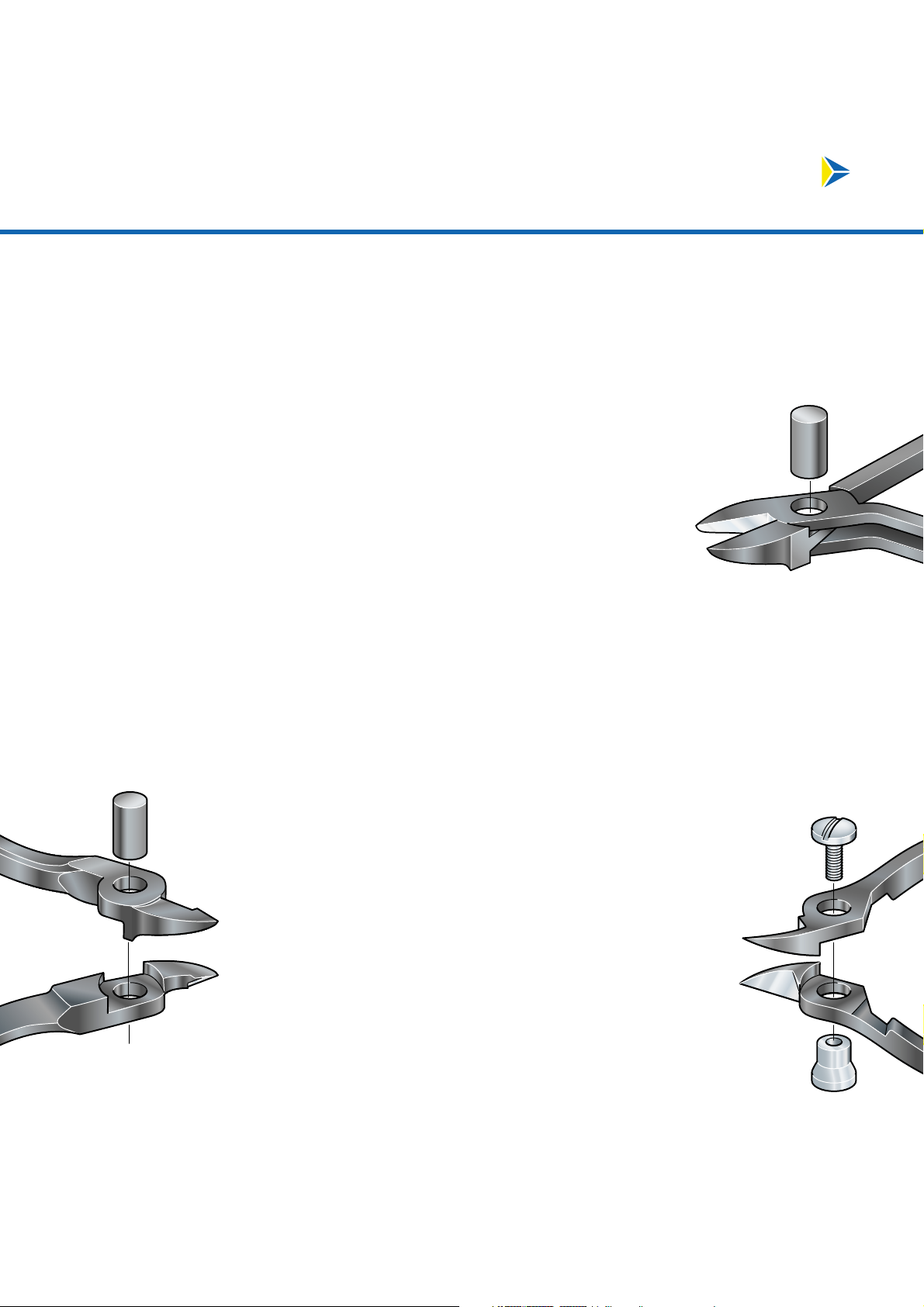

CUTTER JOINTS

Of the three primary types of connections commonly used – lap joint with screw, box joint, and lap joint with rivet – each has a distinct value that you should consider in evaluating your choice of cutter.

LAP JOINT WITH RIVET

The lap joint with rivet is both economical and effective for those tools used for occasional work or

for heavy-duty cutting where the requirements

for precision are not as great. This joint's limitation is that it is difficult to achieve the

precision of a screw and nut in terms of

holding torque and bearing surface for

moving parts and thus it can loosen or

develop “play” more easily over

time. This leads to misaligned cutting edges, a property that is not conducive to exact and continuous cutting.

BOX JOINT

The box joint is an older process, developed initially for the jewelry trade where intricate and precise forming of delicate metals is required. The joint is made by sliding one side through the opening of the other side of the joint. Once cooled, the opening closes or is closed, tightening the two sides, which are then linked by a rivet. Most manufacturers typically expand the slot in the head to allow the other half of the tool to be assembled. This offers the possibility of introducing variations on inner contact surfaces in terms of finish and tolerances.

LAP JOINT WITH SCREW

The lap joint with screw is the marriage of a fine pitch threaded screw and miniature nut. It is extremely important that these two parts are geometrically correct. However, there is more to achieving strength and precision in the joint than that. For example, a screw-and-nut combination that is absolutely flush with the edge of the tool may have insufficient threads to maintain consistent alignment. On the other hand, a screw-andnut combination that has external heads on both sides of the joint may limit the cutter's possibility to be used for a number of tight access applications. Lindstrom eliminated this predicament through the positive integration of both designs. With one flat external head and one flush head, both adverse conditions are eliminated. In the end, this design assures the user of sufficient threads for continuous alignment and a narrower profile for greater accessibility.

Page 14

HANDTOOL APPLICATIONS AND TECHNOLOGY WWW.LINDSTROMTOOLS.COM

Cutters

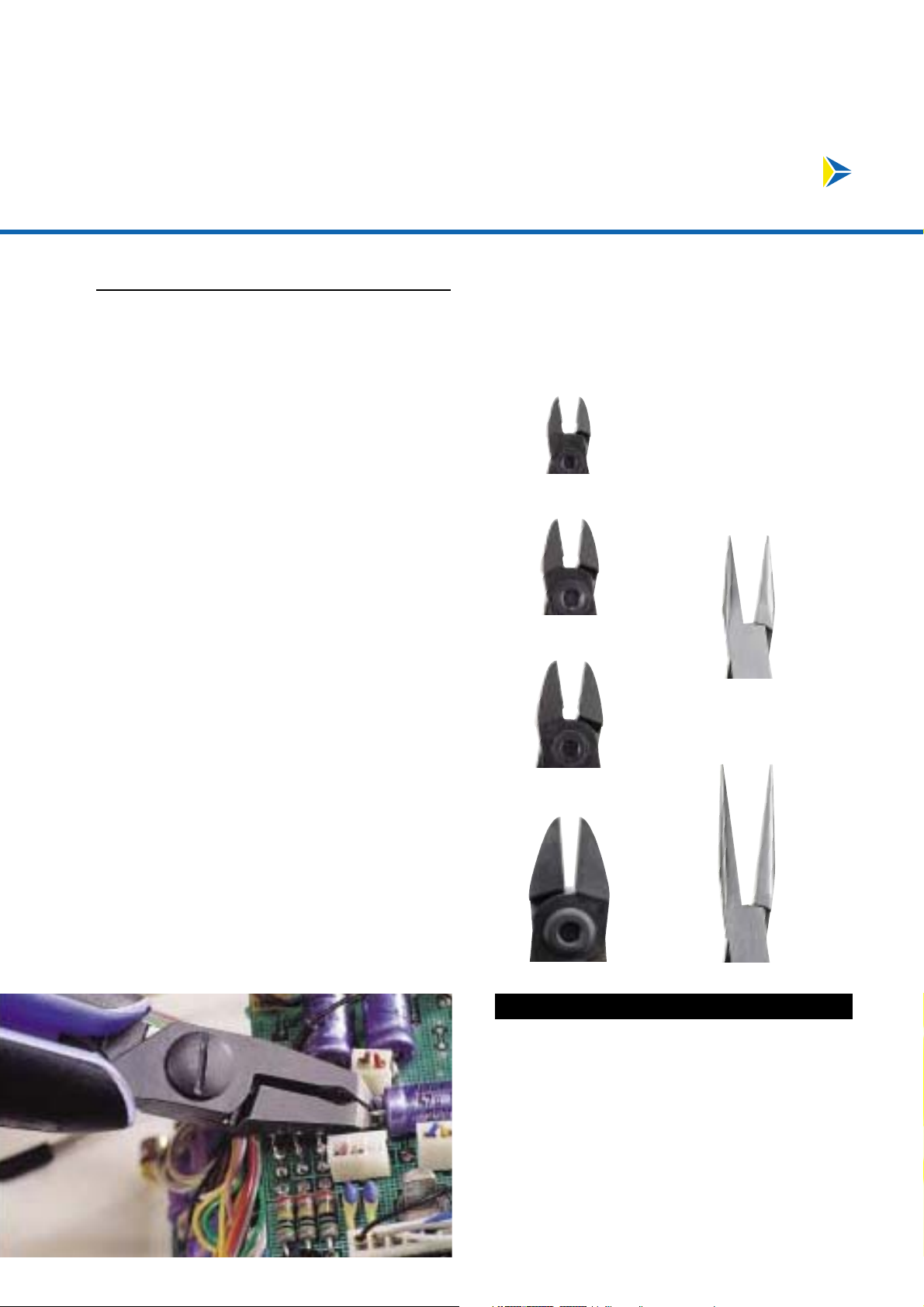

CUTTER HEAD SHAPE AND SIZE

Head shapes vary in size and configuration depending on the application. However, there are four primary types, with variations of each.

OVAL HEAD

Most common of all the head shapes is the oval head. Combining strength and flexibility, the oval head can withstand and distribute the impact of cutting and is

utilized in a myriad of applications. The head shape combined with materials, method of manufacturing, type of cut, and the tool's hardness, determine the range of cutting capability.

TAPERED HEAD

When the sides of a cutter head

are shaped along diagonal

lines, the operator can

effectively broaden the range

of tasks this tool can fulfill.

The Lindstrom tapered head cutter utilizes this design without reducing the cutting range, and increases the number of areas that the operator can gain access to.

However, since the tapered head does not stand up to occasional misuse so well as an oval head design of similar dimensions, a greater degree of care should be observed in its use.

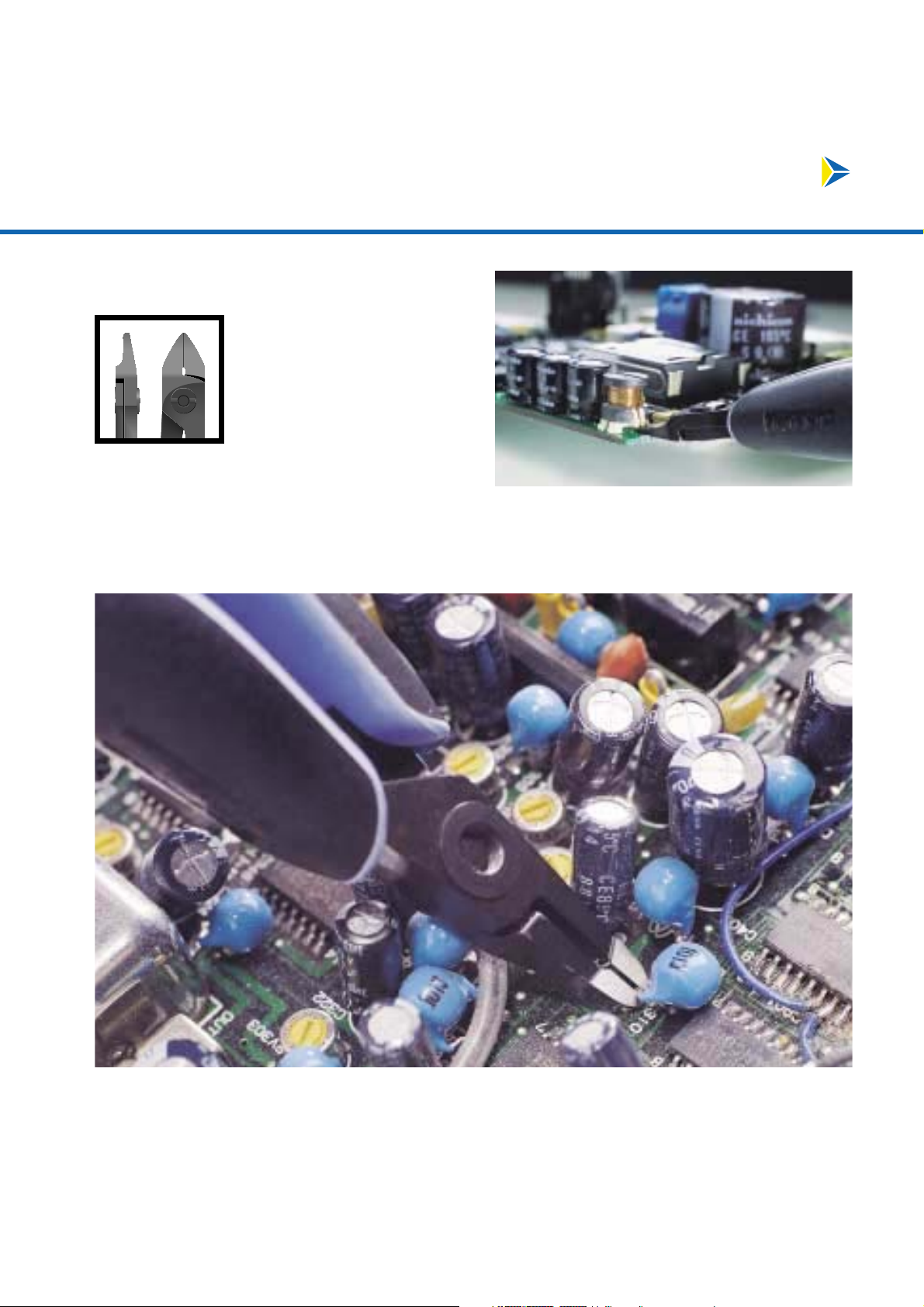

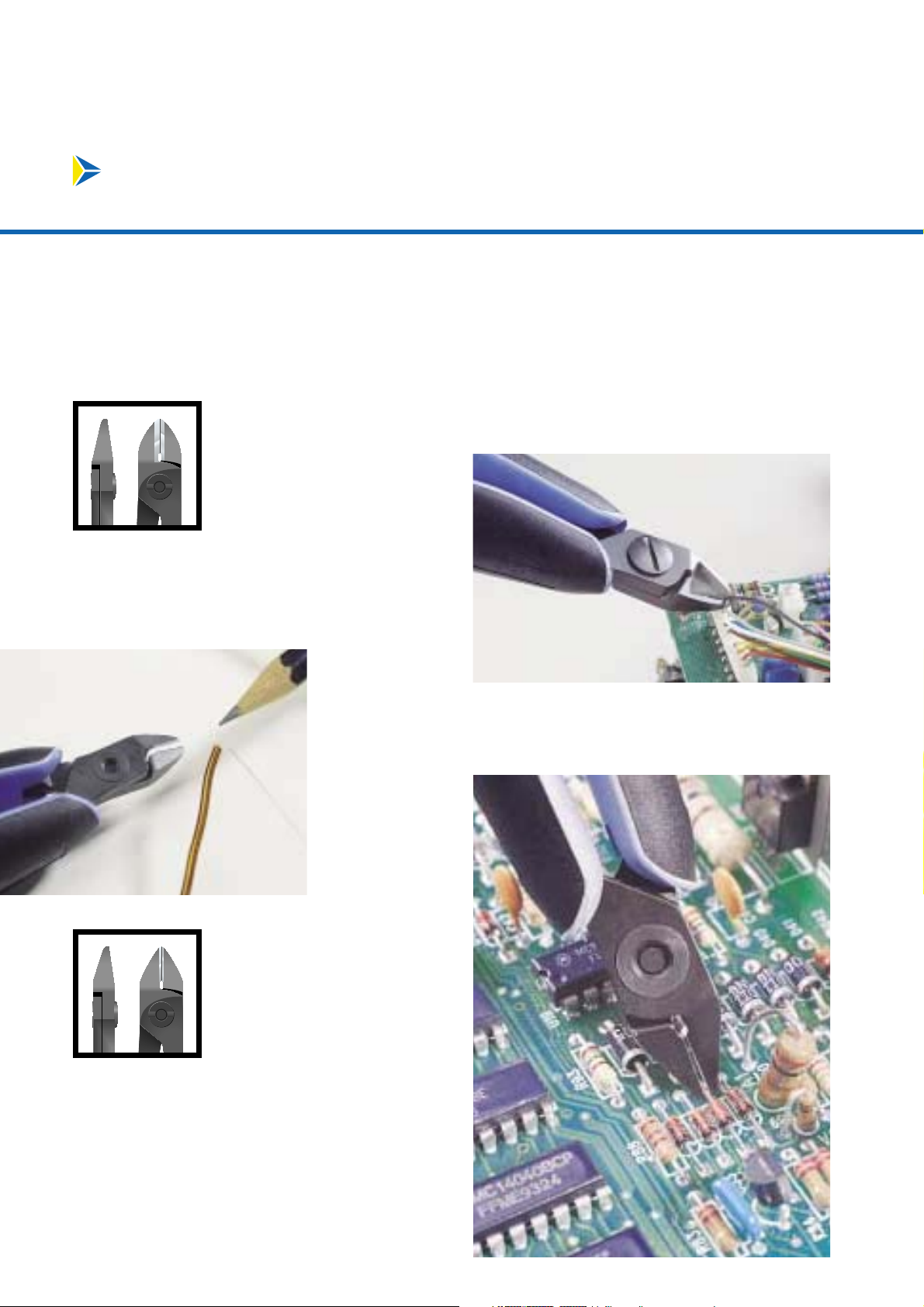

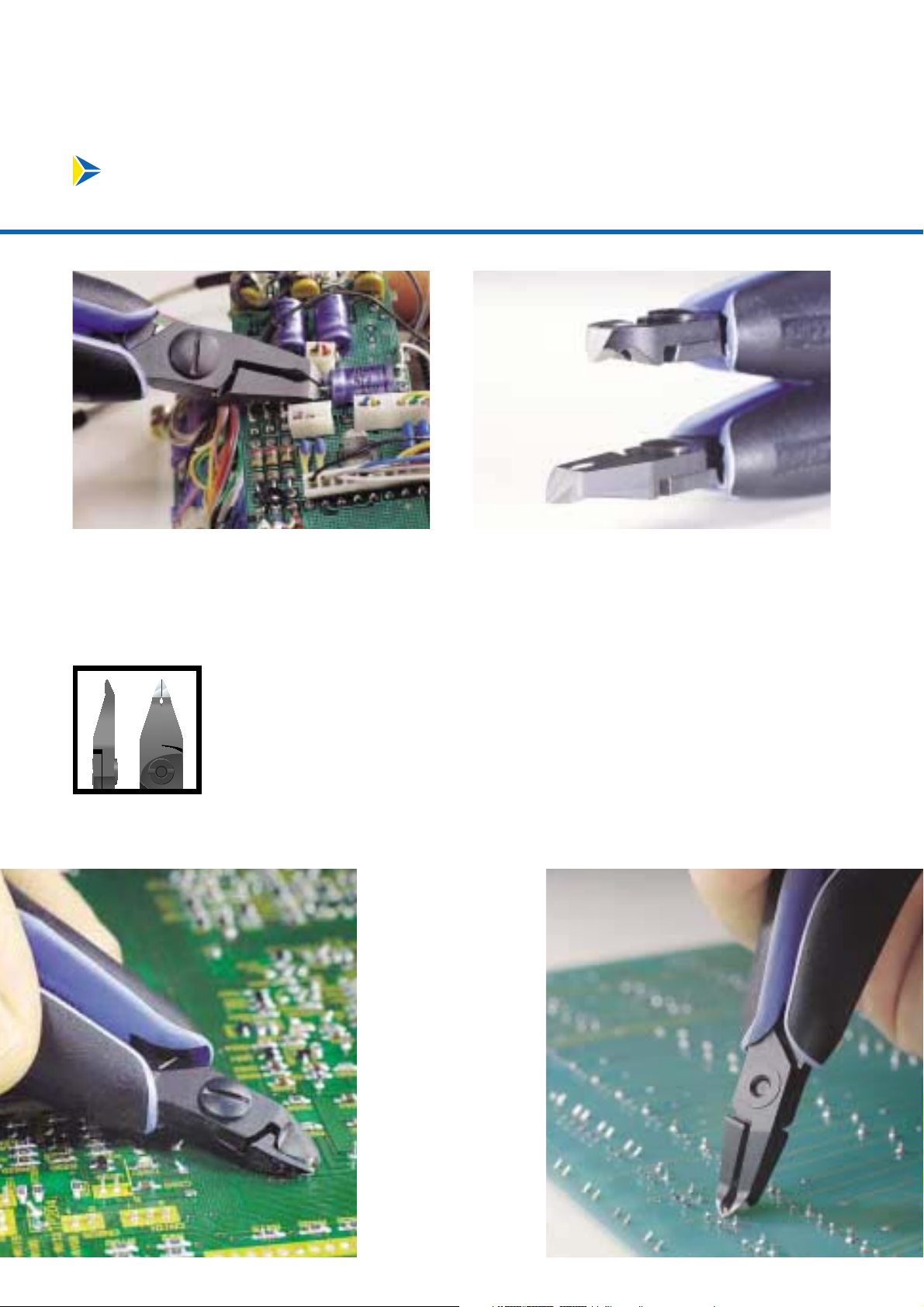

Tapered Rx8143 allows better tip access yet still has a good general range of cutting capacity. See page 43 for more on Rx8143.

Tapered Rx8143 improves cutting access in component removal. See page 43 for more on Rx8143.

The Rx8130 with miniature oval head will cut copper wire up to 1.25mm/16 gauge in diameter. Yet, the Rx8130 is far smaller than models from other manufacturers considered to be of similar capacity and is one of the strongest miniature cutters on the market. See page 42 for more on Rx8130.

Page 15

HANDTOOL APPLICATIONS AND TECHNOLOGY

Cutters

WWW.LINDSTROMTOOLS.COM

TAPERED AND

RELIEVED HEAD

This head style is the smallest of the standard cutting heads available. Not only does it taper on both sides, but also the underside is cut away , allowing the operator to gain access into

some difficult areas. Although this provides an obvious advantage, this head style does have a slightly reduced cutting range.

Special care should be taken not to use tapered and relieved cutters outside their specified range of cutting capability.

Tapered and relieved Rx8146 provides improved access and visibility for even the most difficult job. See page 43 for more on Rx8146.

Tip cutter Rx8149 is an even more specialized adaptation of the tapered and relieved style. Its extreme tapering on all sides allows access and reach. See page 44 for more on Rx8149.

Page 16

HANDTOOL APPLICATIONS AND TECHNOLOGY WWW.LINDSTROMTOOLS.COM

Cutters

ANGLE HEAD

This head shape is sometimes called an oblique style with its head set at an angle to the main body of the cutter, the purpose of which is to reach between wires or parts or into areas

which are difficult to access. Tools of this design can also be used to trim standard leads or parts – with the advantage being that the operator's hand can be in a different position if desired. The cutting range of the angulated head will vary depending upon its style, but some degree of care should be observed in its use.

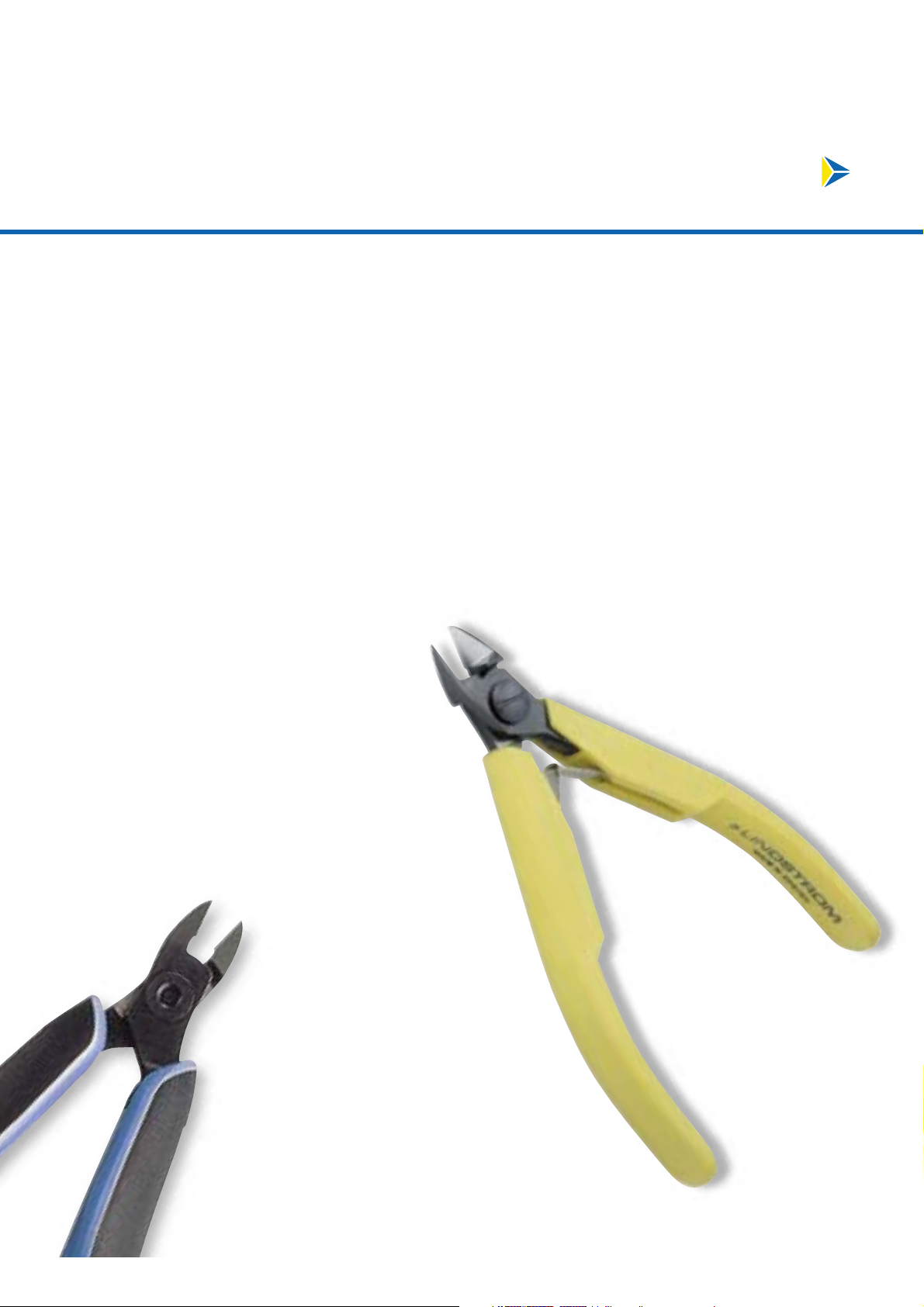

Angle head Rx8247 provides benefit of reach and operator visibility. See page 46 for more on Rx8247.

Rx8211 (top) offers outstanding strength and cutting capacity while Rx8247 (bottom) offers better reach. See page 45 for more on Rx8211 and page 46 for more on Rx8247.

The Rx8140 (left) used in traditional over-hand grip. Rx8247 (right) allows an inverted grip in a similar application. See page 42 for more on Rx8140 and page 46 for more on Rx8247.

Page 17

Page 18

HANDTOOL APPLICATIONS AND TECHNOLOGY WWW.LINDSTROMTOOLS.COM

Cutters

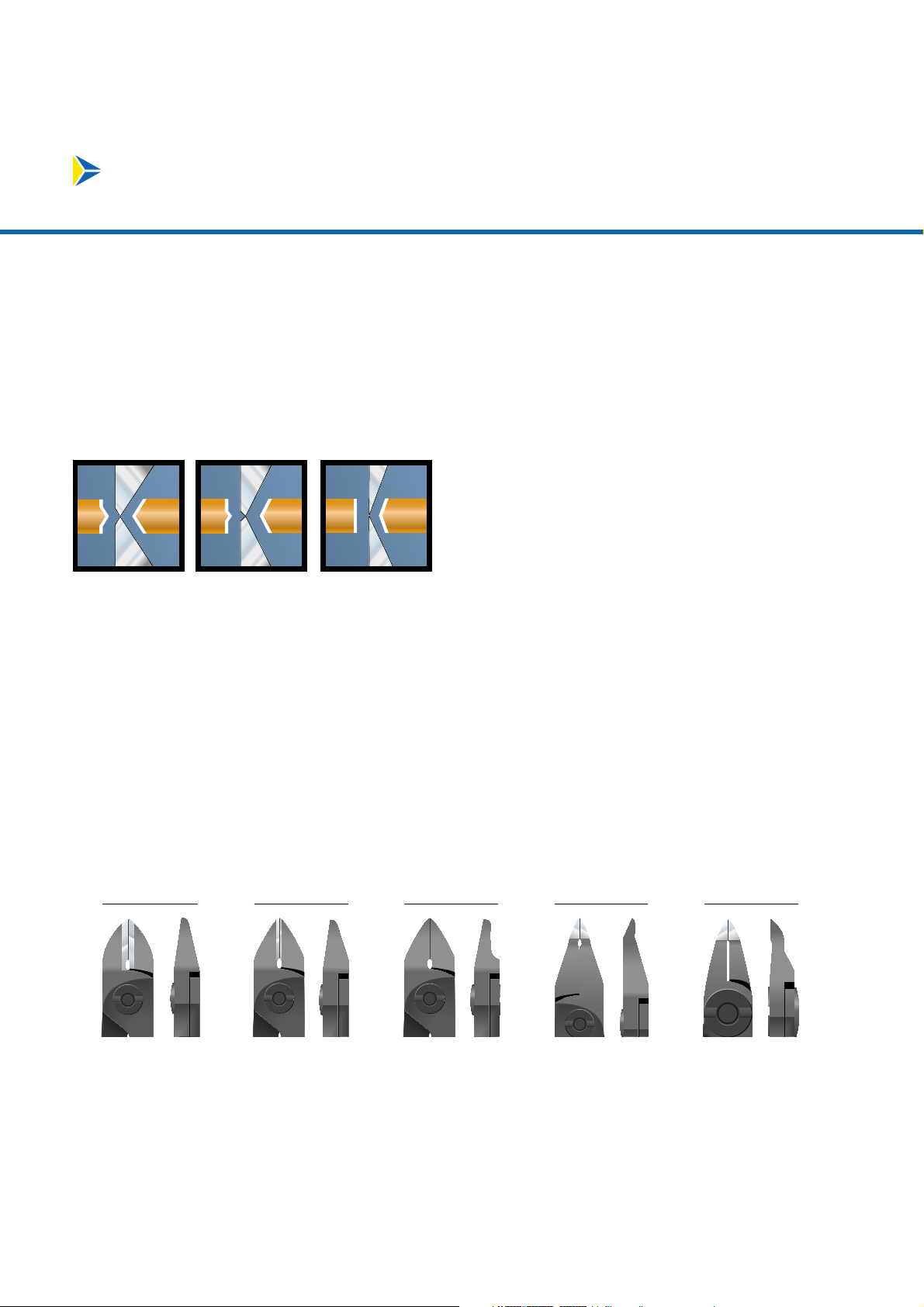

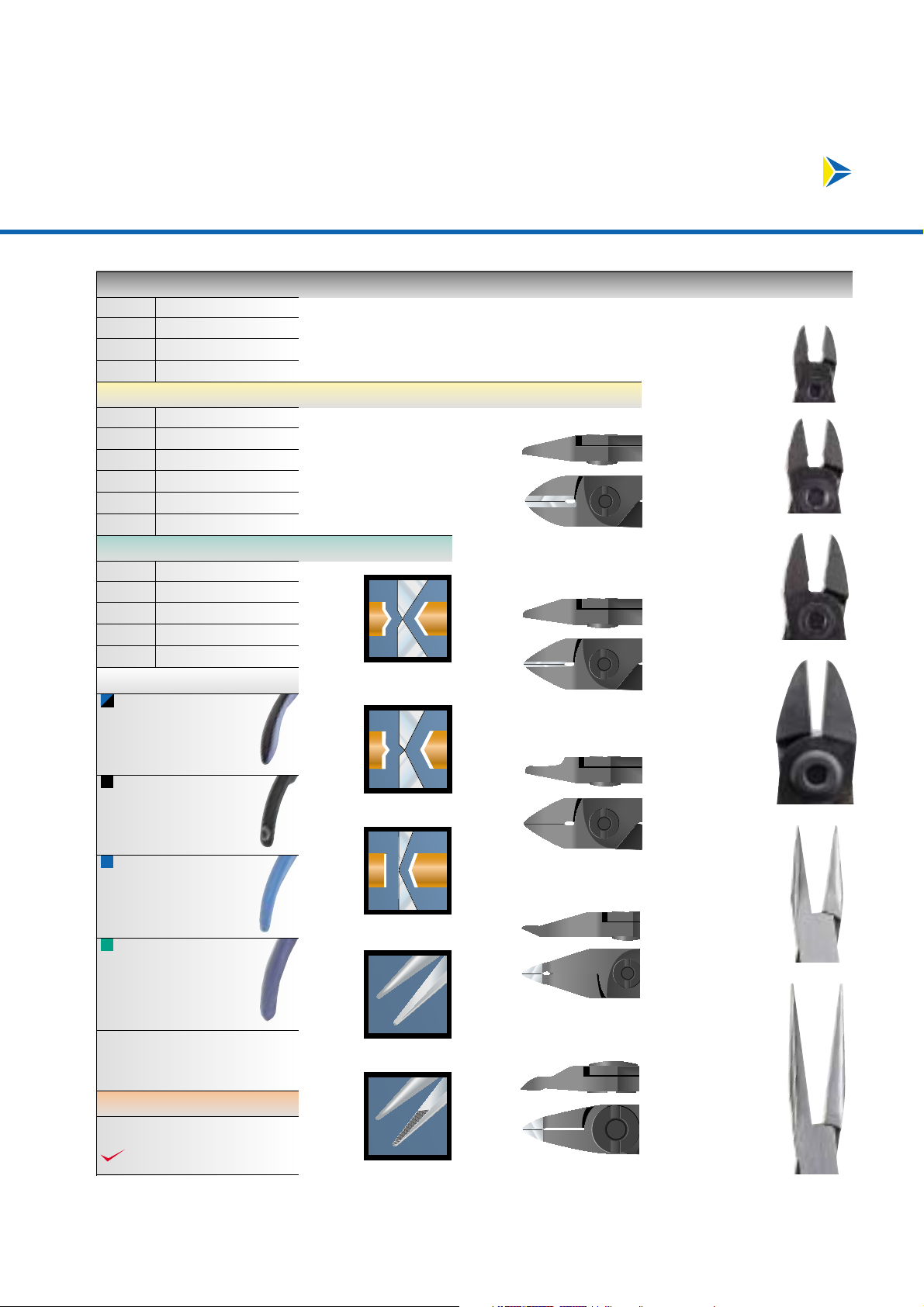

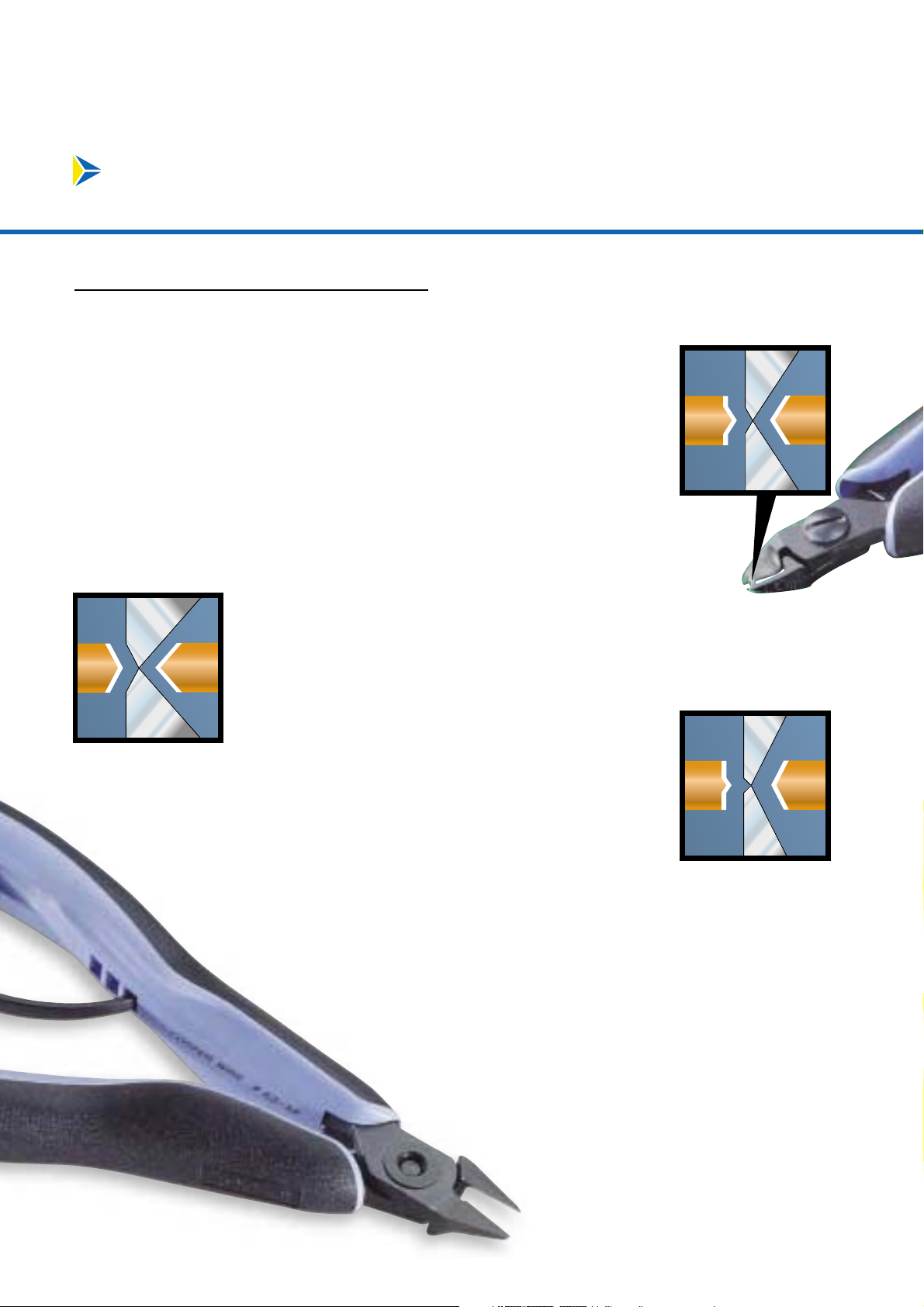

C UTTING E DGES

Explaining the type of cut that a particular cutter makes is perhaps the greatest area of confusion and worthy of special study as there is no real standardization of terminology , and each brand offers its own description of its type of cut. Understanding these differences is particularly important in the ordering process.

It is imperative that you recognize what type of

cut you require and what the cut lead-end should look like after it is cut. This is especially true in the tighter requirements and specifications of military and highend commercial electronics.

THE SEMI-FLUSH CUT

This type of cut leaves a large lead-end, shaped like a pyramid, and has been manufactured for decades by every tool manufacturer. This type of cutting edge is

a good application match for general electrical or hobby cutting where tool price is often the primary consideration.

This application match is good due to the fact that

the cut lead shape is satisfactory for these

applications and the cutting edge itself does not

require a high level of hardness,

sophisticated material to achieve that

hardness, or an extremely precise

type of joint in order to function.

THE MICRO-BEVEL®CUT

To meet the requirements of the electronic assembly industry, Lindstrom designed the Micro-Bevel. Its unique cut is quite different from the semi-flush cutter. Its leads are “pinched”, unlike the pyramid look of the semi-flush cut, allowing less altitude and smaller overall surface area. Because of its design, it has an extremely wide cutting range, and a variety of uses far beyond any other cutter produced today . For example: Lindstrom produces a cutter (Rx8130) that has a cutting range for copper from

0.2 mm/32 gauge to 1.25 mm/16 gauge yet has a remarkably small overall head size.

THE FLUSH CUT

The cutting result of most “flush” cutters, their individual terminology notwithstanding, is somewhat similar. Flush cutters also pinch the leads, but at a lower altitude than Micro-Bevel cutters.

Page 19

HANDTOOL APPLICATIONS AND TECHNOLOGY

Cutters

WWW.LINDSTROMTOOLS.COM

These cutters have finer cutting edges than semiflush or Micro-Bevel cutters.

Lindstrom's flush cut also creates a pinched lead. However, it is configured slightly differently than that produced by other cutters. The Lindstrom flush cutter leaves a narrower and shorter taper along the pinch, thereby reducing the total exposed area. The reason for using a Lindstrom flush cutter rather than the Micro-Bevel is to meet a slightly tighter specification for the cut lead-end or to gain a more flush result to a board, component, or part.

EXCEEDING THE FLUSH CUT

Many manufacturers have a cut which, in reality, is just a smaller pinch, allowing OEMs to meet solderability specifications and alleviate shock. This pinched lead is deemed acceptable for many items produced for high-specification applications, but confusion is caused by the size and height of the pinch as each cut will vary from brand to brand and between manufacturers.

The general consensus is that the greater this pinch becomes, the less the acceptability of the cut. The critical area here is realizing that as the cutter wears down, the size of the pinch increases and could rise above the maximum acceptable height. Moreover, the greater the pinch, the greater the mechanical shock transmitted.

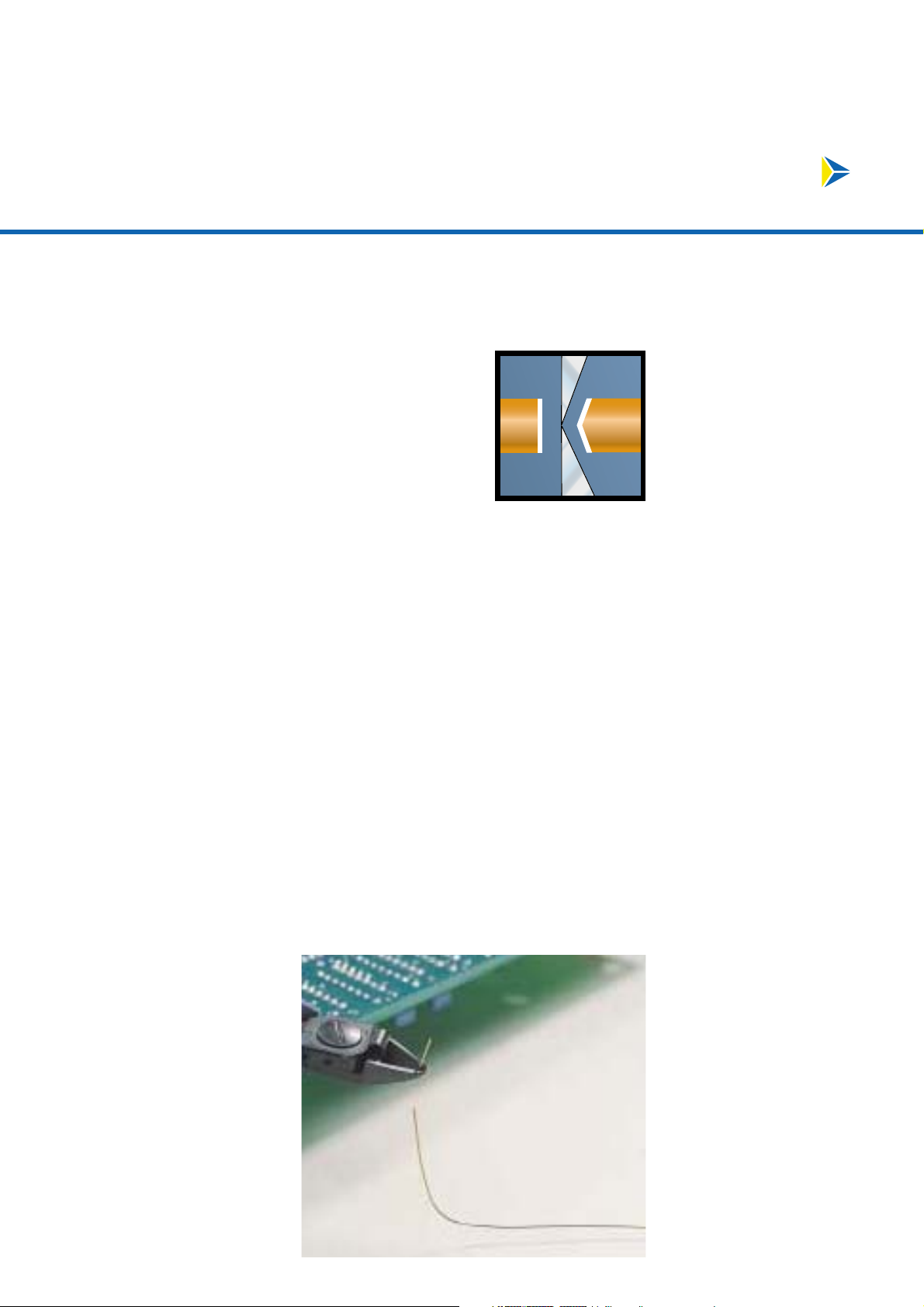

THE ULTRA-FLUSH®CUT

The question to be addressed then is why have a pinch cut at all? Lindstrom engineers have designed

the Ultra-Flush cutter which virtually eliminates the pinch other cutters make. The Ultra-Flush configures two flat planes with a barely discernible line separating each of these planar surfaces. Only a

precise screw joint and a specially designed radius on the cutting edge could allow this razor-sharp edge to be utilized effectively.

The trade-off in this case is a more limited cutting range and greater possibility for edge damage due to misuse. However, with the exception of Lindstrom's own Micro-Bevel and Flush cutters, the Ultra-Flush will outlast any other “flush” or “shear” type of tool and still match competitive cutting ranges.

The unique design of the Ultra-Flush is perfect for use in close tolerance electronic and medical device assembly where concerns about final lead-end configuration and mechanical shock transmission are a top priority.

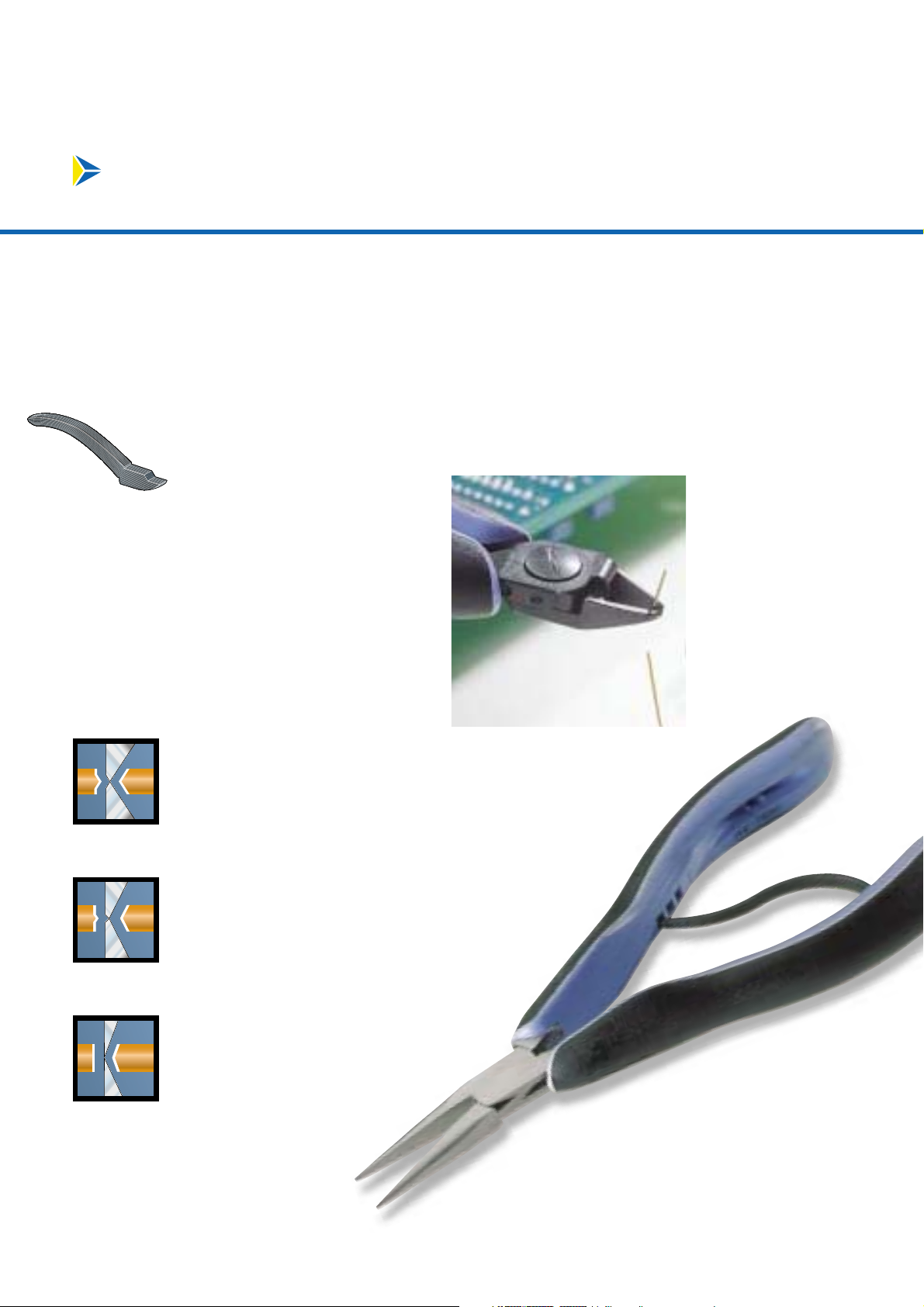

Almost all Rx and 80-Series cutters can be equipped with a lead-catcher. See page 102 for more on lead-catchers.

Page 20

HANDTOOL APPLICATIONS AND TECHNOLOGY WWW.LINDSTROMTOOLS.COM

Pliers

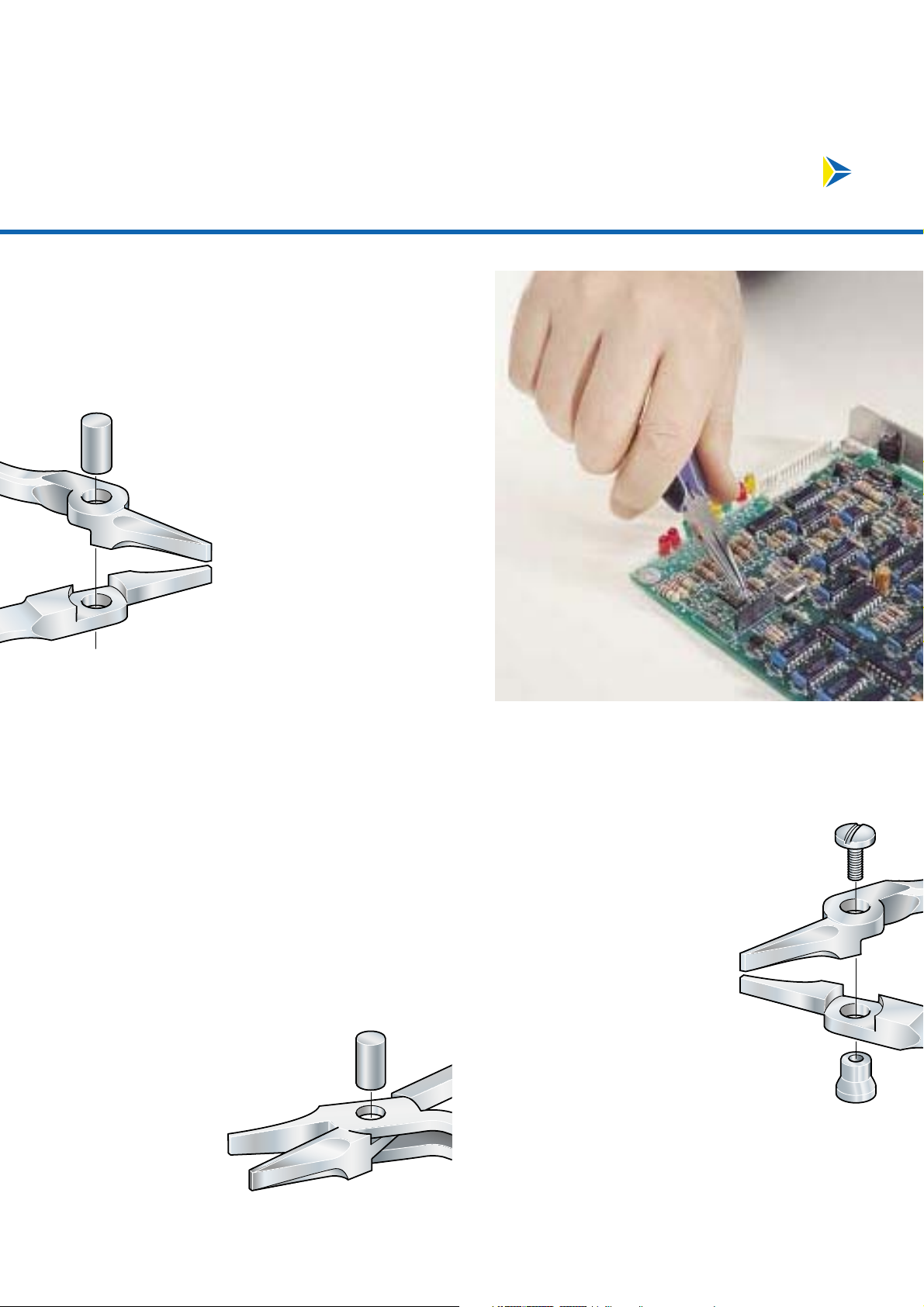

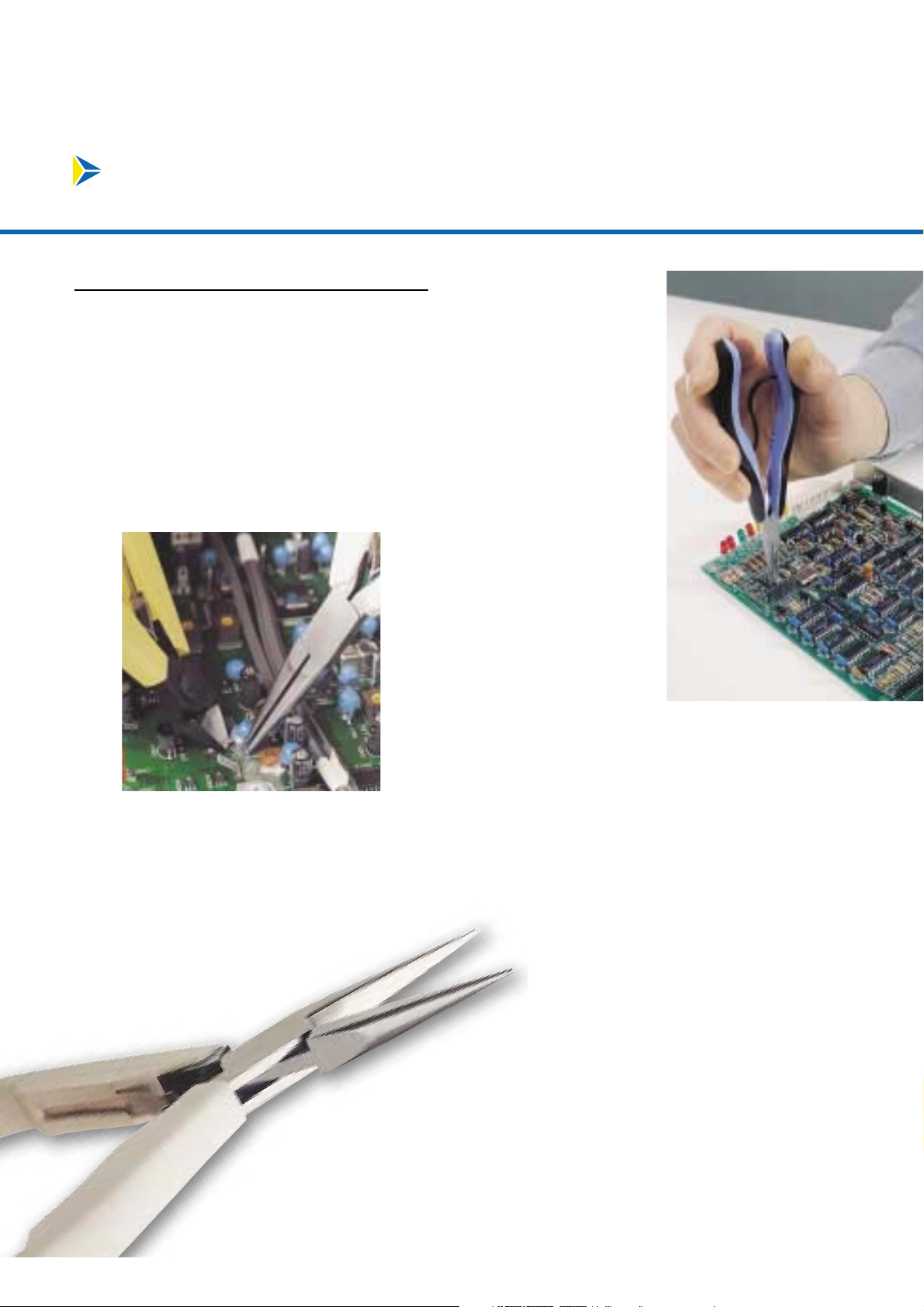

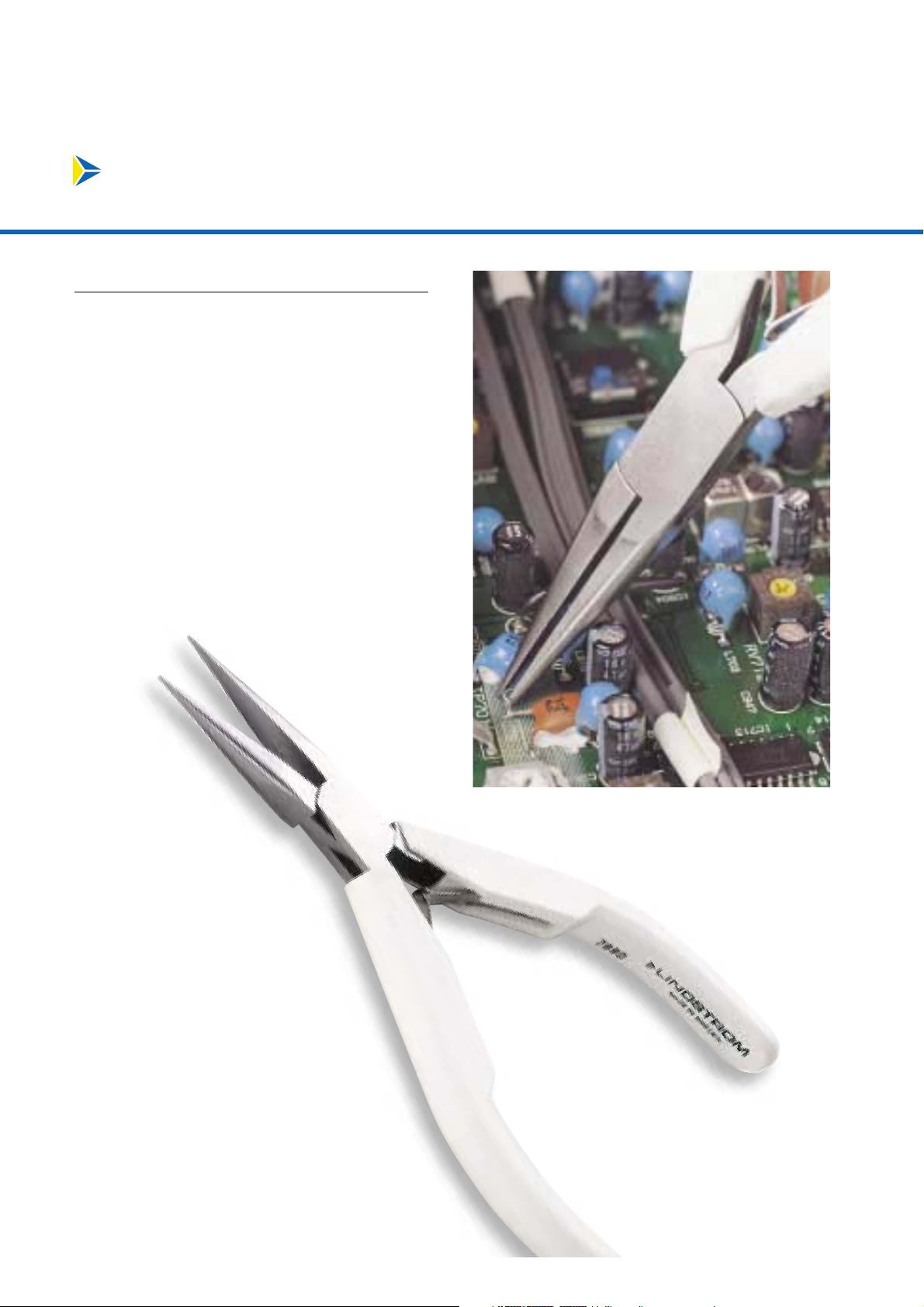

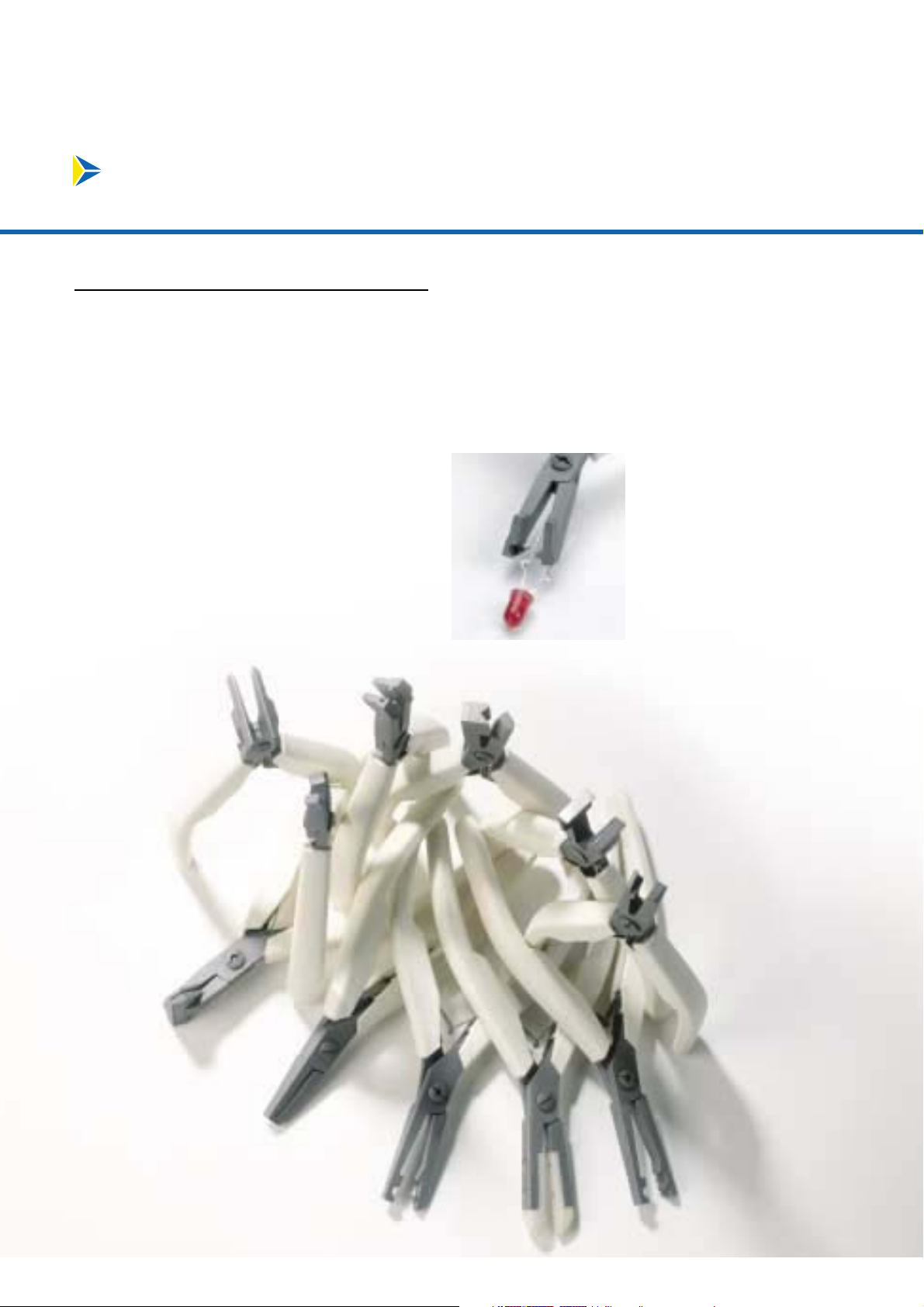

P LIERS

EXTENSIONS OF THE HAND

Holding pliers are used on the toughest, most forceful applications – from removing plate steel retaining pins on an oil derrick to the most sensitive and sterile of environments such as surgery. This is because pliers represent the functional expression of replicating and increasing the capabilities of the human hand across many dimensions, particularly of the thumb and adjoining finger, in terms of force and precision.

That is why holding pliers are available today in an almost limitless number of shapes, styles, configurations, materials and sizes.

PLIER EVALUATION

Evaluating pliers in an objective manner is not a straightforward task. Cutters, for example, can be put on a machine or on the assembly line, and capacity or number of cuts can be tested with some degree of confidence.

Holding pliers are not

so easily tested in an objective way – again, because of the almost limitless way in which they are configured and used and also because of their often very long service life.

The forces at work on

pliers are also different from cutters. In a cutter, force and wear act on the joint in primarily a single plane, and the overall concern is the precision with which the joint keeps the edges in alignment together with the performance of the cutting edges and jaws when subject to the impact and wear of continuous cutting. By comparison, the joint in a holding plier

must be able to withstand the very high and

often simultaneous force of multiple plane

actions such as holding and twisting in

combination with pushing or pulling.

In addition, in most applications

actual wear on the plier jaws is somewhat

secondary to the concern with the ultimate strength and resistance to breakage of the jaws with maximum force applied. Therefore, holding plier performance and capability tend to be strongly influenced by the type and quality

The 8140 cutter and 7891 holding plier combine capabilities in some electronic “surgery.” See page 50 for more on 8140 and page 58 for more on 7891.

The Rx7890 in an inverted grip is used to straighten a connector pin. See page 48 for more on Rx7890.

Page 21

This condition often is prevalent in other types of pliers and becomes especially obvious as the tool begins to wear and the joint loosens.

The construction of the Lindstrom box joint is of special consideration because it features a unique design and construction. This design allows the slot in the joint to remain undisturbed and thus undistorted when the two halves of the tool are assembled. This results in a joint of greater precision and smoothness, thus ensuring long life with minimal wear.

HANDTOOL APPLICATIONS AND TECHNOLOGY

Pliers

WWW.LINDSTROMTOOLS.COM

of construction of the pivot joint used. The consideration of the positives and negatives of each of these constructions can be somewhat different than for cutters. The key is to take these considerations into account together with your intended application and frequency of use so that you

can make an informed, cost-effective decision.

LAP JOINT WITH RIVET

The most common joint used in pliers is the lap

joint with rivet. This is due to the cost and

performance of such a construction

being suitable for many generalpurpose tasks. However, lap joint

with rivet pliers have a tendency

towards a number of problems in

assembly tasks where the overall tool itself

cannot be made big enough to compensate for

the possible weaknesses of this joint. Specifically, the jaws have a tendency to roll over when lead forming, and “play” due to wear can be rapid.

Therefore, although lap joint with rivet pliers often have the lowest price, this joint tends not to have the life or the performance capability often required of small pliers for intricate forming. If the operator is using a larger, medium- to heavy-duty plier, the lap joint with rivet will often suffice as the joint and plier itself are now large enough to offset the joint wear and flex issues present in smaller pliers.

BOX JOINT

AND LAP JOINT WITH SCREW

Lindstrom technical analysis has found that the box joint plier or lap joint with screw serves assembly industries best. These allow the plier to retain rigidity, maintaining the correct alignment of the jaws, and preventing “jaw roll” when forming.

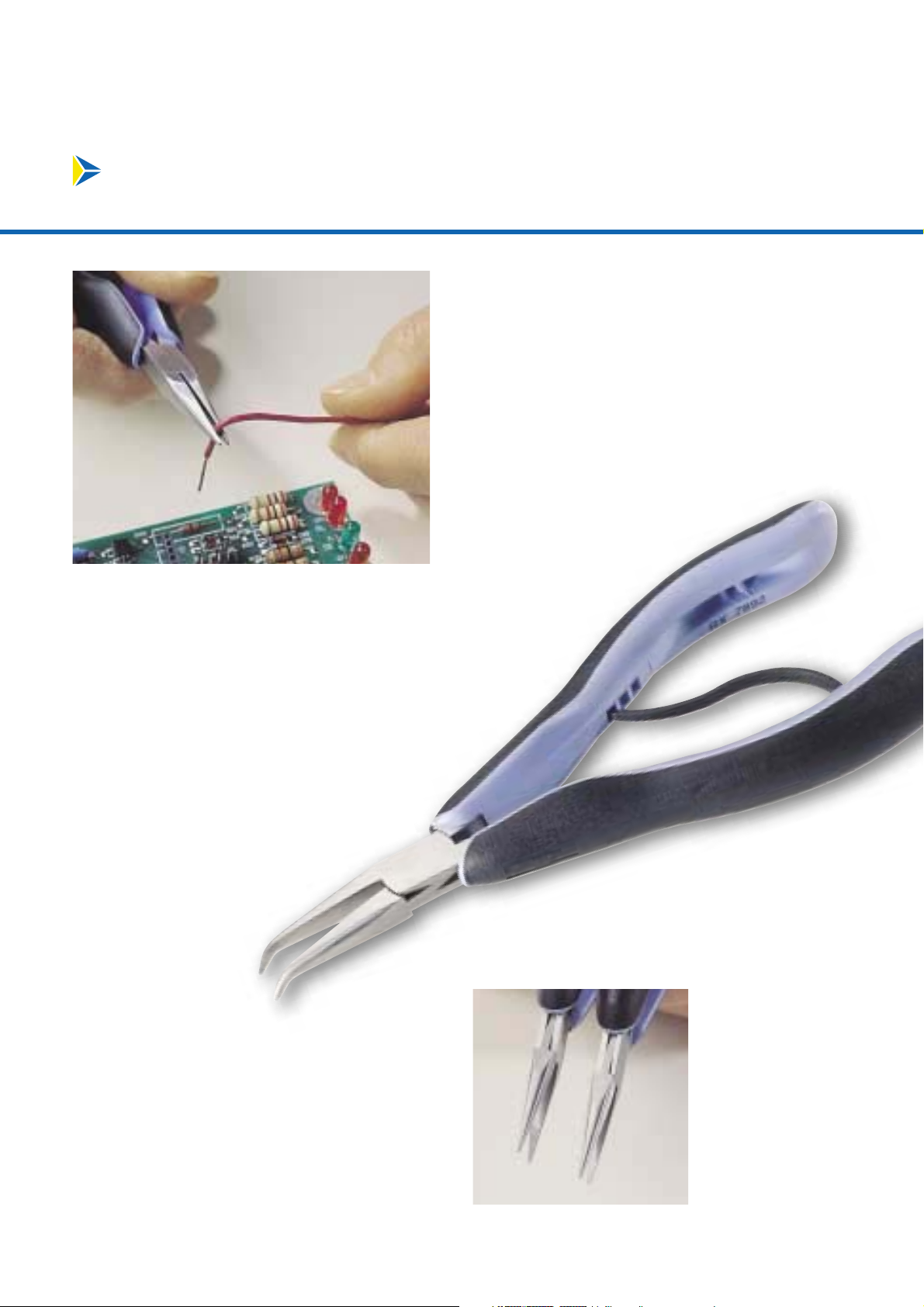

Bent nose Rx7892 allows operator to use an over-hand grip and side access to connector pin and can provide visibility advantages in other applications as well. See page 49 for more on Rx7892.

Page 22

HANDTOOL APPLICATIONS AND TECHNOLOGY WWW.LINDSTROMTOOLS.COM

Pliers

The rigidity of the box joint utilized by Lindstrom allows the plier to be configured with a longer jaw and greater taper. This is advantageous for a number of reasons, some of which are obvious – some of which are not. The longer jaw, in combination with the rigid box joint, allows greater accessibility of work without the concern of “jaw roll.”

Equally important but not so obvious is the opportunity to reduce the number of pliers needed on the workbench. For example, if you are using a lap joint with rivet pliers, separate small needle nose or chain nose pliers may be required for very fine work. Otherwise,

you will have the rolling action common to most lap joint with rivet pliers. However, the greater taper allowed by the rigid Lindstrom box joint plier means that the actual tip of the plier can be much smaller than other types of pliers, relative to the jaw length. This slope greatly increases the range of diameters possible when lead forming. As a consequence, you can utilize fewer tools for more applications. The trade-off once again is the price consideration since the box joint or lap joint with screw pliers are usually priced higher than plain lap joint with rivet types. However, in view of the greater utility of a Lindstrom box joint plier, the ultimate cost is often less.

The Rx7890 with a gentle side bevel and strong tips can be used for almost any type of bending and forming. See page 48 for more on Rx7890.

The Rx7891 (left) with serrations adds additional gripping friction when required. Rx7890 (right) has smooth jaws for reduced possibility to scratch surfaces. See page 48 for more on Rx7890 and Rx7891.

Page 23

HANDTOOL APPLICATIONS AND TECHNOLOGY

Tweezers

WWW.LINDSTROMTOOLS.COM

T WEEZERS

Throughout the evolution of tweezers as a range,

some tweezer styles such as 1, 2, 3C, 5, AA, etc.,

have remained as identical in design and as popular

in usage as in the past. However, even though many

tweezer styles carry generic designations, there are

variances within each style, depending on the origin.

Once the style is determined, special attention should

be given to four important criteria:

1. How are the tweezer tips finished?

2. How symmetrical are the two sides?

3. How delicate do they feel?

4. How easily do they handle small parts?

MATERIALS

Once these factors are determined, then the next step is to decide what tweezer material is to be used. A wide variety of materials are available: Carbon, stainless, special stainless materials, nickel plating, nickel-content, and even beryllium and titanium. However, for use in most assembly or repair situations, three primary types will suffice: carbon, stainless, and special stainless steel.

MATERIAL DESIGNATION

Standardized suffix letters designate materials. These designations are listed below with the consideration for each material.

CARBON STEEL

Carbon steel has strong, flame-hardened tips, but has low rust resistance and can develop a high level of magnetism. If the tweezer is made of Carbon steel, there will be no suffix letter. (Example: “3.”)

STAINLESS STEEL

Stainless steel is rust-resistant with reasonably strong tips, but with less hardness and shorter life than carbon. In time, however, they are susceptible to rust and magnetism (care and use factors notwithstanding.)

If the tweezer is made of stainless steel, the tweezer will be designated with the suffix letter “S.” (Example: “3-S.”)

Lindstrom “reverse action” (squeeze to release) TL 29D-SA tweezer allows perfect handling and placement of IC’s. See page 75 for more on TL 29D-SA.

Page 24

HANDTOOL APPLICATIONS AND TECHNOLOGY WWW.LINDSTROMTOOLS.COM

Tweezers

SPECIAL STAINLESS STEEL

This special stainless steel is 304/305 stainless steel which has excellent anti-acid (resistant to hydrofluoric and nitric acids), anti-magnetic, and rust-resistant properties. Its special properties make it the most popular material used today. If the tweezer is made of this steel, it will be labeled with the suffix “SA.” (Example: “3-SA.”)

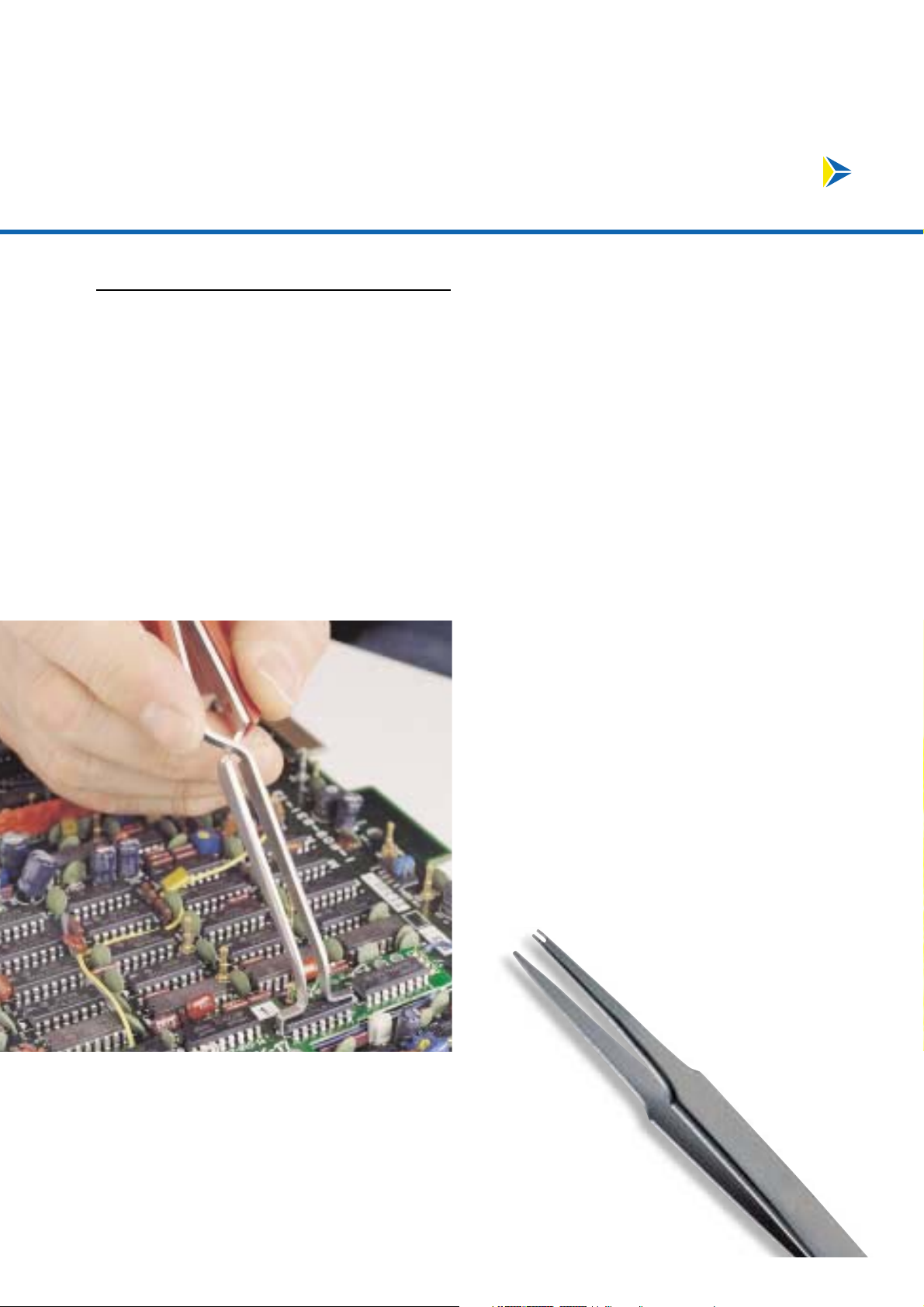

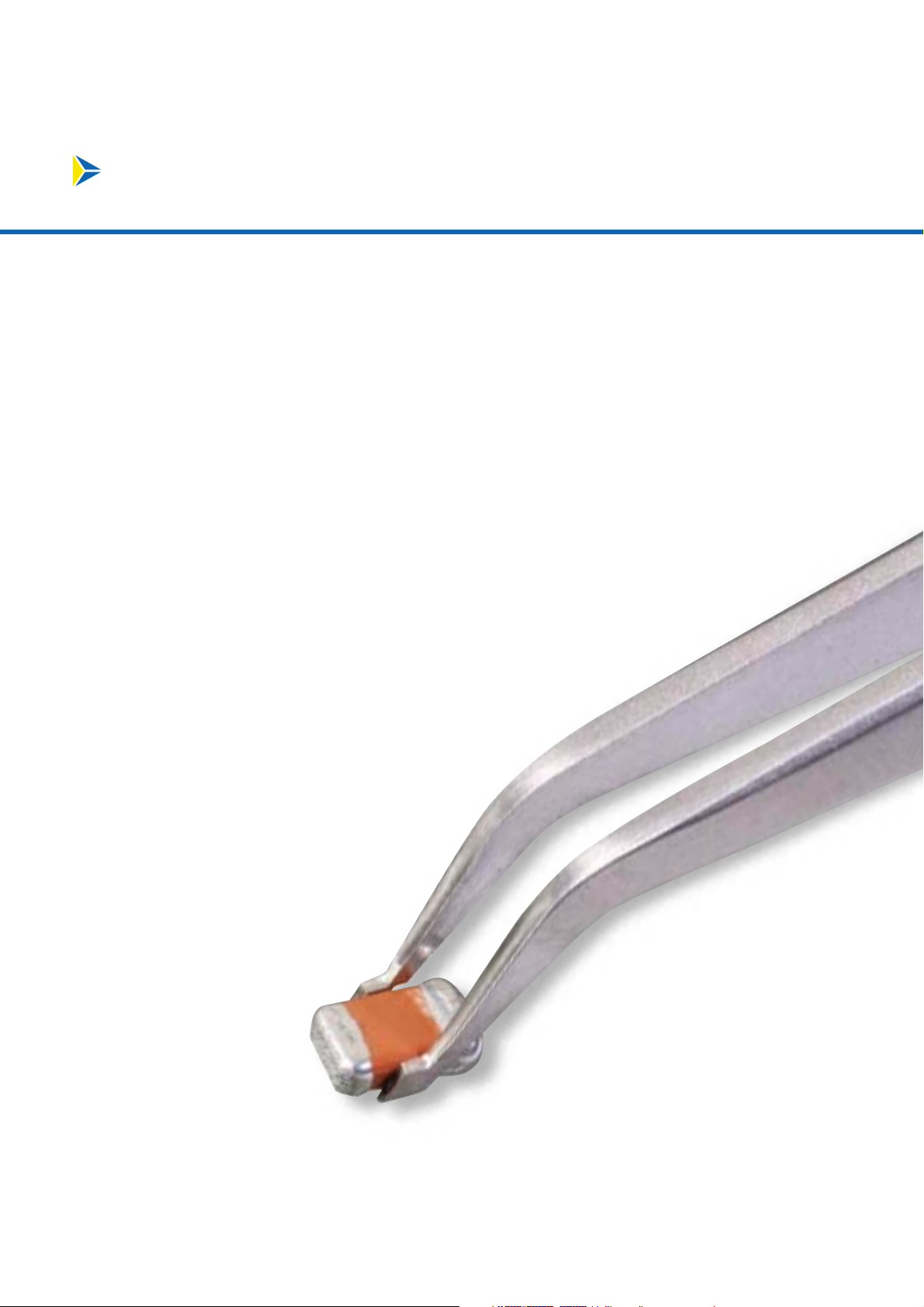

SMD HANDLING TWEEZERS

If SMDs are manipulated by hand, solderable surfaces can be contaminated and lead to faulty joints. Tweezers can alleviate this problem as well as make handling SMDs easier.

In many situations, tweezers are superior to other handling devices such as vacuum pick-ups. For example, in desoldering, tweezers give a firmer grip – especially when dealing with wave soldered components glued to a board. In positioning individual components, tweezers can give the operator better control of location and pressure.

Along with perfect tip alignment and gripping surfaces that fit the shape and size of the component, it is important that the tweezers' paddles or tips have smooth edges and be highly polished and totally free of burrs or marks. If not, then damage to the components or the board itself could result.

The tips should also be at an oblique angle in order to allow the operator the greatest visibility, which is especially important when working with fine pitch components.

The tweezers should have sufficient opening so that manual opening of the handles is not needed. (Reverse action tweezers excepted.)

Page 25

HANDTOOL APPLICATIONS AND TECHNOLOGY

Design

WWW.LINDSTROMTOOLS.COM

D ESIGN

ERGONOMICS

Professionals used to be satisfied with very durable steel tools. This emphasis on durability meant that almost all attention was focused on the composition of steel, the life of cutting edges, joints, etc. Thus, for many years, the design of high quality tools for professional use in industry has been technology driven, rather than operator oriented.

Today, users are more demanding in terms of function and comfort. As a matter of fact, a growing number of professional users now demand tools that meet the highest standards of performance and simultaneously reduce the risk of injury in the short and long term.

Page 26

HANDTOOL APPLICATIONS AND TECHNOLOGY WWW.LINDSTROMTOOLS.COM

Design

This demand is primarily due to two factors: First, the increased concern with safety at the workplace, particularly with regard to the frequent involvement of both repetitive motions and high force in many industrial tasks, often in combination with poor hand/arm posture caused by the inappropriate design of some traditional handtools. The costs for the use of inappropriate handtools, unsuitable work stations, and job routines will, of course, be shared among the individual operators, the company, and society in the form of direct medical expenses, work lost, reduced quality, training of workers, disruption of work, increased insurance and administrative costs.

Second, this demand reflects the recognition of

the importance of quality as well as output volume in many industrial tasks, and the need for tools which enhance not only user capabilities but which also offer the ability to give consistent, high performance results – day in and day out.

By introducing ergonomists and industrial

designers into the design process, additional focus is being placed upon industry and operator demands. Thus, the dynamics of tool use, operator preference and the size and shape of the handtool are now all design priorities.

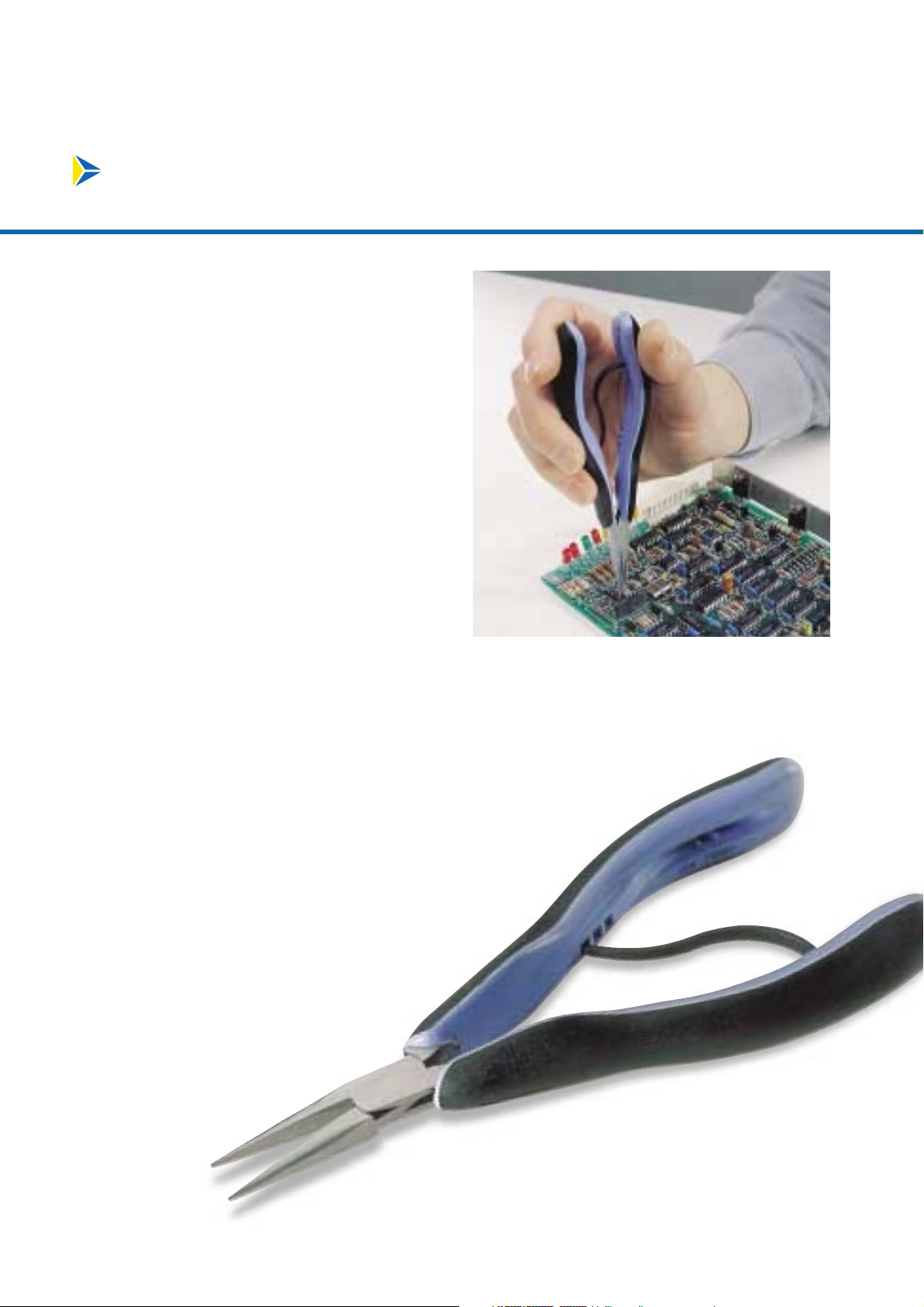

Lindstrom Rx7890 plier exemplifies state - of - the - art handtool design, function and performance. For more on Rx7890 see page 48.

Page 27

HANDTOOL APPLICATIONS AND TECHNOLOGY

Design

WWW.LINDSTROMTOOLS.COM

DESIGN PRIORITIES

A good handtool should reduce the risk of direct injury. It should:

•

not have any sharp edges on the handle.

•

minimize wear and tear on the skin.

•

reduce the risk of users' hands getting caught in tight spots.

•

reduce the risk of users' hands coming into contact with sharp edges.

•

be slip-resistant.

A good handtool should reduce the risk of long-term injury. It should:

•

have the optimal weight for its purpose.

•

have a grip that protects the user from hot and cold temperatures.

•

minimize the build-up of muscular tension during lengthy jobs.

•

have a large gripping surface that exerts low, even pressure across the hand.

•

deliver the greatest possible power with the least possible effort.

•

be perfectly balanced.

A good handtool should make the user's job easier. It should:

•

be the correct size and design for its purpose.

•

be able to be used in different positions.

•

be adjustable in many different positions.

•

be adjustable – even when wearing gloves.

•

be designed for use with either hand.

•

be easy to hold, with the right degree of friction against the skin.

•

be available in different sizes, suitable for different tasks.

•

tolerate lubricants and solvents.

GOOD HANDTOOLS

ARE NO ACCIDENT

As a consequence of the demands on modern handtools, good handtools are not developed by accident and are not created in isolation. They have to be developed in collaboration with working professionals, together with specialists in ergonomics and industrial design. Our handtools are good because we take the time to ponder and review the results of this collaboration. They are good because we do not rush. We create better tools by taking one step at a time.

The result? Quite simply, better handtools. We guarantee it. Tools that are:

•

Easier to use.

•

More comfortable to hold.

•

Significantly more functional.

•

Deliver more power.

•

Give the user a better sense of control.

•

Enable greater precision.

Take a look at the Lindstrom Rx cutters and pliers on page 42 and screwdrivers on page 90, for examples of our commitment to meeting your requirements.

Page 28

PRODUCT RANGES WWW.LINDSTROMTOOLS.COM

Rx Cutters and Pliers

R X

LINDSTROM RX

THE ULTIMATE IN PERFORMANCE,

PRECISION AND COMFORT

To be the leader in a competitive field takes dedication, hard work, and practice, which is exactly what Lindstrom has been doing since 1856 – perfecting the best handtools money can buy. For nearly 150 years, we have designed and refined the world's leading cutters and pliers. And in that time, we have learned what works, and what doesn't. But to fully comprehend what makes the Rx the very best, one should take a close look at the Rx and then compare all else on the market to it. The Rx will always come out on top.

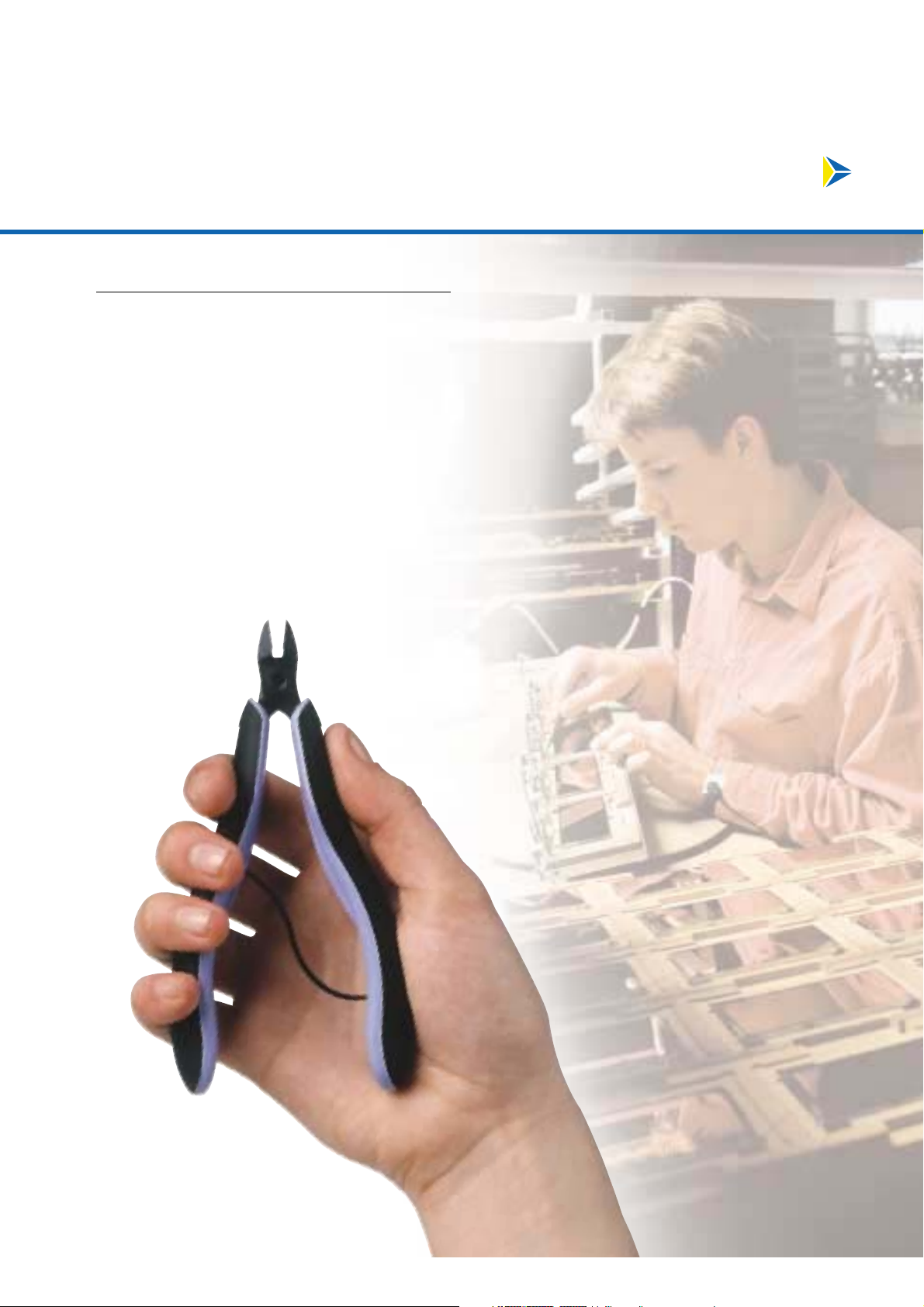

Micro-Touch™ is the shape that makes it possible to control and rotate the Rx between thumb and index finger for precision work.

TAKE A C LOSER L OOK

AT T HE R X

THE RX PROFILE

The profile of the Rx grip is slightly rounded and wide, creating excellent surface distribution and contact.

ESD-PROTECTION

The ESD-safe composition of our Rx grips combines resins with conductive additives to produce a material that safely dissipates electrostatic charges, reducing possibility of damage to sensitive components.

WARNING:

Rx grips are not insulated and therefore Rx cutters/pliers should never be

used on electrified equipment.

Page 29

PRODUCT RANGES

Rx Cutters and Pliers

WWW.LINDSTROMTOOLS.COM

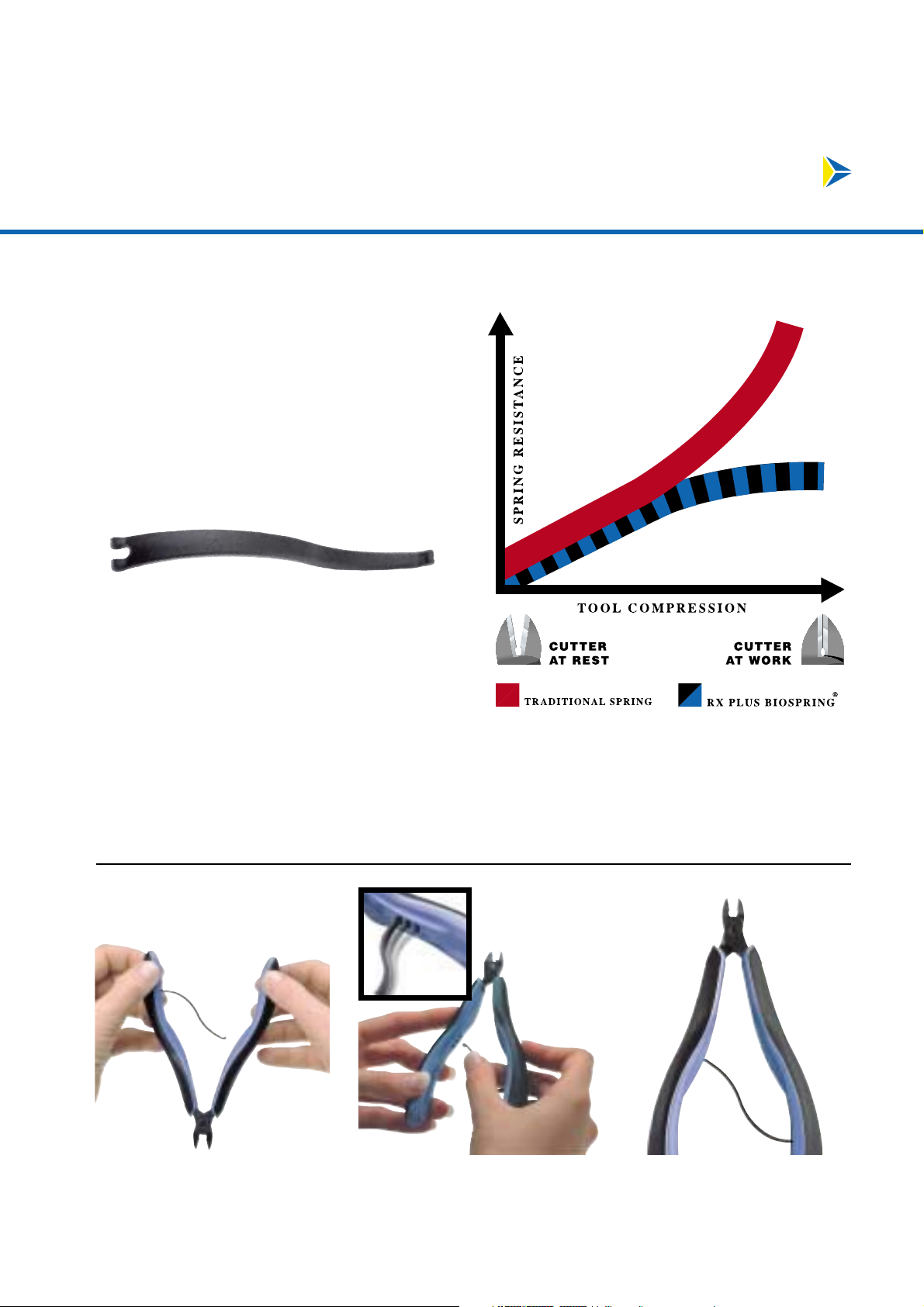

1. Pull the tool apart. 2. Place the spring in the desired port.

3. Close the tool.

B IOS PRING

Since it is the traditional nature of a return spring to provide greater resistance the more it is compressed, this has been a challenge for ergonomists whose goal is to make work easier and safer.

The solution lies in Lindstrom´s new, patent applied for, BioSpring

, a solution that is as simple as it is ingenious – where the material and design work together to provide new characteristics.

R X PLUS B IOS PRING

•

Tension is kept minimal and limited throughout the working cycle of the tool.

•

Handle width is controlled for ease of tool pick-up and handling.

•

Tension and opening width can be adjusted to suit your preference via three different ports.

•

Almost indestructible in normal use.

R X PLUS B IOS PRING

COMPARED WITH

TRADITIONAL SPRINGS

TO ADJUST RX

This graph clearly shows the benefit of reduced spring tension offered by the BioSpring

when compared to hand tools that

utilize traditional springs.

Page 30

PRODUCT RANGES WWW.LINDSTROMTOOLS.COM

Rx Cutters and Pliers

PRECISION SCREW JOINT

Adjustable screw joint minimizes friction and maximizes alignment of cutting edges.

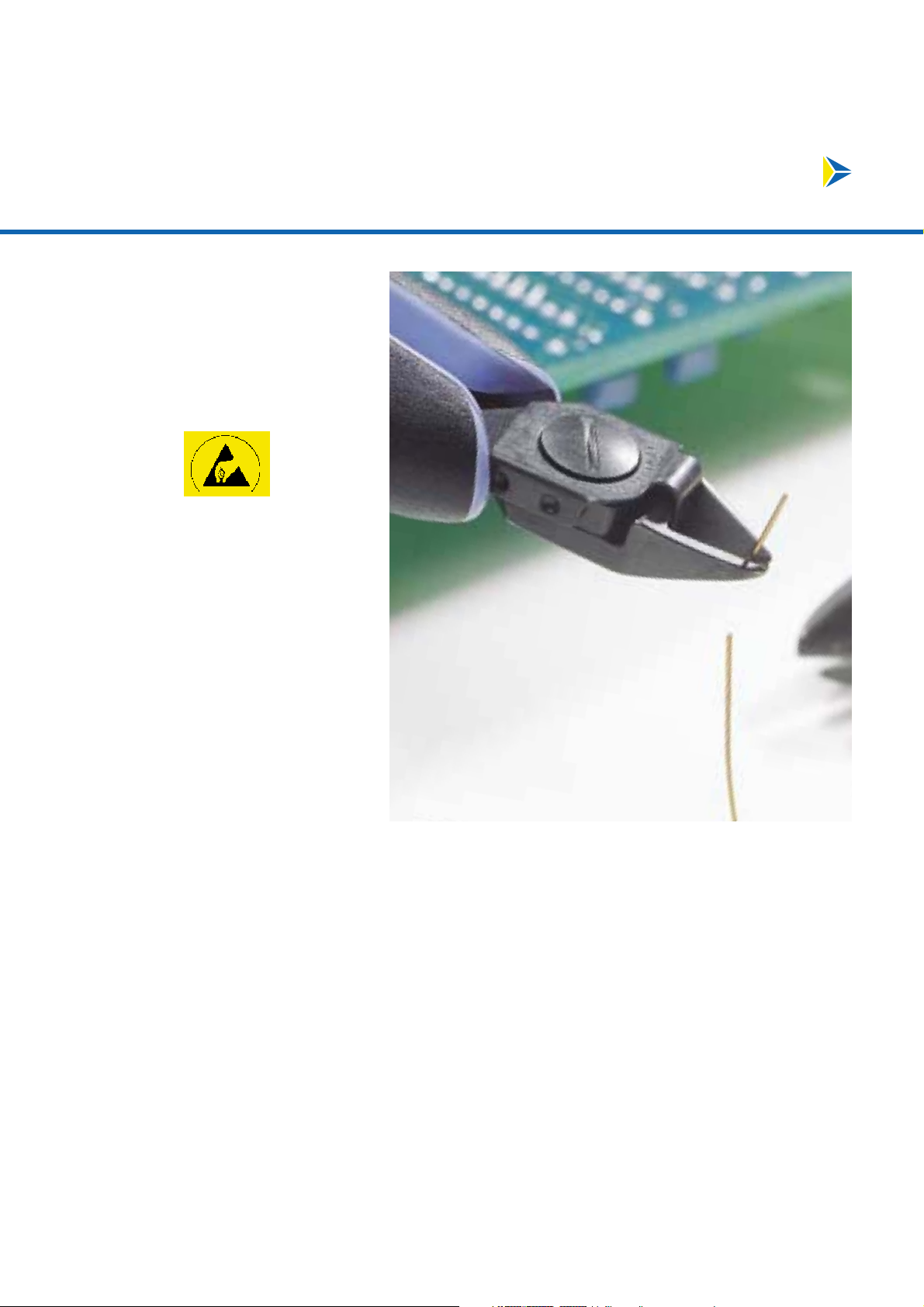

LEAD-CATCHERS

Lindstrom's patented lead-catcher is an accessory that stops just-cut ends of wire from falling into critical or sensitive areas, which could result in a short circuit or contamination. Almost all Rx cutters

can be factory equipped with a leadcatcher. Just add “S” to the tool part number. Ex. Rx 8140-S.

1% CARBON/CHROME BALL BEARING

GRADE STEEL

Material usually reserved for high stress applications provides incredible impact resistance and resiliency with smoother, cleaner penetration at the cutting edge.

FORGED COMPONENTS

Grain structure follows profile of the

blank to maximize tool strength.

CNC GRINDING OF FORGED BLANKS

Computer controlled grinding guarantees edge angle accuracy and contact which increases tool reliability and consistency.

63-65 HRC ON CUTTING EDGES

Precision induction hardening of 1% Carbon/Chrome Ball Bearing Grade Steel allows high Rockwell hardness without brittleness, resulting in a longer lasting tool.

MICRO-BEVEL

Micro-Bevel cutters leave a minimal rise on cut leads resulting in a smaller overall surface soldering area.

FLUSH

Lindstrom flush cutters leave an even narrower and shorter rise on cut leads then the Micro-Bevel in order to meet a tighter specification for the cut lead-end or to achieve a more flush result to a board, component or part.

ULTRA-FLUSH

The unique Ultra-Flush cutters leave a flat surface on cut leads, which is considered to be the ultimate in conformance to tough soldering and mechanical shock specifications.

MICRO-BEVEL

FLUSH

ULTRA-FLUSH

Page 31

PRODUCT RANGES

80-Series Cutters

WWW.LINDSTROMTOOLS.COM

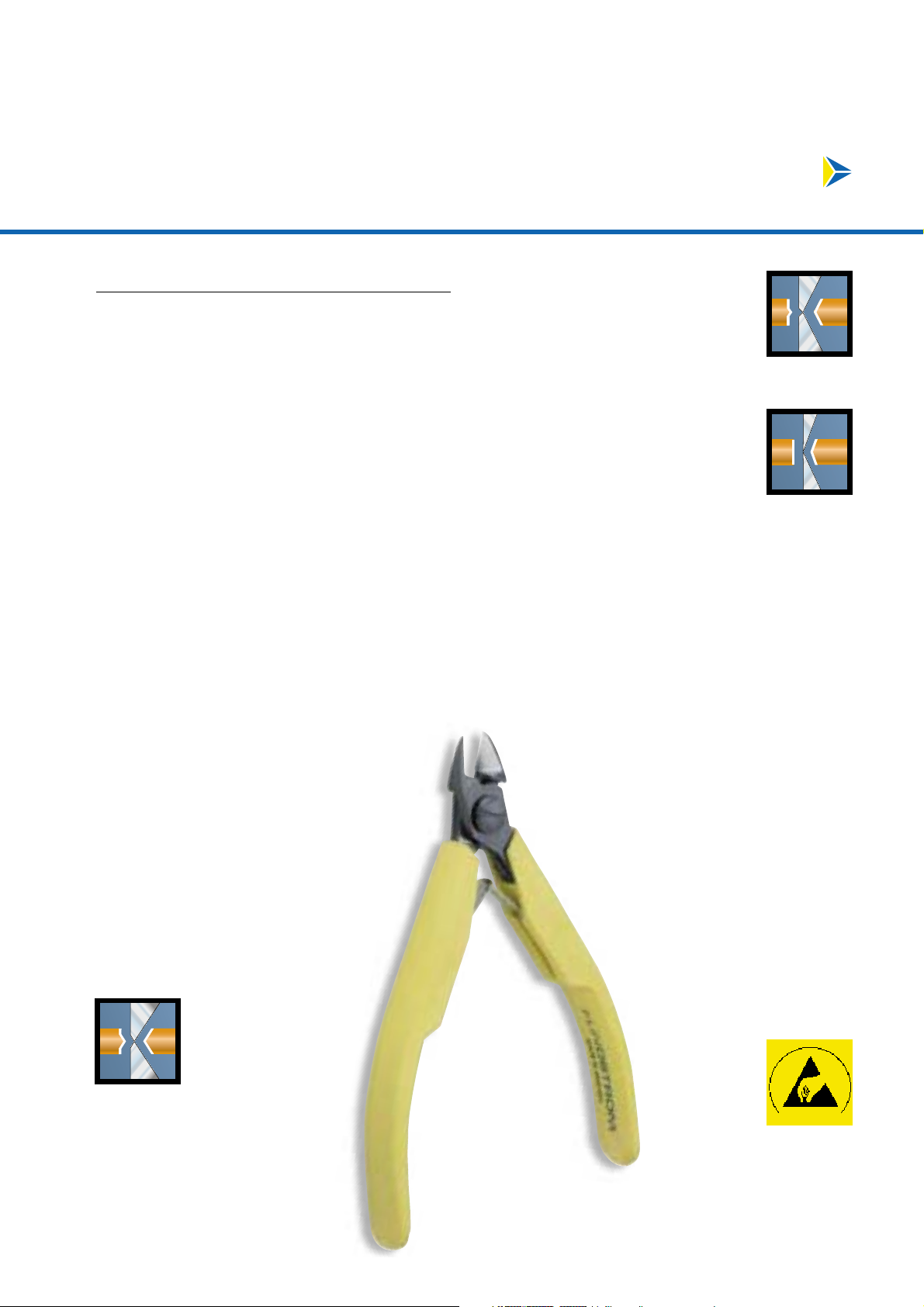

80-SERIES

LINDSTROM 80-SERIES

TRIED AND TRUE PERFORMANCE

FOR THE TRADITIONAL USER

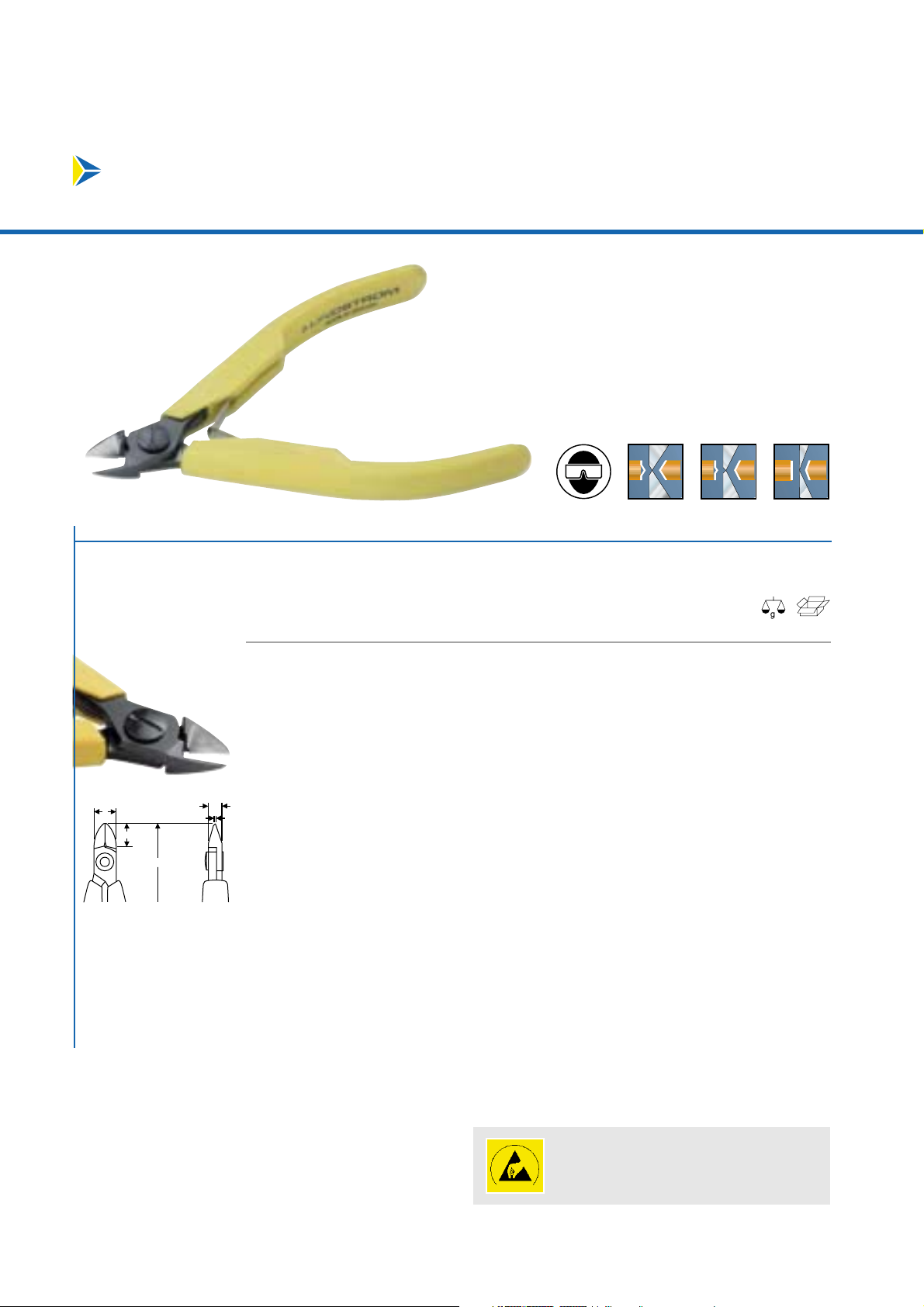

Surpassed only by our own Lindstrom Rx range, the Lindstrom 80-Series remains the top choice for the traditional user. This range of cutters offers unsurpassed cutting capacity covering a wide range of wire dimensions and types. The reasons are:

1% CARBON/CHROME BALL BEARING

GRADE STEEL

Material usually reserved for high stress applications provides incredible impact resistance and resiliency with smoother, cleaner penetration at the cutting edge.

FORGED COMPONENTS

Grain structure follows profile of the blank to maximize tool strength.

CNC GRINDING OF

FORGED BLANKS

Computer controlled machine grinding guarantees edge angle accuracy and contact which increases tool reliability and consistency.

63-65 HRC ON CUTTING EDGES

Precision induction hardening of 1% Carbon/Chrome Ball Bearing Steel allows high Rockwell hardness without brittleness resulting in a longer lasting tool.

MICRO-BEVEL

Micro-Bevel cutters leave a minimal rise on cut leads resulting in a smaller overall surface soldering area.

FLUSH

ULTRA-FLUSH

The unique Ultra-Flush cutters leave a flat surface on cut leads, which is considered to be the ultimate in conformance to tough soldering and mechanical shock specifications.

PRECISION SCREW JOINT

Adjustable screw joint minimizes friction and maximizes alignment of cutting edges.

REPLACEABLE SPRINGS

Due to the long life of 80-Series tools, replaceable

springs help reduce down time and stocking of

substitute tools.

LEAD-CATCHERS

These patented 80-Series accessories hold cut

wires, preventing injury and keeping leads

from flying into the assembly . Almost all 80-

Series cutters can be factory equipped with

a lead-catcher. Just add “S” to the

tool

part number. Ex. 8140-S.

ESD PROTECTION

All 80-Series cutters can be

equipped with DS or CO handles

to meet specialized ESD

requirements.

WARNING:

80-Series

grips are not insulated and

therefore 80-Series cutters

should never be used on

electrified equipment.

MICRO-BEVEL

FLUSH

ULTRA-FLUSH

Page 32

PRODUCT RANGES WWW.LINDSTROMTOOLS.COM

Supreme Cutters and Pliers

S UPREME

LINDSTROM SUPREME

GOOD PERFORMANCE FOR THE

TRADITIONAL USER

Good performing cutters and pliers for general electronics work, repair and fine mechanical work.

Most of the cutters and pliers in the Supreme

series have a specially made box joint with extra long contact surfaces, made possible by a special manufacturing technique. Undesirable joint movement is held to a minimum, ensuring extremely precise alignment of the jaws, even at the extreme tip.

Page 33

PRODUCT RANGES

Multi-Purpose Shear

WWW.LINDSTROMTOOLS.COM

L INDSTROM M ULTI-PURPOSE S HEAR

UNIQUE PERFORMANCE

IN DEMANDING TELECOM AND

ELECTRONICS APPLICATIONS

As the number of special telecom applications grows, there is an increasing need for cutters that can handle demanding insulation materials such as the Kevlar elements used in fiber optic and other types of cables.

The HS6000 shear is designed to meet these needs with ease. With a durable, precision screw joint and high carbon 57-59 HRc steel blades serrated on one edge, it cuts easily and precisely without letting the material being cut slide away.

Designed to combine ease of use with durability and precision, the HS6000 fits comfortably in either hand while its cushioned ESD-safe nonslip grips provide a secure grasp. Ideal for cutting insulation, cables, ties and all types of corded materials, the HS6000 is a true multi-purpose shear.

ESD-safe.

Page 34

PRODUCT RANGES WWW.LINDSTROMTOOLS.COM

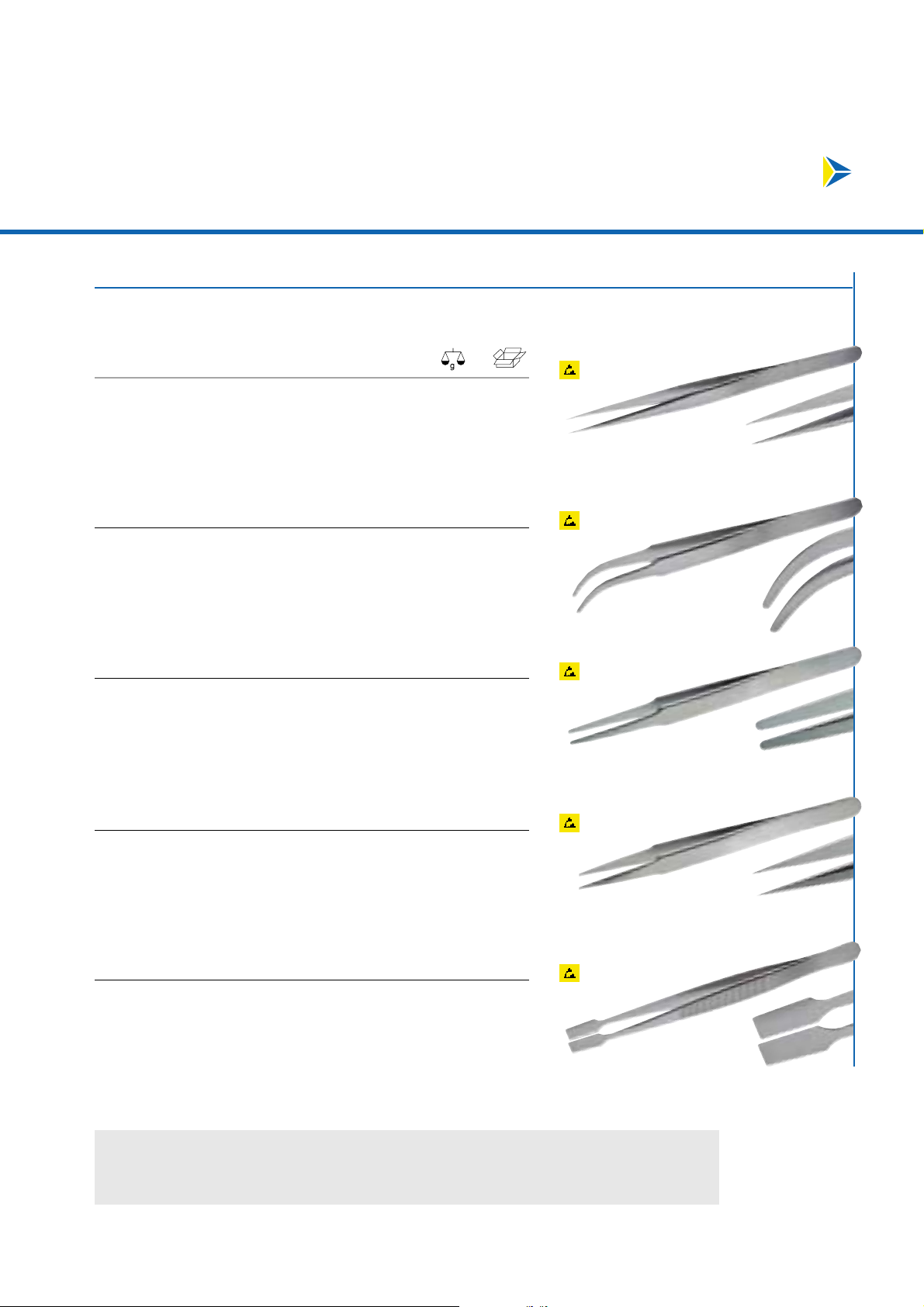

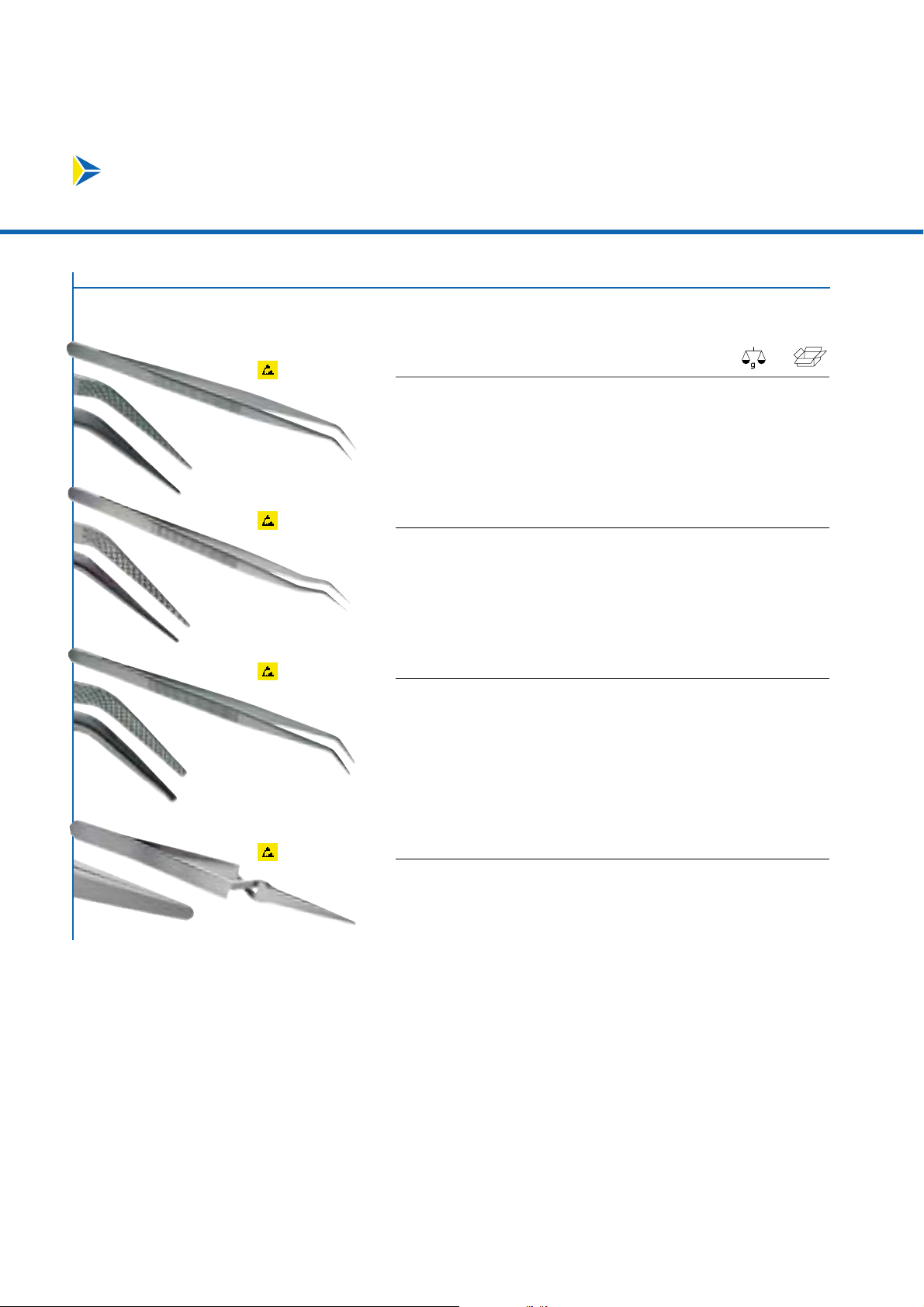

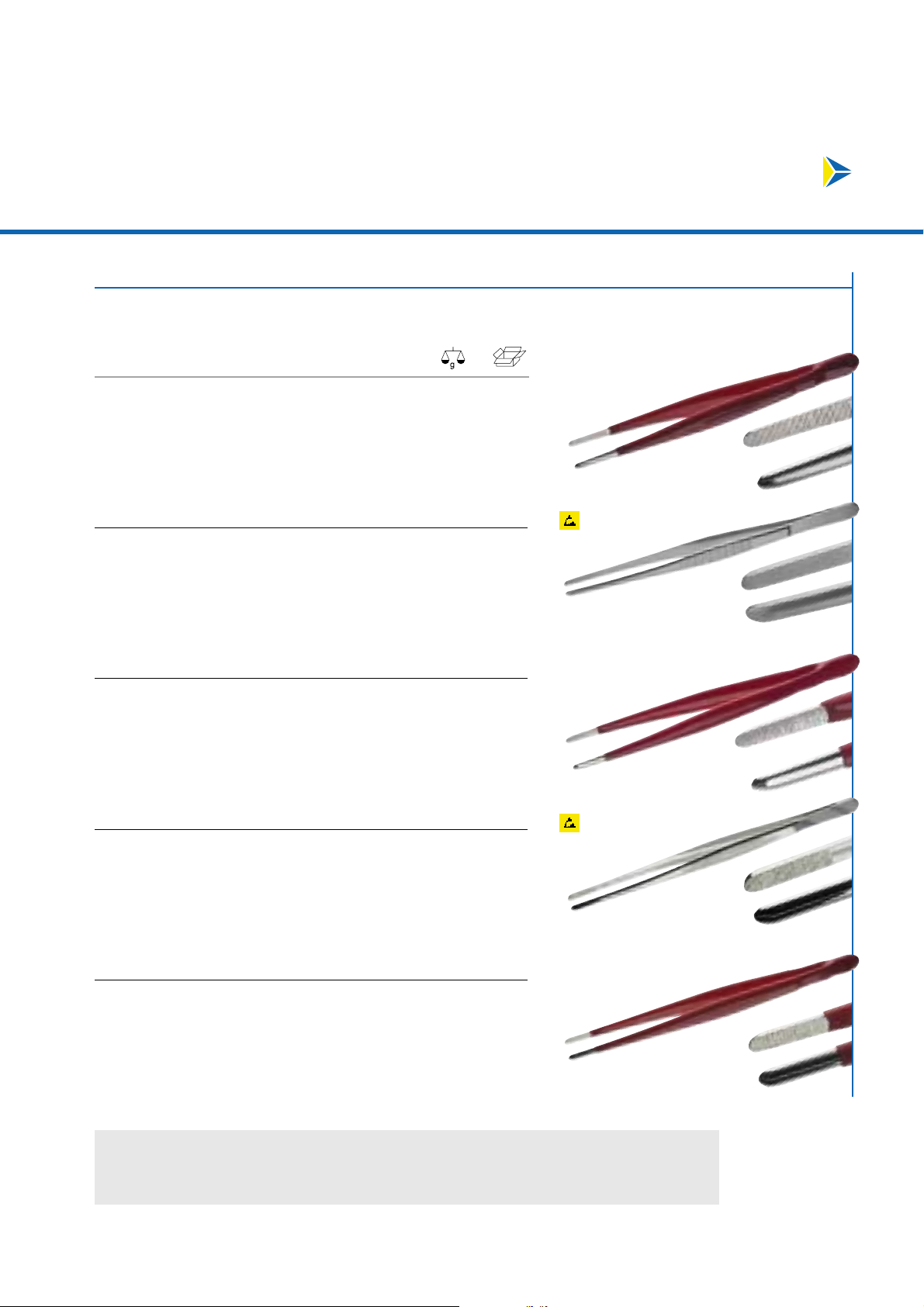

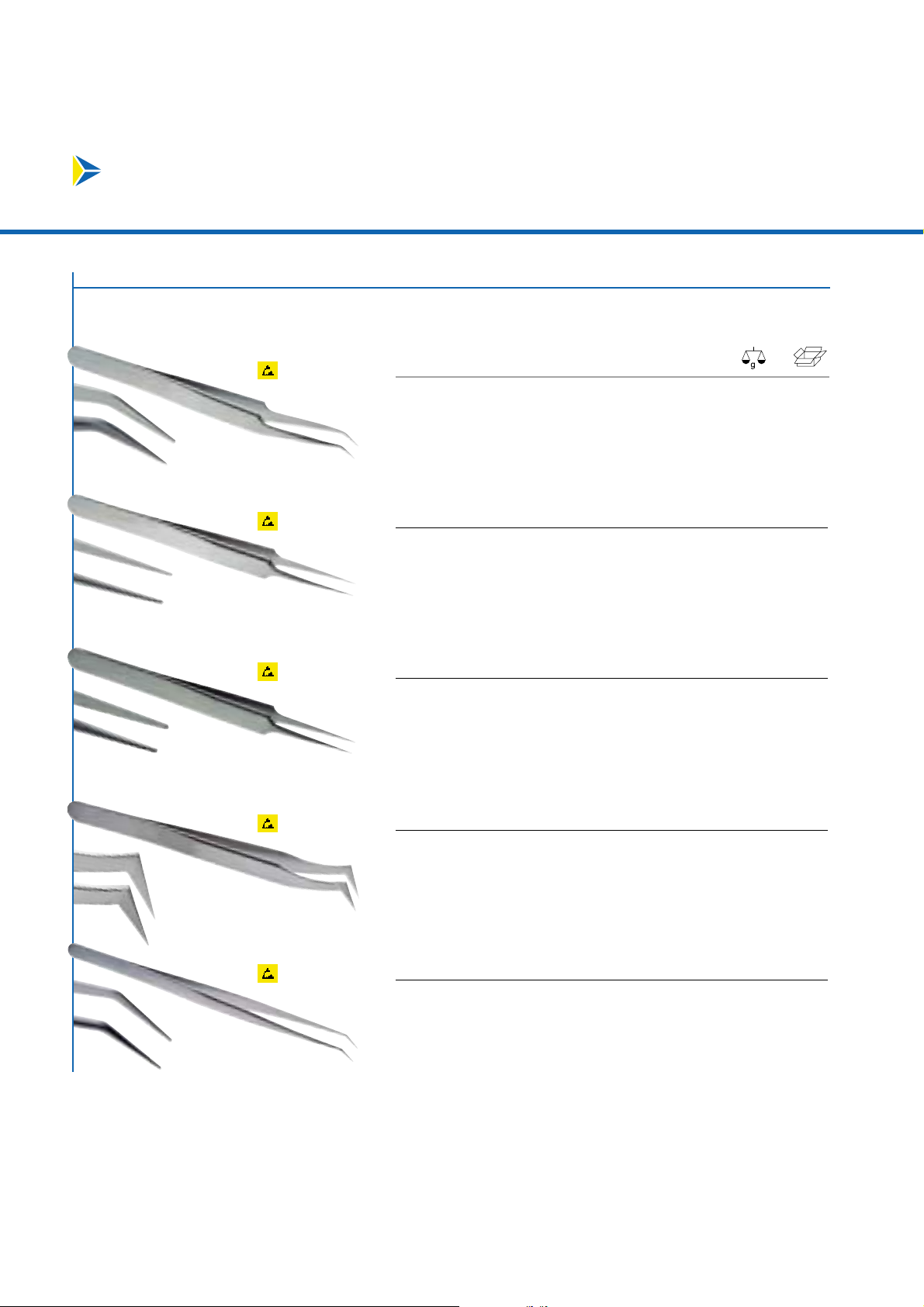

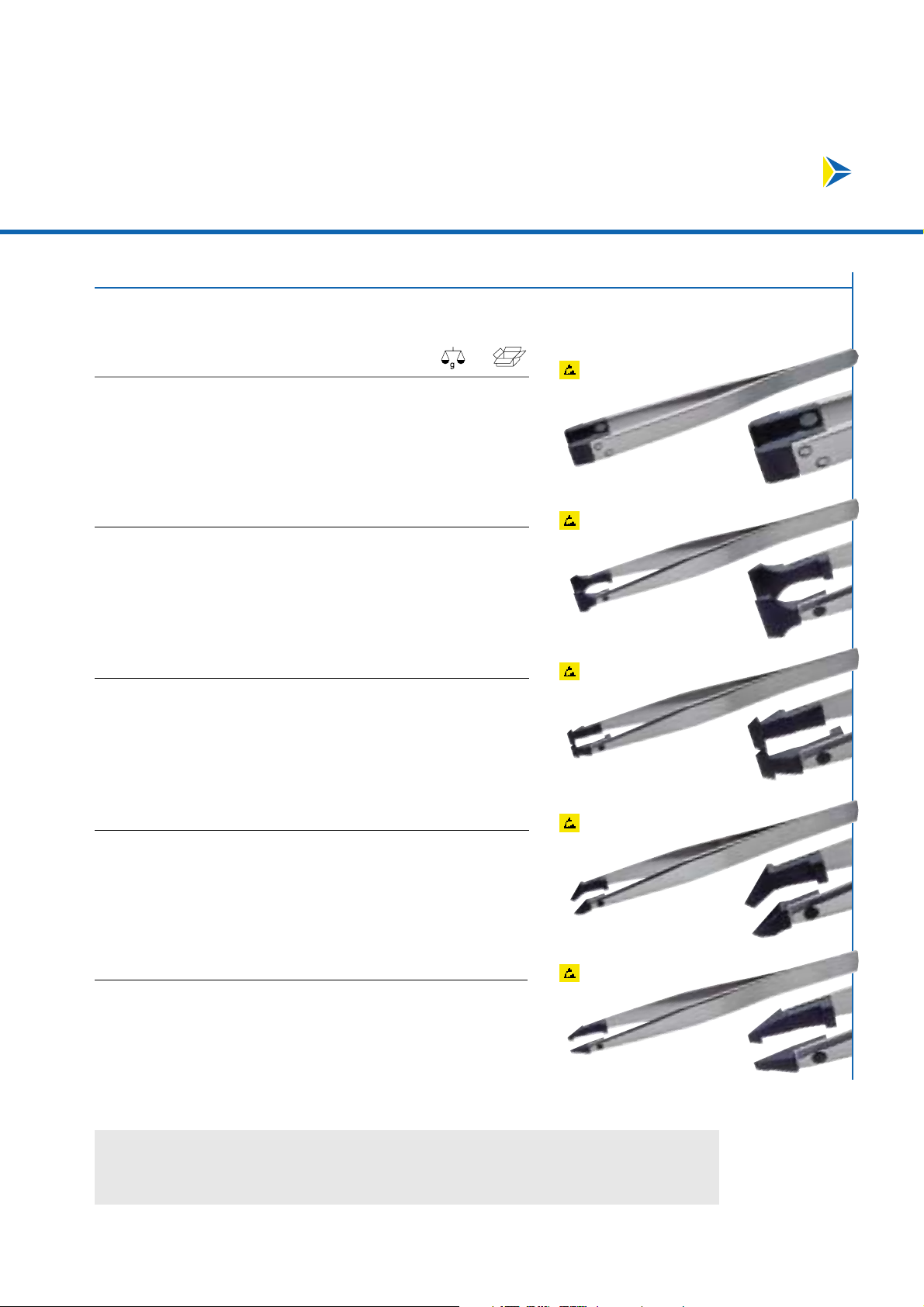

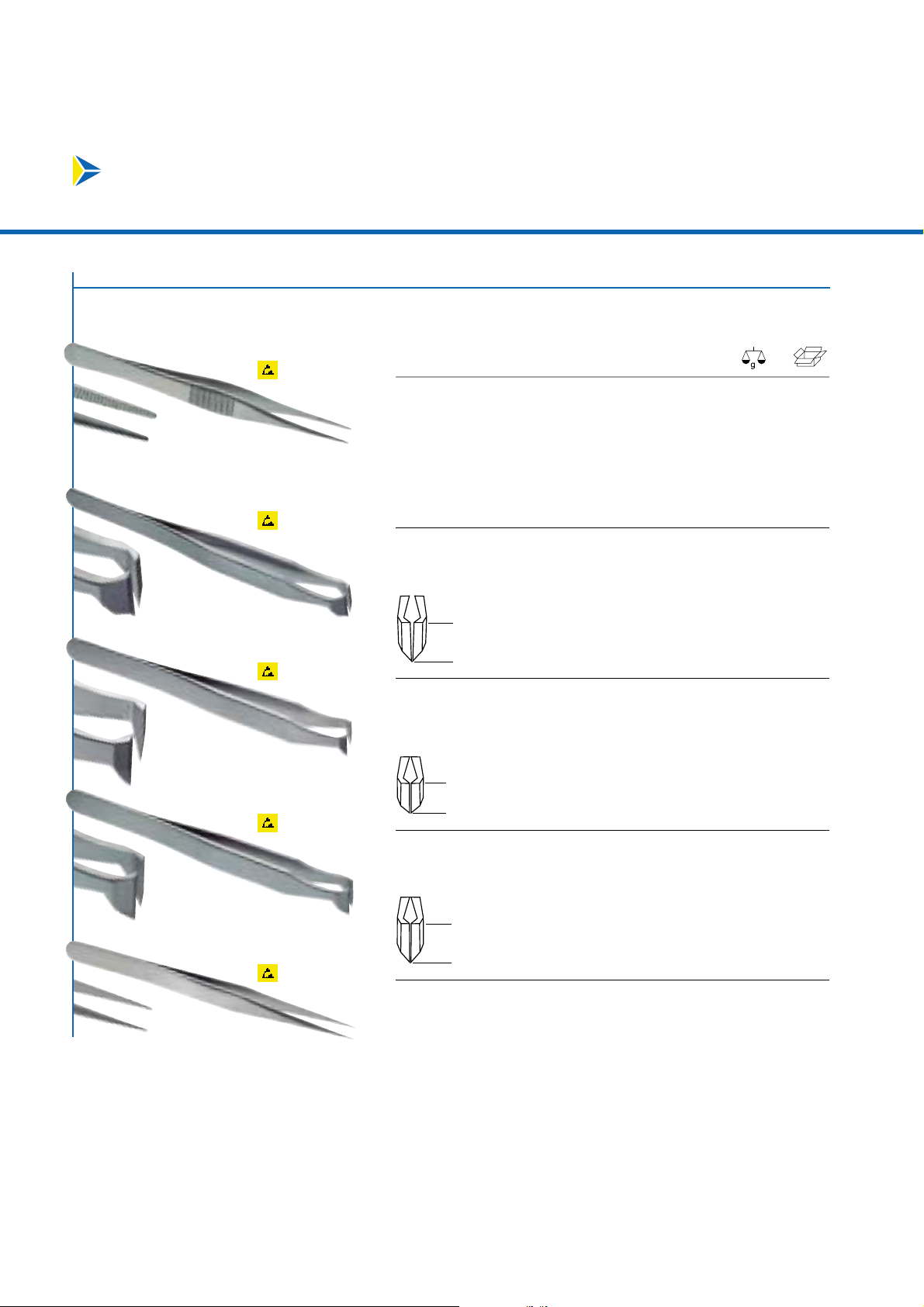

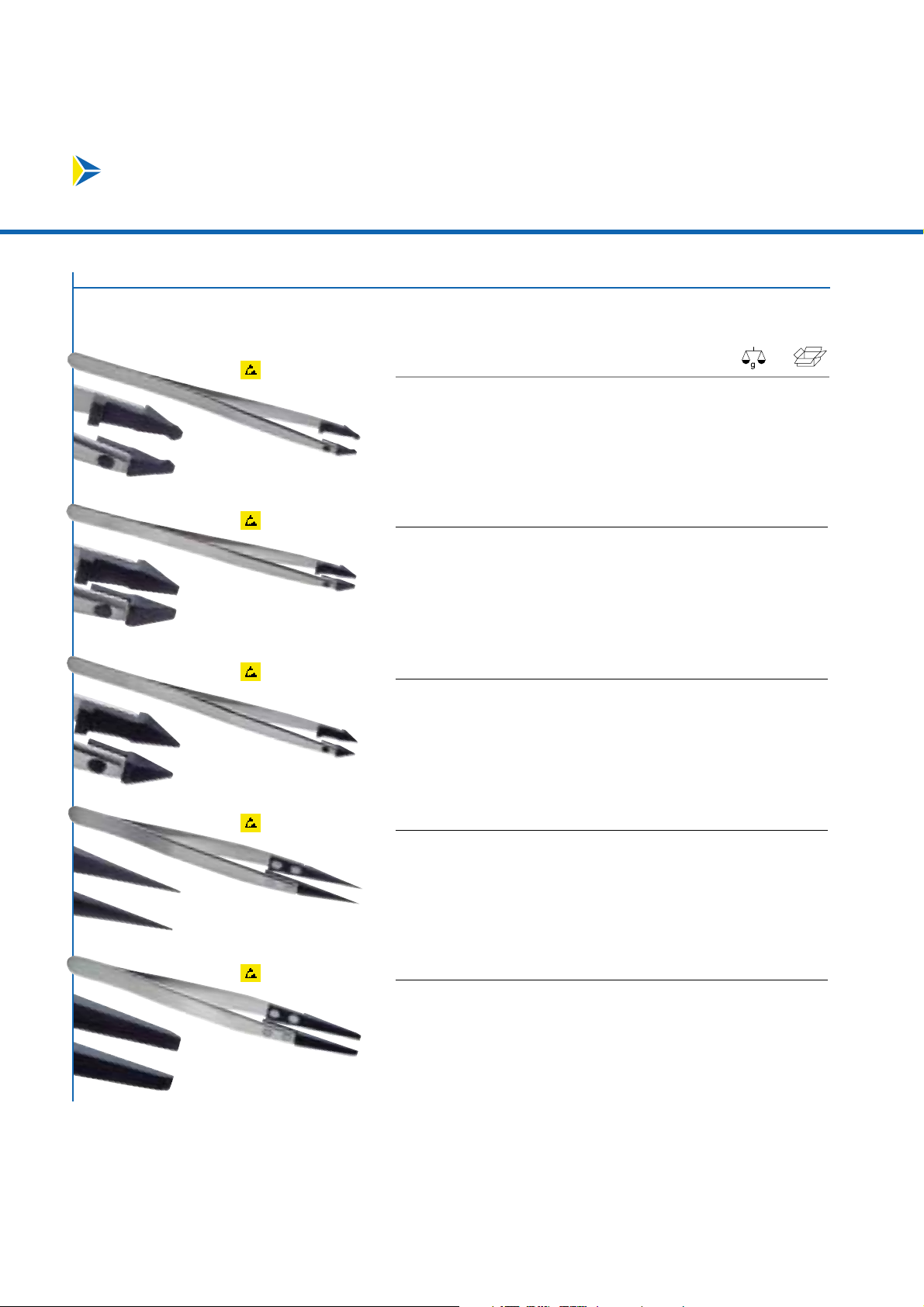

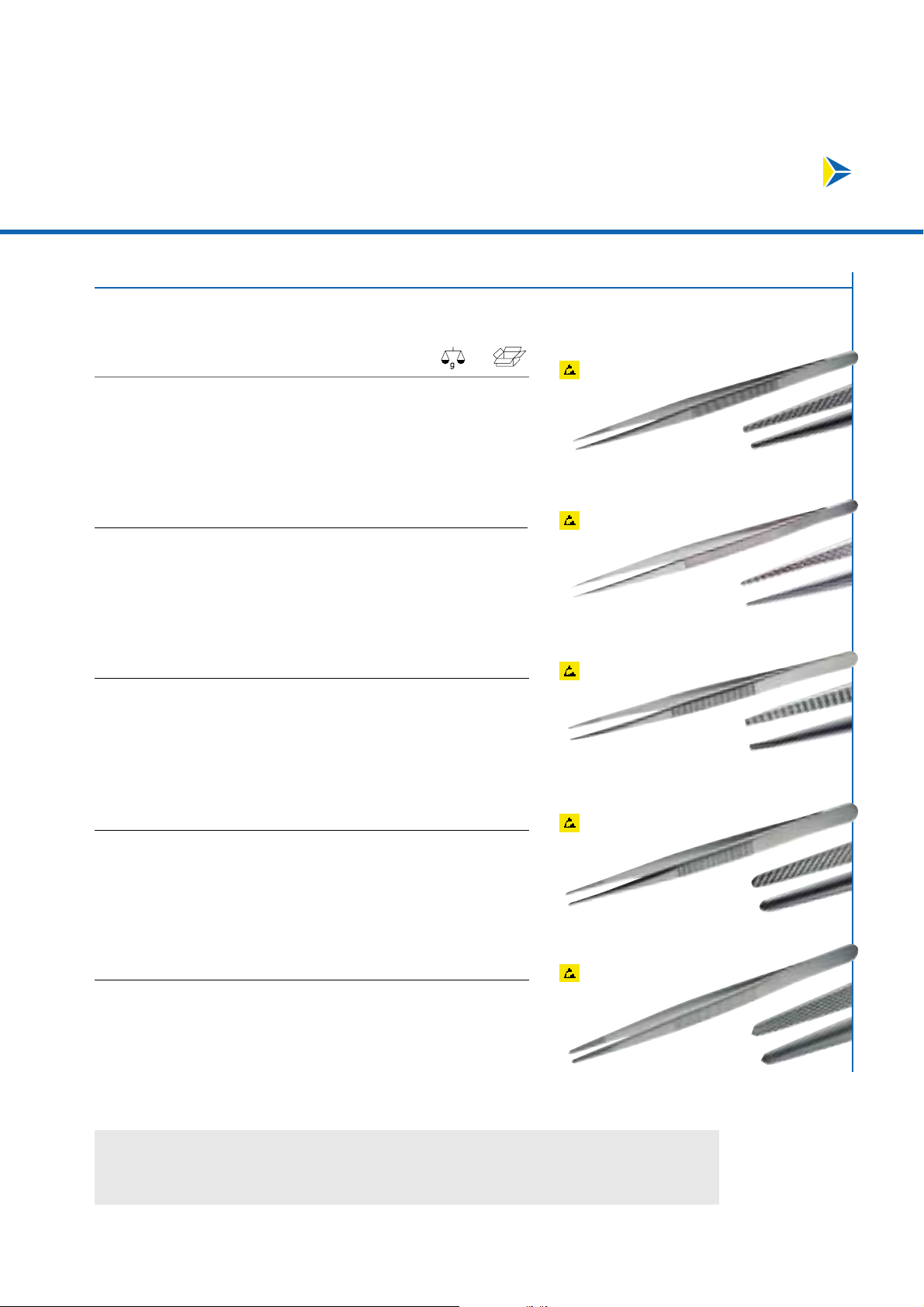

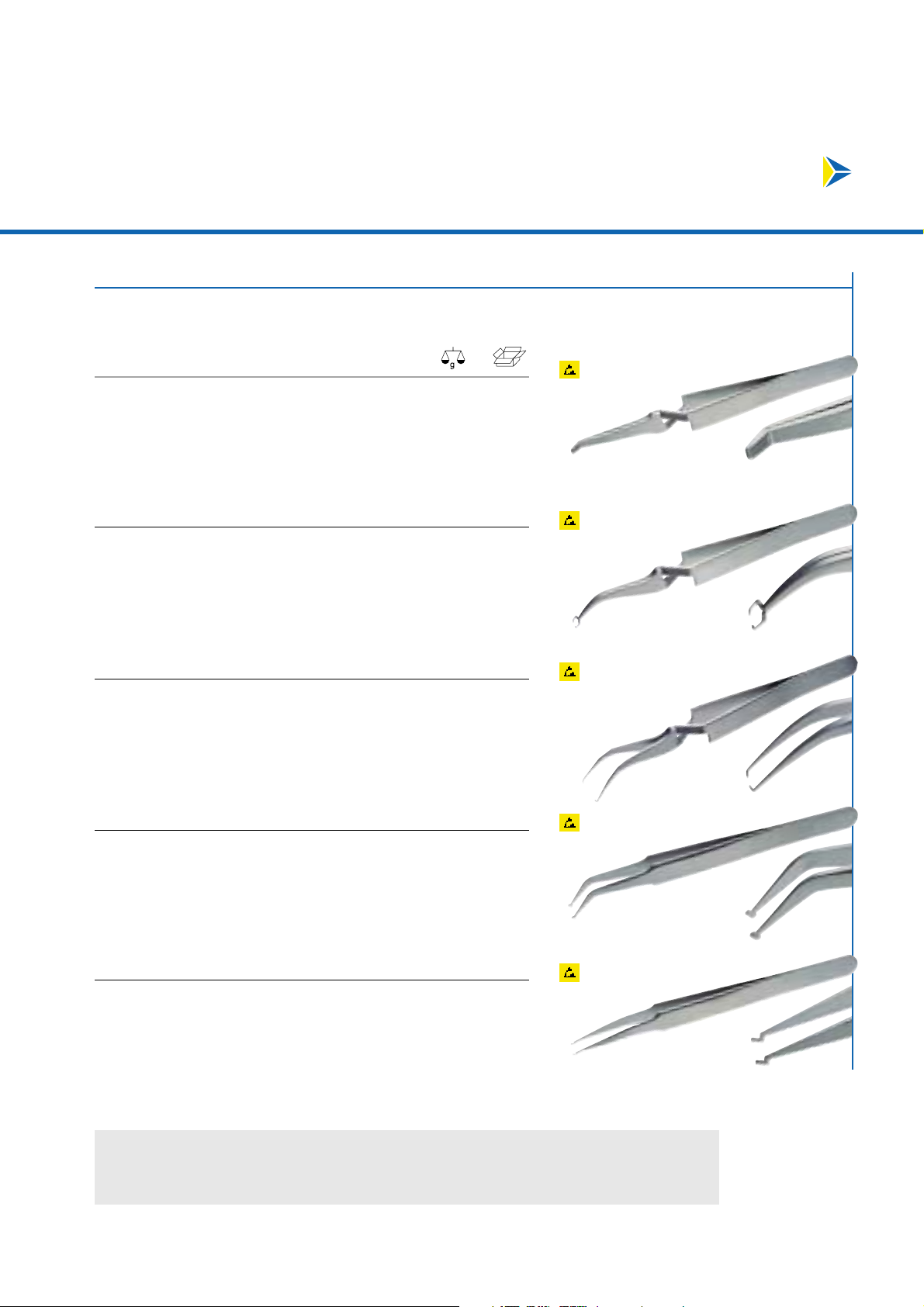

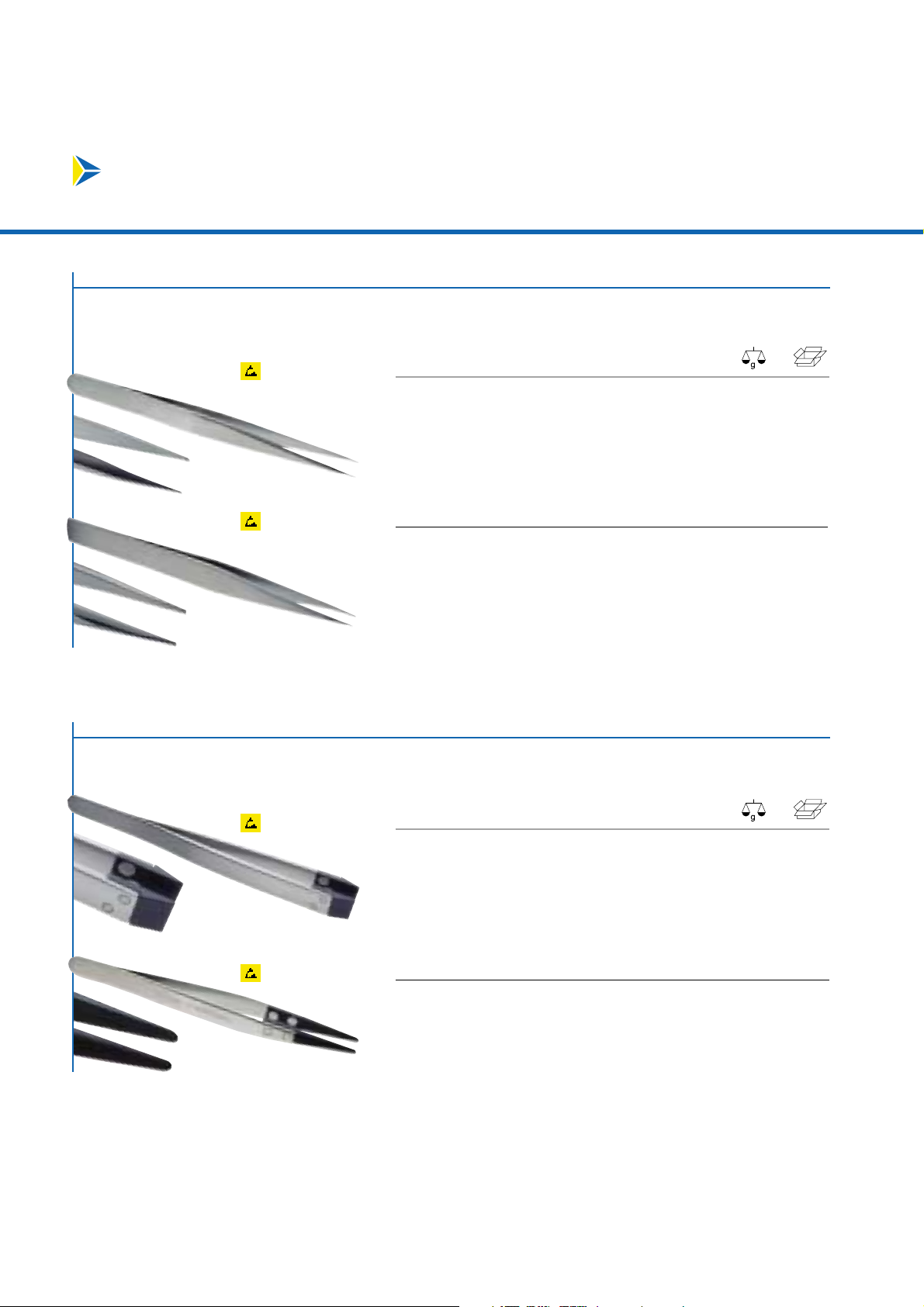

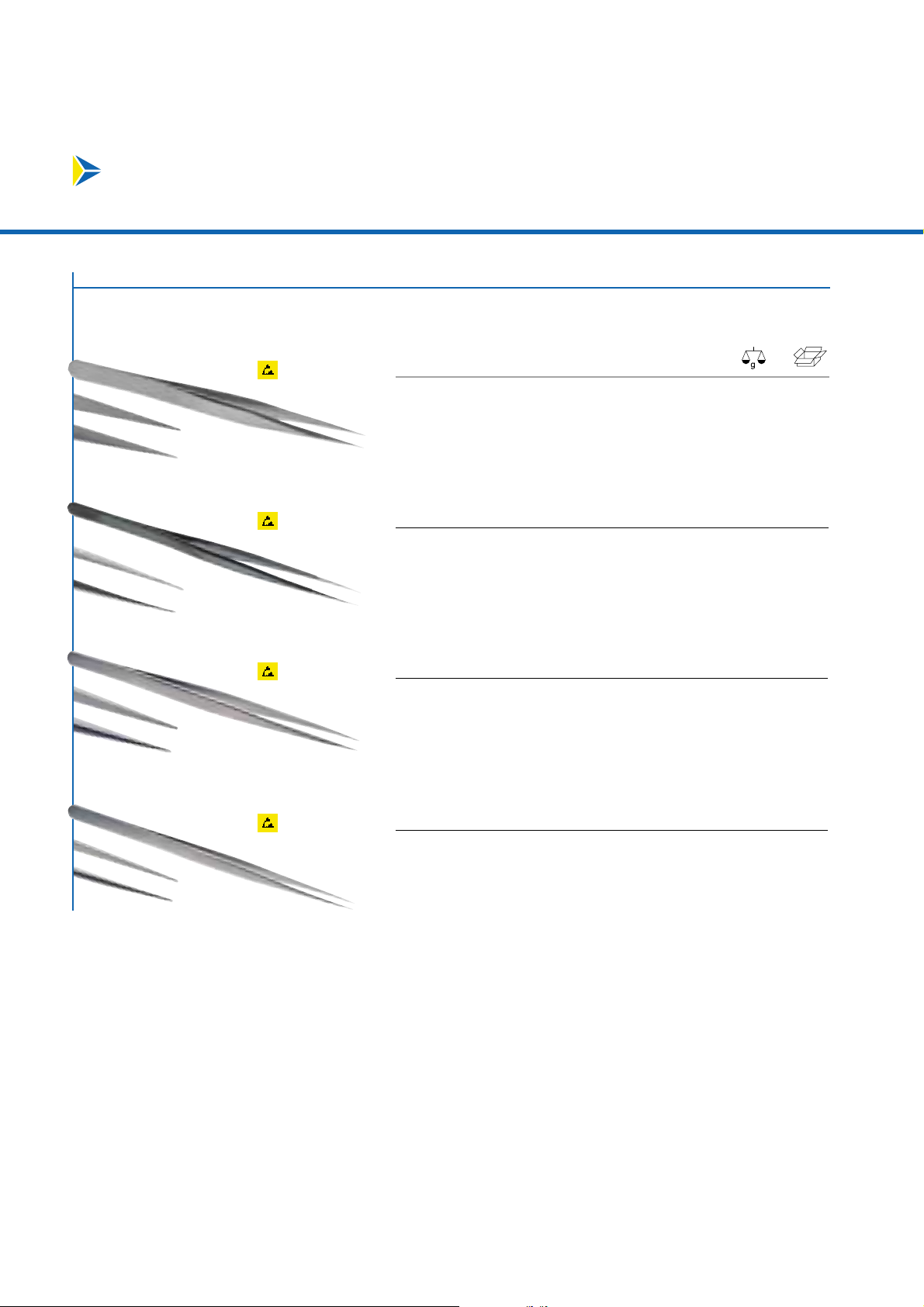

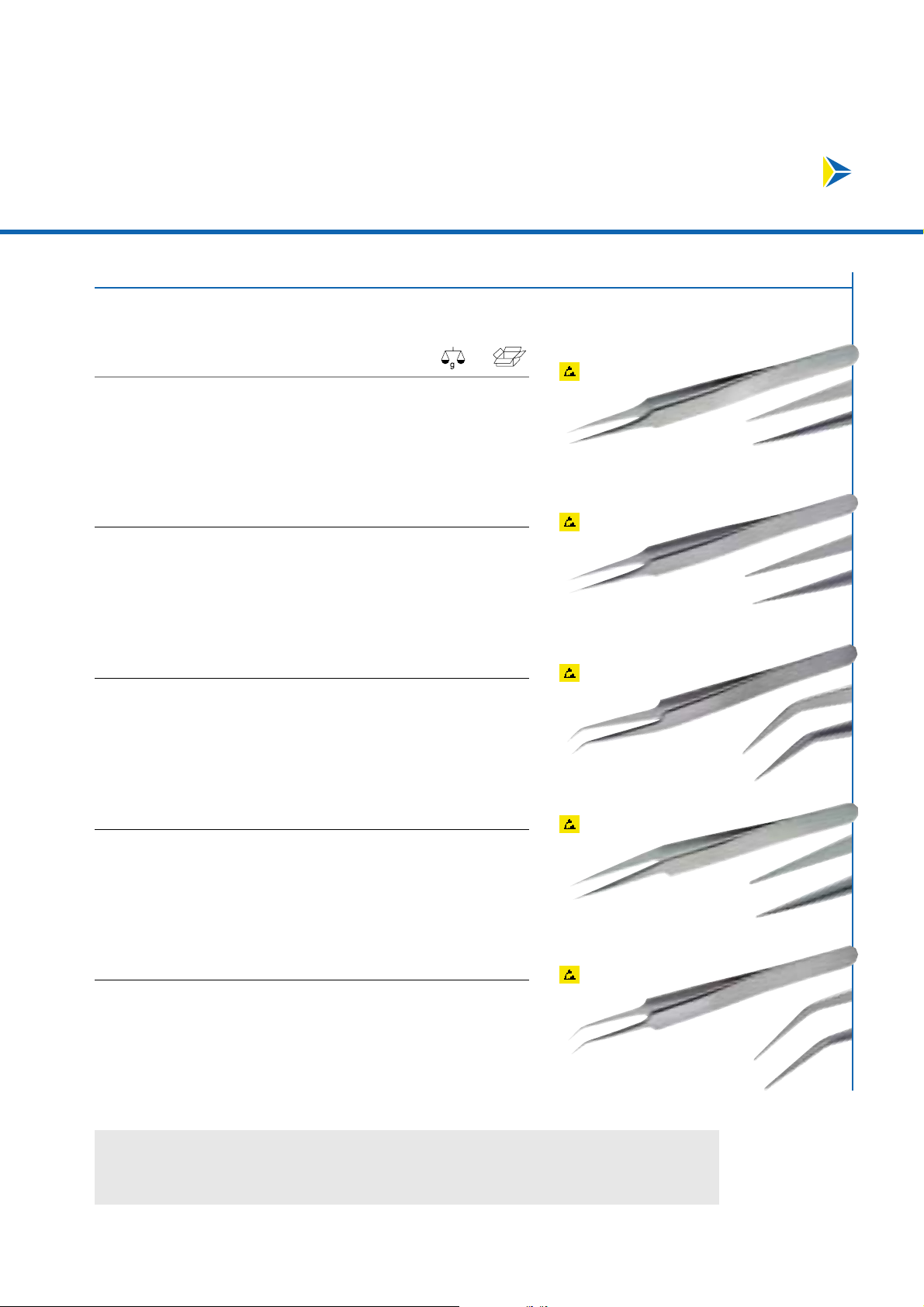

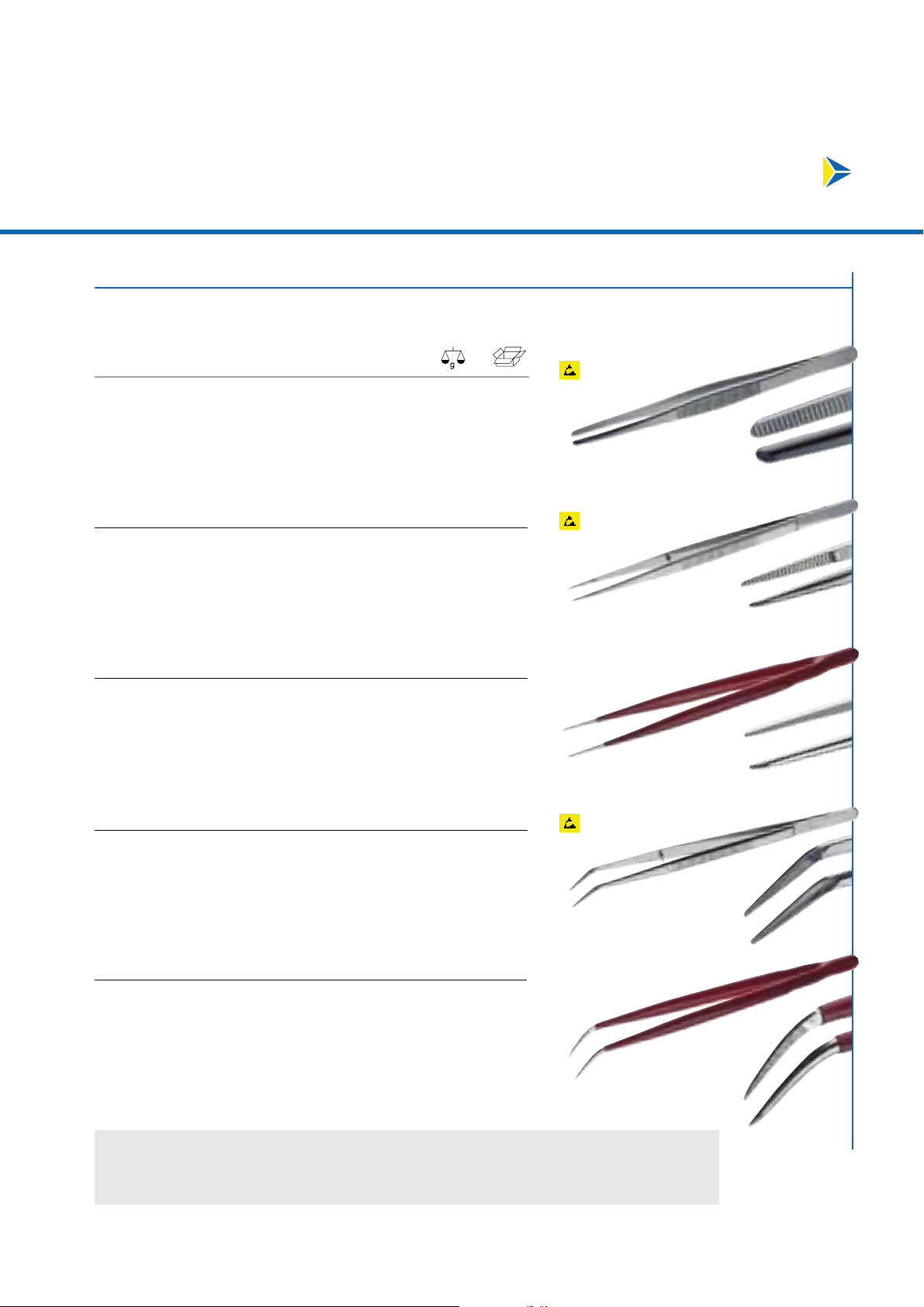

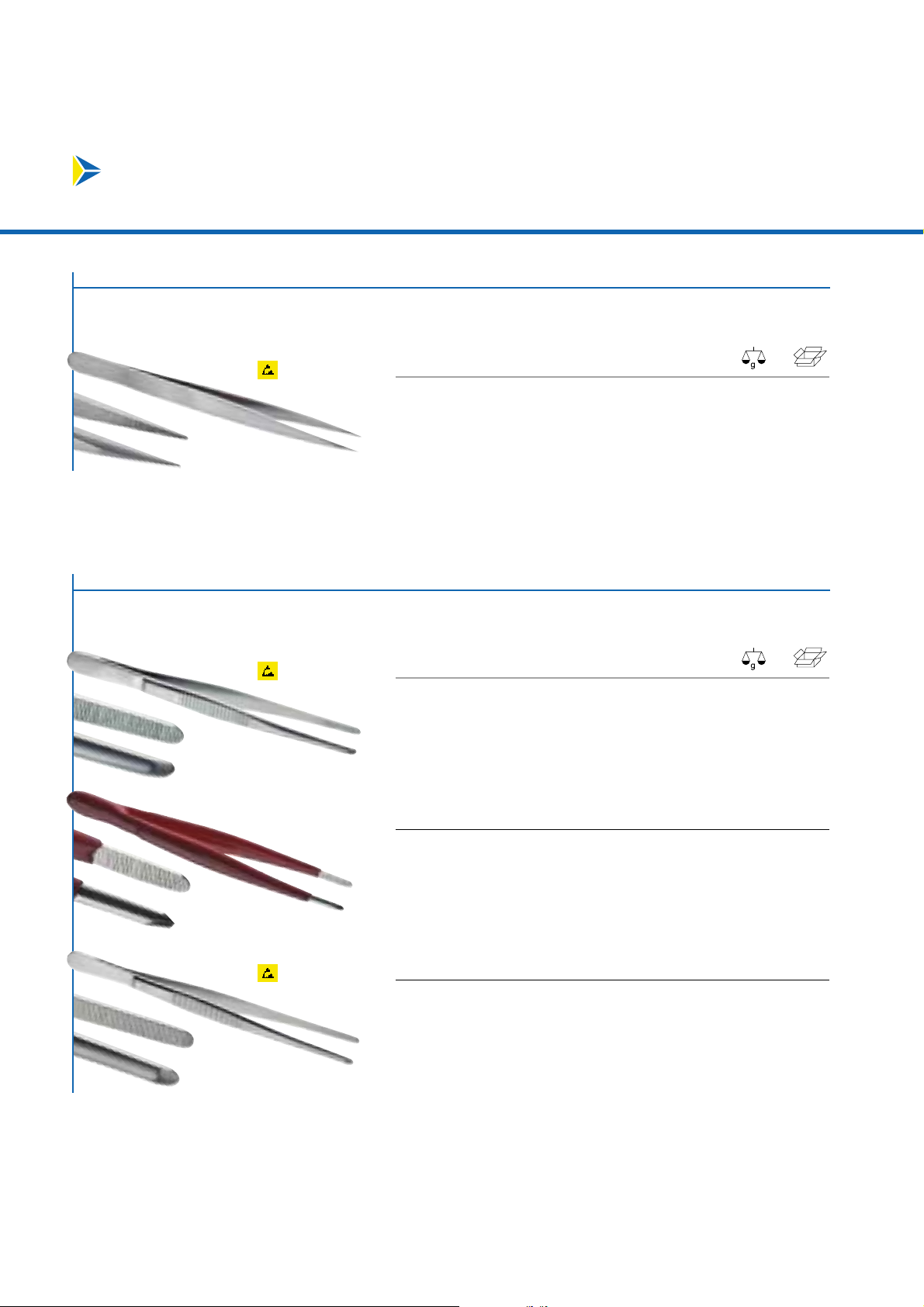

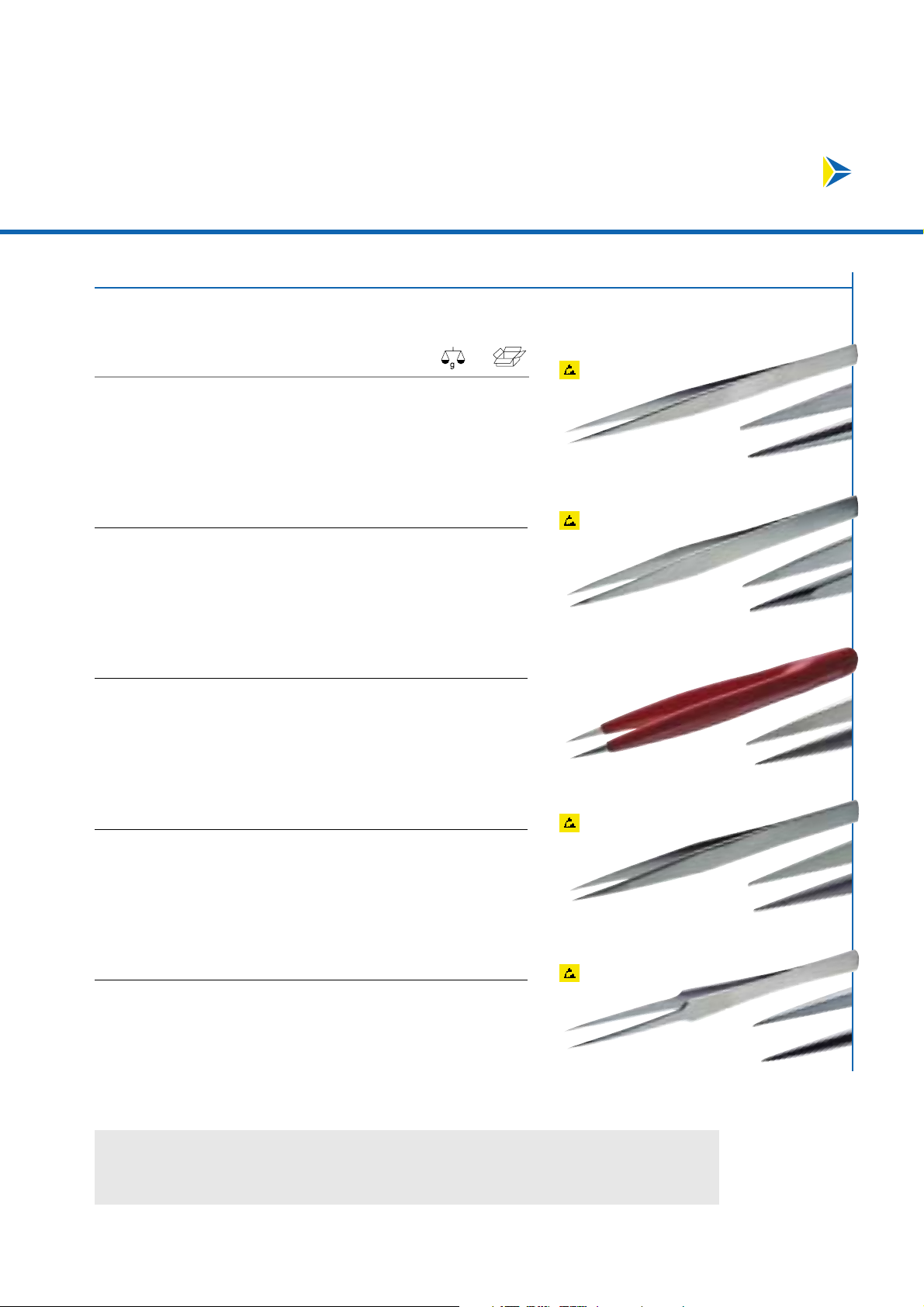

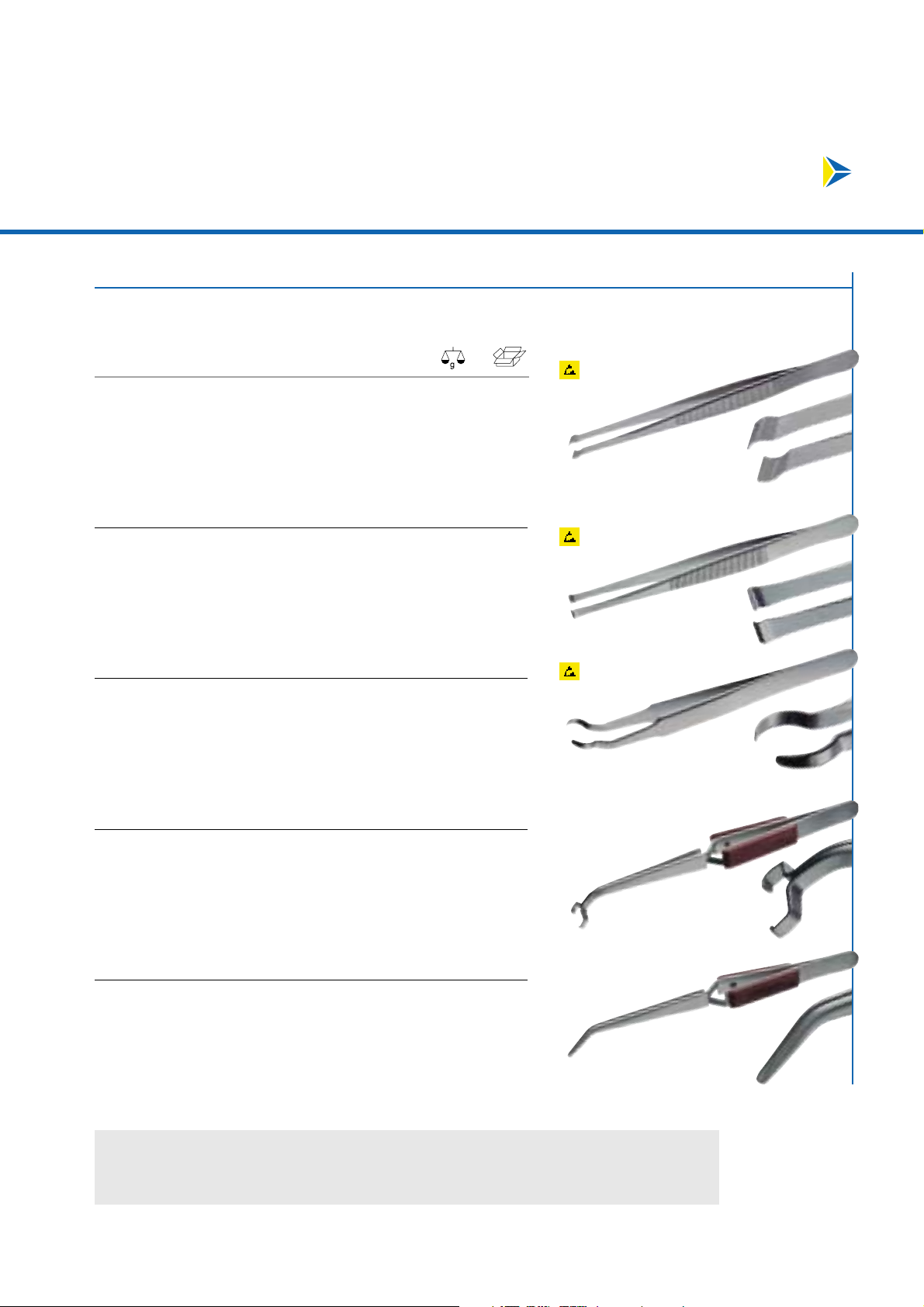

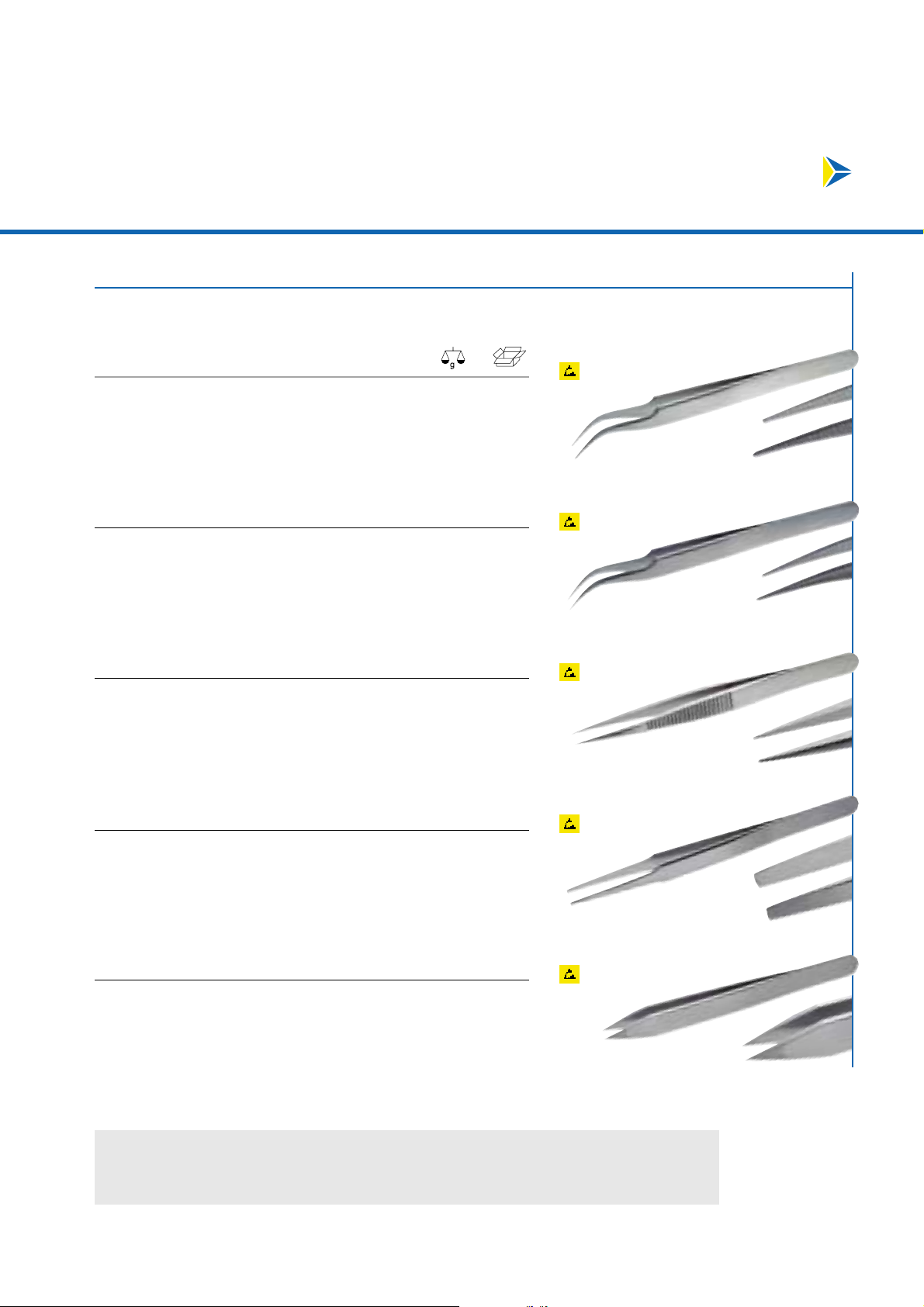

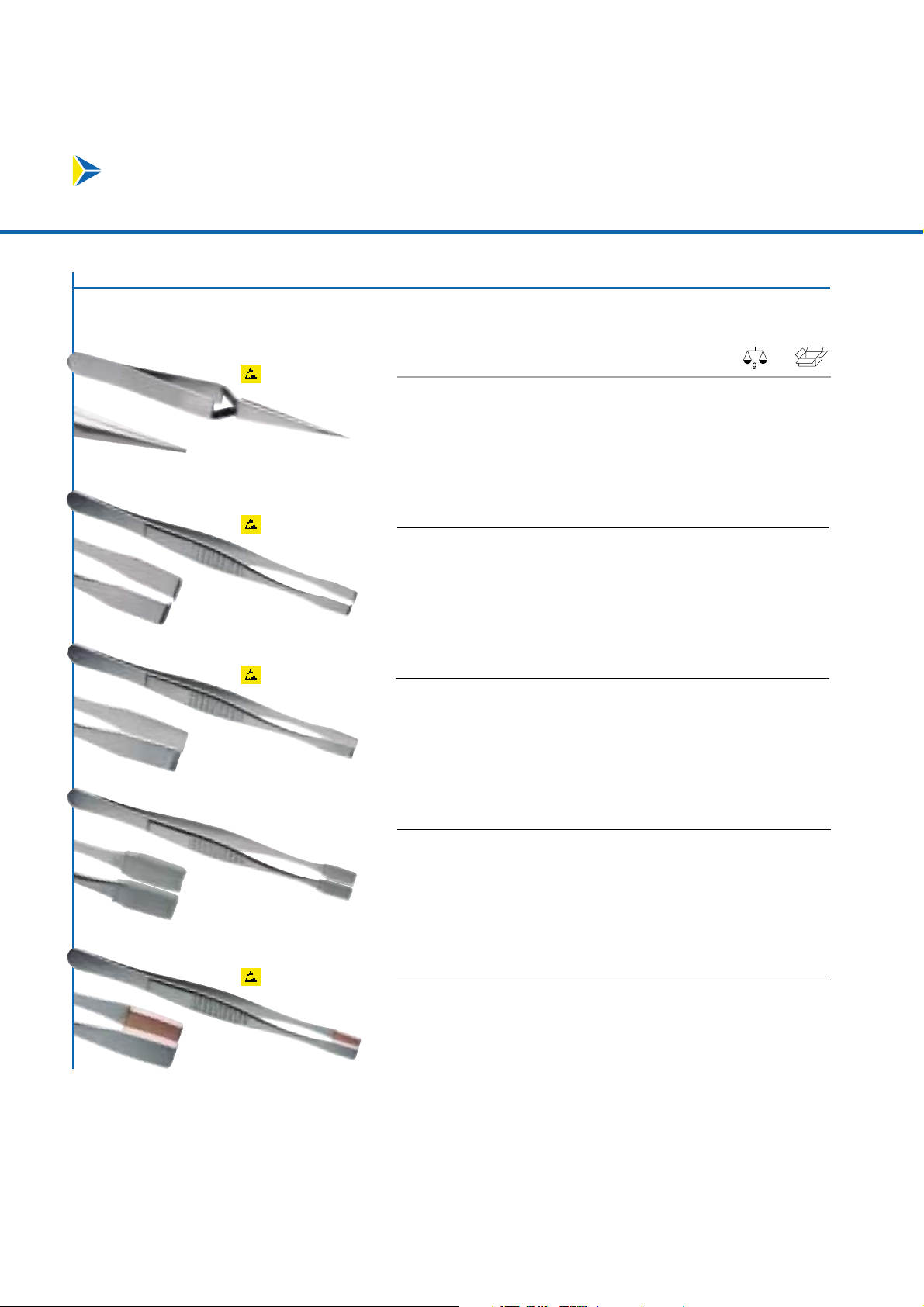

Tweezers

T WEEZERS

LINDSTROM TWEEZERS

THE ULTIMATE IN PERFORMANCE

AND PRECISION

Although tweezers are produced in many countries, firms with years of assembly experience turn to Swiss-made tweezers in order to be assured of the highest precision and consistent uniform quality.

Swiss-made Lindstrom tweezers offer perfect

balance, tip alignment, and symmetry as well as a wide range of materials to meet your most sophisticated and demanding requirements. In addition to general assembly, our product line includes models specifically designed for SMDs, ESD-sensitive areas, and medical and laboratory applications as well.

Page 35

TORQUE SCREWDRIVERS

HIGH PRECISION TORQUE CONTROL

MADE EASY

With a unique, high-precision cam-over torquelimiting design, Lindstrom’s new generation of Torque Screwdrivers virtually eliminate overapplication of force, thereby reducing the risk for damage and rework costs. Available in MicroAdjustable or Preset Torque versions, Lindstrom’s Adjustable Torque Screwdrivers offer unmatched user comfort, thanks to a user-friendly shape and non-slip grip. Built to last and with a non-magnetic bit holder that accepts any standard drive, the ideal choice for flexible applications as well as volume production. All models are ESD-safe.

MICRO-ADJUSTABLE TORQUE

SCREWDRIVERS

The Micro-Adjustable Torque Screwdriver allows instant change to the torque value with an easy-toread window scale and a precise pull-to-set, push-tolock mechanism. Adjustment is easy. Just pull the knob, turn it to the desired torque, push in the knob and it is ready to use!

The Micro-Adjustable Screwdriver series includes three models ranging from 10 to 450 Ncm or 20 in.oz. to 40 in.lbs. Accuracy +/- 6%.

PRESET TORQUE SCREWDRIVERS

Sharing the ruggedness, comfort and precision of the Micro-Adjustable version, the Preset Torque Screwdriver is an excellent choice for volume manufacturing applications. The desired torque value is easily set using an internal adjustment screw accessible by removing the end cap of the handle. The Preset Torque Driver is available in four models, covering a torque range of 4 to 450 Ncm or 6 in.oz. to 40 in.lbs. Accuracy +/- 6%.

PRODUCT RANGES

Torque Screwdrivers

WWW.LINDSTROMTOOLS.COM

All models are ESD-safe.

Certified to the following industry specifications: ASME B107.14 M-1994 and ISO 6789, EN 26789/1994.

Page 36

PRODUCT RANGES WWW.LINDSTROMTOOLS.COM

Ergo

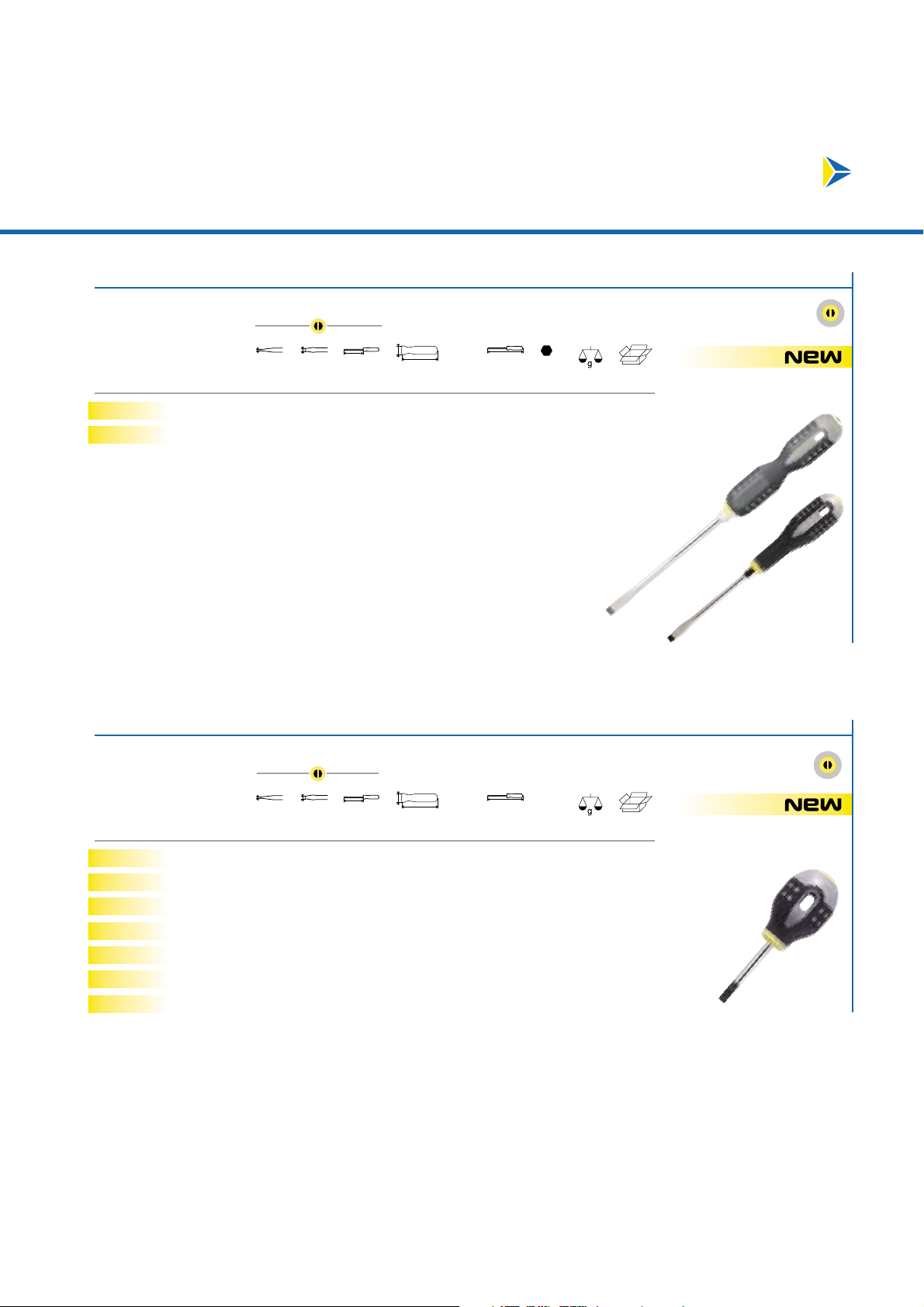

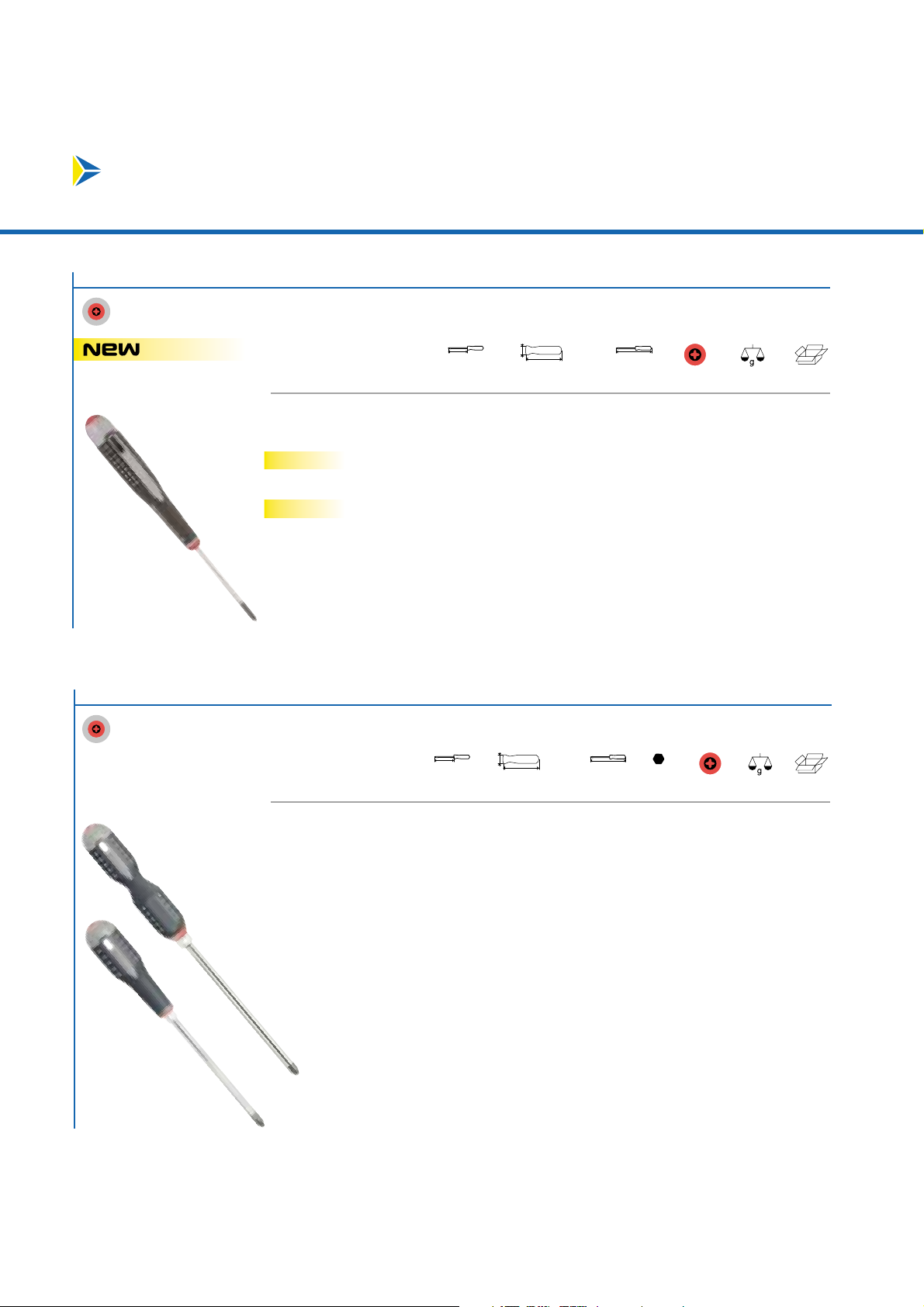

Screwdrivers

E RGO®S CREWDRIVERS

THE ULTIMATE IN PERFORMANCE,

PRECISION AND COMFORT

Exhaustive studies and tests, both practical and in the laboratory, lie behind the handle design of Ergo

screwdrivers. These studies showed how a screwdriver is really used and how the handle should be designed to obtain a comfortable and effective grip in all conceivable situations.

These tests resulted in a handle that has different

diametrics for different functions. The large part of the handle allows high torque to be applied. The small part of the handle can be used with a sensitive touch for speedy tightening or loosening of screws. The fingers can work on the comparatively large diameter of the neck, which means that it is possible to tighten the screw longer with only the fingertips before resistance increases, when the grip is transferred to the upper part of the handle.

The cross-section,

material and surface texture of the handle are also the result of extensive research and

testing. Besides being comfortable to use in different work situations, the round and efficiently patterned shape permits high torque to be applied. The handle always fits comfortably in the hand – no sharp edges as on a square handle, for example, which may cut painfully into the hand.

The International Standard as determined by ISO stipulates minimum torque requirements for screwdrivers. The strength of Ergo

screwdrivers exceeds the requirements of the ISO standard by a good margin, in some cases by more than 60%.

The blade is made of specially hardened steel and corrosion protected by plating. The tip is of Propoint design, which means that it is phosphated for

maximum dimensional accuracy and no peeling. Larger screwdrivers are equipped with a practical hexagonal drive on the blade, so that a wrench can be used whenever a greater torque is needed.

The shape and strength of the screwdriver tips conform to the requirements of national and international standards in accordance with ISO

2380.

Page 37

PRODUCT RANGES

Ergo

Screwdrivers

WWW.LINDSTROMTOOLS.COM

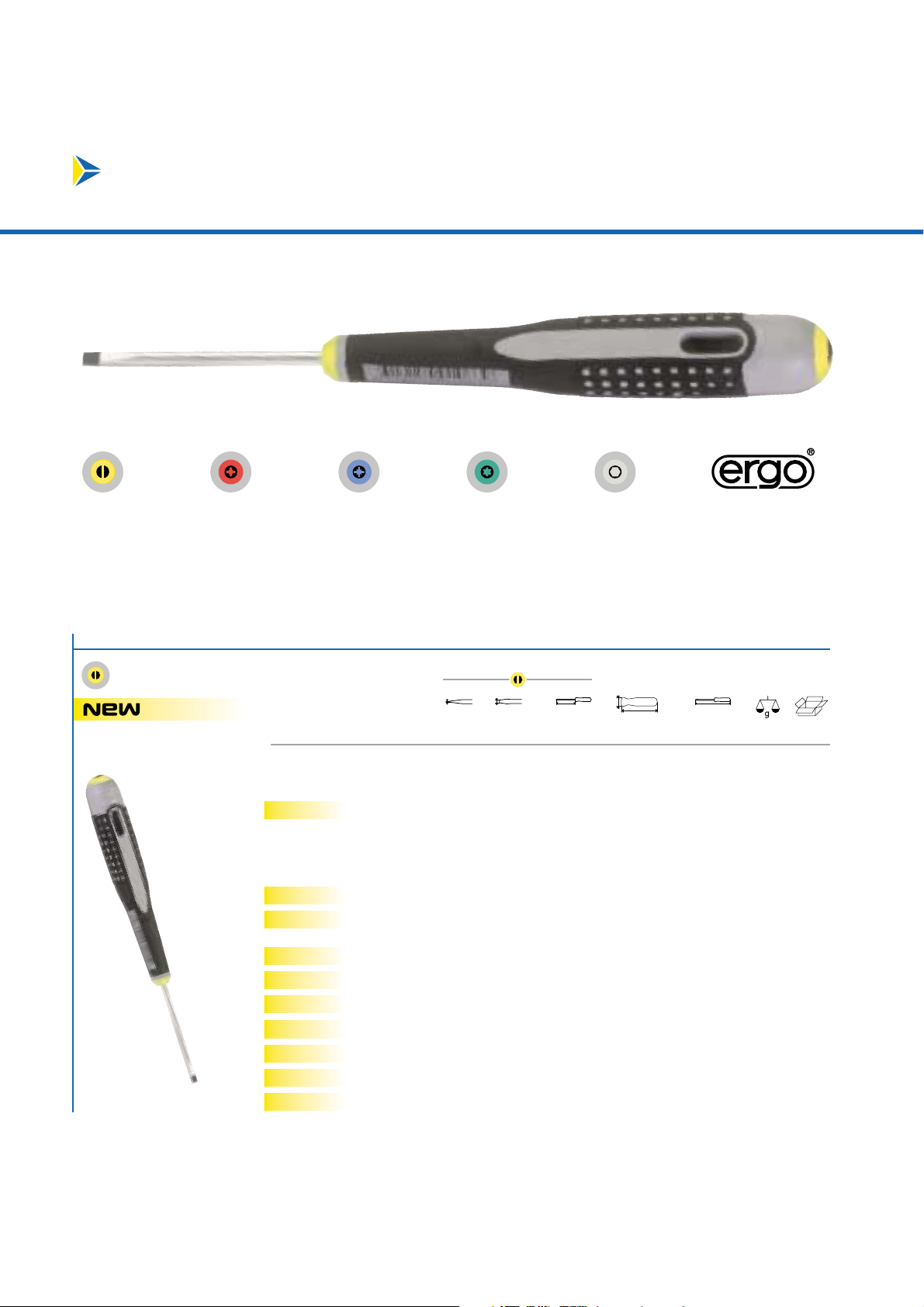

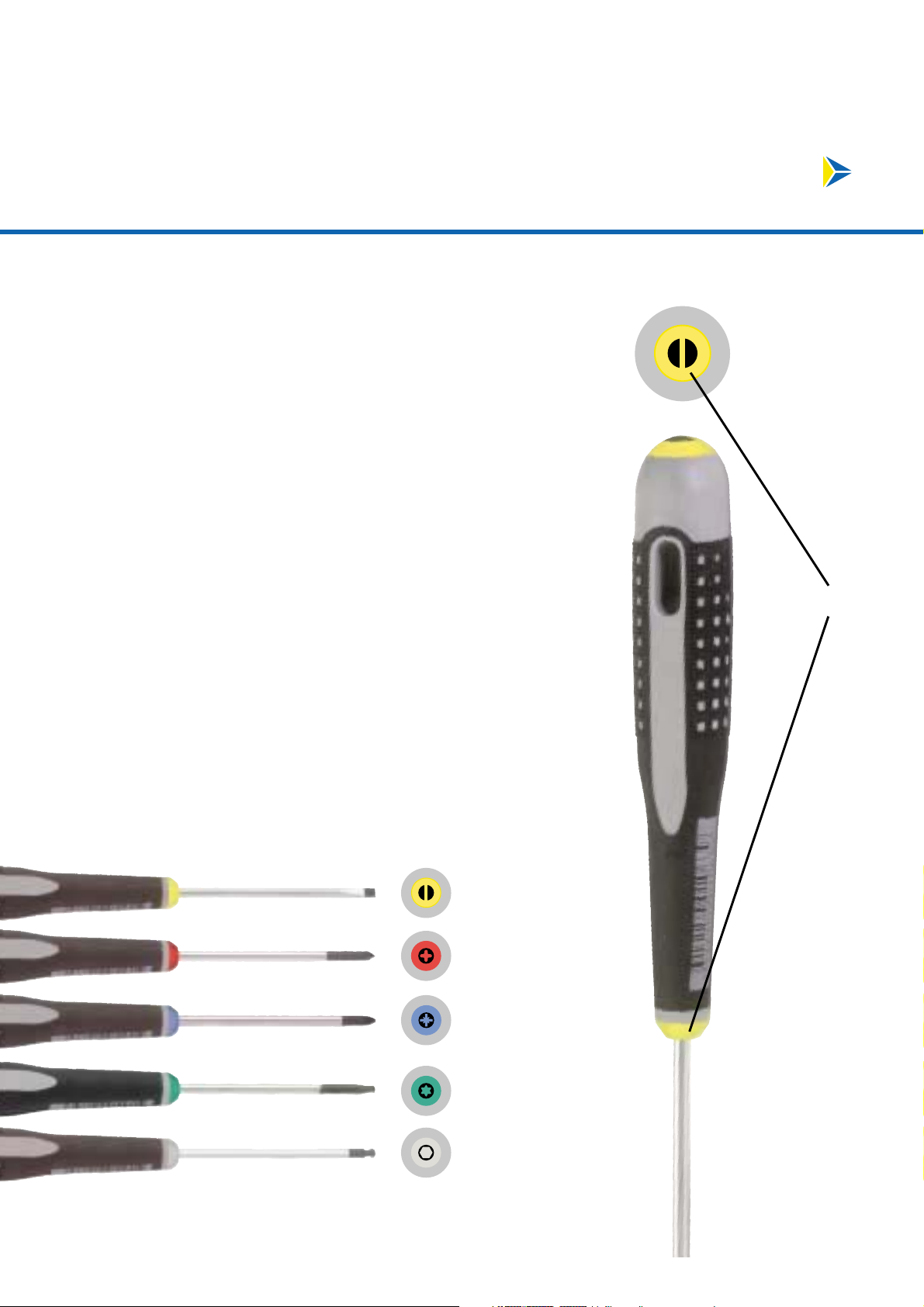

TAKE A CLOSER LOOK AT

ERGO®SCREWDRIVERS

•

Three-component handle. Combines strong core with good grip.

•

Easy to choose the right tip with color-coded handle and symbol on the end. Color and symbol don't wear out.

•

Large, rounded end lets you apply force without hurting the palm of your hand.

•

Can be hung on a peg or secured by string.

•

Only rounded contours. No pressure points, no matter how you hold or use the screwdriver.

•

Soft, high-friction material with ridged surface

for comfortable grip and maximum friction even

when the hand is oily.

•

Flat face so the screwdriver won't roll.

•

Optimal length on the handle neck. Fingers are always correctly positioned for quick turning and precision control.

•

Cylindrical shaft with small diameter to tighten and loosen screws quickly and easily.

•

Hexagonal nut on certain models so you can use a wrench if you need to apply extra torque.

Ergo

screwdrivers:

•

Easier to use.

•

More comfortable to hold.

•

Significantly more functional.

COLOR CODE

SLOTTED

PHILIPS

POZIDRIV

TORX

HEXAGON

Page 38

PRODUCT RANGES WWW.LINDSTROMTOOLS.COM

Special Engineered Tools

S PECIAL E NGINEERED TOOLS

There is always a need for tools to fulfill certain special requirements that cannot be met by regular production tools. Our Special Engineered Tools are designed for those applications.

The tools pictured here are only a small sampling of the many different designs we have manufactured as solutions to difficult assembly or rework requirements.

The Lindstrom staff can design special application tools by working from “before” and “after” components, engineering drawings, or prototypes. We even build tools drawn on the back of a napkin. It’s that easy!

W e can modify tweezers to move tiny wafers without scratching the surface, or build extra-long-nosed pliers for extracting proprietary equipment. We can make one prototype or several hundred.

Our designers have created over 1000 custom tools that were manufactured to perform a wide variety of actions on leads and components. Lindstrom has built specially engineered tools to:

•

Cut and form.

•

Insert and extract.

•

Standoff cut.

•

Straighten.

•

Cut and swedge.

•

Hold threaded shafts.

•

Service custom automated machines.

(AVAILABLE IN NORTH AMERICA ONLY.)

Page 39

INDIVIDUAL LISTINGS AND SPECIFICATIONS

How To Choose

WWW.LINDSTROMTOOLS.COM

H OW TO C HOOSE?

Deciding which cutter to use among the very large assortment offered in this catalog can be challenging, to say the least. In addition, there can be several good options to choose from for a given application. We are often asked, “Why do you offer such a large range of handtools, and specifically, so many cutters?” There are two primary reasons for having such a large assortment.

First, the applications served by these tools are almost infinite. From a pure application point of view, more specialized tools are often required to achieve the most cost effective and technically sound result. In addition, requirements in terms of size and composition of materials to be cut or bent and the end result required can change very rapidly in the fastmoving assembly industry. So maintaining a wide assortment gives you assurance that you can find a good solution for future application requirements that you may not have at present.

Secondly, applications are only a part of the reason for such a wide assortment. The fact is that beyond certain basic safety and health guidelines in proper tool usage, operator preference in terms of positioning, visibility, reach, experience, etc., varies greatly from one operator to another, with very few clear “right or wrong” aspects. So rather than trying to convince you to choose from a limited range which is easier for us to make, we would rather completely satisfy your requirements and preferences. And that means we have to offer many variations.

8130 XS / Extra Small

8140 S / Small

8150 M / Medium

8160 L / Large

7890 M / Medium

7893 S / Small

All tools above shown actual size

However, even with that understanding, choosing can still be a challenge! Here are some basic suggestions that can help you narrow your choice to a few very good options.

Page 40

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

How To Choose

So here you have to use a bit of common sense. For instance: Is the material a little tougher than copper or a lot? This will further narrow the field by eliminating the cutters not likely suitable for the application.

IS ACCESS (SPACE AVAILABILITY)

TO THE APPLICATION AN ISSUE?

If access is not a challenge, then lean towards an Oval head - in as large a size as possible - as this is the strongest type of head configuration. One basic fact of the assembly and repair environment is that a cutter on a workbench or in the field will at one time or another be used on something either larger or harder than the original intended application. This is when having chosen a Lindstrom, which is “overengineered” and conservatively rated to begin with and the strongest and largest configuration in the Lindstrom range that can be used for the application, makes sense. And saves you a lot of money - the tool will much more easily survive occasional misuse and continue to give good results.

If access is an issue, then try to use a smaller Oval head. If that puts you out of cutting range or is still too large at the tip, then move over to a Tapered head.

If a Tapered head still doesn't fit the application, then go with the Tapered and Relieved head.

Oval Tapered Tapered & Relieved Angle Tip

WHAT KIND OF CUTTING RESULT

DO YOU WANT?

1. If the cutting result is not critical, then go with the

Micro-Bevel as this cutting edge bevel gives you the best capacity and life in most applications.

2. Use the Flush if Micro-Bevel is not suitable.

3. Use the Ultra-Flush only when required, as it

requires the most care in use.

WHAT ARE THE TYPES AND

DIAMETERS OF MATERIAL YOU

WANT TO CUT?

All of our cutters are rated for copper wire. However, quite often you are not cutting simple copper wire.

But we rate them for copper as that is a standard that almost all can relate to. Some cutters are also rated for tougher material such as spring wire. Again, you are not likely to be cutting spring wire either.

However, almost everything else you are cutting will fall in toughness between copper and spring wire.

321

Page 41

INDIVIDUAL LISTINGS AND SPECIFICATIONS

How To Choose

WWW.LINDSTROMTOOLS.COM

IS REACH OR ANGLE TO THE

APPLICATION AN ISSUE?

Then consider an angle or tip cutter.

However, keep in mind that the smallest

configurations in this type should then

be reserved for that application and

used with considerable care.

DO YOU REQUIRE ESD

PROTECTION ON

YOUR HANDTOOLS?

If so, then select from the Rx range or

order 80-Series or Supreme ranges with

ESD-safe handles installed.

DO YOU REQUIRE

LEAD-CATCHERS TO KEEP CUT

LEADS FROM GOING INTO

SENSITIVE AREAS?

If so, then simply add an “S” suffix

after the cutter part number to have a

lead-catcher installed.

If you still have questions about which

tools are best suited for your

application, we strongly encourage you

to contact one of our factory trained

salespeople. Our representatives can

make informed recommendations or

furnish tools for evaluation where they

provide the best opportunity for you to

observe their value – on the job. On our

Website, www.lindstromtools.com, you

will find our world-wide presence and

can easily locate a Lindstrom

professional ready to help you find the

right tool for the job.

Page 42

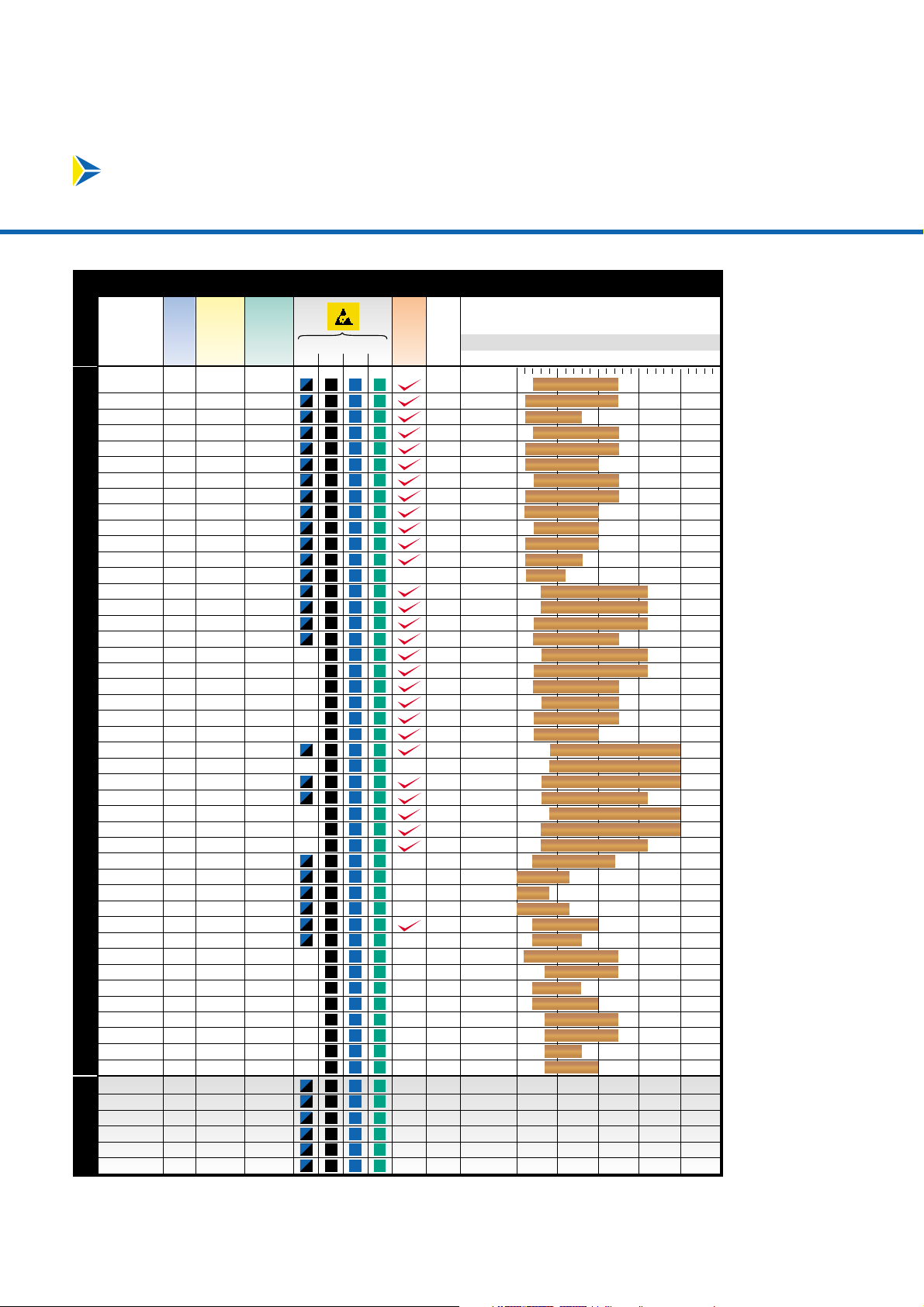

CUTTERS

CUTTING CAPACITY

COPPER WIRE

PLIERS

GAUGE 38 24 18 15 12

CUT OR HANDLE OPTIONS INCH .004 .02 .039 .059 .079

PART NO.1SIZE SHAPE SURFACE Rx CO DS HS L / C PAGE MM 0.1 0.5 1.0 1.5 2.0

T&R

A 20°

T 10°

A 50°

A 45°

42, 50

43, 51

44, 52

42, 50

43, 51

42, 50

47, 53

47, 57

48, 58

49, 59

8130

8131

8132

8140

8141

8142

8143

8144

8145

8146

8147

8148

8149

8150

8150 J

8151

8152

8153

8154

8155

8156

8157

8158

8160

8160 J

8161

8162

8163

8164

8165

8211

8233

8234

8237

8247

8248

7190

7191

7280

7285

7290

7291

7292

7293

7490

7590

7890

7891

7892

7893

HANDTOOL APPLICATIONS AND TECHNOLOGY WWW.LINDSTROMTOOLS.COM

Capacity and Options

All part numbers as listed come standard with molded plastic handles and springs.

Type “J” edges for stripping and cutting insulated copper wire.

Max .16”/.4 mm springwire.

Page 43

INDIVIDUAL LISTINGS AND SPECIFICATIONS

Capacity and Options

WWW.LINDSTROMTOOLS.COM

MB / Micro-Bevel

F / Flush

UF / Ultra-Flush

O / Oval

T / Tapered

T&R / Tapered & Relieved

A / Angle

TP / Tip

8130

XS / Extra Small

8140

S / Small

8150

M / Medium

8160

L / Large

7890

M / Medium

7893

S / Small

SM / Smoth-Tip

SE / Serrated-Tip

RX The ultimate in

ergonomic and ESD safe handles.

CO Standard handle

shape in conductive material.

DS Slip-on handle in

dissipative material. (E.U. only)

HS Traditional ergonomic

handle shape in dissipative material. (U.S. only)

To order handle options,

add two letter prefix to

part no. = Rx8130.

L/C Lead-Catcher available,

add “S” suffix to part no. = 8130-S.

XS Extra Small

SSmall

M Medium

L Large

LEAD CATCHER

HANDLE OPTIONS

SIZE ACTUAL SIZE

O Oval

T Tapered

T&R Tapered & Relieved

A Angle

TP Tip

ED End

SHAPE

MB Micro-Bevel

F Flush

UF Ultra-Flush

SM Smooth

SE Serrated

CUT OR SURFACE

Page 44

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

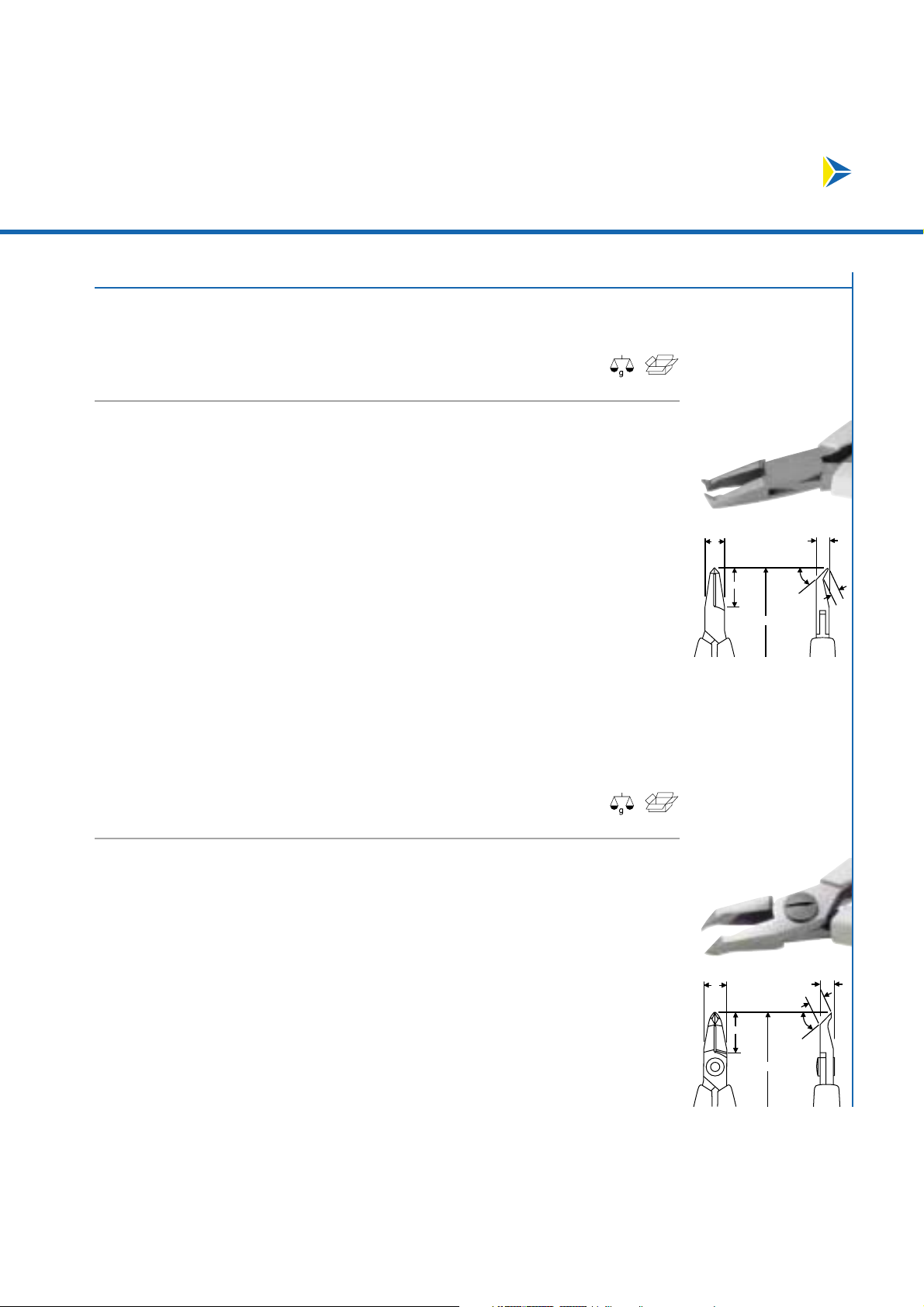

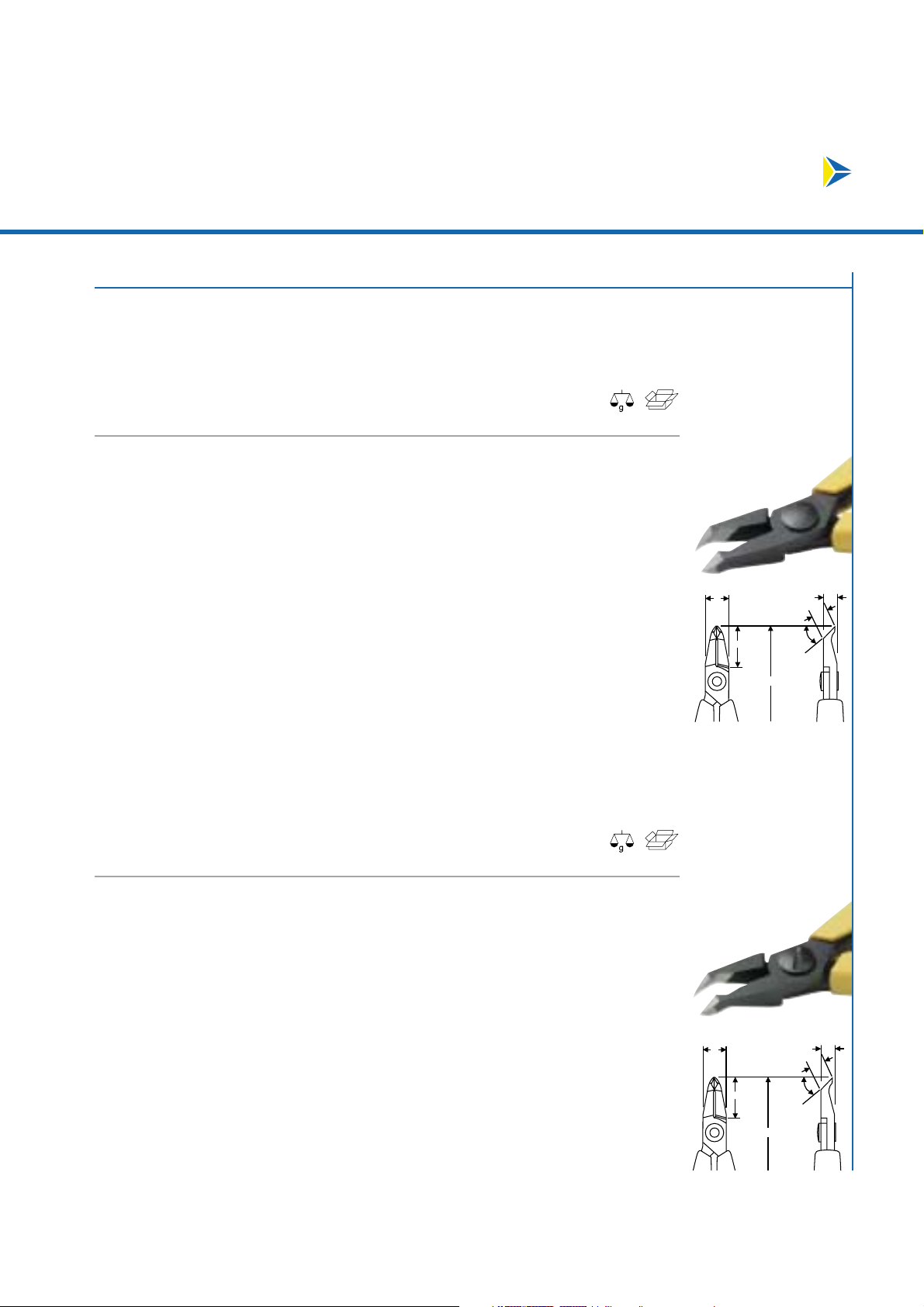

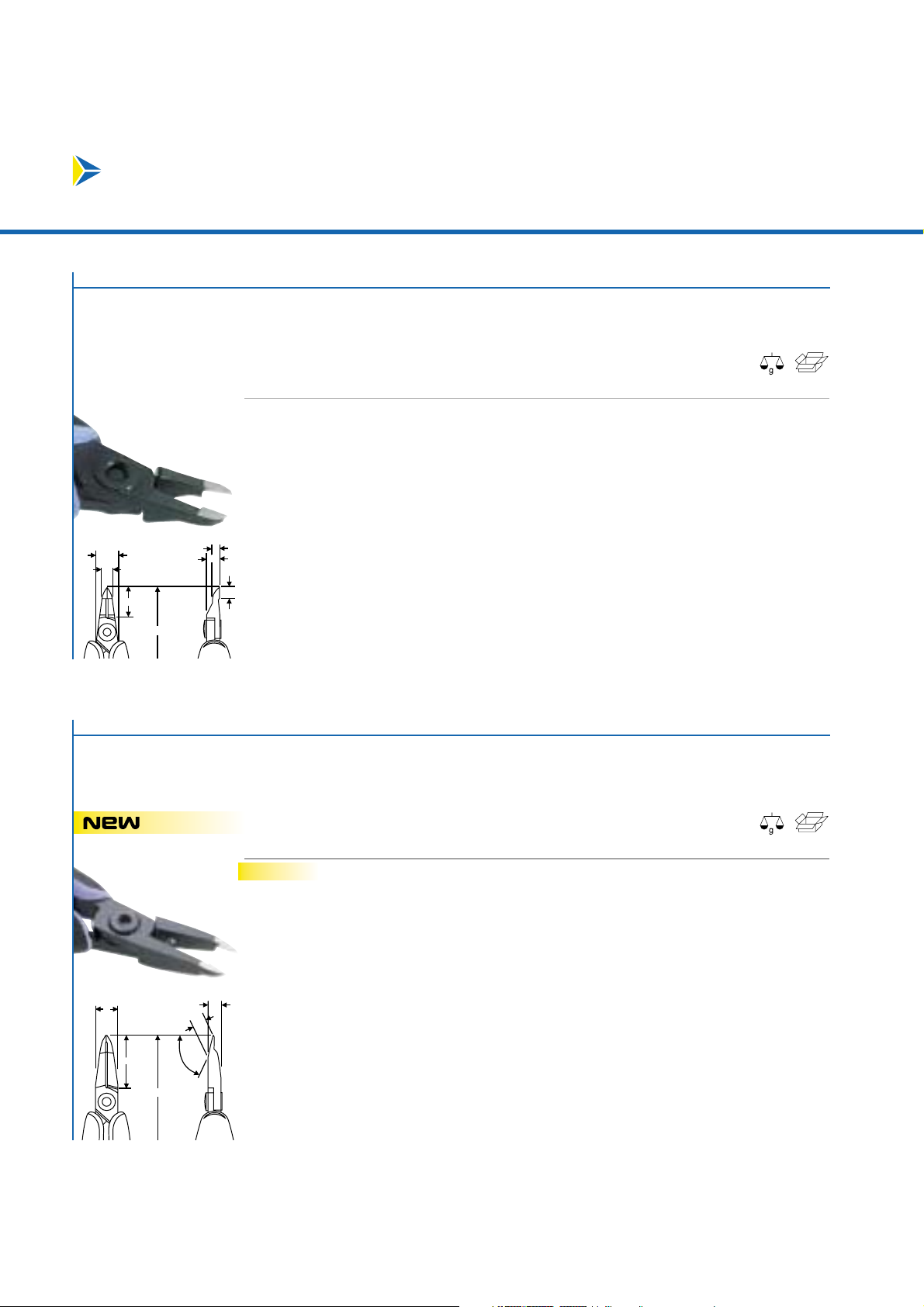

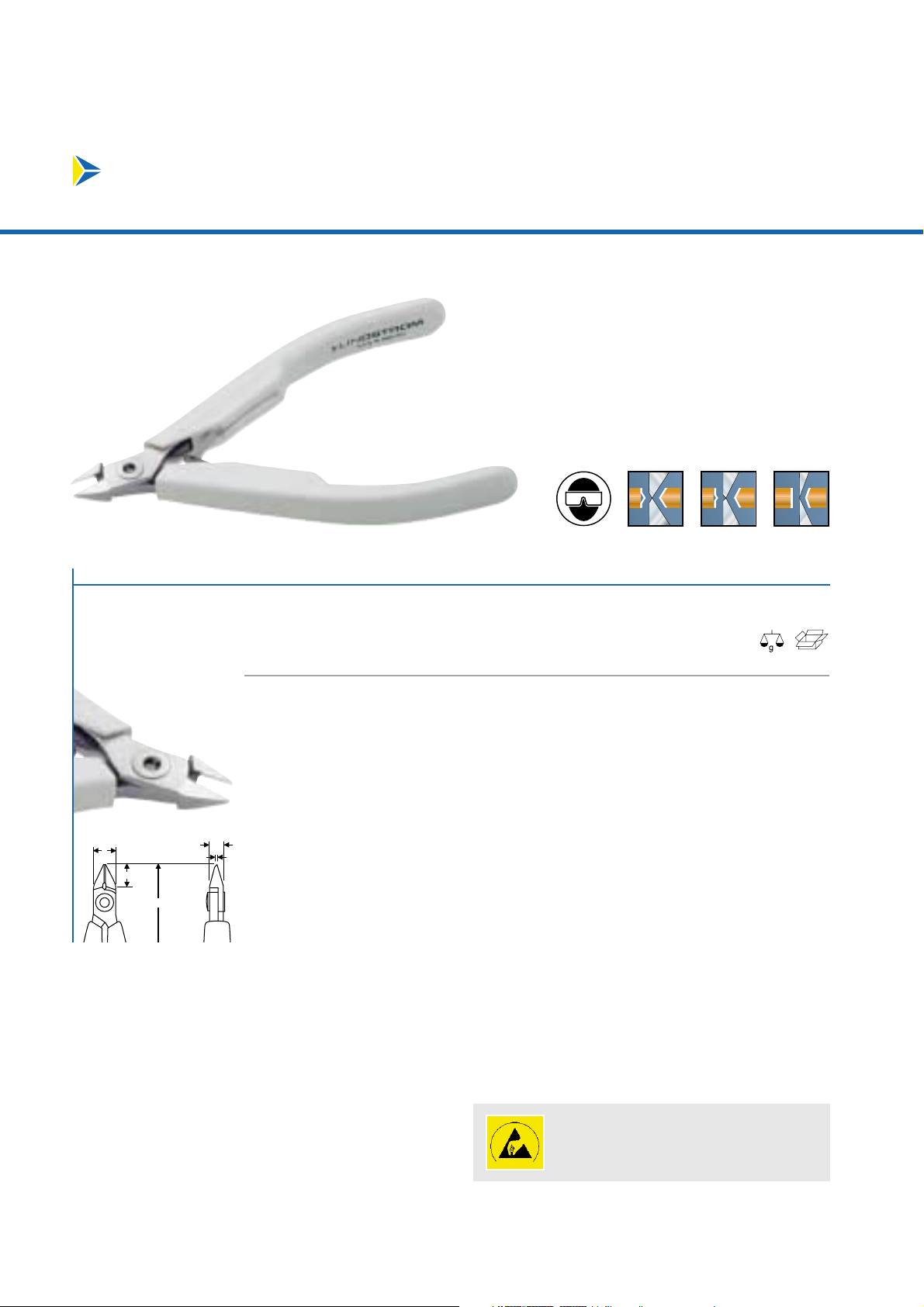

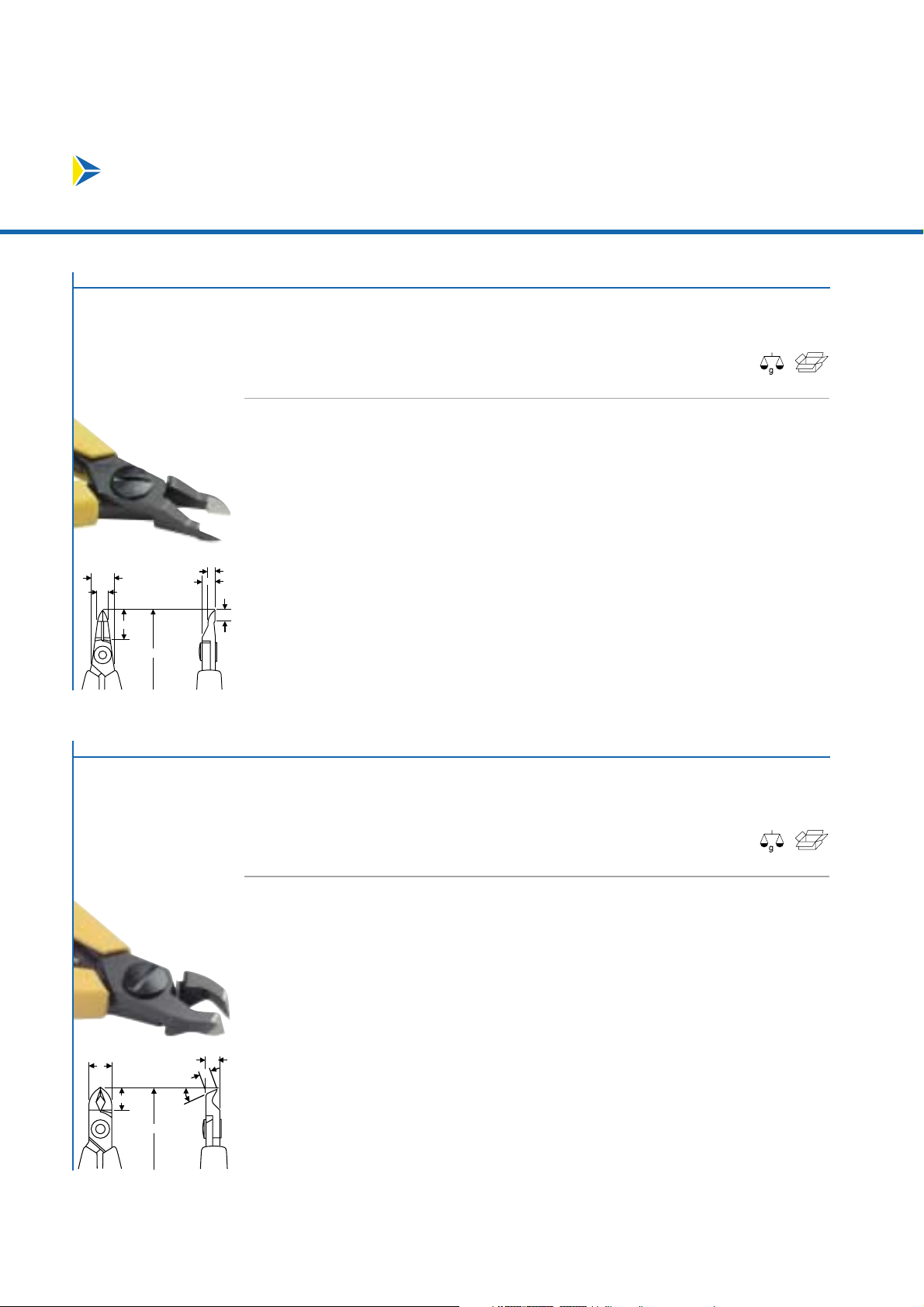

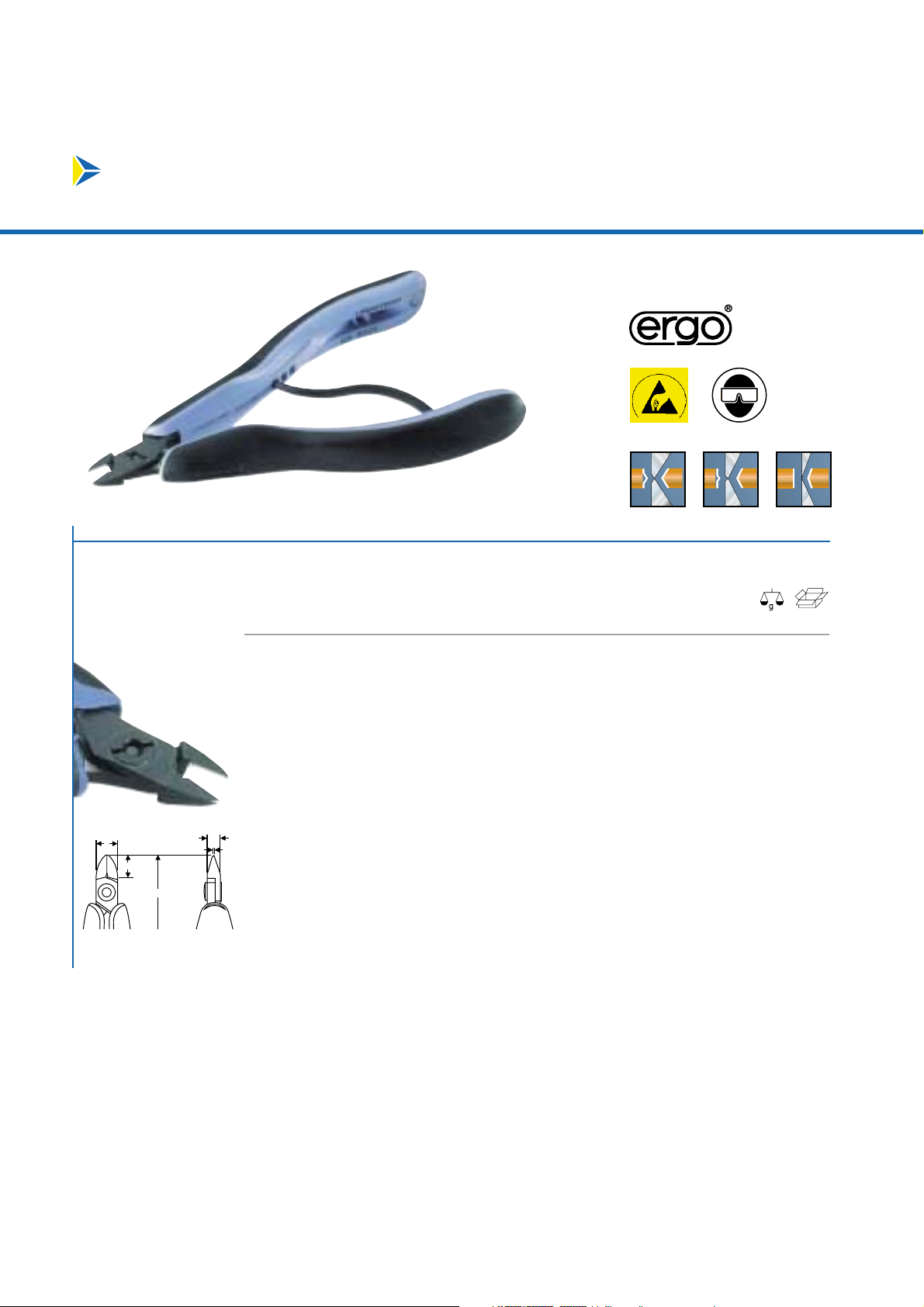

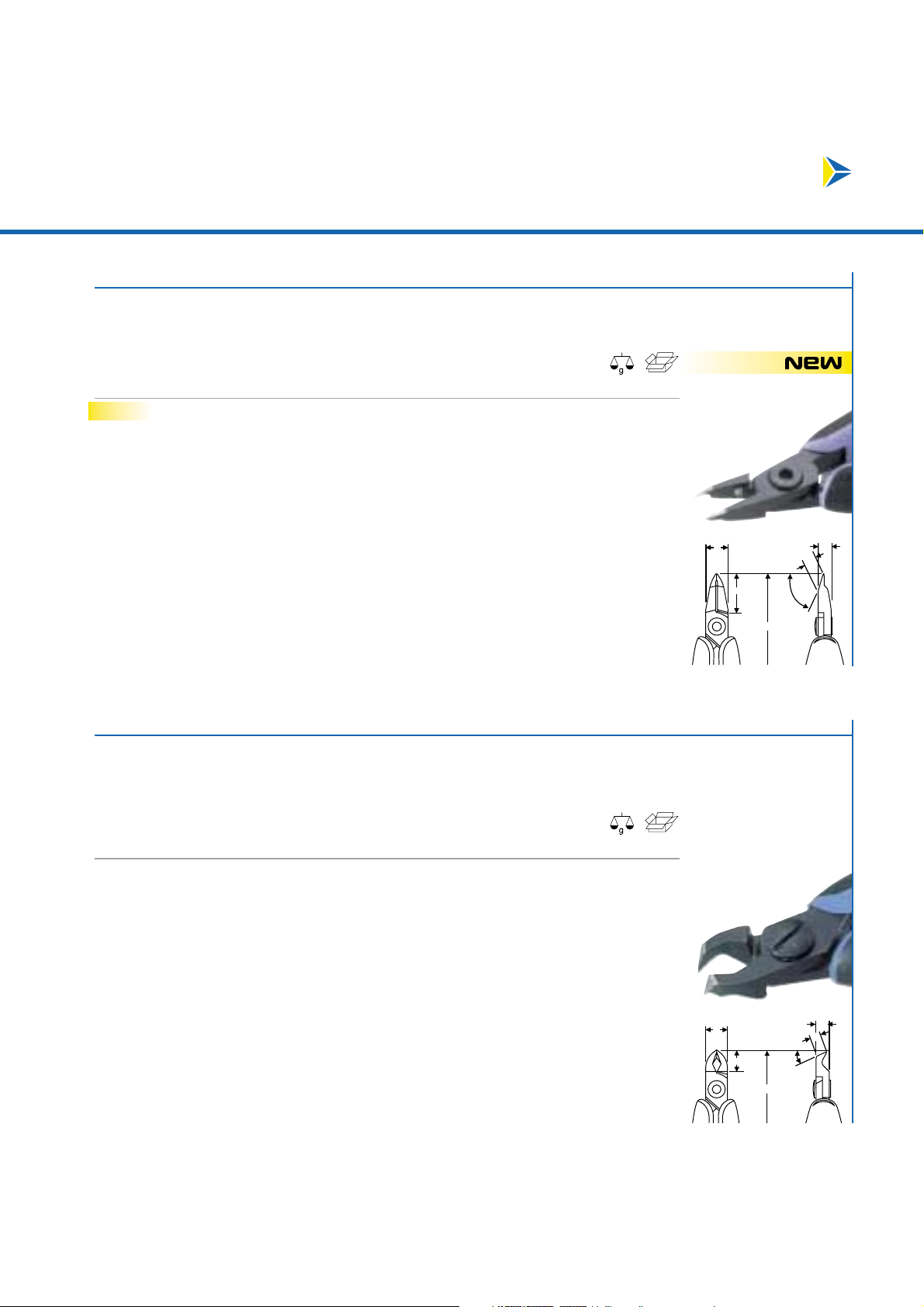

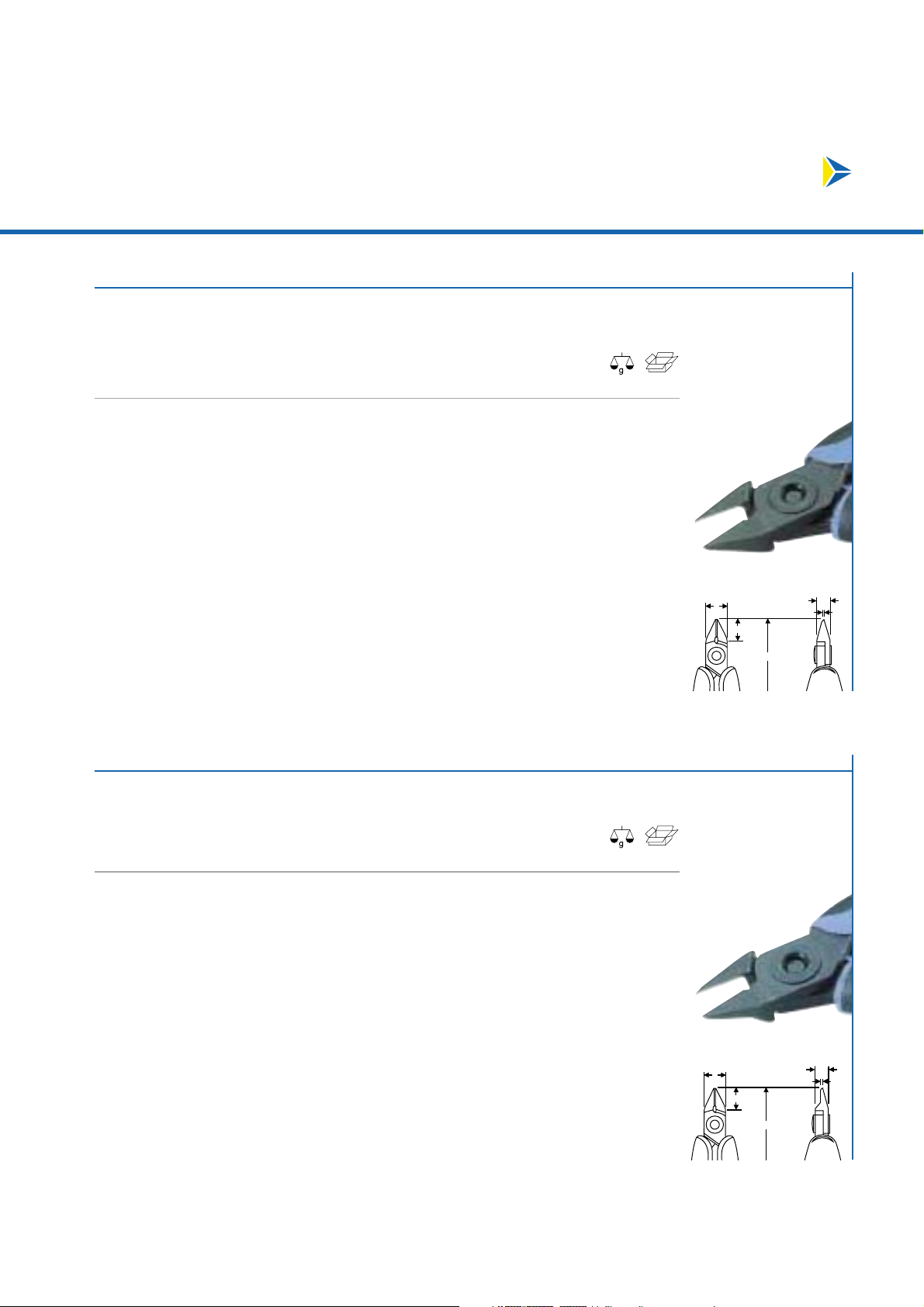

Rx Cutters and Pliers

OVAL

Rx8130-8162

D F

Rx8130 0103003 133.5 8.5 8.0 5.0 0.8 0.2 - 1.25 Micro 68 1

5.25 0.33 0.31 0.20 0.03 0.01 - 0.05

Rx8131 0103010 133.5 8.5 8.0 5.0 0.8 0.1 - 1.25 Flush 68 1

5.25 0.33 0.31 0.20 0.03 0.01 - 0.05

Rx8132 0103027 133.5 8.5 8.0 5.0 0.8 0.1 - 0.8 Ultra 68 1

5.25 0.33 0.31 0.20 0.03 0.01 - 0.03

Rx8140 0103034 135.5 10.5 10.0 6.0 0.8 0.2 - 1.25 Micro 70 1

5.33 0.41 0.39 0.24 0.03 0.01 - 0.05

Rx8141 0103041 135.5 10.5 10.0 6.0 0.8 0.1 - 1.25 Flush 70 1

5.33 0.41 0.39 0.24 0.03 0.01 - 0.05

Rx8142 0103058 135.5 10.5 10.0 6.0 0.8 0.1 - 1.0 Ultra 70 1

5.33 0.41 0.39 0.24 0.03 0.01 - 0.04

Rx8150 0103133 138.0 13.0 12.5 6.0 1.2 0.3 - 1.6 Micro 73 1

5.43 0.51 0.49 0.24 0.05 0.01 - 0.06

Rx8151 0103140 138.0 13.0 12.5 6.0 1.2 0.2 - 1.6 Flush 73 1

5.43 0.51 0.49 0.24 0.05 0.01 - 0.06

Rx8152 0103157 138.0 13.0 12.5 6.0 1.2 0.2 - 1.25 Ultra 73 1

5.43 0.51 0.49 0.24 0.05 0.01 - 0.05

Rx8160 0111534 147.0 16.0 16.0 8.0 1.6 0.4 - 2.0 Micro 97 1

5.8 0.63 0.63 0.31 0.06 0.02 - 0.08

Rx8161 0111541 147.0 16.0 16.0 8.0 1.6 0.3 - 2.0 Flush 97 1

5.8 0.63 0.63 0.31 0.06 0.01 - 0.08

Rx8162 0111568 147.0 16.0 16.0 8.0 1.6 0.3 - 1.6 Ultra 97 1

5.8 0.63 0.63 0.31 0.06 0.01 - 0.06

Product EAN code A B C D F Capacity Bevel code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

MICRO-BEVEL FLUSH ULTRA-FLUSH

Page 45

INDIVIDUAL LISTINGS AND SPECIFICATIONS

WWW.LINDSTROMTOOLS.COM

D F

Rx Cutters and Pliers

Product EAN code A B C D F Capacity Bevel

code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

Rx8143 0103065 135.5 10.5 10.0 6.0 0.8 0.2 - 1.25 Micro 68 1

5.33 0.41 0.39 0.24 0.03 0.01 - 0.05

8144 0103072 135.5 10.5 10.0 6.0 0.8 0.1 - 1.25 Flush 68 1

5.33 0.41 0.39 0.24 0.03 0.01 - 0.05

Rx8145 0103089 135.5 10.5 10.0 6.0 0.8 0.1 - 1.0 Ultra 68 1

5.33 0.41 0.39 0.24 0.03 0.01 - 0.04

Rx8143-8145

Product EAN code A B C D F Capacity Bevel

code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

Rx8146 0103096 135.5 10.5 10.0 6.0 0.8 0.2 - 1.0 Micro 68 1

5.33 0.41 0.39 0.24 0.03 0.01 - 0.04

8147 0103102 135.5 10.5 10.0 6.0 0.8 0.1 - 1.0 Flush 68 1

5.33 0.41 0.39 0.24 0.03 0.01 - 0.04

Rx8148 0103119 135.5 10.5 10.0 6.0 0.8 0.1 - 0.8 Ultra 68 1

5.33 0.41 0.39 0.24 0.03 0.01 - 0.03

Rx8146-8148

TAPERED

TAPERED AND RELIEVED

Page 46

C E

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

Rx Cutters and Pliers

TIP

Product EAN code A B C D E G H Capacity Bevel code 731415+ mm mm mm mm mm mm mm mm

inch inch inch inch inch inch inch inch

Rx8149

Rx8149 0103126 139.0 14.0 10.0 6.0 5.0 5.0 3.2 0.1 - 0.6 Flush 70 1

5.47 0.55 0.39 0.24 0.20 0.20 0.13 0.01 - 0.02

LONG HEAD, 10°

MICRO TIP

Product EAN code A B C D F G Capacity Bevel code 731415+ mm mm mm mm mm mm mm

inch inch inch inch inch inch inch

Rx8233 0113521 149.0 22.3 10.6 7.0 2.3 7.2 0.1 - 0.65 Ultra 69 1

5.9 0.87 0.41 0.27 0.08 0.28 0.004 - 0.025

Available in selected markets.

Rx8233

Page 47

INDIVIDUAL LISTINGS AND SPECIFICATIONS

WWW.LINDSTROMTOOLS.COM

Rx Cutters and Pliers

Product EAN code A B C D G Capacity Bevel

code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

SHORT HEAD, 20°

SHORT HEAD, 10°

Rx8211

Rx8211 0103188 134.5 9.5 10.0 6.0 4.1 0.2 - 1.2 Flush 70 1

5.29 0.37 0.39 0.24 0.16 0.01 - 0.05

ANGLE

MICRO TIP

Product EAN code A B C D F G Capacity Bevel

code 731415+ mm mm mm mm mm mm mm

inch inch inch inch inch inch inch

Rx8234 0113538 141.0 14.2 10.6 7.0 1.6 3.2 0.05 - 0.4 Ultra 62 1

4.5 0.56 0.41 0.27 0.06 0.12 0.002 - 0.18

Available in selected markets.

Rx8234

Page 48

MICRO TIP, ANGLE

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

Rx Cutters and Pliers

Product EAN code A B C D G Capacity Bevel code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

Rx8247 0103164 143.0 18.0 10.0 6.0 6.7 0.2 - 1.0 Flush 72 1

5.63 0.71 0.39 0.24 0.26 0.01 - 0.04

LONG HEAD, 45°

Rx8247

LONG HEAD, RELIEVED 50°

ANGLE

Product EAN code A B C D F G Capacity Bevel code 731415+ mm mm mm mm mm mm mm

inch inch inch inch inch inch inch

Rx8237 0113545 144.0 17.4 10.6 7.0 1.6 4.1 0.1 - 0.65 Ultra 65 1

5.6 0.69 0.41 0.27 0.06 0.16 0.004 - 0.025

Available in selected markets.

Rx8237

Page 49

C E

D F

INDIVIDUAL LISTINGS AND SPECIFICATIONS

WWW.LINDSTROMTOOLS.COM

ANGLE

Rx Cutters and Pliers

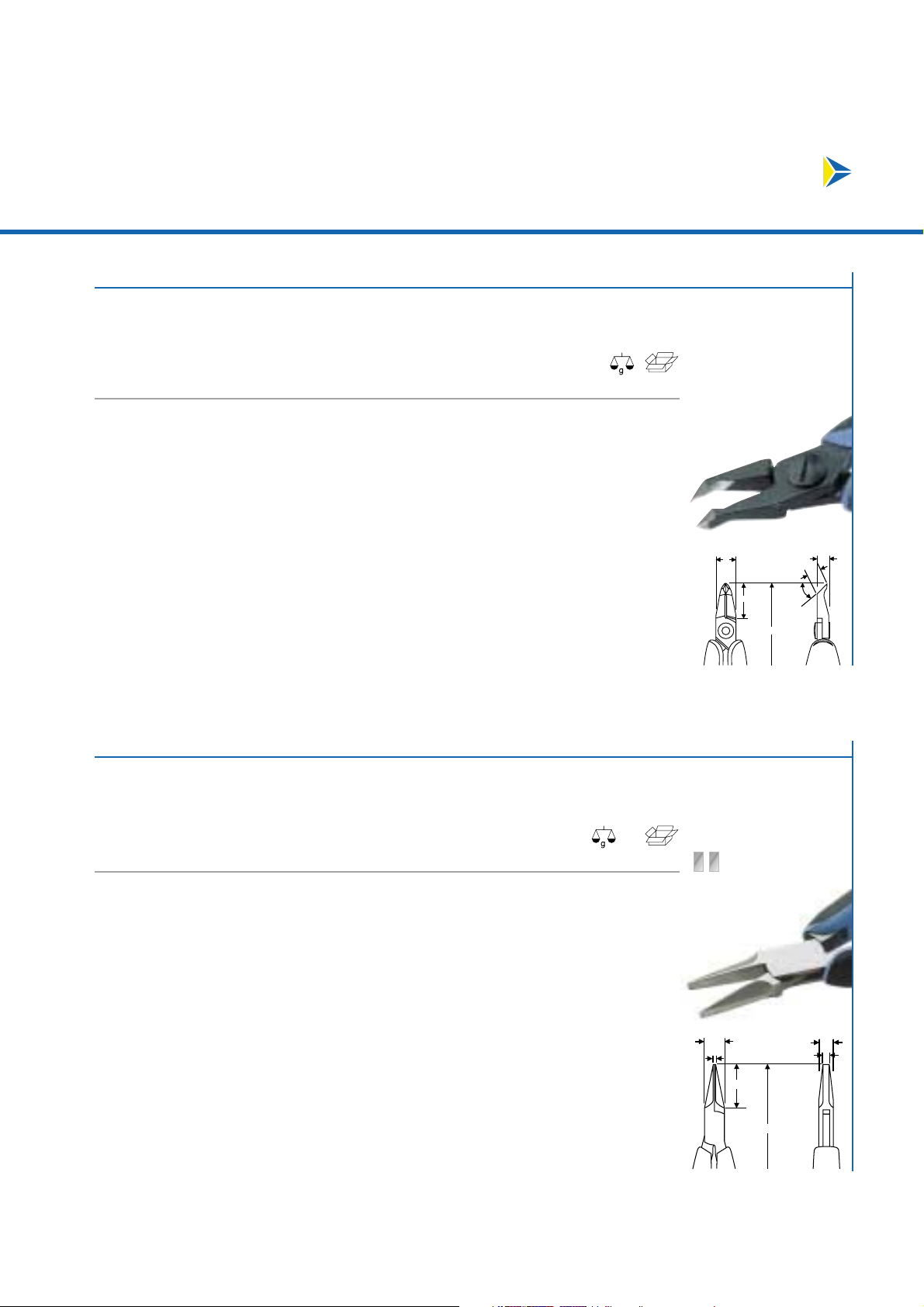

FLAT NOSE

Rx7490

Product EAN code A B C D G Capacity Bevel

code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

Rx8248 0103171 143.0 18.0 10.0 6.0 6.7 0.2 - 0.8 Flush 72 1

5.63 0.71 0.39 0.24 0.26 0.01 - 0.03

LONG HEAD,

RELIEVED 45°

Rx8248

Product EAN code A B C D E F Jaw

code 731415+ mm mm mm mm mm mm shape

inch inch inch inch inch inch

Rx7490 0103195 146.5 20.0 9.0 6.7 1.2 3.2 Smooth 70 1

5.77 0.79 0.35 0.26 0.05 0.12

PLIERS

Page 50

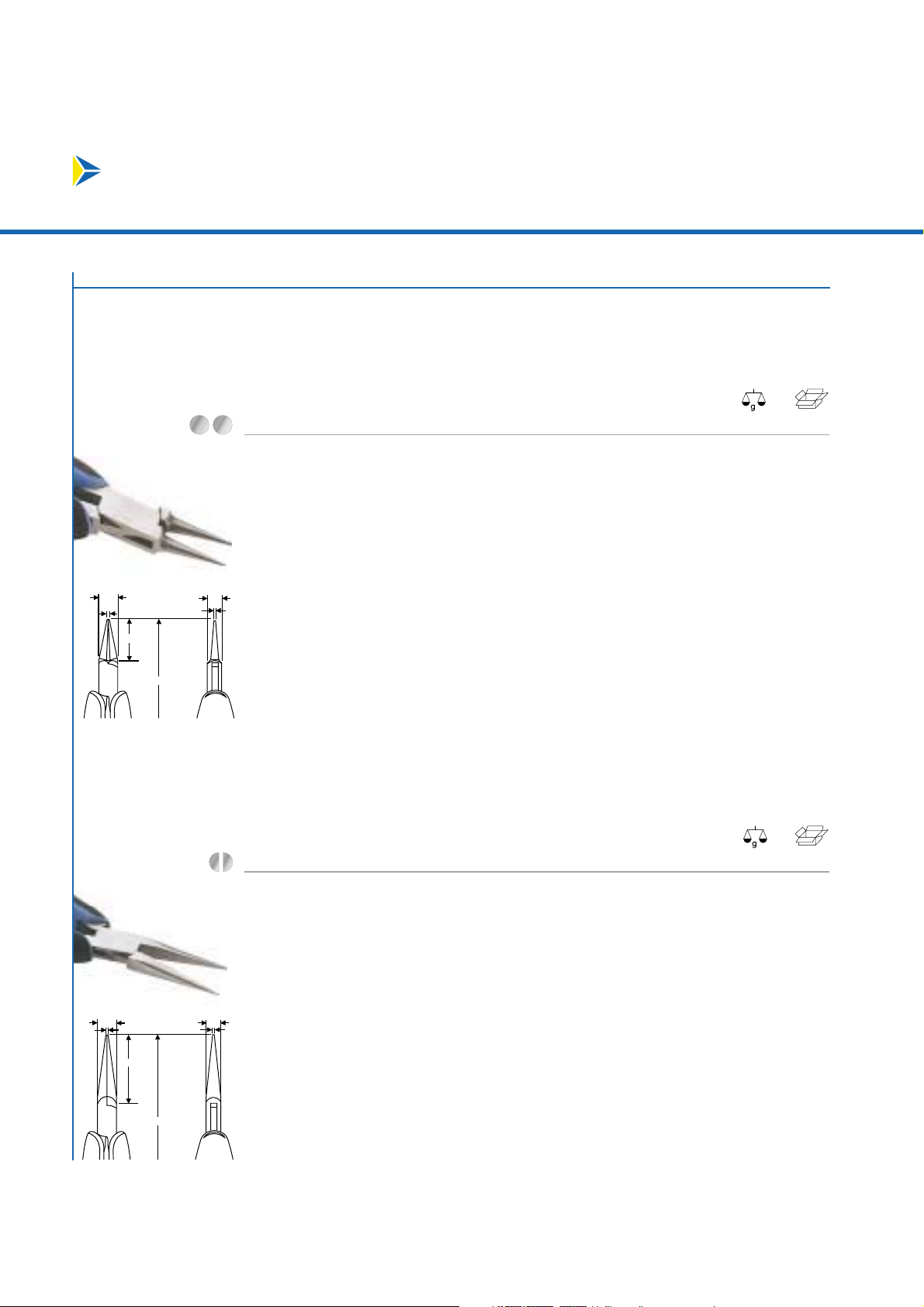

ROUND NOSE

Rx7590

Product EAN code A B C D E F Jaw code 731415+ mm mm mm mm mm mm shape

inch inch inch inch inch inch

Rx7590 0103201 146.5 20.0 9.0 6.7 1.0 Ø 0.5 Very fine 69 1

5.77 0.79 0.35 0.26 0.04 Ø 0.02

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

Rx Cutters and Pliers

PLIERS

SNIPE NOSE

Rx7890-7891

Product EAN code A B C D E F Jaw code 731415+ mm mm mm mm mm mm shape

inch inch inch inch inch inch

Rx7890 0103218 158.5 32.0 9.0 6.0 1.2 0.8 Smooth 72 1

6.24 1.26 0.35 0.24 0.05 0.03

7891 0103225 158.5 32.0 9.0 6.0 1.2 0.8 Serrated 72 1

6.24 1.26 0.35 0.24 0.05 0.03

C E

D F

Page 51

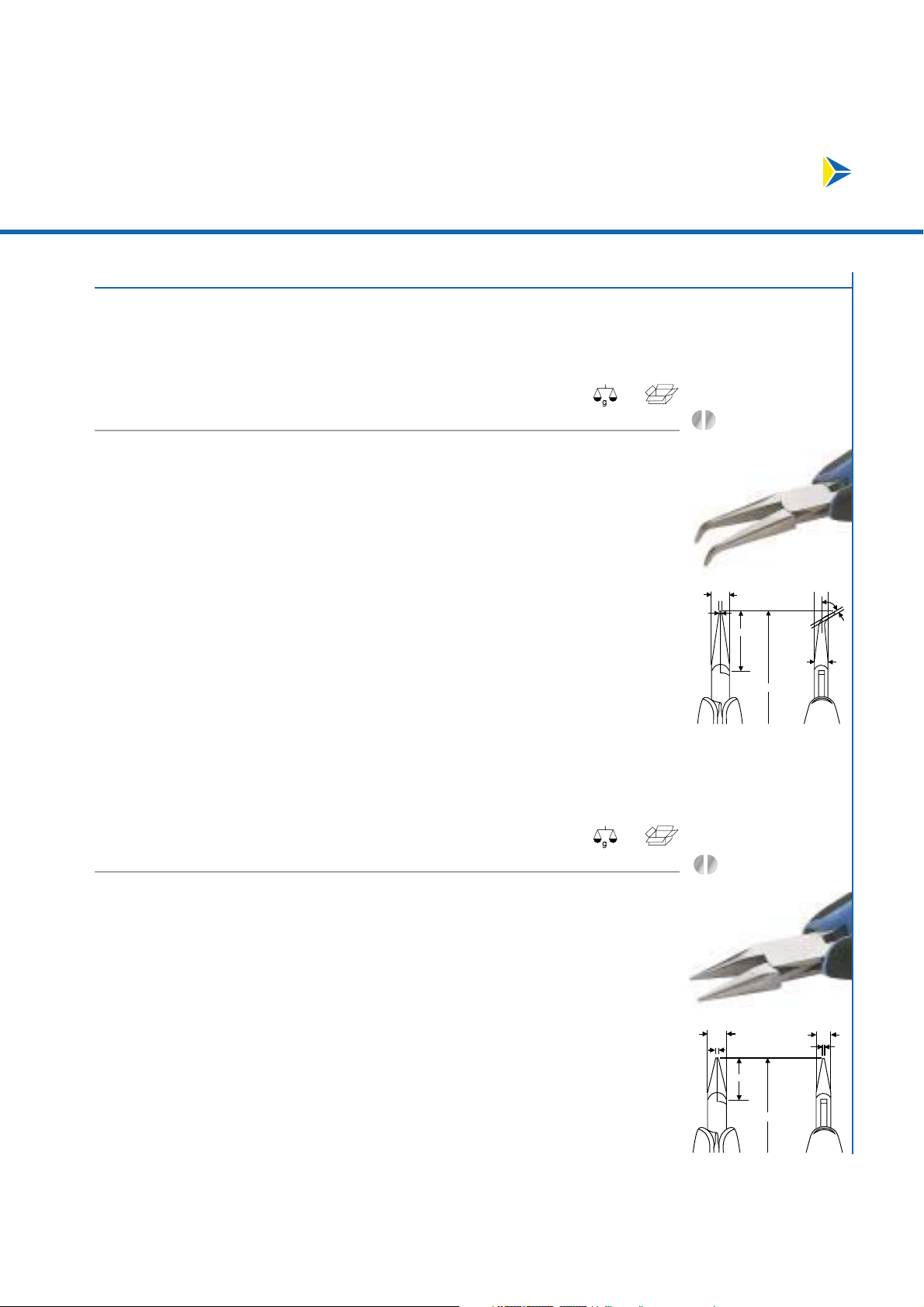

INDIVIDUAL LISTINGS AND SPECIFICATIONS

Rx Cutters and Pliers

WWW.LINDSTROMTOOLS.COM

PLIERS

Rx7893

SHORT

SNIPE NOSE

C E

D F

SNIPE NOSE WITH

BENT TIP

Product EAN code A B C D E F Jaw

code 731415+ mm mm mm mm mm mm shape

inch inch inch inch inch inch

Rx7892 0103232 155.5 29.0 9.0 6.7 1.2 0.8 Smooth 73 1

6.12 1.14 0.35 0.26 0.05 0.03

Product EAN code A B C D E F Jaw

code 731415+ mm mm mm mm mm mm shape

inch inch inch inch inch inch

Rx7893 0103249 146.5 20.0 9.0 6.7 1.2 0.8 Smooth 71 1

5.77 0.79 0.35 0.26 0.05 0.03

Rx7892

Page 52

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

80-Series Cutters

8130 0050918 108.0 8.0 8.0 5.0 0.8 0.2 - 1.25 Micro 43 1

4.25 0.31 0.31 0.20 0.03 0.01 - 0.05

8131 0050925 108.0 8.0 8.0 5.0 0.8 0.1 - 1.25 Flush 43 1

4.25 0.31 0.31 0.20 0.03 0.01 - 0.05

8132 0050932 108.0 8.0 8.0 5.0 0.8 0.1 - 0.8 Ultra 44 1

4.25 0.31 0.31 0.20 0.03 0.01 - 0.03

8140 0050949 110.0 10.0 10.0 6.0 0.8 0.2 - 1.25 Micro 46 1

4.33 0.39 0.39 0.24 0.03 0.01 - 0.05

8141 0050987 110.0 10.0 10.0 6.0 0.8 0.1 - 1.25 Flush 45 1

4.33 0.39 0.39 0.24 0.03 0.01 - 0.05

8142 0051007 110.0 10.0 10.0 6.0 0.8 0.1 - 1.0 Ultra 46 1

4.33 0.39 0.39 0.24 0.03 0.01 - 0.04

8150 0051113 112.5 12.5 12.5 6.0 1.2 0.3 - 1.6 Micro 50 1

4.43 0.50 0.50 0.24 0.05 0.01 - 0.06

8150J 0051137 112.5 12.5 12.5 6.0 1.2 Max 0.5 Micro 49 1

4.43 0.50 0.50 0.24 0.05 Max 0.02

8151 0051199 112.5 12.5 12.5 6.0 1.2 0.2 - 1.6 Flush 49 1

4.43 0.50 0.50 0.24 0.05 0.01 - 0.06

8152 0052097 112.5 12.5 12.5 6.0 1.2 0.2 - 1.25 Ultra 49 1

4.43 0.50 0.50 0.24 0.05 0.01 - 0.05

8160 0051229 125.0 16.0 16.0 8.0 1.6 0.4 - 2.0 Micro 88 1

4.92 0.63 0.63 0.31 0.06 0.02 - 0.08

8160J 0051250 125.0 16.0 16.0 8.0 1.6 Max 0.5 Micro 87 1

4.92 0.63 0.63 0.31 0.06 Max 0.02

8161 0051328 125.0 16.0 16.0 8.0 1.6 0.3 - 2.0 Flush 88 1

4.92 0.63 0.63 0.31 0.06 0.01 - 0.08

8162 0051335 125.0 16.0 16.0 8.0 1.6 0.3 - 1.6 Ultra 88 1

4.92 0.63 0.63 0.31 0.06 0.01 - 0.06

Type ”J” edges for stripping and cutting insulated copper wire.

Product EAN code A B C D F Capacity Bevel code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

8130-8162

D F

OVAL

If an 80-series cutter is desired with ESD-safe sleeves, then add the suffix CO or DS to the product code (Example: 8162 CO)

MICRO-BEVEL FLUSH ULTRA-FLUSH

Page 53

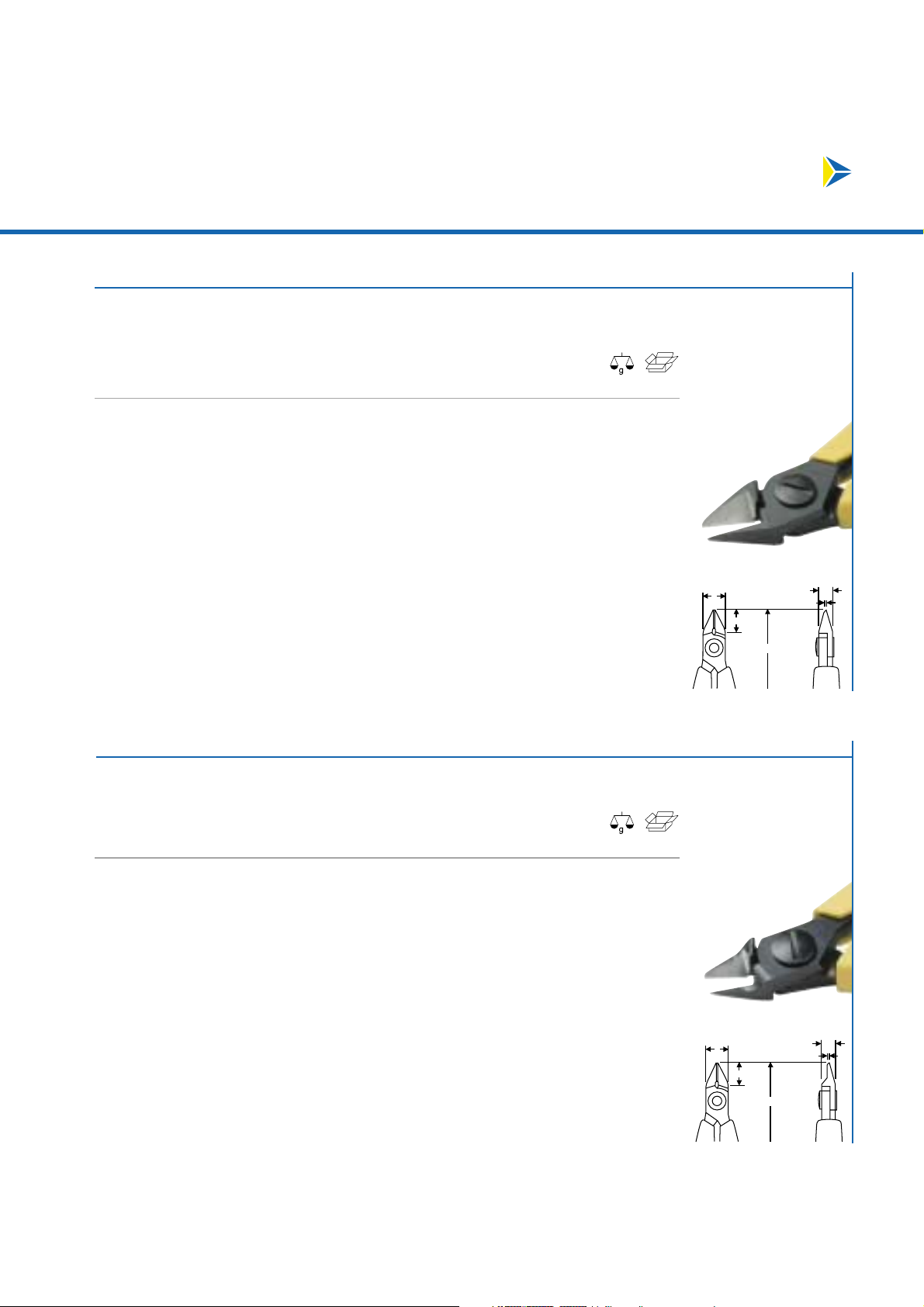

INDIVIDUAL LISTINGS AND SPECIFICATIONS

80-Series Cutters

WWW.LINDSTROMTOOLS.COM

TAPERED

8146 0051076 110.0 10.0 10.0 6.0 0.8 0.2 - 1.0 Micro 46 1

4.33 0.39 0.39 0.24 0.8 0.01 - 0.04

8147 0051083 110.0 10.0 10.0 6.0 0.8 0.1 - 1.0 Flush 46 1

4.33 0.39 0.39 0.24 0.8 0.01 - 0.04

8148 0051090 110.0 10.0 10.0 6.0 0.8 0.1 - 0.8 Ultra 45 1

4.33 0.39 0.39 0.24 0.8 0.01 - 0.03

8156 0051212 112.5 12.5 12.5 6.0 1.0 0.3 - 1.25 Micro 49 1

4.43 0.50 0.50 0.24 1.0 0.01 - 0.05

8157 0052127 112.5 12.5 12.5 6.0 1.0 0.2 - 1.25 Flush 49 1

4.43 0.50 0.50 0.24 1.0 0.01 - 0.05

8158 0052134 112.5 12.5 12.5 6.0 1.0 0.2 - 1.0 Ultra 49 1

4.43 0.50 0.50 0.24 1.0 0.01 - 0.04

Product EAN code A B C D F Capacity Bevel

code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

8143 0051021 110.0 10.0 10.0 6.0 0.8 0.2 - 1.25 Micro 46 1

4.33 0.39 0.39 0.24 0.03 0.01 - 0.05

8144 0051045 110.0 10.0 10.0 6.0 0.8 0.1 - 1.25 Flush 46 1

4.33 0.39 0.39 0.24 0.03 0.01 - 0.05

8145 0051052 110.0 10.0 10.0 6.0 0.8 0.1 - 1.0 Ultra 46 1

4.33 0.39 0.39 0.24 0.03 0.01 - 0.04

8153 0051205 112.5 12.5 12.5 6.0 1.2 0.3 - 1.6 Micro 49 1

4.43 0.50 0.50 0.24 0.05 0.01 - 0.06

8154 0052103 112.5 12.5 12.5 6.0 1.2 0.2 - 1.6 Flush 49 1

4.43 0.50 0.50 0.24 0.05 0.01 - 0.06

8155 0052110 112.5 12.5 12.5 6.0 1.2 0.2 - 1.25 Ultra 49 1

4.43 0.50 0.50 0.24 0.05 0.01 - 0.05

8163 0051342 125.0 16.0 16.0 8.0 1.6 0.4 - 2.0 Micro 88 1

4.92 0.63 0.63 0.31 0.06 0.02 - 0.08

8164 0052141 125.0 16.0 16.0 8.0 1.6 0.3 - 2.0 Flush 88 1

4.92 0.63 0.63 0.31 0.06 0.01 - 0.08

8165 0052158 125.0 16.0 16.0 8.0 1.6 0.3 - 1.6 Ultra 88 1

4.92 0.63 0.63 0.31 0.06 0.01 - 0.06

Product EAN code A B C D F Capacity Bevel

code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

8146-8158

D F

8143-8165

D F

TAPERED AND RELIEVED

Page 54

C E

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

TIP

ANGLE

80-Series Cutters

8149 0051106 114.0 14.0 5.0 6.0 5.0 5.0 3.2 0.1 - 0.6 Flush 48 1

4.49 0.55 0.23 0.24 0.23 0.23 0.13 0.01 - 0.02

8149

8211

8211 0101030 110.0 9.5 10.0 6.0 4.1 0.2 - 1.2 Flush 43 1

4.33 0.37 0.39 0.24 0.16 0.01 - 0.05

Product EAN code A B C D E G H Capacity Bevel code 731415+ mm mm mm mm mm mm mm mm

inch inch inch inch inch inch inch inch

Product EAN code A B C D G Capacity Bevel code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

SHORT HEAD, 20°

Page 55

INDIVIDUAL LISTINGS AND SPECIFICATIONS

80-Series Cutters

WWW.LINDSTROMTOOLS.COM

8248

8248 0051427 117.5 18.0 10.0 6.0 6.7 0.2-0.8 Flush 51 1

4.63 0.71 0.39 0.24 0.26 0.01-0.03

Product EAN code A B C D G Capacity Bevel

code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

LONG HEAD,

RELIEVED, 45°

8247

8247 0051397 117.5 18.0 10.0 6.0 6.7 0.2 - 1.0 Flush 51 1

4.63 0.71 0.39 0.24 0.26 0.01 - 0.04

Product EAN code A B C D G Capacity Bevel

code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

LONG HEAD, 45°

ANGLE

Page 56

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

Supreme Cutters and Pliers

7190 0052479 109.0 9.0 9.0 6.0 1.0 0.2 - 1.25 Micro 50 1

4.29 0.35 0.35 0.24 0.04 0.01 - 0.05

7191 0052509 109.0 9.0 9.0 6.0 1.0 0.1 - 1.25 Flush 50 1

4.29 0.35 0.35 0.24 0.04 0.01 - 0.05

Product EAN code A B C D F Capacity Bevel code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

D F

TAPERED

7190-7191

If a Supreme cutter or pliers is desired with ESD-safe sleeves, then add the suffix CO or DS to the product code (Example: 7190 CO)

MICRO-BEVEL FLUSH ULTRA-FLUSH

Page 57

INDIVIDUAL LISTINGS AND SPECIFICATIONS

Supreme Cutters and Pliers

WWW.LINDSTROMTOOLS.COM

MINIATURE

7285

7285 0052530 120.0 20.0 9.0 6.0 6.7 0.2 - 1.0 Flush 56 1

4.72 0.79 0.35 0.24 0.26 0.01 - 0.04

7280 0052523 118.0 18.0 9.0 6.0 3.5 0.2 - 0.8 Flush 54 10

4.64 0.71 0.35 0.24 0.14 0.01 - 0.03

Product EAN code A B C D G Capacity Bevel

code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

Product EAN code A B C D G Capacity Bevel

code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

ANGLE

REVERSE

7280

Page 58

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

Supreme Cutters and Pliers

ANGLE

7290-7291

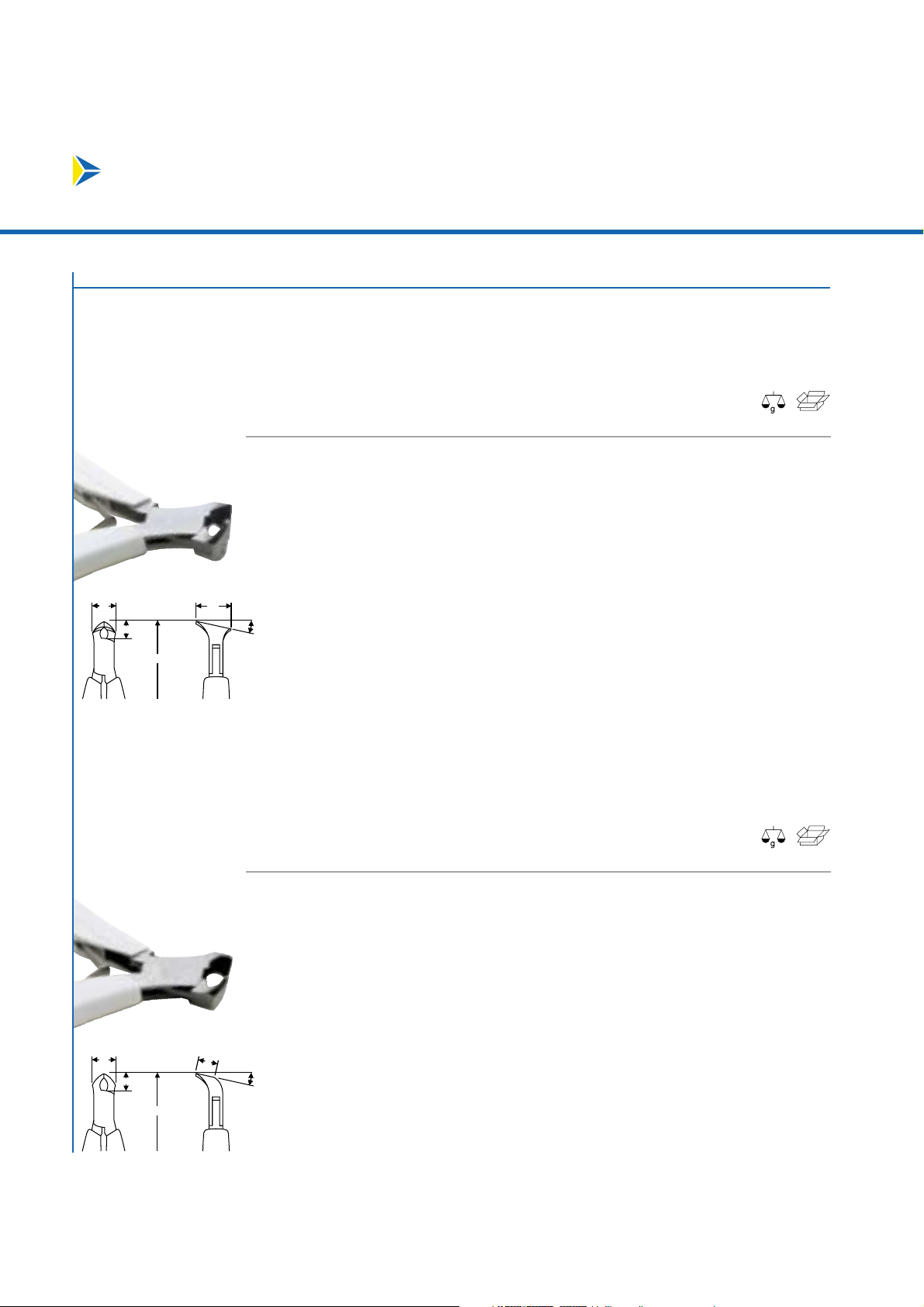

7290 0052547 108.0 8.0 10.5 15.0 0.35 - 1.25 Micro 56 1

4.25 0.31 0.41 0.59 0.01 - 0.05

7291 0052554 108.0 8.0 10.5 15.0 0.35 - 1.25 Flush 56 1

4.25 0.31 0.41 0.59 0.01 - 0.05

Product EAN code A B C G Capacity Bevel code 731415+ mm mm mm mm mm

inch inch inch inch inch

END

7293

7293 0052592 108.0 8.0 10.5 8.0 0.35 - 1.0 Flush 56 1

4.25 0.31 0.41 0.31 0.01 - 0.04

END

Product EAN code A B C G Capacity Bevel code 731415+ mm mm mm mm mm

inch inch inch inch inch

Page 59

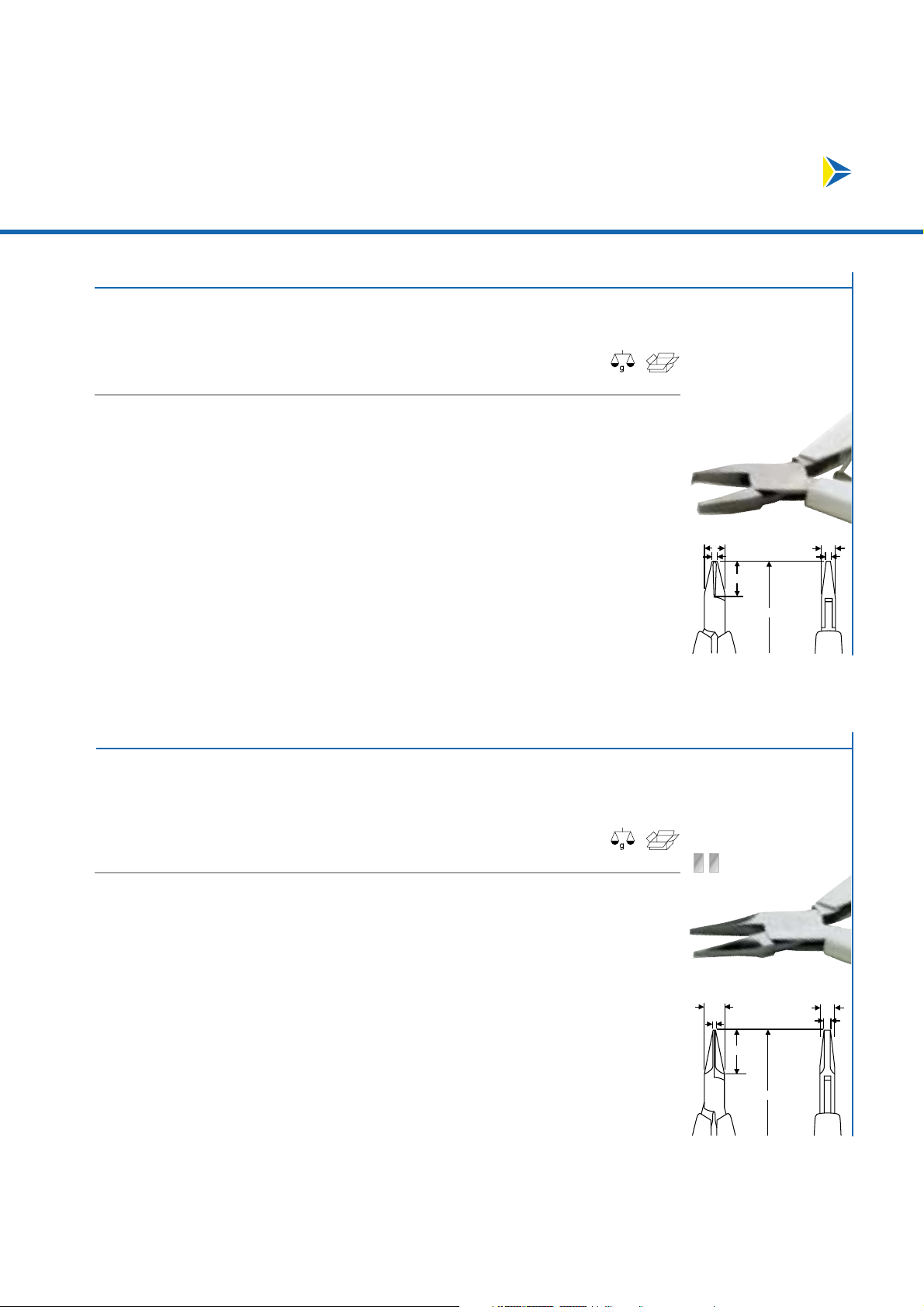

MINIATURE END

INDIVIDUAL LISTINGS AND SPECIFICATIONS

WWW.LINDSTROMTOOLS.COM

Supreme Cutters and Pliers

C E

D F

7490 0052646 120.0 20.0 9.0 6.0 1.2 3.2 Smooth 53 1

4.72 0.79 0.35 0.24 0.05 0.13

Product EAN-code A B C D E F Jaw

code 731415+ mm mm mm mm mm mm shape

inch inch inch inch inch inch

D F

7292 0052578 115.0 15.0 9.0 6.0 3.2 4.0 0.35 - 0.8 Flush 54 1

4.53 0.59 0.35 0.24 0.13 0.16 0.01 - 0.03

Product EAN-code A B C D E F Capacity Bevel

code 731415+ mm mm mm mm mm mm mm

inch inch inch inch inch inch inch

7490

FLAT NOSE

7292

PLIERS

Page 60

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

Supreme Cutters and Pliers

PLIERS

Product EAN code A B C D E F Jaw code 731415+ mm mm mm mm mm mm shape

inch inch inch inch inch inch

7590 0052660 120.0 20.0 9.0 6.0 1.0 Ø 0.5 Very fine 54 1

4.72 0.79 0.35 0.24 0.04 Ø 0.02

Product EAN code A B C D E F Jaw code 731415+ mm mm mm mm mm mm shape

inch inch inch inch inch inch

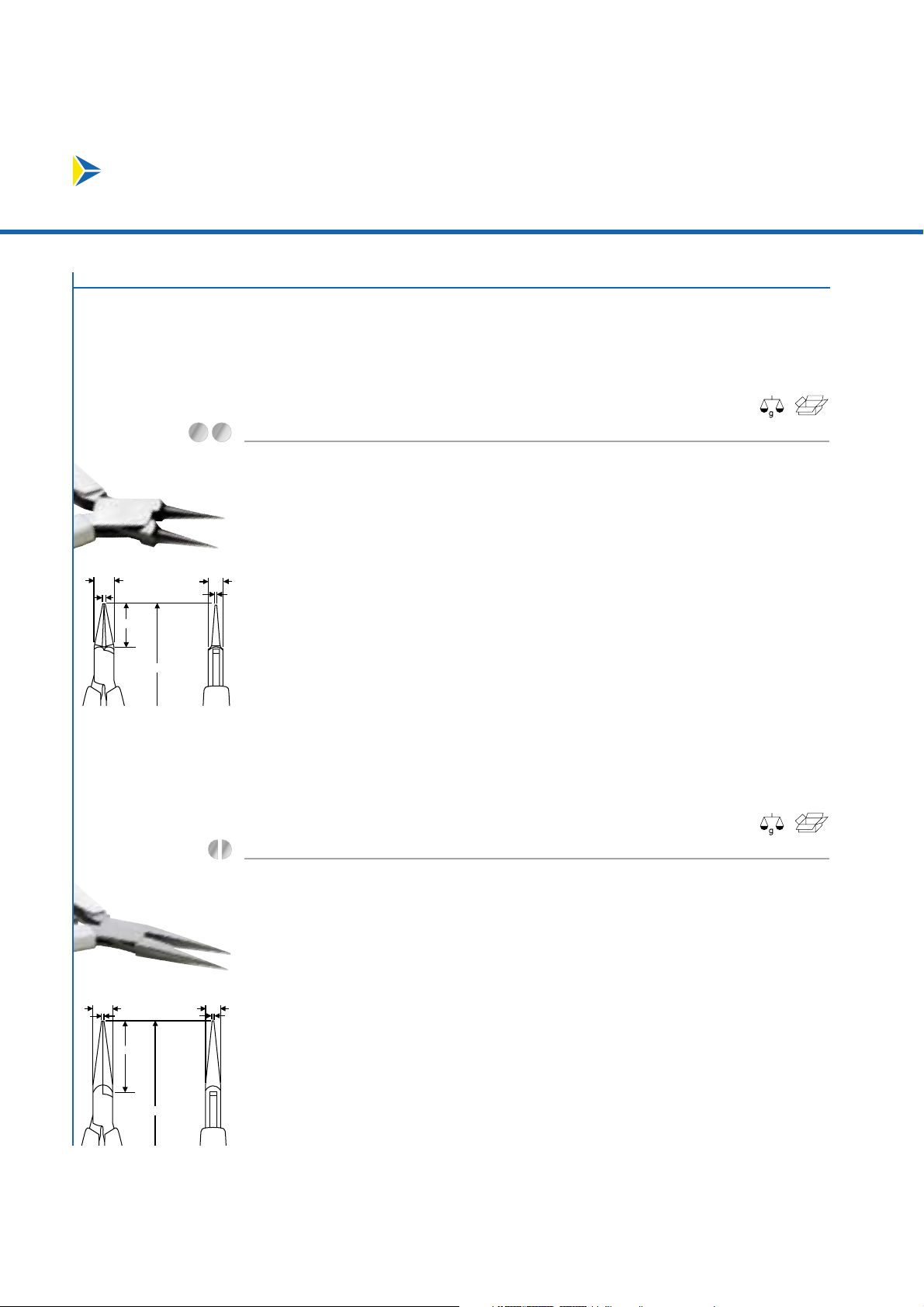

7890 0052691 132.0 32.0 9.0 6.0 1.2 0.8 Smooth 60 1

5.20 1.26 0.35 0.24 0.05 0.03

7891 0052714 132.0 32.0 9.0 6.0 1.2 0.8 Serrated 59 1

5.20 1.26 0.35 0.24 0.05 0.03

C E

D F

7590

ROUND NOSE

7890-7891

SNIPE NOSE

Page 61

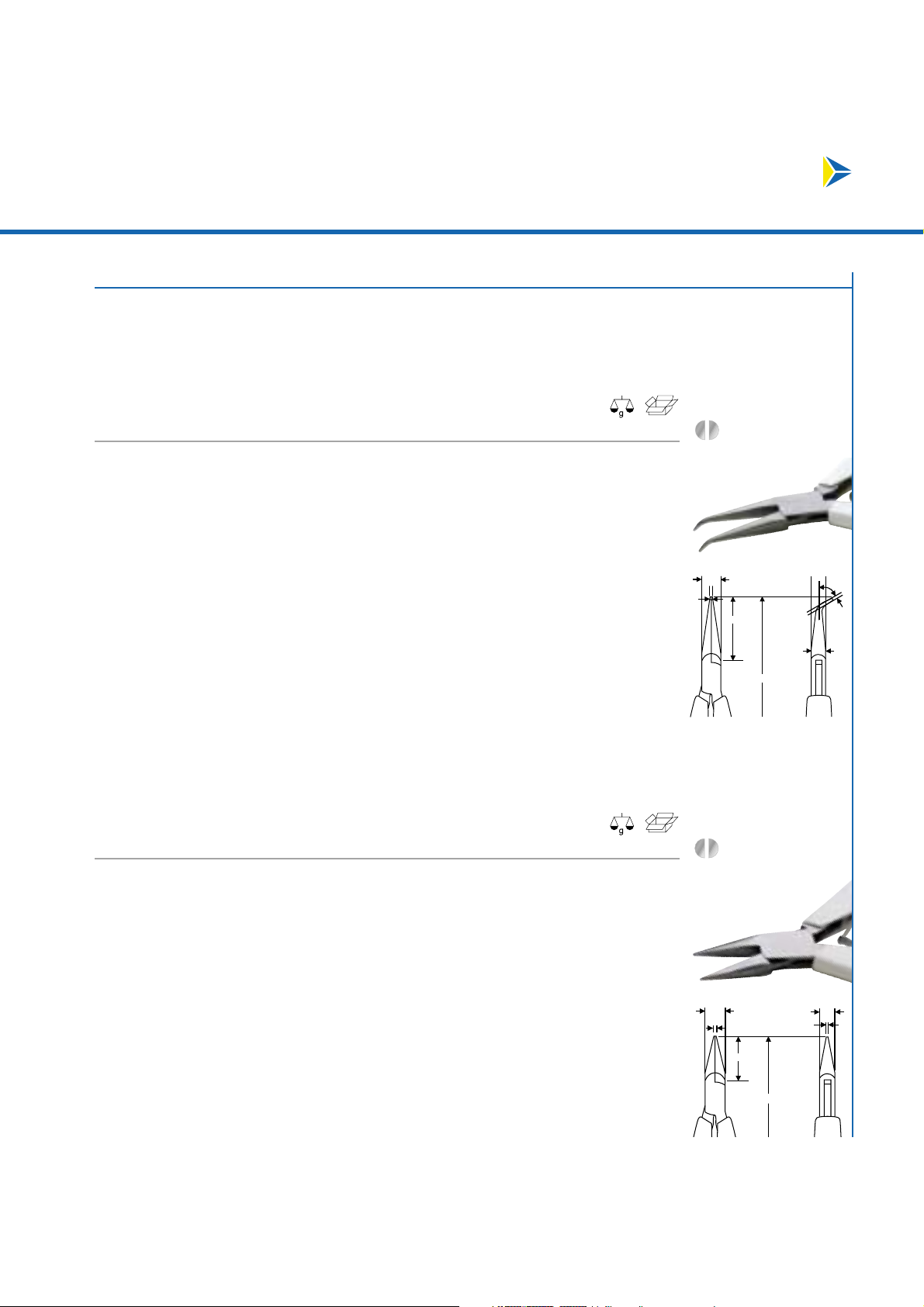

INDIVIDUAL LISTINGS AND SPECIFICATIONS

Supreme Cutters and Pliers

WWW.LINDSTROMTOOLS.COM

7893

7892

SNIPE NOSE

WITH BENT TIP

7892 0052738 129.0 29.0 9.0 6.0 1.2 0.8 Smooth 59 1

5.08 1.14 0.35 0.24 0.05 0.03

SHORT

SNIPE NOSE

C E

D F

Product EAN code A B C D E F Jaw

code 731415+ mm mm mm mm mm mm shape

inch inch inch inch inch inch

7893 0052769 120.0 20.0 9.0 6.0 1.2 0.8 Smooth 56 1

4.72 0.79 0.35 0.24 0.05 0.03

Product EAN code A B C D E F Jaw

code 731415+ mm mm mm mm mm mm shape

inch inch inch inch inch inch

PLIERS

Page 62

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS.COM

Multi-Purpose Shear

SHEAR ACTION CUTTERS

Product EAN code A B C D F G code 731415+ mm mm mm mm mm mm

inch inch inch inch inch

HS6000 0113521 145.0 29.0 12.7 6.4 2.2 29.0 88 1

5.7 1.1 0.5 0.2 0.07 1.1

HS6000

Page 63

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers

WWW.LINDSTROMTOOLS.COM

TL 00B-SA 0109555 120

4.72 21 1

Strong tips and

serrated grips.

TL 00D-SA 0109562 120.0 4.72 21 1

Serrated tips

and grips.

TL 00-SA 0109579 120.0 4.72 22 1

Flat edge,

strong tips.

TL 0C9-SA 0109586 90.0 3.54 7 1

Flat edge,

fine tips.

TL 00B-SA

TL 00D-SA

TL 00-SA

TL 0C9-SA

TL 0-SA

TL 0-SA 0109593 120.0 4.72 14 1

Flat edge,

fine tips.

Product EAN code L L

code 731415+ mm inch

SA ESD-safe. Stainless, antimagnetic, anti-acid steel. TA ESD-safe. Lightweight, high-temperature (1600F/870C) Titanium. CF ESD-safe.High-temperature tolerant Carbon Fiber tips.

HIGH PRECISION

NC Plastic Coated. S ESD-safe.Stainless. EP ESD-safe.Epoxy.

MATERIAL DESIGNATIONS

Page 64

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS.COM

Tweezers

HIGH PRECISION

TL 15A

TL 15A 0109616 115.0 4.53 27 1

Tapered cutting tips.

TL 15AGW

TL 15AGW 0109623 115.0 4.53 26 1

Tapered cutting tips.

TL 15AP 0109630 115.0 4.53 27 1

Parallel cutting tips.

TL 1-SA 0109647 120.0 4.72 13 1

Strong, accurate tips.

TL 15AP

TL 1-SA

Product EAN code L L code 731415+ mm inch

TL 10G-SA

TL 10G-SA 0109609 110.0 4.33 13 1

Serrated tips and grips.

12 mm

10m m

12 mm

Page 65

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers

WWW.LINDSTROMTOOLS. COM

HIGH PRECISION

TL 2A-SA

TL 2A-SA 0110100 120.0 4.72 15 1

Flat, round tips.

TL 2-SA

TL 2-SA 0110117 120.0 4.72 15 1

Strong, sharp tips.

TL 34A-SA 0110124 120.0 4.72 15 1

Rectangular tips

and serrated grips.

TL 34A-SA

Product EAN code L L

code 731415+ mm inch

TL 27-SA 0109654 135.0 5.31 15 1

Strong, fine tips.

TL 2AB-SA 0110094 120.0 4.72 15 1

Flat, curved,

round tips.

TL 27-SA

TL 2AB-SA

SA ESD-safe. Stainless, antimagnetic, anti-acid steel. TA ESD-safe. Lightweight, high-temperature (1600F/870C) Titanium. CF ESD-safe.High-temperature tolerant Carbon Fiber tips.

NC Plastic Coated. S ESD-safe.Stainless. EP ESD-safe.Epoxy.

MATERIAL DESIGNATIONS

Page 66

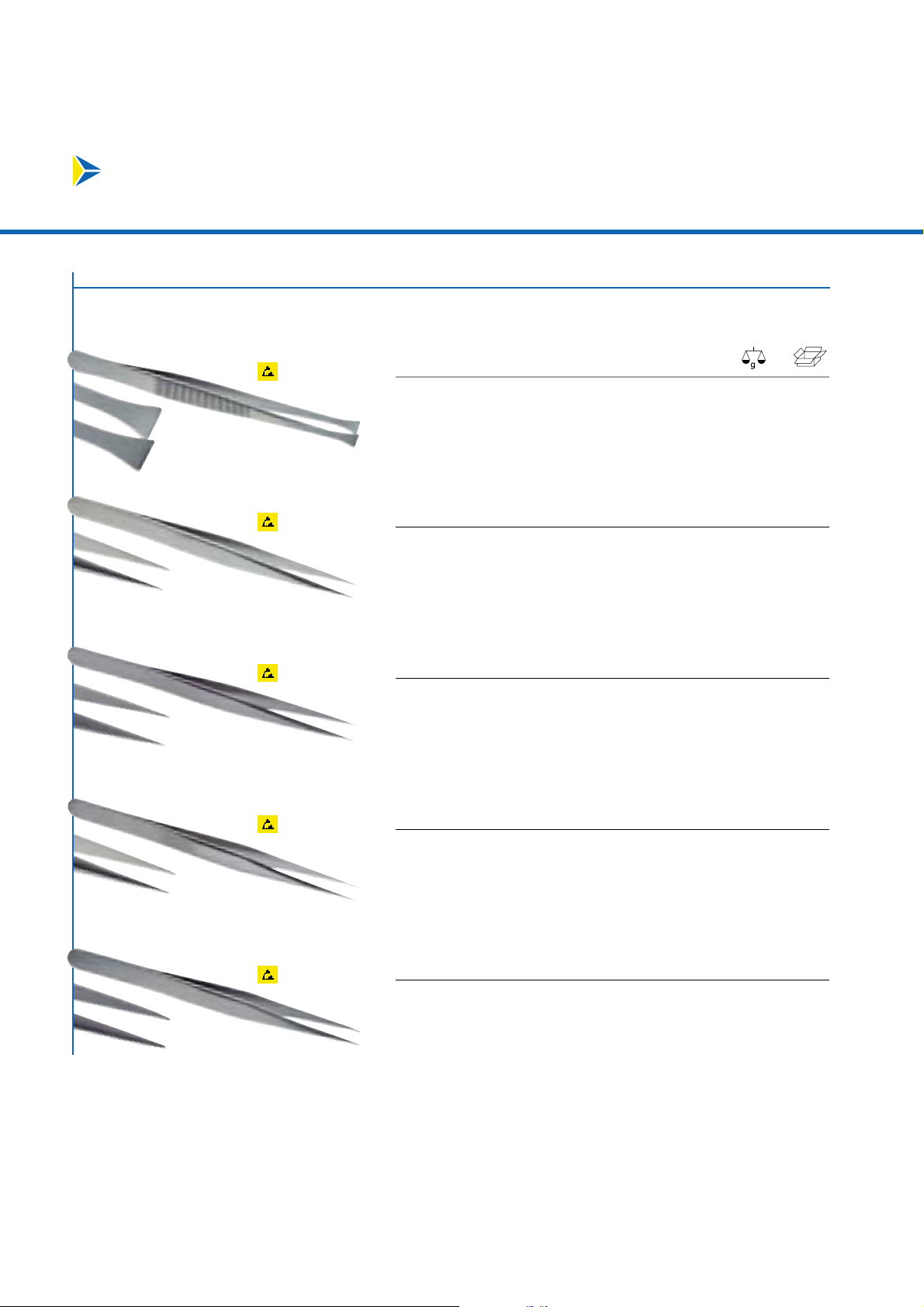

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS.COM

Tweezers

HIGH PRECISION

TL 3-SA 0110162 120.0 4.72 13 1

Very sharp tips.

TL 3-TA 0110179 120.0 4.72 9 1

Very sharp tips.

TL 3-SA

TL 3-TA

Product EAN code L L code 731415+ mm inch

TL 35A-SA

TL 35A-SA 0110131 120.0 4.72 14 1

Smooth, fan-shape, serrated grips.

TL 3C-SA 0110148 110.0 4.33 12 1

Very sharp tips.

TL 3C-TA 0110155 110.0 4.33 7 1

Very sharp tips.

TL 3C-SA

TL 3C-TA

Page 67

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers

WWW.LINDSTROMTOOLS. COM

HIGH PRECISION

TL 5B-SA 0110223 110.0 4.33 13 1

Fine, bent tips.

TL 5B-SA

Product EAN code L L

code 731415+ mm inch

TL 4-SA

TL 4-SA 0110186 110.0 4.33 13 1

Extra fine tips.

TL 4A-SA 0110193 110.0 4.33 13 1

Extra fine,

strong tips.

TL 51S-SA

TL 51S-SA 0110209 115.0 4.53 13 1

Extra fine,

double bent tips.

TL 5A-SA

TL 5A-SA 0110216 115.0 4.53 13 1

Extra fine tips.

TL 4A-SA

SA ESD-safe. Stainless, antimagnetic, anti-acid steel. TA ESD-safe. Lightweight, high-temperature (1600F/870C) Titanium. CF ESD-safe.High-temperature tolerant Carbon Fiber tips.

NC Plastic Coated. S ESD-safe.Stainless. EP ESD-safe.Epoxy.

MATERIAL DESIGNATIONS

Page 68

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS.COM

Tweezers

HIGH PRECISION

Product EAN code L L code 731415+ mm inch

TL 5C-SA 0110230 115.0 4.53 13 1

Fine, double bent tips.

TL 5-SA 0110247 110.0 4.33 12 1

Extra fine tips.

TL 5-TA 0110254 110.0 4.33 7 1

Extra fine tips.

TL 5C-SA

TL 5-SA

TL 5-TA

TL 6-SA

TL 6-SA 0110261 115.0 4.53 15 1

Fine, angled tips.

TL 65A-SA

TL 65A-SA 0110278 140.0 5.51 12 1

Long, fine curved tips.

Page 69

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers

WWW.LINDSTROMTOOLS. COM

HIGH PRECISION

Product EAN code L L

code 731415+ mm inch

TL 7A-SA

TL 7A-SA 0110285 115.0 4.53 14 1

Strong, curved tips.

TL 7-SA

TL 7-SA 0110292 115.0 4.53 13 1

Fine, curved tips.

TL AC-SA 0110308 110.0 4.33 18 1

Strong tips,

serrated grips.

TL F-SA 0109883 120.0 4.72 15 1

Flat, square-end

tips.

TL H-SA 0109890 90.0 3.54 12 1

Dovetailed,

fine tips.

TL AC-SA

TL F-SA

TL H-SA

SA ESD-safe. Stainless, antimagnetic, anti-acid steel. TA ESD-safe. Lightweight, high-temperature (1600F/870C) Titanium. CF ESD-safe.High-temperature tolerant Carbon Fiber tips.

NC Plastic Coated. S ESD-safe.Stainless. EP ESD-safe.Epoxy.

MATERIAL DESIGNATIONS

Page 70

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS.COM

Tweezers

HIGH PRECISION

TL SS-EP

TL SS-EP 0109913 140.0 5.51 13 1

Slender, long, fine tips.

TL SSG-SA

TL SSG-SA 0109920 140.0 5.51 17 1

Slender, long, strong tips.

TL SS-SA

TL SS-SA 0109937 140.0 5.51 12 1

Slender, long, fine tips.

TL S-SA 0109906 120.0 4.72 13 1

Fine tips.

TL S-SA

Product EAN code L L code 731415+ mm inch

Page 71

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers

WWW.LINDSTROMTOOLS. COM

GENERAL PURPOSE

TL 119A-SA

TL 119A-SA 0109944 150.0 6.00 20 1

Strong tips,

serrated grips.

TL 119-SA 0109951 150.0 6.00 19 1

Fine tips,

serrated grips.

TL 119-SA

Product EAN code L L

code 731415+ mm inch

TL 120A-SA 0109968 110.0 4.33 10 1

Short fine, sturdy tips,

serrated grips.

TL 120-SA 0109975 150.0 6.00 25 1

Strong tips,

serrated grips.

TL 121-SA 0109982 160.0 6.30 26 1

Strong, blunt tips,

serrated grips.

TL 120A-SA

TL 120-SA

TL 121-SA

SA ESD-safe. Stainless, antimagnetic, anti-acid steel. TA ESD-safe. Lightweight, high-temperature (1600F/870C) Titanium. CF ESD-safe.High-temperature tolerant Carbon Fiber tips.

NC Plastic Coated. S ESD-safe.Stainless. EP ESD-safe.Epoxy.

MATERIAL DESIGNATIONS

Page 72

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS.COM

Tweezers

GENERAL PURPOSE

TL 122-SA 0109999 150.0 6.00 19 1

Fine, bent tips and serrated grips.

TL 123-SA 0110001 150.0 6.00 19 1

Fine, double bent tips and serrated grips.

TL 124-SA 0110018 150.0 6.00 20 1

Fine, bent, strong tips and serrated grips.

Product EAN code L L code 731415+ mm inch

TL 2AX-SA 0110025 120.0 4.72 15 1

Reverse Action, style 2A.

TL 122-SA

TL 123-SA

TL 124-SA

REVERSE ACTION TWEEZER TL 2AX-SA

Page 73

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers

WWW.LINDSTROMTOOLS. COM

HIGH STRENGTH GENERAL PURPOSE

TL 475-SA 0110032 140.0 5.51 25 1

Blunt, serrated

tips and grips.

TL 648-SA 0110049 150.0 5.90 25 1

Fine, serrated tips

and grips.

TL 648-NC 0110971 150.0 5.90 25 1

Fine, serrated tips.

Plastic coated.

TL 649-SA 0110063 150.0 5.90 25 1

Fine, bent, serrated

tips and grips.

TL 475-SA

TL 648-SA

TL 648-NC

TL 649-SA

Product EAN code L L

code 731415+ mm inch

TL 649-NC

TL 649-NC 0110964 150.0 5.90 25 1

Fine, bent, serrated

tips. Plastic coated.

SA ESD-safe. Stainless, antimagnetic, anti-acid steel. TA ESD-safe. Lightweight, high-temperature (1600F/870C) Titanium. CF ESD-safe.High-temperature tolerant Carbon Fiber tips.

NC Plastic Coated. S ESD-safe.Stainless. EP ESD-safe.Epoxy.

MATERIAL DESIGNATIONS

Page 74

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS.COM

Tweezers

HIGH STRENGTH GENERAL PURPOSE

STRONG BLUNT TIP

TL 231-SA

TL 231-SA 0110087 120.0 4.72 14 1

Strong, serrated tips.

TL 7312-SA

TL 7312-SA 0110315 120.0 4.72 21 1

Serrated tips and grips.

TL 7312-NC

TL 7312-NC 0110957 120.0 4.72 23 1

Plastic coated serrated tips.

TL 7314-SA 0110339 140.0 5.51 31 1

Serrated tips and grips.

TL 7314-SA

Product EAN code L L code 731415+ mm inch

Page 75

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers

WWW.LINDSTROMTOOLS. COM

BLUNT TIP

TL 7314-NC 0110940 140.0 5.51 33 1

Plastic coated grips

and serrated tips.

TL 7316-SA 0110360 160.0 6.30 33 1

Serrated tips

and grips.

TL 7316-NC 0110933 160.0 6.30 33 1

Plastic coated grips

and serrated tips.

TL 7316-SA

TL 7316-NC

TL 7320-SA

TL 7320-SA 0110377 200.0 7.87 50 1

Serrated tips

and grips.

TL 7320-NC

TL 7320-NC 0110926 200.0 7.87 55 1

Plastic coated grips

and serrated tips.

Product EAN code L L

code 731415+ mm inch

TL 7314-NC

SA ESD-safe. Stainless, antimagnetic, anti-acid steel. TA ESD-safe. Lightweight, high-temperature (1600F/870C) Titanium. CF ESD-safe.High-temperature tolerant Carbon Fiber tips.

NC Plastic Coated. S ESD-safe.Stainless. EP ESD-safe.Epoxy.

MATERIAL DESIGNATIONS

Page 76

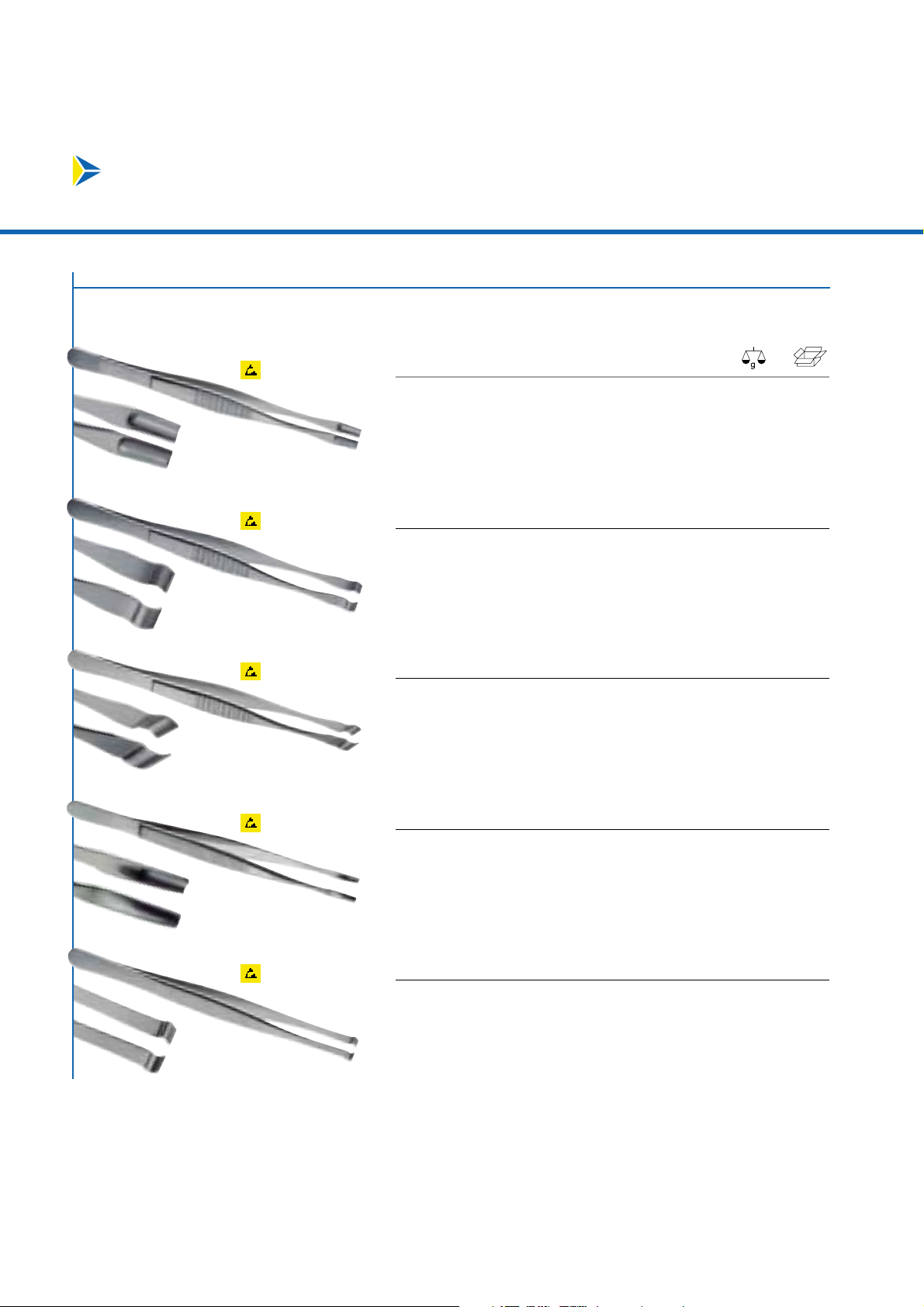

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS. COM

Tweezers

COMPONENT HANDLING

TL 571-SA

TL 571-SA 0110391 145.0 5.71 25 1

Straight tips, Ø 6 mm,

components 2.5–5.0 mm

and serrated grips.

TL 572-SA

TL 572-SA 0110407 145.0 5.71 26 1

Angled tips

90°, Ø 6 mm,

components 2.5–5.0 mm

and serrated grips.

TL 573-SA 0110414 145.0 5.71 25 1

Angled tips

45°, Ø 6 mm,

components 2.5–5.0 mm

and serrated grips.

TL 577-SA 0110421 115.0 4.53 13 1

Straight tips,

Ø 4 mm,

components 2.0 mm

and serrated grips.

TL 578-SA 0110438 115.0 4.53 15 1

Angled tips

90°, Ø 4 mm,

components 2.0 mm

and serrated grips.

TL 573-SA

TL 577-SA

TL 578-SA

Product EAN code L L code 731415+ mm inch

Page 77

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers

WWW.LINDSTROMTOOLS. COM

COMPONENT HANDLING

TL 582-SA

TL 582-SA 0110452 115.0 4.53 15 1

Angled tips

90°, Ø 4 mm,

components 1.0 mm

and serrated grips.

TL 58A-SA

TL 58A-SA 0110469 115.0 4.53 15 1

For round

components,

TO-5.

TL 29D-SA 0110476 150.0 5.90 32 1

Soldering tweezer,

reverse action.

Angled.

TL 29D-SA

TL 30-SA

TL 30-SA 0110483 165.0 6.50 32 1

Soldering tweezer,

reverse action. Bent.

Product EAN code L L

code 731415+ mm inch

TL 579-SA 0110445 115.0 4.53 15 1

Angled tips

45°, Ø 4 mm,

components 2.0 mm

and serrated grips.

TL 579-SA

SA ESD-safe. Stainless, antimagnetic, anti-acid steel. TA ESD-safe. Lightweight, high-temperature (1600F/870C) Titanium. CF ESD-safe. High-temperature tolerant Carbon Fiber tips.

NC Plastic Coated. S ESD-safe. Stainless. EP ESD-safe. Epoxy.

MATERIAL DESIGNATIONS

Page 78

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS. COM

Tweezers

COMPONENT HANDLING

TL 574-SA 0110513 145.0 5.71 26 1

Flat straight tips

and serrated grips.

TL 574-SAC 0110520 145.0 5.71 30 1

Straight plastic

coated tips and

serrated grips.

TL 574- SA

TL 574- SAC

TL 574 - SA C u

TL 574-SA Cu 0110537 145.0 5.71 23 1

Straight

copper-cooling tips

and serrated grips.

Product EAN code L L code 731415+ mm inch

TL 31-SA 0110490 120.0 4.72 12 1

Soldering tweezer,

reverse action,

straight, fine tips.

TL 574B-SA 0110506 145.0 5.71 25 1

Soldering tweezer,

angled tips and

serrated grips.

TL 31- SA

TL 574B-SA

Page 79

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers

WWW.LINDSTROMTOOLS. COM

BOLEY STYLE

TL AA-S

TL AA-S 0110544 130.0 5.12 16 1

Strong, fine tips.

TL AA-SA

TL AA-SA 0110551 130.0 5.12 17 1

Strong, fine tips.

TL AA-SAC

TL AA-SAC 0110568 130.0 5.12 22 1

Strong, fine tips.

Plastic coated.

TL AA-TA

TL AA-TA 0110575 130.0 5.12 10 1

Strong, fine tips.

TL GG-SA

TL GG-SA 0110582 130.0 5.12 17 1

Straight, fine tips.

Product EAN code L L

code 731415+ mm inch

SA ESD-safe. Stainless, antimagnetic, anti-acid steel. TA ESD-safe. Lightweight, high-temperature (1600F/870C) Titanium. CF ESD-safe. High-temperature tolerant Carbon Fiber tips.

NC Plastic Coated. S ESD-safe. Stainless. EP ESD-safe. Epoxy.

MATERIAL DESIGNATIONS

Page 80

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS. COM

Tweezers

BOLEY STYLE

FIBER TIP

TL 248CF-SA

TL 248CF-SA 0110612 125.0 4.92 32 1

Carbon fiber tips.

TL 249CF-SA

TL 249CF-SA 0110629 130.0 5.12 17 1

Carbon fiber tips.

Style 00.

Product EAN code L L code 731415+ mm inch

TL MM-SA

TL MM-SA 0110599 130.0 5.12 15 1

Strong tips.

TL RR-SA

TL RR-SA 0110605 145.0 5.71 27 1

Strong, fine tips.

Product EAN code L L code 731415+ mm inch

Page 81

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers

WWW.LINDSTROMTOOLS. COM

FIBER TIP

Product EAN code L L

code 731415+ mm inch

TL 250CF-SA 0110636 125.0 4.92 32 1

Carbon fiber tips.

TL 254-SA

TL 254-SA 0110674 110.0 4.33 18 1

Carbon fiber tips.

TL 251-SA

TL 251-SA 0110643 110.0 4.33 17 1

Carbon fiber tips.

TL 252-SA

TL 252-SA 0110650 110.0 4.33 17 1

Carbon fiber tips.

TL 253-SA

TL 253-SA 0110667 110.0 4.33 17 1

Carbon fiber tips.

TL 250CF-SA

SA ESD-safe. Stainless, antimagnetic, anti-acid steel. TA ESD-safe. Lightweight, high-temperature (1600F/870C) Titanium. CF ESD-safe. High-temperature tolerant Carbon Fiber tips.

NC Plastic Coated. S ESD-safe. Stainless. EP ESD-safe. Epoxy.

MATERIAL DESIGNATIONS

Page 82

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS. COM

Tweezers

FIBER TIP

Product EAN code L L code 731415+ mm inch

TL 255-SA

TL 255-SA 0110681 110.0 4.33 11 1

Carbon fiber tips.

TL 256-SA

TL 256-SA 0110698 110.0 4.33 11 1

Carbon fiber tips.

TL 257-SA

TL 257-SA 0110704 110.0 4.33 11 1

Carbon fiber tips.

TL 259CF-SA

TL 259CF-SA 0110728 130.0 5.12 17 1

Carbon fiber tips.

TL 269CF-SA

TL 269CF-SA 0110735 130.0 5.12 16 1

Carbon fiber tips.

Style 2A.

Page 83

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers

WWW.LINDSTROMTOOLS. COM

SMD

Product EAN code L L

code 731415+ mm inch

TL SM100-SA 0110742 115.0 4.53 13 1

Reverse action,

for handling SMDs.

TL SM101-SA 0110759 115.0 4.53 12 1

Reverse action,

for soldering and

desoldering 8,14,16

lead SMDs.

TL SM102-SA 0110766 115.0 4.53 12 1

Reverse action,

for soldering

and desoldering

20, 28, 44, 68

LCCC and PLCC

pad devices.

TL SM103-SA 0110773 115.0 4.53 15 1

Handling and

positioning 2

and 3 lead SOT

packages at

45° angle.

TL SM100-SA

TL SM101-SA

TL SM102-SA

TL SM103-SA

TL SM104-SA

TL SM104-SA 0110780 120.0 4.72 15 1

Handling and

positioning 3 lead

SOT packages.

SA ESD-safe. Stainless, antimagnetic, anti-acid steel. TA ESD-safe. Lightweight, high-temperature (1600F/870C) Titanium. CF ESD-safe. High-temperature tolerant Carbon Fiber tips.

NC Plastic Coated. S ESD-safe. Stainless. EP ESD-safe. Epoxy.

MATERIAL DESIGNATIONS

Page 84

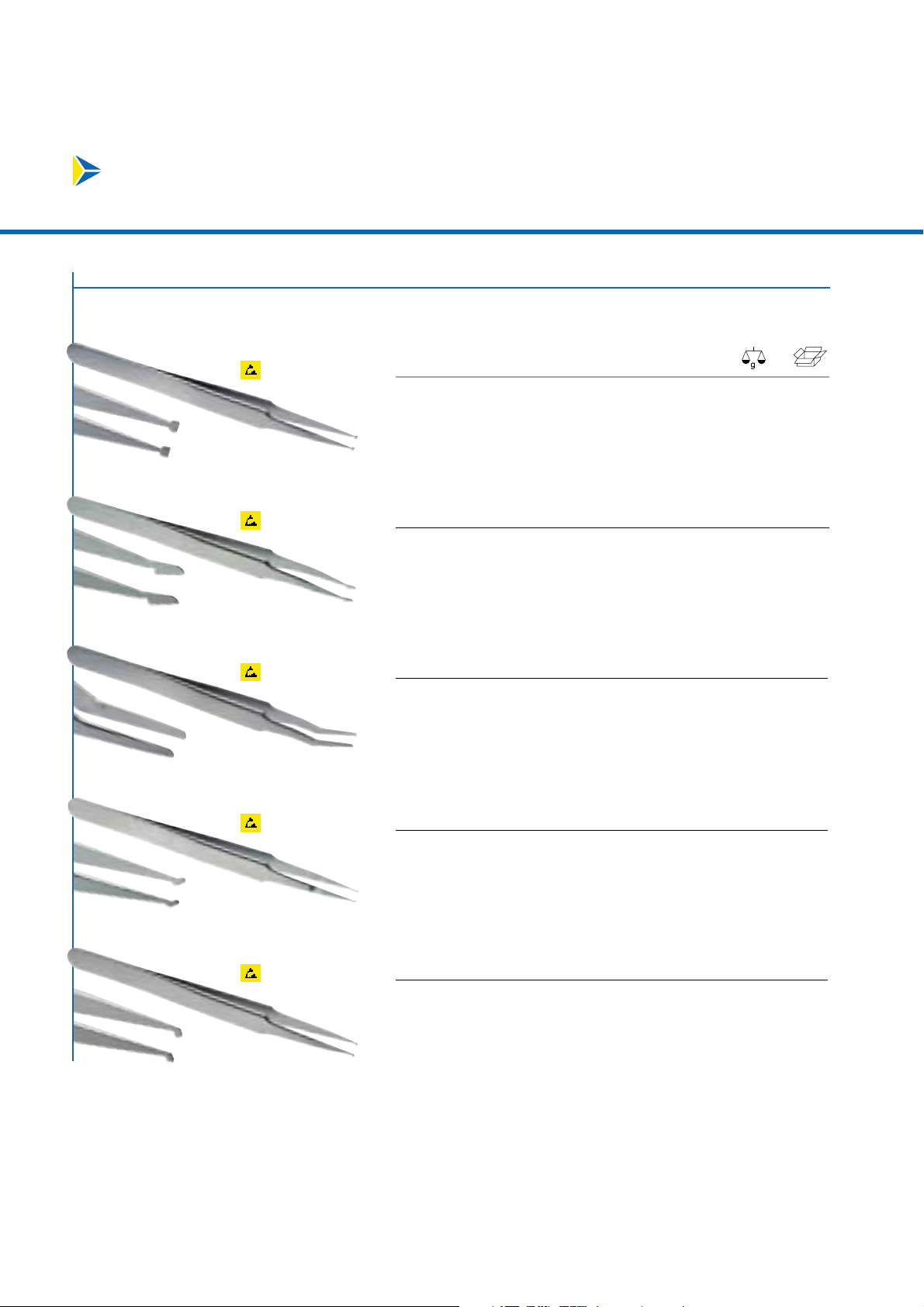

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS. COM

Tweezers

SMD

Product EAN code L L code 731415+ mm inch

TL SM106-SA

TL SM106-SA 0110803 120.0 4.72 15 1

For all horizontal

SOT packages.

TL SM107-SA

TL SM107-SA 0110810 120.0 4.72 15 1

For positioning

flat devices at

60° angle.

TL SM108-SA

TL SM108-SA 0110827 120.0 4.72 15 1

Grooved tips for

positioning and

soldering,

1 mm comp.

TL SM109-SA

TL SM109-SA 0110834 120.0 4.72 15 1

Grooved tips,

45° angle.

See TL SM108-SA.

TL SM105-SA

TL SM105-SA 0110797 120.0 4.72 15 1

For all vertical

SOT packages.

Page 85

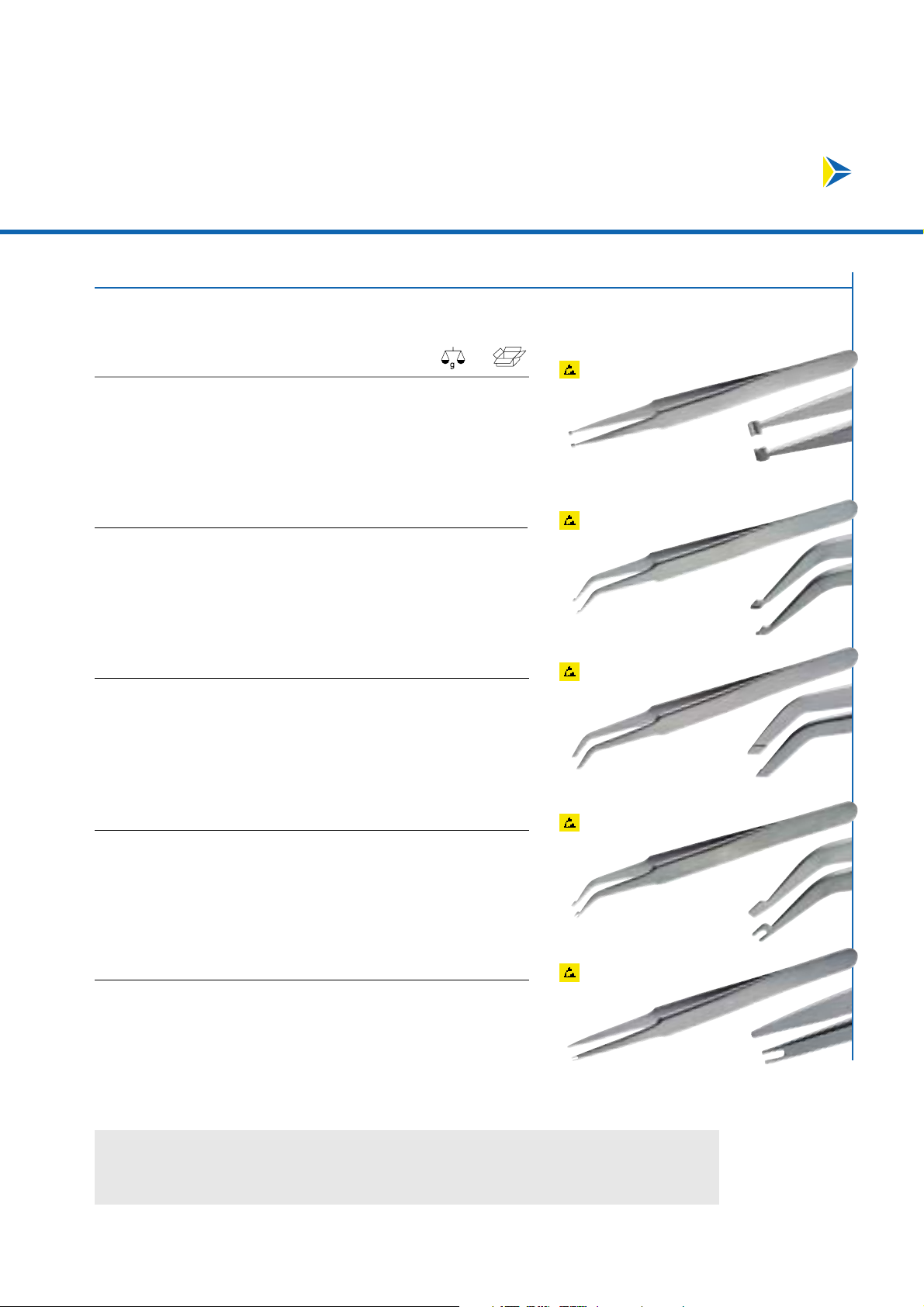

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers

WWW.LINDSTROMTOOLS. COM

SMD

TL SM110-SA

TL SM110-SA 0110841 120.0 4.72 15 1

Grooved tips for

positioning monolithic

chip capacitors.

TL SM111-SA

TL SM111-SA 0110858 120.0 4.72 15 1

Grooved tips for

positioning 5 mm

monolithic chip

capacitors.

TL SM112-SA

TL SM112-SA 0110865 120.0 4.72 15 1

Grooved tips.

60° angle.

See TL SM111-SA.

TL SM113-SA

TL SM113-SA 0110872 120.0 4.72 15 1

3 mm long tips, bent

at 60° angle.

TL SM114-SA

TL SM114-SA 0110889 120.0 4.72 15 1

Straight tips vertical.

See TL SM113-SA.

Product EAN code L L

code 731415+ mm inch

SA ESD-safe. Stainless, antimagnetic, anti-acid steel. TA ESD-safe. Lightweight, high-temperature (1600F/870C) Titanium. CF ESD-safe. High-temperature tolerant Carbon Fiber tips.

NC Plastic Coated. S ESD-safe. Stainless. EP ESD-safe. Epoxy.

MATERIAL DESIGNATIONS

Page 86

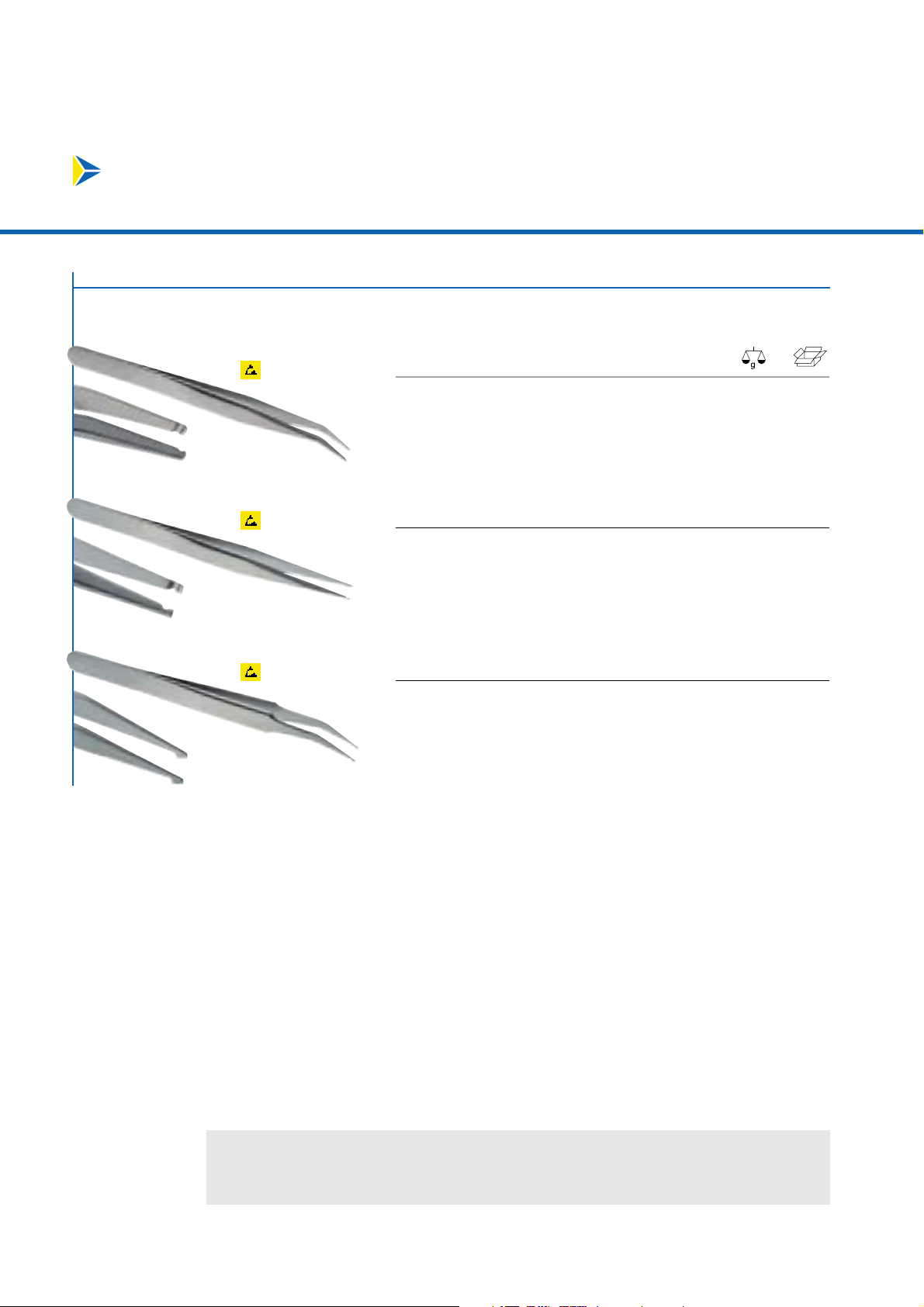

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS. COM

Tweezers

SMD

Product EAN code L L code 731415+ mm inch

TL SM115-SA

TL SM115-SA 0110896 120.0 4.72 15 1

Grooved tips,

30° angle.

TL SM116-SA

TL SM116-SA 0110902 120.0 4.72 14 1

Grooved tips, vertical,

positioning of cylindrical

devices Ø 1 mm or more.

TL SM117-SA

TL SM117-SA 0110919 120.0 4.72 15 1

For positioning

SOT devices at

30° angle.

SA ESD-safe. Stainless, antimagnetic, anti-acid steel. TA ESD-safe. Lightweight, high-temperature (1600F/870C) Titanium. CF ESD-safe. High-temperature tolerant Carbon Fiber tips.

NC Plastic Coated. S ESD-safe. Stainless. EP ESD-safe. Epoxy.

MATERIAL DESIGNATIONS

Page 87

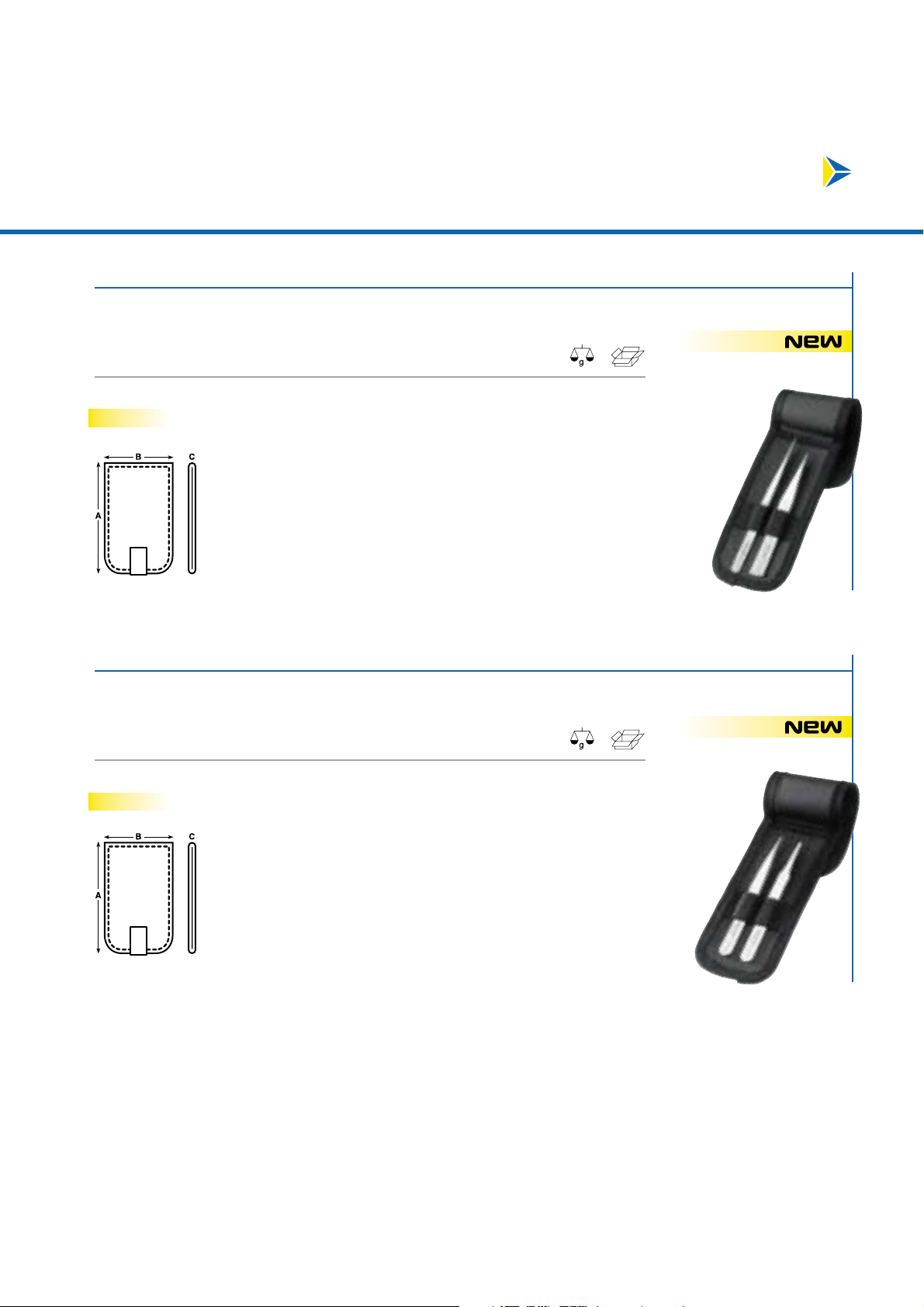

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers Sets

WWW.LINDSTROMTOOLS. COM

FINE TIP

Product EAN code Part No. A B C

code 731415+ mm mm mm

inch inch inch

9858 0111862 TL AA-SA 200.0 65.0 8.0 60 1

Strong fine tips.

7.87 2.57 0.31 2.12

TL SS-SA

Slender, long and

fine tips.

9858

STRONG TIP

Product EAN code Part No. A B C

code 731415+ mm mm mm

inch inch inch

9859 0113057 TL 00B-SA 200.0 65.0 8.0 75 1

Strong tips and

7.87 2.57 0.31 2.12

serrated grips.

TL 2A-SA

Flat profile with

round tips.

9859

Page 88

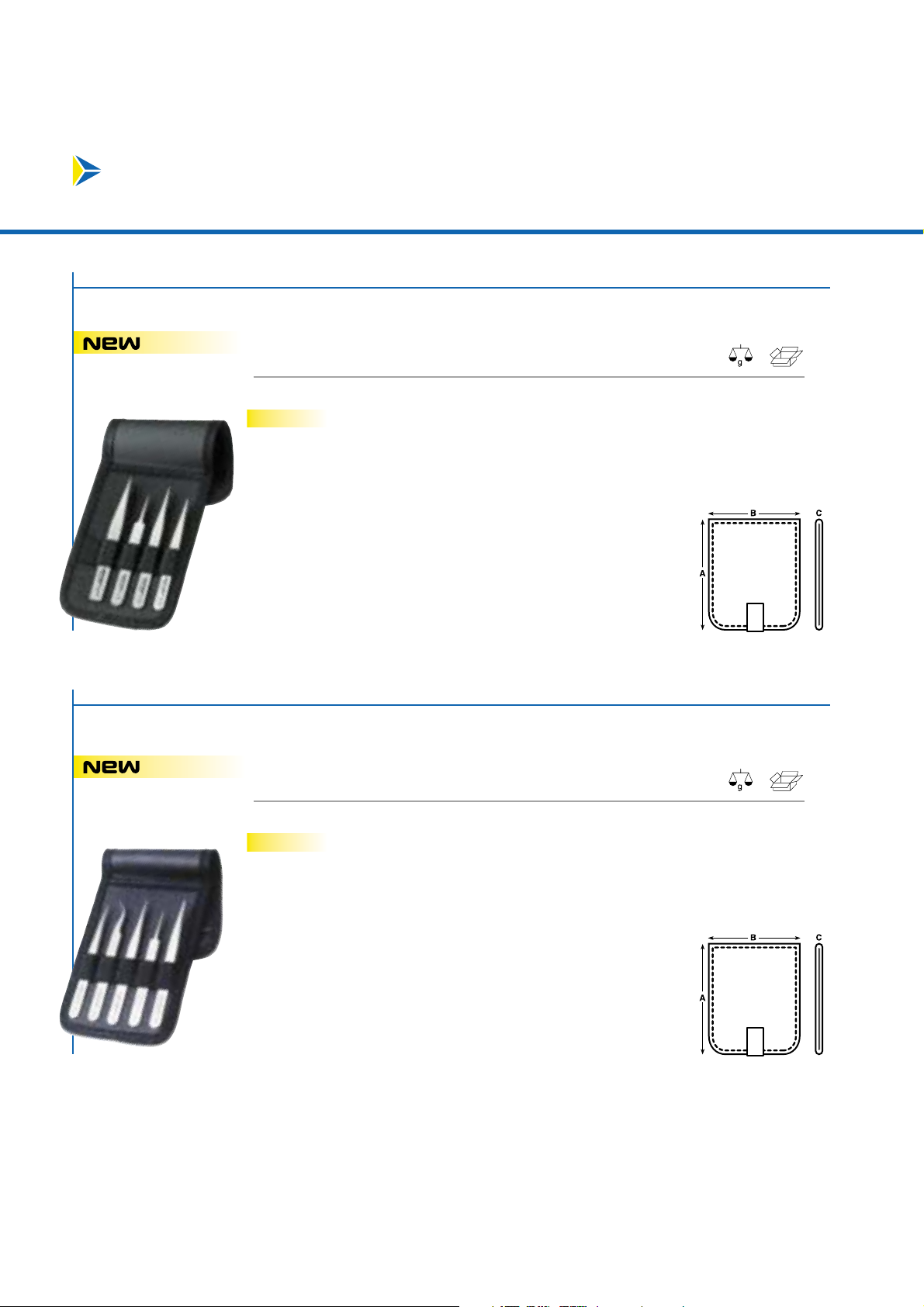

I NDIVIDUAL LISTINGS AND SPECIFICATIONS WWW. LINDSTROMTOOLS. COM

Tweezers Sets

TITANIUM

Product EAN code Part No. A B C code 731415+ mm mm mm

inch inch inch

9856 0111855 TL 3C-TA 200.0 110.0 10.0 75 1

Very sharp tips.

7.87 4.33 0.39 2.65

TL 3-TA

Very fine, sharp tips.

TL 5-TA

Extra fine tips.

TL AA-TA

Strong fine tips.

9856

HIGH PRECISION

Product EAN code Part No. A B C code 731415+ mm mm mm

inch inch inch

9857 0114283 TL 00-SA 200.0 110.0 10.0 115 1

Flat edge, strong tips.

7.87 4.33 0.39 4.06

TL 1-SA

Strong, sharp tips.

TL 3C-SA

Very sharp tips.

TL 5-SA

Extra fine tips.

TL 7-SA

Fine, curved tips.

9857

Page 89

I NDIVIDUAL LISTINGS AND SPECIFICATIONS

Tweezers Sets

WWW.LINDSTROMTOOLS. COM

HIGH PRECISION

SMD

Product EAN code Part No. A B C

code 731415+ mm mm mm

inch inch inch

9855 0111848 TL SS-SA 200.0 110.0 10.0 115 1

Slender, long

7.87 4.33 0.39 4.06

and fine tips.

TL AA-SA

Strong fine tips.

TL 2A-SA

Flat round tips.

TL 4A-SA

Extra fine tips.

TL 7A-SA

Strong curved tips.

9855

Product EAN code Part No. A B C

code 731415+ mm mm mm

inch inch inch

9854 0111831 TL 5C-SA 200.0 180.0 20.0 140 1

Fine, double-bent tips.

7.87 7.09 0.78 4.94

TL 5-SA

Extra fine tips.

TL SM 101-SA

Reverse action.

Soldering and desoldering

8, 14 or 16 leads SMDs.

TL SM 102-SA

Reverse action.

Soldering and desoldering

20, 28, 44 and 68 LCCC

and PLCC pad devices.

TL SM 107-SA

For positioning flat devices

at 60° angle.

TL SM 108-SA

Grooved tips for positioning and

soldering 1 mm wide components.

TL SM 115-SA

Grooved tips, 30° angle.

9854

Page 90

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

Torque Screwdrivers

TORQUE

MA500-1 112395 138.0 18.2 28.0 9.6 1/4 10 - 80 195 1

5.43 0.72 1.10 0.38

MA500-2 112401 157.0 18.2 28.0 9.6 1/4 40 - 200 260 1

6.18 0.72 1.10 0.38

MA500-3 112418 171.0 18.2 32.0 9.6 1/4 50 - 450 306 1

6.73 0.72 1.26 0.38

Store driver in the protective case at lowest torque setting. Do not force adjusting knob below lowest setting.

Product EAN code A B C D Capacity code 731415+ mm mm mm mm inch Ncm

inch inch inch inch

MA500

MAL500-1 112593 138.0 18.2 28.0 9.6 1/4 20 - 100

in.ozs

195 1

5.43 0.72 1.10 0.38

MAL500-2 112609 157.0 18.2 28.0 9.6 1/4 3 - 15

in.lbs

260 1

6.18 0.72 1.10 0.38

MAL500-3 112616 171.0 18.2 32.0 9.6 1/4 5 - 40

in.lbs

306 1

6.73 0.72 1.26 0.38

Store driver in the protective case at lowest torque setting. Do not force adjusting knob below lowest setting.

Product EAN code A B C D Capacity code 731415+ mm mm mm mm inch in. ozs./in. lbs

inch inch inch inch

MAL500

PS501-1 0112425 115.0 18.2 28.0 9.6 1/4 4 - 22 147 1

4.53 0.72 1.10 0.38 6 - 32

in.ozs

PS501-2 0112432 141.0 18.2 28.0 9.6 1/4 7 - 70 187 1

5.55 0.72 1.10 0.38 10 - 100

in.ozs

PS501-3 0112449 141.0 18.2 28.0 9.6 1/4 15 - 170 198 1

5.55 0.72 1.10 0.38 1.5 - 15

in.lbs

PS501-4 0112456 154.0 18.2 32.0 9.6 1/4 45 - 450 270 1

6.06 0.72 1.26 0.38 4 - 40

in.lbs

Product EAN code A B C D Capacity code 731415+ mm mm mm mm inch Ncm

inch inch inch inch in. ozs./in. lbs

PS501

806040

NCM

705030

8 91

Page 91

INDIVIDUAL LISTINGS AND SPECIFICATIONS

Torque Screwdrivers

WWW.LINDSTROMTOOLS.COM

SETS

TSK505

TSK505 0114160 59/S28-1 bit box 257 200 45 548 1

6961 1/4” extension 10.3 8.0 1.8 6972H non magnetic

bit holder

Bit Box contents

Product EAN code Contents A B C

code 731415+ mm mm mm

inch inch inch

Ideal for field service work, the TSK505 Bit Box

contains a comprehensive selection of bits for use

with Lindstrom´s torque screwdrivers.

A compartment is provided with space for one screwdriver. Note: Screwdriver must be ordered separately. See page 88.

K6729

Hexagon male 1/4” to 1/4” square male 1

KM653

Magnetic bitholder

Slotted

0.6x4.5mm/0.02x0.17 1

0.8x5.5mm/0.03x0.21 1

1.2x6.5mm/0.05x0.26 1

Phillips

0 2 1 2 2 2

Pozidriv

0 1 1 1 2 1

Torx

T6 1 T7 1 T8 1 T9 1 T10 1 T15 1 T20 1 T25 1 T27 1

Hexagon

55M-1.5 1 55M-2.0 1 55M-2.5 1 55M-3.0 1 55M-4.0 1

Page 92

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

Screwdrivers

SLOTTED

DIN 5265 ISO 2380-2 Tip DIN 5264-A, ISO 2380-1.

PHILLIPS®PH

DIN 5262, ISO 8764-2 Tip DIN 5260, ISO 8764-1.

OZIDRIV

DIN 5262, ISO 8764-2. Tip DIN 5260, ISO 8764-1.

ORX

HEXAGON

BE-8010 - BE-8255

Product EAN code code 731415+ mm mm mm mm mm

inch inch inch inch inch

SLOTTED

BE-8010 0010615 0.4 2.5 50.0 16.0 x 102.0 152.0 17 5

0.01 0.09 1.96 0.63 x 4.02 5.98

BE-8020 0010639 0.5 3.0 50.0 16.0 x 102.0 152.0 20 5

0.02 0.11 1.96 0.63 x 4.02 5.98

BE-8020L 1838591 0.5 3.0 75.0 16.0 x 102.0 177.0 22 5

0.020 0.11 2.95 0.63 x 4.02 7.0

BE-8030 0010653 0.6 3.5 75.0 20.0 x 122.0 197.0 35 5

0.02 0.13 2.95 0.79 x 4.80 7.76

BE-8040 0010677 0.8 4.0 100.0 20.0 x 122.0 222.0 38 5

0.03 0.15 3.93 0.79 x 4.80 8.75

BE-8150 0010707 1.0 5.5 100.0 27.0 x 122.0 222.0 70 5

0.039 0.21 3.92 1.06 x 4.80 8.75

BE-8155 0010721 1.2 6.5 125.0 36.0 x 122.0 247.0 101 5

0.05 0.26 4.92 1.42 x 4.80 9.72

BE-8210 1838584 0.4 2.5 75.0 16.0 x 102.0 177.0 18 5

0.01 0.09 2.95 0.63 x 4.0 7.0

BE-8220 0047741 0.5 3.0 125.0 16.0 x 102.0 227.0 22 5

0.020 0.11 4.92 0.63 x 4.0 9.0

BE-8230 0047758 0.6 3.5 125.0 20.0 x 122.0 247.0 38 5

0.024 0.13 4.92 0.79 x 4.80 9.72

BE-8240 0047765 0.8 4.0 175.0 20.0 x 122.0 297.0 47 5

0.03 0.15 6.89 0.79 x 4.80 11.69

BE-8250 0047772 1.0 5.5 150.0 27.0 x 122.0 272.0 75 5

0.039 0.21 5.90 1.06 x 4.80 10.70

BE-8250L 1838607 1.0 5.5 200.0 27.0 x 122.0 322.0 90 5

0.039 0.21 7.87 1.06 x 4.80 12.67

BE-8255 0047789 1.2 6.5 150.0 36.0 x 122.0 272.0 114 5

0.05 0.26 5.90 1.42 x 4.80 10.70

Page 93

INDIVIDUAL LISTINGS AND SPECIFICATIONS

Screwdrivers

WWW.LINDSTROMTOOLS.COM

BE-8160 0010745 1.2 8 125 36.0 x 122.0 247.0 11.0 142 5

0.05 0.31 4.92 1.42 x 4.80 9.72 0.43

BE-8260 0047796 1.2 8 175 36.0 x 122.0 297.0 11.0 165 5

0.05 0.31 6.88 1.42 x 4.80 11.69 0.43

BE-8865 0010851 1.6 8 175 36.0 x 161.0 336.0 13.0 176 5

0.06 0.31 6.88 1.42 x 6.33 13.25 0.51

BE-8870 0010875 1.6 10 175 36.0 x 161.0 336.0 13.0 200 5

0.06 0.39 6.88 1.42 x 6.33 13.25 0.51

BE-8880 0010899 2 12 200 36.0 x 161.0 361.0 13.0 272 5

0.08 0.47 7.86 1.42 x 6.33 14.20 0.51

BE-8890 0010905 2.5 14 200 36.0 x 161.0 361.0 16.0 276 5

0.09 0.55 7.86 1.42 x 6.33 14.20 0.63

Product EAN code code 731415+ mm mm mm mm mm mm

inch inch inch inch inch inch

BE-8160 - BE-8890

SLOTTED WITH HEXAGON COLLAR

BE-8330 1838614 0.6 3.5 25.0 36.0 x 58.0 83.0 43 5

0.02 0.13 0.98 1.42 x 2.28 3.26

BE-8340 1838621 0.8 4.0 25.0 36.0 x 58.0 83.0 43 5

0.03 0.15 0.98 1.42 x 2.28 3.26

BE-8350 1838638 1.0 5.5 25.0 36.0 x 58.0 83.0 43 5

0.04 0.21 0.98 1.42 x 2.28 3.26

BE-8355 1838652 1.2 6.5 25.0 36.0 x 58.0 83.0 43 5

0.05 0.26 0.98 1.42 x 2.28 3.26

BE-8360 1838676 1.2 8.0 25.0 36.0 x 58.0 83.0 50 5

0.05 0.31 0.98 1.42 x 2.28 3.26

BE-8450 1838645 1.0 5.5 45.0 36.0 x 58.0 103.0 51 5

0.04 0.21 1.77 1.42 x 2.28 4.05

BE-8455 1838669 1.2 6.5 45.0 36.0 x 58.0 103.0 25 5

0.05 0.26 1.77 1.42 x 2.28 4.05

Product EAN code code 731415+ mm mm mm mm mm

BE-8330 - BE-8455

SLOTTED STUBBY TYPE

Page 94

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

Screwdrivers

Product EAN code code 731415+ mm mm mm

inch inch inch

BE-8600 0010769 60.0 16.0 x 102.0 162.0 0 19 5

2.36 0.63 x 4.02 6.38 0

BE-8610 0010776 75.0 20.0 x 122.0 197.0 1 46 5

2.95 0.79 x 4.80 7.75 1

BE-8610L 1838683 200.0 20.0 x 122.0 322.0 1 75 5

7.87 0.79 x 4.80 12.67 1

BE-8620 0010783 100.0 27.0 x 122.0 222.0 2 72 5

3.94 1.06 x 4.80 8.74 2

BE-8620L 1838690 200.0 27.0 x 122.0 322.0 2 85 5

7.87 1.06 x 4.80 12.67 2

BE-8600 - BE-8620L

Product EAN code code 731415+ mm mm mm mm

inch inch inch inch

BE-8630 0010790 150.0 36.0 x 122.0 272.0 11.0 3 154 5

5.90 1.42 x 4.80 10.71 0.43 3

BE-8640 0010806 200.0 36.0 x 161.0 361.0 16.0 4 222 5

7.87 1.42 x 6.34 14.21 0.63 4

BE-8630 - BE-8640

PHILLIPS®PH

PHILLIPS®PH WITH HEXAGON COLLAR

Page 95

BE-8601 1838706 25.0 36.0 x 58.0 83.0 1 40 5

0.98 1.42 x 2.28 3.26 1

BE-8602 1838713 25.0 36.0 x 58.0 83.0 2 45 5

0.98 1.42 x 2.28 3.26 2

Product EAN code code 731415+ mm mm mm

BE-8601 - BE-8602

PHILLIPS®PH STUBBY TYPE

POZIDRIV®PZ

INDIVIDUAL LISTINGS AND SPECIFICATIONS

Screwdrivers

WWW.LINDSTROMTOOLS.COM

Product EAN code code 731415+ mm mm mm

inch inch inch

BE-8800 0042012 60.0 16.0 x 102.0 162.0 0 19 5

2.36 0.63 x 4.02 6.34 0

BE-8810 0010813 75.0 20.0 x 122.0 197.0 1 40 5

2.95 0.79 x 4.80 7.76 1

BE-8810L 1838720 200.0 20.0 x 122.0 322.0 1 75 5

7.86 0.79 x 4.80 12.67 1

BE-8820 0010820 100.0 27.0 x 122.0 222.0 2 72 5

3.94 1.06 x 4.80 8.74 2

BE-8820L 1838737 200.0 27.0 x 122.0 322.0 2 85 5

7.86 1.06 x 4.80 12.67 2

BE-8800 - BE-8820L

Page 96

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

Screwdrivers

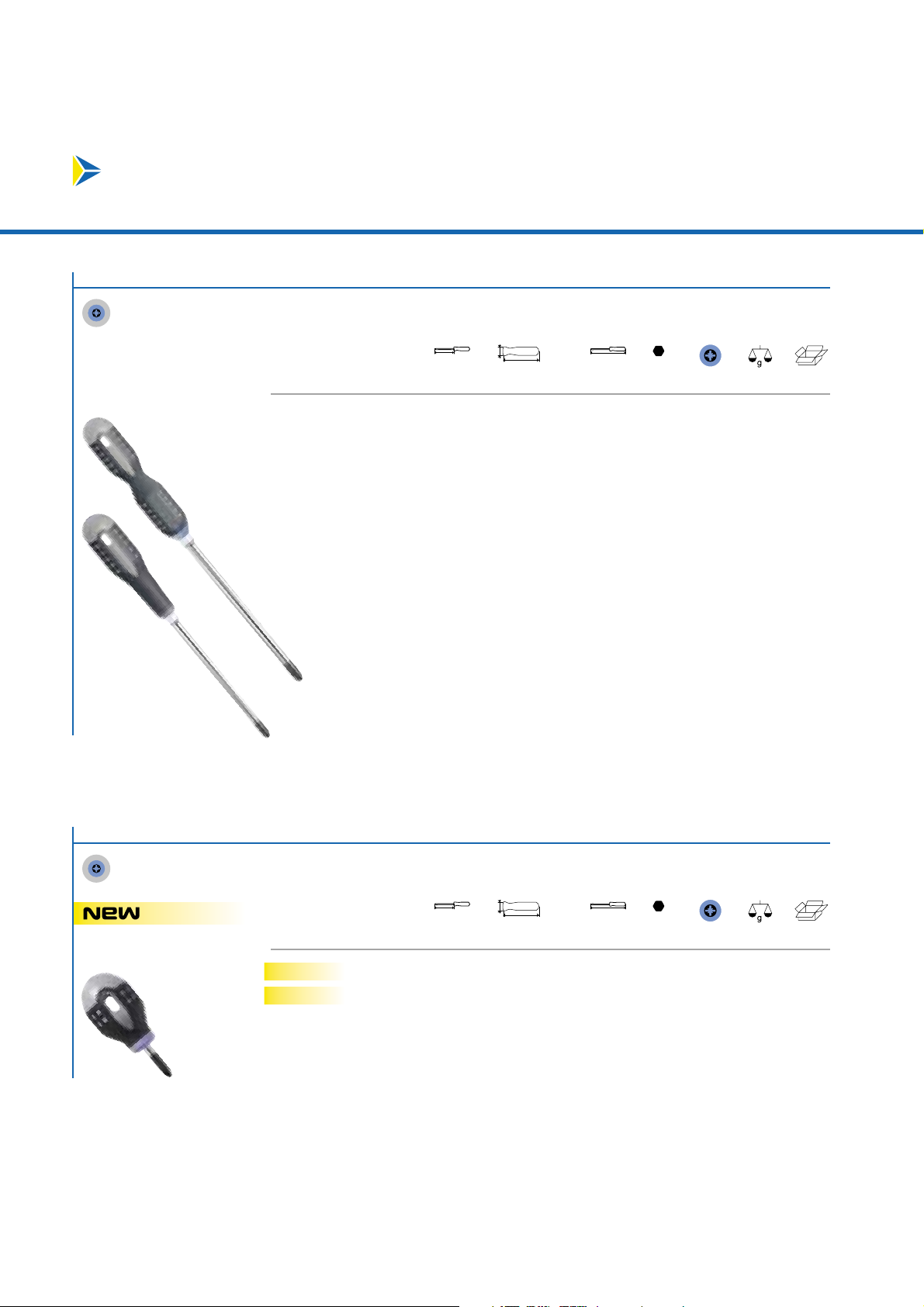

POZIDRIV®PZ WITH HEXAGON COLLAR

Product EAN code code 731415+ mm mm mm mm

inch inch inch inch

BE-8830 0010837 150.0 36.0 x 122.0 272.0 11.0 3 136 5

5.90 1.41 x 4.80 10.71 0.43 3

BE-8840 0010844 200.0 36.0 x 161.0 361.0 16.0 4 222 5

7.87 1.41 x 6.34 14.21 0.63 4

BE-8830 - BE-8840

POZIDRIV®PZ STUBBY TYPE

Product EAN code code 731415+ mm mm mm mm

inch inch inch inch

BE-8801 1838744 25.0 36.0 x 58.0 83.0 1 45 5

0.98 1.42 x 2.28 3.26 1

BE-8802 1838751 25.0 36.0 x 58.0 83.0 2 53 5

0.98 1.42 x 2.28 3.26 2

BE-8801 - BE-8802

Page 97

INDIVIDUAL LISTINGS AND SPECIFICATIONS

Screwdrivers

WWW.LINDSTROMTOOLS.COM

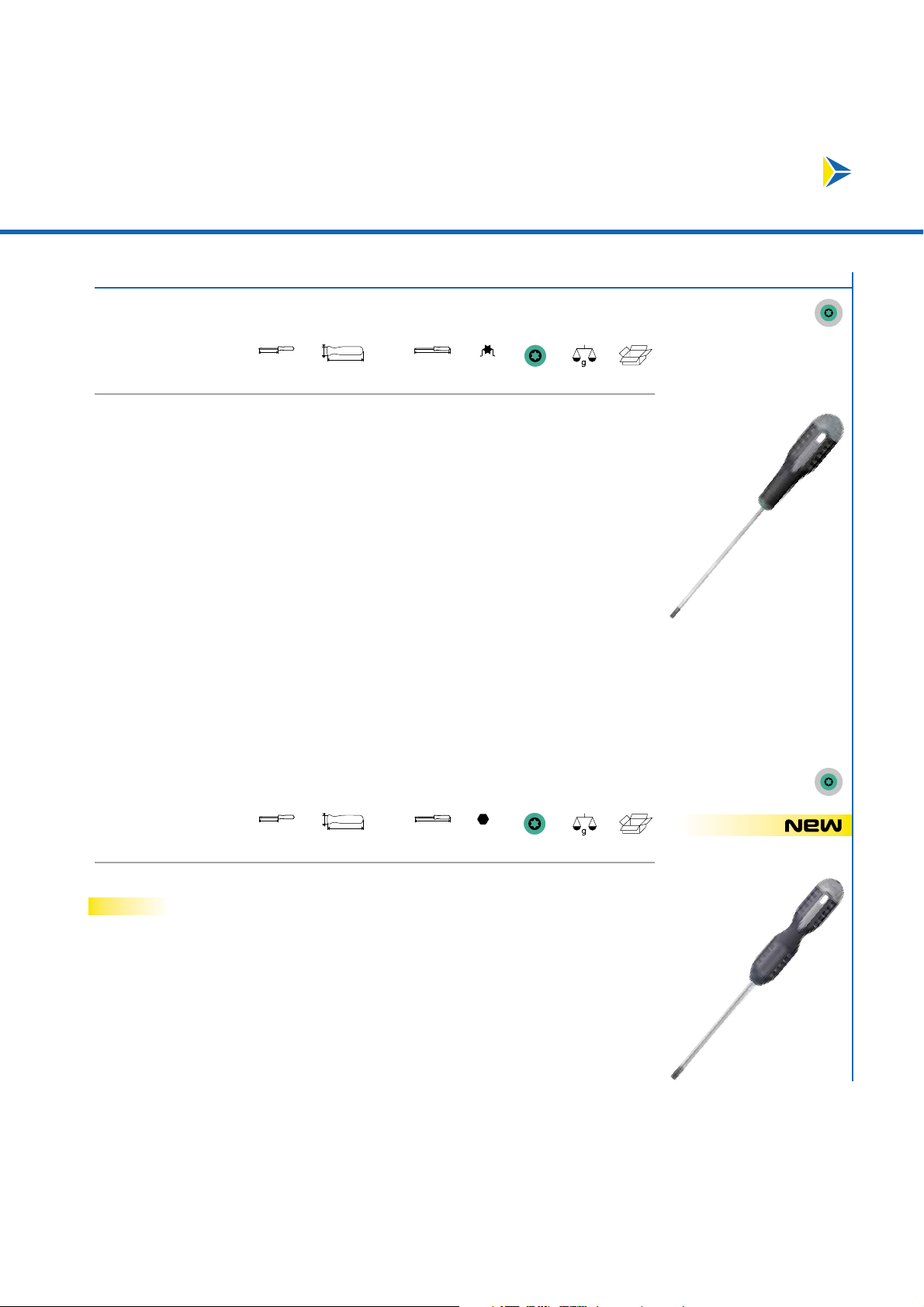

TORX

Product EAN code code 731415+ mm mm mm mm

inch inch inch inch

BE-8906 0027729 50.0 16.0 x 102.0 152.0 1.70 T6 15 5

1.97 0.63 x 4.02 5.98 0.07 T6

BE-8907 0027736 55.0 16.0 x 102.0 157.0 1.99 T7 22 5

2.16 0.63 x 4.02 6.18 0.08 T7

BE-8908 0027743 60.0 16.0 x 102.0 162.0 2.31 T8 23 5

2.36 0.63 x 4.02 6.38 0.09 T8

BE-8909 0027750 60.0 20.0 x 122.0 182.0 2.50 T9 41 5

2.36 0.79 x 4.80 7.16 0.10 T9

BE-8910 0027767 65.0 20.0 x 122.0 187.0 2.74 T10 34 5

2.56 0.79 x 4.80 7.36 0.11 T10

BE-8915 0027774 70.0 20.0 x 122.0 192.0 3.27 T15 35 5

2.75 0.79 x 4.80 7.56 0.13 T15

BE-8920 0027781 80.0 27.0 x 122.0 202.0 3.86 T20 60 5

3.15 1.06 x 4.80 7.95 0.15 T20

BE-8925 0027798 80.0 27.0 x 122.0 202.0 4.43 T25 55 5

3.15 1.06 x 4.80 7.95 0.17 T25

BE-8927 0027804 100.0 36.0 x 122.0 222.0 4.99 T27 96 5

3.94 1.42 x 4.80 8.74 0.20 T27

BE-8930 0027811 100.0 36.0 x 122.0 222.0 5.52 T30 96 5

3.94 1.42 x 4.80 8.74 0.22 T30

Product EAN code code 731415+ mm mm mm mm

inch inch inch inch

BE-8940 0027828 130.0 36.0 x 161.0 291.0 6.65 T40 163 5

5.12 1.42 x 6.34 11.46 0.26 T40

BE-8945 1838782 130.0 36.0 x 161.0 291.0 7.82 T45 163 5

5.12 1.42 x 6.34 11.46 0.31 T45

BE-8906 - BE-8930

BE-8940 - BE-8945

Page 98

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

Screwdrivers

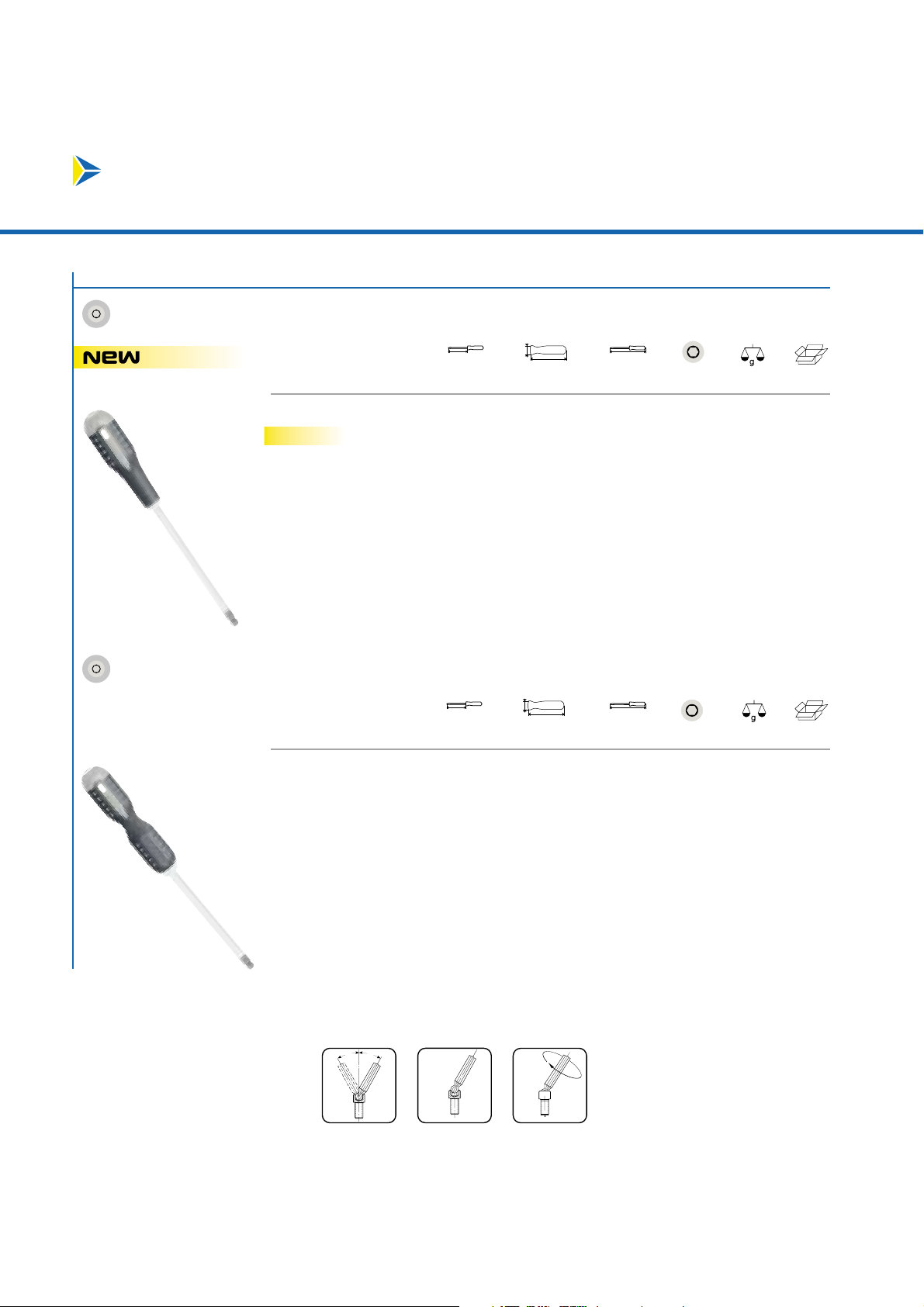

HEXAGON SOCKET

30°

Product EAN code code 731415+ mm mm mm

inch inch inch

BE-8702 1838768 110.0 16.0 x 102.0 212.0 2 22 5

4.33 0.63 x 4.02 8.35 2

BE-8725 1838775 110.0 17.0 x 102.0 212.0 2.5 22 5

4.33 0.67 x 4.02 8.35 2.5

BE-8703 0027651 110.0 16.0 x 102.0 212.0 3 25 5

4.33 0.63 x 4.02 8.35 3

BE-8704 0027668 110.0 20.0 x 122.0 232.0 4 41 5

4.33 0.79 x 4.80 9.13 4

BE-8705 0027675 110.0 27.0 x 122.0 232.0 5 65 5

4.33 1.06 x 4.80 9.13 5

BE-8706 0027682 140.0 27.0 x 122.0 262.0 6 97 5

5.51 1.06 x 4.80 10.31 6

BE-8708 0027699 150.0 36.0 x 122.0 272.0 8 178 5

5.90 1.42 x 4.80 10.71 8

BE-8710 0027705 150.0 36.0 x 161.0 311.0 10 250 5

5.90 1.42 x 6.34 12.24 10

Product EAN code code 731415+ mm mm mm

inch inch inch

BE-8702 - BE-8708

BE-8710

Page 99

INDIVIDUAL LISTINGS AND SPECIFICATIONS

Screwdrivers

WWW.LINDSTROMTOOLS.COM

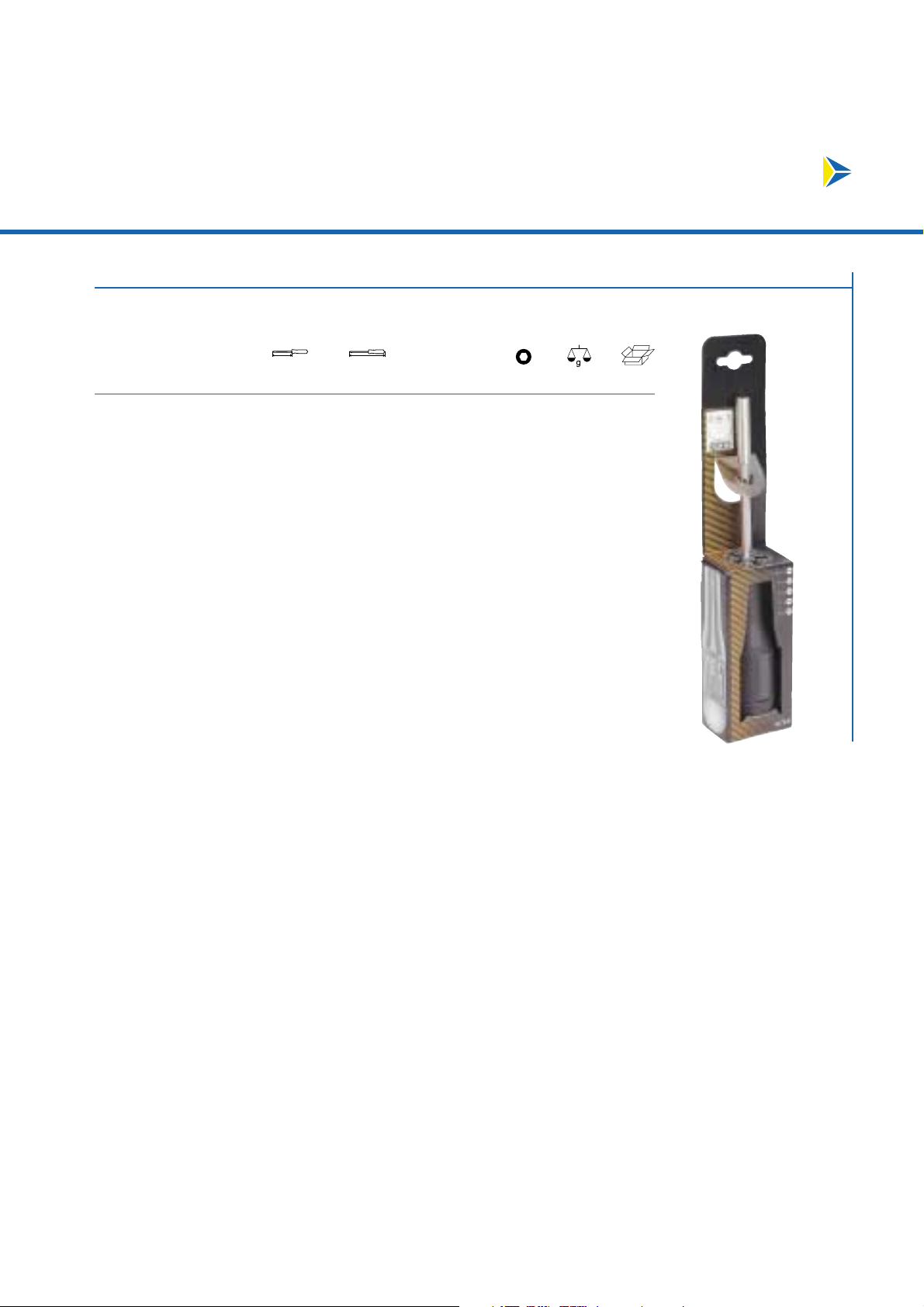

MULTI-TIP SCREWDRIVER 1/4”

8576A

Product EAN code code 731415+ mm mm

inch inch

8576A 0028054 118.0 246.0 0.8 x 5.5 1/4" 160 5

4.65 9.68 0.03 x 0.22

PH1, PH2

PZ1, PZ2

With strong magnet to hold bits and screws. With holder in handle for up to 5 bits.Supplied with 5 bits.

Page 100

INDIVIDUAL LISTINGS AND SPECIFICATIONS WWW.LINDSTROMTOOLS.COM

Screwdrivers

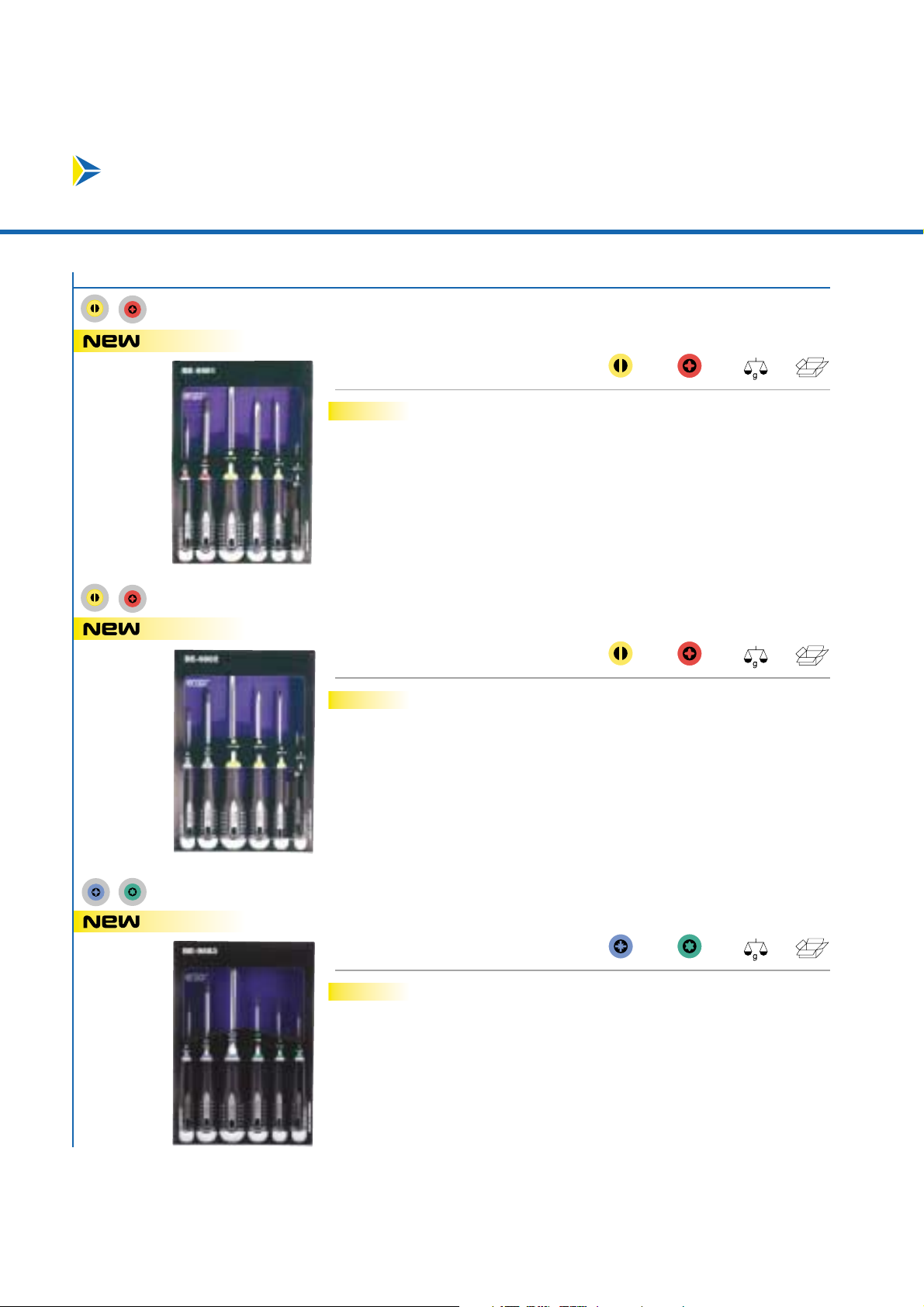

SETS

Product EAN code code 731415+

BE-9881 0043279 BE-8020 BE-8610 450 1

6 pieces. 0.5x3x50 PH 1x75

BE-8040 BE-8620

0.8x4x100 PH 2x100

BE-8150

1x5.5x100

BE-8155

1.2x6.5x125

Product EAN code code 731415+

BE-9882 1839284 BE-8020 BE-8810 450 1

6 pieces. 0.5x3x50 PZ 1x75

BE-8040 BE-8820

0.8x4x100 PZ 2x100

BE-8150

1x5.5x100

BE-8155

1.2x6.5x125

Product EAN code code 731415+

BE-9883 1839291 BE-8810 BE-8910 450 1

6 pieces. PZ 1x75 T10

BE-8820 BE-8915

PZ 2x100 T15

BE-8830 BE-8925

PZ 3x150 T25

BE-9881

BE-9882

BE-9883
