Portable Wireless Speaker
Instruction Manual
LPBSK17
12 Month Manufacturer’s Warranty
Table of Contents
Guide to the Portable Wireless Speaker 2
Important Safety Instructions 4
Caring for the Environment 8
Contents in the Box 10
Operating Instructions 11
Troubleshooting 19
Technical Specifications 21
2
Guide to the Portable Wireless Speaker
1. Power ON / OFF
2. Microphone
3. Mode - Manually change mode
4. Handsfree
5. Volume Control Decrease / Previous
6. Play / Pause / Bluetooth Disconnect
7. Volume Control Increase / Next
3
8
8. Micro USB Charge Port for charging only
AUX input port for direct connection
TF/SD Card input
4
Important Safety Instructions
Please read this instruction manual carefully and completely
before using the product.
Make this instruction manual easily accessible to all users at
all times. Always include this instruction manual when passing
the product on to third parties. Please retain manual for all
future use.
Use the product with care and store it in a clean dust free
environment. Turn off the speaker after use to conserve battery
power.
Only use the supplied accessories supplied with the speaker.
Keep out of reach of young children. This apparatus is not
suitable for use by young children or infirm persons without
supervision. Young children must be supervised to ensure that
they do not play with the apparatus.
DO NOT block any ventilation openings.
Install in accordance with any specific manufacturer’s
5
instructions. Always allow a sufficient gap around the apparatus to avoid overheating.
WARNING. Do not place any naked flame source, such as
lighted candles on the electrical apparatus.
For household use only, this apparatus is not intended for
commercial use.
DO NOT attempt to service this apparatus. This apparatus
requires specialist servicing and knowledge to retain the safety
of the apparatus.
WARNING: Do not insert any objects into any openings of the
electrical appliance
DO NOT place near any heat source such as radiators, gas
heaters, stoves or other heating apparatus.
AVOID any exposure to direct heat or direct sunlight.
WARNING! This is a class III product please connect to suitable
USB power socket. Ensure any USB socket used for charging is
5VDC and rated in excess of 500mAh.
6
Unplug this apparatus during lightning storms or when unused
for long periods of time.
Do not leave the speaker on charge for extended periods
of time. Once the speaker charging LED indicator turns off
disconnect from charging.
This apparatus is provided with a non-replaceable Lithium
battery, DO NOT ATTEMPT to replace this battery.
WARNING: This apparatus is IPX6 waterproof. This speaker is
NOT submersible and should NOT be submerged in water.
IMPORTANT: Liquids that the waterproof performance specifications apply to: fresh water, tap water, sweat. They are not
applicable to liquids other than the above (soapy water, pool
water, seawater, etc.)
Electrical and electronic appliances contain materials and substances which, if handled or disposed of incorrectly, could be
potentially hazardous on the environment and human health.
Observe any local regulations regarding the disposal of
electrical consumer goods and batteries and dispose of it
7
appropriately.
No liability will be accepted for any personal injury or damage
caused by failure to follow these instructions.
This product contains materials that should not be disposed
of with your household waste. Instead, it is your responsibility
to dispose of your waste equipment by handing it over to a
designated collection point for the recycling of waste electrical
and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help
conserve natural resources and ensure that it is recycled in a
manner that protects human health and the environment. For
more information about where you can drop off your waste
for recycling, please contact your local authority, or where you
purchased your product.
8
Responsible Disposal of Packaging
The packaging of your Portable Wireless Speaker has been
selected from environmentally friendly materials and can
usually be recycled. Please ensure the packaging is disposed of
correctly. Plastic wrap can be a suffocation hazard for babies
and young children, so please ensure packaging materials
are out of reach and are safely disposed of, and are recycled
where possible.
Responsible Disposal of Appliances
At the end of its working life, do not throw out this Portable
Wireless Speaker with your household rubbish. An environmentally friendly method of disposal will ensure that valuable
raw materials can be recovered and used again. Electrical and
electronic appliances contain materials and substances which,
if handled or disposed of incorrectly, could be potentially
hazardous on the environment and human health.
Observe any local regulations regarding the disposal of
electrical consumer goods and dispose of it appropriately for
Caring for the Environment
9
recycling. Contact your local authorities for advice on recycling
facilities in your area. The plug must be rendered useless
and the cable cut off directly behind the sound bar to prevent
misuse.
10
Contents in the Box
The items below are included in the box. Remove all items and
retain the packaging until you have checked that the device
is undamaged and in good working order. Ensure packaging
materials are out of reach of children and disposed of safely.
Portable Wireless Speaker User Manual
Micro USB CableCarabiner Aux Cable
11
Operating Instructions
Getting Started
Before beginning operation please get familiar with the controls and input locations of the Portable Wireless Speaker.
Basic Button Function
Volume Increase
/ Next
Volume Increase and Next
Control
Short Press to increase the
volume. In Bluetooth mode:
Long press to go to next
track or song selection.
12
Volume Decrease and Previous Control
Short Press to decrease the volume of your Portable Wireless
Speaker. In Bluetooth Mode. Long press to go to previous track
or song selection.
Power ON / OFF
Long press to power the Portable Wireless Speaker ON or
turn OFF.
Power ON / OFF
Volume Decrease /
Previous
13

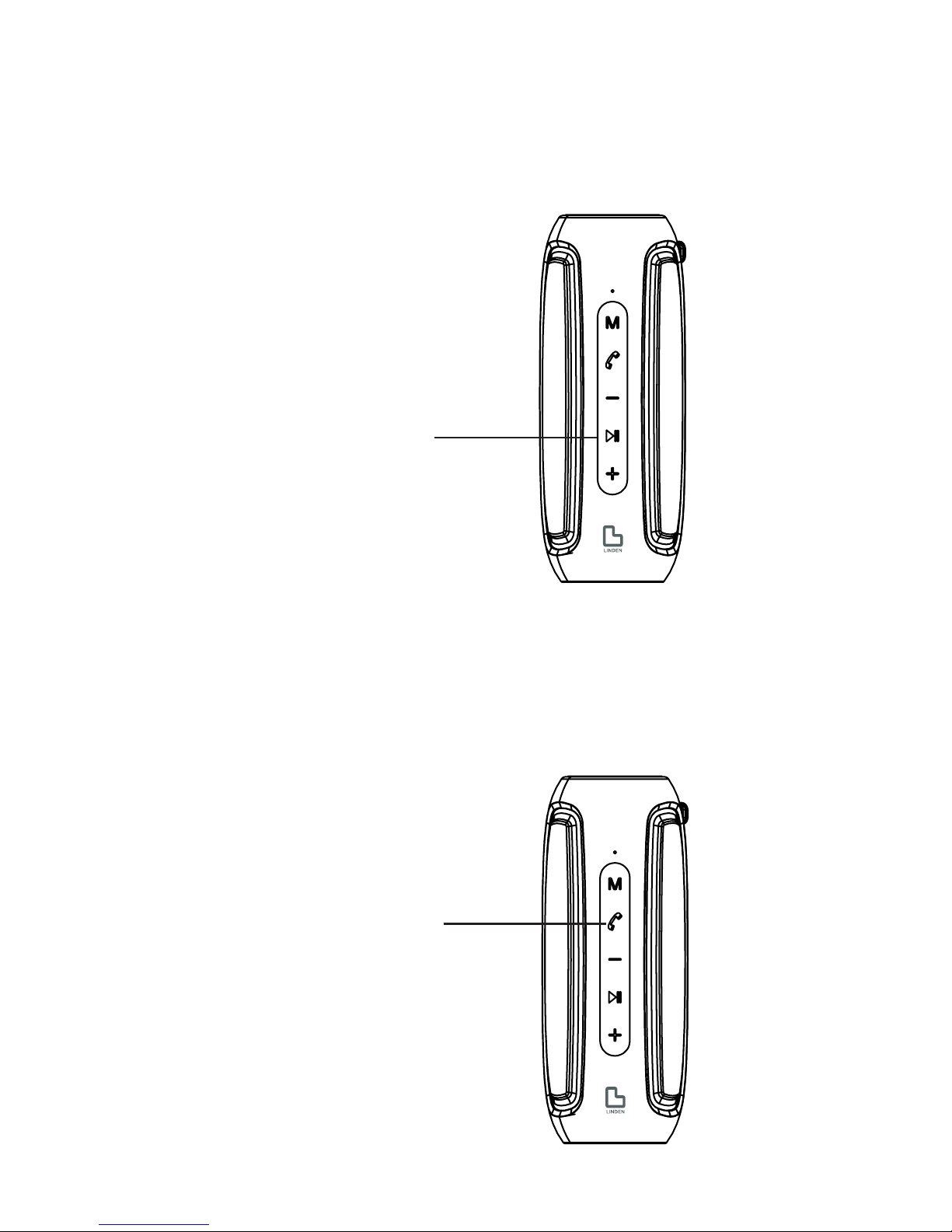

Play and Pause Control / Bluetooth Disconnect
Short press to Play / Pause track in Bluetooth mode.
Long press to disconnect current Bluetooth connection.
Handsfree Function
Short press to hang up and pick up phone call when a mobile
/ cell phone is connected via Bluetooth.
Play / Pause
Handsfree
14
Making a Bluetooth Connection
To make a wireless Bluetooth connection between your device
and your Linden Portable Wireless Speaker please follow these
instructions:
1. Activate the Bluetooth function on your desired device.
This may be on your mobile phone, smart phone, tablet,
computer or other Bluetooth-enabled device.
2. Once activated, long press the power button on the
Portable Wireless Speaker to turn the speaker ON.
3. When in pairing mode, the Portable Wireless Speaker
LED on the top of the speaker will flash blue.
4. Enter the Bluetooth settings on your selected device to
search and select ‘LINDEN – LPBSK17’
Note: If you device requests a pairing code please enter
‘0000’.
5. Once Bluetooth pairing is successful, the Portable Wireless Speaker will sound a prompt tone and LED light will
remain constant blue.
6. While playing music in Bluetooth mode through the
Portable Wireless speaker, the blue LED will slowly flash
blue.
15
7. To disconnect the current Bluetooth connection, press
and hold Play / Pause button until you hear a sound
prompt and the LED light flashes.
Tips: Volume controls can be controlled on connected device
and speaker. Ensure volume is at a suitable level on both your
device and/or the Portable Wireless Speaker.
Please Note: Pairing time varies between devices. If you have
paired to the Portable Wireless Speaker to your device, the
Portable Wireless Speaker will automatically pair again with
your device when turned on and off.
Making an AUX Connection
To make an AUX connection between your device and the Linden Portable Wireless Speaker please follow these instructions:
1. Using the supplied 3.5MM AUX cable, insert one end
into the AUX input on the Portable Wireless Speaker.
2. Insert the other end of the supplied 3.5mm AUX cable to
your selected audio output 3.5mm jack.
3. Once successfully connected, the speaker will sound a
prompt tone.
16
please follow these instructions:
1. Insert your Micro SD/TF card
into the Micro SD/TF card
input on the Portable Wireless
Speaker.
Note: Your TF / Micro SD card
must have your desired MP3
files stored for playback.
2. Once successfully inserted, your
media will automatically begin
playback.
3. Volume, Play, Pause, Previous
and Next controls are all active
with TF/SD card playback.
Tips: Volume controls can be controlled on connected device
and speaker. Ensure volume is at a suitable volume on either
device and/or speaker.
Making a TF/SD card connection
To play media through your speaker from a TF/Micro SD card
Micro SD/TF card input
17
Charging the Speaker
When your Linden Portable Wireless Speaker is in a low
battery state, it will provide a hint tone.
To charge your Linden Portable Wireless Speaker, connect the
supplied micro USB cable to the micro USB charging port.
Insert USB connection into 5V-500mA USB output power
supply. When charging, the LED indicator beside the charging
port will remain constant RED. Once charging has finished the
LED indicator will turn off.
Note: Estimated charging time around 2-3 Hours
Hands-free Function
Your Linden Portable Wireless Speaker is equipped with a microphone for Handsfree function when a Bluetooth connection
is made through a mobile or smart phone.
When receiving an incoming call, the Linden Portable Wireless
Speaker will ring to indicate an incoming call. Press the circle
button on the side of the speaker to pick up and hang up the
phone call. For out-going calls, hang up and pick up function
are also functional.
18
IPX6: Water Resistant Rating
Your Linden Portable Wireless Speaker has been testing to IPX6
water resistant standard.
IMPORTANT: Liquids that the water resistant performance
specifications apply to are fresh water, tap water, sweat.
The water resistant performance specifications does not apply
to liquids such as soapy water, pool water, seawater, etc.
IMPORTANT: This speaker is not designed for SALT or SEA
water. If it is exposed to SALT or SEA water, it must be immediately rinsed with fresh water and dried thoroughly.
IMPORTANT: This speaker is water resistant, however appropriate care MUST be taken to ensure the lifetime and quality
of your speaker. When this speaker is exposed to water, it is
important that you take appropriate steps to ensure that all
closures are closed and to dry and drain the water from cavity
areas.
19
If you experience a problem with your Linden Portable Wireless Speaker please refer to the troubleshooting table below.
If you are unable to resolve your problem, please contact
customer care for further advice.
Cannot locate LINDEN – LPBSK17 on any of my
Bluetooth-enabled devices
• Make sure the Bluetooth speaker has entered pairing
mode and LED indicator is flashing Blue.
• Ensure the speaker is within the effective working range;
your speaker must be within 8-10m of your selected
device.
• Turn your Bluetooth on and off on selected device; disconnect any devices that may have existing connections
with your device
The Portable Wireless Speaker has no sound or the speaker
volume is very low
• Ensure both volumes on your connected device and
speaker have been adjusted
Troubleshooting
20
• Ensure the speaker is fully charged
The music/audio breaks up and distorts
• Ensure your connected device is within 8-10m of the
speaker and there are no solid barriers between your
device and speaker.
• Ensure your speaker is fully charged
Why can’t I remotely control the pause, play, previous song
and skip track functions with the speaker when playing
music?
• Skip and Previous functions are only synchronized when
a Bluetooth connection is made. Skip and Previous
function using + - on your speaker do not work in AUX
mode.
21
Product Dimensions 93 x 84 x 33mm
Power Input Micro USB 5V 500mA
Total Power Output 9.5W (4.75W x 2)
Speaker Configuration
1.5” Speaker Driver x 2 +
Passive Radiator
Battery Capacity 600 mAh
Water Resistant
Water resistant IPX6 Rating Water projected in powerful jets
(12.5 mm nozzle) against the
enclosure from any direction
shall have no harmful effects
Box Contents
Linden Portable Wireless
Speaker, Micro USB Cable,
Carabiner, User Manual,
3.5mm AUX Cable
Technical Specications
Some functions may not be supported depending upon your
phone, tablet, and/or application.
While every effort has been made in the preparation of this
instruction manual, the publishers cannot be held responsible for
the accuracy of the information contained herein or any consequences arising from it.
Distributed by:
M.E.W. (Australia) Pty Ltd,
15 Vaughan St, Essendon Fields, VIC 3041
ACN 152 719 036
Customer care: Aus-1300 530 800
customercare@lindenproducts.com.au
lindenproducts.com.au
Loading...
