Installation instructions Plexus
1 Content and symbols
1. Content and symbols .................................................. 2
1.1 Content ................................................................. 2
1.2 Symbols ................................................................ 3
2. Control of delivery ....................................................... 3
2.1 Before you start .................................................... 3
2.2 Safe operation ....................................................... 3
2.3 Receipt of goods .................................................. 3
2.4 Unloading of goods .............................................. 3
2.5 Handling / Carrying ............................................... 3
2.6 Tools ..................................................................... 4
2.7 Installation ............................................................. 4
2.8 Where to find additional instructions or technical
documentation ...................................................... 4
2.9 Cleaning after assembly/before commissioning ... 4
2.10 Packing, unpacking guideline ............................... 5
2.11 Product labelling ................................................... 6
2.12 Order code ............................................................ 7
2.13 Order code examples ........................................... 7
2.14 Label ..................................................................... 7
2.15 Contents of order .................................................. 8
2.16 Plus features ......................................................... 8
2.16.1 Inlet faceplates ...................................................... 8
2.16.2 Outlet front grilles ................................................. 8
2.16.3 Integrated valves ................................................... 8
2.16.4 Integrated Actuators ............................................. 8
2.16.5 Integrated Regula components ............................ 8
2.17 Accessories ........................................................... 8
3. Product specification .................................................. 9
3.1 Product description .............................................. 9
3.2 Dimensions ........................................................... 9
3.3 Plexus ................................................................... 9
3.4 Material data ....................................................... 10
3.5 Environmental Declarations ................................ 10
3.6 Working and test pressure .................................. 10
3.7 Water quality ....................................................... 10
3.8 Air quality ............................................................ 10
3.9 Capacity test ....................................................... 10
4 Connections ................................................................ 11
4.1 Water connections .............................................. 11
4.1.1 Before installation ............................................... 11
4.1.2 Push on fitting ..................................................... 12
4.1.3 Compression fitting ............................................. 12
4.1.4 Flexible hoses ..................................................... 12
4.1.5 Additional Lindab accessories for water
connections ........................................................ 13
4.1.6 Possible connections water cooling
(2-pipe, Standard) ............................................... 14
4.1.7 Possible connections water cooling and
heating (4-pipe, Plus feature) ............................. 14
4.2. Air connections ................................................... 16
4.2.1 Air connection installation ................................... 16
4.2.2 Possible connections supply air ......................... 16
4.2.3 Possible connections exhaust air ....................... 16
4.3 Possible combination of connections ................. 16
4.4 Electrical connections ......................................... 17
4.4.1 Regula components on the beam ....................... 17
4.4.2 Example 1: Wiring scheme with Regula
Connect multi ...................................................... 18
4.4.3 Example 2: Wiring scheme with Regula
Connect basic ..................................................... 18
4.4.4 Regula Connect on the beam ............................. 19
4.4.5 Regula Secura on the beam ............................... 19
4.4.6 Valves and Actuators on the beam ..................... 19
4.4.7 Regula Combi on/with the beam ........................ 19
4.4.8 Actuators ............................................................. 19
5 Installation of product ................................................ 20
5.1 Handling of product ............................................ 20
5.2 Ceiling systems ................................................... 20
5.3 General installation principles ............................. 21
5.3.1 Recessed in suspended T-bar ceiling ................ 21
5.3.2 Exposed, sealed to the ceiling ............................ 21
5.3.3 Exposed, free hanging ........................................ 21
5.3.4 Free hanging above perforated or eggcrate
ceiling .................................................................. 21
5.3.5 Recessed in suspended (permanent) ceiling ...... 21
5.3.6 Recessed in suspended (permanent) ceiling
without cover flanges .......................................... 21
5.4 Preparation for installation on the product ......... 22
5.5 Preparation for installations of the product ........ 23
5.5.1 Basics steps of installing the product ................. 24
6 Adjustment and commissioning ............................... 28
6.1 Airflow and pressure ........................................... 28
6.1.1 Jet cone 2 adjustment pins ................................. 28
6.1.2 Finding values for JetCone pins ........................ 29
6.1.3 Adjusting air flow and pressure
with JetCone pins ............................................... 29
6.2 Adjustment of air distribution profile ................... 30
6.3 Measuring air pressure and calculating
the air flow .......................................................... 30
6.3.1 Measuring static nozzle pressure and air
pressure .............................................................. 30
6.3.2 Calculating the actual air flow ............................. 30
6.3.3 Changing the actual air flow ............................... 30
6.3.4 Changing the air distribution profile .................... 30
6.3.5 Plexus pressure / airflow diagrams ..................... 31
6.4 Water flow rate .................................................... 32
6.4.1 Pre-setting of valves ........................................... 32
6.4.2 Balancing strategy .............................................. 32
7. Maintenance .............................................................. 33
7.1 Remove the outlet front grille .............................. 33
7.2 Open inlet faceplate ............................................ 33
7.3 Opening inspection hatch ................................... 33
7.4 Lower battery ...................................................... 34
8 Accessories ................................................................ 35
2
We reserve the right to make changes
2019-06-20
lindab | we simplify construction
Installation instructions Plexus
1.2 Symbols
Heavy Load - 2 man job -
10-25
Hot water
Cold water
It is recommended to use
kg !
a “lift” for mounting.
Hand-pull
2 Control of delivery
2.1 Before you start
Read through the entire installation instruction before
commencing installation in order to determine which
parts that needs to be performed and in what order to
be done.
Lindab is a supplier of complete water products, but we
offer also a wide range of accesso ries which suit per fectly
to our water products simplifying your installation work,
e.g. different type of hangers, Tektite-couplings, closing
valves, thermostatic valves and actuators, flexible
hoses, customized regulation components, customized
cabeling and more. See also the separate document
“Accessories”.
Lindab will also provide you with a full ventilation system,
with a wide range of Lindab Safe components. See also
“Air Duct Systems”.
2.2 Safe operation
Beware of sharp edges, especially of the coils. Always
wear thin gloves and protective clothing.
All existing safety regulations must be observed
when working with Lindab water products. Check the
weights of the beams or the panels with the installation
instruction before carrying.
2.3 Receipt of goods
Start by checking that the delivery is complete
according to the order and that everything listed on the
consignment note has been delivered. Then carry out a
review of the products and make sure that nothing was
damaged during transportation. If you discover damage
that has occurred during delivery, it must be notified
immediately.
Lindab is not responsible for costs associated with the
replacement of products that have been installed in any
way other than shown in these installation instructions.
2.4 Unloading of goods
The beams and panels are normally delivered packed
on wooden pallets. Lift the pallets carefully with a fork
lift and place them on a dry and plain surface/ground. If
the beams are delivered in single boxes, wooden blocks
should be placed on the ground at one-metre intervals
(or a pallet), before the boxes are been placed to store.
Lindabs water products must be stored on a plane
surface in a dry and well ventilated place, preferably
indoors. If they have to be stored outdoors, protect them
with a waterproof cover and store them protected from
rain beneath a roof or other until they are fitted.

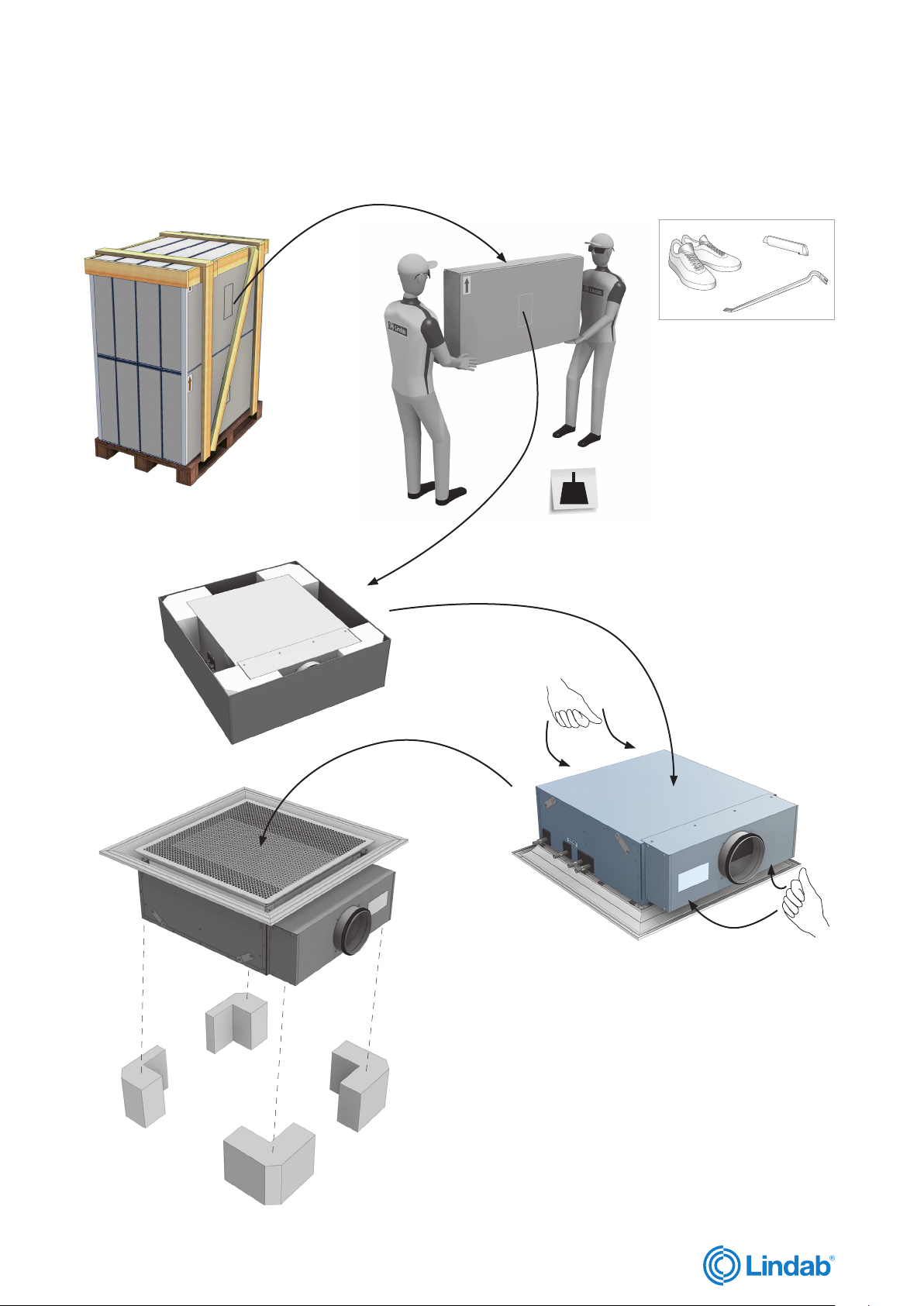

2.5 Handling / Carrying
The beam or panel must be handled with care,
ensuring that it will not be scratched or bended during
transportation, preparation and installation.
Always carry the beams or panels piecewise into the
building. Keep the product in the package as long as
you can.
10-25
kg !
Never use piping connections or edges to lift them,
neither when you unpack them nor when you carry them
towards the construction site.
Do not place the product directly on the floor. Use the
protective corners from package or other clean means
from package to place the product before installation.
Be careful if you must carry a long panel horizontally;
if the panels are bended lengthwise, the profiles may
be deformed and the piping could be loosen from the
panel. When opening the box with a knife, be careful not
to damage the product.
Each beam is equipped with protective film to avoid any
damage during transportation and handling on building
site. The film needs to be removed before commissioning
the products.
We reserve the right to make changes
2019-06-20
3
lindab | we simplify construction
Installation instructions Plexus

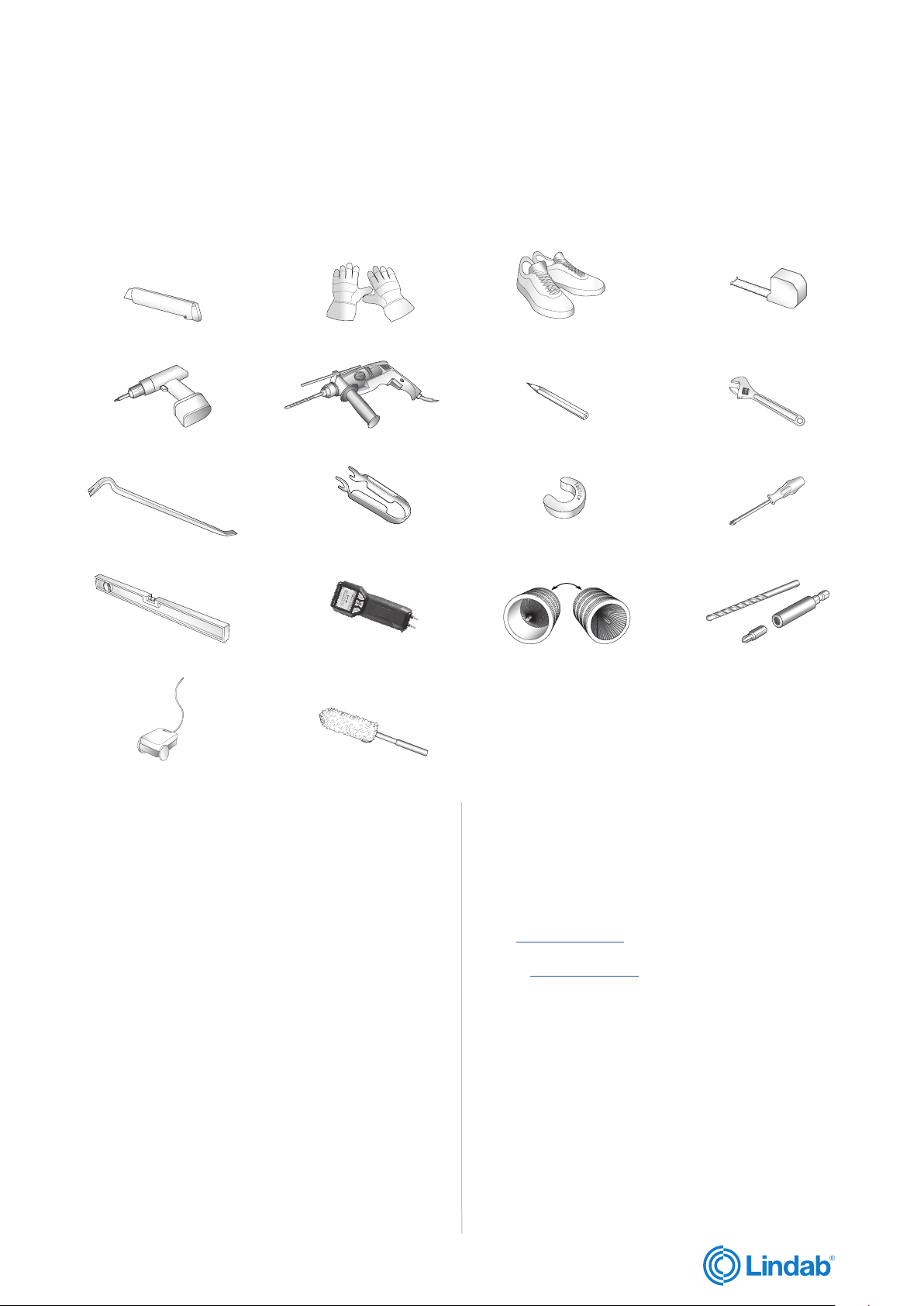

2.6 Tools
To install the beam, panel or facade unit, the following tools are required.
Knife
Drill machine Spanner
Crowbar
Spirit level
Vacum cleaner
Gloves
Percussion drill
Tectite tool 12mm
(Order no: 884087)
Lindab PC410
(Order no: 103344)
Dust-cleaner
Shoes with soft soles
Pencil
Tectite tool small 12mm
(Order no: 646881)
Deburring tool Bits and drills
Tape measure
Screwdriver

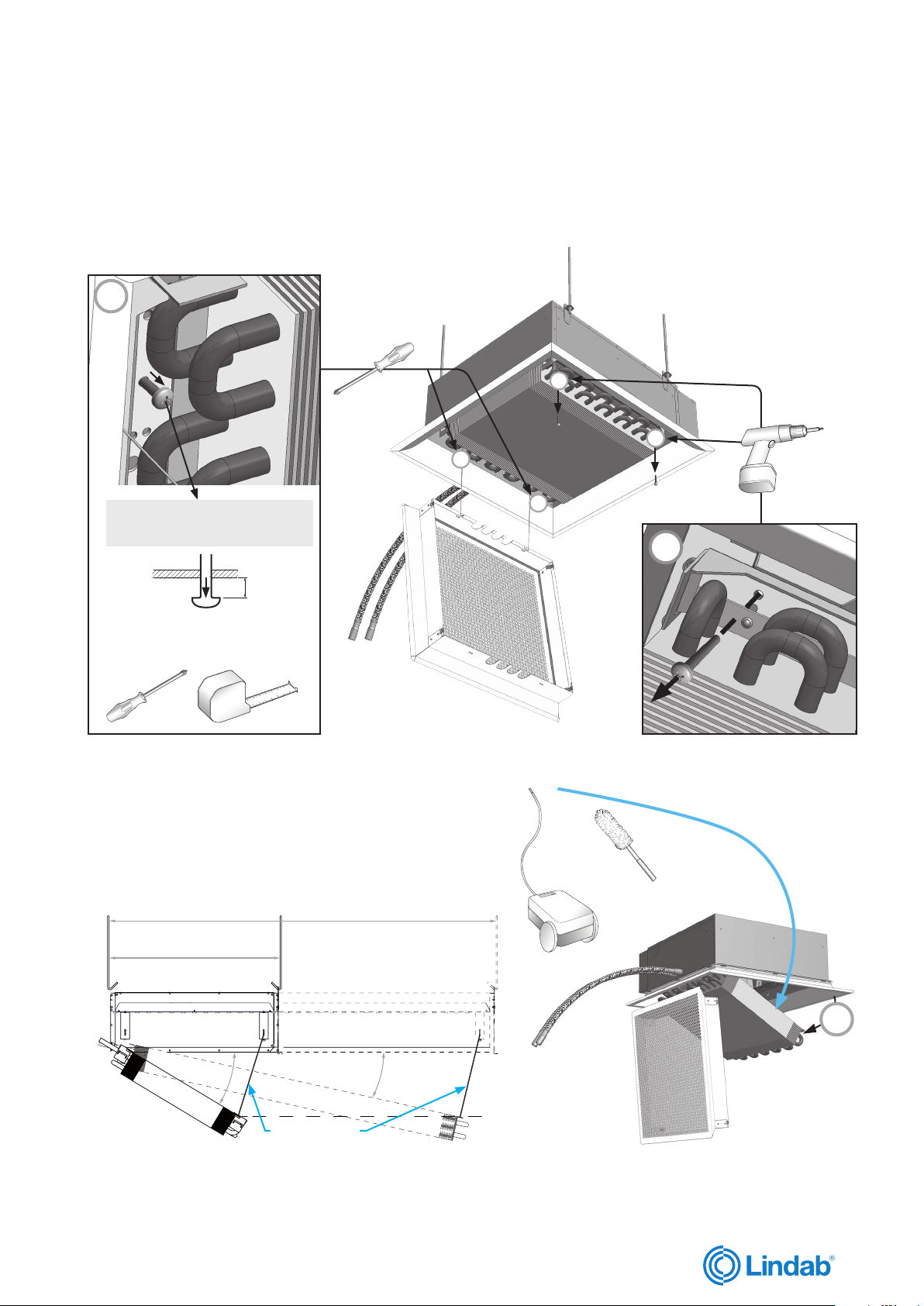

2.7 Installation

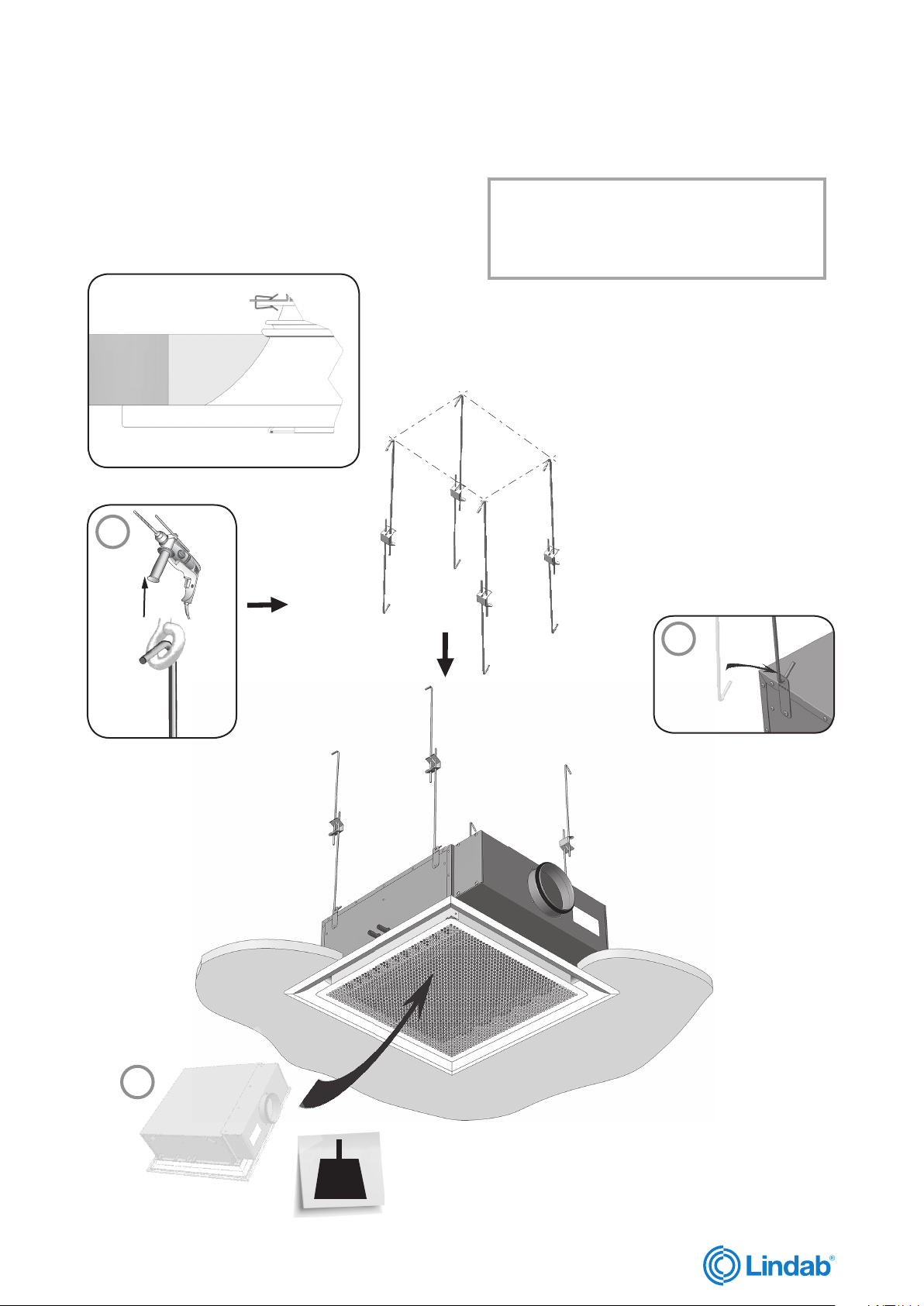

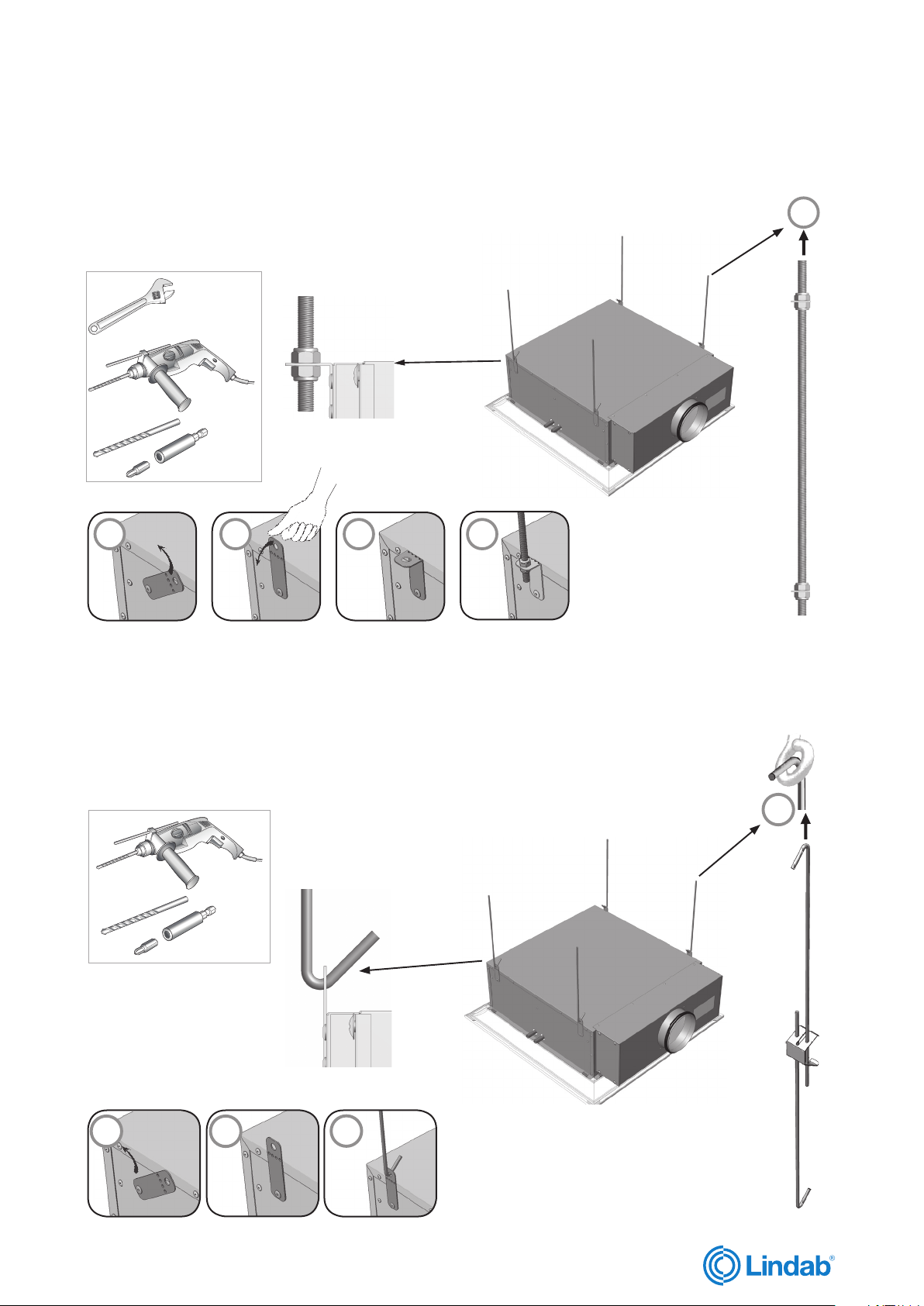

It is important to use the correct hangers and the recommended amount for all installation principles. Different

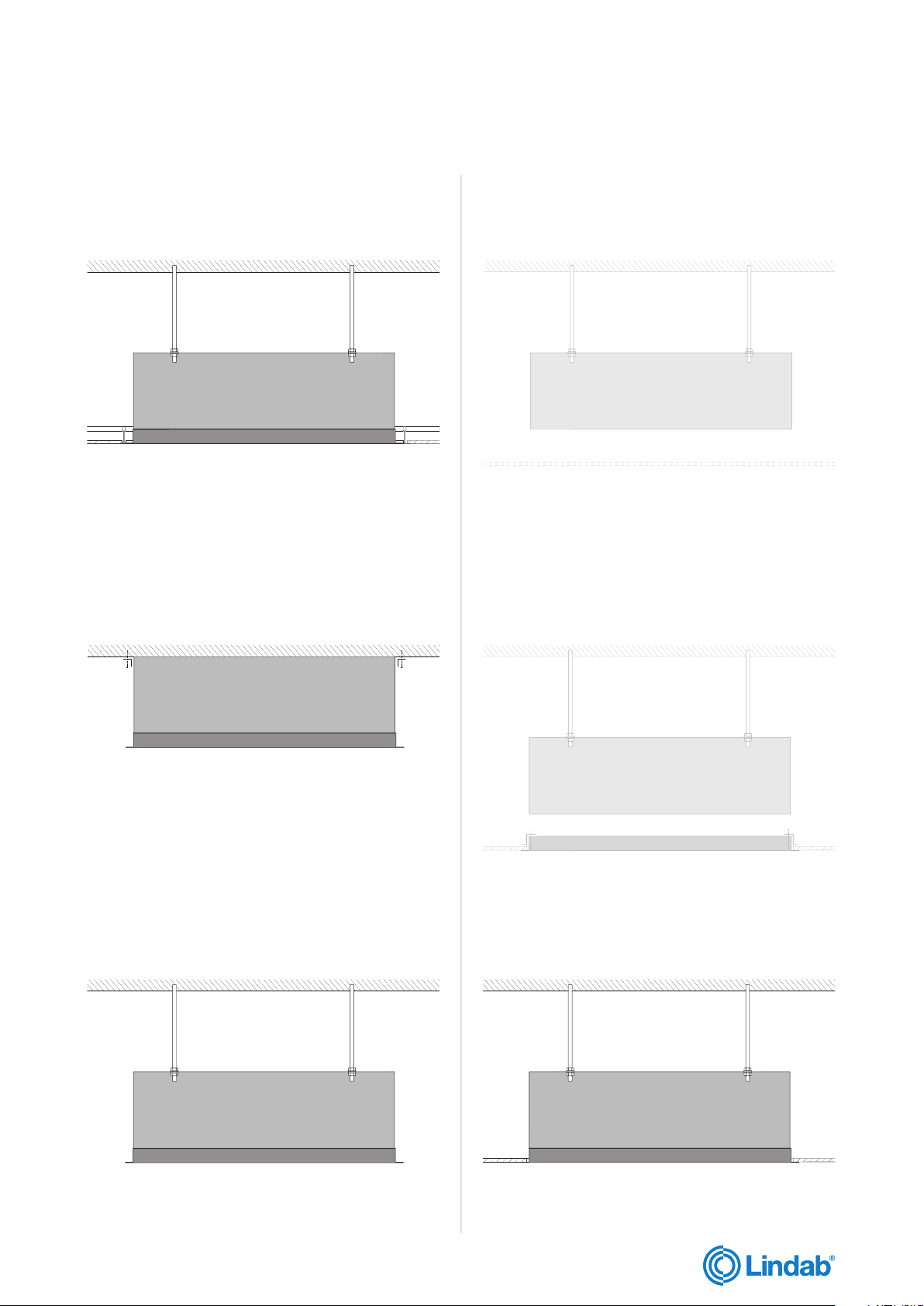

possible installation principles are shown in the installation instruction and hangers from Lindab should be used
to ensure, that they are intended for the purpose and are
safe to use.
Lindab´s water products can be ordered, to be adapted
to a wide range of different ceiling systems, please check
installation instruction to ensure best adaptation.

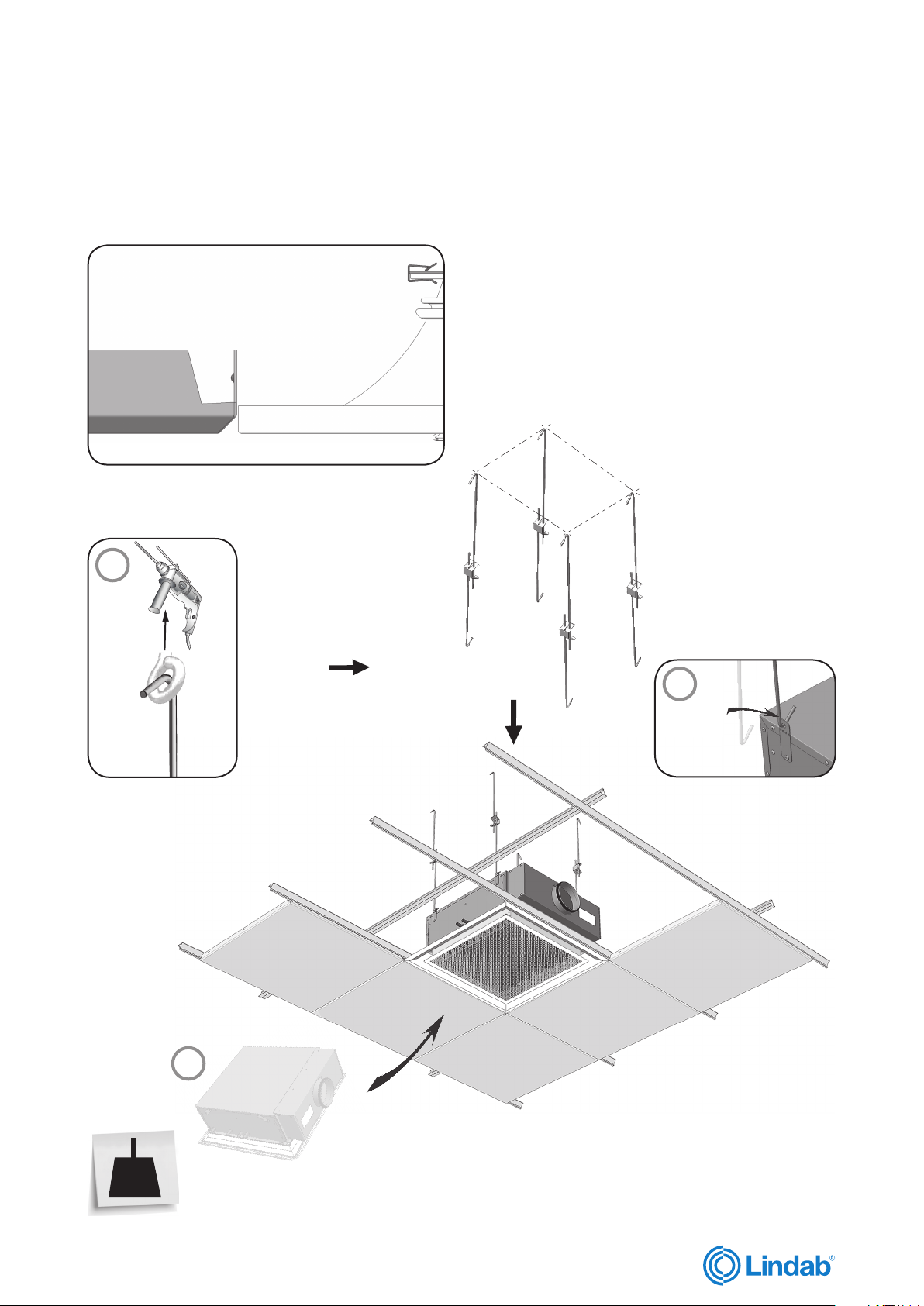

The Lindab water products should always be installed
separately hanged up from the recessed ceiling. The
weight of the product should not be covered by the ceiling system.
2.8 Where to find additional instructions or
technical documentation
In the following chapters we will refer to additional technical documents or/and instructions by a certain keyword
written as a link.
If so you will easily find it with our Lindab Quick Selection
Tool: www.lindqst.com
1. Visit www.lindqst.com
2. Select “documentation finder”
3. Select keyword (product name)
4. Follow the link
5. Find your document under “Related documents”
2.9 Cleaning after assembly/ before
Use plastic folio or other to protect the product during on
site construction continually to keep the products in best
condition and avoid any scratches.
4
We reserve the right to make changes
2019-06-20
commissioning
Please remember to remove plastic folio and other protection material before commissioning and clean the product before hand over.
lindab | we simplify construction
Installation instructions Plexus
2.10 Packing, unpacking guideline
10-25
kg !
We reserve the right to make changes
2019-06-20
5
100
120
20 30 40 50 60 70 80 100 150

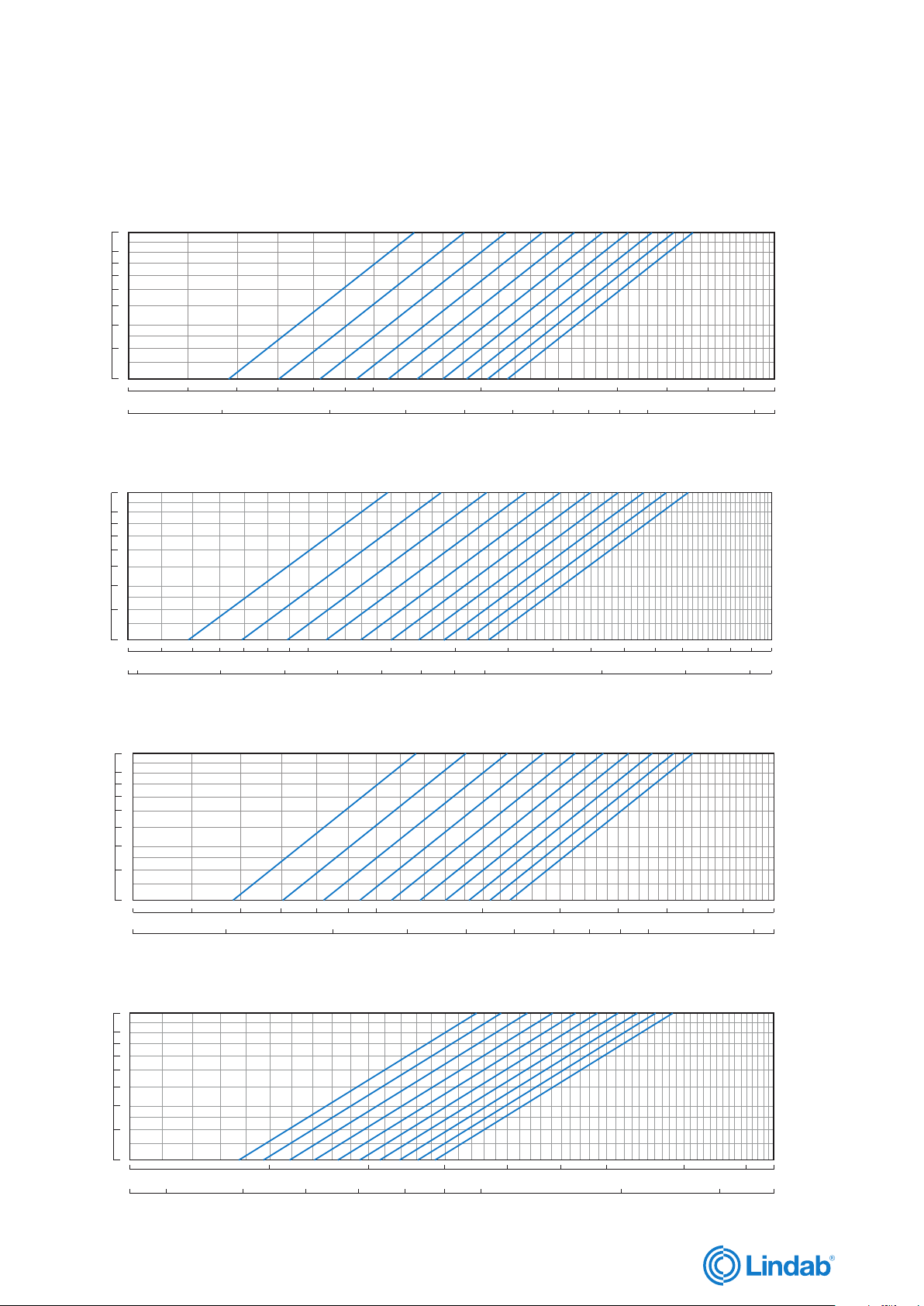

Δp
[Pa]
/h]
lindab | we simplify construction
Installation instructions Plexus
2.11 Product labelling
Order : xx-xxxxx
xx
Pos : xx
Plexus x-x-xx-xx-xxx-Xx
Munio-I-xxx-12-125-AX
Pressure: AA Pa Flow: BB l/s
Project : xxxxxx xxxxxxxx
Mark : xxxxx
Nozzles : N/A
Product ID : xxxxxxx
xx
xxxx-xxxx-xxxx
xx-xx
xx xx xx
Plugs : N/A Sign. :
xx-xx
x,xx m
xx
6
Plexus S60 Position of JetCone adjustment pins
1 3
Pos.
0-9
2 4
Date P
[Pa] qa [l/s] 1 2 3 4
stat
JetCones
Rev. 04-2012
Stat
80
Signature
70
60
50
40
30
45678910 15 20 25 30 35 40
0123456789
qa [l/s]
3
qa [m
We reserve the right to make changes
2019-06-20
lindab | we simplify construction
Installation instructions Plexus

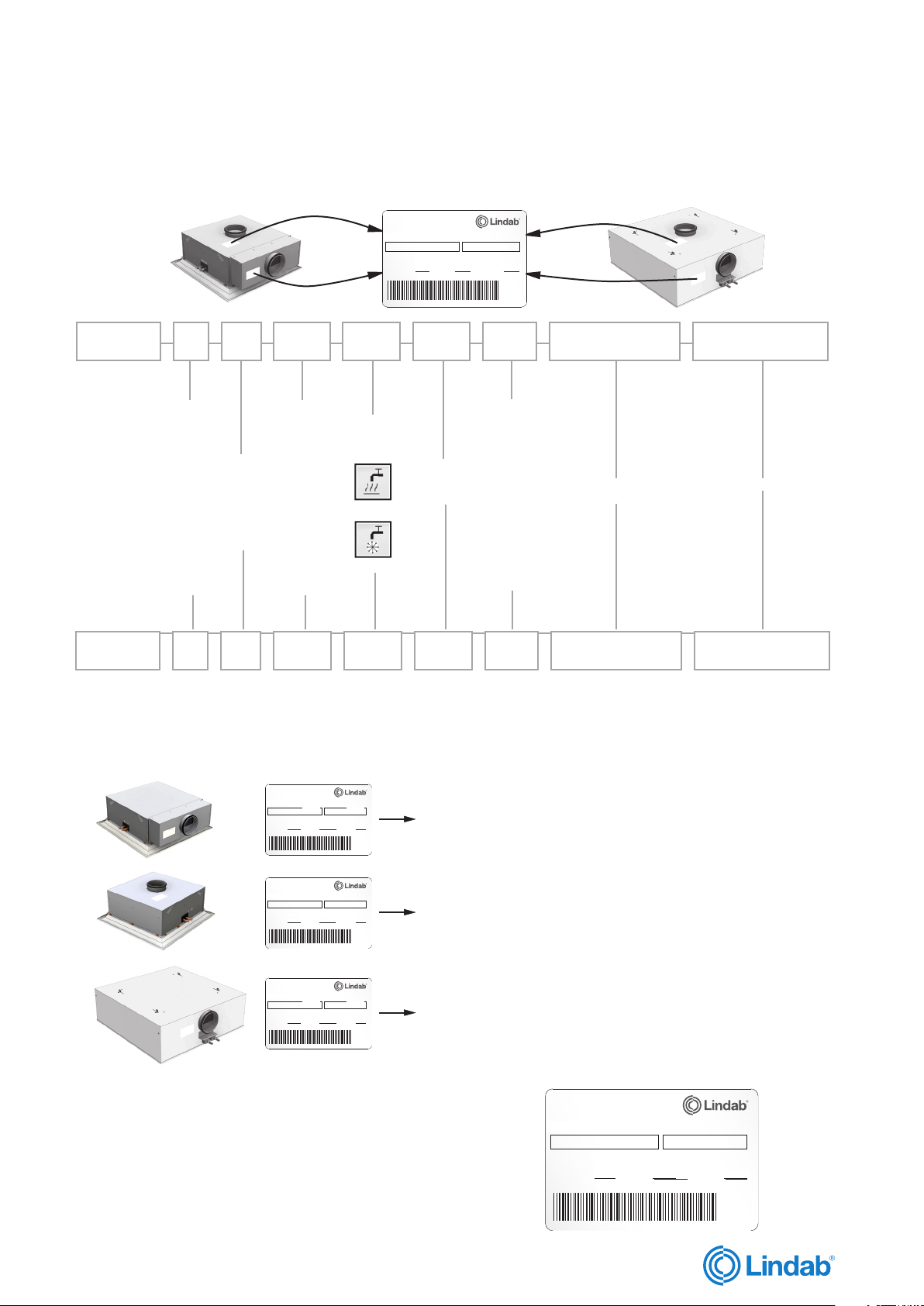

2.12 Order code
Order : xx-xxxxx
xx
Pos : xx
Plexus x-x-xx-xx-xxx-Xx
Munio-I-xxx-12-125-AX
Pressure: AA Pa Flow: BB l/s
Project : xxxxxx xxxxxxxx
Mark : xxxxx
Nozzles : N/A
Product ID : xxxxxxx
xx
xxxx-xxxx-xxxx
xx-xx
xx xx xx
Plugs : N/A Sign. :
xx-xx
Plexus I, (X, U, Y, Z) Plexus F
Plexus X X XXX 12 XXX XX XX XX
x,xx m
xx
I
X
Y
Z
S*
L*
M*
60
62
67
120*
122*
Ø12
(2 x 2 )
x 2
x 2
Ø125**
Ø160**
( x1 )
A5
A6
B5
B6
Preset static pressure
before nozzles [Pa]
Preset airflow [l/s]
H*
SA***
60
120*
x 2
x 2
A1
B1F
Plexus F X XXX 12 XXX XX XX XX
* 120 and 122 only available when S-configuration has been selected. L, M, H configurations only available in 60, 62, 67 versions.
**ØH (Side air connection (A)) = 125 only.
**ØV (Top air connection (B)) = 125 only for S-configuration. ØV = 160 only for L,M,H configurations. (See also dimension table 3.2).
***The type SA (integrated steel frame) is available for version ISA-60 and 120 only, (for T24/T15 lay-in 600, ceiling type 1).
2.13 Order code examples
Order : xx-xxxxx
Pos : xx
Plexus I-S-60-12-125-A5
Munio-I-xxx-12-125-AX
Pressure: AA Pa Flow: BB l/s
60 Pa
Project : xxxxxx xxxxxxxx
Mark : xxxxx
xx N/A
Nozzles : N/A
Plugs : N/A Sign. :
Product ID : xxxxxxx
24 l/s
x,xx m
Plexus I - S - 60 - 12 - 125 - A5 - 60 Pa - 24 l/s
Order : xx-xxxxx
Pos : xx
Plexus I-S-60-12-125-B6
Munio-I-xxx-12-125-AX
Pressure: AA Pa Flow: BB l/s
60 Pa
Project : xxxxxx xxxxxxxx
Mark : xxxxx
xx N/A
Nozzles : N/A
Plugs : N/A Sign. :
Product ID : xxxxxxx
Order : xx-xxxxx
Pos : xx
Plexus F-S-60-12-125-A1
Munio-I-xxx-12-125-AX
Pressure: AA Pa Flow: BB l/s
60 Pa
Project : xxxxxx xxxxxxxx
Mark : xxxxx
xx N/A
Nozzles : N/A
Plugs : N/A Sign. :
Product ID : xxxxxxx
24 l/s
24 l/s
x,xx m
Plexus I - S - 60 - 12 - 125 - B6 - 60 Pa - 24 l/s
x,xx m
Plexus F - S - 60 - 12 - 125 - A1 - 60 Pa - 24 l/s

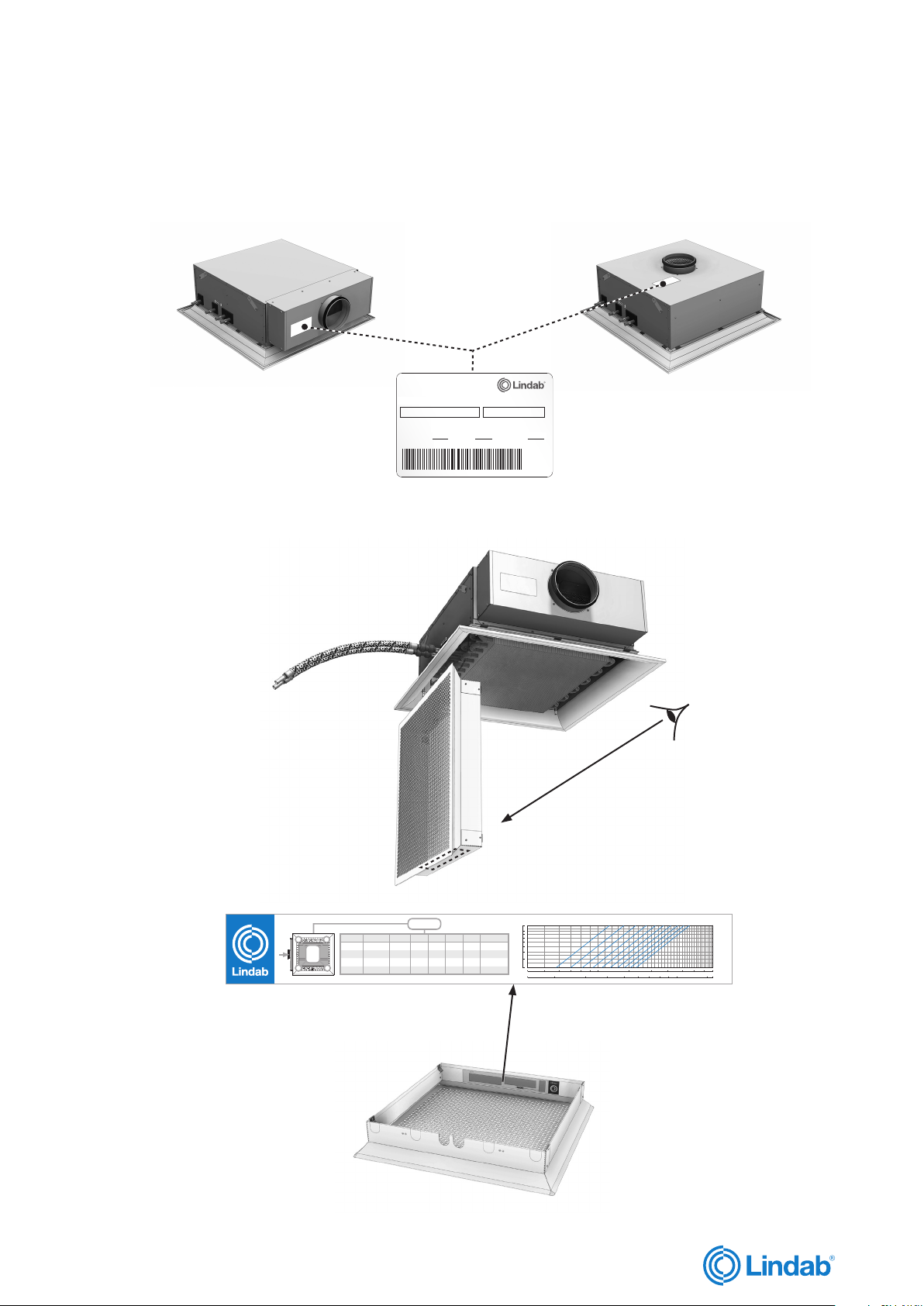

2.14 Label
On the label you will find:
• Order: Order identification number.
• Pos: Order position.
• Product: Product configuration.
• Project: Project name.
• Mark: Marking noted on order.
• Product ID: Product number.
• Sign: To be signed when checked and commissioned on site.
We reserve the right to make changes
2019-06-20
Order : xx-xxxxx
xx
Pos : xx
Plexus x-x-xx-xx-xxx-Xx
Munio-I-xxx-12-125-AX
Pressure: AA Pa Flow: BB l/s
Project : xxxxxx xxxxxxxx
Mark : xxxxx
Nozzles : N/A
Product ID : xxxxxxx
xx
xxxx-xxxx-xxxx
xx-xx
xx xx xx
Plugs : N/A Sign. :
xx-xx
x,xx m
xx
7
LINDAB
Damper out -
Damper out -
Damper out -
Heating out -
Heating out -
Heating out -
Cooling out -
Cooling out -
Cooling out -
Heating link -
Cooling link -
Heating link -
Cooling link -
lindab | we simplify construction
Installation instructions Plexus
2.15 Contents of order
Standard package/order contains:
• Beam
• Plus features (pre-installed in factory)
• 4 pc/beam of copper insets (separate in smaller
box)
• Accessories (separate in smaller box)

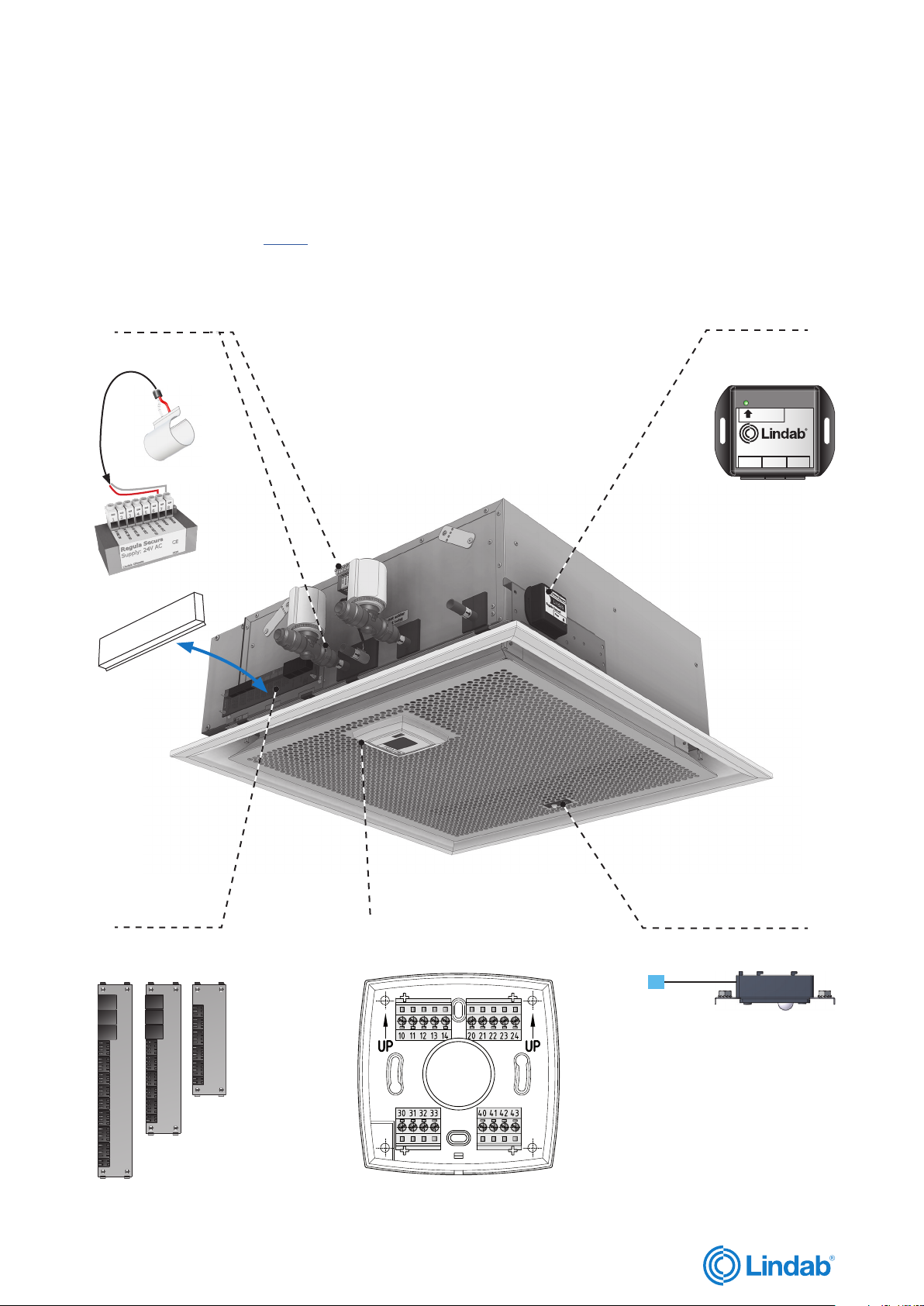

2.16 Plus features
2.16.1 Inlet faceplates
Not relevant for Plexus
2.16.2 Outlet front grilles
Not relevant for Plexus

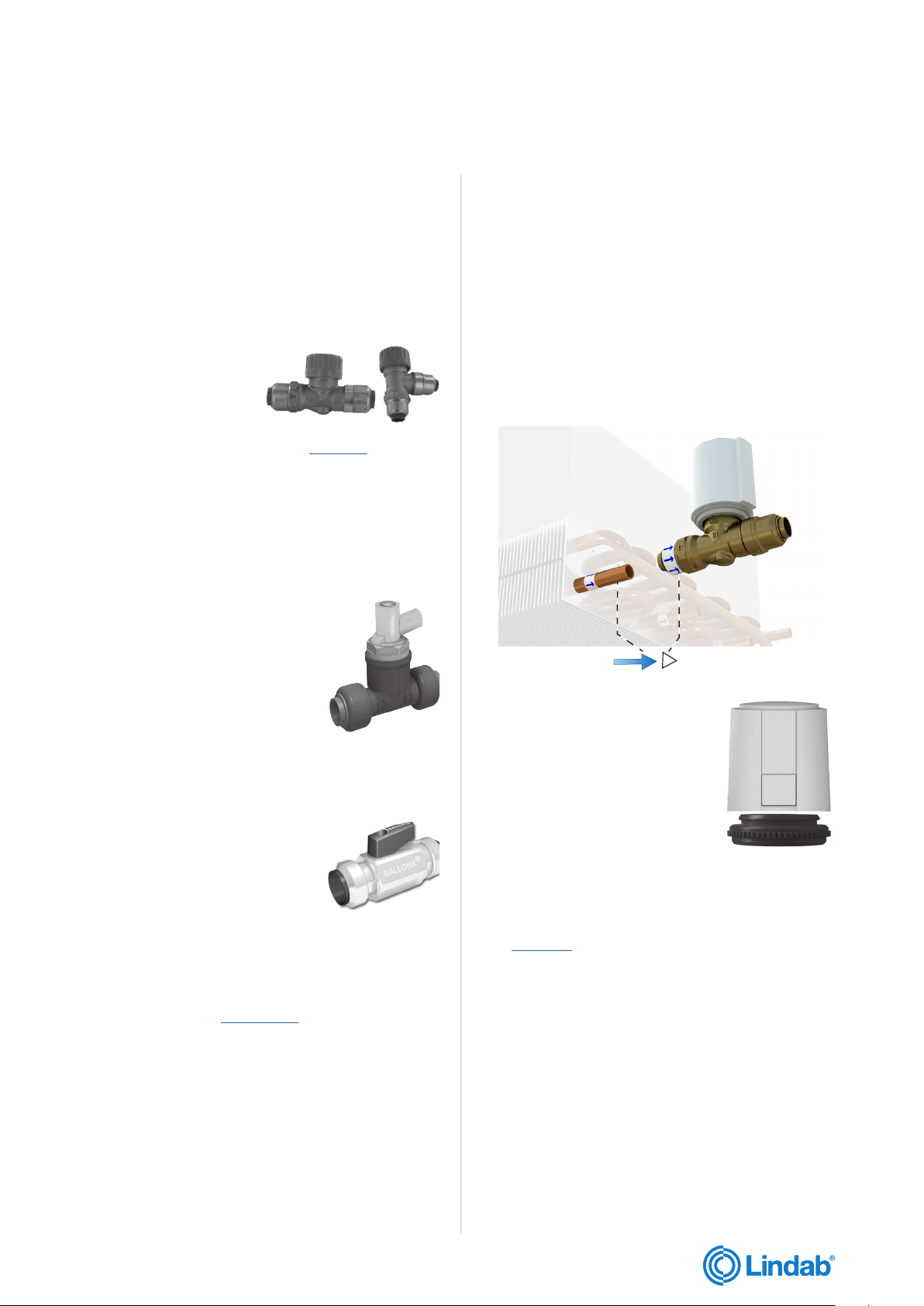

2.16.3 Integrated valves

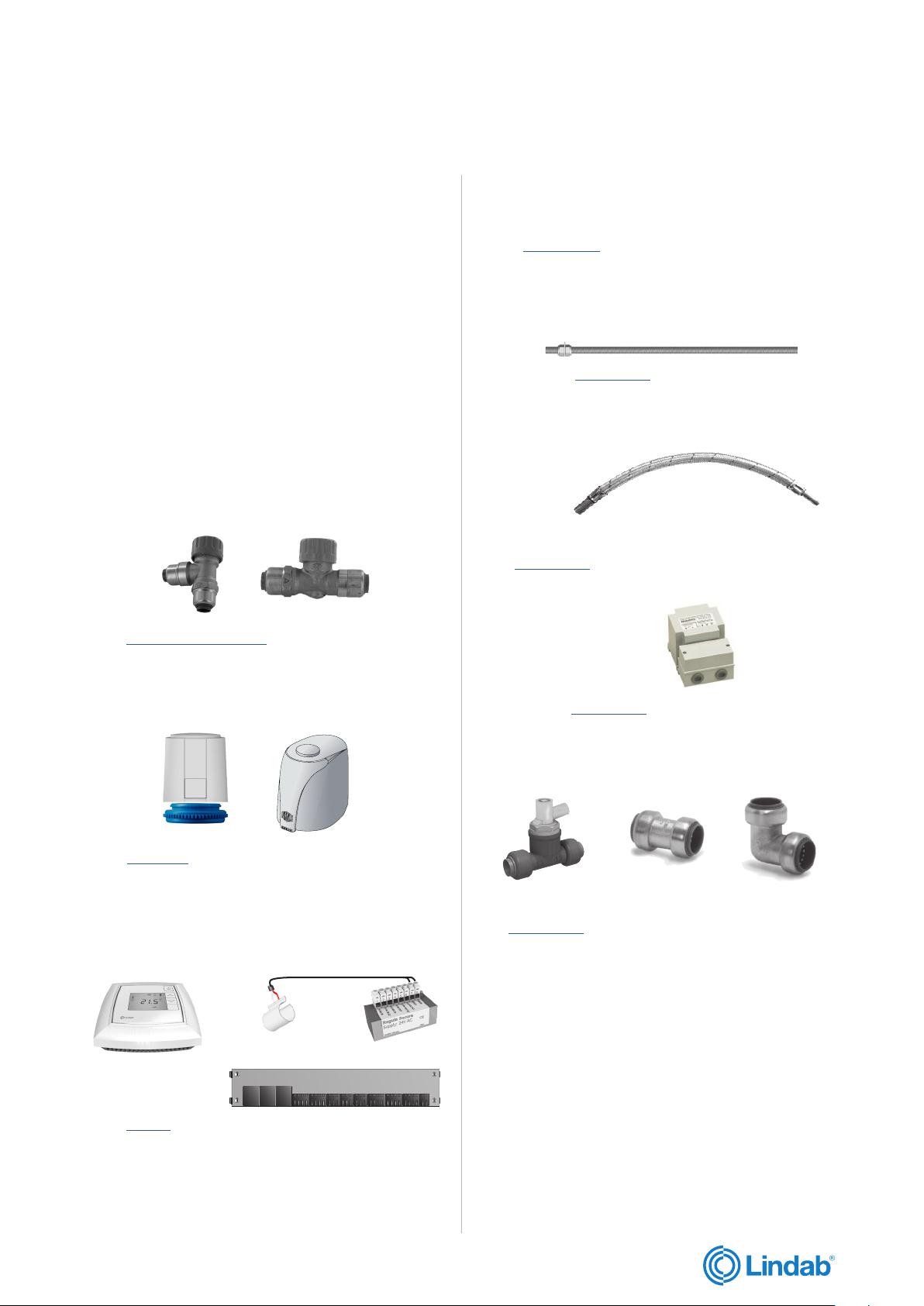

2.17 Accessories

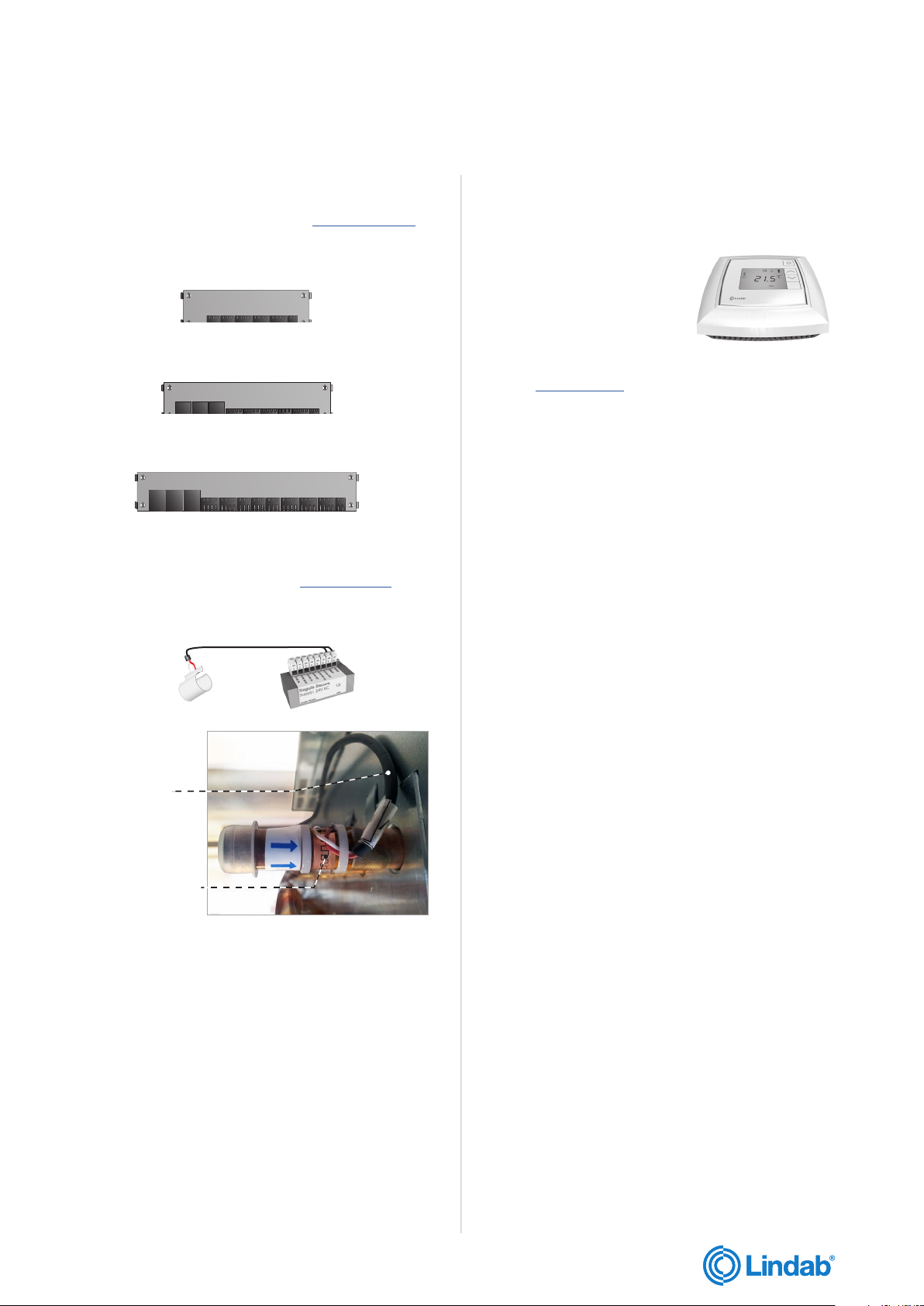

Here you see some general accessories. For full range
see separate Accessories document.
Go to Accessories for details.
Threaded rod kit
M6/M8
x4
Order no: see Accessories
Flexible hoses
Order no: 680080 (0,4m push on, 12 and 12mm).
See Accessories
Transformer
Go to TTR/TTV water valves for details.
2.16.4 Integrated Actuators
Go to Actuators for details.
2.16.5 Integrated Regula components

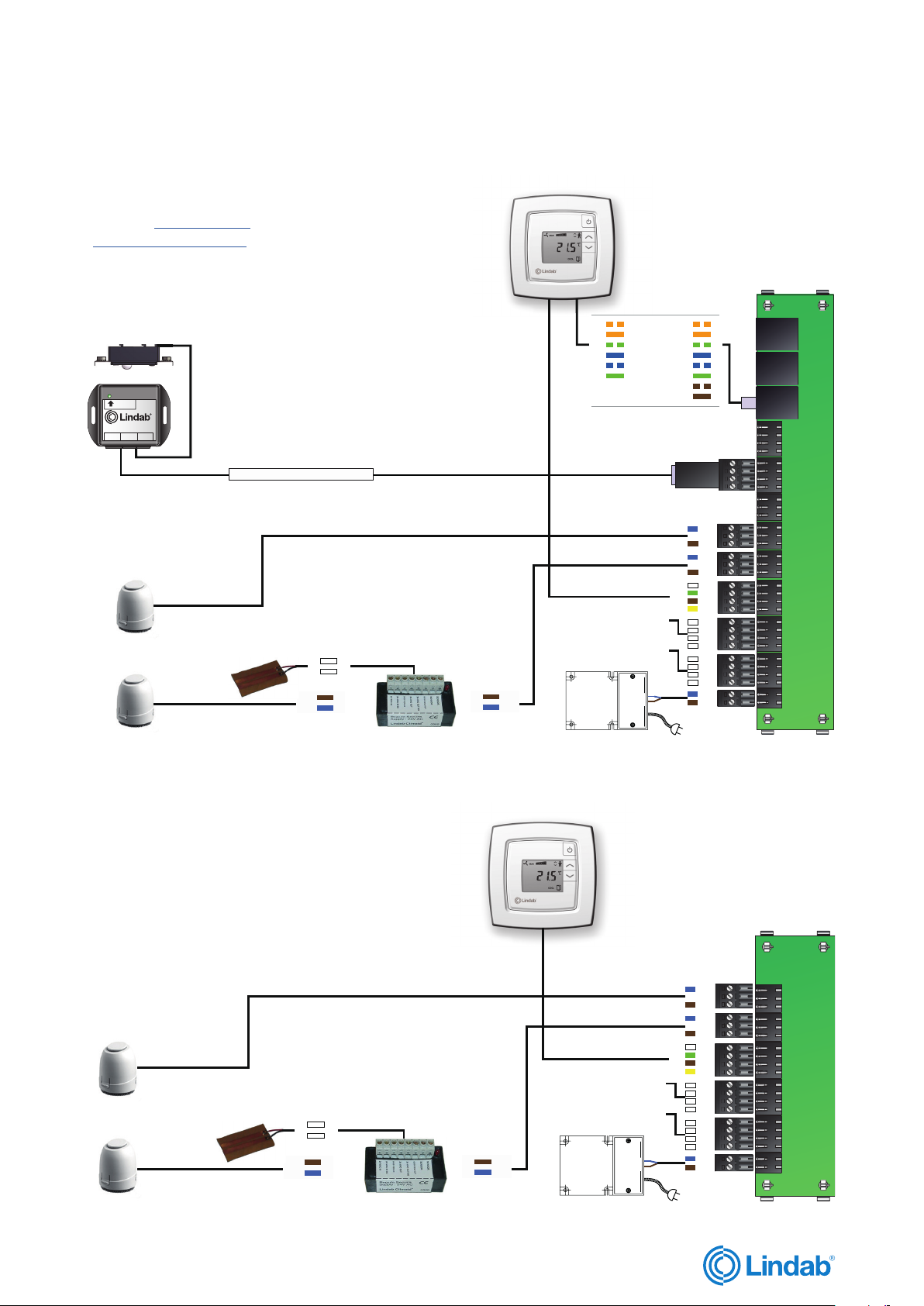

Regula Combi Condensation sensor and Regula Secura
Regula Multi connect card
N = Neutral
L = Load
S = Signal
Rc LINK
Rc LINK
RC in/out
Multi
REGULA CONNECT
S
L
N
N
S
L
S
L
N
Presence in - S
Presence out - N
Presence out - L
CO2 in - S
Presence in - S
CO2 out - N
CO2 out - L
CO2 in - S
Heating in - S
Cooling in - S
Order no: see Accessories
Tectite fittings
Order no: 647690, 884050 and 884014 (12mm)
see Accessories
S
S
S
S
Supply link - N
Supply link - N
Supply link - L
Supply in - N
Supply link - L
Supply out - N
Supply out - L
Supply in 24V - L
Go to Regula for details.
8
We reserve the right to make changes
2019-06-20
Ø
v
476
40
128
11
40
220
49
B
Ø
H
A
220
A32
Ø
v
225
14
Ø
H
76.2
A32
79
333
lindab | we simplify construction
Installation instructions Plexus
3 Product specification
3.1 Product description
The Plexus beam is a 360° comfort unit and is standardly prepared for ventilation and cooling (2-Pipe connection).
It is available in an integrateable (I 60 / I 120) and an exposed version (F 60 / F 120).

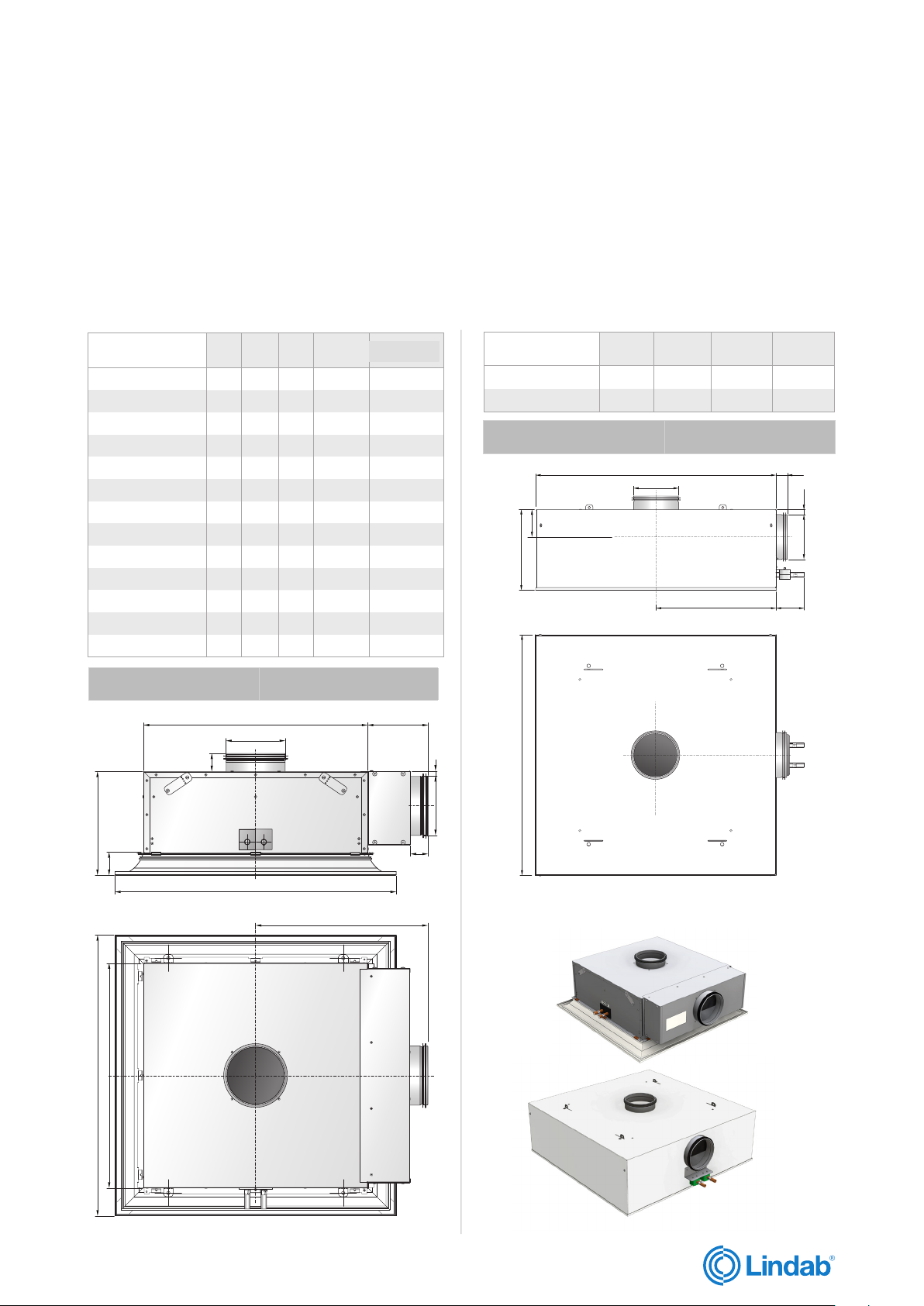

3.2 Dimensions
Plexus I, ( X, U, Y, Z )
AmmBmmØ
mm
I ( S/SA, L, M, H) 60 594 594 125 125/160
X ( S, L, M, H) 60 599 599 125 125/160 4, 5, 6, 7, 14
U ( S, L, M, H) 60 599 599 125 125/160 USA 2’ x 2’
Y ( S, L, M, H) 60 575 575 125 125/160 9, 11
Z ( S, L, M, H) 60 584 584 125 125/160 10
I ( S, L, M, H) 62 619 619 125 125/160 21
I ( S, L, M, H) 67 669 669 125 125/160 31, 32
I S/SA 120 594 1194 125 160 1, 2, 3, 8
X S 120 599 1199 125 160 4, 5, 6, 7, 14
Y S 120 575 1174 125 160 9, 11
Z S 120 584 1183 125 160 10
U S 120 599 1209 125 160 USA 2' x 2'
I S 122 619 1244 125 160 21
Plexus (I, X, Y, Z) - (S)
!
=> Øv = 125
40
Plexus (I, X, U,Y, Z) - (L, M, H)
476
Ø
v
H
=> Øv = 160
Ø
mm
V
Ceiling type
1, 2, 3, 8
128
Plexus F
A
mm
F ( S, L, M, H) 60 669 669 125 125/160
F S 120 669 1269 125 160
!
11
H
Ø
Plexus (F) - (S)
=> Øv = 125
76.2
225
B
B
mm
Plexus (F) - (L, M, H)
Ø
v
333
Ø
H
mm
=> Øv = 160
Ø
V
mm
14
H
Ø
79
49
480 (Plexus 120 = 1080)
A
365
40
3.3 Plexus
We reserve the right to make changes
We reserve the right to make changes
2019-06-20
2019-06-20
9
lindab | we simplify construction
Installation instructions Plexus
3.4 Material data
Type Plexus I 60 Plexus I 120 Plexus F 60 Plexus F 120
Cooling/Heating Cooling/Heating Cooling/Heating Cooling/Heating
Dry weight, kg 11.6 18.6 20 17.2 28.9 30.3
Water content, cooling, l 1.0 1.3 1.0 1.3
Water content, heating, l 0.2 0.4 0.2 0.4
Water content, cooling only, l 1.2 1.3 1.2 1.3
Copper pipes, quality
EN 12735-2
CU-DHP
EN 12735-2
CU-DHP
EN 12735-2
CU-DHP
EN 12735-2
CU-DHP
3.5 Environmental Declarations
Please visit www.lindqst.com
• Select Documentation Finder
• Select “Plexus”
• Select “Related Documents” Building product
declaration or Declaration of conformity.
3.6 Working and test pressure
Lindab’s waterborne products have been manufactured
and tested according to Pressure Equipment Directive
97/237EC. The products are classified as SEP - Sound
Engineering Practice.
Pressure table
Pressure class PN10
Max. working pressure 10 bar
Max. recommended dynamic pressure 0.2 bar
Max. test pressure 16 bar
3.7 Water quality
Lindab recommend water treatment and quality to be
according to VDI 2035-2.
• The water preparation and maintenance for the chilled
beam water circuit must be handled by a specialist.
• To prevent corrosion, the water circuit must be
airtight.
• The water system must also be equipped with
aerators to remove any build-up air in the system.
• The water must be oxygen free, to prevent corrosion.
• The water system must be filled with potable water
that complies with the “EC directive 98/83/EC”.
• pH value of water must be between approximately
6-9 pH.
• The water velocities should not exceed 1m/s, and
should be kept as close to the nominal flow as
possible to minimize noise and optimize the energy
yield.
• Use in-line strainers to remove dirt particles from the
water.
• If the water contains any additive inhibitor, then it
must be appropriate to use with copper and solder.
3.8 Air quality
Primary supply air have to be clean, dry and filtered
before reaching the beam.
10
3.9 Capacity test
Lindabs active chilled beams are Eurovent-certified and
tested according to EN-15116.
Please visit Plexus on www.lindqst.com and see
Eurovent for more details.
We reserve the right to make changes
2019-06-20
lindab | we simplify construction
Installation instructions Plexus
4 Connections
4.1. Water connections

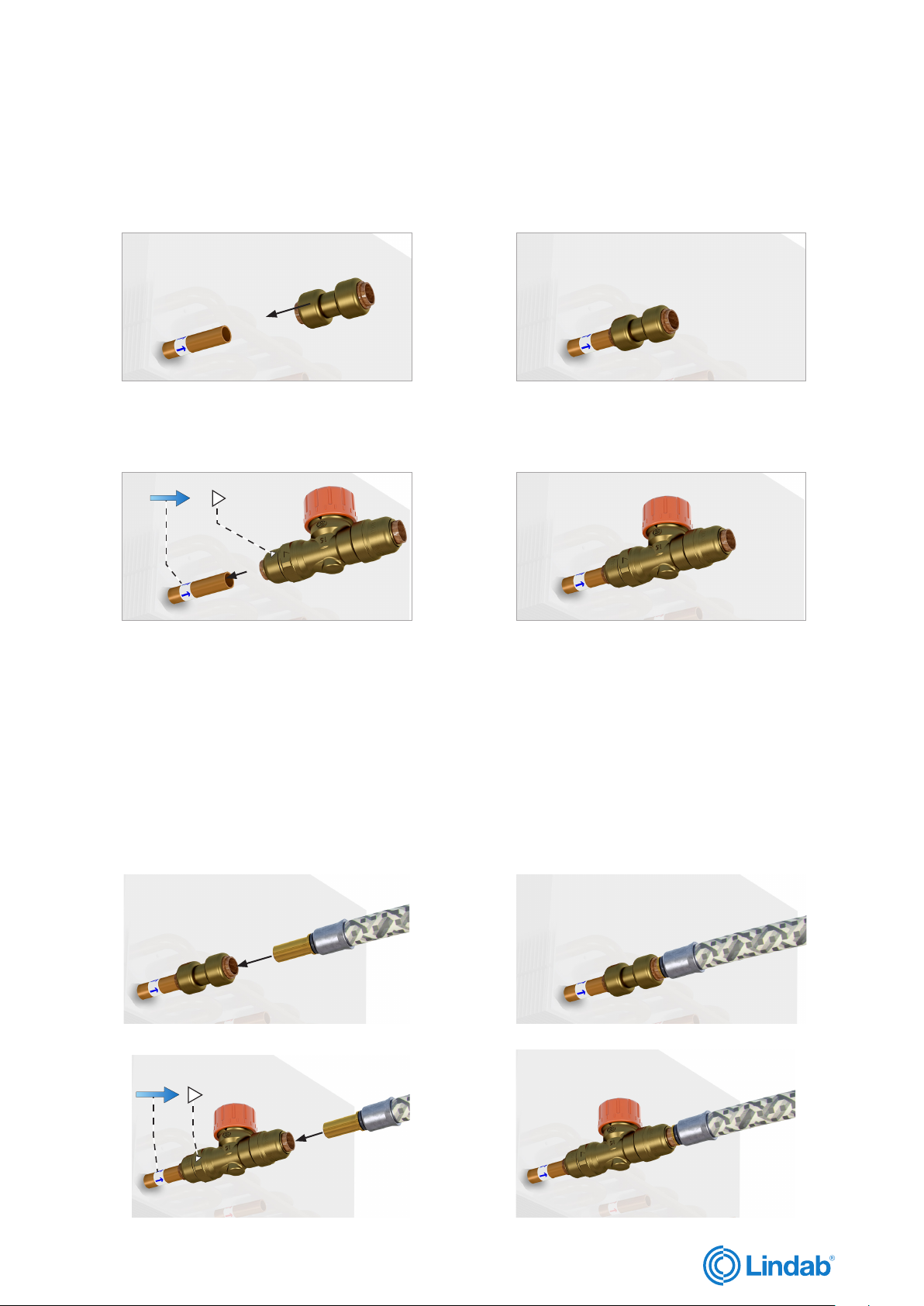

Flow indication arrows are shown on the inlet and return pipes in order to assist the installer.
If the beam has been ordered with integrated valves, a special direction of the flow must be upheld to ensure correct flow
through the thermostatic valve. Please note the flow direction indicator on the valve to insure correct installation in relation
to the desired flow.
When connecting a panel or a beam with the piping system either a push-on fitting or a compression coupling should
be used. Lindab have tested and recommends push-on fittings from Tectite (which are available as accessory. See
Accessories.
To avoid sound being transported over the beam, we recommend to use flexible hoses between the piping and the beam
connections.
4.1.1 Before installation
• Notice! The connection pipes are internally soft-welded, therefore it’s not allowed to solder the beam to the pipes. For
other than Lindab fittings and valves, please consult the installation guide for the specific fitting for further details on
proper installation.
• Both inlet- and return pipes are covered by a plastic or rubber protection cover, which must be removed before
installation.
• After removing the protection cover, make sure that the pipe is intact and undamaged, especially at the pipe end, as
even small dents and scratches potentially pose a risk of leakage in the system.
• Eventually deburr the pipe ends on the inside and the outside, using a deburring tool before installation.
• Always remember to do a pressure test after assembly the pipe work.
We reserve the right to make changes
2019-06-20
11
lindab | we simplify construction
Installation instructions Plexus
4.1.2 Push-on fitting
• Mount a push-on fitting to the pipe. Make sure to press the fitting all the way onto the pipe. Cooper inserts aren’t
required !
Picture 8.b
Push-on fitting on
• Mount a push-on valve to the pipe. Make sure the valve has the correct flow direction (see indication arrow on the valve)
and that you have the correct valve, when integrated valve has been chosen (see indication on valve or follow cabelling
to Regula Connect card). Cooper inserts aren’t required !
4.1.3 Compression fitting

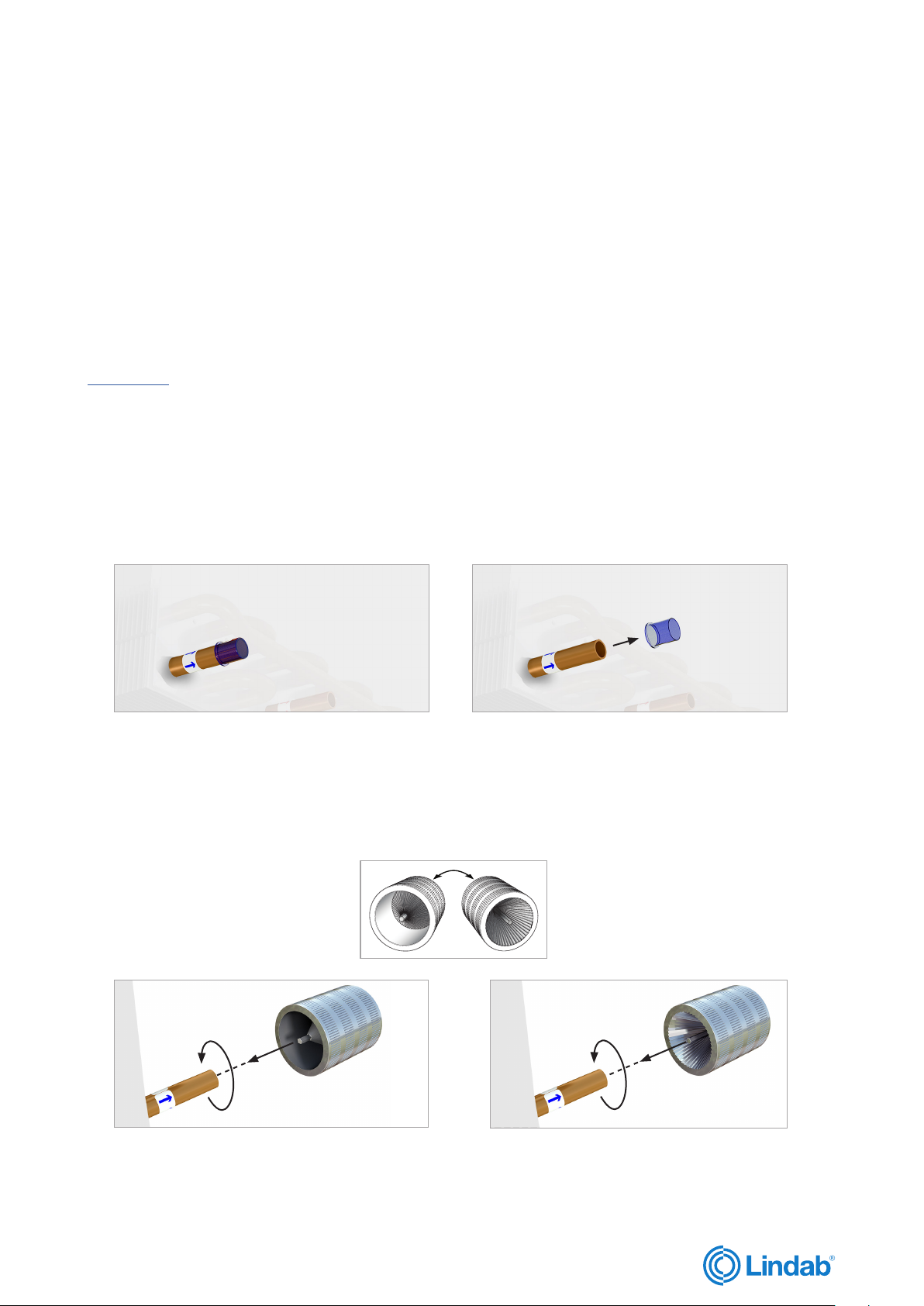

• While mounting a compression fitting, the pipe will be exposed to a big amount of force, creating a risk of crushing
the pipe. To ensure that the pipe will not be crushed when mounting the compression fitting, a copper insert must be
inserted into the pipe (always part of the delivery).
• The copper insert should be placed inside the pipe on the beam. Always support the copper pipe coil when inserting
the copper insert into position.
• Mount a compression coupling and/or a valve to the pipe. Don’t stress the nut too much, since this may crush the pipe.
• Please refer to the suppliers manual.
4.1.4 Flexible hoses
• Our flexible hoses can be used with both push-on and compression fitting. We recommend to use Tectite fittings, for
easier and faster mounting.
12
We reserve the right to make changes
2019-06-20
lindab | we simplify construction
Installation instructions Plexus
4.1.5 Additional Lindab accessories for water
connections
Valves and fittings
Lindab TTR and TTV water valves
The Lindab TTR and TTV valves must be used with all
standard application chilled beams, radiant panels and
facade units. The TTR
and TTV valves ensures
easy and fast installation
thanks to the simple yet
effective Tectite push-on
connections.
For further information, please see TTR/TTV water
valves documentation.
Ballorex Dynamic
For application in systems where pressure alterations
may occur, the Ballorex Dynamic ensures an easy and
precise dynamic flow regulation.
Further information on request.
Push on valve with air vent
(aerator)
If a waterborne unit is mounted
in a location where issues with
build up air may occur, appling
an aerator is recommendable.
As our aerators comes coplete
with Tectite fittings, installation is done in mere seconds.
Order no: 647690 (12mm)
Ballofix valves
For easy closing off water connection pipes (available with or
without handle).
Order no: 642663 / 642662
(without handle, 12mm)
Valves and Actuators installation
When actuator and valves are ordered together with
the Plexus and other Regula components, the cables
are pre-connected to the Connect card / Secura
from factory - (depending on your chosen solution).
The actuator and valve is taped to the side of the Plexus
and has to be connected to the correct water-pipe, turning the right way.
Example
Push on valve with Actuator installed on the battery’s
cold water outlet.
Valve arrow indicator must point in same direction as
arrow on beam pipe label.
Actuators
The actuator is a thermoelectric
actuator for opening and closing
valves on heating circuit distributors of concealed floor heating
and cooling systems. Features, as
protection in case of leaky valves,
compact and modern casing, versions in normally closed and normally open, valve adapter concept
and an enhanced life time makes
the actuator competitive and flexible. The actuator is
controlled by a room thermostat with two-point output or
pulse-width modulation.
See Actuators
For more details see: Accessories
We reserve the right to make changes
We reserve the right to make changes
2019-06-20
2019-06-20
13
238
70
327
238
70
327
238
70
327
238
70
327
lindab | we simplify construction
Installation instructions Plexus

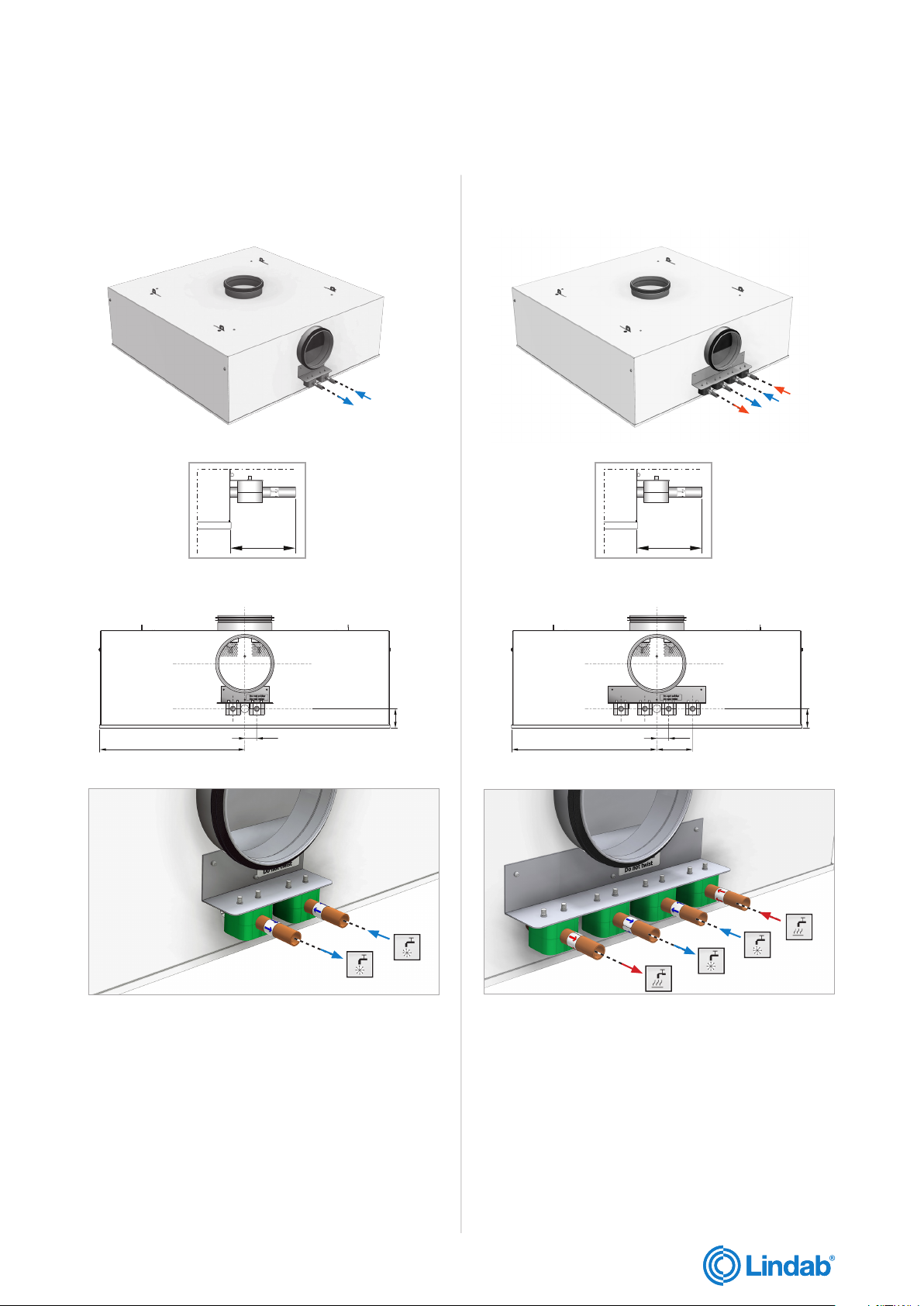

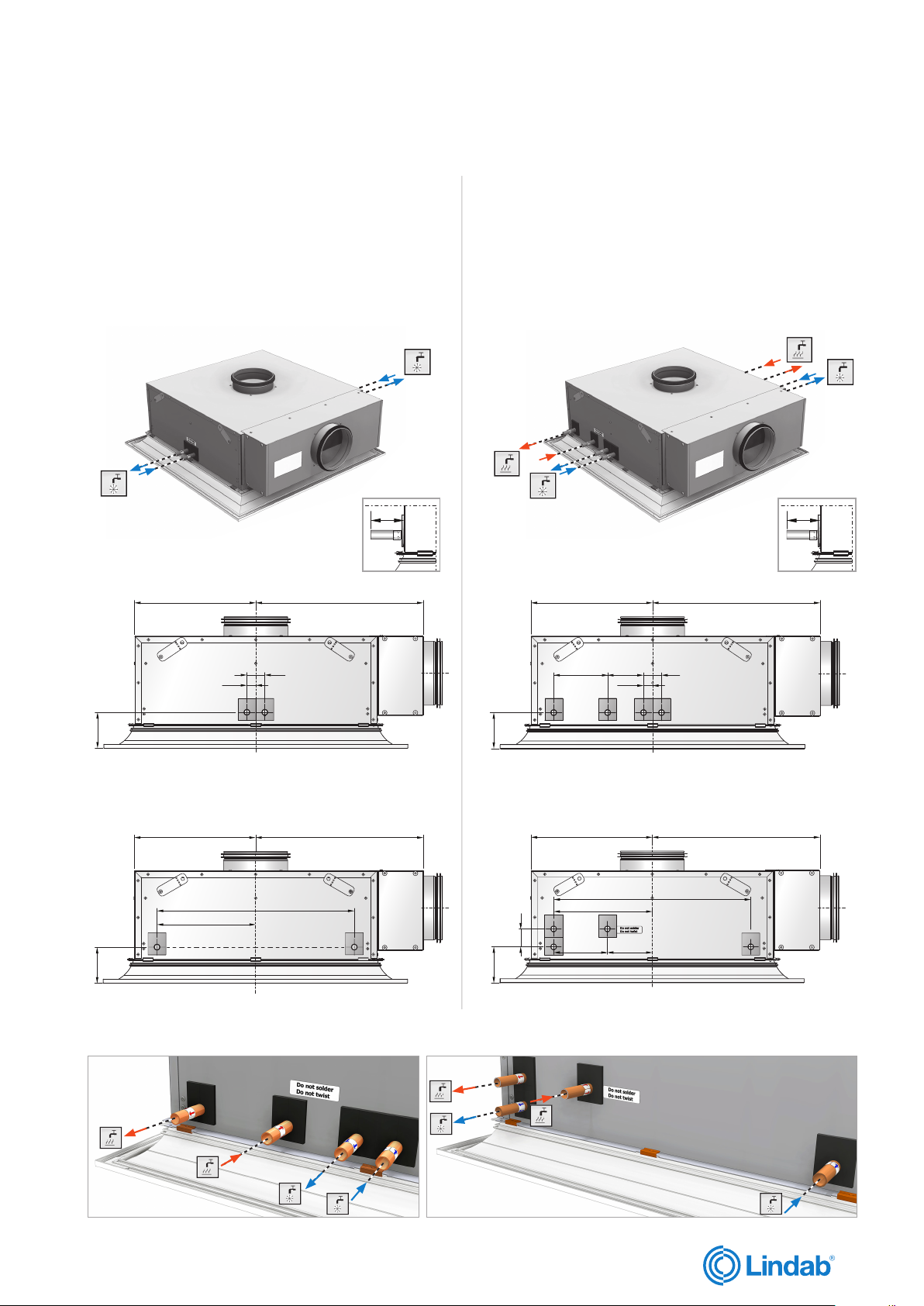

4.1.6 Possible connections water cooling
(2-pipe, Standard)
All the Plexus active chilled beams are in the standard
version equipped with a so called “2-pipe connection”
and contain one water circuit (cooling).
The dimension for all water pipe connections are 12 mm.
Plexus 60 I, (X, U, Y, Z). Cooling. (Standard).
6
5
44
4.1.7 Possible connections water cooling and
heating (4-pipe, Plus feature)
All Plexus’ can have a 4-pipe water connection (plus
feature), which beside the cooling circuit also includes
a heating circuit.
The dimension for all water pipe connections are 12 mm.
Plexus 60. I, (X, U, Y, Z). Cooling and heating.
6
5
44
17.5
35
Plexus 120. I, (X, U, Y, Z). Cooling. (Standard).
192.5
385
Plexus I, (X, U, Y, Z). 60/120, cooling and heating. In /outs
105 70
17.5
35
Plexus 120. I, (X, U, Y, Z). Cooling and heating.
35
192.5
10587.5
385
60 120
14
We reserve the right to make changes
2019-06-20
Ø
v
225B
Ø
H
A
79
333
Ø
v
225B
Ø
H
A
79
333
lindab | we simplify construction
Installation instructions Plexus
Plexus F 60/120. Cooling. (Standard).
79
Plexus F 60/120. Cooling and heating.
1 1
79
334,5 (Plexus F120 = 634,5)
17.5
70
334,5 (Plexus F120 = 634,5)
55
17.5
70
We reserve the right to make changes
We reserve the right to make changes
2019-06-20
2019-06-20
15
lindab | we simplify construction
Installation instructions Plexus
4.2 Air connections
4.2.1 Air connection installation
The primary air supply must be connected with instructions from a ventilation specialist. Lindab’s chilled beams
can beneficially be used together with Lindab’s Safe®
duct systems.
We recommend a flexible duct connection, like Lindab
DRATMFU-125, to balance out different installation
heights or directions between connection and duct and
avoid sound will be diverted from piping system to the
ceiling.
4.2.2 Possible connections supply air
B
A
I, (X, U, Y, Z) 60 / 120
4.3 Possible combination of connections
B
6
5
I, (X, U, Y, Z) 60 / 120
B
F 60 / 120
A
A
1
B
A
F 60 / 120
4.2.3 Possible connections exhaust air
Not relevant for Plexus
16
We reserve the right to make changes
2019-06-20
lindab | we simplify construction
Installation instructions Plexus
4.4 Electrical connections
Electrical connections on the beam are only necessary, when plus features are chosen and thanks to the pre-fabrication
it is as easy as “plug and play”. The components are always installed near the water-connection at the end of the beam.
For further information, see Regula .
4.4.1 Regula components on the beam
1
Regula Secura Sensor
Regula Secura
5
Regula Convert
Power
Regula Convert
Regula Sensor Philips
2
Regula Connect Cards
Multi Pascal Basic
REGULA CONNECT
Multi
Rc LINK
N = Neutral
L = Load
S = Signal
Rc LINK
RC in/out
CO2 in - S
CO2 in - S
CO2 out - N
CO2 out - L
Presence in - S
Presence in - S
Presence out - N
Presence out - L
Damper out - S
Damper out - N
Damper out - L
Heating out - S
Heating out - N
Heating out - L
Cooling out - S
Cooling out - N
Cooling out - L
Heating in - S
Cooling in - S
Supply out - N
Supply out - L
Heating link - S
Cooling link - S
Supply link - N
Supply link - L
Heating link - S
Cooling link - S
Supply link - N
Supply link - L
Supply in - N
Supply in 24V - L
LINDAB
(with protection covers, optional).
REGULA CONNECT
Pascal
CO2 in - S1
CO2 in - S2
CO2 out - N
CO2 out - L
Presence in - S1
Presence in - S2
Presence out - N
Presence out - L
Damper in - Pos
Damper out - S
Damper out - N
Damper out - L
Heating 0-10V- S
Heating 0-10V- N
Heating 0-10V- L
Supply Link2 - N
Supply Link2 - L
Supply Link1 - N
Supply Link1 - L
Supply in - N
Supply in-24V - L
LINDAB
Rc LINK
N = Neutral
L = Load
S = Signal
Rc LINK
RC in / out
REGULA CONNECT
Basic
Heating out - S
Heating out - N
Heating out - L
Cooling out - S
Cooling out - N
Cooling out - L
Heating in - S
Cooling in - S
Supply out - N
Supply out - L
Heating link_S
Cooling link_S
Supply link - N
Supply link - L
Heating link_S
Cooling link_S
Supply link - N
Supply link - L
Supply in - N
Supply in - 24V - L
LINDAB
N = Neutral
L = Load
S = Signal
3
Regula Combi
We reserve the right to make changes
We reserve the right to make changes
2019-06-20
2019-06-20
4
Presence sensor
17
ransformator
ransformator
lindab | we simplify construction
Installation instructions Plexus
4.4.2 Example 1: Wiring scheme with
Regula Connect multi
Please visit www.lindqst.com and check out the
“Wiring scheme configurator” for your set-up.
Regula Presence
Power
Regula Convert
Regula Sensor Philips
4 wire RJ11 6P4C, Straight through
Actuator on/off
24V heating
Actuator on/off
24V cooling
Condensation sensor
127
Bro
Blu
8
4
5
Regula Combi
T568B
Presence
adapter
1
2
3
4
5
6
7
8
21
22
40
32
31
41 Green
be insulated
White/Orange
Orange
White/Green
Blue
White/Blue
White/Brownends must
{
Brown
Blu
Bro
Blu
Bro
23
Whi
Grn
24
11
Bro
Yel
To other Regula Connect Multi
To other Regula Connect Multi
Bro
1
Blu
2
T
10
4
3
2
1
4
3
2
N
L
230 V 24 V
1
Blu
Bro
REGULA CONNECT
Multi
Rc LINK
N = Neutral
L = Load
S = Signal
Rc LINK
RC in/out
CO2 in - S
CO2 in - S
CO2 out - N
CO2 out - L
Presence in - S
Presence in - S
Presence out - N
Presence out - L
Damper out - S
Damper out - N
Damper out - L
Heating out - S
Heating out - N
Heating out - L
Cooling out - S
Cooling out - N
Cooling out - L
Heating in - S
Cooling in - S
Supply out - N
Supply out - L
Heating link - S
Cooling link - S
Supply link - N
Supply link - L
Heating link - S
Cooling link - S
Supply link - N
Supply link - L
Supply in - N
Supply in 24V - L
LINDAB
4.4.3 Example 2: Wiring scheme with Regula
Connect basic
Actuator on/off
24V heating
Actuator on/off
24V cooling
Condensation sensor
127
Bro
Blu
8
4
5
1
2
Regula Combi
Bro
Blu
To other Regula Connect Basic
To other Regula Connect Basic
N
L
T
230 V 24 V
REGULA CONNECT
Basic
N = Neutral
L = Load
S = Signal
Blu
Bro
Blu
Bro
23
Whi
Grn
24
11
Bro
Yel
10
4
3
2
1
4
3
2
1
Blu
Bro
Heating out - S
Heating out - N
Heating out - L
Cooling out - S
Cooling out - N
Cooling out - L
Heating in - S
Cooling in - S
Supply out - N
Supply out - L
Heating link_S
Cooling link_S
Supply link - N
Supply link - L
Heating link_S
Cooling link_S
Supply link - N
Supply link - L
Supply in - N
Supply in - 24V - L
LINDAB
18
We reserve the right to make changes
2019-06-20
LINDAB
Damper out -
Damper out -
Damper out -
Heating out -
Heating out -
Heating out -
Cooling out -
Cooling out -
Cooling out -
Heating link -
Cooling link -
Heating link -
Cooling link -
REGULA CONNECT
Heating in - SCooling in - SSupply out - NSupply out - LHeating link_SCooling link_SSupply link - NSupply link - LHeating link_SCooling link_SSupply link - NSupply link -
Cooling out - SCooling out - NCooling out -
Heating out - SHeating out - NHeating out -
Supply in - NSupply in - 24V -
LINDAB
Basi
CO2 in - S1
CO2 in - S2
CO2 out -
CO2 out -
Presence in - S1
Presence in - S2
Presence out - NPresence out - LDamper in - PosDamper out - SDamper out - NDamper out - LHeating 0-10V
Heating 0-10V
Heating 0-10V
Supply Link2 - NSupply Link2 - LSupply Link1 - NSupply Link1 - LSupply in - NSupply in-24V -
LINDAB
RC in / ou
lindab | we simplify construction
Installation instructions Plexus
4.4.4 Regula Connect on the beam
Connect cards are pre-installed when the beam is
ordered with PLUS-features. See Regula Connect for
more details.
Regula Connect Basic
L
L
c
N = Neutral
L = Load
S = Signal
L
L
Regula Connect Pascal
CONNECT
Pascal
Rc LINK
N = Neutral
t
N
Rc LINK
L
L = Load
S = Signal
L
- S
- N
- L
Regula Connect Multi
S
L
REGULA CONNECT
Multi
Rc LINK
N = Neutral
L = Load
S = Signal
Rc LINK
RC in/out
N
N
S
L
S
N
Presence in - S
Presence out - N
Presence out - L
CO2 in - S
Presence in - S
CO2 out - N
CO2 out - L
CO2 in - S
S
S
S
S
L
Supply link - N
Heating in - S
Supply link - N
Cooling in - S
Supply link - L
Supply in - N
Supply link - L
Supply out - N
Supply out - L
Supply in 24V - L
4.4.5 Regula Secura on the beam
Regula Secura is pre-installed when the beam is
ordered with PLUS-features. See Regula Secura for
more details.
Condensation sensor and Regula Secura
4.4.6 Valves and Actuators on the beam
Description, see 4.1.5.
4.4.7 Regula Combi on/with the beam
The Regula Combi can be
controlled and programmed
locally in the display, or at a
remote location by a EXOLINE
or MODBUS communication
system. Handles both 24V and
0-10V devices.
See the Regula Combi documentation.
4.4.8 Actuators
Description, see 4.1.5.
Cable to Regula
Secura
Condensation sensor
We reserve the right to make changes
We reserve the right to make changes
2019-06-20
2019-06-20
19
lindab | we simplify construction
Installation instructions Plexus
5 Installation of product
5.1 Handling of product
For the handling of the product please refer to 2.5.

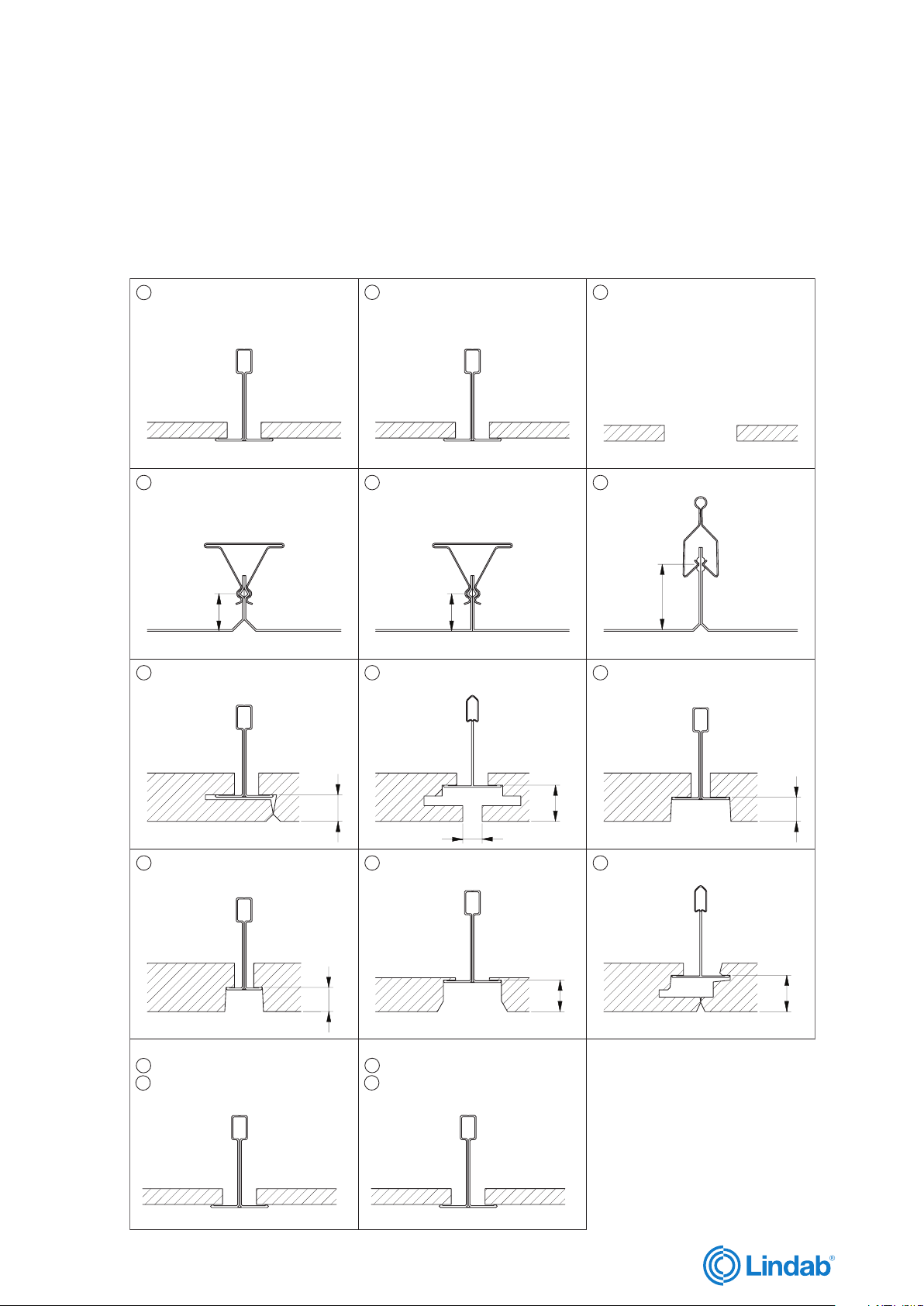

5.2 Ceiling systems
1
T24/T15 Lay-in 600
Danotile T24/T25
Echophon T24
Rockfon A24
595x595
Frame follows the box
4
Dampa Clip-in bevelled edge
600x600
7
Danotile Contur
Ecophon D
Rockfon D-XL
16
( I-60 ) Water
( X ) Water
chamfer 45°x5
( X ) Water
2
T24/T15 Lay-in 600
notcleanable
595x595
5
Dampa Clip-in square edge
600x600
8
Ecophon Focus DG
13
( I-60 ) Water
( X ) Water
( I ) Water
3
Permanent ceiling
6
Luxalon SQ Clip-In
600x600
9
Rockfon E10 24
Ecophon - E / T24
( I ) Water
( X ) Water
26
chamfer 45°x3
( Y ) Water
599x599
10
Rockfon E10 15
Ecophon - E / T15
584x584
21
T24/T15 Lay-in-625
T24/T15 Lay-in-
22
not cleanable
619x619
( Z ) Water
0
1
( I-62 ) Water
625 ( I-62 ) Water
11
11
31
32
592x592
Danotile Markant
575x575
T24/T15 Lay-in-675
T24/T15 Lay-in-
not cleanable
669x669
15
8
( Y ) Water
13
( I-67 ) Water
675 ( I-67 ) Water
575x575
14
Ecophon Focus DS
Rockfon Sonar X
599x599
10
( X ) Water
15
20
We reserve the right to make changes
2019-06-20
lindab | we simplify construction
Installation instructions Plexus

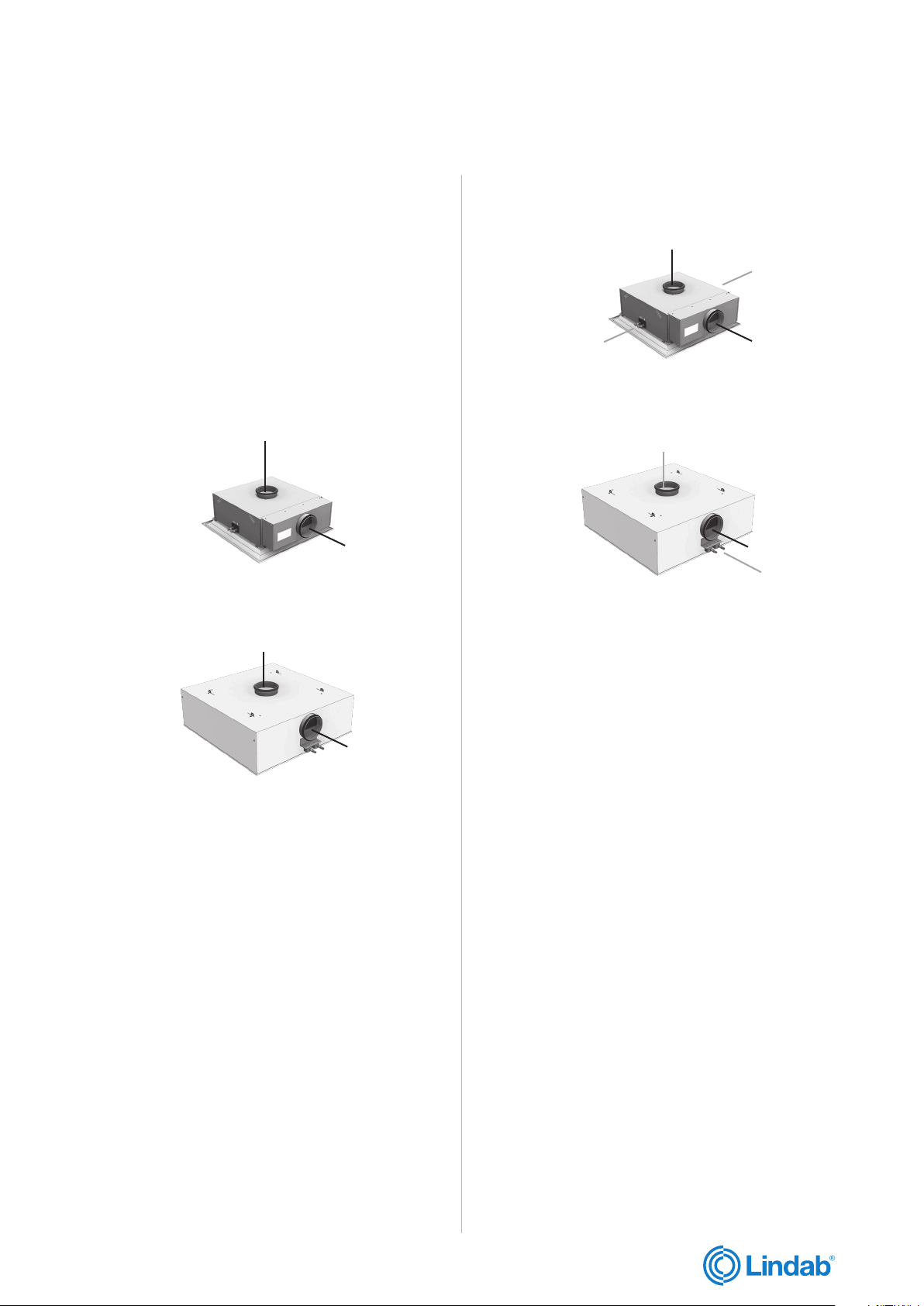

5.3 General installation principles
5.3.1 Recessed in suspended T-bar ceiling
5.3.2 Exposed, sealed to the ceiling
5.3.4 Free hanging above perforated or eggcrate ceiling
5.3.5 Recessed in suspended (permanent)
ceiling
5.3.3 Exposed, free hanging
5.3.6 Recessed in suspended (permanent)
ceiling without cover flanges
We reserve the right to make changes
We reserve the right to make changes
2019-06-20
2019-06-20
21
Ø
v
476
40
128
11
40
220
49
497 (Plexus 120 = 1097)
70
Ø
H
17.5
35
A
lindab | we simplify construction
Installation instructions Plexus

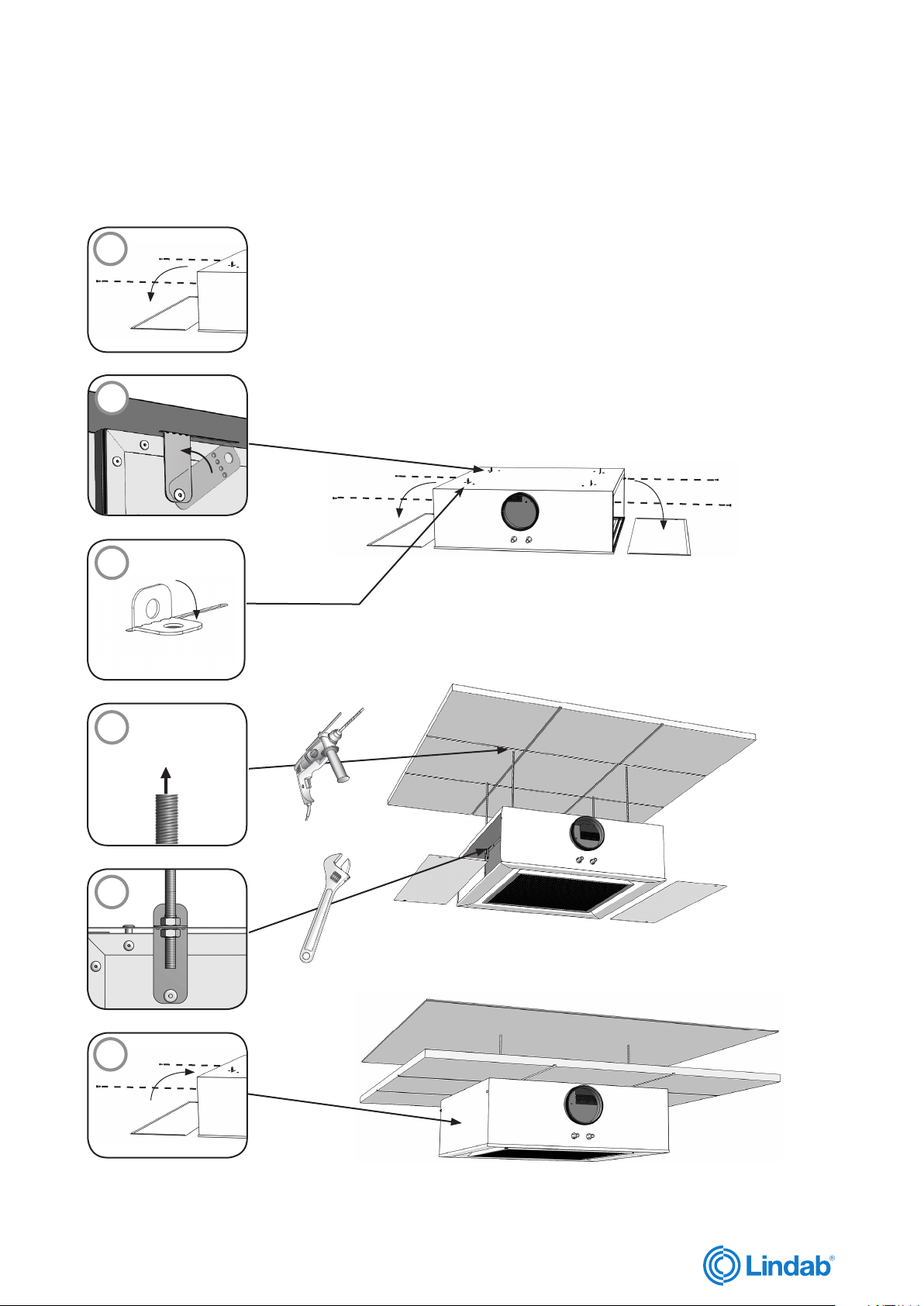

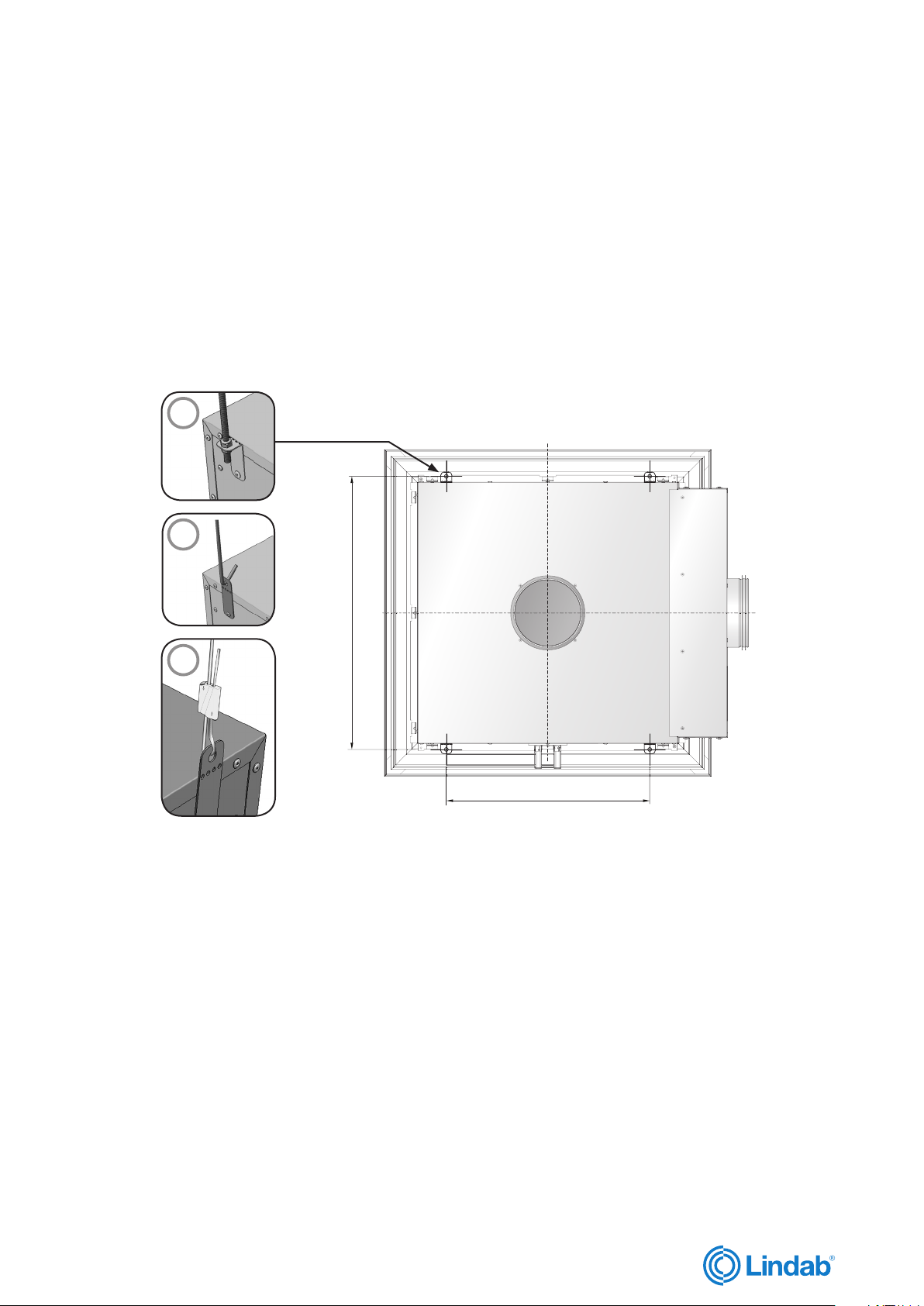

5.4 Preparation for installation on the product
The beam is prepared for installation by hangers (4 x per beam). 4 turnable/bendable brackets on the Plexus’ models
ensures the possibility to use different hanger systems.
1 Threaded rods M6/M8 Plexus 60 : 371 x 497mm Plexus 120 : 371 x 1097mm
2 Pendulum hangers (in different sizes) : 371 x 477mm : 371 x 1077mm
3 Wiring hanger system : 371 x 477mm : 371 x 1077mm
x4
x4
x4
371
1
2
3
22
We reserve the right to make changes
2019-06-20
lindab | we simplify construction
Installation instructions Plexus
A
B
C D E
A
B
C
D
We reserve the right to make changes
2019-06-20
23
lindab | we simplify construction
Installation instructions Plexus

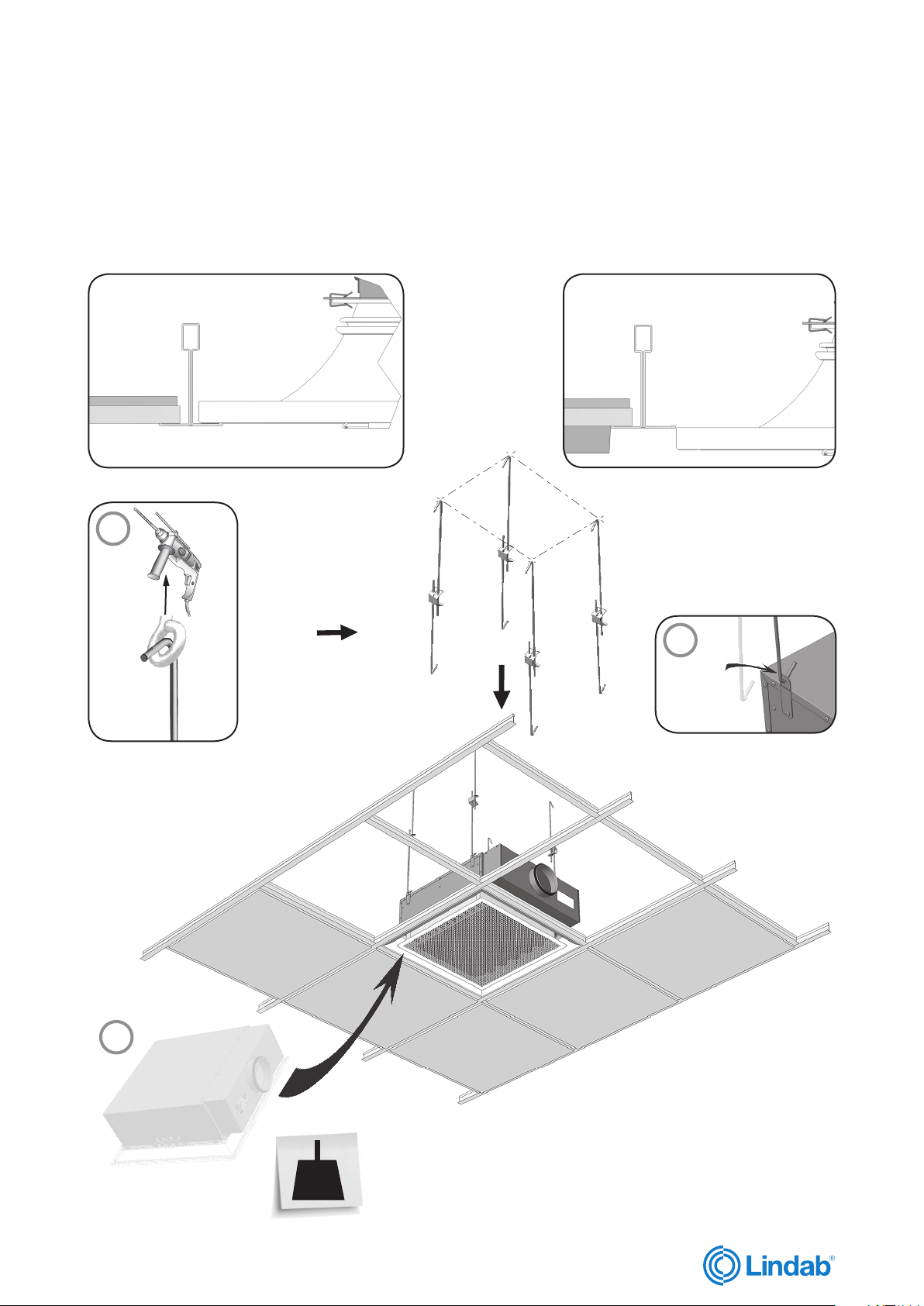

5.5.1 Basics steps of installing the product
Ceilingtype 1, 2, 8, 9 ,10, 11, 21, 22, 31, 32 (Plexus I, Y, Z)
1, 2, 21, 22, 31, 32
A
x4
8, 9, 10, 11
Plexus S/SA-60 (1)
Plexus I-62 (21, 22)
Plexus I-67 (31, 32)
Plexus Y (9, 11)
Plexus Z (10)
C
x4
24
B
10-25
kg !
We reserve the right to make changes
2019-06-20
lindab | we simplify construction
Installation instructions Plexus
Ceilingtype 3 Permanent ceiling, (Plexus I)
3
A
x4
Cutout dimensions in permanent ceilings:
Plexus I (S/SA, L, M, H) 60 = 544 x 544 mm
Plexus I (S/SA) 120 = 544 x 1144 mm
Plexus I-62 (S, L, M, H) = 569 x 569 mm
Plexus I-67 (S, L, M, H) = 619 x 619 mm
C
x4
B
10-25
kg !
We reserve the right to make changes
2019-06-20
25
lindab | we simplify construction
Installation instructions Plexus
Ceilingtype 4, 5, 6, 7, 14 (Plexus X)
4, 5, 6, 7, 14
A
x4
C
x4
26
B
10-25
kg !
We reserve the right to make changes
2019-06-20
lindab | we simplify construction
Installation instructions Plexus
Freehanging, exposed (Plexus F)
A
B
C
x2
x4
x4
D
E
F
x4
x4
x2
We reserve the right to make changes
2019-06-20
27
lindab | we simplify construction
Installation instructions Plexus
6 Adjustment and commissioning
6.1 Airflow and pressure
The JetCone System enables an easy and fast adjustment in both pressure and air volume (primary airflow rate)
through the front side.

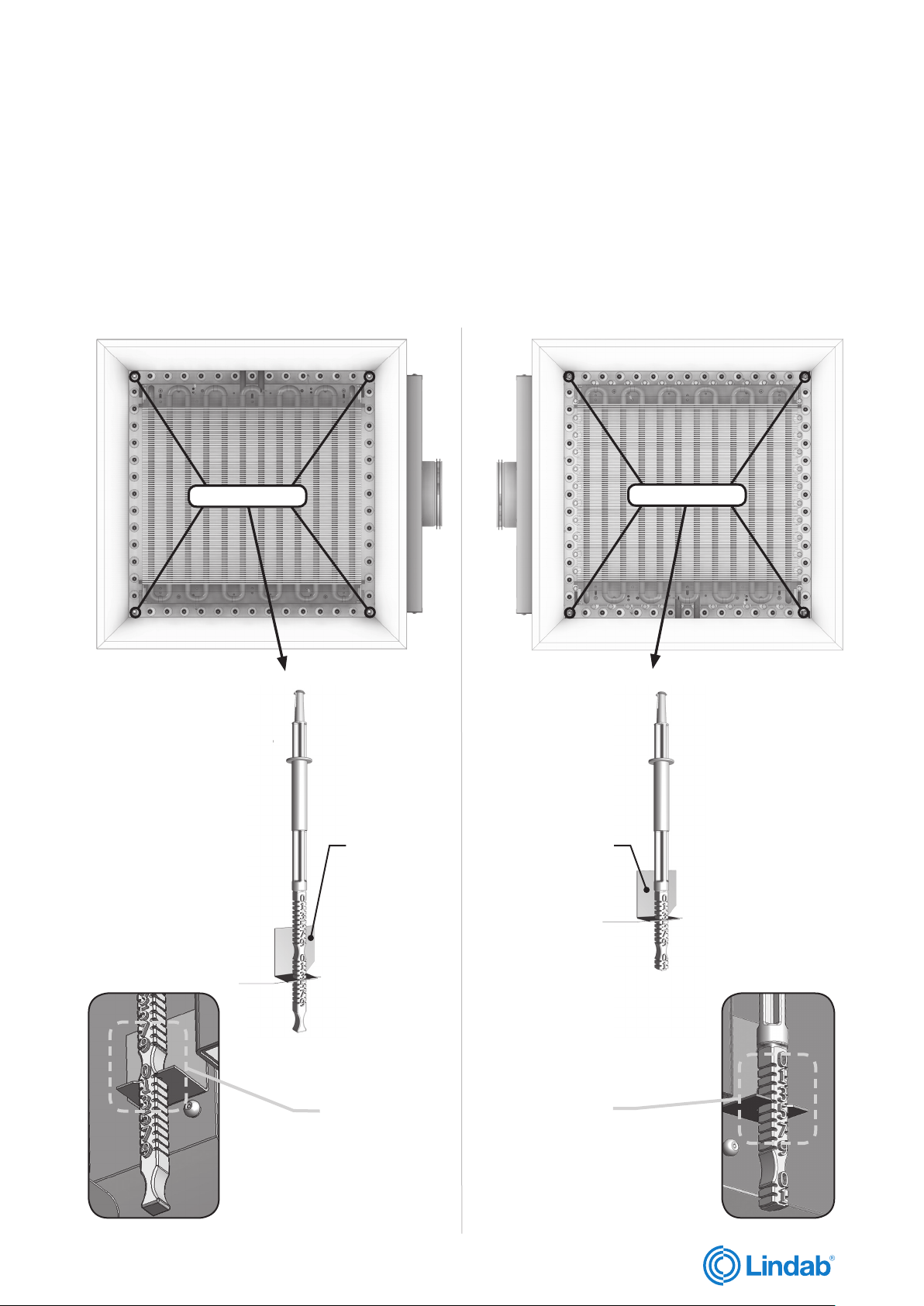

6.1.1 Jetcone adjustment pins
Plexus S/SA seen from below with faceplate of.
Plexus L, M, H seen from below with faceplate of.
Adjustment pins
Plexus S/SA Plexus L, M, H
Fixed parts Fixed parts
Pos. 4
Adjustment pins
x 4x 4
Plexus
L, M, H
}
28
Pos. 4
Plexus
S
}
Plexus - S/SA
pos. 0
We reserve the right to make changes
Plexus L - M - H
pos. 4
2019-06-20
100
120
20 30 40 50 60 70 80 100 150
/h]
Δp
[Pa]
100
120
20 30 40 50 60 70 80 100 150
/h]
Δp
[Pa]
lindab | we simplify construction
Installation instructions Plexus

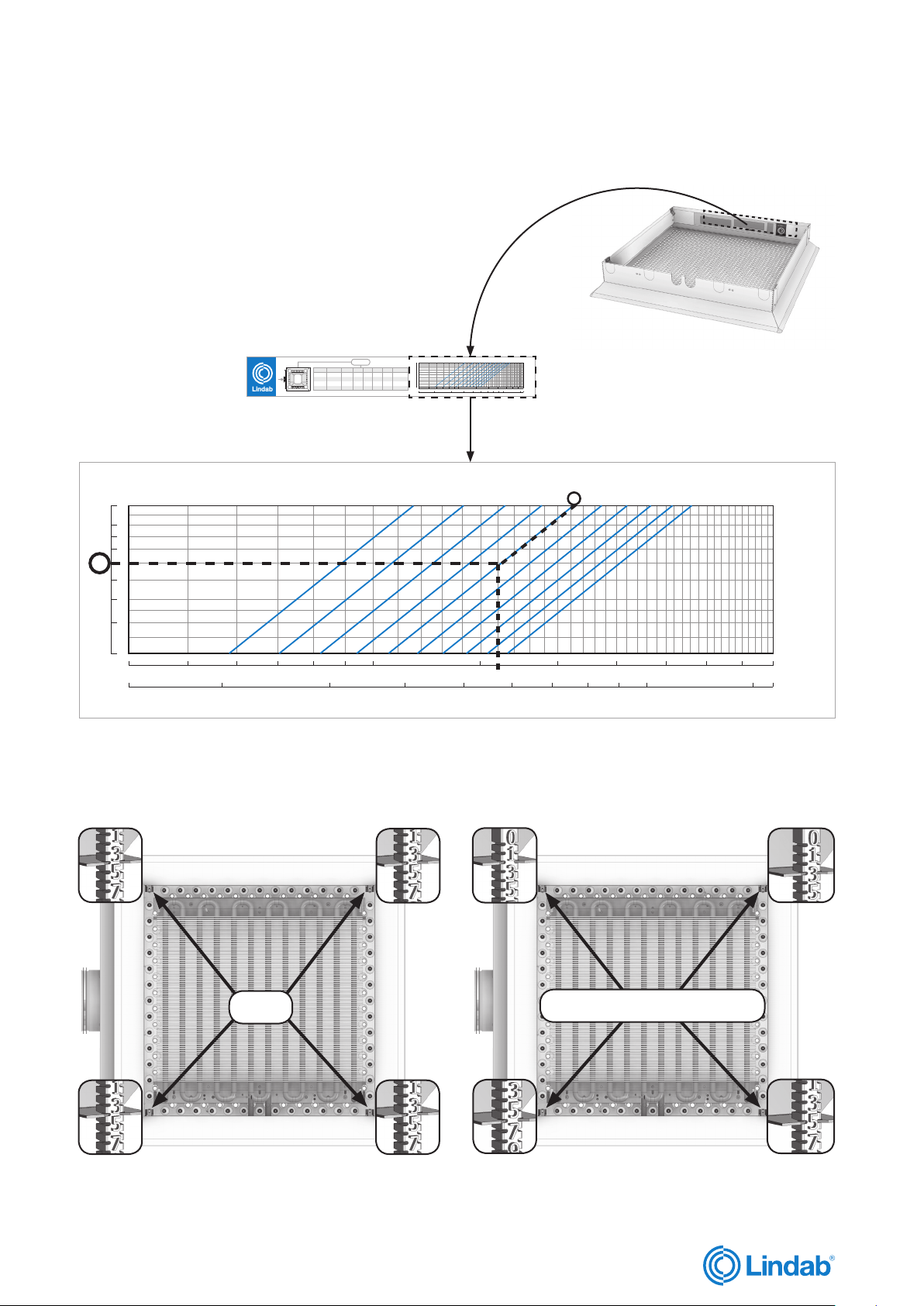

6.1.2 Finding values for JetCone pins
Example:
Plexus-I-L-60-12-125-A5-70-16
∆p
qa = 16 (l/s) (Primary airflow rate)
= 70 Pa (Static pressure).
stat
1 3
2 4
Pos.
0-9
Date P
[Pa] qa [l/s] 1 2 3 4
stat
JetCones
Plexus L60 Position of JetCone adjustment pins
stat
80
Signature
70
60
50
40
30
Rev. 04-2012
45678910 15 20 25 30 35 40
0123456789
qa [l/s]
3
q
[m
a
stat
Plexus L60 Position of JetCone adjustment pins
0123456789
80
70
60
50
40
30
45678910 15 20 25 30 35 40
6.1.3 Finding values for JetCone pins
Symmetric adjustment Asymmetric adjustment
2
qa [l/s]
q
[m
a
3
3
4
Keep average value as read in diagram. (=4)
6
We reserve the right to make changes
2019-06-20
5
29
lindab | we simplify construction
Installation instructions Plexus
6.2 Adjustment of air distribution profile
Plexus comes as standard (S) with fixed angled JetCone Nozzles, which provide 360˚ optimal air distribution.
6.3 Measuring air pressure and calculating the air flow
Before calculating the airflow, the static nozzle pressure must first be measured. The static nozzle pressure is the air
pressure available at the nozzles.

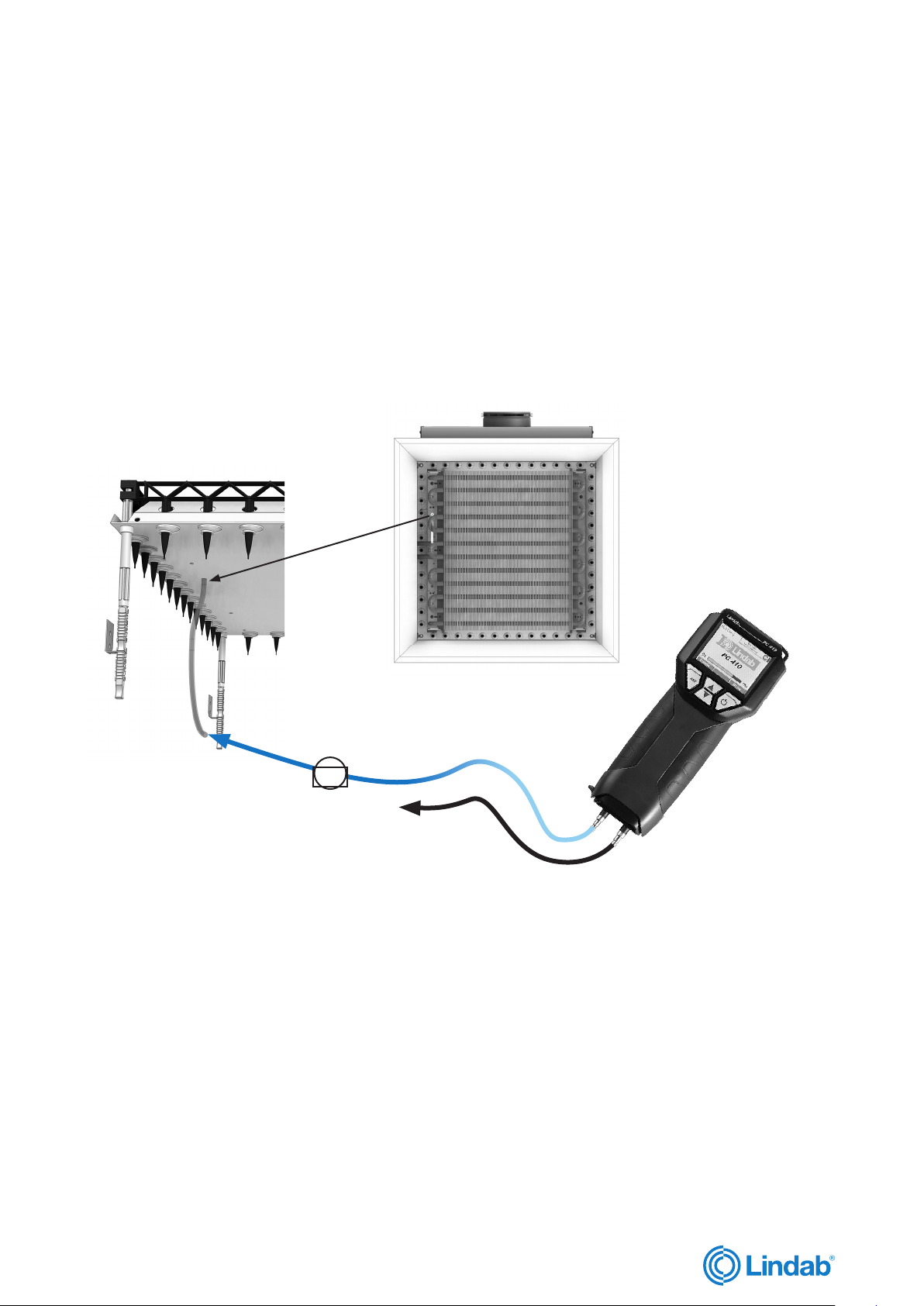

6.3.1 Measuring static nozzle pressure and air pressure
• To measure the air pressure, a manometer, ( analogue or digital ) will be needed. Lindab recommends PC410.
• Insert the measuring tube onto the specialized measuring nozzle.
• Read of the static nozzle pressure from the manometer (PC410).
P
stat
Room
Lindab PC410
Order no: 103344
6.3.2 Calculating the actual air flow
• After measuring the static pressure, read the settings of the four JetCone adjustment pins to find the mean value of
the pins.
• Locate the diagram inside the openable perforated faceplate, (also see next page), and use the static nozzle pressure
and the mean value of the pins to find the current airflow.
6.3.3 Changing the actual air flow
• Measure the static nozzle pressure.
• Locate the air pressure/airflow diagram inside the openable perforated faceplate. (Also see diagrams on next page).
• Find the mean value of the 4 pins to reach the desired airflow, in the diagram. Use the static nozzle pressure and the
desired airflow to find the mean value of the 4 pins.
• Adjust the 4 pins in the Plexus, so the mean value of the pins will correspond with the mean value found in the
diagram.
• See example in 6.1.3 , asymmetric pin setting: 2 + 3 + 5 + 6 = 16/4 = 4 . ( Where (4) was the value read in diagram).
6.3.4 Changing the air distribution profile
See 6.1.3.
30
We reserve the right to make changes
2019-06-20
100
120
30 40 50 60 70 80 100 150 200 250
Δp
[Pa]
/h]
100
120
20 30 40 50 60 70 80 100 150
Δp
[Pa]
/h]
/h]
40 50 60 70 80 100 150 200
Δp
[Pa]
100
120
/h]
Δp
[Pa]
lindab | we simplify construction
Installation instructions Plexus

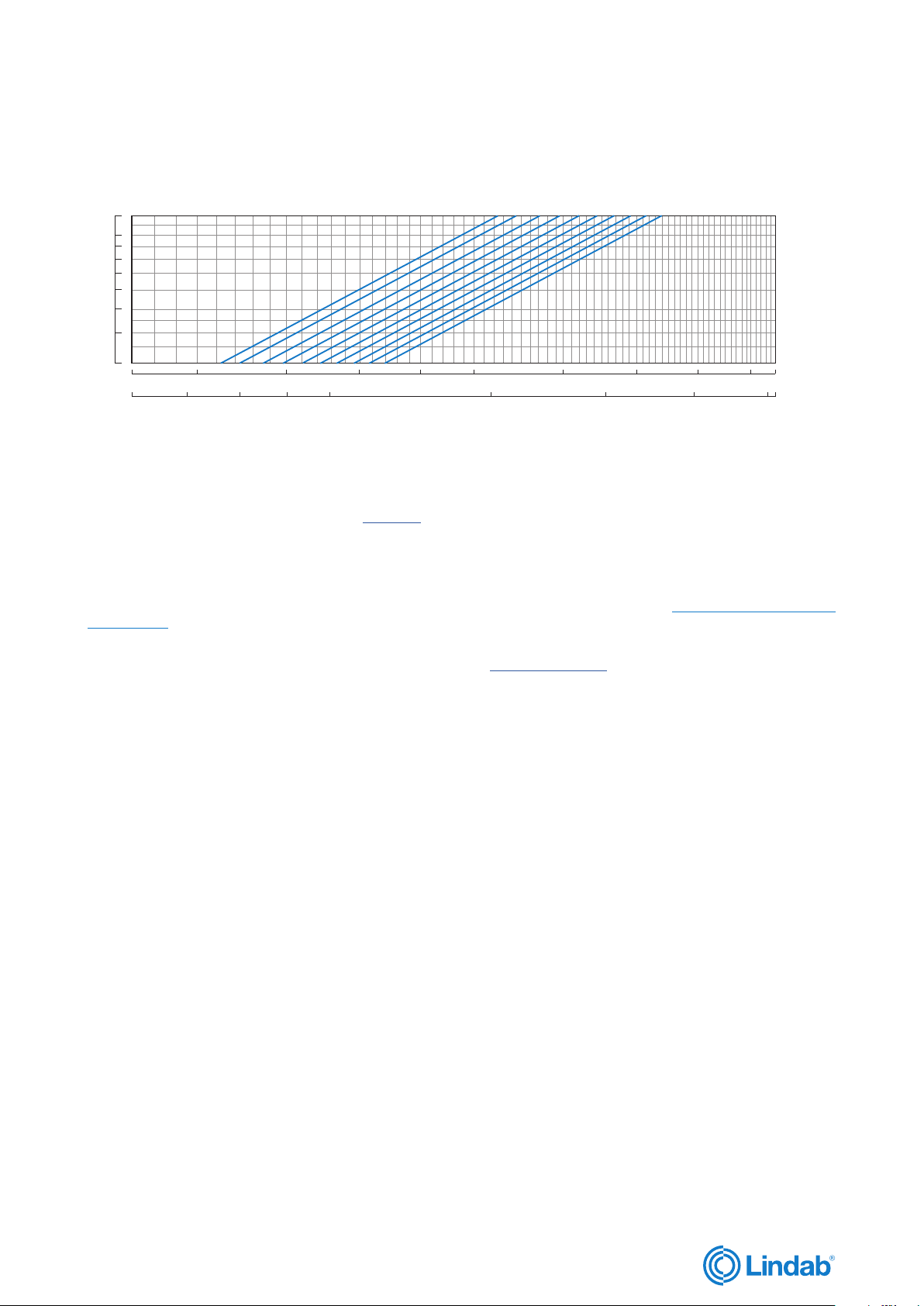

6.3.5 Plexus pressure / airflow diagrams
Plexus S60 Position of JetCone adjustment pins
Stat
80
70
60
50
40
Plexus S/SA60
0123456789
30
45678910 15 20 25 30 35 40
Plexus S120 Position of JetCone adjustment pins
stat
80
70
60
50
40
30
stat
80
70
60
50
40
Plexus S/SA120
8910 11 13 15 20 25 30 35 40 50 60 70
Plexus L60 Position of JetCone adjustment pins
0123456789
0123456789
qa [l/s]
qa [m
qa [l/s]
q
[m
a
3
3
30
45678910 15 20 25 30 35 40
20 30 40 50 60 70 80 100 150
stat
120
100
80
70
60
50
40
30
Plexus M60 Position of JetCone adjustment pins
10 15 20 25 30 35 40 50 60
We reserve the right to make changes
01 23456789
2019-06-20
qa [l/s]
q
[m
a
qa [l/s]
q
[m
a
3
3
31
100
120
70 80 90 100 150 200 250 300
/h]
Δp
[Pa]
lindab | we simplify construction
Installation instructions Plexus
stat
80
70
60
50
40
30
Plexus H60 Position of JetCone adjustment pins
20 25 30 35 40 50 60 70 80
01 23456789
qa [l/s]
q
[m
a
3
6.4 Water flow rate
6.4.1 Pre-setting of valves
For the presetting of valves, please see the TTR/TTV water valves documentation.
6.4.2 Balancing strategy
Lindab recommends always balancing the water system to guarantee thermal comfort in all areas, to avoid noise nuisance
problems and to safe energy. A hydraulic balance is obvious to ensure that all the beams (panels or facade units) in the
system will be always supplied with their required (planned) water flow rates (calculated with “Water Calculator on www.
lindQST.com).
Lindab refers to the proportional method, where all beams (panels or facade units) are balanced to the same
proportion of the requested water flow rate (for example Broen, www.ballorex.com)
32
We reserve the right to make changes
2019-06-20
lindab | we simplify construction
Installation instructions Plexus

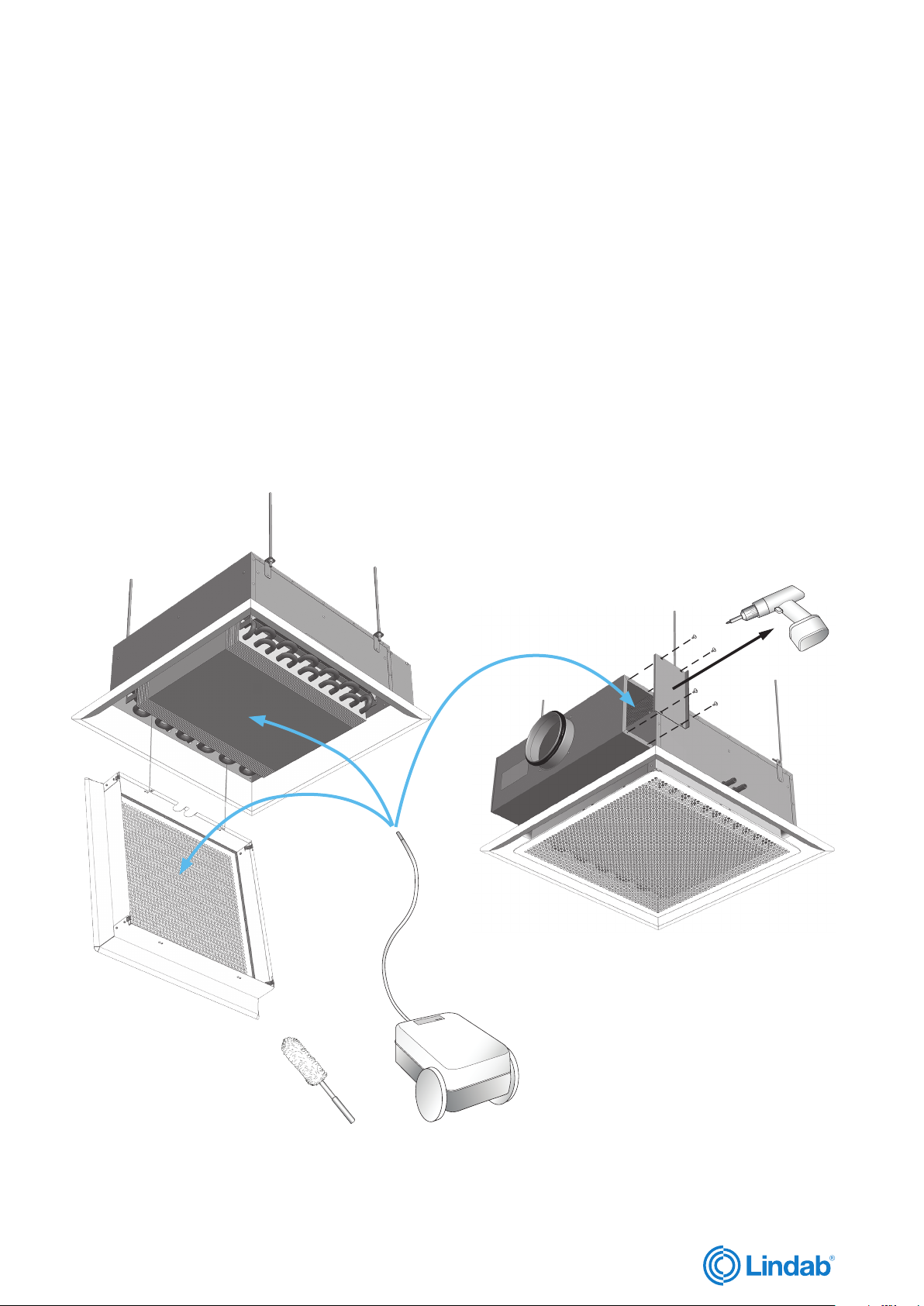

7. Maintenance
The interval of cleaning depends on the indoor environment where the beam is placed. Under optimal conditions the
beams only need cleaning every 5 years.
• Open the inlet plate using no tools (7.2)
• Clean the battery downside and the inlet faceplate inner parts with a dust cleaner / vacuum cleaner.
• Only use lukewarm water and a mild detergent and a piece of wet cloth to clean the inlet face plate.
• Open the inspection hatch (7.3)
• Clean the air plenum chamber and air connection with a vacuum cleaner
• Lower battery if water pipe connections are connected to system by flexhoses. ( Otherwise this is not possible,
See7.4)
• Clean the top side of the battery, nozzle plate, JetCones and the mixing chamber with a dust cleaner / vacuum
cleaner.
7.1 Remove the outlet front grille
Not relevant for Plexus. 7.2 Open inlet faceplate
7.3 Opening inspection hatch
.
Service wires
We reserve the right to make changes
2019-06-20
33
lindab | we simplify construction
Installation instructions Plexus
7.4 Lower battery
Battery can only be lowered when the plus feature “dropdown battery” is ordered.
A
x2
M4x30
B
B
A
Do not unscrew completely!
!
Plexus 60 => X = 25 mm
Plexus 120 => X = 15 mm
Plexus 60
X
Plexus 120
A
x2
B
34
C
Flex-tubes
Service wire
We reserve the right to make changes
2019-06-20
lindab | we simplify construction
Installation instructions Plexus
8 Accessories
Ask Lindab for the accessories mentioned in this document. Additional accessories (or additional dimensions) are
available on request.**
Order code Order number
2-way valve Broen TTR-12 Thermostatic valve - Tectite 647832
2-way valve Broen TTV-12 Thermostatic valve - Tectite 647834
Actuator A 40405 24 V on/off NC - 1m, non-halogen cable 684601
Actuator A 41405 24 V on/off NO - 1m, non-halogen cable 684603
Actuator APR 40405 0-10 V mod. NC, 1m, non-halogen cable 684667
Actuator APR 40405 0-10 V mod. NC, 1m, cable 684604
Ballofix Broen 12mm with handle - shut-off valve 642663
Ballofix Broen 12mm without handle - shut-off valve 642662
Ballorex dynamics 15mm Push-on 682474
Copper insert 12x1,0mm 884022
Lindab FHS-2-1000 (incl. M8 drop-in anchor) 100089
Flexible hose 0,4m push-on 12 and 12 mm 680080
Lindab PC 410 103344
Pendulum 180-300mm 642480
Pendulum 540-1000mm 646742
Regula Combi see: "Accessories" **
Regula Connect Card Basic */**
Regula Connect Card Multi */**
Regula Secura **
Aerator 12mm - tectite 647690
Tectite angle 12mm 884014
Tectite straight 12mm 884050
Tectite demounting tool 12mm 884087
Tectite demounting tool 12mm small 646881
4 pcs Threaded rod M8 -100mm + 4 pcs z-brackets + 16 pcs screw nuts on request
Touch-up paint RAL 9010 - 10ml 642531
Transformer 24V AC output */**
*see: ”Regula Connect – What do I get?”
**see: ”Accessories”
We reserve the right to make changes
2019-06-20
35
At Lindab, good thinking is a philosophy that guides
us in everything we do. We have made it our mis-
sion to create a healthy indoor climate – and to
simplify the construction of sustainable buildings.
We do that by designing innovative products and
solutions that are easy to use, as well as offering ef-
ficient availability and logistics. We are also working
on ways to reduce our impact on our environment
and climate. We do that by developing methods to
produce our solutions using a minimum of energy
and natural resources, and by reducing negative ef-
fects on the environment. We use steel in our prod-
ucts. It’s one of few materials that can be recycled
an infinite number of times without losing any of its
properties. That means less carbon emissions in na-
ture and less energy wasted.
We simplify constructionWe simplify construction
www.lindab.comwww.lindab.com
Loading...
