Page 1
lindab | we simplify construction

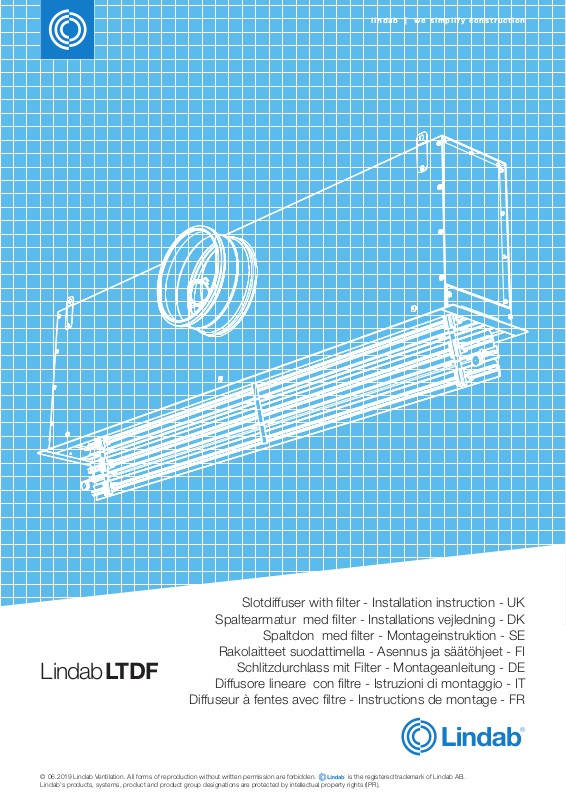

Slotdiffuser with filter - Installation instruction - UK
Spaltearmatur med filter - Installations vejledning - DK
Spaltdon med filter - Montageinstruktion - SE
Rakolaitteet suodattimella - Asennus ja säätöhjeet - FI
LindabLTDF
Schlitzdurchlass mit Filter - Montageanleitung - DE
Diffusore lineare con filtre - Istruzioni di montaggio - IT
Diffuseur à fentes avec filtre - Instructions de montage - FR
© 06.2019 Lindab Ventilation. All forms of reproduction without written permission are forbidden. is the registered trademark of Lindab AB.
Lindab's products, systems, product and product group designations are protected by intellectual property rights (IPR).
Page 2
We reserve the right to make changes
2019-06-25
lindab | we simplify construction
LTDF
Content
Indhold
Innehållsförteckning
Sisällysluettelo
Inhalt
Sommario
Sommaire
Symbols / Symboler / Symboler / Symbolit / Symbole / Simboli / Symboles... .................................................................................... 3
Overview / Oversigt / Översikt / Yleiskatsaus / Übersicht / Panoramica / Aperçu
LTDF-GBPF, JBPF, NBPF, KBPF dimensions / LTDF -GBPF, JBPF, NBPF, KBPF dimensioner /
LTDF -GBPF, JBPF, NBPF, KBPF dimensioner / Mitat LTDF - GBPF, JBPF, NBPF, KBPF /
LTDF -GBPF, JBPF, NBPF, KBPF Dimensionen / Dimensioni LTDF - GBPF, JBPF, NBPF, KBPF /
Dimensions LTDF - GBPF, JBPF, NBPF, KBPF
Adjustable blades / Justerbare lameller / Ställbara lameller / Säädettävät säleet / Einstellbare Luftlenkelemente /
Alette regolabili / Ailettes réglables
Installation of LTDF - GB, JB, NB, KB - Accessory MHS / Installation af LTDF - GBPF, JBPF, NBPF, KBPF - Tilbehør MHS /
Upphängning av LTDF - GBPF, JBPF, NBPF, KBPF - MHS pendel / Kannakointi LTDF - GBPF, JBPF, NBPF, KBPF - MHS /
Montage des LTDF - GBPF, JBPF, NBPF, KBPF - Mit Zubehör MHS /
Montaggio di LTDF - GBPF, JBPF, NBPF, KBPF - Sospensioni MHS / Montage de LTDF - GBPF, JBPF, NBPF, KBPF - MHS
Installation of LTDF - GBPF, JBPF, NBPF, KBPF - Threaded bar / Installation af LTDF - GBPF, JBPF, NBPF, KBPF - Gevindstang /
Upphängning av LTDF - GBPF, JBPF, NBPF, KBPF - Gängstång / Kannakointi LTDF - GBPF, JBPF, NBPF, KBPF - Kierretanko /
Montage des LTDF - GBPF, JBPF, NBPF, KBPF - Gewindestange / LTDF - Montaggio di GBPF, JBPF, NBPF, KBPF - Barre filettate /
Montage de LTDF - GBPF, JBPF, NBPF, KBPF - Tiges filetées
Installation of LTDF - GBPF, JBPF, NBPF, KBPF - Directly against ceiling /
Installation af LTDF - GBPF, JBPF, NBPF, KBPF - Direkte mod loft /
Upphängning av LTDF - GBPF, JBPF, NBPF, KBPF - Dikt mot tak /
Kannakointi LTDF - GBPF, JBPF, NBPF, KBPF - Suoraan kattopintaan /
Montage des LTDF - GBPF, JBPF, NBPF, KBPF - Direkt an die Decke /
Montaggio di LTDF - GBPF, JBPF, NBPF, KBPF - Direttamente a soffitto /
Montage de LTDF - GBPF, JBPF, NBPF, KBPF - Directement contre le plafond
Balancing / Indregulering / Injustering / Säätöohjeet / Einregulierung / Bilanciamento / Réglage
Maintenance - Replacing filter / Vedligeholdelse - Udskift filter / Underhåll - Byta av filter / Huolto /Suodattimen vaihtaminen /
Wartung - Filter wechseln / Manutenzione - Sostituzione del filtro / Entretien - Remplacement du filtre
Maintenance - Demounting damper unit E / Vedligeholdelse - Demonter spjældenhed E /
Underhåll - Demontera spjällenhet E / Huolto - E-Säätöpellin irroitus / Wartung - Drossel E demontieren /
Manutenzione - Smontaggio serranda E / Entretien - Démontage du registre E
Maintenance - Installation of E-damper unit / Vedligeholdelse - Installation af E-spjæld /
Underhåll - Montering av E spjällenhet / Huolto - E-säätöpellin asennus / Wartung - Montage der E Drossel
Manutenzione - Montaggio di seranda E / Entretien - Montage de registre E
............................................................................... 3
................................................................................................................................................ 4
................................................................................................................................................................. 5
................. 6
....................................................................................................................... 7
............................................................................................ 8
........................................................ 9
.................................................. 10
.......................................................................................... 11
............................................................................................... 12
2
Page 3
lindab | we simplify construction

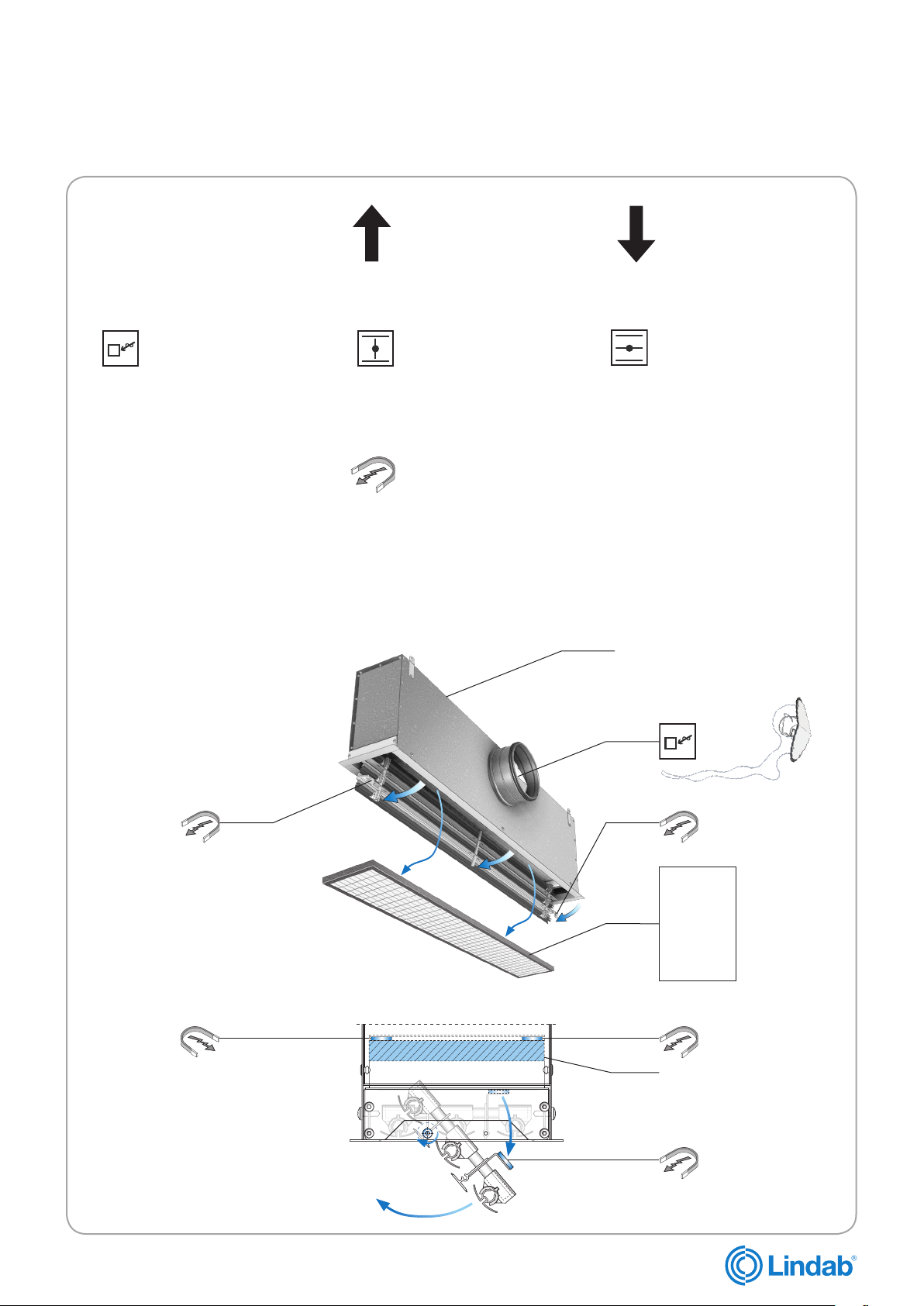

SUPPLY
LTDF GBPF, JBPF, NBPF, KBPF
Symbols
Symboler
Symboler
Symbolit
Symbole
Simboli
Symboles
Overview
Oversigt
Översikt
Yleiskatsaus
Übersicht
Panoramica
Aperçu
Extract air
Fraluft
Frånluft
Poistoilma
Abluft
Aria di estrazione
Extraction
Extract air
EXTRACT
Fraluft
Frånluft
Poistoilma
Abluft
Aria di estrazione
Extraction
Closed damper
Lukket spjæld
Stängt spjäll
Suljettu säätöpelti
Geschlossene Drossel
Serranda chiusa
Registre fermé
No tools - Magnet
Ingen værktøj - Magnet
Inga verktyg - Magnet
Ei työkaluja - Magneetit
Keine Werkzeuge - Magnete
Nessun attrezzo - Magnete
Sans outil - Aimants
Supply air
Tilluft
Tilluft
Sisäänpuhallus
Zuluft
Aria di mandata
Soufflage
Powietrz nawiewane
Open damper
Åbent spjæld
Öppet spjäll
Säätöpelti auki
Geöffnete Drossel
Serranda aperta
Registre ouvert
GBPF, JBPF, NBPF, KBPF
Suodatin
FP-15
E
Filter
Filter
Filter
FP-15
Filter
Filtro
Filtre
We reserve the right to make changes
2019-06-25
3
Page 4
W1
H1
x*
1,2
W1 + 10
H1 + 5
1,
W2
H2
x*
1,2 40
H1
UW*
1,2
W2
H2
1,2
40
We reserve the right to make changes
2019-06-25
lindab | we simplify construction
LTDF GBPF, JBPF, NBPF, KBPF

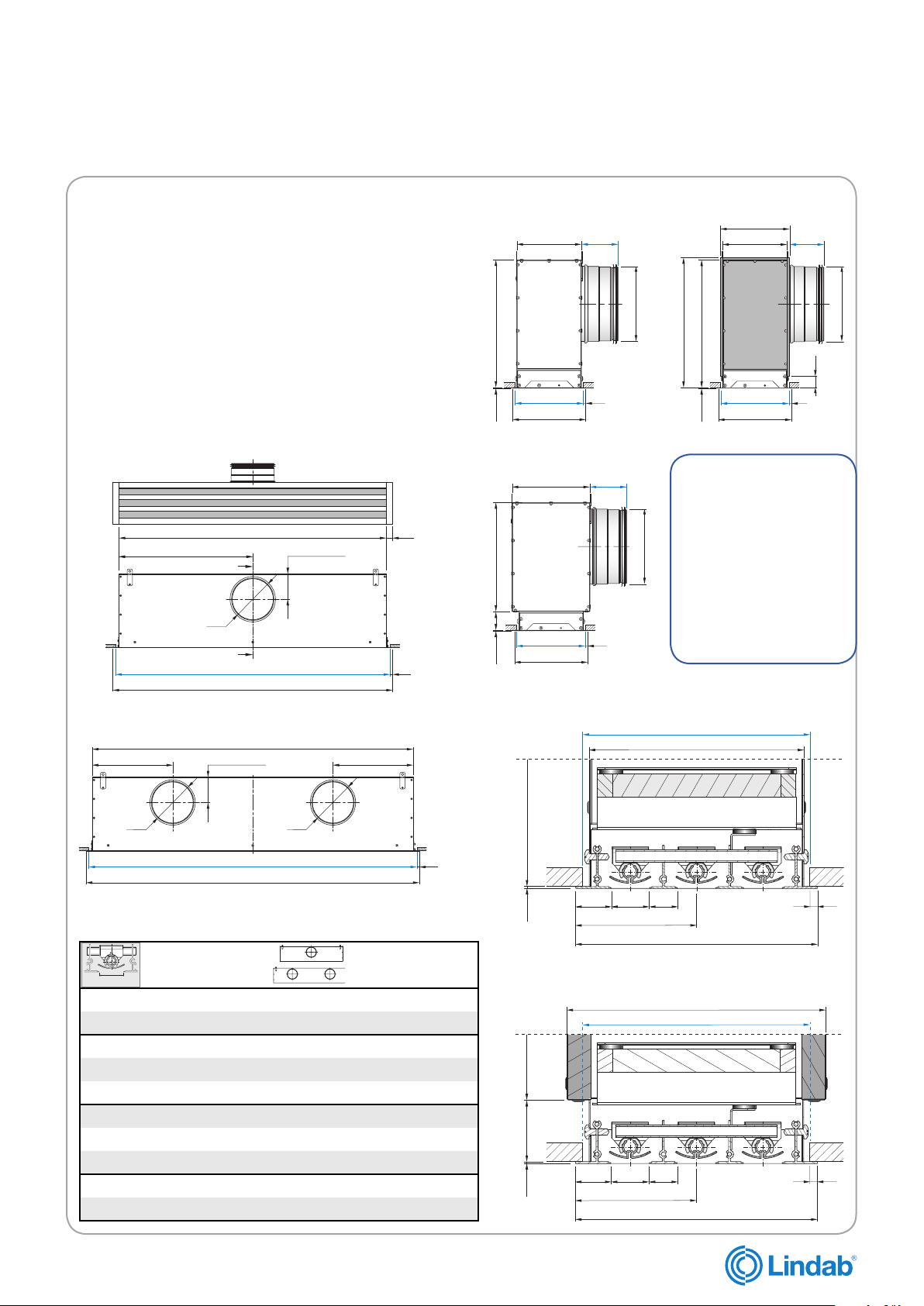

Dimensions - LTDF + GBPF, JBPF, NBPF, KBPF
Dimensioner - LTDF + GBPF, JBPF, NBPF, KBPF
Dimensioner - LTDF + GBPF, JBPF, NBPF, KBPF
Mitat - LTDF + GBPF, JBPF, NBPF, KBPF
Dimensionen - LTDF + GBPF, JBPF, NBPF, KBPF
Dimensioni - LTDF + GBPF, JBPF, NBPF, KBPF
Dimensions - LTDF + GBPF, JBPF, NBPF, KBPF
x*: Ød ≤ 200 => x = 79 mm
Ød > 200 => x = 119 mm
600 ≤ L ≤ 1200 mm
600 - 650 - 700.............1000 - 1150 - 1200
Ød x1
L
Ød / 2 + 15
*
U
L
L
Ød x2
L / 2L / 2
A
Ød
A
L + 46
L / 4 L / 4
Ød / 2 + 15
LTDF - GBPF/JBPF
Ød
UW* 5
A
LTDF - KBPF
H1
2
LTDF- NBPF
W1
UW* 5
A
x-5*
Ød
25
Ceiling grid opening
Loftudskæring
Håltagning
Aennusaukko
23
Ausschnittmaß
Dimensione del foro
Ød
Overture dans le plafond
UW* = A - ( 2x5 mm )
* = L + 46 - ( 2 x 5 mm )
U
UW* 5
A
5
LTDF - GBPF / JBPF / NBPF A - A
L
W1
Ød Ød
LTDF-25+GBPF, JBPF, NBPF, KBPF
W1 W2 A Ød H1 H2 L
25
mm mm mm mm mm mm mm
3 140 168 157 160 1 275 235 600 - 1100
3 140 168 157 160 2 275 235 1101 - 1200
4 183 208 200 200 1 315 275 600 - 800
4 183 208 200 250 1 365 325 801 - 1100
4 183 208 200 250 2 365 325 1101 - 1200
5 226 254 243 200 1 315 275 600 - 700
5 226 254 243 250 1 365 325 701 - 1100
5 226 254 243 250 2 365 325 1101 - 1200
6 269 297 286 250 1 365 325 600 - 1100
6 269 297 286 250 2 365 325 1101 - 1200
4
x
3 - 6*
U
L
L + 46
*
Ød x1
Ød x2
5
23 25 18
A/2
A
LTDF - KBPF A - A
UW*
23 25 18
A/2
A
5
5
Page 5
lindab | we simplify construction
LTDF GBPF, JBPF, NBPF, KBPF

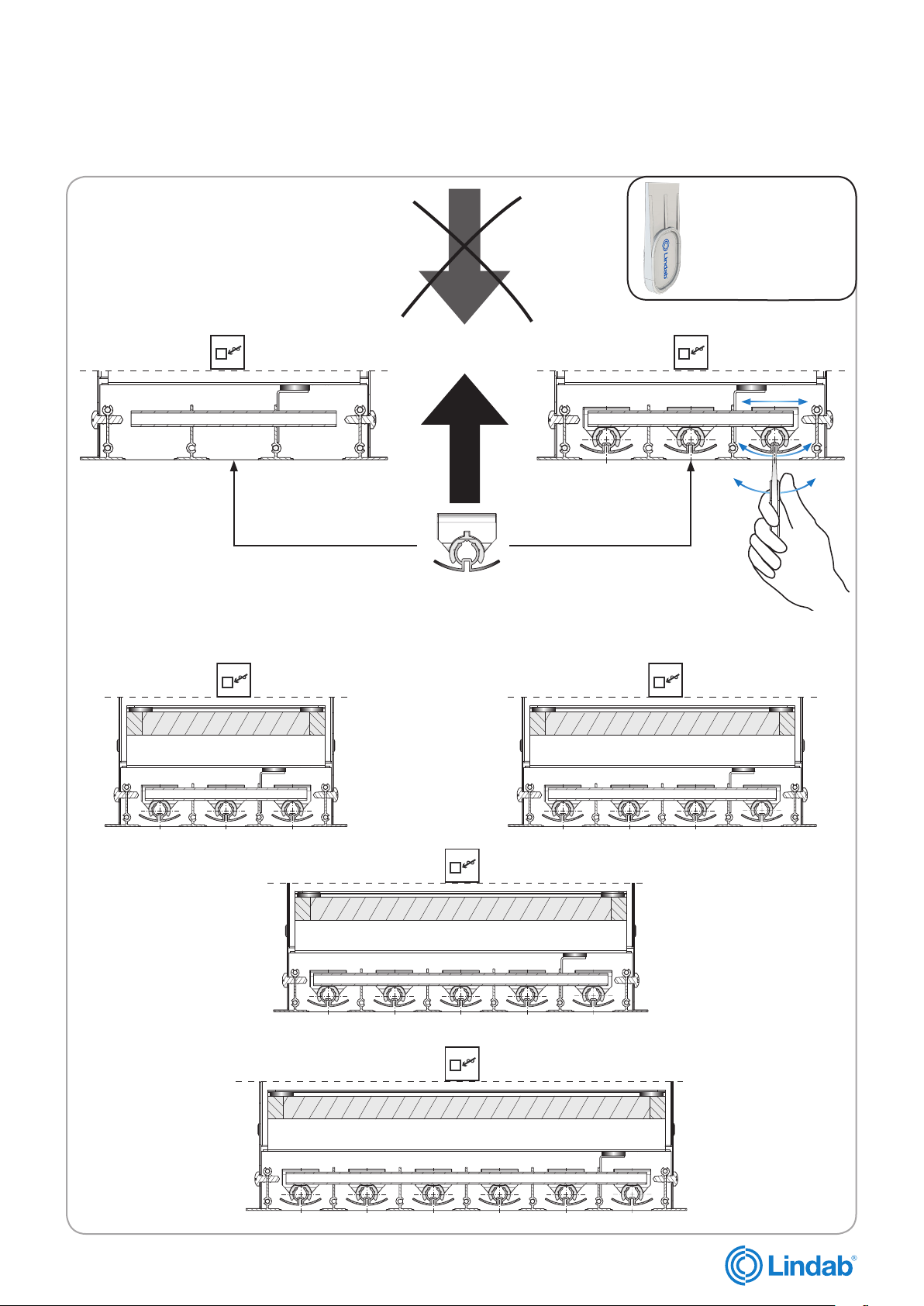

Adjustable blades
Justerbare lameller
Ställbara lameller
Säädettävät säleet
Einstellbare Luftlenkelemente
Alette regolabili
Ailettes réglables
SUPPLY
EXTRACT
? ?
Included with LTD
Medfølger med LTD
Ingår med LTD
Toimitetaan LTD:n mukana
Wird mit den LTD geliefert
Incluso con LTD
Accessoires inclus
x
3 - 6 = No. of slots / Antal spalter / Antal spalter / Rakojen määrä / Schlitzanzahl / N. di feritoie / Nbre. de fentes
We reserve the right to make changes
2019-06-25
5
Page 6
We reserve the right to make changes
2019-06-25
lindab | we simplify construction
LTDF GBPF, JBPF, NBPF, KBPF

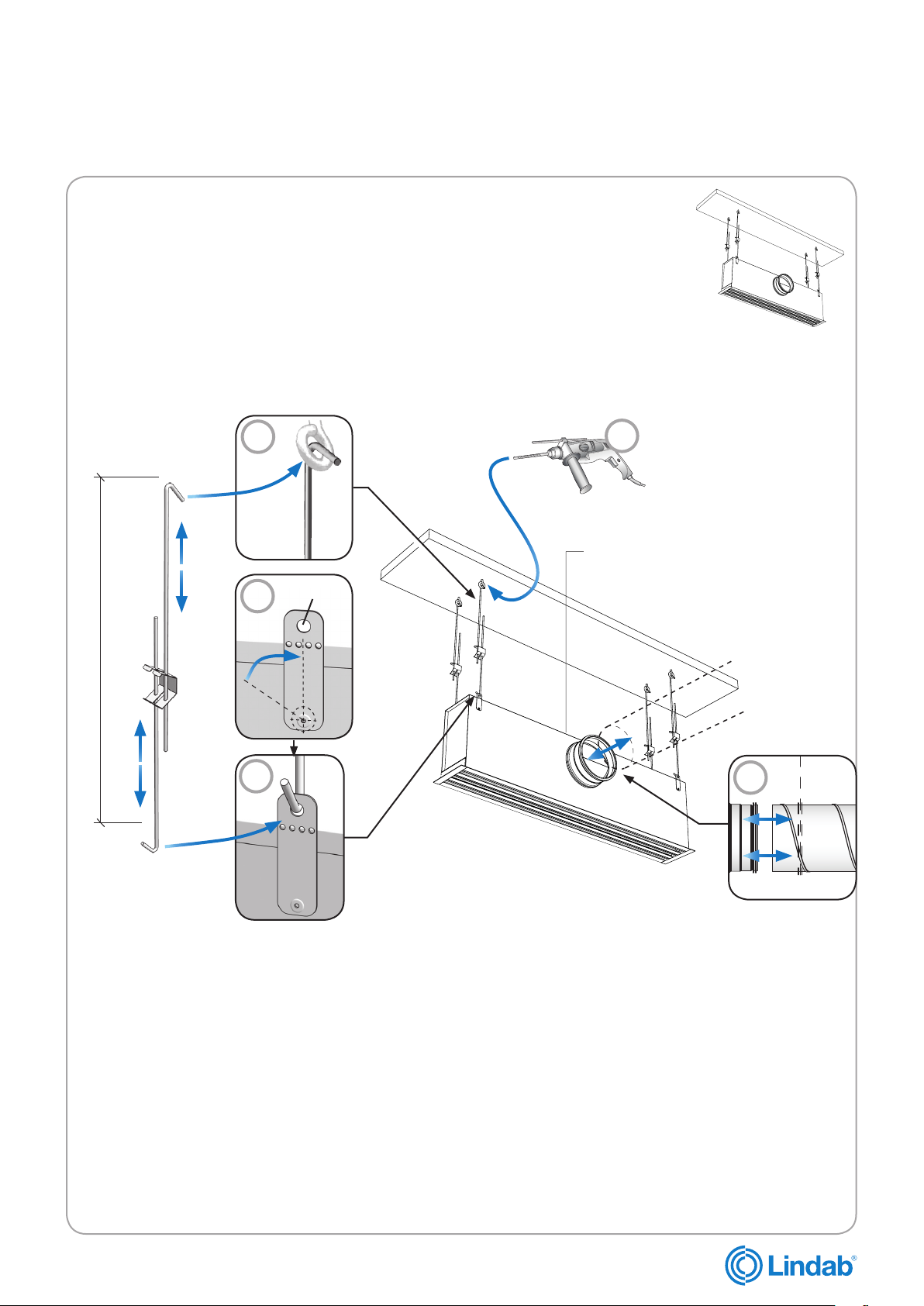

Installation of LTDF - GBPF, JBPF, NBPF, KBPFG - Accessory MHS
Installation af LTDF - GBPF, JBPF, NBPF, KBPF - Tilbehør MHS
Upphängning av LTDF - GBPF, JBPF, NBPF, KBPF - MHS pendel
Kannakointi LTDF - GBPF, JBPF, NBPF, KBPF - MHS
Montage des LTDF - GBPF, JBPF, NBPF, KBPF - Mit Zubehör MHS
Montaggio di LTDF - GBPF, JBPF, NBPF, KBPF - Sospensioni MHS
Montage de LTDF - GBPF, JBPF, NBPF, KBPF - MHS
MHS
x
4
B
A
x
4
600 - 1000 mm
D
x
E
LTDF - GBPF / JBPF /NBPF / KBPF
Ø=9mm
4
C
6
Page 7
lindab | we simplify construction
LTDF GBPF, JBPF, NBPF, KBPF

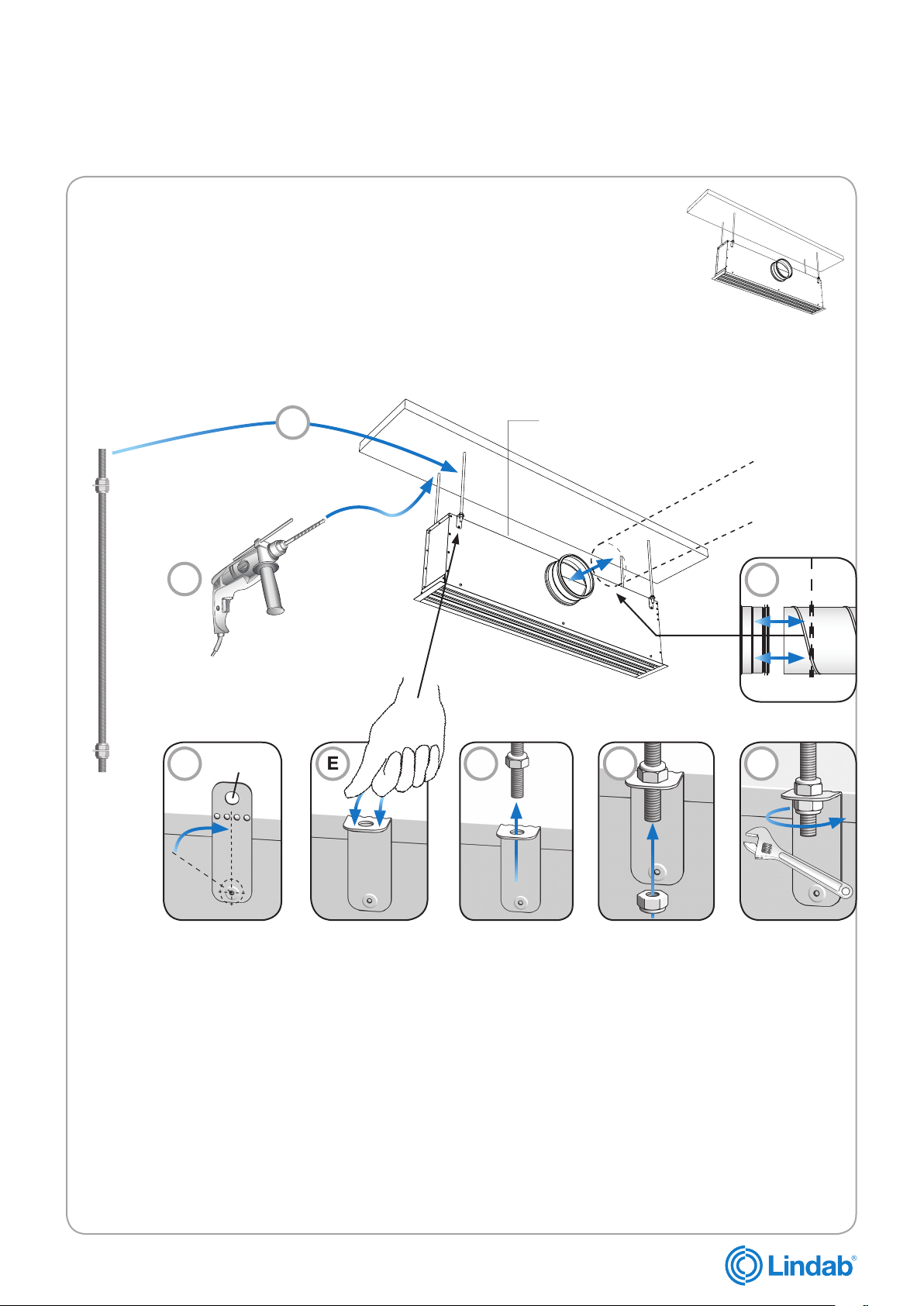

Installation of LTDF - GBPF, JBPF, NBPF, KBPF - Threaded bar
Installation af LTDF - GBPF, JBPF, NBPF, KBPF - Gevindstang
Upphängning av LTDF - GBPF, JBPF, NBPF, KBPF - Gängstång
Kannakointi LTDF - GBPF, JBPF, NBPF, KBPF - Kierretanko
Montage des LTDF - GBPF, JBPF, NBPF, KBPF - Gewindestange
Montaggio di LTDF - GBPF, JBPF, NBPF, KBPFB - Barre filettate
Montage de LTDF - GBPF, JBPF, NBPF, KBPF - Tiges filetées
M8
x
4
B
A
x
4
Ø=9mm
D F
x
4
E
LTDF - GBPF / JBPF /NBPF / KBPF
C
G
H
We reserve the right to make changes
2019-06-25
7
Page 8
We reserve the right to make changes
2019-06-25
lindab | we simplify construction
LTDF GBPF, JBPF, NBPF, KBPF

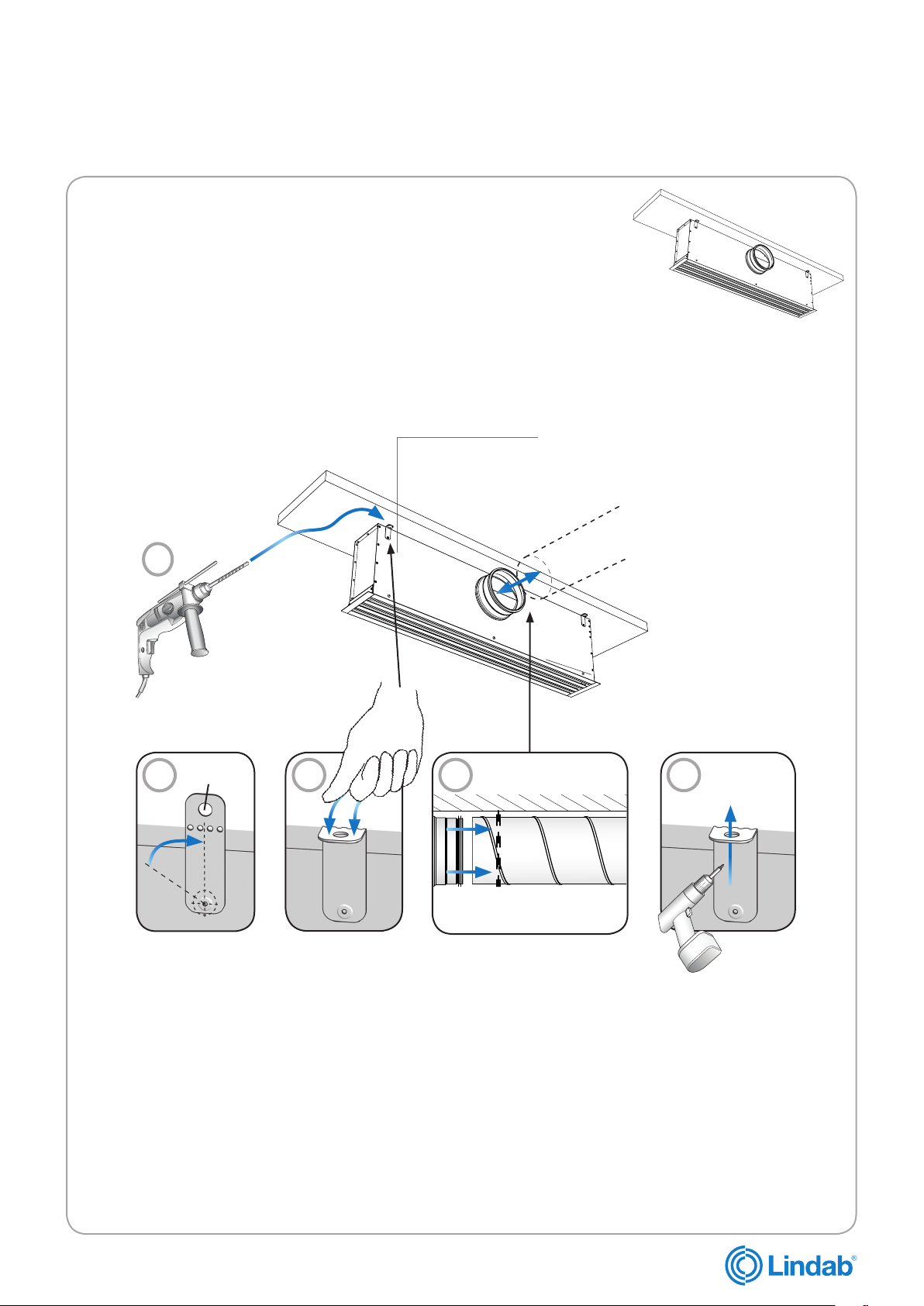

Installation of LTDF - GBPF, JBPF, NBPF, KBPF - Directly against ceiling
Installation af LTDF - GBPF, JBPF, NBPF, KBPF - Direkte mod loft
Upphängning av LTDF - GBPF, JBPF, NBPF, KBPF - Dikt mot tak
Kannakointi LTDF - GBPF, JBPF, NBPF, KBPF - Suoraan kattopintaan
Montage des LTDF - GBPF, JBPF, NBPF, KBPF - Direkt an die Decke
Montaggio di LTDF - GBPF, JBPF, NBPF, KBPF - Direttamente a soffitto
Montage de LTDF - GBPF, JBPF, NBPF, KBPF - Directement contre le plafond
LTDF - GBPF / JBPF /NBPF / KBPF
A
B
x
4
Ø=9mm
DC
E
8
Page 9
lindab | we simplify construction
LTDF GBPF, JBPF, NBPF, KBPF

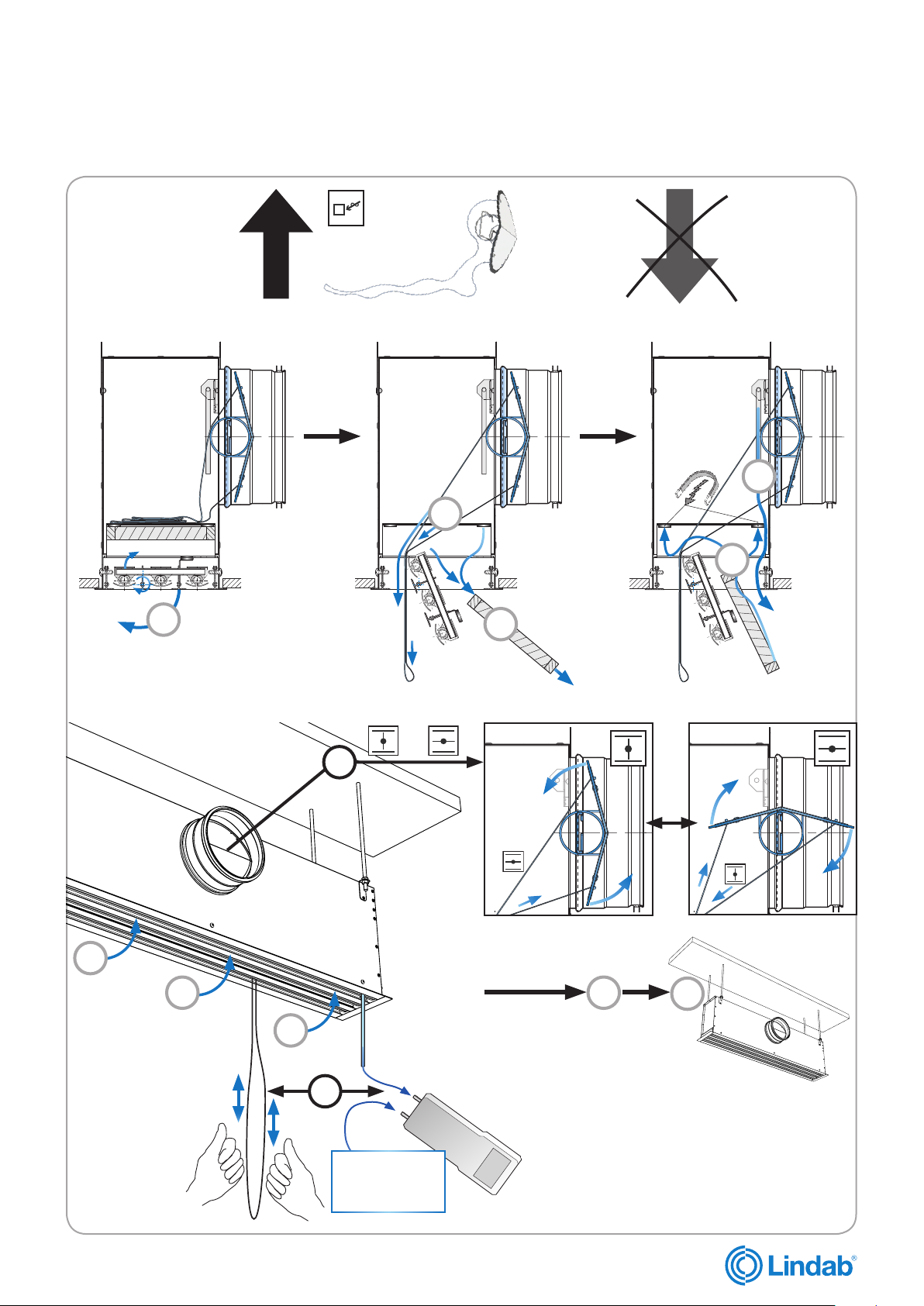

Balancing
Indregulering
Injustering
Säätöohjeet
Einregulierung
Bilanciamento
Réglage
A
SUPPLY
EXTRACT
E
D
C
E
B
........
G
F
F
F
A
F
G
∆p
Room - Rum -
Rum - Huone -
Raum - Ambiente
Pièce
i
We reserve the right to make changes
2019-06-25
9
Page 10
We reserve the right to make changes
2019-06-25
lindab | we simplify construction
LTDF GBPF, JBPF, NBPF, KBPF

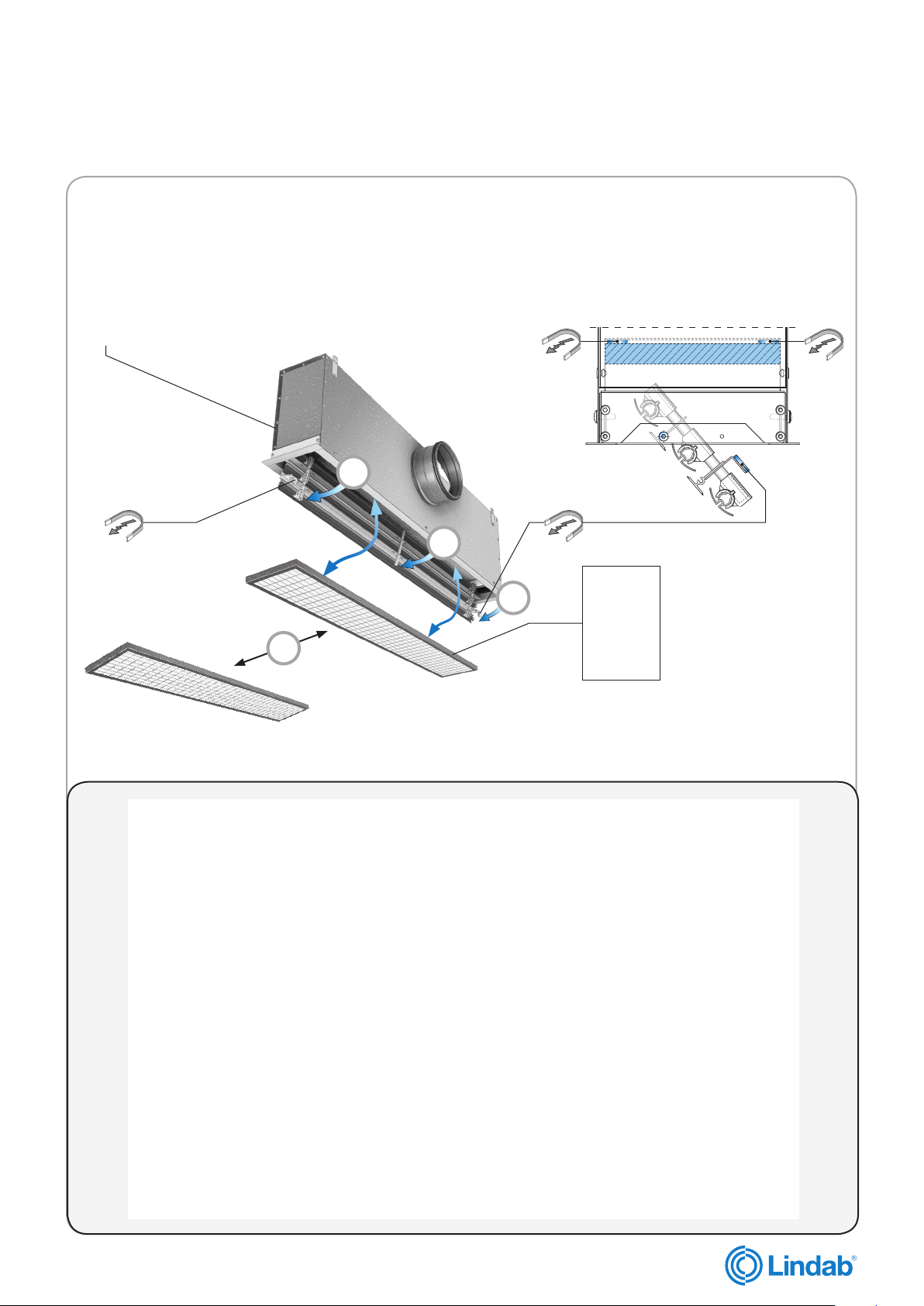

Maintenance - Replacing filter
Vedligeholdelse - Udskiftning af filter
Underhåll - Byte av filter
Huolto - Suodattimen vaihtaminen
Wartung - Filter wechseln
Manutenzione - Sostituzione del filtro
Entretien - Remplacement du filtre
LTDF - GBPF, JBPF, NBPF, KBPF
A
A
Filter
A
B
Before demounting, mark your positions of dampers and blade deflectors,
to be able to reposition them exactly after maintenance.
-Otherwise, you will have to do the balancing procedure again to achieve the same airflow as before maintenance.
Før demontering, markér dine positioner af spjæld og lameller,
for at kunne genindstille dem nøjagtigt efter vedligeholdelsen.
-Ellers kan en ny indreguleringsprocedure blive nødvendig, for at opnå den samme volumenstrøm
som før vedligeholdelsen.
Innan demontering markera positioner av spjäll och bladavledare,
för att kunna montera dem exakt efter underhåll.
Annars måste balanseringsproceduren göras igen för att uppnå samma luftflöde som före underhåll.
Filter
Filter
Suodatin
Filter
Filtro
Filtre
FP-15
10
Ennen avaamista: laita peltien ja ilmanohjaimien asennot muistiin, jotta ne on helppo palauttaa huollon jälkeen.
Markieren Sie vor der Demontage die Positionen der Drossel und der einstellbaren Luftlenkelemente,
! !
- Ansonsten muss das Einregulierungsverfahren erneut durchgeführt werden, damit die gleichen Werte erreicht
Prima di effettuare lo smontaggio, segnare le posizioni delle serrande e dei deflettori in modo da poterli
riposizionare in modo corretto dopo la manutenzione. In caso contrario sarà necessario eseguire
nuovamente la procedura di bilanciamento per ottenere la stessa portata impostata prima della manutenzione.
-Otherwise, you will have to do the balancing procedure again to achieve the same airflow as before maintenance.-F
nach erfolgter Wartung einfach wieder in die ursprüngliche Position stellen.
werden.
Before demounting, mark your positions of dampers and blade deflectors,
to be able to reposition them exactly after maintenance.
Page 11
lindab | we simplify construction
LTDF GBPF, JBPF, NBPF, KBPF

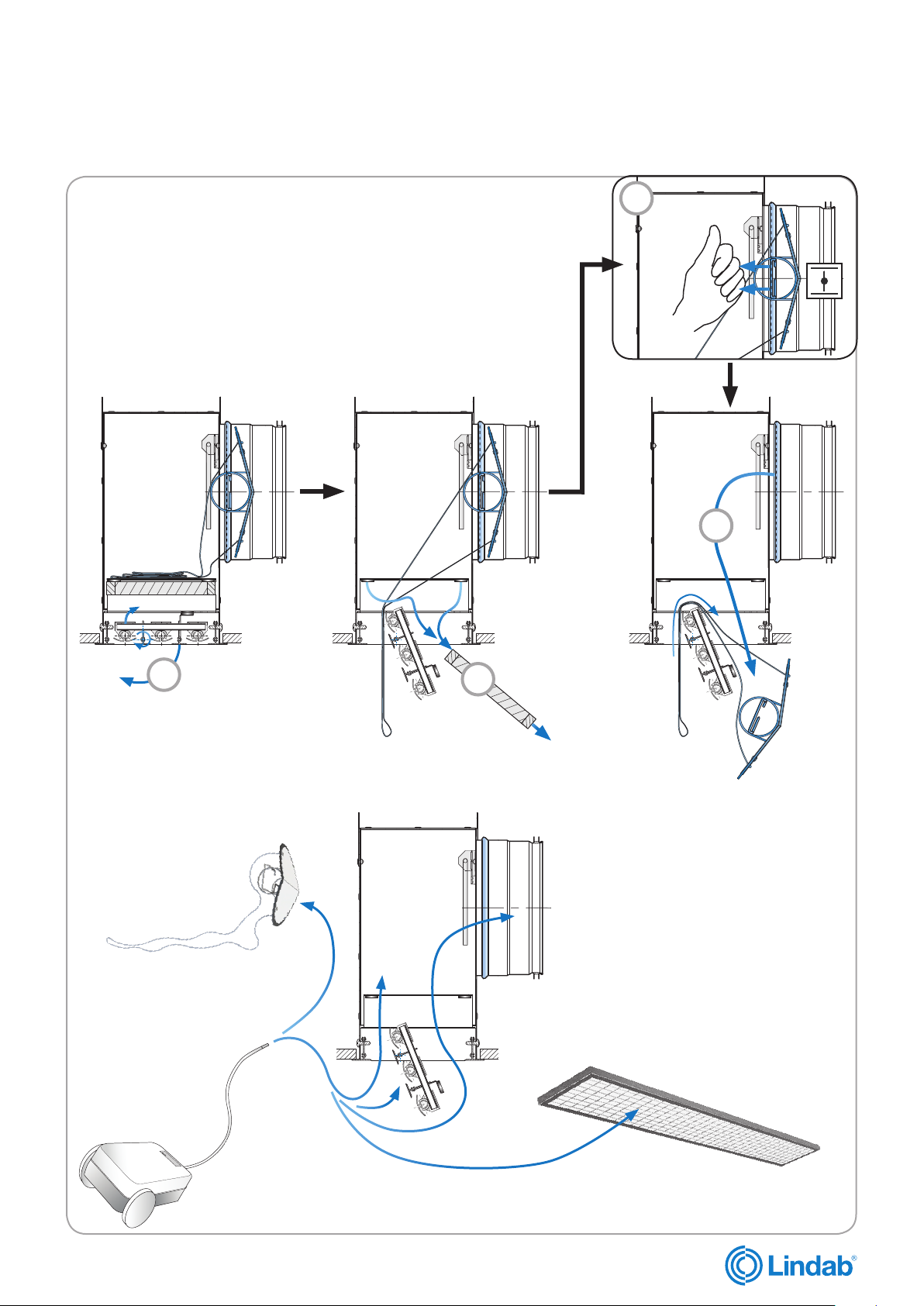

Maintenance - Demounting damper unit E
Vedligeholdelse - Demonter spjældenhed E
Underhåll - Demontera spjällenhet E
Huolto - E-Säätöpellin irroitus
Wartung - Drossel E demontieren
Manutenzione - Smontaggio serranda E
Entretien - Démontage du registre E
C
D
A
B
E
We reserve the right to make changes
2019-06-25
11
Page 12
We reserve the right to make changes
2019-06-25
lindab | we simplify construction
LTDF GBPF, JBPF, NBPF, KBPF

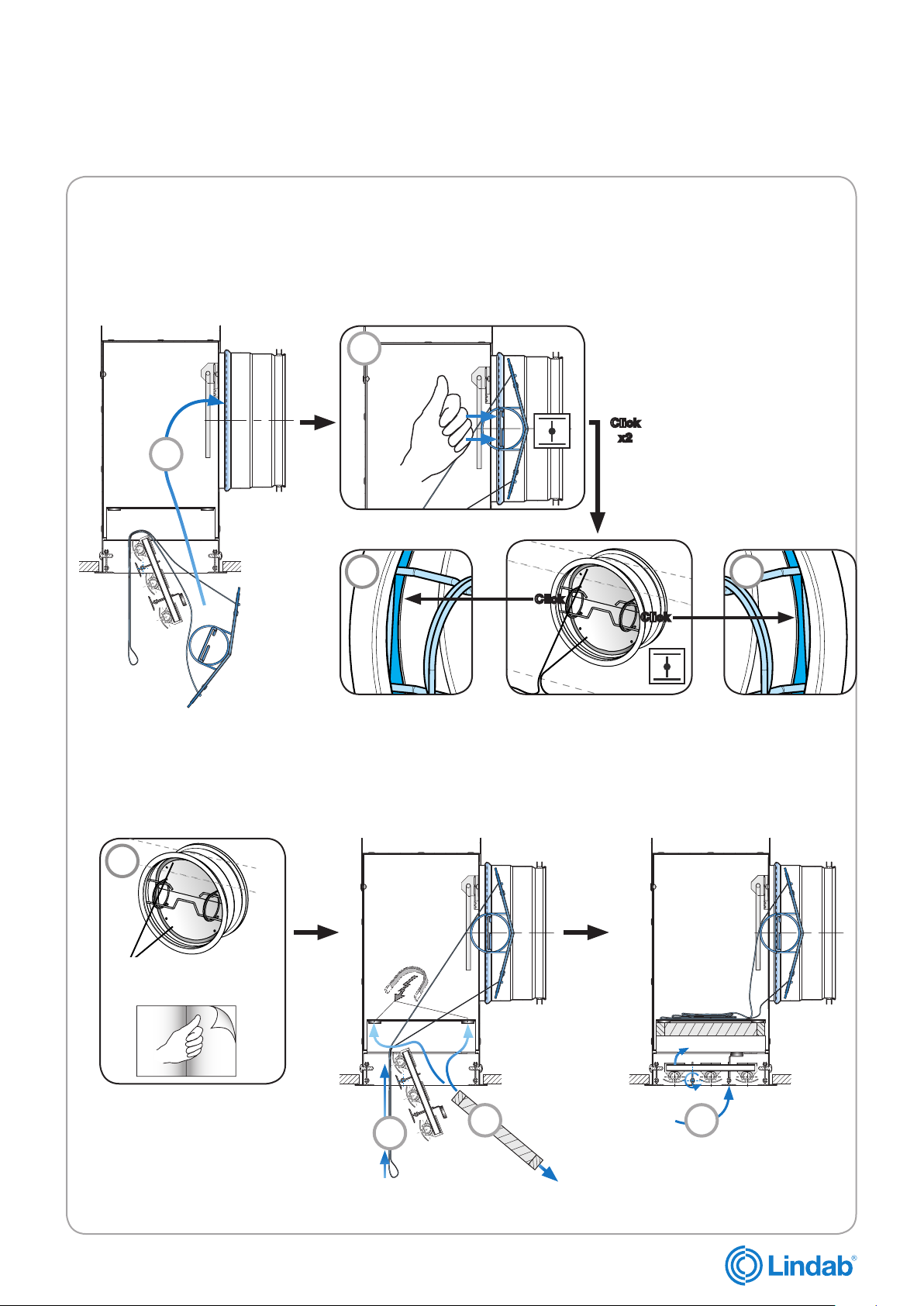

Maintenance - Installation of damper E
Vedligeholdelse - Installation af E-spjæld
Underhåll - Montering av E spjällenhet
Huolto - E-säätöpellin asennus
Wartung - Montage der E Drossel
Manutenzione - Montaggio di seranda E
Entretien - Montage de registre E
A
B
Click
x2
C
E
?
Setting - Indstilling - Inställning -
Asento - Einstellung - Regolazione
Réglage
B B
Click
Click
12
10
D
E
F
Page 13
At Lindab, good thinking is a philosophy that guides
us in everything we do. We have made it our mis-
sion to create a healthy indoor climate – and to
simplify the construction of sustainable buildings.
We do that by designing innovative products and
solutions that are easy to use, as well as offering ef-
ficient availability and logistics. We are also working
on ways to reduce our impact on our environment
and climate. We do that by developing methods to
produce our solutions using a minimum of energy
and natural resources, and by reducing negative ef-
fects on the environment. We use steel in our prod-
ucts. It’s one of few materials that can be recycled
an infinite number of times without losing any of its
properties. That means less carbon emissions in na-
ture and less energy wasted.
We simplify constructionWe simplify construction
www.lindab.comwww.lindab.com
We reserve the right to make changes
2019-06-25
Loading...
