IM663-F

RETURN TO MAIN MENU

RED-D-ARC

D300K 3+3

For use with machines having Code Numbers:

10567; 10956; 11214; 11488; 11549; 12186

June 2013

(

OPERATOR’S MANUAL

Red-D-Arc Spec-Built Welding Equipment

This

RED-D-ARC

design specifications by Lincoln Electric.

Safety Depends on You

This welder is designed and built with safety in mind.

However, your overall safety can be increased by proper installation

... and thoughtful operation on your part.

DO NOT INSTALL, OPERATE OR REPAIR THIS EQUIPMENT WITHOUT READING THIS MANUAL AND THE SAFETY PRECAUTIONS CONTAINED THROUGHOUT.

And, most importantly, think before you act and be careful.

1-800-245-3660

North America’s Largest Fleet of Welding Equipment

The Global Leader in Welder Rentals

welder is built to

RED-D-ARC Extreme Duty

SAFETY

WARNING

CALIFORNIA PROPOSITION 65 WARNINGS

Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm.

The Above For Diesel Engines

ARC WELDING CAN BE HAZARDOUS. PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH. KEEP CHILDREN AWAY. PACEMAKER WEARERS SHOULD CONSULT WITH THEIR DOCTOR BEFORE OPERATING.

Read and understand the following safety highlights. For additional safety information, it is strongly recommended that you purchase a copy of “Safety in Welding & Cutting - ANSI Standard Z49.1” from the American Welding Society, P.O. Box 351040, Miami, Florida 33135 or CSA Standard W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available from the Lincoln Electric Company, 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.

BE SURE THAT ALL INSTALLATION, OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE PERFORMED ONLY BY QUALIFIED INDIVIDUALS.

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

The Above For Gasoline Engines

FOR ENGINE powered equipment.

1.a. Turn the engine off before troubleshooting and maintenance work unless the maintenance work requires it to be running.

____________________________________________________

1.b. Operate engines in open, well-ventilated areas or vent the engine exhaust fumes outdoors.

____________________________________________________

1.c. Do not add the fuel near an open flame welding arc or when the engine is running. Stop the engine and allow it to cool before refueling to prevent spilled fuel from vaporizing on contact with hot engine parts and igniting. Do not spill fuel when filling tank. If fuel is spilled, wipe it up and do not start engine until fumes have been eliminated.

____________________________________________________

1.d. Keep all equipment safety guards, covers and devices in position and in good repair.Keep hands, hair, clothing and tools away from V-belts, gears, fans and all other moving parts when starting, operating or repairing equipment.

____________________________________________________

1.e. In some cases it may be necessary to remove safety

guards to perform required maintenance. Remove guards only when necessary and replace them when the maintenance requiring their removal is complete. Always use the greatest care when working near moving parts.

___________________________________________________

1.f. Do not put your hands near the engine fan. Do not attempt to override the governor or idler by pushing on the throttle control rods while the engine is running.

1.h. To avoid scalding, do not remove the radiator pressure cap when the engine is hot.

ELECTRIC AND MAGNETIC FIELDS may be dangerous

2.a. Electric current flowing through any conductor causes localized Electric and Magnetic Fields (EMF). Welding current creates EMF fields around welding cables and welding machines

2.b. EMF fields may interfere with some pacemakers, and welders having a pacemaker should consult their physician before welding.

2.c. Exposure to EMF fields in welding may have other health effects which are now not known.

2.d. All welders should use the following procedures in order to minimize exposure to EMF fields from the welding circuit:

2.d.1.

Route the electrode and work cables together - Secure them with tape when possible.

2.d.2. Never coil the electrode lead around your body.

2.d.3. Do not place your body between the electrode and

work cables. If the electrode cable is on your right side, the work cable should also be on your right side.

___________________________________________________

1.g. To prevent accidentally starting gasoline engines while turning the engine or welding generator during maintenance work, disconnect the spark plug wires, distributor cap or magneto wire as appropriate.

2.d.4. Connect the work cable to the workpiece as close as possible to the area being welded.

2.d.5. Do not work next to welding power source.

SAFETY

ELECTRIC SHOCK can kill.

3.a. The electrode and work (or ground) circuits are electrically “hot” when the welder is on. Do not touch these “hot” parts with your bare

gloves to insulate hands.

3.b. Insulate yourself from work and ground using dry insulation. Make certain the insulation is large enough to cover your full area of physical contact with work and ground.

In addition to the normal safety precautions, if welding must be performed under electrically hazardous conditions (in damp locations or while wearing wet clothing; on metal structures such as floors, gratings or scaffolds; when in cramped positions such as sitting, kneeling or lying, if there is a high risk of unavoidable or accidental contact with the workpiece or ground) use the following equipment:

• Semiautomatic DC Constant Voltage (Wire) Welder.

• DC Manual (Stick) Welder.

• AC Welder with Reduced Voltage Control.

3.c. In semiautomatic or automatic wire welding, the electrode, electrode reel, welding head, nozzle or semiautomatic welding gun are also electrically “hot”.

3.d. Always be sure the work cable makes a good electrical connection with the metal being welded. The connection should be as close as possible to the area being welded.

3.e. Ground the work or metal to be welded to a good electrical (earth) ground.

3.f.

Maintain the electrode holder, work clamp, welding cable and welding machine in good, safe operating condition. Replace damaged insulation.

3.g. Never dip the electrode in water for cooling.

3.h. Never simultaneously touch electrically “hot” parts of electrode holders connected to two welders because voltage between the two can be the total of the open circuit voltage of both welders.

3.i. When working above floor level, use a safety belt to protect yourself from a fall should you get a shock.

3.j. Also see Items 6.c. and 8.

skin or wet clothing. Wear dry, hole-free

ARC RAYS can burn.

4.a. Use a shield with the proper filter and cover plates to protect your eyes from sparks and the rays of the arc when welding or observing open arc welding. Headshield and filter lens should conform to ANSI Z87. I standards.

4.b. Use suitable clothing made from durable flame-resistant material to protect your skin and that of your helpers from the arc rays.

4.c. Protect other nearby personnel with suitable, non-flammable screening and/or warn them not to watch the arc nor expose themselves to the arc rays or to hot spatter or metal.

FUMES AND GASES can be dangerous.

5.a. Welding may produce fumes and gases hazardous to health. Avoid breathing these fumes and gases. When welding, keep your head out of the fume. Use enough

fumes and gases away from the breathing zone. When

welding with electrodes which require special ventilation such as stainless or hard facing (see instructions on container or MSDS) or on lead or cadmium plated steel and other metals or coatings which produce highly toxic fumes, keep exposure as low as possible and within applicable OSHA PEL and ACGIH TLV limits using local exhaust or mechanical ventilation. In confined spaces or in some circumstances, outdoors, a respirator may be required. Additional precautions are also required when welding on galvanized steel.

5. b. The operation of welding fume control equipment is affected by various factors including proper use and positioning of the equipment, maintenance of the equipment and the specific welding procedure and application involved. Worker exposure level should be checked upon installation and periodically thereafter to be certain it is within applicable OSHA PEL and ACGIH TLV limits.

5.c.

Do not weld in locations near chlorinated hydrocarbon coming from degreasing, cleaning or spraying operations. The heat and rays of the arc can react with solvent vapors form phosgene, a highly toxic gas, and other irritating products.

5.d. Shielding gases used for arc welding can displace air and

cause injury or death. Always use enough ventilation, especially in confined areas, to insure breathing air is safe.

ventilation and/or exhaust at the arc to keep

vapors

5.e. Read and understand the manufacturer’s instructions for this

equipment and the consumables to be used, including the material safety data sheet (MSDS) and follow your employer’s safety practices. MSDS forms are available from your welding distributor or from the manufacturer.

5.f. Also see item 1.b.

iii

SAFETY

iii

WELDING and CUTTING SPARKS can cause fire or explosion.

6.a.

Remove fire hazards from the welding area.

If this is not possible, cover them to prevent

Remember that welding sparks and hot materials from welding can easily go through small cracks and openings to adjacent areas. Avoid welding near hydraulic lines. Have a fire extinguisher readily available.

6.b. Where compressed gases are to be used at the job site, special precautions should be used to prevent hazardous situations. Refer to “Safety in Welding and Cutting” (ANSI Standard Z49.1) and the operating information for the equipment being used.

6.c. When not welding, make certain no part of the electrode circuit is touching the work or ground. Accidental contact can cause overheating and create a fire hazard.

6.d. Do not heat, cut or weld tanks, drums or containers until the proper steps have been taken to insure that such procedures will not cause flammable or toxic vapors from substances inside. They can cause an explosion even been “cleaned”. For information, purchase “Recommended Safe Practices for the Containers and Piping That Have Held Hazardous Substances”, AWS F4.1 from the American Welding Society

(see address above).

6.e. Vent hollow castings or containers before heating, cutting or welding. They may explode.

Sparks and spatter are thrown from the welding arc. Wear oil

6.f. free protective garments such as leather gloves, heavy shirt, cuffless trousers, high shoes and a cap over your hair. Wear ear plugs when welding out of position or in confined places. Always wear safety glasses with side shields when in a welding area.

6.g. Connect the work cable to the work as close to the welding area as practical. Work cables connected to the building framework or other locations away from the welding area increase the possibility of the welding current passing through lifting chains, crane cables or other alternate circuits. This can create fire hazards or overheat lifting chains or cables until they fail.

6.h. Also see item 1.c.

the welding sparks from starting a fire.

though

they have

Preparation

for Welding and Cutting of

CYLINDER may explode if damaged.

7.a. Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and

pressure used. All hoses, fittings, etc. should be suitable for the application and maintained in good condition.

7.b. Always keep cylinders in an upright position securely chained to an undercarriage or fixed support.

7.c. Cylinders should be located:

• Away from areas where they may be struck or subjected to

physical damage.

• A safe distance from arc welding or cutting operations and

any other source of heat, sparks, or flame.

7.d. Never allow the electrode, electrode holder or any other electrically “hot” parts to touch a cylinder.

7.e. Keep your head and face away from the cylinder valve outlet when opening the cylinder valve.

7.f. Valve protection caps should always be in place and hand tight except when the cylinder is in use or connected for use.

7.g. Read and follow the instructions on compressed gas cylinders, associated equipment, and CGA publication P-l, “Precautions for Safe Handling of Compressed Gases in Cylinders,” available from the Compressed Gas Association 1235 Jefferson Davis Highway, Arlington, VA 22202.

FOR ELECTRICALLY powered equipment.

8.a. Turn off input power using the disconnect switch at the fuse box before working on the equipment.

8.b. Install equipment in accordance with the U.S. National Electrical Code, all local codes and the manufacturer’s recommendations.

8.c. Ground the equipment in accordance with the U.S. National Electrical Code and the manufacturer’s recommendations.

6.I. Read and follow NFPA 51B “ Standard for Fire Prevention During Welding, Cutting and Other Hot Work”, available from NFPA, 1 Batterymarch Park, PO box 9101, Quincy, Ma 022690-9101.

6.j. Do not use a welding power source for pipe thawing.

Refer to http://www.lincolnelectric.com/safety for additional safety information.

SAFETY

PRÉCAUTIONS DE SÛRETÉ

Pour votre propre protection lire et observer toutes les instructions et les précautions de sûreté specifiques qui parraissent dans ce manuel aussi bien que les précautions de sûreté générales suivantes:

Sûreté Pour Soudage A LʼArc

1. Protegez-vous contre la secousse électrique:

a. Les circuits à lʼélectrode et à la piéce sont sous tension

quand la machine à souder est en marche. Eviter toujours tout contact entre les parties sous tension et la peau nue ou les vétements mouillés. Porter des gants secs et sans trous pour isoler les mains.

b. Faire trés attention de bien sʼisoler de la masse quand on

soude dans des endroits humides, ou sur un plancher metallique ou des grilles metalliques, principalement dans les positions assis ou couché pour lesquelles une grande partie du corps peut être en contact avec la masse.

c. Maintenir le porte-électrode, la pince de masse, le câble

de soudage et la machine à souder en bon et sûr état defonctionnement.

d.Ne jamais plonger le porte-électrode dans lʼeau pour le

refroidir.

e. Ne jamais toucher simultanément les parties sous tension

des porte-électrodes connectés à deux machines à souder parce que la tension entre les deux pinces peut être le total de la tension à vide des deux machines.

f. Si on utilise la machine à souder comme une source de

courant pour soudage semi-automatique, ces precautions pour le porte-électrode sʼapplicuent aussi au pistolet de soudage.

6. Eloigner les matériaux inflammables ou les recouvrir afin de prévenir tout risque dʼincendie dû aux étincelles.

7. Quand on ne soude pas, poser la pince à une endroit isolé de la masse. Un court-circuit accidental peut provoquer un échauffement et un risque dʼincendie.

8. Sʼassurer que la masse est connectée le plus prés possible de la zone de travail quʼil est pratique de le faire. Si on place la masse sur la charpente de la construction ou dʼautres endroits éloignés de la zone de travail, on augmente le risque de voir passer le courant de soudage par les chaines de levage, câbles de grue, ou autres circuits. Cela peut provoquer des risques dʼincendie ou dʼechauffement des chaines et des câbles jusquʼà ce quʼils se rompent.

9. Assurer une ventilation suffisante dans la zone de soudage. Ceci est particuliérement important pour le soudage de tôles galvanisées plombées, ou cadmiées ou tout autre métal qui produit des fumeés toxiques.

10. Ne pas souder en présence de vapeurs de chlore provenant dʼopérations de dégraissage, nettoyage ou pistolage. La chaleur ou les rayons de lʼarc peuvent réagir avec les vapeurs du solvant pour produire du phosgéne (gas fortement toxique) ou autres produits irritants.

11. Pour obtenir de plus amples renseignements sur la sûreté, voir le code “Code for safety in welding and cutting” CSA Standard W 117.2-1974.

2. Dans le cas de travail au dessus du niveau du sol, se protéger contre les chutes dans le cas ou on recoit un choc. Ne jamais enrouler le câble-électrode autour de nʼimporte quelle partie du corps.

3. Un coup dʼarc peut être plus sévère quʼun coup de soliel, donc:

a. Utiliser un bon masque avec un verre filtrant approprié

ainsi quʼun verre blanc afin de se protéger les yeux du rayonnement de lʼarc et des projections quand on soude ou quand on regarde lʼarc.

b. Porter des vêtements convenables afin de protéger la

peau de soudeur et des aides contre le rayonnement de lʻarc.

c. Protéger lʼautre personnel travaillant à proximité au

soudage à lʼaide dʼécrans appropriés et non-inflammables.

4. Des gouttes de laitier en fusion sont émises de lʼarc de soudage. Se protéger avec des vêtements de protection libres de lʼhuile, tels que les gants en cuir, chemise épaisse, pantalons sans revers, et chaussures montantes.

5. Toujours porter des lunettes de sécurité dans la zone de soudage. Utiliser des lunettes avec écrans lateraux dans les zones où lʼon pique le laitier.

PRÉCAUTIONS DE SÛRETÉ POUR LES MACHINES À SOUDER À TRANSFORMATEUR ET À REDRESSEUR

1. Relier à la terre le chassis du poste conformement au code de lʼélectricité et aux recommendations du fabricant. Le dispositif de montage ou la piece à souder doit être branché à une bonne mise à la terre.

2. Autant que possible, Iʼinstallation et lʼentretien du poste seront effectués par un électricien qualifié.

3. Avant de faires des travaux à lʼinterieur de poste, la debrancher à lʼinterrupteur à la boite de fusibles.

4. Garder tous les couvercles et dispositifs de sûreté à leur place.

Thank You

for selecting one of our QUALITY products. We want you to take

CUSTOMER ASSISTANCE POLICY

The business of our company is manufacturing and selling high quality welding equipment. Our challenge is to meet the needs of our customers and to exceed their expectations. On occasion, purchasers may ask us for advice or information about their use of our products. We respond to our customers based on the best information in our possession at that time. We are not in a position to warrant or guarantee such advice, and assume no liability, with respect to such information or advice. We expressly disclaim any warranty of any kind, including any warranty of fitness for any customerʼs particular purpose, with respect to such information or advice. As a matter of practical consideration, we also cannot assume any responsibility for updating or correcting any such information or advice once it has been given, nor does the provision of information or advice create, expand or alter any warranty with respect to the sale of our products.

We are a responsive manufacturer, but the selection and use of specific products sold by us is solely within the control of, and remains the sole responsibility of the customer. Many variables beyond our control affect the results obtained in applying these types of fabrication methods and service requirements.

Subject to Change – This information is accurate to the best of our knowledge at the time of printing.

pride in operating this product ••• as much pride as we have in bringing this product to you!

Please Examine Carton and Equipment For Damage Immediately

When this equipment is shipped, title passes to the purchaser upon receipt by the carrier. Consequently, Claims for material damaged in shipment must be made by the purchaser against the transportation company at the time the shipment is received.

Please record your equipment identification information below for future reference. This information can be found on your machine nameplate.

Product _________________________________________________________________________________

Model Number ___________________________________________________________________________

Code Number or Date Code (if available)______________________________________________________

Serial Number (if available)__________________________________________________________________

Date Purchased___________________________________________________________________________

Where Purchased_________________________________________________________________________

Whenever you request replacement parts or information on this equipment, always supply the information you have recorded above.

Read this Operators Manual completely before attempting to use this equipment. Save this manual and keep it handy for quick reference. Pay particular attention to the safety instructions we have provided for your protection. The level of seriousness to be applied to each is explained below:

WARNING

This statement appears where the information must be followed exactly to avoid serious personal injury or loss of life.

CAUTION

This statement appears where the information must be followed to avoid minor personal injury or damage to this equipment.

TABLE OF CONTENTS

Page

Installation .......................................................................................................Section A

Technical Specifications ........................................................................................A-1

General Description...............................................................................................A-2

Design Features ....................................................................................................A-2

Pre-Operation Installation......................................................................................A-3

Safety Precautions ..........................................................................................A-3

Exhaust Spark Arrester ...................................................................................A-3

Location/Ventilation.........................................................................................A-3

Machine Grounding.........................................................................................A-3

Lift Bail ............................................................................................................A-3

Trailers ............................................................................................................A-4

Polarity Control and Cable Sizes ....................................................................A-4

Pre-Operation Service ...........................................................................................A-5

Oil....................................................................................................................A-5

Fuel, Cooling System ......................................................................................A-5

Battery Charging .............................................................................................A-5

________________________________________________________________________

Operation .........................................................................................................Section B

Engine Operation...................................................................................................B-1

Safety Warnings..............................................................................................B-1

Starting The Kubota Engine ............................................................................B-1

Stopping the engine ........................................................................................B-1

Break In Period ...............................................................................................B-2

Welder Operation...................................................................................................B-2

Duty Cycle.......................................................................................................B-2

Control of Welding Current..............................................................................B-2

Auxiliary Power ...............................................................................................B-3

________________________________________________________________________

Maintenance ....................................................................................................Section D

Safety Precautions ................................................................................................D-1

General Instructions ..............................................................................................D-1

Cooling System .....................................................................................................D-1

Bearings ................................................................................................................D-1

Commutator and Brushes .....................................................................................D-1

Slip Rings ..............................................................................................................D-2

Battery ...................................................................................................................D-2

Hardware...............................................................................................................D-2

Nameplates ...........................................................................................................D-2

Purging Air from Fuel System................................................................................D-2

Engine Service Chart..............................................................................D-3, D-4,D-5

GFCI Receptacle Testing and Resetting Procedure ....................................................D-6

________________________________________________________________________

Troubleshooting..............................................................................................Section E

Safety Precautions.................................................................................................E-1

Welder Troubleshooting.................................................................................E-2, E-3

Engine Troubleshooting Guide .....................................................................E-4, E-5

________________________________________________________________________

Diagrams ..........................................................................................................Section F

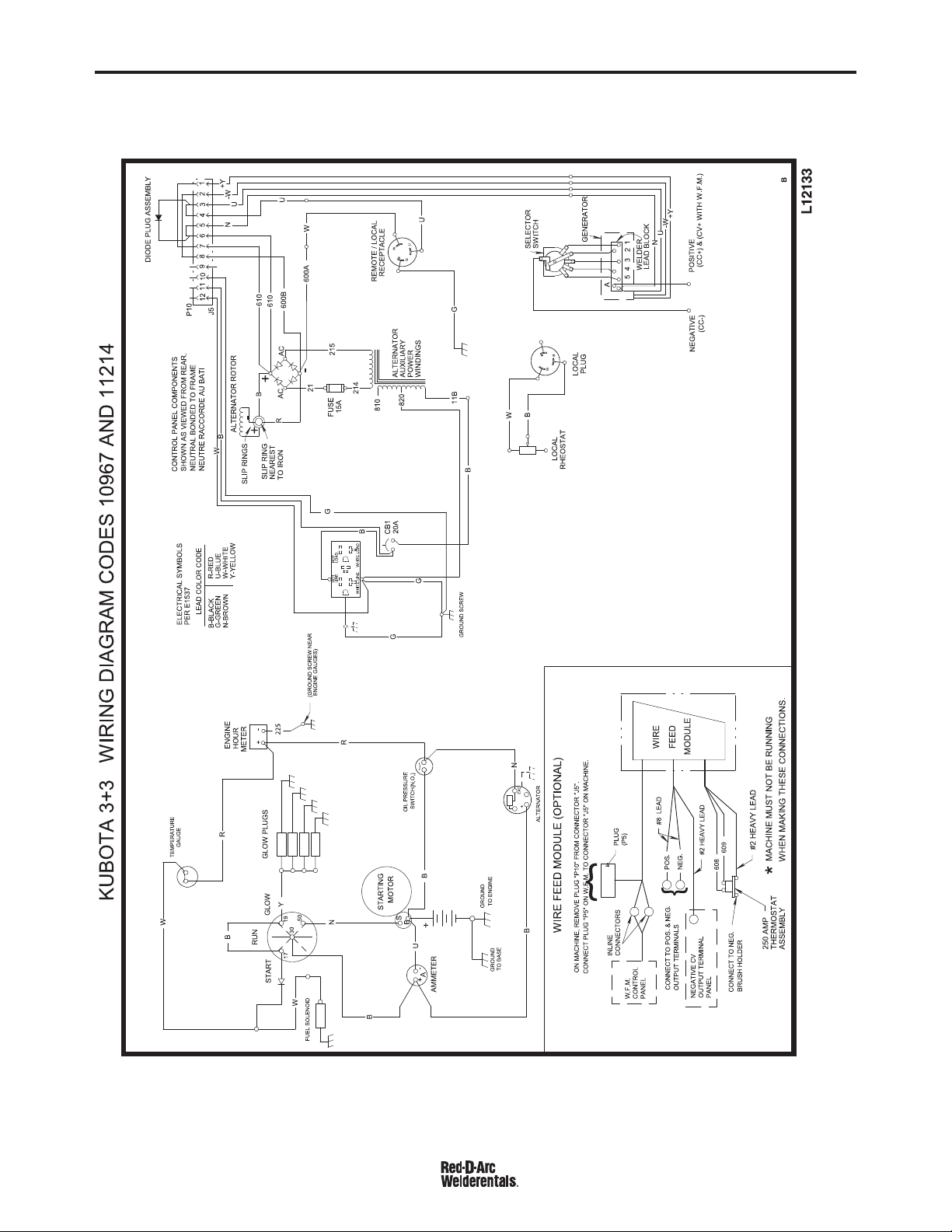

Wiring Diagram ......................................................................................F-1, F-2, F-3

________________________________________________________________________

Parts Lists...................................................................................................P-485 Series

________________________________________________________________________

A-1

INSTALLATION

TECHNICAL SPECIFICATIONS - Red-D-Arc D300K 3+3

INPUT - ENGINE

Make/Model Description Speed (RPM) Displacement Starting Capacities

System

Kubota 4 cylinder 113.6 cu. in Fuel: 15 gal. V1902BG1-RDA-1 CODE: 10567 2800 RPM

Kubota 4 cylinder 113.3 cu. in Fuel: 15 gal. V1903 CODES 10956 1800 RPM High Idle 1800

11214 4 Cycle Full Load 1700 Bore x Stroke

Kubota V2003-M-E3BG-RDA CODES 11488

11549 12186

33 HP @ (1861 cc) 57 L

4 Cycle Bore x Stroke Oil: 9.5 Qts. Water Cooled 9.0 L Diesel Engine 3.35” x 3.23” Engine Coolant:

(85 mm x 82 mm) 1.2 gal.

4.5 L

26 HP @ (1857 cc) 57 L

12VDC

Battery Water Cooled 9.7 L Diesel Engine 3.15” x 3.64” Engine Coolant:

(80 mm x 92 mm) 9.5 Qts.

4 Cylinder

29.2 HP @ 1800 RPM 4 Cycle Water Cooled Diesel Engine

121.9cu. in. (1998 cc)

Bore x Stroke

3.27 x 3.64 (83mm x 92mm

)

Oil: 10.2 Qts.

9.0 L

Fuel: 15gal.

(57L)

Fuel: 16gal.

(60.6L)

Oil: 8.04qts.

(7.6L)

Engine Coolant:

9.5qts.

(9.0L)

Code 11488

Codes 11549

A-1

12186

RATED OUTPUT - WELDER

Welding Output Volts at Rated Amps Duty Cycle

250 Amps 40 volts 60% 98 volts DC

Max. OCV @ 1800 RPM

OUTPUT - GENERATOR

Auxiliary Power

3,000 Watts, 60 Hz

120 Volts AC

100 % Duty Cycle

PHYSICAL DIMENSIONS

HEIGHT WIDTH DEPTH WEIGHT

40.94 in. 24.0 in. 65.0 in. 1354 lbs.

1040 mm 610 mm 1651 mm 616 kg.

LIFT BAIL WEIGHT RATING 2000 LBS. (907KG.) MAXIMUM

1. Duty cycle is based on a 10 minute period. This machine can be loaded to 250 amps for 6 minutes out of every 10 minute period.

2. Output rating in watts is equivalent to volt-amperes at unity power factor. Output voltage is within ± 10% at all loads up to rated capacity. When welding, available auxiliary power will be reduced.

D300K 3+3

A-2

INSTALLATION

A-2

GENERAL DESCRIPTION

The D300K 3+3 is a heavy duty, engine driven, DC arc welding power source, capable of providing constant current output for stick welding or DC TIG welding. This welder is wound with all copper coils, rated at 250 amps / 40 Volts, and provides other features such as improved door latches and stainless hinges.

The D300K 3+3 has Diesel Engine Protection. In the event of sudden low oil pressure or high coolant temperature, the engine immediately shuts down. The D300K 3+3 has a current range of 40-325 DC amps.

RATED OUTPUT DUTY CYCLE

250A @ 40V 60%

This unit is also capable of providing 3 kVA of 120 volts of 60 hertz AC auxiliary power.

DESIGN FEATURES

Control Panel

Both the engine and the welder controls are located on one recessed panel at the exciter end of the machine. The welder controls consist of a five step “Current Range Selector” switch and a “Fine Current Adjustment” rheostat. The welder is equipped with a “Start” and “Glow Plug” switch for easier cold weather starting and a “Stop” (pull knob).

The control panel for Code 10567 contains a battery charging ammeter, one three prong duplex grounding type receptacle and two circuit breakers for auxiliary power.

Welder Enclosure - The complete welder is rubber mounted on a rugged steel “C” channel base.

The output terminals are placed at the side of the machines so that they are protected by the door. The output terminals are labeled (+) and (-).

Cranking System - A 12 volt electric starter is standard.

Air Cleaner - Heavy duty two stage dry type.

Muffler - A muffler and exhaust outlet elbow are stan-

dard.

Engine Hour Meter - A meter to record hours of operation.

Engine Protection - The system shuts the engine down in the event of sudden low oil pressure or high coolant temperature.

Fuel Consumption - Fuel consumption has been optimized by means of careful design of the combustion chamber, fuel feed and injection system and cross-flow cylinder heads. In order to enhance longevity of the engine, the engine turns at a constant 1800 RPM and no engine idler is used.

As a result, there is no waiting time for the welder to achieve operating speed when striking an arc.

Fuel consumption figures at average operating loads are as follows:

Tank Capacity: 15 gallons, (57 L) Metal Tank or 16 gallons, (60.6L) Plastic Tank.

Fuel Consumption: 0.44 gallons/hr, (1.65 L/hr)

Operating Interval: 35 hours per tank

The control panel for Codes 10956, 11214, 11488, 11549 and 12186 contains a battery charging ammeter, GFCI receptacle and one circuit breaker for auxiliary power. If a GFCI receptacle is tripped, See the MAINTENANCE section for detailed information on testing and resetting the GFCI receptacle.

All Copper Windings - For long life and dependable operation.

Auxiliary Power - 3.0 kVA of nominal 120V, 60Hz, AC. Output voltage is maintained within ± 10% at all loads up to rated capacity.

D300K 3+3

A-3

INSTALLATION

A-3

PRE-OPERATION INSTALLATION

WARNING

Do not attempt to use this equipment until you have thoroughly read the engine manufacturerʼs manual supplied with your welder. It includes important safety precautions, detailed engine starting, operating and maintenance instructions, and parts lists.

------------------------------------------------------------------------

ELECTRIC SHOCK can kill.

• Do not touch electrically live parts or electrode with skin or wet clothing.

• Insulate yourself from work and ground

• Always wear dry insulating gloves.

------------------------------------------------------------------------

ENGINE EXHAUST can kill.

• Use in open, well ventilated areas or vent exhaust outside.

------------------------------------------------------------------------

MOVING PARTS can injure.

• Do not operate with doors open or guards off.

• Stop engine before servicing.

• Keep away from moving parts.

Machine Grounding

According to the United States National Electrical Code, the frame of this portable generator is not required to be grounded and is permitted to serve as the grounding means for cord connected equipment plugged into its receptacle.

Some state, local, or other codes or unusual operating circumstances may require the machine frame to be grounded. It is recommended that you determine the extent to which such requirements may apply to your particular situation and follow them explicitly. A machine grounding stud marked with the symbol is provided on the welding generator frame foot. In general, if the machine is to be grounded, it should be connected with a #8 or larger copper wire to a solid earth ground such as a metal water pipe going into the ground for at least ten feet and having no insulated joints, or to the metal framework of a building which has been effectively grounded. The U.S. National Code lists a number of alternate means of grounding electrical equipment.

Lift Bail

------------------------------------------------------------------------

See additional warning information at the front of this operatorʼs manual.

------------------------------------------------------------

Exhaust Spark Arrester

Some federal, state or local laws may require that engines be equipped with exhaust spark arresters when they are operated in certain locations where unarrested sparks may present a fire hazard. The standard muffler included with this welder does not qualify as a spark arrester. When required by local regulations, a suitable spark arrester must be installed and properly maintained.

CAUTION

Use of an incorrect arrester may lead to engine damage or performance loss. Contact the engine manufacturer for specific recommendations.

------------------------------------------------------------------------

Location / Ventilation

Always operate the welder with the doors closed. Leaving the doors open changes the designed air flow and may cause overheating.

A lift bail is provided for lifting with a hoist.

WARNING

• Lift only with equipment of adequate lifting capacity.

• Be sure machine is stable when lifting.

• Do not lift this machine using lift bail if it is equipped with a gas cylinder.

FALLING • Do not lift machine if lift bail is

EQUIPMENT can damaged.

cause injury. • Do not operate machine while

suspended from lift bail.

• DO NOT EXCEED MAXIMUM LIFT BAIL WEIGHT RATING.

( SEE TECHNICAL SPECIFICATIONS PAGE)

------------------------------------------------------------------------

The welder should be located to provide an unrestricted flow of clean, cool air. Also, locate the welder so that engine exhaust fumes are properly vented to an outside area.

D300K 3+3

A-4

INSTALLATION

Trailer

If the user adapts a trailer, he must assume responsibility that the method of attachment and usage does not result in a safety hazard nor damage the welding equipment. Some of the factors to be considered are as follows:

1. Design capacity of trailer vs. weight of equipment and likely additional attachments.

2. Proper support of, and attachment to, the base of

the welding equipment so there will be no undue stress to the framework.

3. Proper placement of the equipment on the trailer to

ensure stability side to side and front to back when being moved and when standing by itself while being operated or serviced.

4. Typical conditions of use, i.e., travel speed, rough-

ness of surface on which the trailer will be operated; environmental conditions, likely maintenance.

A-4

Polarity Control and Cable Sizes

With the engine off, route the electrode and work cables and connect to the studs located below the fuel tank mounting rail. (See size recommendations below.) For positive polarity, connect the electrode cable to the terminal marked “+”. For Negative polari- ty, connect the electrode cable to the “-” stud. These connections should be checked periodically and tightened if necessary.

When welding at a considerable distance from the welder, be sure you use ample size welding cables.

RECOMMENDED COPPER CABLE SIZES

Cables Sizes for Combined Length of Electrode Plus Work Cable

Amps Duty Cycle Up to 200 ft. 200 to 250 ft.

250 60% 1 1/0

5. Conformance with federal, state and local laws.

(1)

Consult applicable federal, state and local laws regarding specific

requirements for use on public highways.

(1)

VEHICLE MOUNTING

WARNING

Improperly mounted concentrated loads may cause unstable vehicle handling and tires or other components to fail.

• Only transport this Equipment on serviceable vehicles which are rated and designed for such loads.

• Distribute, balance and secure loads so vehicle is stable under conditions of use.

• Do not exceed maximum rated loads for components such as suspension, axles and tires.

• Mount equipment base to metal bed or frame of vehicle.

• Follow vehicle manufacturerʼs instructions.

------------------------------------------------------------------------

D300K 3+3

A-5

INSTALLATION

A-5

PRE-OPERATION SERVICE

CAUTION

READ the engine operating and maintenance instructions supplied with this machine.

WARNING

• Stop engine while fueling.

• Do not smoke when fueling.

• Keep sparks and flame away from tank.

• Do not leave unattended while fueling.

• Wipe up spilled fuel and allow

DIESEL FUEL

can cause fire.

DIESEL FUEL ONLY-Low sulphur fuel or ultra low sulphur fuel in U.S.A. and Canada.

------------------------------------------------------------------------

Oil

This unit is supplied from the factory with the engine crankcase filled with a high quality SAE 10W/30 oil. This oil should be acceptable for most typical ambient temperatures. Consult the engine operation manual for specific engine manufacturerʼs recommendations. Upon receipt of the welder, check the engine dipstick to be sure the oil is at the “full” mark. DO NOT overfill.

fumes to clear before starting engine.

• Do not overfill tank, fuel expansion may cause overflow.

BATTERY CHARGING

WARNING

GASES FROM BATTERY can explode.

• Keep sparks, flame and cigarettes away.

BATTERY ACID can burn eyes and skin.

• Wear gloves and eye protection and be careful when boosting, charging or working near battery.

To prevent EXPLOSION when:

a) Installing a new battery - disconnect the negative

cable from the old battery first and connect the negative cable to the new battery last.

b) Connecting a battery charger - remove the battery

from the welder by disconnecting the negative cable first, then the positive cable and battery clamp. When reinstalling, connect the negative cable last.

c) Using a booster - connect the positive lead to the

battery first, then connect the negative lead to the ground lead on the base.

To prevent ELECTRICAL DAMAGE when:

a) Installing a new battery. b) Using a booster.

Use correct polarity - Negative Ground.

• To prevent BATTERY DISCHARGE, if you have an ignition switch, turn it off when engine is not running.

Fuel

Fill the fuel tank with the grade of fuel recommended in the Engine Operatorʼs manual. Make sure the fuel valve on the sediment bowl is in the open position, for Codes 10950 and below.

Cooling System

The radiator has been filled at the factory with a 50-50 mixture of ethylene glycol antifreeze and water. Check the radiator level and add a 50-50 solution as needed (see engine manual or antifreeze container for alternate antifreeze recommendations).

D300K 3+3

• To prevent BATTERY BUCKLING, tighten nuts on battery clamp until snug.

------------------------------------------------------------------------

The D300K 3+3 is equipped with a wet charged battery. The charging current is automatically regulated when the battery is low (after starting the engine) to a trickle current when the battery is fully charged.

When replacing, jumping or otherwise connecting the battery to the battery cables, the proper polarity must be observed. This system is NEGATIVE GROUND.

B-1

OPERATION

B-1

ENGINE OPERATION

WARNING

------------------------------------------------------------------------

ELECTRIC SHOCK can kill.

• Do not touch electrically live parts or electrode with skin or wet clothing.

• Insulate yourself from work and ground

• Always wear dry insulating gloves.

------------------------------------------------------------------------

ENGINE EXHAUST can kill.

• Use in open, well ventilated areas or vent exhaust outside.

------------------------------------------------------------------------

MOVING PARTS can injure.

• Do not operate with doors open or guards off.

• Stop engine before servicing.

• Keep away from moving parts.

------------------------------------------------------------------------

See additional warning information at the

front of this operatorʼs manual.

-----------------------------------------------------------

For Codes 10956, 11214, 11488, 11549, 12186

Temperature GLOW PLUGS ON time

Above 32ºF (0ºC) 3.0 sec.

Below 5ºF (-15ºC) 5.0 sec.

Note: Extreme cold weather starting may require longer glow plug operation as well as engine oil and coolant heating (using a block heater).

WARNING

Under NO starting fluids be used!

------------------------------------------------------------------------

Stopping the Engine

1. Pull the “STOP” knob out and hold it out until the engine stops completely.

At the end of each dayʼs welding, check the crankcase oil level, drain accumulated dirt and water from the sediment bowl under the fuel tank for Codes 10956 and below and refill the fuel tank to minimize moisture condensation in the tank. Also, running out of fuel tends to draw dirt into the fuel system.

conditions should ether or other

Operate the welder with the doors closed. Leaving the doors open changes the designed air flow and can cause overheating.

Starting the D300K 3+3 with Kubota Diesel Engine

Refer to the Welder Nameplate for starting instructions.

The D300K 3+3ʼs engine is equipped with GLOW PLUGS. The GLOW PLUGS should always be used to help start Kubota diesel engines. Follow the table below for approximate GLOW PLUG on times to be used prior to attempted starting:

For Code 10567

Temperature GLOW PLUGS ON time

Above 32ºF (0ºC) 15 sec.

32ºF to -13ºF (0ºC to -25ºC) 30 sec.

Below -13ºF (-25ºC) 45 sec.

When hauling the welder between job sites, close the fuel feed valve beneath the fuel tank for 11488, 11549 and 12186.

If the fuel supply is cut off or runs out while the fuel pump is operating, air may be entrapped in the fuel distribution system. If this happens, bleeding of the fuel system may be necessary. Use qualified personnel to do this per the instructions in the MAINTENANCE section of this manual.

Codes 11214

D300K 3+3

B-2

OPERATION

B-2

BREAK-IN PERIOD

Lincoln Electric selects high quality, heavy-duty industrial engines for the portable welding machines we offer. While it is normal to see a small amount of crankcase oil consumption during initial operation, excessive oil use, wet stacking (oil or tar like substance at the exhaust port), or excessive smoke is not normal.

Larger machines with a capacity of 350 amperes and higher, which are operated at low or no-load conditions for extended periods of time are especially susceptible to the conditions described above. To accomplish successful engine break-in, most dieselpowered equipment needs only to be run at a reasonably heavy load within the rating of the welder for some period of time during the engineʼs early life. However, if the welder is subjected to extensive light loading, occasional moderate to heavy loading of the engine may sometimes be necessary. Caution must be observed in correctly loading a diesel/generator unit.

1. Connect the welder output studs to a suitable resistive load bank. Note that any attempt to short the output studs by connecting the welding leads together, direct shorting of the output studs, or connecting the output leads to a length of steel will result in catastrophic damage to the generator and voids the warranty.

2. Set the welder controls for an output current and voltage within the welder rating and duty cycle. Note that any attempt to exceed the welder rating or duty cycle for any period of time will result in catastrophic damage to the generator and voids the warranty.

3. Periodically shut off the engine and check the

crankcase oil level.

WELDER OPERATION

WARNING

ELECTRIC SHOCK can kill.

• Do not touch electrically live parts or electrode with skin or wet clothing.

• Insulate yourself from work and ground.

FUMES & GASES can be dangerous.

• Keep your head out of the fumes.

• Use ventilation or exhaust to remove fumes from breathing zone.

WELDING SPARKS can cause fire or explosion.

• Keep flammable material away.

ARC RAYS can burn.

• Wear eye, ear, and body protection.

Duty Cycle

The output rating of the D300K 3+3 is 250 amperes at 40 arc volts on on a ten minute period; thus, the welder can be loaded at rated output for six minutes out of every ten minute period.

a 60% duty cycle

. Duty cycle is based

Control of Welding Current

CAUTION

DO NOT TURN THE “CURRENT RANGE SELECTOR” WHILE WELDING because the current may arc between the contacts and damage the switch.

------------------------------------------------------------------------

The “Current Range Selector” provides five overlapping current ranges. The “Fine Current Adjustment” adjusts the current from minimum to maximum within each range. Open circuit voltage is also controlled by the “Fine Current Adjustment” permitting control of the arc characteristics.

A high open circuit voltage setting provides the soft “buttering” arc with best resistance to pop-outs preferred for most welding. To get this characteristic, set the “Current Range Selector” to the lowest setting that still provides the current you need and set the “Fine Current Adjustment” near maximum. For example: to obtain 175 amps and a soft arc, set the “Current

D300K 3+3

B-3

OPERATION

B-3

Range Selector” to the 190-120 position and then adjust the “Fine Current Adjustment” for 175 amps.

When a forceful “digging” arc is required, usually for vertical and overhead welding, use a higher “Current Range Selector” setting and lower open circuit voltage. For example: to obtain 175 amps and a forceful arc, set the “Current Range Selector” to the 240-160 position and the “Fine Current Adjustment” setting to get 175 amps.

Some arc instability may be experienced with EXX10 electrodes when trying to operate with long arc techniques at settings at the lower end of the open circuit voltage range.

CAUTION

DO NOT attempt to set the “Current Range Selector” between the five points designated on the nameplate.

------------------------------------------------------------------------

These switches have a spring loaded cam which almost eliminates the possibility of setting this switch between the designated points.

Auxiliary Power

If auxiliary power is used simultaneously with welding, the current which can be used while maintaining voltage regulation within 10% is as follows:

Welding Using Total

Current Amps 120V Auxiliary

(@ NEMA Circuit, Amps KVA

Arc Volts)

0263.0 100 16 1.8 150 15 1.7 200 15 1.7 250 14 1.6

The AC auxiliary power, supplied as standard, has a rating of 3.0 kVA of 120 VAC (60 hertz).

With the 3.0 kVA, 120 VAC auxiliary power for Code 10567, one 120V duplex grounding type receptacle is provided. The circuit is protected with circuit breakers. Codes 10956, 11214, 11488, 11549 and 12186 uses one GFCI with breaker.

The rating of 3.0 kVA permits a maximum continuous current of 26 amps that can be drawn from the 120 volt duplex receptacle. The 120 volt duplex receptacle or GFCI has a configuration which permits 20 amps to be drawn from either half. The total combined load of the duplex receptacle or GFCI is not to exceed 3.0 kVA.

If a GFCI receptacle is tripped, See the MAINTENANCE section for detailed information on testing and resetting the GFCI receptacle.

D300K 3+3

D-1

MAINTENANCE

D-1

SAFETY PRECAUTIONS

WARNING

Have qualified personnel do the maintenance work. Turn the engine off before working inside the machine. In some cases, it may be necessary to remove safety guards to perform required maintenance. Remove guards only when necessary and replace them when the maintenance requiring their removal is complete. Always use the greatest care when working near moving parts.

Do not put your hands near any rotating parts. If a problem cannot be corrected by following the instructions, take the machine to the nearest Red-D-Arc location.

-----------------------------------------------------------------------

------------------------------------------------------------------------

ELECTRIC SHOCK can kill.

Do not touch electrically live parts or

• electrode with skin or wet clothing.

• Insulate yourself from work and ground

• Always wear dry insulating gloves.

ENGINE EXHAUST can kill.

• Use in open, well ventilated areas or vent exhaust outside.

MOVING PARTS can injure.

•

Do not operate with enclosure or

guards off.

• Stop engine before servicing.

• Keep away from moving parts.

4. When necessary, remove the sediment bowl, if so equipped,

from beneath the fuel tank and clean out any accumulated dirt and water.

5. Follow the engine service schedule in this manual and the

detailed maintenance and troubleshooting in the engine manufacturerʼs manual.

Cooling System

The D300K 3+3 is equipped with a pressure radiator. Keep the radiator cap tight to prevent loss of coolant. Clean and flush the cooling system periodically to prevent clogging the passage and overheating the engine. When antifreeze is needed, always use the permanent type. Code 10567 Capacity = 1.2 qts (4.5 Ltrs.). Codes 10956, 11214, 11488, 11549 Capacity = 9.5 qts (9.0 Ltrs.).

Bearings

This welder is equipped with a double-shielded ball bearing having sufficient grease to last indefinitely under normal service. Where the welder is used constantly or in excessively dirty locations, it may be necessary to add one half ounce of grease per year. A pad of grease one inch wide, one inch long, and one inch high weighs approximately one half ounce. Overgreasing is far worse than insufficient greasing.

When greasing the bearings, keep all dirt out of the area. Wipe the fittings completely clean and use clean equipment. More bearing failures are caused by dirt introduced during greasing than from insufficient grease.

Commutator and Brushes

------------------------------------------------------------------------

See additional warning information

throughout this operatorʼs manual and the Engine manual as well.

-----------------------------------------------------------

General Instructions

1. Blow out the welder and controls with an air hose

at least once every two months. In particularly dirty locations, this cleaning may be necessary once a week. Use low pressure air to avoid driving dirt into the insulation.

2. ”Current Range Selector” contacts should not be

greased. To keep the contacts clean, rotate the current control through its entire range frequently. Good practice is to turn the handle from maximum to minimum setting twice each morning before starting to weld.

3. Put a drop of oil on the “Current Range Selector”

shaft at least once every month.

D300K 3+3

WARNING

Uncovered rotating equipment can be dangerous. Use care so your hands, hair, clothing or tools do not catch in the rotating parts. Protect yourself from particles that may be thrown out by the rotating armature when stoning the commutator.

------------------------------------------------------------------------------------

Shifting of the commutator brushes may result in:

- Change in machine output

- Commutator damage

- Excessive brush wear

Periodically inspect the commutator, slip rings, and brushes by removing the covers. DO NOT remove or replace these covers while the machine is running. Commutators and slip rings require little attention. However, if they are black or appear uneven, have them cleaned by an experienced maintenance man using fine sandpaper or a commutator stone. Never use emery cloth or paper for this purpose.

Replace brushes when they wear within 1/4” of the pigtail. A complete set of replacement brushes should be kept on hand.

D-2

Have an experienced maintenance man seat these brushes by lightly stoning the commutator as the armature rotates at full speed until contact is made across the full face of the brushes. After stoning, blow out the dust with low pressure air.

Arcing or excessive exciter brush wear indicates a possible misaligned shaft. Have an authorized Service Shop check and realign the shaft.

MAINTENANCE

Slip Rings

A slight amount of darkening and wear of the slip rings and brushes is normal. Brushes should be inspected when a general overhaul is necessary. If brushes are to be replaced, clean slip rings with a fine emery paper.

CAUTION

D-2

1. When replacing, jumping, or otherwise connecting the battery to the battery cables, the proper polarity must be observed. Failure to observe the proper polarity could result in damage to the charging circuit. The positive (+) battery cable has a red terminal cover.

2. If the battery requires charging from an external charger, disconnect the negative battery cable first and then the positive battery cable before attaching the charger leads. Failure to do so can result in damage to the internal charger components. When re-connecting the cables, connect the positive cable first and the negative cable last.

Hardware

Both English and Metric fasteners are used in this welder.

Do not attempt to polish slip rings while engine is running.

------------------------------------------------------------------------

To seat slip ring brushes, position the brushes in place. Then slide one end of a piece of fine sandpaper between slip rings and brushes with the coarse side against the brushes. With slight additional finger pressure on top of the brushes, pull the sandpaper around the circumference of the rings - in direction of rotation only - until brushes seat properly. In addition, stone slip ring with a fine stone. Brushes must be seated 100%.

Battery

WARNING

GASES FROM BATTERY can explode.

• Keep sparks, flame and cigarettes away from battery.

To prevent EXPLOSION when:

• INSTALLING A NEW BATTERY - disconnect negative cable from old battery first and connect to new battery last.

• CONNECTING A BATTERY CHARGER - Remove battery from welder by disconnecting negative cable first, then positive cable and battery clamp. When reinstalling, connect negative cable last. Keep well ventilated.

• USING A BOOSTER - connect positive lead to battery first then connect negative lead to engine foot.

BATTERY ACID CAN BURN EYES AND SKIN.

• Wear gloves and eye protection and be careful when working near battery. Follow instructions printed on battery.

--------------------------------------------------------------------------------

Nameplates

Whenever routine maintenance is performed on this machine - or at least yearly - inspect all nameplates and labels for legibility. Replace those which are no longer clear. Refer to the parts list for the replacement item number.

Purging Air from the Fuel System

WARNING

Keep fuel clear of open flames or arcs, allow engine to cool before working on the fuel system. Wipe up any spilled fuel and do not start engine until fumes clear.

------------------------------------------------------------------------

If the engine is running rough and you suspect air has been trapped in the fuel system, (EG. the engine was allowed to run out of fuel) perform the following steps using qualified personnel:

1. Verify that there is sufficient fuel in the fuel tank. (Minimum of .50” of fuel).

2. If equipped with a fuel sediment bowl be sure that the valve is open. (located on underside of fuel tank).

3. Open the air bleed screw on the fuel injection pump. Using the starter, crank the engine until engine starts. (use pre-heat if needed. DO NOT CRANK STARTER

FOR MORE THAN 1 MINUTE OUT OF 5 MINUTES.

4. Close air bleed screw when fuel is observed returning to the fuel tank. (Remove fuel cap to observe).

D300K 3+3

D-3

EVERY DAY OR EVERY 8 HOURS

FIRST SERVICE (50 HOURS)

EVERY 100 HOURS OR 3 MONTHS

EVERY 200 HOURS OR 6 MONTHS

EVERY 400 HOURS OR 12 MONTHS

EVERY 600 HOURS OR 18 MONTHS

ENGINE SERVICE (NOTE 2)

MAINTENANCE

ENGINE SERVICE

D-3

V1902 ENGINE MACHINE CODE 10567

MAINTENANCE ITEM

I = Inspect

NOTES:

(1) Consult Engine Operators Manual for oil recommendations.

(2) Consult Engine Operators Manual for additional maintenance schedule information.

(3) Fill slowly! Ensure correct quantity is used.

(4) To remove the air filter element for cleaning or replacement, the filter canister must be moved rearward toward the

radiator in order to provide clearance with the fuel tank. This is accomplished by disconnecting the rubber canister straps

and inlet pipe clamps. The air cleaner cover can then be removed and the element taken out.

Above operations to be carried out by trained personnel with reference to the workshop manual where necessary.

These preventive maintenance periods apply to average conditions of operation.

If necessary use shorter periods.

Coolant level

Concentration of antifreeze 50/50 Water/Ethylene Glycol

Coolant (NOTE 3)

Engine oil level (NOTE 1)

Engine oil (NOTE 1 & 3)

Engine oil filter

Drain water separator & fuel strainer

Fuel filter canister

Tension of alternator drive belt

Alternator drive belt wear

Alternator drive belt

Air filter (earlier check may be req'd.) (NOTE 4)

Air filter element

Check and adjust idle speed

Tighten cylinder head

Valve clearances

Electrical systems

All nuts and bolts for tightness

Injector performance

Leaks or engine damage

Battery

(NOTE 4)

R = ReplaceC = Clean

4.7 qrts, (4.5 L)

9.5 qrts, (9.0 L)

Red-D-Arc N&RFN700, Kubota 15521-3243-0, Fram PH43, Krawlinator L16

Kubota- old 70000-3450-0, new 70000-4308-0

Kubota- 15469-9701-2, Mitsubishi- REMF-6410

Kubota- 70000-1108-0, Fram-CAK253, Donaldson-P11-9775

TYPE OR QUANTITY

D300K 3+3

D-4

EVERY DAY OR EVERY 8 HOURS

FIRST SERVICE (50 HOURS)

EVERY 100 HOURS OR 3 MONTHS

EVERY 200 HOURS OR 6 MONTHS

EVERY 400 HOURS OR 12 MONTHS

EVERY 600 HOURS OR 18 MONTHS

EVERY 800 HOURS OR 24 MONTHS

ENGINE SERVICE (NOTE 2)

MAINTENANCE

ENGINE SERVICE

D-4

V1903 ENGINE MACHINE CODES 10956 11214

MAINTENANCE ITEM

I = Inspect

NOTES:

(1) Consult Engine Operators Manual for oil recommendations.

(2) Consult Engine Operators Manual for additional maintenance schedule information.

(3) Fill slowly! Ensure correct quantity is used.

(4) To remove the air filter element for cleaning or replacement, the filter canister must be moved rearward toward the

radiator in order to provide clearance with the fuel tank. This is accomplished by disconnecting the rubber canister straps

and inlet pipe clamps. The air cleaner cover can then be removed and the element taken out.

Above operations to be carried out by trained personnel with reference to the workshop manual where necessary.

These preventive maintenance periods apply to average conditions of operation.

If necessary use shorter periods.

Coolant level

Concentration of antifreeze 50/50 Water/Ethylene Glycol

Coolant (NOTE 3)

Engine oil level (NOTE 1)

Engine oil (NOTE 1 & 3)

Engine oil filter

Drain water separator & fuel strainer Kubota- 15831-43353

Fuel filter canister

Tension of alternator drive belt

Alternator drive belt wear

Alternator drive belt

Air filter (earlier check may be req'd.) (NOTE 4)

Air filter element

Check and adjust idle speed

Tighten cylinder head

Valve clearances

Electrical systems

All nuts and bolts for tightness

Injector performance

Leaks or engine damage

Battery

(NOTE 4)

R = ReplaceC = Clean

3.9 qrts, (3.7 L)

10.2 qrts, (9.7 L)

Kubota- 16414-32432

Kubota- 16631-43562

Kubota- 15469-97012

Donaldson- P821575

TYPE OR QUANTITY

D300K 3+3

D-5

ENGINE SERVICE

EVERY DAY OR EVERY 8 HOURS

FIRST SERVICE (50 HOURS)

EVERY 100 HOURS OR 3 MONTHS

EVERY 200 HOURS OR 6 MONTHS

EVERY 400 HOURS OR 12 MONTHS

EVERY 600 HOURS OR 18 MONTHS

EVERY 800 HOURS OR 24 MONTHS

ENGINE SERVICE (NOTE 2)

MAINTENANCE

V2003 ENGINE MACHINE CODES 11488, 11549, 12186

D-5

MAINTENANCE ITEM

I = Inspect

NOTES:

(1) Consult Engine Operators Manual for oil recommendations.

(2) Consult Engine Operators Manual for additional maintenance schedule information.

(3) Fill slowly! Ensure correct quantity is used.

(4) To remove the air filter element for cleaning or replacement, the filter canister must be moved rearward toward the radiator in order to provide clearance with the fuel tank. This is accomplished by disconnecting the rubber canister straps and inlet pipe clamps. The air cleaner cover can then be removed and the element taken out.

Above operations to be carried out by trained personnel with reference to the workshop manual where necessary.

These preventive maintenance periods apply to average conditions of operation.

If necessary use shorter periods.

Coolant level

Concentration of antifreeze 50/50 Water/Ethylene Glycol

Coolant (NOTE 3)

Engine oil level (NOTE 1)

Engine oil (NOTE 1 & 3)

Engine oil filter

9.5 qrts, (9.0 L)

Kubota- 16414-32432

Drain water separator & fuel strainer Kubota- 15831-43353 Fuel filter canister

Tension of alternator drive belt

Alternator drive belt wear

Alternator drive belt

Air filter (earlier check may be req'd.) (NOTE 4)

Air filter element

Check and adjust idle speed

Tighten cylinder head

Valve clearances

Electrical systems

All nuts and bolts for tightness

Injector performance

Leaks or engine damage

Battery

(NOTE 4)

R = ReplaceC = Clean

Kubota- 16631-43562

Kubota- 17480-97010

Donaldson- P821575

TYPE OR QUANTITY

D300K 3+3

D-6

MAINTENANCE

GFCI RECEPTACLE TESTING AND RESETTING PROCEDURE

The GFCI receptacle should be properly tested at least once every month or whenever it is tripped. To properly test and reset the GFCI receptacle:

• If the receptacle has tripped, first carefully remove any load and check it for damage.

• If the equipment has been shut down, it must be restarted.

• The equipment needs to be operating at high idle speed and any necessary adjustments made on the control panel so that the equipment is providing at least 80 volts to the receptacle input terminals.

• The circuit breaker for this receptacle must not be tripped. Reset if necessary.

• Push the "Reset" button located on the GFCI receptacle. This will assure normal GFCI operation.

• Plug a night-light (with an "ON/OFF" switch) or other product (such as a lamp) into the GFCI receptacle and turn the product "ON".

• Push the "Test" button located on the GFCI receptacle. The night-light or other product should go "OFF".

• Push the "Reset" button, again. The light or other product should go "ON" again.

D-6

If the light or other product remains "ON" when the "Test" button is pushed, the GFCI is not working properly or has been incorrectly installed (mis-wired). If your GFCI is not working properly, contact a qualified, certified electrician who can assess the situation, rewire the GFCI if necessary or replace the device.

D300K 3+3

E-1

TROUBLESHOOTING

HOW TO USE TROUBLESHOOTING GUIDE

WARNING

Service and Repair should only be performed by Factory Trained Personnel. Unauthorized repairs performed on this equipment may result in danger to the technician and machine operator and will invalidate your factory warranty. For your safety and to avoid Electrical Shock, please observe all safety notes and precautions detailed throughout this manual.

__________________________________________________________________________

E-1

This Troubleshooting Guide is provided to help you locate and repair possible machine malfunctions. Simply follow the three-step procedure listed below.

Step 1. LOCATE PROBLEM (SYMPTOM).

Look under the column labeled “PROBLEM (SYMPTOMS)”. This column describes possible symptoms that the machine may exhibit. Find the listing that best describes the symptom that the machine is exhibiting.

Step 2. POSSIBLE CAUSE.

The second column labeled “POSSIBLE CAUSE” lists the obvious external possibilities that may contribute to the machine symptom.

Step 3. RECOMMENDED COURSE OF ACTION

This column provides a course of action for the Possible Cause, generally it states to contact your local Authorized Field Service Facility.

If you do not understand or are unable to perform the Recommended Course of Action safely, contact your local Authorized Field Service Facility.

CAUTION

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your

Local Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

D300K 3+3

E-2

PROBLEMS

(SYMPTOMS)

TROUBLESHOOTING

Observe all Safety Guidelines detailed throughout this manual

WELDER TROUBLESHOOTING

POSSIBLE

CAUSE

RECOMMENDED

COURSE OF ACTION

E-2

Machine fails to hold the heat consistently.

Welder starts but fails to generate current.

1. Rough or dirty commutator. Commutator should be turned or cleaned.

2. Brushes may be worn down to limit. Replace brushes.

3. Field circuit may have variable resistance connection or intermittent open circuit due to loose connection or broken wire. Check field current with ammeter to discover varying current. This applies to both the main generator and exciter.

4. Electrode lead or work lead connection may be poor. Tighten all connections.

5. Wrong grade of brushes may have been installed on generator. Use proper brushes.

6. Field rheostat may be making poor contact and overheating. Inspect and clean the rheostat.

1. Generator or exciter brushes may be loose or missing. Be sure that all brushes bear on the commutator and have proper spring tension.

If all recommended possible areas of misadjustment have been checked and the problem persists, Contact

your local Authorized Field Service Facility.

2. Exciter may not be operating. Check exciter output voltage with voltmeter or lamp.

3. Field circuit of generator or exciter may be open. Check for open circuits in rheostat, field leads, and field coils. Check rectifier bridge and fuses.

4. Exciter may have lost excitation. Flash fields. (1) Check flashing diode at 5 oʼclock brush holder in generator.

5. Series field and armature circuit may be open-circuited. Check circuit with ringer or voltmeter.

CAUTION

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your

Local Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

D300K 3+3

E-3

Observe all Safety Guidelines detailed throughout this manual

(1) FLASHING THE FIELDS:

1. Stop the engine welder and remove the cover from the exciter.

2. Turn the “Fine Current Adjustment” (rheostat) to “100” on the dial.

3. Using a 12 volt automotive battery, connect itʼs negative terminal to the negative brush holder. The negative brush holder is the one nearest to the rotor lamination. See the wiring diagram. With the engine NOT running, touch the positive battery terminal to the positive brush holder. Remove the battery from the circuit.

4. Replace the exciter cover. Start the welder and the generator voltage should build up.

TROUBLESHOOTING

WELDER TROUBLESHOOTING

E-3

PROBLEMS

(SYMPTOMS)

Welding arc is loud and spatters

excessively.

Welding current too great or too small compared to indication on the dial.

Arc continuously pops out.

POSSIBLE

CAUSE

1. Current setting may be too high. Check setting and current output with ammeter.

2. Polarity may be wrong. Check polarity. Try reversing polarity or try an electrode of the opposite polarity.

1. Exciter output low causing low output compared to indication. Check exciter field circuit.

2. Operating speed too low or too high. Adjust speed screw on governor. (High idle - 1800 RPM)

1. “Current Range Selector” switch may be set at an intermediate position. Set the switch at the center of the current range set at an intermediate position desired.

RECOMMENDED

COURSE OF ACTION

If all recommended possible areas of misadjustment have been checked and the problem persists, Contact

your local Authorized Field Service Facility.

CAUTION

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your

Local Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

D300K 3+3

E-4

TROUBLESHOOTING

Observe all Safety Guidelines detailed throughout this manual

ENGINE TROUBLESHOOTING

E-4

PROBLEMS

(SYMPTOMS)

Engine does not start.

POSSIBLE

CAUSE

1. Faulty Ignition switch and or Injector pump solenoid. Correct the connection and contact.

Insufficient charging or complete dis-

2. charge of the battery.

3. Lack of fuel. Supply fuel.

4. Air mixed in the fuel system. Bleed air (To be done by qualified personnel only)

5. Clogged fuel filter. Replace.

6. Irregular and faulty fuel supply (Injector pump trouble). Repair in an authorized field service shop.

7. Glow plug not heated. Breakage of the glow plug; replace.

8. Improper viscosity of the lubricating oil. Inspect and replace.

9. Clogged air cleaner. Clean or replace.

Charge.

RECOMMENDED

COURSE OF ACTION

If all recommended possible areas of misadjustment have been checked and the problem persists, Contact

your local Authorized Field Service Facility.

Irregular running of the engine.

10. No compression. Repair in a field

service shop.

1. Air mixed in the fuel system. Bleed air (To be done by qualified personnel only).

2. Uneven fuel injection (Faulty fuel injector pump). Repair in an authorized field service shop.

3. Clogged fuel filter. Replace.

4. Defective governor. Check and correct.

5. Engine itself defective. Repair in an authorized field service shop.

CAUTION

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your

Local Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

D300K 3+3

E-5

TROUBLESHOOTING

Observe all Safety Guidelines detailed throughout this manual

ENGINE TROUBLESHOOTING

E-5

PROBLEMS

(SYMPTOMS)

Engine stops during operation.

(White or Blue) Smoke.

Dark Grey Smoke.

POSSIBLE

CAUSE

1. Lack of fuel in the fuel tank. fuel and bleed air (To be done by qualified personnel only)

2. Clogged fuel filter. Replace.

3. Air mixed in the fuel system. Bleed air (To be done by qualified personnel only).

4. Faulty function of the engine. Repair in a service shop.

1. Excess engine oil.Inspect and correct the level.

2. Too low viscosity of the engine oil. Inspect and replace the oil with proper grade.

3. Faulty injection timing. Repair in a service shop.

1. Unsuitable fuel. Inspect and replace with correct grade.

2. Excess injection. Inspect and adjust (in a field service shop).

Supply

RECOMMENDED

COURSE OF ACTION

If all recommended possible areas of misadjustment have been checked and the problem persists, Contact

your local Authorized Field Service Facility.

Faulty Charging.

Starter Motor does not run.

3. Faulty function of the engine. Repair in a field service shop.

4. Overloading. Reduce the load.

5. Clogged air cleaner. Clean.

1. Loose fan belt. Correct the tension.

2. Faulty wiring. Inspect and correct.

3. Faulty battery. Repair.

4. Worn out alternator brush. Replace.

1. Loose or damaged wiring. Inspect and tighten.

2. Dropped voltage of the battery. Charge the battery.

3. Damaged starter motor (including solenoid). Repair in a field service shop.

CAUTION

If for any reason you do not understand the test procedures or are unable to perform the tests/repairs safely, contact your

Local Authorized Field Service Facility for technical troubleshooting assistance before you proceed.

D300K 3+3

F-1

DIAGRAMS

F-1

D300K 3+3

NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside the

machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number.

F-2

DIAGRAMS

F-2

D300K 3+3

NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside the

machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number.

F-3

DIAGRAMS

F-3

-W

ROTOR

ALTERNATOR

SLIP RINGS

602B

600A

610

600B

610A

600C

SLIP RING

NEAREST

TO IRON

215

214

15A

FUSE

HOT

LOAD

WHITE LOAD

HOT

LINE

WHITE LINE

REMOTE / LOCAL

RECEPTACLE

ALTERNATOR

AUXILIARY

POWER

WINDINGS

11B

820

810

20A

CB1

GND-T

GND-S

GROUND SCREW

SWITCH

SELECTOR

GENERATOR

PLUG

LOCAL

RHEOSTAT

WELDER

-W

LEAD BLOCK

(CC+) & (CV+ WITH W .F.M.)

POSITIVE

(CC-)

NEGATIVE

456

DIODE PLUG ASSEMBLY

LEAD COLOR CODE

10 11

P10

R-RED

U-BLUE

W-WHITE

Y-YELLOW

N-BROWN

G-GREEN

B-BLACK

A.01

L13317

* LEADS CONNECTED TO ENGINE CONTROL UNIT, SEE DETAIL

CONTROL PANEL COMPONENTS SHOWN AS VIEWED FROM REAR

KUBOTA 3+3 WIRING DIAGRAM FOR CODE 11488

34 25 17

CONNECTOR DETAIL

ENGINE CONTROL UNIT

NEUTRE RACCORDE AU BATI

NEUTRAL BONDED TO FRAME

51B

GLOW PLUGS

212D

GAUGES

NEAR ENGINE

GND SCREW

*51B

STARTING

*69

TEMP.

SENSOR

WATER

60A

*93

*60F

ALTERNATOR

212E

AMMETER

MOTOR

SENSOR

SPEED

ENGINE

*94

841A



N.O.

SWITCH(N.O.)

OIL PRESSURE

N.C.

50A

TO ENGINE

GROUND



WIRE FEED MODULE (OPTIONAL)

ON MACHINE, REMOVE PLUG "P10" FRO M CONNECTOR "J5".

CONNECT PLUG "P5" ON W.F.M. TO CONNECTOR "J5" ON MACHINE.

TO BASE

GROUND

BATTERY

WIRE

FEED

MODULE

#8 LEAD

PLUG

(P5)

#2 HEAVY LEAD

NEG.

POS.

#2 HEAVY LEAD

609

MACHINE MUST NOT BE RUNNING

608

WHEN MAKING T HESE CONNECTIONS.



ASSEMBLY

250 AMP

INLINE

CONNECTORS

CONNECT TO POS. & NEG.

OUTPUT TERMINALS

NEGATIVE CV

OUTPUT TERMINAL

CONTROL

W.F.M.

PANEL

THERMOSTAT

BRUSH HOLDER

CONNECT TO NEG.

TEMP

GAUGE

WATER

ACTUATOR

TEMP.SWITCH

* 44

60E

18 10

60F

52B

* 57

ENGINE

RUN

*52B

* 56

HOUR

225

*60E

TEMP.

SENDER

METER

GLOW

START

*64

841

*212D

D300K 3+3

NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside the

machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number.

F-4

DIAGRAMS

MOV

R-RED

U-BLUE

W-WHITE

Y-YELLOW

LEAD COL OR CODE

B-BLACK

G-GREEN

N-BROW N

P10

43 5 6 7

9 10

11 12

400E

400D

602C

602B

ALTERNATOR ROTOR

SLIP

RINGS

612

600A

610

600B

610A

600C

SLIP RING

NEAREST

REMOTE / LOCAL

215

15A

FUSE

TO IRON

SELECTOR

RECEPTACLE

ALTERNATOR

214

810

SWITCH

POWER

WINDINGS

AUXILIARY

820

11B

LOCAL

RHEOSTAT

32 4

PLUG

GENERATOR

WELDER

LEAD BLOCK

BRUSH

HOLDERS

POSITIVE

(CC+) & (CV+ WITH W.F.M.)

(CC-)

NEGATIVE

N N

F-4

M22541

KUBOTA 3+3 WIRING DIAGRAM CODE 11549, 12186

25 17

CONNECT OR DETAIL

ENGINE CONTROL UNIT

20A

CB1

400E

HOT

LOAD

WHITE LOAD

HOT

LINE

WHITE LINE

400D

NEUTRAL BONDED TO FRAME

NEUTRE RACCORDE AU BATI

NOTE: LEAD 70A IS LEFT OPEN AND WIRE TIED INTO HARNESS.

LEADS CONNECTED TO ENGINE CONTROL UNIT, SEE DETAIL

CONTROL PANEL COMPONENTS SHOWN AS VIEWED FROM REAR

51B

212D

SWITCH

TEMPERATURE

60E

70A

52B

GLOW PLUGS

60F

* 44

ACTUATOR

* 57

* 56

18 10

HOUR

METER

ENGINE

(Y)

GLOW

RUN

*52B

*212D

TEMP

WATER

225

*64

(N)

START

841

GND

GAUGE

SCREW

*60E

TEMP

SENDER

ALTERNATOR

212E

*51B

AMMETER

MOTOR

STARTING

*60F

841A

50A

NEAR

(U)

820A

GND-S

ENGINE

GAUGES

*93

GROUND SCREW

*69

TEMP

WATER

SENSOR

60A

SPEED

ENGINE

SENSOR

*94

WIRE

FEED

MODULE

#8 LEAD

#2 HEAVY LEAD

608

PANEL

#2 HEAVY LEAD

609

MACHINE MUST NOT BE RUNNING

WHEN MAKING THESE CONNECTIONS.

250 AMP THERMOSTAT

ASSEMBLY

CONNECT TO NEG

BRUSH HOLDER

N.O.

N.C.

OIL PRESSURE SWITCH

BATTERY

GROUND

TO ENGINE

TO BASE

GROUND

PLUG (P5)

NEG

POS

WIRE FEED MODULE (OPTIONAL)

ON MACHINE, REMOVE PL UG "P10" FROM CONNECTOR "J5"

CONNECT PLUG "P5" ON W.F.M. TO CONNECTOR "J5" ON MACHINE

CONNECT TO POS & NEG

NEGATI VE CV

OUTPUT TERMINAL

OUTPUT T ERMINALS

W.F.M.

PANEL

CONTROL

INLINE CONNE CTORS

D300K 3+3

NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside the

machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number.

NOTES

D300K 3+3

 Keep your head out of fumes.  Use ventilation or exhaust to

remove fumes from breathing zone.

 Turn power off before servicing.

 Do not operate with panel open or

guards off.

WARNING

 Los humos fuera de la zona de res-

piración.

 Mantenga la cabeza fuera de los

humos. Utilice ventilación o aspiración para gases.

 Gardez la tête à l’écart des fumées.  Utilisez un ventilateur ou un aspira-

teur pour ôter les fumées des zones de travail.

 Vermeiden Sie das Einatmen von

Schweibrauch!

 Sorgen Sie für gute Be- und

Entlüftung des Arbeitsplatzes!

 Mantenha seu rosto da fumaça.  Use ventilação e exhaustão para

remover fumo da zona respiratória.

 Desconectar el cable de ali-

mentación de poder de la máquina antes de iniciar cualquier servicio.

 Débranchez le courant avant l’entre-

tien.

 Strom vor Wartungsarbeiten

abschalten! (Netzstrom völlig öffnen; Maschine anhalten!)

 Não opere com as tampas removidas.  Desligue a corrente antes de fazer

serviço.

 Não toque as partes elétricas nuas.

 No operar con panel abierto o

guardas quitadas.

 N’opérez pas avec les panneaux

ouverts ou avec les dispositifs de protection enlevés.

 Anlage nie ohne Schutzgehäuse

oder Innenschutzverkleidung in Betrieb setzen!

 Mantenha-se afastado das partes

moventes.

 Não opere com os paineis abertos

ou guardas removidas.

Spanish

AVISO DE

PRECAUCION

French

ATTENTION

German

WARNUNG

Portuguese

ATENÇÃO

Japanese

Chinese

Korean

Arabic

LEIA E COMPREENDA AS INSTRUÇÕES DO FABRICANTE PARA ESTE EQUIPAMENTO E AS PARTES DE USO, E SIGA AS PRÁTICAS DE SEGURANÇA DO EMPREGADOR.

WARNING

Spanish

AVISO DE

PRECAUCION

 Do not touch electrically live parts or

electrode with skin or wet clothing.

 Insulate yourself from work and

ground.

 No toque las partes o los electrodos

bajo carga con la piel o ropa mojada.

 Aislese del trabajo y de la tierra.

 Keep flammable materials away.

 Mantenga el material combustible

fuera del área de trabajo.

 Wear eye, ear and body protection.

 Protéjase los ojos, los oídos y el

cuerpo.

French

ATTENTION

German

WARNUNG

Portuguese

ATENÇÃO

Japanese

Chinese

Korean

Arabic

 Ne laissez ni la peau ni des vête-

ments mouillés entrer en contact avec des pièces sous tension.

 Isolez-vous du travail et de la terre.

 Berühren Sie keine stromführenden

Teile oder Elektroden mit Ihrem Körper oder feuchter Kleidung!

 Isolieren Sie sich von den

Elektroden und dem Erdboden!

 Não toque partes elétricas e elec-

trodos com a pele ou roupa molhada.

 Isole-se da peça e terra.

 Gardez à l’écart de tout matériel

inflammable.

 Entfernen Sie brennbarres Material!

 Mantenha inflamáveis bem guarda-

dos.

 Protégez vos yeux, vos oreilles et

votre corps.

 Tragen Sie Augen-, Ohren- und Kör-

perschutz!

 Use proteção para a vista, ouvido e

corpo.

READ AND UNDERSTAND THE MANUFACTURER’S INSTRUCTION FOR THIS EQUIPMENT AND THE CONSUMABLES TO BE USED AND FOLLOW YOUR EMPLOYER’S SAFETY PRACTICES.

SE RECOMIENDA LEER Y ENTENDER LAS INSTRUCCIONES DEL FABRICANTE PARA EL USO DE ESTE EQUIPO Y LOS CONSUMIBLES QUE VA A UTILIZAR, SIGA LAS MEDIDAS DE SEGURIDAD DE SU SUPERVISOR.

LISEZ ET COMPRENEZ LES INSTRUCTIONS DU FABRICANT EN CE QUI REGARDE CET EQUIPMENT ET LES PRODUITS A ETRE EMPLOYES ET SUIVEZ LES PROCEDURES DE SECURITE DE VOTRE EMPLOYEUR.

LESEN SIE UND BEFOLGEN SIE DIE BETRIEBSANLEITUNG DER ANLAGE UND DEN ELEKTRODENEINSATZ DES HERSTELLERS. DIE UNFALLVERHÜTUNGSVORSCHRIFTEN DES ARBEITGEBERS SIND EBENFALLS ZU BEACHTEN.
