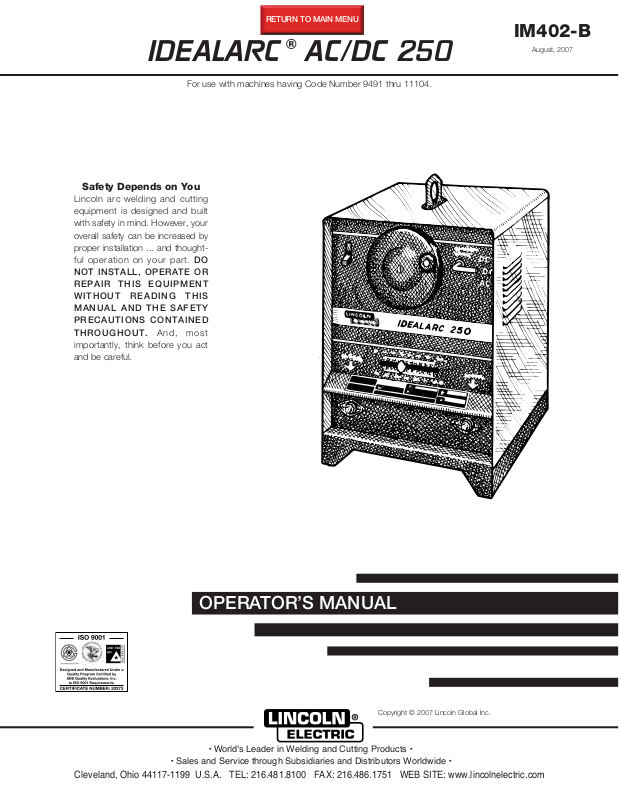

Page 1
IDEALARC
RETURN TO MAIN MENU
For use with machines having Code Number 9491 thru 11104.
Safety Depends on You
Lincoln arc welding and cutting
equipment is designed and built
with safety in mind. However, your
overall safety can be increased by
proper installation ... and thoughtful operation on your part. DO
NOT INSTALL, OPERATE OR
REPAIR THIS EQUIPMENT
WITHOUT READING THIS
MANUAL AND THE SAFETY
PRECAUTIONS CONTAINED
THROUGHOUT. And, most
importantly, think before you act
and be careful.
®
AC/DC 250
IM402-B
August, 2007
Cleveland, Ohio 44117-1199 U.S.A. TEL: 216.481.8100 FAX: 216.486.1751 WEB SITE: www.lincolnelectric.com
OPERATOR’S MANUAL
Copyright © 2007 Lincoln Global Inc.
• World's Leader in Welding and Cutting Products •
• Sales and Service through Subsidiaries and Distributors Worldwide •
Page 2
i
SAFETY
WARNING
CALIFORNIA PROPOSITION 65 WARNINGS
Diesel engine exhaust and some of its constituents
are known to the State of California to cause cancer, birth defects, and other reproductive harm.
The Above For Diesel Engines
ARC WELDING CAN BE HAZARDOUS. PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH.
KEEP CHILDREN AWAY. PACEMAKER WEARERS SHOULD CONSULT WITH THEIR DOCTOR BEFORE OPERATING.
Read and understand the following safety highlights. For additional safety information, it is strongly recommended that you
purchase a copy of “Safety in Welding & Cutting - ANSI Standard Z49.1” from the American Welding Society, P.O. Box
351040, Miami, Florida 33135 or CSA Standard W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available
from the Lincoln Electric Company, 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.
BE SURE THAT ALL INSTALLATION, OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE
PERFORMED ONLY BY QUALIFIED INDIVIDUALS.
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
The Above For Gasoline Engines
i
FOR ENGINE
powered equipment.
1.a. Turn the engine off before troubleshooting and maintenance
work unless the maintenance work requires it to be running.
____________________________________________________
1.b. Operate engines in open, well-ventilated
areas or vent the engine exhaust fumes
outdoors.
____________________________________________________
1.c. Do not add the fuel near an open flame
welding arc or when the engine is running.
Stop the engine and allow it to cool before
refueling to prevent spilled fuel from vaporizing on contact with hot engine parts and
igniting. Do not spill fuel when filling tank. If
fuel is spilled, wipe it up and do not start
engine until fumes have been eliminated.
____________________________________________________
1.d. Keep all equipment safety guards, covers and devices in
position and in good repair.Keep hands, hair, clothing and
tools away from V-belts, gears, fans and all other moving
parts when starting, operating or repairing equipment.
____________________________________________________
1.e. In some cases it may be necessary to remove safety
guards to perform required maintenance. Remove
guards only when necessary and replace them when the
maintenance requiring their removal is complete.
Always use the greatest care when working near moving
parts.
___________________________________________________
1.f. Do not put your hands near the engine fan.
Do not attempt to override the governor or
idler by pushing on the throttle control rods
while the engine is running.
1.h. To avoid scalding, do not remove the
radiator pressure cap when the engine is
hot.
ELECTRIC AND
MAGNETIC FIELDS
may be dangerous
2.a. Electric current flowing through any conductor causes
localized Electric and Magnetic Fields (EMF). Welding
current creates EMF fields around welding cables and
welding machines
2.b. EMF fields may interfere with some pacemakers, and
welders having a pacemaker should consult their physician
before welding.
2.c. Exposure to EMF fields in welding may have other health
effects which are now not known.
2.d. All welders should use the following procedures in order to
minimize exposure to EMF fields from the welding circuit:
2.d.1.
Route the electrode and work cables together - Secure
them with tape when possible.
2.d.2.Never coil the electrode lead around your body.
2.d.3. Do not place your body between the electrode and
work cables. If the electrode cable is on your right
side, the work cable should also be on your right side.
___________________________________________________
1.g. To prevent accidentally starting gasoline engines while
turning the engine or welding generator during maintenance
work, disconnect the spark plug wires, distributor cap or
magneto wire as appropriate.
2.d.4. Connect the work cable to the workpiece as close as
possible to the area being welded.
2.d.5. Do not work next to welding power source.
Mar ʻ95
Page 3
ii
SAFETY
ii
ELECTRIC SHOCK can
kill.
3.a. The electrode and work (or ground) circuits
are electrically “hot” when the welder is on.
Do not touch these “hot” parts with your bare
skin or wet clothing. Wear dry, hole-free
gloves to insulate hands.
3.b. Insulate yourself from work and ground using dry insulation.
Make certain the insulation is large enough to cover your full
area of physical contact with work and ground.
In addition to the normal safety precautions, if welding
must be performed under electrically hazardous
conditions (in damp locations or while wearing wet
clothing; on metal structures such as floors, gratings or
scaffolds; when in cramped positions such as sitting,
kneeling or lying, if there is a high risk of unavoidable or
accidental contact with the workpiece or ground) use
the following equipment:
• Semiautomatic DC Constant Voltage (Wire) Welder.
• DC Manual (Stick) Welder.
• AC Welder with Reduced Voltage Control.
3.c. In semiautomatic or automatic wire welding, the electrode,
electrode reel, welding head, nozzle or semiautomatic
welding gun are also electrically “hot”.
3.d. Always be sure the work cable makes a good electrical
connection with the metal being welded. The connection
should be as close as possible to the area being welded.
3.e. Ground the work or metal to be welded to a good electrical
(earth) ground.
3.f.
Maintain the electrode holder, work clamp, welding cable and
welding machine in good, safe operating condition. Replace
damaged insulation.
3.g. Never dip the electrode in water for cooling.
3.h. Never simultaneously touch electrically “hot” parts of
electrode holders connected to two welders because voltage
between the two can be the total of the open circuit voltage
of both welders.
3.i. When working above floor level, use a safety belt to protect
yourself from a fall should you get a shock.
3.j. Also see Items 6.c. and 8.
ARC RAYS can burn.
4.a. Use a shield with the proper filter and cover
plates to protect your eyes from sparks and
the rays of the arc when welding or observing
open arc welding. Headshield and filter lens
should conform to ANSI Z87. I standards.
4.b. Use suitable clothing made from durable flame-resistant
material to protect your skin and that of your helpers from
the arc rays.
4.c. Protect other nearby personnel with suitable, non-flammable
screening and/or warn them not to watch the arc nor expose
themselves to the arc rays or to hot spatter or metal.
FUMES AND GASES
can be dangerous.
5.a. Welding may produce fumes and gases
hazardous to health. Avoid breathing these
fumes and gases. When welding, keep
your head out of the fume. Use enough
ventilation and/or exhaust at the arc to keep
fumes and gases away from the breathing zone. When
welding with electrodes which require special
ventilation such as stainless or hard facing (see
instructions on container or MSDS) or on lead or
cadmium plated steel and other metals or coatings
which produce highly toxic fumes, keep exposure as
low as possible and below Threshold Limit Values (TLV)
using local exhaust or mechanical ventilation. In
confined spaces or in some circumstances, outdoors, a
respirator may be required. Additional precautions are
also required when welding on galvanized steel.
5. b. The operation of welding fume control equipment is affected
by various factors including proper use and positioning of
the equipment, maintenance of the equipment and the specific welding procedure and application involved. Worker
exposure level should be checked upon installation and
periodically thereafter to be certain it is within applicable
OSHA PEL and ACGIH TLV limits.
5.c.
Do not weld in locations near chlorinated hydrocarbon
coming from degreasing, cleaning or spraying operations.
The heat and rays of the arc can react with solvent vapors
form phosgene, a highly toxic gas, and other irritating products.
5.d. Shielding gases used for arc welding can displace air and
cause injury or death. Always use enough ventilation,
especially in confined areas, to insure breathing air is safe.
vapors
to
5.e. Read and understand the manufacturerʼs instructions for this
equipment and the consumables to be used, including the
material safety data sheet (MSDS) and follow your
employerʼs safety practices. MSDS forms are available from
your welding distributor or from the manufacturer.
5.f. Also see item 1.b.
AUG 06
Page 4
iii
SAFETY
iii
WELDING and CUTTING
SPARKS can
cause fire or explosion.
6.a.
Remove fire hazards from the welding area.
If this is not possible, cover them to prevent
Remember that welding sparks and hot
materials from welding can easily go through small cracks
and openings to adjacent areas. Avoid welding near
hydraulic lines. Have a fire extinguisher readily available.
6.b. Where compressed gases are to be used at the job site,
special precautions should be used to prevent hazardous
situations. Refer to “Safety in Welding and Cutting” (ANSI
Standard Z49.1) and the operating information for the
equipment being used.
6.c. When not welding, make certain no part of the electrode
circuit is touching the work or ground. Accidental contact
can cause overheating and create a fire hazard.
6.d. Do not heat, cut or weld tanks, drums or containers until the
proper steps have been taken to insure that such procedures
will not cause flammable or toxic vapors from substances
inside. They can cause an explosion even
been “cleaned”. For information, purchase “Recommended
Safe Practices for the
Containers and Piping That Have Held Hazardous
Substances”, AWS F4.1 from the American Welding Society
(see address above).
6.e. Vent hollow castings or containers before heating, cutting or
welding. They may explode.
Sparks and spatter are thrown from the welding arc. Wear oil
6.f.
free protective garments such as leather gloves, heavy shirt,
cuffless trousers, high shoes and a cap over your hair. Wear
ear plugs when welding out of position or in confined places.
Always wear safety glasses with side shields when in a
welding area.
6.g. Connect the work cable to the work as close to the welding
area as practical. Work cables connected to the building
framework or other locations away from the welding area
increase the possibility of the welding current passing
through lifting chains, crane cables or other alternate circuits. This can create fire hazards or overheat lifting chains
or cables until they fail.
6.h. Also see item 1.c.
the welding sparks from starting a fire.
though
they have
Preparation
for Welding and Cutting of
CYLINDER may explode
if damaged.
7.a. Use only compressed gas cylinders
containing the correct shielding gas for the
process used and properly operating
regulators designed for the gas and
pressure used. All hoses, fittings, etc. should be suitable for
the application and maintained in good condition.
7.b. Always keep cylinders in an upright position securely
chained to an undercarriage or fixed support.
7.c. Cylinders should be located:
• Away from areas where they may be struck or subjected to
physical damage.
• A safe distance from arc welding or cutting operations and
any other source of heat, sparks, or flame.
7.d. Never allow the electrode, electrode holder or any other
electrically “hot” parts to touch a cylinder.
7.e. Keep your head and face away from the cylinder valve outlet
when opening the cylinder valve.
7.f. Valve protection caps should always be in place and hand
tight except when the cylinder is in use or connected for
use.
7.g. Read and follow the instructions on compressed gas
cylinders, associated equipment, and CGA publication P-l,
“Precautions for Safe Handling of Compressed Gases in
Cylinders,” available from the Compressed Gas Association
1235 Jefferson Davis Highway, Arlington, VA 22202.
FOR ELECTRICALLY
powered equipment.
8.a. Turn off input power using the disconnect
switch at the fuse box before working on
the equipment.
8.b. Install equipment in accordance with the U.S. National
Electrical Code, all local codes and the manufacturerʼs
recommendations.
8.c. Ground the equipment in accordance with the U.S. National
Electrical Code and the manufacturerʼs recommendations.
6.I. Read and follow NFPA 51B “ Standard for Fire Prevention
During Welding, Cutting and Other Hot Work”, available
from NFPA, 1 Batterymarch Park,PO box 9101, Quincy, Ma
022690-9101.
6.j. Do not use a welding power source for pipe thawing.
Jan, 07
Page 5
iv
SAFETY
iv
PRÉCAUTIONS DE SÛRETÉ
Pour votre propre protection lire et observer toutes les instructions
et les précautions de sûreté specifiques qui parraissent dans ce
manuel aussi bien que les précautions de sûreté générales suivantes:
Sûreté Pour Soudage A LʼArc
1. Protegez-vous contre la secousse électrique:
a. Les circuits à lʼélectrode et à la piéce sont sous tension
quand la machine à souder est en marche. Eviter toujours
tout contact entre les parties sous tension et la peau nue
ou les vétements mouillés. Porter des gants secs et sans
trous pour isoler les mains.
b. Faire trés attention de bien sʼisoler de la masse quand on
soude dans des endroits humides, ou sur un plancher
metallique ou des grilles metalliques, principalement dans
les positions assis ou couché pour lesquelles une grande
partie du corps peut être en contact avec la masse.
c. Maintenir le porte-électrode, la pince de masse, le câble
de soudage et la machine à souder en bon et sûr état
defonctionnement.
d.Ne jamais plonger le porte-électrode dans lʼeau pour le
refroidir.
e. Ne jamais toucher simultanément les parties sous tension
des porte-électrodes connectés à deux machines à souder
parce que la tension entre les deux pinces peut être le
total de la tension à vide des deux machines.
f. Si on utilise la machine à souder comme une source de
courant pour soudage semi-automatique, ces precautions
pour le porte-électrode sʼapplicuent aussi au pistolet de
soudage.
6. Eloigner les matériaux inflammables ou les recouvrir afin de
prévenir tout risque dʼincendie dû aux étincelles.
7. Quand on ne soude pas, poser la pince à une endroit isolé de
la masse. Un court-circuit accidental peut provoquer un
échauffement et un risque dʼincendie.
8. Sʼassurer que la masse est connectée le plus prés possible
de la zone de travail quʼil est pratique de le faire. Si on place
la masse sur la charpente de la construction ou dʼautres
endroits éloignés de la zone de travail, on augmente le risque
de voir passer le courant de soudage par les chaines de levage, câbles de grue, ou autres circuits. Cela peut provoquer
des risques dʼincendie ou dʼechauffement des chaines et des
câbles jusquʼà ce quʼils se rompent.
9. Assurer une ventilation suffisante dans la zone de soudage.
Ceci est particuliérement important pour le soudage de tôles
galvanisées plombées, ou cadmiées ou tout autre métal qui
produit des fumeés toxiques.
10. Ne pas souder en présence de vapeurs de chlore provenant
dʼopérations de dégraissage, nettoyage ou pistolage. La
chaleur ou les rayons de lʼarc peuvent réagir avec les vapeurs
du solvant pour produire du phosgéne (gas fortement toxique)
ou autres produits irritants.
11. Pour obtenir de plus amples renseignements sur la sûreté,
voir le code “Code for safety in welding and cutting” CSA
Standard W 117.2-1974.
2. Dans le cas de travail au dessus du niveau du sol, se protéger
contre les chutes dans le cas ou on recoit un choc. Ne jamais
enrouler le câble-électrode autour de nʼimporte quelle partie
du corps.
3. Un coup dʼarc peut être plus sévère quʼun coup de soliel,
donc:
a. Utiliser un bon masque avec un verre filtrant approprié
ainsi quʼun verre blanc afin de se protéger les yeux du rayonnement de lʼarc et des projections quand on soude ou
quand on regarde lʼarc.
b. Porter des vêtements convenables afin de protéger la
peau de soudeur et des aides contre le rayonnement de
lʻarc.
c. Protéger lʼautre personnel travaillant à proximité au
soudage à lʼaide dʼécrans appropriés et non-inflammables.
4. Des gouttes de laitier en fusion sont émises de lʼarc de
soudage. Se protéger avec des vêtements de protection libres
de lʼhuile, tels que les gants en cuir, chemise épaisse, pantalons sans revers, et chaussures montantes.
5. Toujours porter des lunettes de sécurité dans la zone de
soudage. Utiliser des lunettes avec écrans lateraux dans les
zones où lʼon pique le laitier.
PRÉCAUTIONS DE SÛRETÉ POUR
LES MACHINES À SOUDER À
TRANSFORMATEUR ET À
REDRESSEUR
1. Relier à la terre le chassis du poste conformement au code de
lʼélectricité et aux recommendations du fabricant. Le dispositif
de montage ou la piece à souder doit être branché à une
bonne mise à la terre.
2. Autant que possible, Iʼinstallation et lʼentretien du poste seront
effectués par un électricien qualifié.
3. Avant de faires des travaux à lʼinterieur de poste, la debrancher à lʼinterrupteur à la boite de fusibles.
4. Garder tous les couvercles et dispositifs de sûreté à leur
place.
Mar. ʻ93
Page 6
Thank You
vv
for selecting a QUALITY product by Lincoln Electric. We want you
to take pride in operating this Lincoln Electric Company product
••• as much pride as we have in bringing this product to you!
The business of The Lincoln Electric Company is manufacturing and selling high quality welding equipment, consumables, and cutting equipment. Our challenge is to meet the needs of our customers and to exceed their expectations. On occasion, purchasers may ask Lincoln
Electric for advice or information about their use of our products. We respond to our customers based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such information or advice. We expressly disclaim any warranty of any kind, including any warranty of fitness for any customerʼs particular purpose,
with respect to such information or advice. As a matter of practical consideration, we also cannot assume any responsibility for updating or
correcting any such information or advice once it has been given, nor does the provision of information or advice create, expand or alter any
warranty with respect to the sale of our products.
Lincoln Electric is a responsive manufacturer, but the selection and use of specific products sold by Lincoln Electric is solely within the control
of, and remains the sole responsibility of the customer. Many variables beyond the control of Lincoln Electric affect the results obtained in
applying these types of fabrication methods and service requirements.
Subject to Change – This information is accurate to the best of our knowledge at the time of printing. Please refer to www.lincolnelectric.com
for any updated information.
CUSTOMER ASSISTANCE POLICY
Please Examine Carton and Equipment For Damage Immediately
When this equipment is shipped, title passes to the purchaser upon receipt by the carrier. Consequently, Claims
for material damaged in shipment must be made by the purchaser against the transportation company at the
time the shipment is received.
Please record your equipment identification information below for future reference. This information can be
found on your machine nameplate.
Product _________________________________________________________________________________
Model Number ___________________________________________________________________________
Code Number or Date Code_________________________________________________________________
Serial Number____________________________________________________________________________
Date Purchased___________________________________________________________________________
Where Purchased_________________________________________________________________________
Whenever you request replacement parts or information on this equipment, always supply the information you
have recorded above. The code number is especially important when identifying the correct replacement parts.
On-Line Product Registration
- Register your machine with Lincoln Electric either via fax or over the Internet.
• For faxing: Complete the form on the back of the warranty statement included in the literature packet
accompanying this machine and fax the form per the instructions printed on it.
• For On-Line Registration: Go to our
“Product Registration”. Please complete the form and submit your registration.
Read this Operators Manual completely before attempting to use this equipment. Save this manual and keep it
handy for quick reference. Pay particular attention to the safety instructions we have provided for your protection.
The level of seriousness to be applied to each is explained below:
WEB SITE at www.lincolnelectric.com. Choose “Quick Links” and then
WARNING
This statement appears where the information must be followed exactly to avoid serious personal injury or loss of life.
CAUTION
This statement appears where the information must be followed to avoid minor personal injury or damage to this equipment.
– 6 –
Page 7
TABLE OF CONTENTS
Page
GENERAL DESCRIPTION..................................................................................................8
RECOMMENDED PROCESSES & EQUIPMENT...............................................................8
AC and DC Constant Current Welding .............................................................................8
TIG Welding ......................................................................................................................8
DESIGN FEATURES...........................................................................................................8
OPTIONS/ACCESSORIES & COMPATIBLE LINCOLN EQUIPMENT..............................8
Power Factor Capacitors ...........................................................................................8
Undercarriage ............................................................................................................8
Hi-Freq .......................................................................................................................8
Standard Accessory Set ............................................................................................8
TECHNICAL SPECIFICATIONS .........................................................................................9
INSTALLATION ...............................................................................................................10-11
Safety Precautions...........................................................................................................10
Machine Installation .........................................................................................................10
Location ....................................................................................................................10
Input Connections.....................................................................................................10
Stacking....................................................................................................................11
Installation of Field Installed Options ...............................................................................11
Output Cable Size and Connection..................................................................................11
OPERATION.......................................................................................................................12
Safety Precautions...........................................................................................................12
Duty Cycle ................................................................................................................12
Control Operation .....................................................................................................12
MAINTENANCE .................................................................................................................13
Safety Precautions...........................................................................................................13
General Maintenance.......................................................................................................13
TROUBLESHOOTING.....................................................................................................13-15
Rectifier Troubleshooting .................................................................................................13
Troubleshooting Procedures .........................................................................................14-15
WIRING DIAGRAMS .......................................................................................................16-17
PARTS LIST ...............................................................................................................P200 Series
– 7 –
Page 8
GENERAL DESCRIPTION
• Recessed front panel protects controls.
The Idealarc®250 is a single phase constant current
arc welding power source available in an AC/DC
model only. Designed for stick welding, it may also be
used for TIG welding when used with the K799 HiFreq unit.
RECOMMENDED PROCESSES AND
EQUIPMENT
AC and DC Constant Current Welding
AC 35-300 Amps 60 Hz 35-250 Amps 50 Hz
DC 40-250 Amps 50/60 Hz
Duty Cycle 60 Hz
100%-140 Amps 100%-140 Amps
50%-200 Amps 60%-180 Amps
30%-250 Amps 30%-250 Amps
20%-300 Amps
TIG Welding
50 Hz
• Large safety margins and protective circuits protect
rectifiers from transient voltages and high currents.
• Submersion dipping of assembled transformer and
choke in special sealing/insulating material gives
extra protection against moisture and corrosive
atmosphere.
• Stackability - Machines can be stacked up to three
high.
• Outstanding Arc Stability - Transformer design and
built-in stabilizer provide pop-out-resistant welding
with all electrodes, including those which normally
require an industrial type AC welder.
• Reconnect panel is provided to permit changing
from one input voltage to another without reconnecting transformer leads.
OPTIONS / ACCESSORIES
AND COMPATIBLE LINCOLN
EQUIPMENT
The K799 can be used with this machine to provide
high frequency stabilization and a gas valve for TIG
welding. It operates on 115V 50/60 Hz power. A
water valve (for water cooled TIG torches) is available
as an option.
When TIG welding, AC or DC may be used but when
AC TIG welding, the duty cycle must be decreased by
one-half.
DESIGN FEATURES
• Power On/Off switch.
• Polarity switch selects AC, DC+ or DC- .
• Continuous current control dials with exact welding
current needed for each job. Settings are precise
and free from creep.
• Spring loaded knob on the continuous current
control crank pulls out for easy adjustment and
snaps back out of the way when released.
Factory Installed Options/Accessories
• Power Factor Capacitors
(Reduce input amps by 30% at rated load.)
Field Installed Options
• Power Factor Capacitors
(Reduce input amps by 30% at rated load.)
• Undercarriage (K866)
Consists of a handle, axle, wheels, front bracket and
mounting hardware. Overall width 24.56 inches
(624 mm).
• Hi Freq Kit (K799)
Converts Idealarc 250 into a TIG welder.
Request Bulletin E385 for full details.
• Standard Accessory Kit (K710)
Includes electrode holder, work clamp, electrode,
work cables, and headshield with lens and
coverplate
• Meets NEMA Class II specifications.
– 8 –
Page 9
TECHNICAL SPECIFICATIONS: IDEALARC AC/DC 250
INPUT - OUTPUT RATINGS
Model AC/DC 250 AC/DC 250
Type K1053 K1054
AC Input Frequency 60 50
Output Rating NEMA CLASS II (60) IEC 974
AC DC AC DC
Amperes 300 250 250 250
Volts 32 30 30 30
Duty Cycle 20 30 30 30
Current Range 35-300 40-250 35-250 40-250
Max. O.C.V. 72 70 72 70
Input Power
Standard Voltages 208/230/460 220/380/440
230/460/575 380/415/500
Rated Input Current
(230V 60Hz, 220V 50Hz)
With Condensers 68 68
Without Condensers 86 86
Idle Input Current (230V)
With Condensers 23 23
Without Condensers 6.2 6.2
Power Factor (200 Amp Load)
With Condensers 83.3 83.3
Without Condensers 69.0 69.0
PHYSICAL DIMENSIONS
HEIGHT WIDTH DEPTH WEIGHT
27.00 in. 19.00 in. 21.50 in. 350 lbs.
159 kg
686 mm 483 mm 546 mm
– 9 –
Page 10
INSTALLATION
Safety Precautions
WARNING
ELECTRIC SHOCK can kill.
• Do not touch electrically live parts or
electrode with skin or wet clothing.
• Insulate yourself from work and
ground.
• Always wear dry insulating gloves.
------------------------------------------------------------------------
FUMES AND GASES can be dangerous.
• Keep your head out of fumes.
• Use ventilation or exhaust to remove
fumes from breathing zone.
------------------------------------------------------------------------
WELDING SPARKS can cause fire or
explosion.
• Keep flammable material away.
• Do not weld on closed containers.
------------------------------------------------------------------------
ARC RAYS can burn eyes and skin.
• Wear eye, ear and body
protection.
------------------------------------------------------------
Location
The machine should be located in a clean, dry place
where there is free circulation of clean air such that air
movement in the back and along the sides will not be
restricted. Dirt and dust that can be drawn into the
machine should be kept to a minimum. Failure to
observe the precautions can result in excessive
operating temperatures and nuisance shutdown of the
machine.
Input Connections
Be sure the voltage, phase and frequency of the input
power is as specified on the welder rating plate located on the rear panel of the machine. Either a single
phase or one phase of a three phase line can be
used.
Have a qualified electrician install the machine per the
following instructions:
Remove the left side panel (viewed from the front).
Route the input power lines through the hole in the
rear panel and center baffle. Lug the input leads with
a ring terminal for a 1/4” (6mm) screw. Connect
lugged leads to L1 and L2 of the reconnect panel per
the wiring diagram pasted to m inside of the side
panel. Input connection must conform to the U.S.
National Electrical Code and all local codes.
See additional warning information at the
front of this operatorʼs manual.
-----------------------------------------------------------
• Connect the Idealarc 250 grounding terminal located
under the reconnect panel (marked ) to a good
electrical ground per the U.S. National Electrical
Code and any applicable local codes.
• Turn the power switch on the Idealarc 250 “OFF”
before connecting or disconnecting output cables or
Models designed for two or three input voltages are
shipped connected for the highest voltage.
Reconnect instructions are on the diagram pasted to
the inside of the side panel. Consult rating plate on
the rear panel for machine input voltage rating.
The welder frame must be grounded. A stud marked
with the symbol located under the reconnect
panel is provided for this purpose. See the U.S.
National Electrical Code for details on proper grounding methods.
other equipment.
Fuse the input circuit with the recommended super lag
• Only qualified personnel should perform this installation.
Undercarriages
: If the optional K866 undercarriage
is to be installed, it should be done before connecting
the welder to power lines. Instructions are included
with the undercarriage.
fuses. Choose an input and grounding wire size according to local codes or use the following table. “Delay type”
circuit breakers may be used in place of fuses. Using
fuses or circuit breakers smaller than recommended may
result in “nuisance” tripping from welder inrush currents
even if not welding at high currents.
RECOMMENDED INPUT WIRE, GROUND WIRE AND FUSE SIZES 200 Amp Output and 50% Duty Cycle
Copper Wire Sizes
Input Amps
With
Without
Freq.
P.F.
Cap
Input
Volts
200 50/60 58 81 #8 #6 #8 70 100
208 60 55 77 #8 #6 #8 70 100
220/230 50/60 50 70 #8 #6 #8 70 90
380 50 29 41 #10 #8 #10 40 50
400 50/60 29 40 #10 #8 #10 40 50
440/460 50/60 25 35 #12 #10 #10 35 45
500 50 22 31 #14 #12 #10 30 40
575 60 20 28 #14 #12 #10 25 40
P.F.
Cap
75°C in Conduit
With
Without
Cap
Cap
Grounding
Conductor
Fuse Size
(Super Lag)
With
Without
P.F.
Cap
P.F.
Cap
– 10 –
Page 11
STACKING
WARNING
FALLING EQUIPMENT can cause
injury.
• Do not lift this machine using lift bale if
it is equipped with a heavy accessory
such as undercarriage or gas cylinder.
• Lift only with equipment of adequate lifting capacity.
• Be sure machine is stable when lifting.
• Do not stack more than three high.
• Do not stack on top of any other type machine.
---------------------------------------------------------------------
A. Make sure the first or bottom unit is setting on a
level, well supported surface.
B. The units must be stacked with their front flush,
making sure the two holes in the base rails of
the unit being stacked on top are over the two
holes located on the top front corners of the unit
being stacked on. Fasten the units together
with 5/16 (8 mm) bolts, nuts and lockwashers
through these holes.
CABLE SIZES FOR COMBINED LENGTHS OF
COPPER ELECTRODE AND WORK CABLES
0-100 Ft.
100-150 Ft.
150-200 Ft.
200-250 Ft.
200 Amps
50% Duty Cycle
3 (30mm
2 (35mm2)
1 (45mm
1/0 (55mm2)
2
)
2
)
250 Amps
30% Duty Cycle
3 (30mm
2 (35mm2)
1 (45mm
1/0 (55mm2)
2
)
2
)
C. Remote fastening bolts before lifting unit off
stacks.
Installation of Field Installed Options
For installation of compatible field installed options,
see Field Installed Options section, and refer to the
instructions included with those options.
Output Cable Size and Connection
WARNING
ELECTRIC SHOCK can kill.
• Turn the power switch of the
welding power source “OFF”
before connecting or disconnect-
ing output cables.
------------------------------------------------------------
The output leads are connected to the output terminals marked “WORK” and “ELECTRODE”. They are
located at the lower right and lower left corners of the
front panel. The 60 Hz Idealarc 250 provides 1/2”
studs for weld cable connections. The 50 Hz Idealarc
250 provides European weld cable connector receptacles. Minimum cable sizes recommended are listed in
the table below.
– 11 –
Page 12
OPERATION
Safety Precautions
CONTROL OPERATION
A. Current Control Handle
WARNING
ELECTRIC SHOCK can kill.
• Do not touch electrically live parts or
electrode with skin or wet clothing.
• Insulate yourself from work and
ground.
• Always wear dry insulating gloves.
------------------------------------------------------------------------
FUMES AND GASES can be dangerous.
• Keep your head out of fumes.
• Use ventilation or exhaust to remove
fumes from breathing zone.
------------------------------------------------------------------------
WELDING SPARKS can cause fire or
explosion.
• Keep flammable material away.
• Do not weld on closed containers.
------------------------------------------------------------------------
ARC RAYS can burn eyes and skin.
• Wear eye, ear and body
protection.
------------------------------------------------------------
See additional warning information at the
front of this operatorʼs manual.
-----------------------------------------------------------
Be sure the Idealarc 250 is properly installed, and that
all accessories are properly hooked up before
attempting operation.
Rotating the hand wheel raises and lowers the
output current allowing the operator to dial the
desired current. Clockwise rotation reduces
the current while counter-clockwise rotation
increases the current. Turning the current
control handle also drives the output pointer at
the bottom of the nameplate which indicates
the stick welding current at NEMA arc volts.
B. Polarity Switch
Turn the arc polarity switch in the upper right
hand corner of the case front to AC, DC(-) or
DC(+) as required for the particular application.
DO NOT CHANGE POLARITY SWITCH
WHILE WELDING. Doing this can seriously
damage the switch.
C. TIG Welding
The Idealarc 250 with the optional Hi-Freq is an
inexpensive equipment combination for parttime production or repair TIG welding of aluminum, magnesium, thin stainless steel and
many space-age metals. The Idealarc 250 can
be used for normal stick electrode welding with
the Hi-Freq attached.
CAUTION
Reduce the Idealarc 250 duty cycle by 50%
when AC TIG welding, i.e., the welder should be
operated for only two and one half minutes out
of every ten at rated current of 200 amperes.
DUTY CYCLE
This machine is rated at a 30% duty cycle at 250
amps or 50% duty cycle at 200 amp output. Duty
cycle is based on a 10 minute period. Therefore,
the welder can be loaded at 200 amperes for 5
minutes out of each 10 minute period. Higher duty
cycles can be used at lower currents; see rating
plate information.
The Hi-Freq includes high frequency generator,
gas valve and needed controls. It operates on
115V, 50/60 Hz AC power.
NOTE: The Hi-Freq unit includes an R.F.
bypass capacitor kit for power source protection. Installation instructions are in the kit.
(When using the Idealarc 250 with any other
high frequency equipment, an R.F. bypass
capacitor must be installed. Order Kit T12246.)
To provide protection, the welder grounding
stud or frame must be connected to ground
(see instructions on grounding in Machine
Installation section). Also follow the grounding
instructions given in the Hi-Freq Instruction
manual.
– 12 –
Page 13
MAINTENANCE
Safety Precautions
TROUBLESHOOTING
Safety Precautions
WARNING
ELECTRIC SHOCK can kill.
• Have a qualified individual install and
service this equipment.
• Turn the input power off at the fuse
box before working on equipment.
• Do not touch electrically hot parts.
---------------------------------------------------------------------
General Maintenance
1. The fan motor has sealed ball bearings which
requires no service.
2. In dusty locations dirt may clog the air channels
causing the welder to run hot. Under these
conditions carefully blow out the welder at regular
intervals.
3. Keep the electrode and work cable connection
tight.
WARNING
ELECTRIC SHOCK can kill.
• Have a qualified individual install and
service this equipment.
• Turn the input power off at the fuse
box before working on equipment.
• Do not touch electrically hot parts.
---------------------------------------------------------------------
Rectifier Troubleshooting
1. Turn the input power off.
2. Disconnect all input and output leads from the
rectifier bridge.
3. Connect an ohmmeter between the DC positive
(red) terminal and one of the AC (yellow) terminals. Note the ohmmeter reading using the 10 to
100 scale.
4. Reverse the ohmmeter leads. Note the readings.
4. Every twelve months or at the first indication of a
binding current pointer, turn the input power off
and remove the left case side. Wipe the pointer
guide bar clean and lubricate with graphite
grease.
5. When cleaning the current pointer, clean the
reactor quadrant teeth, drive gear and pinion.
Lubricate with graphite grease.
The reading taken in steps 3 and 4 should be
5.
different. If the readings are the same and
near zero, the rectifier has shorted. IF the
readings are the same and near full scale, the
rectifier has failed open.
6. Repeat steps 3, 4 and 5 between the DC positive (red) terminal and each of the AC (yellow)
terminals.
7. Repeat steps 3, 4 and 5 between the DC negative (black) terminal and each of the AC (yellow) terminals.
NOTE: Since it is unlikely that all rectifiers of a
full wave bridge would fail simultaneously,
check the test method and the ohmmeter if the
checking indicates that all rectifiers have failed.
– 13 –
Page 14
TROUBLESHOOTING
TROUBLE
A. Welder will not weld.
B. Welder welds, but soon stops
welding (DC only).
CAUSE
1. Line switch not turned “On”.
Supply line fuse blown.
2. Power circuit dead.
3. Broken power lead.
4. Wrong voltage.
5. Electrode or work lead loose or
broken.
6. Open transformer circuit.
7. Polarity switch not centered.
1. Proper ventilation hindered.
WHAT TO DO
1. Place line switch in “On” position. Replace. (Look for reason
for blown fuse first).
2. Check supply line voltage.
3. Repair.
4. Check voltage against rating
plate. Check reconnect panel
jumper.
5. Tighten and repair connections.
6. Send to repair shop to have coils
replaced.
7. Center switch handle on DC(+),
DC(-), or AC.
1. Make sure all case openings are
free for proper circulation of air.
2. Welder loaded beyond rating.
3. Fan motor inoperative.
4. Poor internal connections.
5. Excessive dust accumulation in
welder.
6. Bi-metallic thermostat dirty.
2. Operate at normal current and
duty cycle consistent with rating.
3. Check leads and motor bearings. Fan motor can be tested
on 115V line; with welder on,
voltage across fan motor should
be approximately 115V.
4. Check for loose or hot connections and tighten.
5. Blow out welder with low pressure.
6. Carefully clean in naptha.
– 14 –
Page 15
TROUBLESHOOTING
(CONTINUED)
TROUBLE
C. Variable or sluggish welding.
D. Welder wonʼt shut off.
E. Polarity switch wonʼt turn.
CAUSE
1. Poor work or electrode terminal
connection.
2. Current too low.
3. Low line voltage.
4. Welding leads too small.
5. Old and badly frayed welding
cables.
1. Line switch has failed
mechanically.
1. Contacts rough and pitted from
improper switching under load.
WHAT TO DO
1. Check and clean all connections.
2. Check recommended currents
for rod type and size.
3. Check with power company.
4. See Output Cable section.
5. Replace.
1. Replace switch.
1. Replace switch.
– 15 –
Page 16
ELECTRODE
X4
X3
X1
STABILIZER
CIRCUI T
FAN
MOTOR
MTR
WORK
X2
(- )
AC2
AC1
RECTIFIE R
OVERLOAD
THERMOSTAT
POWE R
CHOKE
(+)
RECTIFIE R
ARC POLARITY SWITCH
(LOOKING FROM INSIDE MACHINE)
SUPPRESSOR
H5
CIRCUI T
LOW
ED
M
HIGH
ELECTRICAL SYMBOLS PER E1537.
CONNECTIONS MUST BE TIGHTENED SECURELY.
8-2-90
S19343
OPTIONAL POWER
FACTOR CAPACITORS
DO NOT OPERATE WITH COVERS REMOVED .
DO NOT TOUCH ELECTRICALLY "HOT" PARTS SUCH AS OUTPUT TERMINALS
TURN THE INPUT POWER TO THE WELDER OFF USING THE DISCONNECT SWITCH
AT THE FUSE BOX BEFORE INSTALLING OR SERVICING THIS MACHINE.
ONLY QUALIFIED PERSONNEL SHOULD INSTALL OR SERVICE THIS EQUIPMENT.
THROUGH THE INPUT CABLE PER NATIONAL ELECTRICAL CODE .
OR INTERNAL WINDINGS.
GROUNDING SCREW ( ) MUST BE CONNECTED TO A GOOD EARTH GROUND
H1
can kill
HIGH VOLTAGE
LINE
SWITCH
H5
SEE TABL E
BELOW FOR
CONNECTION
CORRECT
LOW H2
MED H3
L1
L2
INPU T
HIGH H4
H5
LEAD S
PANEL
TO GROUND PER NATIONAL
ELECTRICAL CODE
RECONNECT
RECONNECT PANEL LEAD POSITION
WIRING DIAGRAM - 250 AMP IDEALARC 60 HZ & 50 / 60 HZ
00
2
400
200/400 (50/60 HZ)
INPUT VOLTS
H5
0 HZ
6
230/460/575
60 HZ
208/230/460
MEDHIGH
LOW
30
2
575
460
INPUT VOLTS
H5
MED
LOW
230
208
HIGH
460
INPUT VOLTS
P.F. CAP LEAD -HIGH
P.F. CAP LEAD -MED
M ACHINES ARE SHIPPED FROM FACTORY CONNECTED
FOR HIGHEST INPUT VOLTAGE.
P.F. CAP LEAD -HIGH
– 16 –
NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside
the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number..
Page 17
ELECTRODE
WIRING DIAGRAM - 250 AMP IDEALARC 50 HZ
RECTIFIER
OVERLOAD
THERMOSTAT
WORK
8-2-90
S19441
V
5W
1000
STABILIZER
CIRCUI T
MOTOR
MTR
150 /100W
X2
H2
H3
LOW
ME D
L1
H5
L2
FAN
X1
X4
X3
OPTIONAL POWER
FACTOR CAPACITORS
DO NOT OPERATE WITH COVERS REMOVED .
GROUNDING SCREW MUST BE CONNECTED TO A GOOD EARTH GROUND
DO NOT TOUCH ELECTRICALLY "HOT" PARTS SUCH AS OUTPUT TERMINALS
TURN THE INPUT POWER TO THE WELDER OFF USING THE DISCONNECT SWITCH
AT THE FUSE BOX BEFORE INSTALLING OR SERVICING THIS MACHINE.
ONLY QUALIFIED PERSONNEL SHOULD INSTALL OR SERVICE THIS EQUIPMENT.
THROUGH THE INPUT CABLE PER NATIONAL ELECTRICAL CODE .
OR INTERNAL WINDINGS.
H1
can kill
HIGH VOLTAGE
LINE
SWITCH
H5
(-)
N.A.
H4
HIGH
CHOKE
AC2
(+)
AC1
POWER
RECTIFIER
PANEL
TO GROUND PER NATIONAL
ELECTRICAL CODE
RECONNECT
ARC POLARITY SWITCH
(LOOKING FROM INSIDE MACHINE)
N.A. BOLTED CONNECTION ON MACHINES
WITH COPPER COILS.
CONNECTIONS MUST BE TIGHTENED SECURELY.
CIRCUIT
SUPPRESSOR
H5
LO W
ME D
HIGH
380/500
415
500
380
INPUT VOLTS
P.F. CAP LEAD -ME D
ELECTRICAL SYMBOLS PER E1537.
BELOW FO R
CORREC T
SEE TABLE
CONNECTIO N
INPUT
LEADS
– 17 –
RECONNECT PANEL LEAD POSITIO N
220/380/440
H5
ME D
LO W
HIGH
440
220
380
INPUT VOLTS
P.F. CAP LEAD -HIG H
M ACHINES ARE SHIPPED FROM FACTORY CONNECTED
FOR HIGHEST INPUT VOLTAGE.
NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diagram for a particular code is pasted inside
the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. Give the equipment code number..
Page 18
NOTES
Page 19

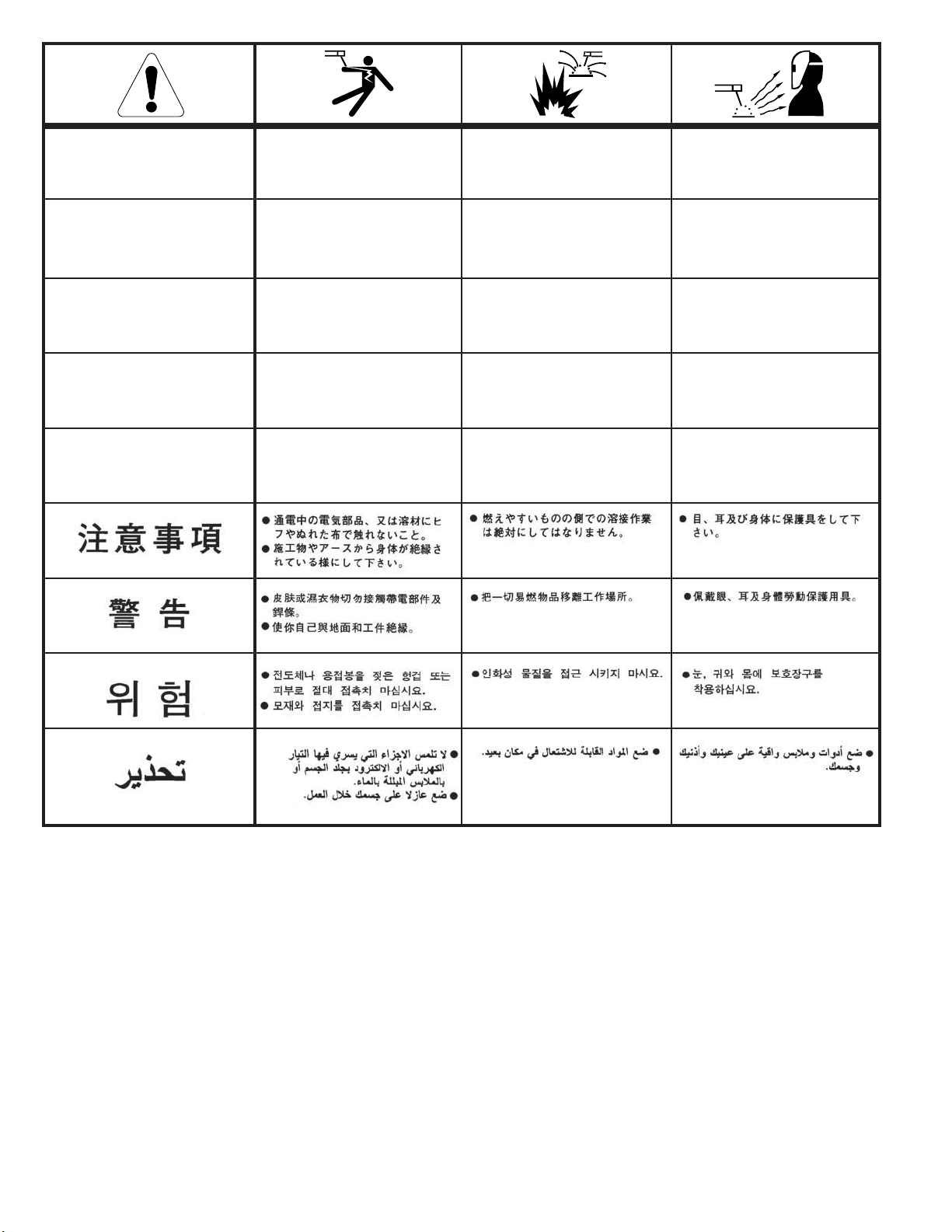

WARNING
Spanish
AVISO DE
PRECAUCION
● Do not touch electrically live parts or
electrode with skin or wet clothing.
● Insulate yourself from work and
ground.
● No toque las partes o los electrodos
bajo carga con la piel o ropa mojada.
● Aislese del trabajo y de la tierra.
● Keep flammable materials away.
● Mantenga el material combustible
fuera del área de trabajo.
● Wear eye, ear and body protection.
● Protéjase los ojos, los oídos y el
cuerpo.
French
ATTENTION
German
WARNUNG
Portuguese
ATENÇÃO
Japanese
Chinese
Korean
Arabic
● Ne laissez ni la peau ni des vête-
ments mouillés entrer en contact
avec des pièces sous tension.
● Isolez-vous du travail et de la terre.
● Berühren Sie keine stromführenden
Teile oder Elektroden mit Ihrem
Körper oder feuchter Kleidung!
● Isolieren Sie sich von den
Elektroden und dem Erdboden!
● Não toque partes elétricas e elec-
trodos com a pele ou roupa molhada.
● Isole-se da peça e terra.
● Gardez à l’écart de tout matériel
inflammable.
● Entfernen Sie brennbarres Material!
● Mantenha inflamáveis bem guarda-
dos.
● Protégez vos yeux, vos oreilles et
votre corps.
● Tragen Sie Augen-, Ohren- und Kör-
perschutz!
● Use proteção para a vista, ouvido e
corpo.
READ AND UNDERSTAND THE MANUFACTURER’S INSTRUCTION FOR THIS EQUIPMENT AND THE CONSUMABLES TO BE
USED AND FOLLOW YOUR EMPLOYER’S SAFETY PRACTICES.
SE RECOMIENDA LEER Y ENTENDER LAS INSTRUCCIONES DEL FABRICANTE PARA EL USO DE ESTE EQUIPO Y LOS
