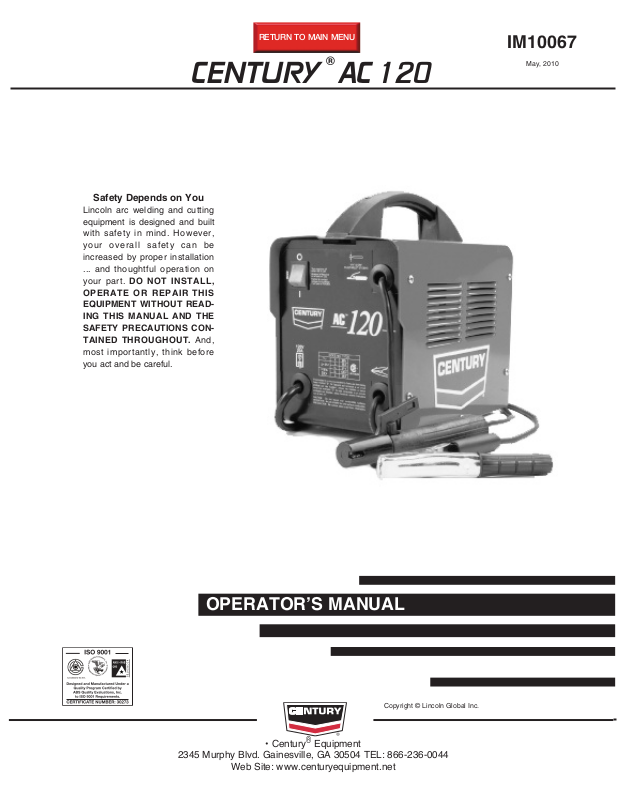

Lincoln Electric IM10067 User Manual

IM10067

RETURN TO MAIN MENU

CENTURY AC 120

Safety Depends on You

Lincoln arc welding and cutting
equipment is designed and built
with saf ety in mind. However,
your overall safety can be
increased by proper installation
... and thoughtful operation on
your part. DO NOT INSTALL,

OPERATE OR REPAIR THIS
EQUIPMENT WITHOUT READ­ING THIS MANUAL AND THE
SAFETY PRECAUTIONS CON­TAINED THROUGHOUT. And,

most importantly, think before
you act and be careful.

®

ay, 2010

M

OPERATOR’S MANUAL

Copyright © Lincoln Global Inc.

• Century®Equipment

2345 Murphy Blvd. Gainesville, GA 30504 TEL: [phone]

Web Site: www.centuryequipment.net

i

SAFETY

WARNING

ALIFORNIA PROPOSITION 65 WARNINGS

C

Diesel engine exhaust and some of its constituents
are known to the State of California to cause can­cer, birth defects, and other reproductive harm.

The Above For Diesel Engines

ARC WELDING CAN BE HAZARDOUS. PROTECT YOURSELF AND OTHERS FROM POSSIBLE SERIOUS INJURY OR DEATH.

EEP CHILDREN AWAY. PACEMAKER WEARERS SHOULD CONSULT WITH THEIR DOCTOR BEFORE OPERATING.

K

Read and understand the following safety highlights. For additional safety information, it is strongly recommended that you
purchase a copy of “Safety in Welding & Cutting - ANSI Standard Z49.1” from the American Welding Society, P.O. Box
351040, Miami, Florida 33135 or CSA Standard W117.2-1974. A Free copy of “Arc Welding Safety” booklet E205 is available

rom the Lincoln Electric Company, 22801 St. Clair Avenue, Cleveland, Ohio 44117-1199.

f

BE SURE THAT ALL INSTALLATION, OPERATION, MAINTENANCE AND REPAIR PROCEDURES ARE
PERFORMED ONLY BY QUALIFIED INDIVIDUALS.

The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.

The Above For Gasoline Engines

i

FOR ENGINE
powered equipment.

1.a. Turn the engine off before troubleshooting and maintenance
work unless the maintenance work requires it to be running.

____________________________________________________

1.b. Operate engines in open, well-ventilated
areas or vent the engine exhaust fumes
outdoors.

____________________________________________________

1.c. Do not add the fuel near an open f la me
welding arc or when the engine is running.
Stop the engine and allow it to cool before
refueling to prevent spilled fuel from vaporiz­ing on conta ct with hot engine parts and
igniting. Do not spill fuel when filling tank. If
fuel is spilled, wipe it up and do not start
engine until fumes have been eliminated.

____________________________________________________

1.d. Keep all equipment safety guards, covers and devices in
position and in good repair.Keep hands, hair, clothing and
tools away from V-belts, gears, fans and all other moving
parts when starting, operating or repairing equipment.

____________________________________________________

1.e. In some cases i t may b e neces sar y to remove safet y

gu a r d s to perf o r m requi r e d m ainte n a n ce. Re m o v e
guards only when necessary and replace them when the
mai n t enanc e re q uirin g th eir r e m o val i s co m plete .
Always use the greatest care when working near moving
parts.

___________________________________________________

1.f. Do not put your hands near the engine fan.
Do not attempt to override the governor or
idler by pushing on the throttle control rods
while the engine is running.

1.h. To avoid scalding, do not remove the
radiator pressure cap when the engine is
hot.

ELECTRIC AND
MAGNETIC FIELDS
may be dangerous

2.a. Electric curr en t flowing through any conductor c au se s
localized E le ct ri c and Magn et ic Fields (EMF). Welding
current creates EMF fi el ds around welding cables and
welding machines

2.b. EMF fie lds may i nterf ere wit h some pacemak ers, and
welders having a pacemaker should consult their physician
before welding.

2.c. Exposure to EMF fields in welding may have other health
effects which are now not known.

2.d. All welders should use the following procedures in order to
minimize exposure to EMF fields from the welding circuit:

2.d.1.

Route the electrode and work cables together - Secure
them with tape when possible.

2.d.2. Nev er coi l the ele ctrode lead around your bod y.

2.d.3. Do not place your body between the electrode and

work cables. If the electrode cable is on your right
side, the work cable should also be on your right side.

___________________________________________________

1.g. To prevent accidentally starting gasoline engines while
turning the engine or welding generator during maintenance
work, disconnect the spark plug wires, distributor cap or
magneto wire as appropriate.

2.d.4. Connect the work cable to the workpiece as close as
possible to the area being welded.

2.d.5. Do not work next to welding power source.

ii

SAFETY

ii

ELECTRIC SHOCK can
kill.

3.a. The electrode and work (or ground) circuits
are electrically “hot” when the welder is on.
Do not touch these “hot” parts with your bare
skin or wet clothin g. W ea r dry, hole-free

gloves to insulate hands.

3.b. Insulate yourself from work and ground using dry insulation.
Make certain the insulation is large enough to cover your full
area of physical contact with work and ground.

In addition to the normal safety precautions, if welding
mu s t be p e rformed unde r elec t rically haza r dous
conditions (in damp locations or while wearing wet
clothing; on metal structures such as floors, gratings or
scaffolds; when in cramped positions such as sitting,
kneeling or lying, if there is a high risk of unavoidable or
accidental contact with the workpiece or ground) use
the following equipment:

• Semiautomatic DC Constant Voltage (Wire) Welder.

• DC Manual (Stick) Welder.

• AC Welder with Reduced Voltage Control.

3.c. In semiautomatic or automatic wire welding, the electrode,
electrode reel, welding head, nozzle or semiautomatic
welding gun are also electrically “hot”.

3.d. Always be sure the work cable makes a good electrical
connection with the metal being welded. The connection
should be as close as possible to the area being welded.

3.e. Ground the work or metal to be welded to a good electrical
(earth) ground.

3.f.

Maintain the electrode holder, work clamp, welding cable and
welding machine in good, safe operating condition. Replace
damaged insulation.

3.g. Never dip the electrode in water for cooling.

3.h. Nev er simul tan eousl y touch ele ctric all y “ho t” parts of
electrode holders connected to two welders because voltage
between the two can be the total of the open circuit voltage
of both welders.

3.i. When working above floor level, use a safety belt to protect
yourself from a fall should you get a shock.

3.j. Also see Items 6.c. and 8.

ARC RAYS can burn.

4.a. Use a shield with the proper filter and cover
plates to protect your eyes from sparks and
the rays of the arc when welding or observing
open arc welding. Headshield and filter lens
should conform to ANSI Z87. I standards.

4.b. Use suitable clothing made from durable flame-resistant
material to protect your skin and that of your helpers from
the arc rays.

4.c. Protect other nearby personnel with suitable, non-flammable
screening and/or warn them not to watch the arc nor expose
themselves to the arc rays or to hot spatter or metal.

FUMES AND GASES
can be dangerous.

5.a. Weldi ng may produce fumes and gases
hazardous to health. Avoid breathing these
fumes and gases. When w elding, kee p
your head out of the fume. Use enough
ventilation and/or exhaust at the arc to keep

fumes an d gases away from the breathing zone. When

we l ding with electrod e s wh i ch re quire special
ve ntilat i on such as stainl ess or h ard facin g (see
instructio ns on container or MSDS) or on lead or
cadmium plated steel and other metals or coatings
which produce highly toxic fumes, keep exposure as
low as possible and within applicable OSHA PEL and
ACGIH TLV limits using local exhaust or mechanical
ventilation. In confined spaces or in some circum­st ances, outd oors, a respir a tor may be requir e d.
Additional precautions are also required when welding
on galvanized steel.

5. b. The operation of welding fume control equipment is affected
by various factors including proper use and positioning of
the equipment, maintenance of the equipment and the spe­cific welding procedure and application involved. Worker
exposure level should be checked upon installation and
periodically thereafter to be certain it is within applicable
OSHA PEL and ACGIH TLV limits.

5.c.

Do not weld in locations near chlorinated hydrocarbon
coming from degreasing, cleaning or spraying operations.
The heat and rays of the arc can react with solvent vapors
form phosgene, a highly toxic gas, and other irritating prod­ucts.

5.d. Shielding gases used for arc welding can displace air and

caus e injur y or dea th. Alw ay s use e no ugh ven tilat io n,
especially in confined areas, to insure breathing air is safe.

vapors

to

5.e. Read and understand the manufacturer’s instructions for this

equipment and the consumables to be used, including the
mat e r ial s a f ety d a t a sh e et ( M S D S) a n d foll o w your
employer’s safety practices. MSDS forms are available from
you r wel d i n g di s t ribut o r or f rom th e ma n u factu r e r .

5.f. Also see item 1.b.

iii

SAFETY

iii

WELDING and CUTTING
SPARKS can
cause fire or explosion.

6.a.

Remove fire hazards from the welding area.

If this is not possible, cover them to prevent

Re m e m ber th a t w eldin g s p arks a n d h ot
materials from welding can easily go through small cracks
an d o pen ings t o a djac ent area s. Avo id wel d ing near
hydraulic lines. Have a fire extinguisher readily available.

6.b. Where compressed gases are to be used at the job site,
special precautions should be used to prevent hazardous
situations. Refer to “Safety in Welding and Cutting” (ANSI
Standard Z49.1) and the op erating information for the
equipment being used.

6.c. When not welding, make certain no part of the electrode
circuit is touching the work or ground. Accidental contact
can cause overheating and create a fire hazard.

6.d. Do not heat, cut or weld tanks, drums or containers until the
proper steps have been taken to insure that such procedures
will not cause flammable or toxic vapors from substances
inside. They can cause an explosion even
been “cleaned”. For information, purchase “Recommended
Safe Practices for the
Co n t a iners and Piping That Have Held Haza r d o us
Substances”, AWS F4.1 from the American Welding Society

(see address above).

6.e. Vent hollow castings or containers before heating, cutting or
welding. They may explode.

Sparks and spatter are thrown from the welding arc. Wear oil

6.f.
free protective garments such as leather gloves, heavy shirt,
cuffless trousers, high shoes and a cap over your hair. Wear
ear plugs when welding out of position or in confined places.
Always wear safety glasses with side shields when in a
welding area.

6.g. Connect the work cable to the work as close to the welding
area as practical. Work cables connected to the building
framework or other locations away from the welding area
increase the po ss ib il it y of t he welding current passing
through lifting chains, crane cables or other alternate cir­cuits. This can create fire hazards or overheat lifting chains
or cables until they fail.

6.h. Also see item 1.c.

the welding s pa rks fro m startin g a fire.

though

they have

Preparation

for Welding and Cutting of

CYLINDER may explode
if damaged.

7.a. Us e o n ly com p r e ssed g a s c ylind e r s
containing the correct shielding gas for the
pr o c e ss used a n d p r operl y o p erati n g
reg u l ators de signe d for t h e gas a n d

pressure used. All hoses, fittings, etc. should be suitable for
the application and maintained in good condition.

7.b. Alway s kee p cylin ders in an uprig ht pos ition s ecure ly
chained to an undercarriage or fixed support.

7.c. Cylinders should be located:

• Away from areas where they may be struck or subjected to

physical damage.

• A safe distance from arc welding or cutting operations and

any other source of heat, sparks, or flame.

7.d. Never allow the electrode, electrode holder or any other
electrically “hot” parts to touch a cylinder.

7.e. Keep your head and face away from the cylinder valve outlet
when opening the cylinder valve.

7.f. Valve protection caps should always be in place and hand
tight except when the cylinder is in use or connected for
use.

7.g. Rea d a nd follow t he ins tru cti ons on com pre sse d g as
cylinders, associated equipment, and CGA publication P-l,
“Precautions for Safe Handling of Compressed Gases in
Cylinders,” available from the Compressed Gas Association
1235 Jefferson Davis Highway, Arlington, VA 22202.

FOR ELECTRICALLY
powered equipment.

8.a. Turn off input power using the disconnect
switch at the fuse box before working on
the equipment.

8.b. In stall equipm ent in acco rdance wi th the U.S. National
Electrical Code, all local codes a nd the manufacturer’s
recommendations.

8.c. Ground the equipment in accordance with the U.S. National
Electrical Code and the manufacturer’s recommendations.

6.I. Read and follow NFPA 51B “ Standard for Fire Prevention
During Welding, Cutting and Other Hot Work”, available
from NFPA, 1 Batterymarch Park, PO box 9101, Quincy, Ma
022690-9101.

6.j. Do not use a welding power source for pipe thawing.

Refer to http://www.lincolnelectric.com/safety for additional safety information.

iv

SAFETY

iv

PRÉCAUTIONS DE SÛRETÉ

Pour

votre propre protection lire et observer toutes les instructions
et les précautions de sûreté specifiques qui parraissent dans ce
manuel aussi bien que les précautions de sûreté générales suiv­antes:

Sûreté Pour Soudage A L’Arc

1. Protegez-vous contre la secousse électrique:

a. Les circuits à l’électrode et à la piéce sont sous tension

quand la machine à souder est en marche. Eviter toujours
tout contact entre les parties sous tension et la peau nue
ou les vétements mouillés. Porter des gants secs et sans
trous pour isoler les mains.

b. Faire trés attention de bien s’isoler de la masse quand on

soude dans des endroits humides, ou sur un plancher
metallique ou des grilles metalliques, principalement dans
les positions assis ou couché pour lesquelles une grande
partie du corps peut être en contact avec la masse.

c. Maintenir le porte-électrode, la pince de masse, le câble

de soudage et la machine à souder en bon et sûr état
defonctionnement.

d.Ne jamais plonger le porte-électrode dans l’eau pour le

refroidir.

e. Ne jamais toucher simultanément les parties sous tension

des porte-électrodes connectés à deux machines à souder
parce que la tension entre les deux pinces peut être le
total de la tension à vide des deux machines.

f. Si on utilise la machine à souder comme une source de

courant pour soudage semi-automatique, ces precautions
pour le porte-électrode s’applicuent aussi au pistolet de
soudage.

2. Dans le cas de travail au dessus du niveau du sol, se protéger
contre les chutes dans le cas ou on recoit un choc. Ne jamais
enrouler le câble-électrode autour de n’importe quelle partie
du corps.

5. Toujours porter des lunettes de sécurité dans la zone de
soudage. Utiliser des lunettes avec écrans lateraux dans les
zones où l’on pique le laitier.

6. Eloigner les matériaux inflammables ou les recouvrir afin de
prévenir tout risque d’incendie dû aux étincelles.

7. Quand on ne soud
la masse. U n cour t-circuit accidental peut provoquer un
échauffement et un risque d’incendie.

8. S’assurer que la masse est connectée le plus prés possible
de la zone de travail qu’il est pratique de le faire. Si on place
la masse sur la charpente de la construction ou d’autres
endroits éloignés de la zone de travail, on augmente le risque
de voir passer le courant de soudage par les chaines de lev­age, câbles de grue, ou autres circuits. Cela peut provoquer
des risques d’incendie ou d’echauffement des chaines et des
câbles jusqu’à ce qu’ils se rompent.

9. Assurer une ventilation suffisante dans la zone de soudage.
Ceci est particuliérement important pour le soudage de tôles
galvanisées plombées, ou cadmiées ou tout autre métal qui
produit des fumeés toxiques.

10. Ne pas souder en présence de vapeurs de chlore provenant
d’o pérations de dégraissage, nettoyage ou pistolage. La
chaleur ou les rayons de l’arc peuvent réagir avec les vapeurs
du solvant pour produire du phosgéne (gas fortement toxique)
ou autres produits irritants.

11. Pour obtenir de plus amples renseignements sur la sûreté,
voir le code “Code for safety in welding and cutting” CSA
Standard W 117.2-1974.

e pas, poser la pince à une endroit isolé de

PRÉCAUTIONS DE SÛRETÉ POUR

3. Un coup d’arc peut être plus sévère qu’un coup de soliel,
donc:

a. Utiliser un bon masque avec un verre filtrant approprié

ainsi qu’un verre blanc afin de se protéger les yeux du ray­onnement de l’arc et des projections quand on soude ou
quand on regarde l’arc.

b. Porter des vêtements convenables afin de protéger la

peau de soudeur et des aides contre le rayonnement de
l‘arc.

c. Proté ge r l’autre per so nnel tra va illant à pr ox imité au

soudage à l’aide d’écrans appropriés et non-inflammables.

4. Des gout tes de laitier en fusion sont é mi ses de l’arc de
soudage. Se protéger avec des vêtements de protection libres
de l’huile, tels que les gants en cuir, chemise épaisse, pan­talons sans revers, et chaussures montantes.

LES MACHINES À SOUDER À
TRANSFORMATEUR ET À
REDRESSEUR

1. Relier à la terre le chassis du poste conformement au code de
l’électricité et aux recommendations du fabricant. Le dispositif
de montage ou la piece à souder doit être branché à une
bonne mise à la terre.

2. Autant que possible, I’installation et l’entretien du poste seront
effectués par un électricien qualifié.

3. Avant de faires des travaux à l’interieur de poste, la debranch­er à l’interrupteur à la boite de fusibles.

4. Garder tous les couvercles et dispositifs de sûreté à leur
place.

v

or selecting one of our QUALITY products. We want you to take

f

Thank You

USTOMER ASSISTANCE POLICY

C

The business of our company is manufacturing and selling high quality welding equipment. Our challenge is to
meet the needs of our customers and to exceed their expectations. On occasion, purchasers may ask us for
advice or information about their use of our products. We respond to our customers based on the best informa-

ion in our possession at that time. We are not in a position to warrant or guarantee such advice, and assume no

t
liability, with respect to such information or advice. We expressly disclaim any warranty of any kind, including any
warranty of fitness for any customer’s particular purpose, with respect to such information or advice. As a matter
of practical consideration, we also cannot assume any responsibility for updating or correcting any such informa­tion or advice once it has been given, nor does the provision of information or advice create, expand or alter any
warranty with respect to the sale of our products.

We are a responsive manufacturer, but the selection and use of specific products sold by us is solely within the
control of, and remains the sole responsibility of the customer. Many variables beyond our control affect the
results obtained in applying these types of fabrication methods and service requirements.

Subject to Change – This information is accurate to the best of our knowledge at the time of printing.

pride in operating this product ••• as much pride as we have in
bringing this product to you!

Please Examine Carton and Equipment For Damage Immediately

When this equipment is shipped, title passes to the purchaser upon receipt by the carrier. Consequently, Claims
for material damaged in shipment must be made by the purchaser against the transportation company at the
time the shipment is received.

v

Please record your equipment identification information below for future reference. This information can be
found on your machine nameplate.

Product _________________________________________________________________________________

Model Number ___________________________________________________________________________

Code Number or Date Code (if available)______________________________________________________

Serial Number (if available)__________________________________________________________________

Date Purchased___________________________________________________________________________

Where Purchased_________________________________________________________________________

Whenever you request replacement parts or information on this equipment, always supply the information you
have recorded above.

Read this Operators Manual completely before attempting to use this equipment. Save this manual and keep it
handy for quick reference. Pay particular attention to the safety instructions we have provided for your protection.
The level of seriousness to be applied to each is explained below:

WARNING

This statement appears where the information must be followed exactly to avoid serious personal injury or loss of life.

CAUTION

This statement appears where the information must be followed to avoid minor personal injury or damage to this equipment.
