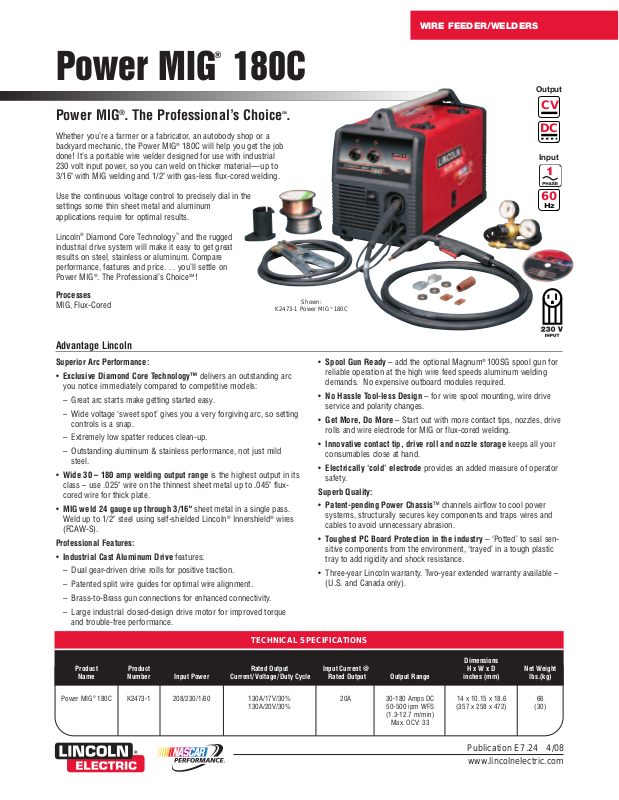

Power MIG®180C
CV
DC
1
60
H
z
Power MIG®. The Professional’s ChoiceSM.
WIRE FEEDER/WELDERS
Output
Whether you’re a farmer or a fabricator, an autobody shop or a
backyard mechanic, the Power MIG
®
180C will help you get the job
done! It’s a portable wire welder designed for use with industrial
230 volt input power, so you can weld on thicker material—up to
3/16" with MIG welding and 1/2" with gas-less flux-cored welding.
Use the continuous voltage control to precisely dial in the
settings some thin sheet metal and aluminum
applications require for optimal results.
®
Lincoln
Diamond Core Technology™and the rugged
industrial drive system will make it easy to get great
results on steel, stainless or aluminum. Compare
performance, features and price. . . you’ll settle on
Power MIG
®
. The Professional’s ChoiceSM!
Processes
MIG, Flux-Cored
K2473-1 Power MIG
Advantage Lincoln
Superior Arc Performance:
• Exclusive Diamond Core Technology™ delivers an outstanding arc
you notice immediately compared to competitive models:
– Great arc starts make getting started easy.
– Wide voltage ‘sweet spot’ gives you a very forgiving arc, so setting
controls is a snap.
– Extremely low spatter reduces clean-up.
– Outstanding aluminum & stainless performance, not just mild
steel.
• Wide 30 – 180 amp welding output range is the highest output in its
class – use .025" wire on the thinnest sheet metal up to .045" fluxcored wire for thick plate.
• MIG weld 24 gauge up through 3/16" sheet metal in a single pass.
Weld up to 1/2" steel using self-shielded Lincoln
(FCAW-S).
Professional Features:
• Industrial Cast Aluminum Drive features:
– Dual gear-driven drive rolls for positive traction.
– Patented split wire guides for optimal wire alignment.
– Brass-to-Brass gun connections for enhanced connectivity.
– Large industrial closed-design drive motor for improved torque
and trouble-free performance.
®
Innershield®wires
hown:
S
®
180C
®
• Spool Gun Ready – add the optional Magnum
100SG spool gun for
reliable operation at the high wire feed speeds aluminum welding
demands. No expensive outboard modules required.
• No Hassle Tool-less Design – for wire spool mounting, wire drive
service and polarity changes.
• Get More, Do More – Start out with more contact tips, nozzles, drive
rolls and wire electrode for MIG or flux-cored welding.
• Innovative contact tip, drive roll and nozzle storage keeps all your
consumables close at hand.
• Electrically ‘cold’ electrode provides an added measure of operator
safety.
Superb Quality:
• Patent-pending Power Chassis™ channels airflow to cool power
systems, structurally secures key components and traps wires and
cables to avoid unnecessary abrasion.
• Toughest PC Board Protection in the industry – ‘Potted’ to seal sen-
sitive components from the environment, ‘trayed’ in a tough plastic
tray to add rigidity and shock resistance.
• Three-year Lincoln warranty. Two-year extended warranty available –
(U.S. and Canada only).
Input
TECHNICAL SPECIFICATIONS
Product Product Rated Output Input Current @ H x W x D Net Weight
Name Number Input Power Current/Voltage/Duty Cycle Rated Output Output Range inches (mm) lbs.(kg)
Power MIG
®
180C K2473-1 208/230/1/60 130A/17V/30% 20A 30-180 Amps DC 14 x 10.15 x 18.6 66
130A/20V/30% 50-500 ipm WFS (357 x 258 x 472) (30)
(1.3-12.7 m/min)
Max. OCV: 33
Dimensions
Publication E7.24 4/08
www.lincolnelectric.com
Page 2
A CLOSER LOOK
SUPERIOR ARC PERFORMANCE
Diamond Core Technology™delivers
a superior arc across the entire
welding range.
Home Projects
PROFESSIONAL WIRE DRIVE
Enhanced Quality
1. Brass Gun Connection Enhances Connectivity
2. Rigid Cast Aluminum Drive
Aids Wire Alignment
3. Patented Split Wire Guide
Reduces Tangles
4. Dual Gear-Driven Drive Rolls Deliver
Positive Traction
Easy to Use
5. Easy Turn Tension Adjustment
6. Tool-less Quick Lock Drive
Roll Changeover
Thin Sheet Metal Autobody Work
Repair Work
4
5
1
3
2
6
PRECISION ALUMINUM WELDING
Magnum®100SG Spool Gun
Our low-priced spool gun is your most reliable aluminum
feeding solution.
Great For Projects
or Repair
[2]
Complete Kit. No Bulky Module Required.
Order K2532-1
Power MIG®180C
www.lincolnelectric.com
Page 3
A CLOSER LOOK
INNERSHIELD® NR®-211-MP
INNERSHIELD® NR®-211-MP
INNERSHIELD® NR®-212
SUPERARC® L-56
SUPERGLAZE® 4043
SUPERARC® L-56
SUPERARC® L-56
MP
MP
MP
SP
SP
SP
SP
SP
SP
SP
WHAT’S INCLUDED
Power MIG®180C (K2473-1) Includes:
Gun
• Magnum®100L gun and 10 ft. (3.0 m) cable assembly with brass
gun connection and 4-pin MS-Type connection for trigger control
(K530-6)
• .025" (0.6 mm) Contact Tips (Qty. 3) (KP11-23)
• .035" (0.9 mm) Contact Tips (Qty. 3) (KP11-35)
• Gasless Nozzle for Innershield®welding (KP1939-1)
• Gas Nozzle for MIG welding (KP21T-37)
Drive
• Spindle Adapter for 8" (203 mm) Diameter Spools (M15445-R)
• .045" (1.1 mm) Wire Diameter Wire Guide (KP2531-2)
• .025"-.035" (0.6-0.9 mm) Wire Diameter Wire Guide (KP2531-1)
• .025"-.030" (0.6-0.7 mm) Wire Diameter Drive Roll for MIG welding
(KP2529-1)

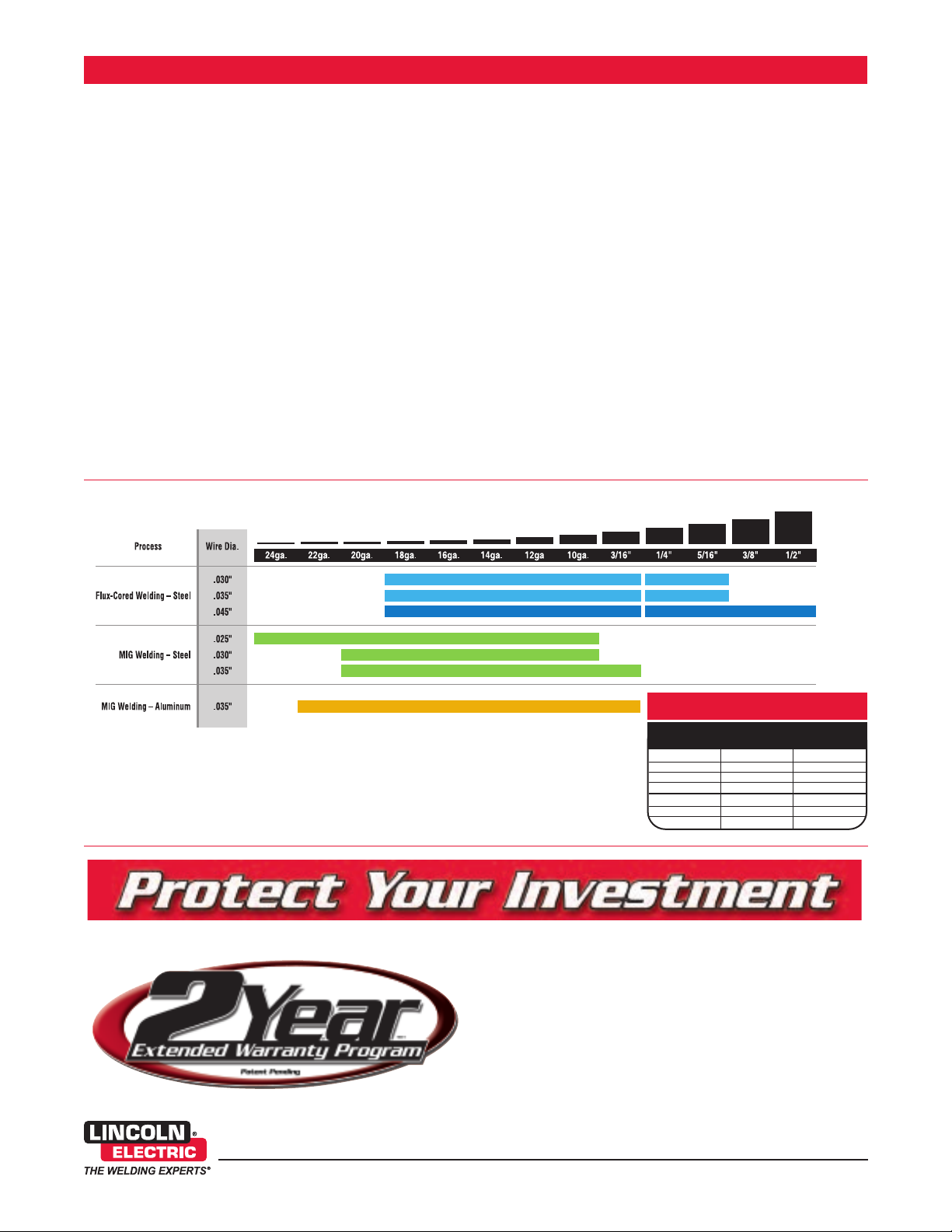

PERFORMANCE PLUS
Power MIG®180C Welding Capabilities
• .035" (0.9 mm) Wire Diameter Drive Roll for MIG welding
(KP2529-2)
• .030"-.045" (0.7-1.1 mm) Wire Diameter Knurled Drive Roll for
Flux-Cored welding (KP2529-3)
Shielding Gas Apparatus
• Gas Regulator and 52 in. (1.3 m) Hose for use with CO
blend gases. (For use with CO2shielding gas, order a Lincoln
or argon
2
®
S19298 CO2shielding gas bottle adapter.)
Welding Wire
• 2 lb. (0.90 kg) Spool of .025" (0.6 mm) diameter SuperArc®L-56
premium MIG wire (ED030583)
• 1 lb. (0.45 kg) Spool of .035" (0.9 mm) diameter Innershield
®
NR®-211-MP flux-cored wire (ED027641)
Other
• Work Clamp and 10 ft. (3.0 m) Cable
• Instruction Manual (IM-890)
• How to Use DVD (S26375)
• Learn to Weld Manual (LTW1)
®
SP=Single Pass.
MP=Multiple Pass.
DRIVE ROLLS AND WIRE GUIDES
Product Wire Diameter Type/
Number in (mm) Process
Drive Rolls
KP2529-1 .025-.030 (0.6-0.7) Smooth/MIG
KP2529-2 .035 (0.9) Smooth/MIG
KP2529-3 .030-.035 (0.8-1.1) Knurled/Flux-Cored
Inner Wire Guides
KP2531-1 .025-.035 (0.6-0.9) All
KP2531-2 .045 (1.1) All
• Protect your welder for up to 5 full years!
• No out-of-pocket costs for the life of the Extended
Warranty––parts and labor are fully covered.
• Nation-wide coverage for all repairs.
• Backed by The Lincoln Electric Company
Not a third party.
• Price is less than the cost of a typical single repair.
[3]
www.lincolnelectric.com
––
Power MIG®180C
Page 4
RECOMMENDED OPTIONS
GENERAL OPTIONS
Welding Cart
Full-featured cart is designed to
store and transport a welder, 80
cubic foot gas cylinder, welding
cables and accessories. Includes
an angled top shelf for easy
access to welder controls, a lower
tray for added storage space, a
sturdy handle and a convenient
cable wrap hanger.
Order K2275-1
Utility Cart
Heavy duty cart stores and transports welder, 150 cubic foot
shielding gas cylinder, welding
cables and accessories. Includes
stable platforms for welder and
gas bottle platform, lower tray for
added storage capacity and
adjustable height handle.
Order K520
Small Canvas Cover
Protect your welder when not in
use. Made from attractive red
canvas that is flame retardant,
mildew resistant and water repellent. Includes a convenient side
pocket to hold your welding torch
or gun.
Order K2377-1
Spot Timer Kit
This timer allows you to set a
fixed weld time of up to 10 seconds that is initiated when you
pull the gun trigger. Ideal for
making consistent spot welds on
thin sheet metal.
Order K2525-1
WIRE FEEDER OPTIONS
Magnum®100SG Spool Gun
Designed to easily feed 4" (102
mm) diameter 1 lb. (0.45 kg)
spools of .030" (0.8 mm) or .035"
(0.9 mm) diameter SuperGlaze
aluminum MIG wire. Includes gun,
adapter kit, .035" (0.9 mm) contact
tips (qty. 3), gas nozzle, and a 1 lb.
(0.45 kg) spool of SuperGlaze
4043 .035" (0.9 mm) MIG wire.
Packaged in a convenient carrying
case.
Order K2532-1
.045" (1.1 mm) Innershield
Includes everything required to
weld with .045" (1.1 mm)
Innershield
®
self-shielded fluxcored wire. Includes an .035".045" (0.9-1.1 mm) Magnum
gun liner, a .045" (1.1 mm) contact
tip, a gasless nozzle, knurled drive
roll, .045" (1.1 mm) inner wire
guide and a 10 lb. (4.5 kg) spool
of .045" (1.1 mm) Innershield
NR®-212 wire.
Order K2528-1
Welding Fume Extractors
Lincoln offers a wide variety
of welding fume extraction
environmental system solutions,
ranging from portable systems
easily wheeled around the shop
to shop-wide central systems
servicing many dedicated welding
stations.
Request Publication E13.40
®
®
®
®
Kit
100L
®
POWER MIG®180C ORDER FORM
PRODUCT DESCRIPTION ORDER NUMBER QUANTITY PRICE
POWER MIG®180C – 208-230/1/60 K2473-1
Recommended General Options
