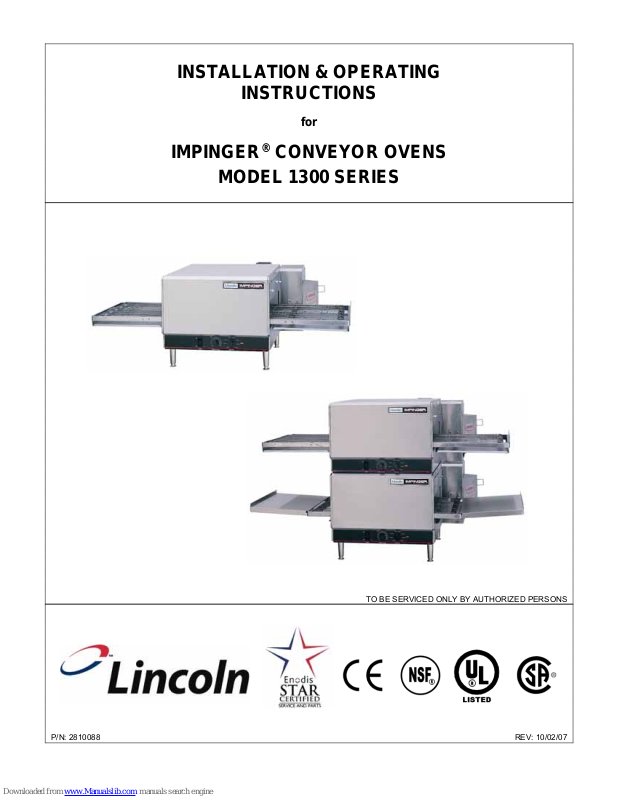

INSTALLATION & OPERATING

INSTRUCTIONS

for

IMPINGER® CONVEYOR OVENS

MODEL 1300 SERIES

TO BE SERVICED ONLY BY AUTHORIZED PERSONS

P/N: 2810088 REV: 10/02/07

IMPORTANT WARNING AND SAFETY INFORMATION

!

NOTE:

WARNING:

!

DANGER!

!

DANGER!

!

DANGER!

!

DANGER!

!

DANGER!

!

• Minimum clearances must be maintained from all walls and combustible materials.

• Keep the oven area free and clear of combustible material.

• Adequate clearance for air openings to the control chamber on both sides of the oven is required.

• Do not obstruct the ventilation holes in the control boxes and covers as these provide cooling air for the controls.

• The oven is to be operated only on the type of electricity as shown on the specification plate.

• This manual should be retained for future reference.

• The electrical wiring diagram is located under the control box covers.

This manual contains important safety and installation-operation instructions. Require all operators to
read this manual thoroughly before installing, operating or servicing this equipment. Improper
installation, adjustment, alteration, service or maintenance can cause property damage, injury or
death.

This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely. Young
children should be supervised to ensure that they do not play with the appliance.

Do not work around conveyor belt with long hair, loose clothing, or dangling jewelry. Getting caught in the
belt could result in serious injury.

For your safety, do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or
any other appliance.

Do not spray aerosols in the vicinity of this appliance while it is in operation.

If the power supply cord appears to be damaged, do not attempt to operate the unit. Contact a service
agent or qualified electrician to repair!

Do not use parchment paper when placing food product through the toaster! Use of such materials may
cause a fire and should never be placed in the toaster.

CounterTop - 1300 Series Ops Manual

2

PURCHASER’S RESPONSIBILITY

It is the responsibility of the purchaser to:

1. See that the electric services for the oven are installed on site in accordance with the manufacturers
specifications.

2. Unload, uncrate, and install the oven in its proper location in accordance with this installation operation manual.

3. See that the electric services are connected properly by a qualified installer of your choice. All such connections
must be in accordance with applicable code requirements. See “Code References” section for more information.

TABLE OF CONTENTS

WARRANTY AND SAFETY INFORMATION…………………………………………………………………...………… 2
PURCHASER’S RESPONSIBILITY…………………………………………………………………………………..…… 3
UTILITY SPECIFICATION – ELECTRIC……………………………………………………………………………..…… 4
EXTERIOR DIMENSIONS……………………………………………………………………………………………..…… 4
CODE REFERENCES…………………………………………………………………………………………………….… 5
VENTILATION GUIDELINES……………………………………………………………………………………………..… 5
GENERAL INFORMATION……………………………………………………………………………………………….… 5
UNLOADING AND UNCRATING………………………………………………………………………………………...… 5
ASSEMBLY INSTRUCTIONS…………………………………………………………………………………………….… 6
STACKING INSTRUCTIONS……………………………………………………………………………………………..… 7
MOUNTING INSTRUCTIONS……………………………………………………………………………………….………8
OVEN START-UP AND SHUTDOWN…………………………………………………………………………………..… 9
CLEANING INSTRUCTIONS…………………………………………………………………………………………….… 9
PREVENTIVE MAINTENANCE…………………………………………………………………………………………….. 10
HOW TO OBTAIN SERVICE…………………………………………………………………………………………….…. 10
FUNCTIONS – THERMAL CUT-OUT SWITCH………………………………………………………………………….. 10
CONVEYOR REMOVAL……………………………………………………………………………………………….……. 11
FINGER REMOVAL AND DISASSEMBLY…………………………………………………………………….…………. 12
APPENDIX A: LABEL DEFINITIONS………………………………………………………………………..…………..… 14
WARRANTY………………………………………………………………………………………………………………..… 16

CounterTop - 1300 Series Ops Manual

3

UTILITY SPECIFICATION

IMPINGER® CONVEYOR OVEN

Model Input Rate Voltage Current Phase Hz # of Wires Agency Listing DB Level

1300 6 kW 200 VAC 28 Amps 1 50/60 Hz 3 NSF
1301 6 kW 208 VAC 27 Amps 1 60 Hz 3 UL, CSA, NSF
1302 6 kW 240 VAC 24 Amps 1 60 Hz 3 UL, CSA, NSF
1303 6 kW 220 VAC 27 Amps 1 50 Hz 3 NSF
1304 6 kW 240 VAC 24 Amps 1 50 Hz 3 NSF
1305 6 kW 380/220 VAC 15 Amps 1 50 Hz 4 DIN, NSF
1306 6 kW 415/240 VAC 14 Amps 1 50 Hz 4 NSF
1307 6 kW 200 VAC 16 Amps 3 50/60 Hz 5 NSF
1308 6 kW 380/220 VAC 9 Amps 3 50 Hz 5 NSF
1309 6 kW 415/240 VAC 8 Amps 3 50 Hz 5 NSF
1310 6 kW 220 VAC 27 Amps 1 60 Hz 3
1311 6 kW 380/220 VAC 9 Amps 3 60 Hz 5
1312-xxx-E 6 kW 400/230 VAC 9 Amps 3 50 Hz 5 NSF, CE Certified ≤ dba 70
1313-xxx-E 6 kW 400/230 VAC 15 Amps 1 50 Hz 3 NSF, CE Certified ≤ dba 70

NOTE: Do not install this (these) oven(s) in any area with an ambi ent temperature in excess of 95° F / 35° C. Doing so

will cause damage to unit.

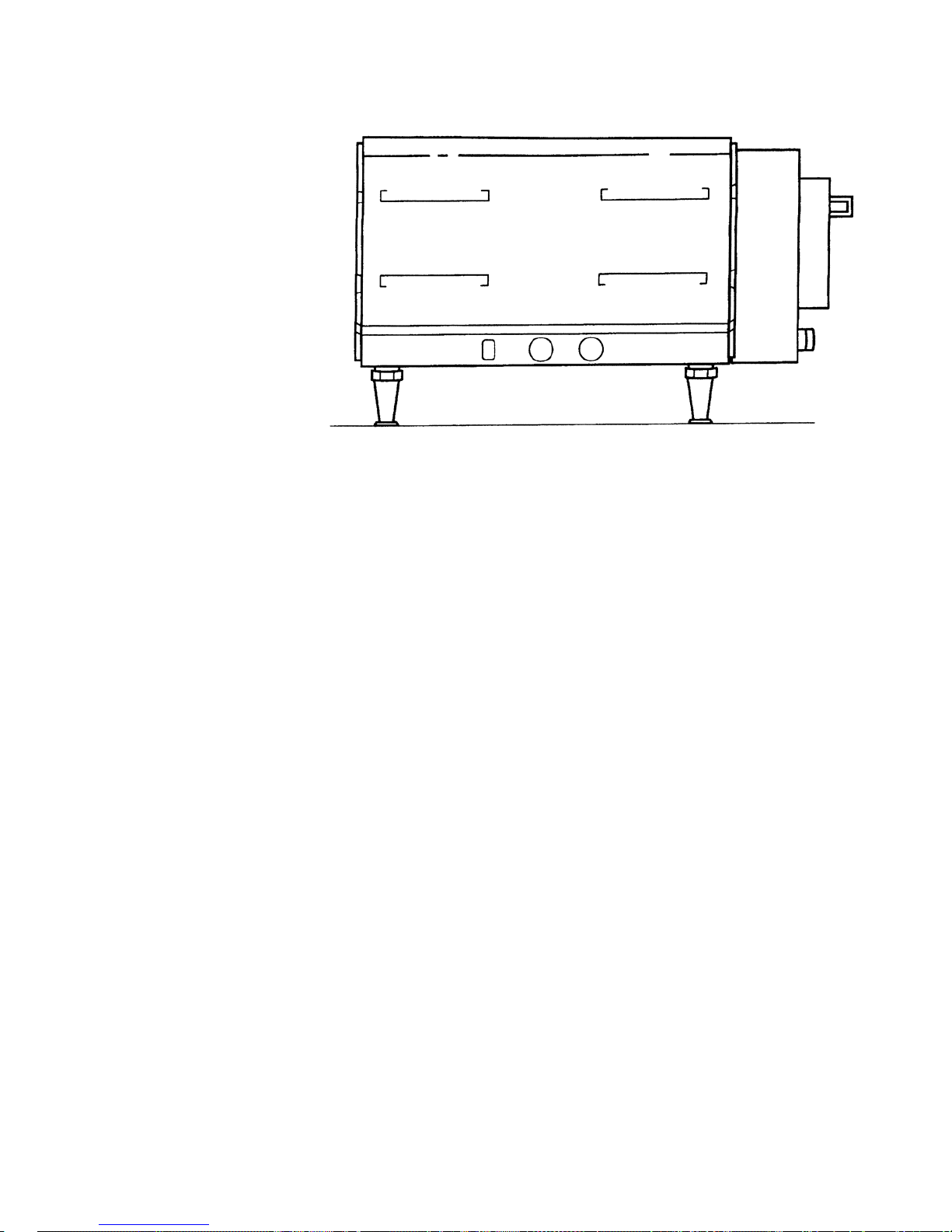

EXTERIOR DIMENSIONS IMPINGER® OVEN MODELS

Top oven shown with conveyor #1353

Bottom oven shown with extended conveyor #1346

CounterTop - 1300 Series Ops Manual

4

ELECTRICAL GROUNDING INSTRUCTIONS

!
!

WARNING

DOMESTIC:

WARNING

INT’L (CE):

As it pertains to model units 1300, 1301, and 1302 only, this appliance is equipped with a three-prong
(grounding) plug for your protection against shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.

This appliance must be properly grounded at time of installation. Failure to ensure that this equipment is
properly grounded can result in electrocution, dismemberment or fatal injury.

!

WARNING:

If the supply cord appears to be damaged, do not attempt to operate unit. Contact a service agent or
qualified electrician to repair.

ELECTRICAL CODE REFERENCE

IN USA

When installed, this appliance must be electrically grounded and its installation must comply with the National
Electric Code, ANSI-NFPA 70, latest version, the Manufacturer’s Installation Instructions, and applicable municipal
building codes.

IN CANADA

All electrical connections are to be made in accordance with CSA C22.1 – Canadian Electrical Code Part 1 and/or
local codes.

ALL OTHER COUNTRIES

Local electrical codes will prevail.

1. Strain Relief is provided with each oven. International Dealer/Distributors provide applicable power cord/plug

for each customer.

2. All pole disconnection switch 3mm open contact distance.

3. To prevent electrical shock, an equal potential bonding ground lug is provided in the back. This allows the oven

to be connected to an external bonding system.

4. If used as double stack and each oven has its own disconnection switch, all switches should be close together.

SPACING

The oven must have 6 inches (152 mm) of clearance from combustible surfaces. In case other equipment is
located on the right side of oven, a minimum clearance of 24 inches (609 mm) is required from that equipment.

FOR ALL OVENS: A 24-inch (609 mm) clearance at the rear of the oven must be obtainable for service access.

VENTILATION

Local codes prevail. These are the “authority having jurisdiction” as stated by the NATIONAL FIRE PROTECTION
ASSOCIATION, INC. in NFPA 96, latest edition.

GENERAL INFORMATION

The instructions that follow are intended as a guide for preparing for the installation of the Impinger® Conveyor
oven.

First and foremost, each crate should be examined before signing the Bill of Lading to report any visible damage
caused by the trucker in transit and account for the number of crates.

IF THERE IS APPARENT DAMAGE: United States and Canada: Arrangements should be made to file a claim
against the carrier. As Interstate Commerce Regulations require that the claim must be initiated by the consignee.
All shipments to other countries: Freight terms will be developed and extended on an individual basis.

Proper and secure storage facilities should be arranged for the oven(s) if necessary to protect it from outdoor or
damp conditions at all times before installation.

~ DO NOT LIFT EXCESSIVE WEIGHT ~

UNCRATING

When you have all the crates unloaded, open the crates and remove the plastic covers. Inspect at once for
concealed damage. If anything appears to be damaged, contact the appropriate persons immediately to file a
damage claim. After completing this inspection, finish unpacking the oven and all other components. Move the
components inside near the area where they will be assembled in the order in which they will be assembled.

CounterTop - 1300 Series Ops Manual

5

IMPINGER® ASSEMBLY INSTRUCTIONS

(

)

prop

INSTAL LEGS AS SHOWN

WARNING:

!

Legs MUST be installed to
insure

!
!

CAUTION:

CAUTION:

er operation!

!

Oven must be operated on an approved basis only. When utilizing a double-stack configuration of
ovens, the bottom unit must always be mounted on the legs provided.

Before applying power to oven, check to insure that the finger assemblies and air duct panels (upper &
lower) are properly seated and have not become dislodged during shipment.

FRONT OF

FINGER ASSEMBLY

PROPERLY INSTALLED

Air Duct Panel

(Upper)

Air Duct Panel

Lower

INSIDE FRONT WALL OF OVEN

CounterTop - 1300 Series Ops Manual

6

IMPINGER® STACKING INSTRUCTIONS

FOR SINGLE AND DOUBLE-STACK OVENS

NOTE:

!

When stacking ovens, be sure
to remove the bottom flue cap
from top oven.

!

NOTE:

!

CAUTION:

!

CounterTop - 1300 Series Ops Manual

When utilizing a double-stack configuration, stack the ovens so that the small “foot” on the top oven fits
into the “indentation” on the top of the bottom oven.

If you utilize a double-stack configuration, please note that each oven has its own disconnect switch.
Make sure that all switched are in the “OFF” position before beginning maintenance or cleaning.

7

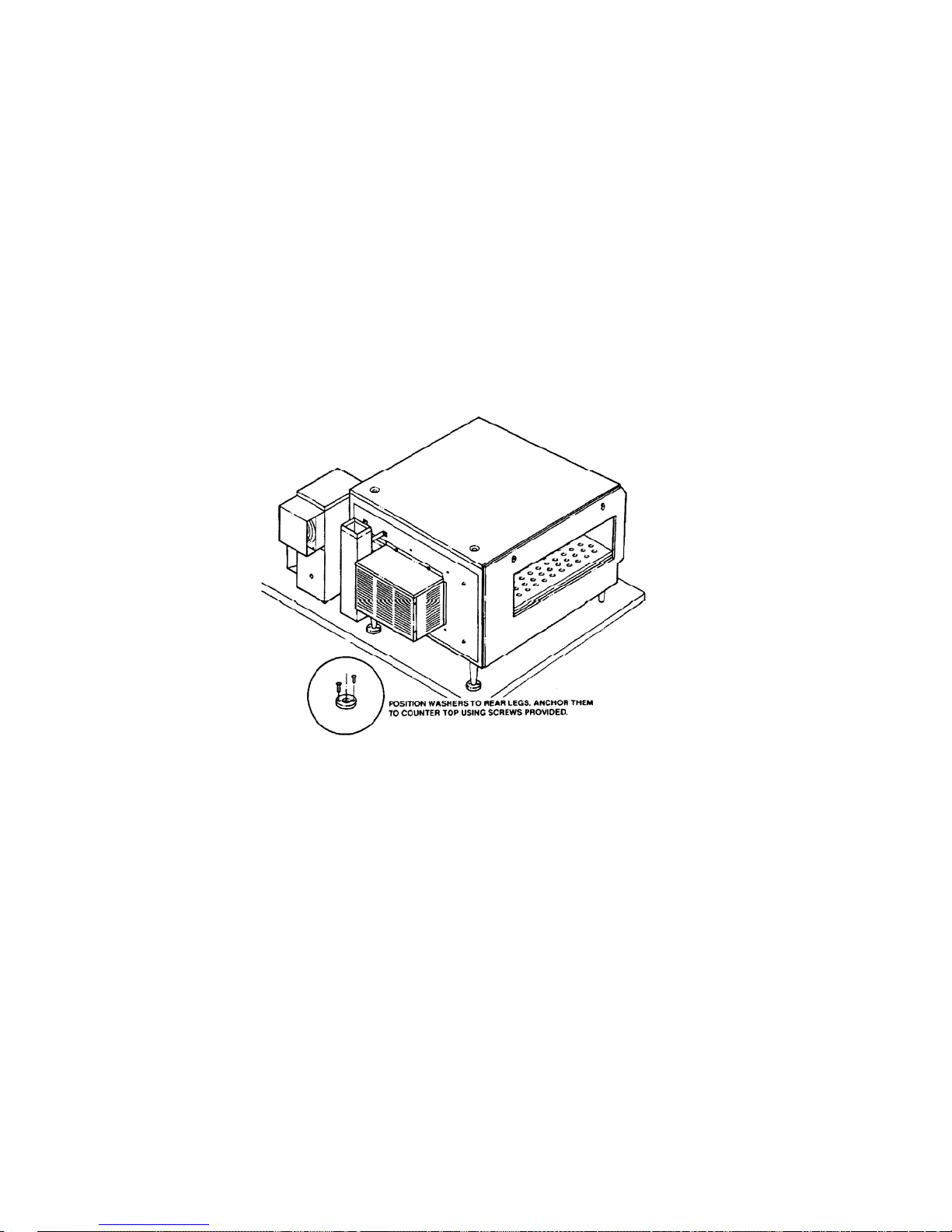

COUNTERTOP MOUNTING INSTRUCTIONS

Position the oven on the countertop and carefully mark the position of the rear legs. Remove the oven from the
countertop and position the mounting rings so that the large (center) hole is where the legs of the oven were
marked. Mark the position of the two small holes and remove the mounting rings. Install per instruction 1 or 2
below.

1. When installing on a heavy stainless steel countertop, use the four #10-32 x 3/8” machine screws. Use a .159”

diameter drill (#21) and drill through the countertop. Use a 10-32 tap through the holes. Using a screwdriver,
mount the rings in position. Set the oven on the countertop so that the rear legs are in the larger holes in the
mounting ring.

2. When installing on a plywood or composition board countertop, use the four #10 x ½” sheet metal screws. Use

a .169” diameter drill (#18) and drill at least ½” into the countertop. Using a screwdriver, mount the rings in
position. Set the oven on the countertop so that the rear legs are in the large holes in the mounting rings.

CounterTop - 1300 Series Ops Manual

8

START-UP

1. Push switch to “ON.” The electric oven should come on immediately.

2. Turn oven dial to desired temperature.

3. Preheat oven for 30 minutes.

4. To set belt speed, adjust oven time dial to reach desired time.

SHUTDOWN

1. Push switch to “OFF.”

Note: Ovens prior to serial #3018980, fan continues to operate for approximately 20 minutes. Turning on and
off fan switch will reset the timer for an additional 20 minutes.

CLEANING INSTRUCTIONS

The Lincoln Impinger® oven contains electrical components. Before cleaning the oven, switch off and disconnect
the oven from the electrical supply.

No electrical components should be subjected to moisture. It is therefore important that the oven is wiped down
carefully. NEVER throw buckets of water over the oven or subject it to pressure washing from a hose or a pressure
spray. If water or other liquid is spilled on the oven, make sure that none has entered the control box area before
switching on. If in doubt, call your service company.

!

DAILY: 1. Clean exterior surfaces of the oven by wiping it down with a mild detergent and clean water,

!

WEEKLY: 1. Remove fingers, disassemble and clean. See “Finger Removal” section for more

CAUTION:

or a commercial stainless steel cleaner.

2. Clean the interior by sweeping up all loose particles, then wash with a mild detergent solution
and rinse with clean water.

3. Clean the conveyor belt by wiping with a cleaning cloth or brushing with a soft wire brush.
Lincoln catalog #369217.

NOTE: DO NOT USE
aluminized finish of the oven interior. On exterior of oven, removal of deposits of baked-on
splatter, oil, grease, or light discolorations may be removed with any of several commercial
cleaners. Consult with your local supplier.

CAUTION:

information.

2. Remove conveyor, disassemble and clean. See “Conveyor Removal” section for more
information.

Oven must be cool. Do not use power-cleaning equipment, steel wool, or wire brushes on stainless steel
surfaces.

a caustic or alkaline base cleaner on interior of oven. This will ruin the

When using cleaning solutions, be sure they meet local and national health standards.

CounterTop - 1300 Series Ops Manual

9

OPERATOR MAINTENANCE

!

WARNING:

Disconnect power supply before servicing or cleaning this oven. Safeguard power so it cannot be
accidentally restored. Failure to do so could result in dismemberment, electrocution, or fatal injury.

Extensive engineering went into this oven to make it as maintenance free as possible. There is no lubrication
required.

However, to achieve the maximum efficiency of the oven, it is necessary to keep it clean (see “Cleaning
Instructions” section for more information). The frequency listed is only the factory’s recommendations. Your use
and type of products will actually determine the frequency of cleaning.

If the oven fails to operate, check the circuit breaker to be sure it is turned on. Also check the fuses on the back
panel to be sure that they are good before you call the Authorized Service Agency. The name and phone number
of the Authorized Service Agency should be located on the oven, or contact the factory at [phone] for the
name of the nearest Authorized Service Agency.

PREVENTIVE MAINTENANCE

Although this oven has been designed to be as trouble free as possible, periodic Preventive Maintenance is
essential to maintain peak performance. It is necessary to keep the motors, fans, and electronics free of dirt, dust,
and debris to insure proper cooling. Overheating is detrimental to the life of all the components mentioned.

The periodic intervals for preventive cleaning may vary greatly depending upon the environment in which the oven
is operating.

You must discuss the need for Preventive Maintenance with your Authorized Service Agent to establish a proper
program.

If there are any questions that the service agent cannot answer, please contact the Lincoln Technical Service
department.

INFORMATION ON USE OF OVEN

As explained in “Concepts,” the Impinger® Conveyor Oven functions by directing high velocity streams of heated air
directly upon the food products. Because air is the heat source, it is effective even on sensitive foods. Compares
to conventional ovens and even convection ovens, the cooking time of products in the Impinger

®

Conveyor Oven
can be as much as two (2) to four (4) times faster. Several factors may affect the cooking time of any special
products such as:

1. Oven Temperature Setting

2. Conveyor Speed

We encourage you to experiment with the oven by trying different temperature settings and belt speeds.

HOW TO OBTAIN SERVICE

If the oven fails to operate, check the circuit breaker to be sure it is turned on. Also check the fuses on the back
panel to be sure that they are good before you call the Authorized Service Agency. The name and phone number
of the Authorized Service Agency should be located on the oven, or contact the factory at [phone] for the
name of the nearest Authorized Service Agency.

FUNCTIONS

THERMAL CUT-OUT SWITCH

The CounterTop unit includes a “safety thermal cut-out switch” for your protection. This safety related device is
designed to insure that the CounterTop unit will not overheat and damage the unit. In the unlikely event that the
CounterTop unit would exceed the specified operating temperature range, the “safety thermal cut-out switch” will
activate, thus blocking power to the CounterTop unit and causing it to turn off.

WARNING:

!

In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be
supplied through an external switching device, such as a timer or connected to a circuit that is regularly
switched on and off by the utility.

CounterTop - 1300 Series Ops Manual

10

CONVEYOR REMOVAL & REINSTALLATION

1. Remove extension shelves (if applicable). 2. Push coupling away from drive lugs.

3. Remove conveyor from oven cavity.

4. Reassemble in reverse order. 5. Install extension shelves (if applicable).

CAUTION:

Conveyor and belt may be hot!

!

CounterTop - 1300 Series Ops Manual

11

FINGERS – REMOVAL AND DISASSEMBLY FOR CLEANING

!

DISASSEMBLY

CAUTION:

Oven must be cool before proceeding.

RETAINING

TABS

1. Release ¼-turn fasteners (2 per panel) then
pull back the panel. Lift panel off lower
retaining tabs.

DISASSEMBLE FINGERS FOR CLEANING

3. Slide finger cover from housing. Lift out inner
Columnating Plate.

REASSEMBLY

4. Reassemble in reverse order.
NOTE: Check to insure that the holes in the

columnating plate are lined up with the holes in
the orifice panel.

5. Reinstall fingers in the oven. Be sure that they
are fully seated over the plenum flanges and
the holes are pointing toward the conveyor.

6. Reinstall cover panels (see #1).

2. Lift finger assembly to clear hanger on front
wall of oven. Then slide to the rear and swing
out. Remove finger assembly from oven.

COLUMNATING PLATE

ORIFICE
PANEL

CounterTop - 1300 Series Ops Manual

12

FINGERS – REMOVAL AND DISASSEMBLY FOR CLEANING (CONT’D)

MODEL 1301 & 1302

SERIAL #3002168

AND ABOVE

ALL OTHER MODELS

SERIAL #3001885

AND ABOVE

FINGER COVERS ARE MATCHED AND MAY BE INSTALLED IN ANY LOCATION

CounterTop - 1300 Series Ops Manual

13

APPENDIX A – LABEL DEFINITIONS

CounterTop - 1300 Series Ops Manual

14

APPENDIX A – LABEL DEFINITIONS (CONT’D)

CounterTop - 1300 Series Ops Manual

15

LIMITED WARRANTY FOR COMMERCIAL PRODUCTS

LIMITED WARRANTY

Lincoln Foodservice Products, LLC (“Lincoln”) warrants this product to be free from defects in material and workmanship for a period of one (1) year
from the date of purchase.

During the warranty period, Lincoln shall, at Lincoln’s option, repair, or replace parts determined by Lincoln to be defective in material or
workmanship, and with respect to services, shall re-perform any defective portion of said services. The foregoing shall be the sole obligation of
Lincoln under this Limited Warranty with respect to the equipment, products, and services. With respect to equipment, materials, parts and
accessories manufactured by others, Lincoln’s sole obligation shall be to use reasonable efforts to obtain the full benefit of the manufacturer’s
warranties. Lincoln shall have no liability, whether in contract, tort, negligence, or otherwise, with respect to non-Lincoln manufactured products.

WHO IS COVERED
This Limited Warranty is available only to the original purchaser of the product and is not transferable.

EXCLUSIONS FROM COVERAGE

• Repair or replacement of parts required because of misuse, improper care or storage, negligence, alteration, accident, use of incompatible
supplies or lack of specified maintenance shall be excluded

• Normal maintenance items, including but not limited to, light bulbs, fuses, gaskets, O-rings, interior and exterior finishes,
lubrication, conveyor belt, motor bushes, broken glass, etc. adjustments and calibrations for temperatures, speed and air flows

• Failures caused by improper or erratic voltages

• Improper or unauthorized repair

• Changes in adjustment and calibration after ninety (90) days from equipment installation date

• This Limited Warranty will not apply to any parts subject to damage beyond the control of Lincoln, or to equipment which has been subject

to alteration, misuse or improper installation, accidents, damage in shipment, fire, floods, power changes, other hazards or acts of God that
are beyond the control of Lincoln

• This Limited Warranty does not apply, and shall not cover any products or equipment manufactured or sold by Lincoln when such products
or commercial equipment is installed or used in a residential or non-commercial application. Installations not within the applicable building or
fire codes render this Limited Warranty and any responsibility or obligations associated therein null and void. This includes any damage,
costs, or legal actions resulting from the installation of any Lincoln commercial cooking equipment in a non-commercial application or
installation, where the equipment is being used for applications other than those approved for by Lincoln.

LIMITATIONS OF LIABILITY

The preceding paragraphs set forth the exclusive remedy for all claims based on failure of, or defect in, products or services sold hereunder,
whether the failure or defect arises before or during the warranty period, and whether a claim, however instituted, is based on contract, indemnity,
warranty, tort (including negligence), strict liability, implied by statute, common-law or otherwise , and Lincoln its servants and agents shall not
be liable for any claims for personal injuries, incidental or consequential damages or loss, howsoever caused. Upon the expiration of the
warranty period, all such liability shall terminate. THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES, WHETHER WRITTEN, ORAL, IMPLIED OR STATUTORY NO IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR PARTICULAR PURPOSE SHALL APPLY. LINCOLN DOES NOT WARRANT ANY PRODUCTS OR SERVICES OF OTHERS.

REMEDIES

The liability of Lincoln for breach of any warranty obligation hereunder is limited to: (i) the repair or replacement of the equipment on which the
liability is based, or with respect to services, re-performance of the services; or (ii) at Lincoln’s option, the refund of the amount paid for said
equipment or services.
Any breach by Lincoln with respect to any item or unit of equipment or services shall be deemed a breach with respect to that item or unit or
service only

WARRANTY CLAIM PROCEDURE
Customer shall be responsible to:

• Immediately advise the Dealer or Lincoln’s Authorized Service Agent of the equipment serial number and the nature of the problem.

• Verify the problem is a factory responsibility. Improper installation or misuse of equipment, are not covered under this Limited

Warranty.

• Cooperate with the Service Agency so that warranty service may be completed during normal working hours.

• Travel Time not to exceed two hours and mileage not to exceed one hundred (100) miles.

GOVERNING LAW
Limited Warranty shall be governed by the laws of the state of Delaware, USA, excluding their conflicts of law principles. The United Nations
Convention on Contracts for the International Sale of Goods is hereby excluded in its entirety from application to this Limited Warranty

Lincoln Foodservice Products, LLC
1111 North Hadley Road
Fort Wayne, Indiana 46804

USA

www.lincolnfp.com

CounterTop - 1300 Series Ops Manual

16

This page intentionally left blank.

CounterTop - 1300 Series Ops Manual

17

This page intentionally left blank.

CounterTop - 1300 Series Ops Manual

18

This page intentionally left blank.

CounterTop - 1300 Series Ops Manual

19

Lincoln Foodservice Products, LLC

1111 North Hadley Road

Fort Wayne, Indiana 46804

United States of America

Telephone: [phone]

U.S. Fax: [phone]

Int’l Fax: [phone]

Service Hotline: [phone]

www.lincolnfp.com

CounterTop - 1300 Series Ops Manual

20
