Lincoln Mark LT 2006 Owner's Manual

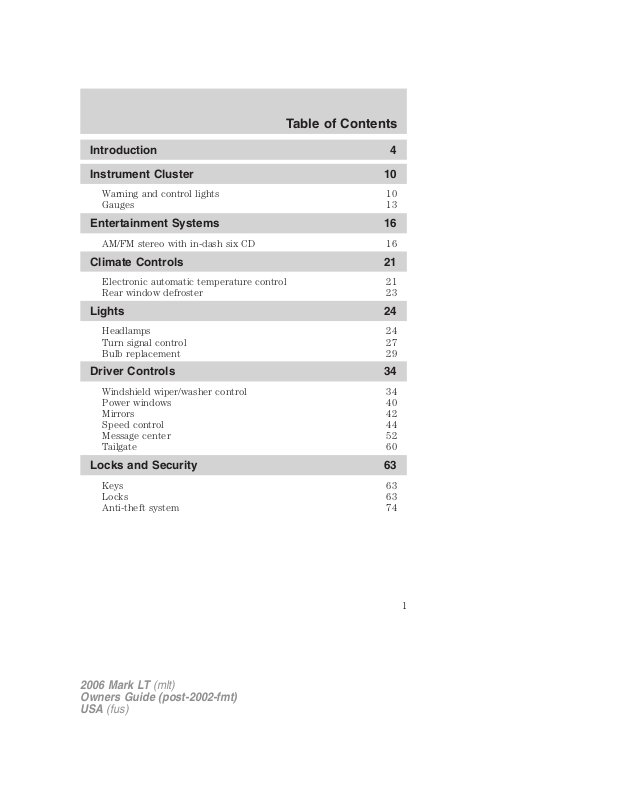

Table of Contents

Introduction 4
Instrument Cluster 10
Warning and control lights 10 Gauges 13
Entertainment Systems 16
AM/FM stereo with in-dash six CD 16
Climate Controls 21
Electronic automatic temperature control 21 Rear window defroster 23
Lights 24
Headlamps 24 Turn signal control 27 Bulb replacement 29
Driver Controls 34
Windshield wiper/washer control 34 Power windows 40 Mirrors 42 Speed control 44 Message center 52 Tailgate 60
Locks and Security 63
Keys 63 Locks 63 Anti-theft system 74
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
1
Table of Contents
Seating and Safety Restraints 78
Seating 78 Safety restraints 82 Airbags 97 Child restraints 105
Tires, Wheels and Loading 117
Tire Information 120 Tire Inflation 121 Changing tires 124 Lug Nut Torque 130 Vehicle loading 139 Trailer towing 146 Recreational towing 150
Driving 151
Starting 151 Brakes 155 Transmission operation 157
Roadside Emergencies 174
Getting roadside assistance 174 Hazard flasher switch 175 Fuel pump shut-off switch 175 Fuses and relays 176 Jump starting 183 Wrecker towing 188
Customer Assistance 189
Reporting safety defects (U.S. only) 197
Cleaning 198
2
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Table of Contents
Maintenance and Specifications 204
Engine compartment 206 Engine oil 207 Battery 210 Engine Coolant 212 Fuel information 218 Air filter(s) 233 Part numbers 234 Refill capacities 235 Lubricant specifications 237
Accessories 244
Index 246
All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Copyright © 2004 Ford Motor Company
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
3

Introduction

CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and certain
vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Lincoln. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.
For more information on Ford Motor Company and its products visit the following website:
In the United States: www.ford.com
In Canada: www.ford.ca
In Mexico: www.ford.com.mx
In Australia: www.ford.com.au
Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available
and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.
Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.
Fuel pump shut-off switch: In the event of an accident the
safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.
4
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Introduction

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.
Drive your new vehicle at least 500 miles (800 km) before towing a trailer. Additionally, during the first 500 miles (800 km) that you tow a trailer, do not drive over 70 mph (112 km/h) and do not make starts at full throttle. This style of driving will help the engine and other parts of your vehicle break in at the heavier loads.
Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.
SPECIAL NOTICES Emission warranty
The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 6.0L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
5
Introduction
includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.
Event Data Recording
Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:
how various systems in your vehicle were operating;
whether or not the driver and passenger seatbelts were buckled;
how far (if at all) the driver was depressing the accelerator and/or the
brake pedal;
how fast the vehicle was traveling; and
where the driver was positioning the steering wheel.
To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.
Please read the section Supplemental restraint system (SRS)
in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.
Front seat mounted rear-facing child or infant seats should
NEVER be placed in front of an active passenger air bag.

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.
Your vehicle is not equipped with a snowplowing package.
6
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Introduction

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.
Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than
other types of vehicles.
Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.
Be sure to read Driving off road in the Driving chapter.

Cell phone use

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.
Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.
A driver’s first responsibility is the safe operation of the vehicle.
The most important thing you can do to prevent a crash is to avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
7
Introduction
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
Fasten Safety Belt Air Bag-Front
Air Bag-Side Child Seat
Child Seat Installation Warning
Child Seat Tether Anchor
Anti-Lock Brake System
Powertrain Malfunction Speed Control
Master Lighting Switch Hazard Warning Flasher
Fog Lamps-Front Fuse Compartment
See Owner’s Guide
Child Seat Lower Anchor
Brake System
Brake Fluid ­Non-Petroleum Based
Fuel Pump Reset Windshield Wash/Wipe
Windshield Defrost/Demist
8
Rear Window Defrost/Demist
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Vehicle Symbol Glossary
Introduction
Power Windows Front/Rear
Child Safety Door Lock/Unlock
Power Window Lockout
Interior Luggage Compartment Release Symbol
Panic Alarm Engine Oil
Engine Coolant
Engine Coolant Temperature
Do Not Open When Hot Battery
Avoid Smoking, Flames, or Sparks
Battery Acid
Explosive Gas Fan Warning
Power Steering Fluid
Maintain Correct Fluid Level
Emission System Engine Air Filter
MAX
MIN
Passenger Compartment Air Filter
Jack
Check fuel cap Low tire warning
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
9

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have the respective system inspected immediately.
Service engine soon: The Service engine soon indicator light
illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately.
Under engine misfire conditions, excessive exhaust temperatures
could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.
10
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position.
If the brake system warning light does not illuminate at this time, seek service immediately from your dealership. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your servicing dealership.
Driving a vehicle with the brake system warning light on is
dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your dealer immediately.
Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately. Normal braking is still functional unless the brake warning light also is illuminated.
Air bag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately. A chime will also sound when a malfunction in the supplemental restraint system has been detected.
Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.
BRAKE
P!
ABS
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
11
Instrument Cluster
Charging system: Illuminates when the battery is not charging properly.
Door ajar: Illuminates when the ignition is in the ON position and any door is open.
Overdrive off: Illuminates when the overdrive function of the transmission has been turned off, refer to the Driving chapter. If the light flashes steadily or does not illuminate, have the transmission serviced soon, or damage may occur.
Four wheel drive low: Illuminates when four-wheel drive low is engaged.
Four wheel drive high: Illuminates when four-wheel drive high is engaged.
Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.
Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.
High beams: Illuminates when the high beam headlamps are turned on.
O/D
OFF
4x4
LOW
4x4 HI
Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened.
Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.
12
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)

GAUGES

Speedometer: Indicates the current vehicle speed.
Instrument Cluster
Engine coolant temperature gauge: Indicates engine coolant
temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.
Never remove the coolant reservoir cap while the engine is
running or hot.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
13
Instrument Cluster
Odometer: Registers the total miles (kilometers) of the vehicle. Refer to
Message Center in the Driver Controls chapter on how to switch
the display from Metric to English.
Trip odometer: Registers the miles (kilometers) of individual journeys. Press and release the message center INFO button until TRIP mode appears in the display. Press the RESET button to reset.
Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.
Battery voltage gauge: Indicates the battery voltage when the ignition is in the ON position. If the pointer moves and stays outside the normal operating range, have the vehicle’s electrical system checked as soon as possible.
Engine oil pressure gauge:
Indicates engine oil pressure. The needle should stay in the normal operating range (between “L” and “H”). If the needle falls below the normal range, stop the vehicle, turn off the engine and check the engine oil level. Add oil if needed. If the oil level is correct, have your vehicle checked at your dealership or by a qualified technician.
14
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Instrument Cluster
Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.
The arrow next to the fuel pump icon indicates which side of the vehicle the fuel filler door is located.
For more information, refer to Filling the tank in the Maintenance and Specifications chapter.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
15

Entertainment Systems

AUDIO SYSTEMS Audiophile In-Dash Six CD/MP3 Sound System
/ Tune/Disc selector:
1. Press to manually go up or down
the radio frequency or to select a desired disc. Also use in menu mode to select various settings.
2. Phone/mute: Press to mute the playing media. Press again to return to the playing media.
3. Menu: Press to toggle through the following modes:
Autoset: Allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2 .
Use
When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets.
16
/ / , SEEK to turn on/off.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
Bass: Press to adjust the bass setting. Use / / SEEK .
Treble: Press to adjust the treble setting. Use
Balance: Press to adjust the audio between the left and right speakers.
Use
Fade: Press to adjust the audio between the front and rear speakers.
Use
Occupancy mode: Use / / SEEK select and optimize
sound for ALL SEATS, DRIVERS SEAT or REAR SEATS.
Speed sensitive volume: Radio volume automatically changes slightly with vehicle speed to compensate for road and wind noise.
Use
Setting the clock: Press until SELECT HOUR or SELECT MINS is
displayed. Press
RDS: Allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz/RB, Religious, Rock, Soft, Top 40. RDS (only available in FM mode) must be activated to access Find and Show functions. To activate, press and hold MENU until RDS (ON/OFF) appears in the
display. Use
repeatedly to scroll through Find, Show and RDS. When RDS is Off, you will not be able to access Find and Show functions.
Find: Allows you to search RDS-equipped stations for the desired music category. Use
SEEK or SCAN to begin the search.
Show: Allows you to display the name of the radio station or program
type. Use
/ / , SEEK .
/ / , SEEK .
/ / SEEK to adjust.
/ / SEEK to adjust the hours/minutes.
/ . SEEK to toggle RDS ON/OFF. Press MENU
/ to find the desired program type, then use
/ / SEEK to show type, name or none.
/ / SEEK .
Track/Folder Mode: Available only on MP3 discs in CD mode. In Track Mode, pressing
In Folder mode, pressing within the selected folder.
SEEK will scroll through all tracks on the disc.
SEEK will scroll only through tracks
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
17
Entertainment Systems
Compression: Available only in CD mode, brings soft and loud CD passages together for a more consistent listening level.
Repeat: Available only in CD mode. Press to repeat the current CD track.
4. Aux: Press to toggle between FES/DVD and AUX modes. If no auxiliary sources are available, NO AUX AUDIO will be displayed.
5. Seek: Press to access the next strong station or track.
6. Text: In CD mode, this feature reads and displays track song title, artist name and album title.
7. Shuffle: Press to play the tracks in random order.
8. FOLDER: Press to access next folder on MP3 discs, if folders are available.
9. FOLDER: press to access the previous folder on MP3 discs, if folders are available.
10. Fast forward: Press to manually advance in a CD track.
11. Rewind: Press to manually reverse in a CD track.
12. Memory presets: To set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until sound returns.
13. Scan: Press for a brief sampling of radio stations or CD tracks. Press again to stop.
14. Seek: Press to access the previous strong station or track.
18
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Entertainment Systems
15. AM/FM: Press to select AM/FM frequency band.
16. ON/OFF/Volume: Press to turn ON/OFF. Turn to increase/decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.
17. CD: Press to enter CD mode. If a CD is already loaded into the system, CD play will begin where it ended last.
18. LOAD: Press to load a CD. Press and hold to autoload up to six CDs.
19. CD eject: Press to eject a CD. Press and hold to auto eject all CDs present in the system. If there is no CD present, the display will read NO CD.
20. CD slot: Insert a CD label side up.

FAMILY ENTERTAINMENT SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a Family Entertainment System (FES). Refer to the DVD Supplement Guide for further information on your system.

GENERAL AUDIO INFORMATION

Radio frequencies:
AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:
AM - 530, 540–1700, 1710 kHz
FM - 87.7, 87.9–107.7, 107.9 MHz
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
19
Entertainment Systems
Radio reception factors:
There are three factors that can effect radio reception:
Distance/strength: The further you travel from an FM station, the weaker the signal and the weaker the reception.
Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.
Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.
CD/CD player care
Do:
Handle discs by their edges only. Never touch the playing surface.
Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
Don’t:
Expose discs to direct sunlight or heat sources for extended periods of time.
Insert more than one disc into each slot of the CD changer magazine.
Clean using a circular motion.
CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your dealer for further information.
Audio system warranty and service
Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or qualified technician.

ACCESSORY DELAY

With accessory delay, the window switches, moon roof (if equipped) and audio system may be used for up to ten minutes after the ignition switch is turn to the OFF position or until any door is opened.
20
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)

Climate Controls

AUTOMATIC TEMPERATURE CONTROL (ATC) SYSTEM WITH HEATED SEATS

Temperature conversion: To switch between Fahrenheit and Celsius using the message center, refer to Units (Fahrenheit/Celsius) in the Driver Controls chapter.
MAX A/C: For maximum cooling performance, press and set the temperature to 60°F and the highest blower setting.
1.
vents and demister vents. Can be used to clear the windshield of fog and thin ice.
2.
fan speed. To return to automatic fan operation, press AUTO.
3. Heated mirrors: Press to activate/deactivate. This feature will
remove ice and snow from the side view mirrors. Refer to Rear window defroster in this section for more information.
4.
seat. Press once to activate high heat (two indicator lights). Press again to activate low heat (one indicator light). Press again to deactivate the passenger heated seat.
5.
outlets, and the front and rear seat floor ducts.
6. : Distributes air through the floor and rear seat floor ducts.
Defrost: Distributes outside air through the windshield defroster
Fan speed control: Press to manually increase or decrease the
Passenger heated seat control: Press to heat the passenger
: Distributes air through the windshield defroster ducts, demister
, A/C, ,
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
21
Climate Controls
7. : Distributes air through the windshield defroster ducts, demister
outlets, and the front and rear seat floor ducts.
8.
: Distributes air through the instrument panel and center console
registers.
9.
Driver heated seat control: Press to heat the driver seat. Press
once to activate high heat (two indicator lights). Press again to activate low heat (one indicator light). Press again to deactivate the driver heated seat.
10. Manual override controls: Allows you to manually select where
airflow is directed. To return to full automatic control, press AUTO.
11.
recirculation in cabin. Recirculated air may reduce the amount of time to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle. Recirculation can be engaged manually in any other airflow selection except
Recirculation may turn off automatically in all airflow selections except MAX A/C.
12. A/C control: Press to activate/deactivate air conditioning. Use with
recirculated air to improve cooling performance and efficiency. Engages automatically in AUTO,
13. OFF: Outside air is shut out and the fan will not operate.
14. Temperature control: Press to increase/decrease the temperature
in the vehicle cabin.
15. AUTO: To engage automatic temperature control, press AUTO and
select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.
Recirculation control: Press to activate/deactivate air
(defrost).
(defrost) and (floor/defrost).

Operating tips

To reduce fog build up on the windshield during humid weather, place the air flow selector in the
To reduce humidity build up inside the vehicle: do not drive with the airflow selector in the OFF or with
Do not put objects under the front seats that will interfere with the airflow to the back seats.
Remove any snow, ice or leaves from the air intake area at the base of the windshield.
22
position.
(recirculated air) engaged.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Climate Controls
To improve the A/C cool down, drive with the windows slightly open for 2-3 minutes after start up or until the vehicle has been “aired out.”
For maximum cooling performance (Max A/C):
In AUTO : Press AUTO control and set to desired temperature.
In Manual Override Control: Press the (recirculation) controls, set the temperature to 60°F and the fan to the
highest blower setting.
To aid in side window defogging/demisting in cold weather:
1. Select
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan speed to the highest setting.
5. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents located in the middle of the instrument panel.
.
Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.
(panel), A/C, and

REAR WINDOW DEFROSTER

The rear defroster control is located on the climate control panel and works to defrost your rear windshield from fog and thin ice. If equipped, it also operates the heated mirror to remove snow and thin ice from the side mirrors.
Ensure that the ignition is ON position. Press to turn the defroster ON/OFF. The indicator light will illuminate when activated.
Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.
R
23
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)

Lights

HEADLAMP CONTROL

Rotate the headlamp control clockwise to the first position turn on the parking lamps. Rotate clockwise to the second position headlamps.

Autolamp control

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.
The autolamp system will allow you to keep the headlamps on for 0–180 seconds, after the ignition switch is turned to OFF. See Message Center in the Driver Controls chapter.
To turn autolamps on, rotate the control counterclockwise to
to also turn on the
to
.
To turn autolamps off, rotate the control clockwise to

Foglamp control

The headlamp control also operates the foglamps. The foglamps can be turned on only when the headlamp
control is in the position and the high beams are not
turned on.
Pull headlamp control towards you to turn foglamps on. The foglamp indicator light the ignition is in the ON position.
24
, or
will illuminate if
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
.
Lights

Daytime running lamps (DRL) (if equipped)

Turns the headlamps on with a reduced output.
In order for the DRLs to function:
the ignition must be in the ON position and
the headlamp control is in the OFF, parking lamp or autolamp
position.
Always remember to turn on your headlamps at dusk or during
inclement weather. The Daytime Running Lamp (DRL) system does not activate the tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

High beams

Push the lever toward the instrument panel to activate. Pull the lever towards you to deactivate.

Flash to pass

Pull toward you slightly to activate and release to deactivate.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
25
Lights

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel and all applicable switches in the vehicle during headlamp and parklamp operation.
Move the control to the full upright position, past detent, to turn on the interior lamps.
Move the control to the full down position, past detent, to prevent the interior lights from illuminating when the doors are opened.

VERTICAL AIM ADJUSTMENT

1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away.
(1) 8 feet (2.4 meters)
(2) Center height of lamp to
ground
(3) 25 feet (7.6 meters)
(4) Horizontal reference line
2. Measure the height from the center of your headlamp (indicated by a 3.0 mm circle on the lens) to the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).
3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood. Cover one of the headlamps so no light hits the wall.
4. On the wall or screen you will observe a light pattern with a distinct horizontal edge towards the right. If this edge is not at the horizontal reference line, the beam will need to be adjusted so the edge is at the same height as the horizontal reference line.
26
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
5. Locate the vertical adjuster on each headlamp, then usea4mm socket/wrench to turn the adjuster either counterclockwise (to adjust down) or clockwise (to adjust up) aligning the upper edge of the light pattern up to the horizontal line.
6. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.
7. Repeat Steps 3–5 for the other headlamp.
8. Close the hood and turn off the lamps.

TURN SIGNAL CONTROL

Push down to activate the left turn signal.
Push up to activate the right turn signal.
Lights

INTERIOR LAMPS

Map lamps

To turn on the map lamps, press the control next to each lamp.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
27
Lights

Rear dome lamp (if equipped)

The dome lamp lights when the control is in the DOOR (left) position, any door is open, the instrument panel switch is pushed past the detent and when any of the remote entry controls are pressed while the ignition is off.
The rear dome lamp can be turned ON (center) or OFF (right) by sliding the control.
Rear map lamp (if equipped)
The rear map lamp lights are located on the end of the overhead rail system. The lamps can be turned on or off by pushing on the lens.
Dome/courtesy lamps (if equipped)
The dome lamp lights when:
any door is opened.
the instrument panel dimmer
switch is rotated up until the courtesy lamps come on.
any of the remote entry controls are pressed and the ignition is OFF.
The reading portion, the two outer lights, can only be toggled on and off at the lamp.
28
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Lights
Courtesy/reading/cargo lamps (if equipped)
The dome portion of the lamp, the center light, can be turned on when the headlamp control is rotated fully up or when any door is opened.
With the ignition key in the ACC or ON position, the rear dome lamp can be turned ON or OFF by sliding the control.

BULB REPLACEMENT

Headlamp Condensation

The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.
Function Number of
bulbs
Headlamps 2 H13/ 9008 Front park/turn lamps 2 3157A (amber) Front sidemarker 2 194 Foglamps 2 9145
Trade number
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
29
Lights
Function Number of
bulbs
Backup lamp 2 3155K Rear stop/turn/sidemarker/tail
lamp High-mount brakelamp 1 921 Cargo lamp 2 921 Map lamp 2 906 Rear dome lamp 1 921 License plate lamp 2 194 Exterior mounted mirror turn
signal indicator All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer

Replacing headlamp bulbs

1. Make sure that the headlamp control is in the OFF position and open
the hood.
2. At the top and inboard side of the
headlamp, peel the protective cover back and loosen the three retaining screws.
3. Once the three retaining screws
have been removed, disengage the tab at the top center of the headlamp assembly by lifting it up.
4. Slide headlamp assembly forward
disconnecting the snap attachment at the fender and disconnect the electrical connector from the bulb by pulling rearward.
2 4057K or 3057K
1 See your dealer
Trade number
30
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Lights
5. Remove the bulb by turning it
counterclockwise, then pull it straight out.
Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.
Install the new bulb in reverse order.
Replacing front parking lamp/turn signal/sidemarker bulbs
1. Make sure the headlamp control is in the OFF position and open the hood.
2. At the top and inboard side of the headlamp, peel the protective cover back and loosen the three retaining screws.
3. Once the three retaining screws have been removed, disengage the tab at the top center of the headlamp assembly by lifting it up.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
31
Lights
4. Slide the headlamp assembly forward disconnecting the snap attachment at the fender.
5. Remove bulb socket from the lamp assembly by turning it counterclockwise and then pull the bulb straight out.
Install the new bulb(s) in reverse order.
Replacing tail/brake/turn signal/backup lamp bulbs
1. Make sure the headlamp control is in the OFF position.
2. Open the tailgate to expose the lamp assembly screws and remove the two screws from the tail lamp assembly.
3. Carefully pull the lamp assembly straight rearward from the tailgate pillar to disengage two hidden snap-in retainers.
4. Remove bulb socket from the lamp assembly by turning it counterclockwise.
5. Pull bulb straight out of socket and press in the new bulb.
Install the new bulb(s) in reverse order.
32
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Lights
Replacing high-mount brake and cargo lamp bulbs
Make sure the headlamp control is in the OFF position.
1. Remove the two screws and move the lamp assembly away from the vehicle to expose the bulb sockets.
2. Remove the bulb socket by rotating counterclockwise and pulling it out of the lamp assembly.
3. Pull the bulb straight out of the socket and push in the new bulb. Install the new bulbs in reverse order.
Replacing foglamp bulbs
1. Make sure the headlamp control is in the OFF position.
2. Remove the bulb socket from the foglamp by turning counterclockwise.
3. Disconnect the electrical connector from the foglamp bulb.
Install the new bulb in reverse order.
Replacing exterior mounted mirror turn signal indicator lamp bulbs
For bulb replacement, see a dealer or qualified technician.
Replacing license plate lamp bulbs
The license plate bulbs are located behind the rear bumper. To change the license plate lamp bulbs:
1. Reach behind the rear bumper to locate the bulb.
2. Twist the bulb socket counterclockwise and carefully pull to remove it from the lamp assembly.
3. Pull out the old bulb from the socket and push in the new bulb.
4. Install the bulb socket in lamp assembly by turning it clockwise.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
33

Driver Controls

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end of the control away from you to increase the speed of the wipers; rotate towards you to decrease the speed of the wipers.
Windshield washer: Push the end of the stalk:
briefly: causes a single swipe of the wipers without washer fluid.
a quick push and hold: the wipers will swipe three times with washer fluid.
a long push and hold: the wipers and washer fluid will be activated for up to ten seconds.

CHANGING THE WIPER BLADES

1. Pull the wiper arm away from the
vehicle. Turn the blade at an angle from the wiper arm. Push the lock pin manually to release the blade and pull the wiper blade down toward the windshield to remove it from the arm.
2. Attach the new wiper to the
wiper arm and press it into place until a click is heard.
Replace wiper blades at least once per year for optimum performance.
Poor wiper quality can sometimes be improved by cleaning the wiper blades, refer to Windows and wiper blades in the Cleaning chapter.
To prolong the life of the wiper blades, it is highly recommended to scrape off the ice on the windshield before turning on the wipers. The layer of ice has many sharp edges and can damage the micro edge of the wiper rubber element.
34
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)

TILT STEERING

Push the lever down to unlock the steering column. While the lever is in the down position, tilt the steering column to the desired position.
While holding the steering wheel, pull the lever up to its original position to lock the steering column.
Never adjust the steering column when the vehicle is
moving.
ILLUMINATED VISOR MIRROR
(IF EQUIPPED)
Lift the mirror cover to turn on the visor mirror lamp.
Driver Controls
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
35
Driver Controls
Slide on rod feature (if equipped)
Rotate the visor towards the side window and extend it rearward for additional sunlight coverage.
Note: To stow the visor back into the headliner, visor must be retracted before moving it back towards the windshield.

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to your option package.
If your vehicle is equipped with a overhead console rail system, there are several features that can be operated.
1. To open the bins, move the
center latch forward which will allow the door to be opened.
2. The latches on the side of the
bins are to enable the user to remove the bin or add a dealer purchased feature.
Sliding the bins on the rails may cause damage to the headliner. The removable bins are to be snapped into place not slid.

Overhead Storage Bins

When on the overhead rail, adjacent bins must be pinned together. Bins adjacent to the End Cap must be pinned to the End Cap. Bins without pin attachments should not be placed on the overhead rail.
36
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
Failure to pin the bins together can allow the bins to become separated from the rail under certain conditions.
Bin Removal
Attach and remove bins from the rail using the following instructions:
Place both palms on the underside of the storage bin, avoiding the storage bin door.
Push upwards with palms.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
37
Driver Controls
While pushing upwards with palms, grip the side latches with fingers and squeeze.
With pressure applied with palms and side latches squeezed down, pull downward on the entire storage bin and remove.

AUXILIARY POWER POINT (12VDC)

Power outlets are designed for accessory plugs only. Do not insert any other object in the power outlet for this will damage the outlet and blow the fuse. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty.
38
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
The auxiliary power point is located on the instrument panel.
Do not use the power point for operating the cigarette lighter element (if equipped).
To prevent the fuse from being blown, do not use the power point(s) over the vehicle capacity of 12 VDC/180W.
To prevent the battery from being discharged, do not use the power point longer than necessary when the engine is not running.
An additional auxiliary power point is located on the lower rear side of the center console. The power point is accessible from the rear seats.
Always keep the power point caps closed when not being used.
Cigarette/Cigar lighter (if equipped)
Do not plug optional electrical accessories into the cigarette lighter socket.
Do not hold the lighter in with your hand while it is heating, this will damage the lighter element and socket. The lighter will be released from its heating position when it is ready to be used.
Improper use of the lighter can cause damage not covered by your warranty.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
39
Driver Controls

CENTER CONSOLE

The center console offers several useful storage features. These include:
1. Cupholders
2. Tissue holder in lid
3. Power point
4. Large utility compartment has
Coin holder slots, PalmPilot/PDA holder, and Pen holder
1
2
Use only soft cups in the cupholder. Hard objects can injure you in a collision.

POWER WINDOWS

Do not leave children unattended in the vehicle and do not let children play with the power windows. They may seriously injure
themselves.
When closing the power windows, you should verify they are free of obstructions and ensure that children and/or pets are not in
the proximity of the window openings.
Press and hold the bottom part of the rocker switch to open the window. Press and hold the top part of the rocker switch to close the window.
4
3
40
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls

One touch down

Allows the driver’s window to open fully without holding the control down. Press completely down on the bottom part of the rocker switch and release quickly. Press the top part of the rocker switch to stop.

Window lock

The window lock feature allows only the driver to operate the power windows.
To lock out all the window controls except for the driver’s press the left side of the control.
Note: The rear window switches will not illuminate when the window control is in the LOCKED position.
Press the right side to restore the window controls.

Power Sliding Back Window

To operate the power sliding back window, the ignition switch must be in the Run or Accessory position.
Press and hold the bottom part of the rocker switch to open window all the way to the full open position.
Press and hold the top part of the rocker switch to close the window.
All rear seat occupants and/or cargo must be properly restrained and clear of the back window opening before operating the
power sliding back window.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
41
Driver Controls

Accessory delay

With accessory delay, the window switches may be used for up to ten minutes after the ignition switch is turned to the OFF position or until the driver’s door is opened.

AUTOMATIC DIMMING INSIDE REAR VIEW MIRROR

Your vehicle is equipped with an inside rear view mirror with an auto-dimming function. The electronic day/night mirror will change from the normal (high reflective) state to the non-glare (darkened) state when bright lights (glare) reach the mirror. When the mirror detects bright light from behind the vehicle, it will automatically adjust (darken) to minimize glare.
The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse) to ensure a bright clear view when backing up.
Do not block the sensor on the backside of the inside rear view mirror since this may impair proper mirror performance.

POWER SIDE VIEW MIRRORS

To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate the control counterclockwise to adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to
lock mirrors in place.
42
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls

Heated outside mirrors

Heated mirrors remove ice, mist and fog. To activate the heated mirrors, press the rear defrost button located on the climate control panel.
Refer to Rear Window Defrost in the Climate Controls chapter for more information.
Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

Exterior mounted mirror turn signal indicator

When the vehicle turn signal is activated, the lower portion of the mirror housing will blink.
This feature provides an indicator to the driver that the vehicle turn signal is working properly.

POWER ADJUSTABLE FOOT PEDALS (IF EQUIPPED)

The accelerator and brake pedal should only be adjusted when the vehicle is stopped and the gearshift lever is in the P (Park) position.
Press and hold the rocker control to adjust accelerator and brake pedal.
Press the bottom of the control to adjust the pedals toward you.
Press the top of the control to adjust the pedals away from you.
The adjustment allows for approximately 3 inches (76 mm) of maximum travel.
R
Never adjust the accelerator and brake pedal with feet on the pedals while the vehicle is moving.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
43
Driver Controls

SPEED CONTROL

With speed control set, you can maintain a speed of 30 mph (48 km/h) or more without keeping your foot on the accelerator pedal. Speed control does not work at speeds below 30 mph (48 km/h).
Do not use the speed control in heavy traffic or on roads that are winding, slippery or unpaved.

Setting speed control

The controls for using your speed control are located on the steering wheel for your convenience.
1. Press the ON control and release
it.
2. Accelerate to the desired speed.
3. Press the SET control and release
it.
4. Take your foot off the accelerator
pedal.
5. The indicator
instrument cluster will turn on.
light on the
Note:
Vehicle speed may vary momentarily when driving up and down a steep hill.
If the vehicle speed increases above the set speed on a downhill, you may want to apply the brakes to reduce the speed.
If the vehicle speed decreases more than 10 mph (16 km/h) below your set speed on an uphill, your speed control will disengage.
44
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
Resuming a set speed
Press the RESUME control and release it. This will automatically return the vehicle to the previously set speed. The RESUME control will not work if the vehicle speed is not faster than 30 mph (48 km/h).
Increasing speed while using speed control
There are two ways to set a higher speed:
Press and hold the SET control until you get to the desired speed, then release the control. You can also use the SET control to operate the Tap-Up function. Press and release this control to increase the vehicle set speed in small amounts by 1 mph (1.6 km/h).
Use the accelerator pedal to get to the desired speed. When the vehicle reaches that speed press and release the SET control.
Reducing speed while using speed control
There are two ways to reduce a set speed:
Press and hold the CST (coast) control until you get to the desired speed, then release the control. You can also use the CST control to operate the Tap-Down function. Press and release this control to decrease the vehicle set speed in small amounts by 1 mph (1.6 km/h).
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
45
Driver Controls
Depress the brake pedal until the desired vehicle speed is reached, press the SET control.
Turning off speed control
There are two ways to turn off the speed control:
Depress the brake pedal. This will not erase your vehicle’s previously set speed, if RESUME is then selected, the vehicle will return to the previously set speed.
Press the speed control OFF control. This will erase your vehicle’s previously set speed.
Note: When you turn off the speed control or the ignition, your speed control set speed memory is erased.

STEERING WHEEL CONTROLS

These controls allow you to operate some radio and climate control features.

Audio control features

Press
AM, FM1, FM2, TAPE (if
CD (if equipped),
FES/DVD (if equipped), or
FES/AUX (if equipped).
In AM, FM1, or FM2 mode:
Press SEEK to select preset stations or the next strong station within
46
to select:
equipped)
the selected radio band.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
In CD mode:
Press SEEK to select the next selection on the CD.
In any mode:
Press VOL + or − to adjust volume.

Climate control features

Press TEMP + or - to adjust temperature.
Press FAN + or - to adjust fan speed.

MOON ROOF (IF EQUIPPED)

The moon roof control is located on the overhead console.
Do not let children play with the moon roof or leave children unattended in the vehicle. They may seriously hurt themselves.
Note: The moon roof will open to the “comfort” position first before opening all the way. The “comfort” position helps to alleviate rumbling wind noise which may happen in the vehicle with the roof fully opened.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
47
Driver Controls
To open the moon roof: The moon roof is equipped with a one-touch open feature. Press and release the will open to the “comfort” position. Press and release the control again to fully open. To stop the one-touch open feature press either the
or control again.
To close the moon roof: Press and hold the Press and hold the control again until the glass stops moving. When fully closed, the rear portion of the glass panel will appear higher than the front portion.
To vent the moon roof: Press and hold the roof must be in the closed position in order to move it into the vent position. To close, press and hold the control until the glass
panel stops moving.
The moon roof has a built-in sliding shade that can be manually opened or closed when the glass panel is shut. To close the shade, pull it toward the front of the vehicle.
proximity of the moon roof opening.
control. The moon roof
ROOF
control until the glass panel stops at the “comfort” position.
control. The moon
When closing the moon roof, you should verify that it is free of obstructions and ensure that children and/or pets are not in the
HOMELINKWIRELESS CONTROL SYSTEM
The HomeLinkWireless Control System, located on the driver’s visor, provides a convenient way to replace up to three hand-held transmitters with a single built-in device. This feature will learn the radio frequency codes of most transmitters to operate garage doors, entry gate operators, security systems, entry door locks, and home or office lighting.
When programming your HomeLinkWireless Control System to a garage door or gate, be sure that people and objects are out of
the way to prevent potential harm or damage.
Do not use the HomeLinkWireless Control System with any garage door opener that lacks safety stop and reverse features as required by
48
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
U.S. federal safety standards (this includes any garage door opener model manufactured before April 1, 1982). A garage door which cannot detect an object, signaling the door to stop and reverse, does not meet current U.S. federal safety standards. For more information, contact HomeLinkat: www.homelink.com or 1–800–355–3515.
Retain the original transmitter for use in other vehicles as well as for future programming procedures (i.e. new HomeLinkequipped vehicle purchase). It is also suggested that upon the sale of the vehicle, the programmed Homelinkbuttons be erased for security purposes, refer to Programming in this section.

Programming

Do not program HomeLinkwith the vehicle parked in the garage. Note: Your vehicle may require the ignition switch to be turned to the
ACC position for programming and/or operation of the HomeLink.Itis also recommended that a new battery be placed in the hand-held transmitter of the device being programmed to HomeLinkfor quicker training and accurate transmission of the radio-frequency signal.
1. Press and hold the two outside
buttons releasing only when the indicator light begins to flash after 20 seconds. Do not repeat Step 1 to program additional hand-held transmitters to the remaining two HomeLinkbuttons. This will erase previously programmed hand-held transmitter signals into HomeLink威.
2. Position the end of your
hand-held transmitter 1–3 inches (2–8 cm) away from the HomeLink button you wish to program (located on your visor) while keeping the indicator light in view.
3. Simultaneously press and hold
both the HomeLinkand hand-held transmitter button. Do not release
the buttons until Step 4 has been completed.
Some entry gates and garage door openers may require you to replace Step 3 with procedures noted in the “Gate Operator and Canadian Programming” in this section for Canadian residents.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
49
Driver Controls
4. The indicator light will flash slowly and then rapidly. Release both
buttons when the indicator light flashes rapidly. (The rapid flashing light indicates acceptance of the hand-held transmitters’ radio frequency signals.)
5. Press and hold the just-trained HomeLinkbutton and observe the
indicator light. If the light is constant, programming is complete and your device should activate when the HomeLinkbutton is pressed and released. Note: To program the remaining two HomeLinkbuttons, begin with Step 2 in the “Programming” section — do not repeat Step 1.
Note: If the indicator light blinks rapidly for two seconds and then turns to a continuous red, proceed with Steps 6 through 8 to complete programming of a rolling code equipped device.
6. At the garage door opener receiver (motor-head unit) in the garage,
locate the “learn” or “smart” button (usually near where the hanging antenna wire is attached to the unit).
7. Press and release the “learn” or “smart” button. (The name and color
of the button may vary by manufacturer.) Note: There are 30 seconds in which to initiate Step 8.
8. Return to the vehicle and firmly press, hold for two seconds and
release the HomeLinkbutton. Repeat the press/hold/release sequence again, and, depending on the brand of the garage door opener (or other rolling code equipped device), repeat this sequence a third time to complete the programming.
HomeLinkshould now activate your rolling code equipped device. To program additional HomeLinkbuttons begin with Step 2 in the “Programming” section. For questions or comments, please contact HomeLink at www.homelink.com or 1–800–355–3515.

Gate Operator & Canadian Programming

During programming, your hand-held transmitter may automatically stop transmitting — not allowing enough time for HomeLinkto accept the signal from the hand-held transmitter.
After completing Steps 1 and 2 outlined in the “Programming” section, replace Step 3 with the following:
Note: If programming a garage door opener or gate operator, it is advised to unplug the device during the “cycling” process to prevent overheating.
50
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
Continue to press and hold the HomeLink威 button (note Step 3 in the “Programming” section) while you press and release — every two seconds (“cycle”) your hand-held transmitter until the frequency signal has been accepted by the HomeLink. The indicator light will flash slowly and then rapidly after HomeLinkaccepts the radio frequency signal.
Proceed with Step 4 in the “Programming” section.
Operating the HomeLinkWireless Control System
To operate, simply press and release the appropriate HomeLinkbutton. Activation will now occur for the trained product (garage door, gate operator, security system, entry door lock, or home or office lighting etc.). For convenience, the hand-held transmitter of the device may also be used at any time. In the event that there are still programming difficulties, contact HomeLinkat www.homelink.com or
1–800–355–3515.
Erasing HomeLinkbuttons
To erase the three programmed buttons (individual buttons cannot be erased):
Press and hold the two outer HomeLinkbuttons until the indicator light begins to flash-after 20 seconds. Release both buttons. Do not hold for longer that 30 seconds.
HomeLink威 is now in the train (or learning) mode and can be programmed at any time beginning with Step 2inthe“Programming” section.
Reprogramming a single HomeLinkbutton
To program a device to HomeLinkusing a HomeLinkbutton previously trained, follow these steps:
1. Press and hold the desired HomeLinkbutton. Do NOT release the
button.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
51
Driver Controls
2. The indicator light will begin to flash after 20 seconds. Without
releasing the HomeLinkbutton, follow Step 2 in the “Programming” section.
For questions or comments, contact HomeLinkat www.homelink.com or 1–800–355–3515.

MESSAGE CENTER

With the ignition in the ON position, the message center, located on your instrument cluster, displays important vehicle information
through a constant monitor of vehicle systems. You may select
display features on the message center for a display of status preceded by a brief indicator chime. The system will also notify you of potential vehicle problems with a display of system warnings followed by a long indicator chime. If equipped with an outside temperature display, it will display in the instrument cluster all the time, except when a warning message is present.

Selectable features

Reset
Press this control to select and reset functions shown in the INFO menu and SETUP menu.
Info menu
This control displays the following control displays:
Odometer/Compass
Trip odometer/Odometer/Compass
Distance to Empty
Average Fuel Economy
Trip Elapsed Drive Time
52
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
Odometer/Trip odometer
Refer to Gauges in the Instrument Cluster chapter.
Compass display
The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.
Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass zone/calibration
adjustment.
Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass zone/calibration adjustment.
Compass zone/calibration adjustment
1. Determine your magnetic zone by
referring to the zone map.
2. Turn ignition to the ON position.
3. Start the engine.
4. From Info menu, select the
Compass/Odometer function. (Do not select Trip, DTE, or AFE. The top of the message center must be blank).
123
4
5
6 7 8 9 1011
15
14 13
12
5. Press and hold the SETUP and
RESET controls until the message center display changes to show the current zone setting (XX).
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
53
Driver Controls
6. Press the RESET, then press
SETUP control repeatedly until the correct zone setting for your geographic location is displayed on the message center. The range of zone values are from 01 to 15 and “wraps” back to 01.
7. To exit the zone setting mode,
and to “lock in” your change, press and release the RESET control.
Perform compass calibration in an open area free from steel structures and high voltage lines. For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.
8. Press the RESET control to start
the compass calibration function.
9. Slowly drive the vehicle in a
circle (less than 3 mph [5 km/h]) until the CIRCLE SLOWLY TO CALIBRATE display changes to CALIBRATION COMPLETED. It will take up to five circles to complete calibration.
10. The compass is now calibrated.
Distance to empty (DTE)
Selecting this function from the INFO menu estimates approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition OFF when refueling to allow this feature to correctly detect the added fuel.
The DTE function will display LOW FUEL LEVEL and sound a tone for one second when you have approximately 50 miles (80 km) to empty. If you RESET this warning message, this display and tone will return within 10 minutes.
54
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
DTE is calculated using a running average fuel economy, which is based on your recent driving history of 500 miles (800 km). This value is not the same as the average fuel economy display. The running average fuel economy is reinitialized to a factory default value if the battery is disconnected.
Average fuel economy (AFE)
Select this function from the INFO menu to display your average fuel economy in miles/gallon or liters/100 km.
If you calculate your average fuel economy by dividing gallons of fuel used by 100 miles traveled (kilometers traveled by liters used), your figure may be different than displayed for the following reasons:
Your vehicle was not perfectly level during fill-up
Differences in the automatic shut-off points on the fuel pumps at
service stations
Variations in top-off procedure from one fill-up to another
Rounding of the displayed values to the nearest 0.1 gallon (liter)
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press the RESET control after setting the speed control to get accurate highway fuel economy readings.
Trip elapsed drive time
Select this function from the INFO menu to display a timer.
To operate the Trip Elapsed Drive Time perform the following:
1. Press and release RESET in order
to start the timer.
2. Press and release RESET to pause the timer.
3. Press and hold RESET for 2 seconds in order to reset the timer.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
55
Driver Controls
Setup menu
Press this control for the following displays:
System Check
Units (English/Metric)
Autolock
Autolamp Delay
Language
System check
Selecting this function from the SETUP menu causes the message center to cycle through each of the systems being monitored. For each of the monitored systems, the message center will indicate either an OK message or a warning message for three seconds.
Pressing the RESET control cycles the message center through each of the systems being monitored.
The sequence of the system check report and how it appears in the message center is as follows:
1. FUEL LEVEL
2. ENGINE TEMP
3. OIL PRESSURE
4. BRAKE FLUID LEVEL
5. CHARGING SYSTEM
Units (English/Metric)
1. Select this function from the
SETUP menu for the current units to be displayed.
2. Press the RESET control to
change from English to Metric.
56
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
Autolocks
This feature automatically locks all vehicle doors when the vehicle is shifted into any gear, putting the vehicle in motion.
1. To disable/enable the autolock
feature, select this function from the SETUP control for the current display mode.
2. Press the RESET control to turn
the autolocks ON or OFF.
Autolamp delay
This feature keeps your headlights on for up to three minutes after the ignition is switched off.
1. To disable/enable the autolamp
delay feature, select this function from the SETUP control for the current display mode.
2. Press the RESET control to turn
the autolamp delay ON or OFF.
Language
1. Select this function from the
SETUP menu for the current language to be displayed.
2. Pressing the RESET control
cycles the message center through each of the language choices.
3. Press and hold the RESET
control to set the language choice.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
57
Driver Controls
System warnings
System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.
In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for 4 seconds.
The message center will display the last selected feature if there are no more warning messages. This allows you to use the full functionality of the message center after you acknowledge the warning by pressing the RESET control and clearing the warning message.
Warning messages that have been reset are divided into two categories:
They will reappear on the display ten minutes from the reset.
They will not reappear until an ignition OFF-ON cycle has been
completed.
This acts as a reminder that these warning conditions still exist within the vehicle.
Warning display Status
Door ajar Warning can be reset Low fuel level Warning returns after 10 minutes Check charging system Low brake fluid level Low oil pressure Check engine temperature Reduced engine power Stop engine safely Check fuel cap Warning returns after the ignition key Engine failsafe mode
DOOR AJAR. Displayed when a door is not completely closed.
CHECK ENGINE TEMPERATURE. Displayed when the engine
coolant is overheating. Stop the vehicle as soon as safely possible, turn off the engine and let it cool. Check the coolant and coolant level. Refer to Engine coolant in the Maintenance and Specifications chapter. If the warning stays on or continues to come on, contact your dealer as soon as possible.
is turned from OFF to ON.
58
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls
REDUCED ENGINE POWER. Displayed when the engine is overheating. Stop the vehicle as soon as safely possible, turn off the engine. If the warning stays on or continues to come on, contact your dealer as soon as possible.
STOP ENGINE SAFELY. Displayed when the engine is overheating. Stop the vehicle as soon as safely possible, turn off the engine. If the warning stays on or continues to come on, contact your dealer as soon as possible.
LOW FUEL LEVEL. Displayed as an early reminder of a low fuel condition.
CHECK CHARGING SYSTEM. Displayed when the electrical system is not maintaining proper voltage. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, have the electrical system checked as soon as possible.
LOW BRAKE FLUID LEVEL. Indicates the brake fluid level is low and the brake system should be inspected immediately. Refer to Brake fluid reservoir in the Maintenance and Specifications chapter.
LOW OIL PRESSURE. Displayed when the engine oil pressure is low. If this warning message is displayed, check the level of the engine oil. Refer to Engine oil in the Maintenance and Specifications chapter for information about adding engine oil. If the oil level is OK and this warning persists, shut down the engine immediately and contact your dealership for service.
CHECK FUEL CAP. Displayed when the fuel filler cap is not properly installed. Check the fuel filler cap for proper installation. Refer to Fuel
filler cap under the Fuel Information section in the Maintenance and Specifications chapter.
ENGINE FAILSAFE MODE. Displayed when the engine has defaulted to a ’limp-home’ operation. If the warning stays on or continues to come on, contact your dealer as soon as possible.
DATA ERR. These messages indicate improper operation of the vehicle network communication between electronic modules.
Fuel computer
Charging system
Autolamp delay
Auto locks
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
59
Driver Controls
Brake fluid
Compass
Outside temperature
Engine sensor
Contact your dealer as soon as possible if these messages occur on a regular basis.

TAILGATE LOCK

Your vehicle may be equipped with a tailgate lock designed to prevent theft of the tailgate.
Insert ignition key and turn to the right to engage lock.
Turn ignition key to the left to unlock.

TAILGATE REMOVAL

Your tailgate is removable to allow more room for loading.
1. Lower the tailgate.
2. Use a screwdriver to pry the
spring clip (on each connector) past the head of the support screw. Disconnect cable.
3. Disconnect the other cable.
4. Lift tailgate to a 45–degree angle
from horizontal.
5. Lift right side off of its hinge.
6. Lift tailgate to a 80–degree angle from horizontal.
7. Remove tailgate from left side hinge by sliding tailgate to the right.
To install, follow the removal procedures in reverse order.
60
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Driver Controls

BED EXTENDER (IF EQUIPPED)

Your vehicle may be equipped with a bed extender designed to extend the pickup box for longer loads.
To extend the bed extender:
1. Lower tailgate.
2. Pull the round knobs on each side
of the extender to release it from the pickup box.
3. Pivot extender on to the tailgate.
4. Evenly push down on the
extender and push the round knobs in on each side locking it in place.
Green markings on the shaft indicate the locked position. The locking clip screws below the middle bar can be tightened counterclockwise for extra security.
Note: If the red marking on the shaft is visible, the bed extender is not locked or properly secured.
To stow the bed extender, follow Steps 1 through 4 in reverse order.
The bed extender may be used to secure a load of up to 100 lb. (46 kg) on the tailgate.
The bed extender should always be kept in the stowed position with the tailgate closed when not in use.
When driving the vehicle off road, the bed extender should be in the stowed position and the tailgate closed.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
61
Driver Controls
To remove the bed extender:
1. Extend the bed extender.
2. Pull the round knobs on each side
of the extender to unlock it.
Make sure the locking clip screws are loose before removing the extender.
3. Press the locking clips below the
middle bar on each side and lift the extender out of the bed.
Note: Remove and store the bed extender when not in use.
To install the bed extender, follow the removal procedure in reverse order.
62
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)

Locks and Security

KEYS

The key operates all locks on your vehicle. In case of loss, replacement keys are available from your dealer.
You should always carry a second key with you in a safe place in case you require it in an emergency.
Refer to the SecuriLockpassive anti-theft system section in this chapter for more information.

POWER DOOR LOCKS

The power door lock controls are located on the driver and front passenger door panels.
Press control to unlock all vehicle doors.
Press control to lock all vehicle doors.

Smart unlocking feature

The smart unlocking feature helps prevent you from locking yourself out of your vehicle.
With the key in any ignition position:
The driver’s door will automatically unlock if it is locked by the driver’s power lock control while the driver’s door is open.
The vehicle may still be locked with the key in the ignition, and performing one of the following actions:
Pressing the manual lock button on the door.
Operating the remote entry transmitter.
Operating the keyless entry keypad.
Operating the driver’s door with a key.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
63
Locks and Security

CHILDPROOF DOOR LOCKS

When these locks are set, the rear doors cannot be opened from the inside.
The rear doors can be opened from the outside when the doors are unlocked.
The childproof locks are located on rear edge of each rear door and must be set separately for each door. Setting the lock for one door will not automatically set the lock for both doors.
Move lock control up to engage the childproof lock.
Move control down to disengage childproof locks.

REMOTE ENTRY SYSTEM

This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
The typical operating range for your remote entry transmitter is approximately 33 feet (10 meters). A decrease in operating range could be caused by:
weather conditions,
nearby radio towers,
structures around the vehicle, or
other vehicles parked next to your vehicle.
64
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Locks and Security
Your vehicle is equipped with a remote entry system which allows you to:
unlock the vehicle doors without a key.
lock all the vehicle doors without a key.
activate the personal alarm.
If there are problems with the remote entry system, make sure to take ALL remote entry transmitters with you to the dealership in order to aid in troubleshooting the problem.

Unlocking the doors

1. Press and release to unlock the driver’s door. Note: The interior
lamps will illuminate.
2. Press
doors.

Locking the doors

1. Press and release to lock all the doors. The parklamps will flash.
2. Press and release again within three seconds to confirm that all the
doors are closed and locked. Note: The doors will lock again, the horn will chirp once, and the parklamps will flash once more.
If any of the doors are not properly closed the horn will make two quick chirps and the parklamps will not flash.
and release again within three seconds to unlock all the

Power door lock/unlock disable feature

The not work from inside the vehicle when:
the ignition has been turned to the 1 (OFF/LOCK) position, and
20 seconds elapse after all vehicle doors are closed and locked using
(lock) and (unlock) features on your power door locks will
the remote entry transmitter, the keyless entry pad, or the power door lock control (while the accompanying door is open).
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
65
Locks and Security
The (lock) and (unlock) features will work again after:
a door has become ajar,
the ignition is turned to the 3 (ON) position, or
using the UNLOCK
unlocking via the keyless entry keypad.
Deactivating/activating power door lock/unlock disable feature
All vehicle doors must be closed before beginning the procedure. You must complete Steps 1–5 within 30 seconds, or the procedure will have to be repeated. If the procedure needs to be repeated, you must wait a minimum of 30 seconds to begin again.
1. Turn the ignition to the 3 (ON) position, then press the
three times.
2. Turn the ignition to the 1 (OFF/LOCK) position, then press the
button three times.
3. Turn the ignition to the 3 (ON) position; the horn will chirp to
indicate the driver configuration mode has been activated.
4. Within five seconds, press the
chirp should be heard, indicating the system has been disabled. Conversely, a horn chirp followed by a honk will indicated the system is enabled. Pressing the power door feature ON if it was previously OFF, or OFF if it was previously ON. Every two consecutive presses of the entering the configuration mode will change the enable/disable condition of the feature.
5. Turn the ignition to the 1 (OFF/LOCK) position to exit programming.
Note: After exiting the driver configuration mode, the horn will chirp once to indicate a feature has been activated/deactivated.
control on your remote entry transmitter or
button
control two times. Note: One horn
button two times again will turn the
button after successfully

Sounding a panic alarm

Press (ACCESSORY) or 3 (ON) to deactivate.
Note: The panic alarm will only operate when the ignition is in the 1 (OFF/LOCK) position.
66
to activate the alarm. Press again or turn the ignition to 2
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Locks and Security

Memory feature

The remote entry system can also control the memory feature.
Press the control will automatically move the seat and adjustable pedals to the
desired memory position (the memory position corresponds to the transmitter being used).
Activating the memory feature
To activate this feature:
1. Position the seat and adjustable pedals to the positions you desire.
2. Press the SET control on the
driver’s seat.
3. Within 5 five seconds, press one
control on the remote transmitter and then press the 1 or 2 control on the driver’s door panel to which you would like to associate with Driver 1 or Driver 2 positions.
4. Repeat this procedure for another
remote transmitter if desired.
Deactivating the memory feature
To deactivate this feature:
1. Press the SET control on the driver’s door seat.
2. Within 5 five seconds, press any control on the remote transmitter
which you would like to deactivate and then press the SET control on the driver’s door panel.
3. Repeat this procedure for another remote transmitter if desired.
control once to unlock the driver’s door. Pressing the
SET
12

Replacing the battery

The remote entry transmitter uses one coin type three-volt lithium battery CR2032 or equivalent.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
67
Locks and Security
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry transmitter near the key ring. DO NOT TAKE THE RUBBER COVER AND CIRCUIT BOARD OFF THE FRONT HOUSING OF THE REMOTE ENTRY TRANSMITTER.
2. Do not wipe off any grease on the
battery terminals on the back surface of the circuit board.
3. Remove the old battery. Note: Please refer to local regulations when
disposing of transmitter batteries.
4. Insert the new battery. Refer to the diagram inside the remote entry
transmitter for the correct orientation of the battery. Press the battery down to ensure that the battery is fully seated in the battery housing cavity.
5. Snap the two halves back together.
Note: Replacement of the battery will not cause the remote transmitter to become deprogrammed from your vehicle. The remote transmitter should operate normally after battery replacement.

Replacing lost transmitters

If a remote transmitter has been lost and you would like to remove it from the vehicle’s memory, or you would like to purchase additional remote transmitters and have them programmed to your vehicle:
Take all your vehicle’s transmitters to your dealer for programming, or
Perform the programming procedure yourself.
68
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Locks and Security
Programming remote transmitters
It is necessary to have all (maximum of six — original and/or new) of your remote transmitters available prior to beginning this procedure. If all remote entry transmitters are not present during the programming procedure, the transmitters that are not present during programming will no longer operate the vehicle.
To program the transmitters yourself:
Unlock all doors using the power door lock/unlock control. Insert a key and turn the ignition from the 1 (OFF/LOCK) to the 3 (ON) position and cycle between 1 (OFF/LOCK) and 3 (ON) eight times in rapid succession (within 10 seconds) with the eighth turn ending in the 3 (ON) position. The locks will cycle to confirm that the programming mode has been entered.
Within 20 seconds, program a remote transmitter by pressing any button on a transmitter. The locks will cycle once to confirm that the remote transmitter has been programmed. (If more than 20 seconds pass before pressing a remote transmitter button, the programming mode will exit and the procedure will have to be repeated.)
Repeat the previous step to program additional remote transmitters. The locks will cycle once to confirm that each remote transmitter has been programmed.
When you have completed programming the remote transmitters, turn the ignition to the 1 (OFF/LOCK) position or wait 20 seconds. Again the doors will lock/unlock to confirm programming has been completed.
2
1
3
4

Illuminated entry

The interior lamps illuminate when the remote entry system is used to unlock the door(s) or sound the personal alarm.
The illuminated entry system will turn off the interior lights if:
the ignition switch is turned to the 3 (ON) position, or
the remote transmitter lock control is pressed, or
after 25 seconds of illumination.
The dome lamp control must not be set to the off position for the illuminated entry system to operate.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
69
Locks and Security
The inside lights will not turn off if:
they have been turned on with the dimmer control, or
any door is open.
The battery saver will shut off the interior lamps 30 minutes after the last door is closed, even if the dimmer control is on.
Perimeter lighting feature
The perimeter lighting feature illuminates the exterior of the vehicle in order to provide better visibility to the user while he or she approaches and enters the vehicle.
The perimeter lighting feature activates when:
the ignition is in the 1 (OFF/LOCK) position,
the autolamp sensor determines that it is dark, and
the user activates an unlock feature, using either the remote keyless
transmitter or the keypad.
The perimeter lighting feature will illuminate the headlamps and parking lamps for 25 seconds, or until:
the ignition is turned to any position other than the 1 (OFF/LOCK) position, or
the user activates a lock feature, using either the remote keyless transmitter or the keypad.
Enabling/disabling the perimeter lighting feature
Your vehicle comes with the perimeter lighting feature enabled. All vehicle doors must be closed before beginning the procedure. You must complete Steps 1–5 within 30 seconds, or the procedure will have to be repeated. If the procedure needs to be repeated, you must wait a minimum of 30 seconds to begin again.
1. Turn the ignition to the 3 (ON) position, then press the
three times.
2. Turn the ignition to the 1 (OFF/LOCK) position, then press the
control three times.
3. Turn the ignition to the 3 (ON) position; the horn will chirp to
indicate the driver configuration mode has been activated.
control
70
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Locks and Security
4. Within five seconds, press the control two times. Note: One horn
chirp should be heard, indicating the system has been disabled. Conversely, a horn chirp followed by a honk will indicate the system is enabled. Pressing the power door the feature ON if it was previously OFF, or OFF if it was previously ON. Every two consecutive presses of the entering the configuration mode will change the enable/disable condition of the feature.
5. Turn the ignition to the 1 (OFF/LOCK) position to exit programming.
Note: After exiting the driver configuration mode, the horn will chirp once to indicate a feature has been activated/deactivated.

Autolock

The autolock feature will lock all the doors when:
all the doors are closed,
the ignition is in the 3 (ON) position,
you shift into any gear putting the vehicle in motion, and
the brake pedal is released and the vehicle attains a speed greater
than 5 mph (8 km/h).
The autolock feature repeats when:
any door is opened then closed while the ignition is in the 3 (ON) position, and
the brake pedal is released and the vehicle attains a speed greater than 5 mph (8 km/h).
control two times again will turn
control after successfully
Deactivating/activating autolock
Your vehicle comes with the autolock feature activated. There are four methods to enable/disable this feature: One is through your dealer, the second with a power door unlock/lock sequence, the third with the keypad, and the fourth using the message center.
Before following the activation or deactivation procedures, unlock all doors using the power door lock/unlock control and ensure all vehicle doors are closed.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
71
Locks and Security
Power door unlock/lock procedure
You must complete Steps 1–5 within 30 seconds, or the procedure will have to be repeated. If the procedure needs to be repeated, you must wait a minimum of 30 seconds to begin again.
1. Turn the ignition to the 3 (ON)
position, then press the
2. Turn the ignition to the 1 (OFF/LOCK) position, then press the
control three times.
3. Turn the ignition to the 3 (ON) position; the horn will chirp to
indicate the driver configuration mode has been activated.
4. Within five seconds, press
chirp should be heard, indicating the system has been disabled. Conversely, a horn chirp followed by a honk will indicate the system is
enabled. Pressing the feature ON if it was previously OFF, or OFF if it was previously ON. The
horn will chirp once if autolock was deactivated or twice (one short chirp and one long honk) if autolock was activated.
5. Turn the ignition to the 1 (OFF/LOCK) position to exit programming.
Note: After exiting the driver configuration mode, the horn will chirp once to indicate a feature has been activated/deactivated.
Keyless entry key pad procedure
1. Turn the ignition to the 1 (OFF/LOCK) position.
2. Close all the doors.
3. Enter 5–digit entry code
4. Press and hold the 7 8. While holding the 7 8pressthe34.
5. Release the 3 4.
6. Release the 7 8.
The user should receive a horn chirp to indicate the system has been disabled or a chirp followed by a honk to indicate the system has been enabled.
Message center procedure
For information regarding the activation and deactivation of the autolocks feature, refer to Message center (SETUP button) in the Driver Controls chapter.
control three times.
then the control. Note: One horn
control then the control will turn the
72
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Locks and Security

KEYLESS ENTRY SYSTEM

You can use the keyless entry keypad to:
lock all vehicle doors.
unlock only the driver’s door.
unlock all vehicle doors.
program/erase the customer keycode.
enable/disable the autolocking feature.
The keypad can be operated with the factory set 5–digit entry code; this code is located on the owner’s wallet card in the glove box, is marked on the computer module, and is available from your authorized dealer. You can also create your own 5–digit personal entry code.
When pressing the controls on the keypad, press the middle of the controls to ensure a good activation.

Programming a personal entry code

To create your own personal entry code:
1. Enter the factory set code (keypad will illuminate when pressed).
2. Within five seconds press the 1 2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. After the code is entered, the locks will cycle, confirming that the new
code has been set.
Tips:
Do not set a code that uses five of the same number.
Do not use five numbers in sequential order.
The factory set code will work even if you have set your own personal
code.
If you set a second personal code it will erase your first personal code.

Erasing personal code

1. Enter the factory set 5–digit code.
2. Press and release 1 2 then,
3. Press and hold the 1 2 for two seconds. This must be done within
five seconds of completing Step 1.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
73
Locks and Security
Your personal code is now erased and only the factory set 5–digit code will work.

Antiscan feature

The keyless entry keypad is equipped with an anti-theft function called “antiscan.” The antiscan feature provides a one-minute lockout feature, where the user is unable to enter the vehicle using the keypad; this lockout occurs when a valid entry code has not been entered by the user within 7 attempts (35 consecutive button presses). During the lockout, the keypad will flash and pressing the controls on the keypad will be ignored, except for pressing the 7 8 and the 9 0 controls simultaneously, which will still lock the vehicle.
The antiscan feature will be turned off after:
one minute, when the antiscan feature times out.
one minute of keypad inactivity.
the
the ignition is turned from the 1 (OFF/LOCK) position to the 3 (ON)
position, or from the 3 (ON) position to the 1 (OFF/LOCK) position.

Unlocking and locking the doors using keyless entry keypad

To unlock the driver’s door, enter the factory set 5-digit code or your personal code. Each number must be pressed within five seconds of each other. Note: The driver’s door will unlock and the interior lamps will illuminate after the factory set 5-digit code or your personal code are correctly entered.
To unlock all doors, press the 3 4 control within five seconds.
To lock all doors, press the 7 8 and the 9 0 at the same time. You do not need to enter the keypad code first. Note: The interior lamps
will turn off.
control is pressed on the remote entry transmitter.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLockpassive anti-theft system is an engine immobilization system. This system is designed to help prevent the engine from being started unless a coded key programmed to your vehicle is used. The use of the wrong type of coded key may lead to a “no-start” condition.
Your vehicle comes with two coded keys; additional coded keys may be purchased from your dealer. The dealer can program your spare keys to your vehicle or you can program the keys yourself. Refer to Programming spare keys for instructions on how to program the coded key.
74
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Locks and Security
Note: The SecuriLockpassive anti-theft system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection.
Note: Large metallic objects, electronic devices that are used to purchase gasoline or similar items, or a second coded key on the same key chain may cause vehicle starting issues. You need to prevent these objects from touching the coded key while starting the engine. These objects will not cause damage to the coded key, but may cause a momentary issue if they are too close to the key when starting the engine. If a problem occurs, turn the ignition off, remove all objects on the key chain away from the coded key and restart the engine.

Theft indicator

The theft indicator is located on top of the instrument panel.
When the ignition is in the 1 (OFF/LOCK) position, the indicator will flash once every 2 seconds to indicate the SecuriLocksystem is functioning as a theft deterrent.
When the ignition is in the 3 (ON) position, the indicator will glow for 3 seconds to indicate normal system functionality.
If a problem occurs with the SecuriLocksystem, the indicator will flash rapidly or glow steadily when the ignition is in the 3 (ON) position. If this occurs, the vehicle should be taken to an authorized dealer for service.

Automatic arming

The vehicle is armed immediately after switching the ignition to the 1 (OFF/LOCK) position.

Automatic disarming

Switching the ignition to the 3 (ON) position with a coded key disarms the vehicle.
2
1
3
4
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
75
Locks and Security

Replacement keys

If your keys are lost or stolen and you don’t have an extra coded key, you will need to have your vehicle towed to a dealership. The key codes need to be erased from your vehicle and new coded keys will need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key away from the vehicle in a safe place to help prevent any inconveniences. Please visit an authorized dealer to purchase additional spare or replacement keys.

Programming spare keys

A maximum of eight keys can be coded to your vehicle. Only SecuriLockkeys can be used. To program a coded key yourself, you will need two previously programmed coded keys (keys that already operate your vehicle’s engine) and the new unprogrammed key(s) readily accessible for timely implementation of each step in the procedure.
If two previously programmed coded keys are not available, you must bring your vehicle to your dealership to have the spare coded key(s) programmed.
Please read and understand the entire procedure before you begin.
1. Insert the first previously
programmed coded key into the ignition and turn the ignition from the 1 (OFF/LOCK) position to the 3 (ON) position (maintain ignition in the 3 (ON) position for at least one second, but no more than ten seconds).
2. Turn ignition from the 3 (ON)
position back to the 1 (OFF/LOCK) position in order to remove the first coded key from the ignition.
3. Within ten seconds of removing the first coded key, insert the second
previously programmed coded key into the ignition and turn the ignition from the 1 (OFF/LOCK) position to the 3 (ON) position (maintain ignition in the 3 (ON) position for at least one second but no more than ten seconds).
4. Turn the ignition from the 3 (ON) position back to the 1 (OFF/LOCK)
position in order to remove the second coded key from the ignition.
2
1
3
4
76
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Locks and Security
5. Within 10 seconds of removing the second coded key, insert the new
unprogrammed key (new key/valet key) into the ignition and turn the ignition from the 1 (OFF/LOCK) position to the 3 (ON) position (maintain ignition in the 3 (ON) position for at least one second, but no more than ten seconds). This step will program your new key to a coded key.
6. To program additional new unprogrammed key(s), repeat Steps 1
through 5.
If successful, the new coded key(s) will start the vehicle’s engine and the theft indicator will illuminate for three seconds and then go out.
If not successful, the new coded key(s) will not start the vehicle’s engine and the theft indicator will flash on and off and you may repeat Steps 1 through 5. If failure repeats, bring your vehicle to your dealership to have the new spare key(s) programmed.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
77

Seating and Safety Restraints

SEATING

Notes:
Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
Do not pile cargo higher than the seatbacks to reduce the risk of injury in a collision or sudden stop.

Adjustable head restraints

Head restraints help to limit head motion in the event of a rear collision. Adjust your head restraint so that it is located directly or as close as possible behind your head.
The head restraints can be moved up and down.
Push control to lower head restraint.
78
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Seating and Safety Restraints

Using the manual lumbar support

For more lumbar support, turn the lumbar support control toward the front of vehicle.
For less lumbar support, turn the lumbar support control toward the rear of vehicle.

Adjusting the front power seat

Never adjust the driver’s seat or seatback when the vehicle is moving.
Do not pile cargo higher than the seatbacks to avoid injuring people in a collision or sudden stop.
Always drive and ride with your seatback upright and the lap belt snug and low across the hips.
Reclining the seatback can cause an occupant to slide under the seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
The control is located on the outboard side of the seat cushion.
Press the front or rear portion to tilt the seat.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
79
Seating and Safety Restraints
Press the control to move the seat forward, backward, up or down.

Memory seats/adjustable pedals

This system allows automatic positioning of the driver seat and adjustable pedals to two programmable positions.
The memory seat control is located on the driver’s seat.
To program position one, move the driver seat, and adjustable pedals to the desired position. Press the SET control. The SET control indicator light will briefly illuminate. While the light is illuminated, press control 1.
To program position two, repeat the previous procedure using control
2.
A position can only be recalled when the transmission gearshift is in Park. A memory position may be programmed at any time.

Heated seats

To operate the heated seats, do the following:
Push control located on the instrument panel to set at high heat.
Push control again to set at low heat.
Push again to deactivate.
The indicator light on the control will illuminate when activated.
The system automatically shuts off after 10 minutes.
80
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Seating and Safety Restraints

REAR SEATS

Head restraints

The purpose of these head restraints is to help limit head motion in the event of a rear collision. To properly adjust your head restraints, lift the head restraint so that it is located directly behind your head or as close to that position as possible.
The head restraints can be moved up and down. Lift the head restraint so that it is located directly or as close as possible behind your head.
Push control to lower head restraint.

Folding up the rear seats

The rear seat has a split 60/40 cushion. Each seat cushion can be flipped up into the seatback position.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
81
Seating and Safety Restraints
1. Pull control to release seat
cushion.
2. Rotate seat cushion up until it
locks into vertical storage position.
Returning the seat to seating position
Before returning the seatback to its original position, make sure
that cargo or any objects are not trapped underneath the seatback. After returning the seatback to its original position, pull on the seatback to ensure that it has fully latched. An unlatched seat may become dangerous in the event of a sudden stop or collision.
1. Pull control on the side of the seat to release seat cushion from storage position.
2. Push seat cushion down until it locks into horizontal position.

SAFETY RESTRAINTS

Personal Safety System

The Personal Safety Systemprovides an improved overall level of frontal crash protection to front seat occupants and is designed to help further reduce the risk of airbag-related injuries. The system is able to analyze different occupant classifications and conditions and crash severity before activating the appropriate safety devices to help better protect a range of occupants in a variety of frontal crash situations.
Your vehicle’s Personal Safety Systemconsists of:
Driver and passenger dual-stage airbag supplemental restraints.
Front outboard safety belts with pretensioners, energy management
retractors, and safety belt usage sensors.
Driver’s seat position sensor.
Front crash severity sensor.
Front passenger sensing system
Passenger Airbag Off indicator light.
82
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Seating and Safety Restraints
Restraints Control Module (RCM) with impact and safing sensors.
Restraint system warning light and back-up tone.
The electrical wiring for the airbags, crash sensor(s), safety belt
pretensioners, front safety belt usage sensors, driver seat position sensor, and indicator lights.
How does the Personal Safety Systemwork?
The Personal Safety Systemcan adapt the deployment strategy of your vehicle’s safety devices according to crash severity and occupant classification and conditions. A collection of crash and occupant sensors provides information to the Restraints Control Module (RCM). During a crash, the RCM activates the safety belt pretensioners and/or either none, one, or both stages of the dual-stage airbag supplemental restraints based on crash severity and occupant classification and conditions.
The fact that the pretensioners or airbags did not activate for both front seat occupants in a collision does not mean that something is wrong with the system. Rather, it means the Personal Safety Systemdetermined the accident conditions (crash severity, belt usage, etc.) were not appropriate to activate these safety devices. Front airbags and pretensioners are designed to activate only in frontal and near-frontal collisions, not rollovers, side-impacts, or rear-impacts unless the collision causes sufficient longitudinal deceleration.
Driver and passenger dual-stage airbag supplemental restraints
The dual-stage airbags offer the capability to tailor the level of airbag inflation energy. A lower, less forceful energy level is provided for more common, moderate-severity impacts. A higher energy level is used for the most severe impacts. Refer to Airbag Supplemental Restraints section in this chapter.
Front crash severity sensor
The front crash severity sensor enhances the ability to detect the severity of an impact. Positioned up front, it provides valuable information early in the crash event on the severity of the impact. This allows your Personal Safety Systemto distinguish between different levels of crash severity and modify the deployment strategy of the dual-stage airbags and safety belt pretensioners.
Driver’s seat position sensor
The driver’s seat position sensor allows your Personal Safety System娂 to tailor the deployment level of the driver dual-stage airbag based on seat position. The system is designed to help protect smaller drivers sitting close to the driver airbag by providing a lower airbag output level.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
83
Seating and Safety Restraints
Front passenger sensing system
For airbags to do their job they must inflate with great force, and this force can pose a potentially deadly risk to occupants that are very close to the airbag when it begins to inflate. For some occupants, like infants in rear-facing child seats, this occurs because they are initially sitting very close to the airbag. For other occupants, this occurs when the occupant is not properly restrained by seat belts or child safety seats and they move forward during pre-crash braking. The most effective way to reduce the risk of unnecessary injuries is to make sure all occupants are properly restrained. Accident statistics suggest that children are much safer when properly restrained in the rear seating positions than in the front.
Air bags can kill or injure a child in a child seat. NEVER place a
rear-facing child seat in front of an active air bag. If you must use a forward-facing child seat in the front seat, move the seat all the way back.
Always transport children 12 years old and under in the back
seat and always properly use appropriate child restraints.
The front passenger sensing system can automatically turn off the passenger front airbag when a rear facing child seat, a forward-facing child restraint, or a booster seat is detected. Even with this technology, parents are STRONGLY encouraged to always properly restrain children in the rear seat. The sensor also turns off the airbag when the passenger seat is empty to prevent unnecessary replacement of the airbag(s) after a collision.
When the front passenger seat is occupied and the sensing system has turned off the passenger’s frontal airbag, the “pass airbag off” indicator will light and stay lit to remind you that the front passenger frontal airbag is off. See Front passenger sensing system in the Airbag supplemental restraint system (SRS) section of this chapter.
Front safety belt usage sensors
The front safety belt usage sensors detect whether or not the driver and front outboard passenger safety belts are fastened. This information allows your Personal Safety Systemto tailor the airbag deployment and safety belt pretensioner activation depending upon safety belt usage. Refer to Safety belt usage sensors later in this chapter.
84
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Seating and Safety Restraints
Front outboard safety belt pretensioners
The safety belt pretensioners are designed to tighten the safety belts firmly against the occupant’s body during a collision. This maximizes the effectiveness of the safety belts and helps properly position the occupant relative to the airbag to improve protection. The safety belt pretensioners can be either activated alone or, if the collision is of sufficient severity, together with the airbags.
Front outboard safety belt energy management retractors
The front safety belt energy management retractors allow webbing to be pulled out of the retractor in a gradual and controlled manner in response to the occupant’s forward momentum. This helps reduce the risk of force-related injuries to the occupant’s chest by limiting the load on the occupant. Refer to Energy management retractors section in this chapter.
Determining if the Personal Safety Systemis operational
The Personal Safety Systemuses a warning light in the instrument cluster or a back-up tone to indicate the condition of the system. Refer to the Warning lights and chimes section in the Instrument Cluster chapter. Routine maintenance of the Personal Safety Systemis not required.
The Restraints Control Module (RCM) monitors its own internal circuits and the circuits for the airbag supplemental restraints, crash sensor(s), safety belt pretensioners, front safety belt buckle sensors, and the driver seat position sensor. In addition, the RCM also monitors the restraints warning light in the instrument cluster. A difficulty with the system is indicated by one or more of the following.
The warning light will either flash or stay lit.
The warning light will not illuminate immediately after ignition is
turned on.
A series of five beeps will be heard. The tone pattern will repeat periodically until the problem and warning light are repaired.
If any of these things happen, even intermittently, have the Personal Safety Systemserviced at your dealership or by a qualified technician immediately. Unless serviced, the system may not function properly in the event of a collision.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
85
Seating and Safety Restraints

Safety restraints precautions

Always drive and ride with your seatback upright and the lap belt snug and low across the hips.
To reduce the risk of injury, make sure children sit in the back seat where they can be properly restrained.
Never let a passenger hold a child on his or her lap while the vehicle is moving. The passenger cannot protect the child from
injury in a collision.
All occupants of the vehicle, including the driver, should always properly wear their safety belts, even when an airbag
supplemental restraint system (SRS) is provided.
It is extremely dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts. Be sure everyone in your vehicle is in a seat and using a safety belt properly.
In a rollover crash, an unbelted person is significantly more likely
to die than a person wearing a safety belt.
Each seating position in your vehicle has a specific safety belt
assembly which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the safety belt around your neck over the inside shoulder.
3) Never use a single belt for more than one person.
Always transport children 12 years old and under in the back
seat and always properly use appropriate child restraints.
86
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Seating and Safety Restraints
Safety belts and seats can become hot in a vehicle that has been
closed up in sunny weather; they could burn a small child. Check seat covers and buckles before you place a child anywhere near them.

Combination lap and shoulder belts

1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.
2. To unfasten, push the release button and remove the tongue from the buckle.

Energy management retractors

Your vehicle has a seat belt system equipped with energy management retractors at the driver and front outboard passenger seating positions.
An energy management retractor is a device which pays out webbing in a controlled manner. This feature is designed to help further reduce the risk of force-related injuries to the occupant.
Seat belt systems equipped with an energy management retractor must be replaced if they were in use during a frontal collision which resulted in deployment of the frontal airbags. Refer to the Safety belt maintenance section in this chapter.
87
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Seating and Safety Restraints

Vehicle sensitive mode

The vehicle sensitive mode is the normal retractor mode, allowing free shoulder belt length adjustment to your movements and locking in response to vehicle movement. For example, if the driver brakes suddenly or turns a corner sharply, or the vehicle receives an impact of approximately 5 mph (8 km/h) or more, the combination safety belts will lock to help reduce forward movement of the driver and passengers.
The front outboard safety belts can also be made to lock manually by quickly pulling on the shoulder belt. Rear safety belts (if equipped) cannot be made to lock up by pulling quickly on the belt.

Automatic locking mode

In this mode, the shoulder belt is automatically pre-locked. The belt will still retract to remove any slack in the shoulder belt.
The automatic locking mode is not available on the driver safety belt.
When to use the automatic locking mode
Anytime a child safety seat is installed in a passenger front outboard
and rear seating positions. Children 12 years old and under should be properly restrained in the rear seat whenever possible. Refer to Safety Restraints for Children or Safety Seats for Children later in this chapter.
How to use the automatic locking mode
1. Buckle the combination lap and shoulder belt.
88
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Seating and Safety Restraints
2. Grasp the shoulder portion and pull downward until the entire belt is extracted.
3. Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the safety belt is now in the automatic locking mode.
How to disengage the automatic locking mode
Disconnect the combination lap/shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode.
After any vehicle collision, the safety belt systems at all outboard
seating positions (except the driver position, which does not have this feature) must be checked by a qualified technician to verify that the automatic locking retractor feature for child seats is still functioning properly. In addition, all seat belts should be checked for proper function.
BELT AND RETRACTOR ASSEMBLY MUST BE REPLACED if
the seat belt assembly “automatic locking retractor” feature or any other seat belt function is not operating properly when checked according to the procedures in Workshop Manual. Failure to replace the Belt and Retractor assembly could increase the risk of injury in collisions.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
89
Seating and Safety Restraints

Safety belt pretensioner

Your vehicle is equipped with safety belt buckle pretensioners at the driver and front outboard passenger seating positions.
Do NOT place objects between the seats, as this could interfere
with the functioning of the pretensioner.
The driver and front outboard passenger safety belt pretensioners are designed to activate only during certain frontal or near-frontal collisions with sufficient longitudinal deceleration. A safety belt buckle pretensioner is a device which tightens the webbing of the lap and shoulder belts during some collisions in such a way that they fit more snugly against the body.
The driver and front outboard passenger safety belt system (including retractors, buckles and height adjusters) must be replaced if the vehicle is involved in a collision that results in the activation of the safety belt pretensioners. Refer to the Safety belt maintenance section in this chapter.
Failure to replace the safety belt assembly under the above
conditions could result in severe personal injuries in the event of a collision.

Safety belt usage sensors

The driver and front outboard passenger safety belt buckles are equipped with sensors that detect if the safety belts are fastened. The sensors provide information to the Personal Safety System which can then adapt the airbag deployment or safety belt pretensioner activation based upon safety belt usage.
The Personal Safety System provides the most benefit to belted
occupants. The system monitors and tailors the air bag deployment based upon safety belt usage. Failure to properly wear your safety belt will increase your risk of injury.
90
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Seating and Safety Restraints

Front safety belt height adjustment

Your vehicle has safety belt height adjustments for the driver and right front passenger. Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.
To lower the shoulder belt height, push the button and slide the height adjuster down. To raise the height of the shoulder belt, push the button and slide the height adjuster up. Pull down on the height adjuster to make sure it is locked in place.
Position the safety belt height adjusters so that the belt rests
across the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the seat belt and increase the risk of injury in a collision.

Safety belt warning light and indicator chime

The safety belt warning light illuminates in the instrument cluster and a chime sounds to remind the occupants to fasten their safety belts.

Conditions of operation

If... Then...
The driver’s safety belt is not buckled before the ignition switch is turned to the ON position...
The driver’s safety belt is buckled while the indicator light is illuminated and the warning chime is sounding...
The driver’s safety belt is buckled before the ignition switch is turned to the ON position...
The safety belt warning light illuminates 1-2 minutes and the warning chime sounds 4-8 seconds.
The safety belt warning light and warning chime turn off.
The safety belt warning light and indicator chime remain off.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
91
Seating and Safety Restraints

BeltMinder

The BeltMinderfeature is a supplemental warning to the safety belt warning function. This feature provides additional reminders by intermittently sounding a chime and illuminating the safety belt warning lamp in the instrument cluster when the driver’s and front passenger’s safety belt is unbuckled.
The BeltMinderfeature uses information from the front passenger sensing system to determine if a front seat passenger is present and therefore potentially in need of a warning. To avoid activating the BeltMinderfeature for objects placed in the front passenger seat, warnings will only be given to large front seat occupants as determined by the front passenger sensing system.
Both the driver’s and passenger’s safety belt usages are monitored and either may activate the BeltMinderfeature. The warnings are the same for the driver and the front passenger. If the BeltMinderwarnings have expired (warnings for approximately 5 minutes) for one occupant (driver or front passenger), the other occupant can still activate the BeltMinderfeature.
If... Then...
The driver’s and front passenger’s safety belts are buckled before the ignition switch is turned to the ON position or less than 1-2 minutes have elapsed since the ignition switch has been turned ON...
The driver’s or front passenger’s safety belt is not buckled when the vehicle has reached at least 3 mph (5 km/h) and 1-2 minutes have elapsed since the ignition switch has been turned to ON...
The BeltMinderfeature will not activate.
The BeltMinderfeature is activated ­the safety belt warning light illuminates and the warning chime sounds for 6 seconds every 30 seconds, repeating for approximately 5 minutes or until the safety belts are buckled.
92
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Seating and Safety Restraints
If... Then...
The driver’s or front passenger’s safety belt becomes unbuckled for approximately 1 minute while the vehicle is traveling at least 3 mph (5 km/h) and more than 1-2 minutes have elapsed since the ignition switch has been turned to ON...
The following are reasons most often given for not wearing safety belts: (All statistics based on U.S. data)
Reasons given... Consider...
“Crashes are rare events” 36700 crashes occur every day. The
“I’m not going far” 3of4fatal crashes occur within 25
“Belts are uncomfortable” We design our safety belts to enhance
“I was in a hurry” Prime time for an accident.
“Safety belts don’t work” Safety belts, when used properly,
The BeltMinderfeature is activated ­the safety belt warning light illuminates and the warning chime sounds for 6 seconds every 30 seconds, repeating for approximately 5 minutes or until the safety belts are buckled.
more we drive, the more we are exposed to “rare” events, even for good drivers. 1in4ofuswillbe
seriously injured in a crash during our lifetime.
miles of home.
comfort. If you are uncomfortable ­try different positions for the safety belt upper anchorage and seatback which should be as upright as possible; this can improve comfort.
BeltMinderreminds us to take a few seconds to buckle up.
reduce risk of death to front seat occupants by 45% in cars, and by
60% in light trucks.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
93
Seating and Safety Restraints
Reasons given... Consider... “Traffic is light” Nearly 1 of 2 deaths occur in
single-vehicle crashes, many when
no other vehicles are around.
“Belts wrinkle my clothes” Possibly, but a serious crash can do
much more than wrinkle your clothes, particularly if you are unbelted.
“The people I’m with don’t wear belts”
“I have an airbag” Airbags offer greater protection when
“I’d rather be thrown clear” Not a good idea. People who are
Set the example, teen deaths occur 4 times more often in vehicles with TWO or MORE people. Children and younger brothers/sisters imitate behavior they see.
used with safety belts. Frontal airbags are not designed to inflate in rear and side crashes or rollovers.
ejected are 40 times more likely to DIE. Safety belts help prevent
ejection, WE CAN’T “PICK OUR CRASH”.
Do not sit on top of a buckled safety belt to avoid the Belt
Minder chime. Sitting on the safety belt will increase the risk of injury in an accident. To disable (one-time) or deactivate the Belt Minder feature please follow the directions stated below.
One time disable
If at any time the driver/front passenger quickly buckles then unbuckles the BeltMinderfeature for that seating position, the BeltMinder娂 is disabled for the current ignition cycle. The BeltMinderfeature will re-enable during the same ignition cycle if the occupant buckles and remains buckled for approximately 30 seconds. Confirmation is not given for the one time disable.
94
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Seating and Safety Restraints
Deactivating/activating the BeltMinderfeature
The driver and front passenger BeltMinderare deactivated/activated independently. When deactivating/activating one seating position, do not buckle the other position as this will terminate the process.
Read Steps1-4thoroughly before proceeding with the deactivation/activation programming procedure.
The driver and front passenger BeltMinderfeatures can be deactivated/activated by performing the following procedure:
Before following the procedure, make sure that:
The parking brake is set
The gearshift is in P (Park) (automatic transmission)
The ignition switch is in the OFF position
The driver and front passenger safety belts are unbuckled
To reduce the risk of injury, do not deactivate/activate the Belt
Minder feature while driving the vehicle.
1. Turn the ignition switch to the RUN (or ON) position. (DO NOT START THE ENGINE)
2. Wait until the safety belt warning light turns off. (Approximately 1 minute)
Step 3 must be completed within 50 seconds after the safety belt warning light turns off.
3. For the seating position being disabled, buckle then unbuckle the
safety belt 9 times, ending in the unbuckled state. (Step 3 must be completed within 50 seconds after the safety belt warning light turns off.)
After Step 3, the restraint system warning light (airbag light) will be turned on for three seconds.
4. Within 10 seconds of the light turning on, buckle then unbuckle the
safety belt.
This will disable the BeltMinder娂 feature for that seating position if it is currently enabled. As confirmation, the restraint system warning light will flash 4 times per second for 3 seconds.
This will enable the BeltMinder娂 feature for that seating position if it is currently disabled. As confirmation, the restraint system warning
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
95
Seating and Safety Restraints
light will flash 4 times per second for 3 seconds, followed by 3 seconds with the light off, then followed by the restraint system warning light flashing 4 times per second for 3 seconds again.

Safety belt extension assembly

If the safety belt is too short when fully extended, there isa8inch(20 cm) safety belt extension assembly that can be added (part number 611C22). This assembly can be obtained from your dealer at no cost.
Use only extensions manufactured by the same supplier as the safety belt. Manufacturer identification is located at the end of the webbing on the label. Also, use the safety belt extension only if the safety belt is too short for you when fully extended.
Do not use extensions to change the fit of the shoulder belt across the torso.

Safety belt maintenance

Inspect the safety belt systems periodically to make sure they work properly and are not damaged. Inspect the safety belts to make sure there are no nicks, tears or cuts. Replace if necessary. All safety belt assemblies, including retractors, buckles, front safety belt buckle assemblies, buckle support assemblies (slide bar-if equipped), shoulder belt height adjusters (if equipped), shoulder belt guide on seatback (if equipped), child safety seat LATCH and tether anchors, and attaching hardware, should be inspected after a collision. Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a collision be replaced. However, if the collision was minor and a qualified technician finds that the belts do not show damage and continue to operate properly, they do not need to be replaced. Safety belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.
Failure to inspect and if necessary replace the safety belt assembly under the above conditions could result in severe
personal injuries in the event of a collision.
For proper care of soiled safety belts, refer to Interior in the Cleaning chapter.
96
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Seating and Safety Restraints

AIRBAG SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

1. Airbag cover
The airbag supplemental restraint system is designed to work in conjunction with the safety belts to help protect the driver and front outboard passenger from certain upper body injuries. The term “supplemental restraint” means the airbags are intended as a supplement to the safety belts. Airbags alone cannot protect as well as airbags plus safety belts in impacts for which the airbags are designed to deploy, and airbags do not offer any protection in crashes for which they do not deploy.
The airbag supplemental restraint system consists of:
driver and passenger dual stage airbag modules (which include the inflators and airbags).
one or more impact and safing sensors.
the same indicator light, RCM (restraints control module) and
diagnostic unit used for the Personal safety system.
Front passenger sensing system
Passenger airbag off indicator light.
The airbag supplemental restraints are an integral part of the Personal Safety System. They are designed to be deployed in cases where the Personal Safety System has determined the occupant conditions and crash severity are appropriate to activate these devices. Refer to the Personal Safety System section in this chapter.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
97
Seating and Safety Restraints

Important SRS precautions

All occupants of the vehicle,
including the driver, should always properly wear their safety belts, even when an airbag (SRS) is provided.
Always transport children 12 years old and under in the back
seat if your vehicle has a back seat. Rear facing infant seats should NEVER be placed in the front seats. This is because the back of the infant seat is too close to the inflating airbag and the risk of a fatal injury to the infant when the airbag inflates is substantial.
The National Highway Traffic Safety Administration (NHTSA)
recommends a minimum distance of at least 10 inches (25 cm) between an occupant’s chest and the driver airbag cover.
Never place your arms or feet over the airbag module as a
deploying airbag can result in serious fractures or other injuries.
To properly position yourself away from the airbag:
Move your seat to the rear as far as you can while still reaching the pedals comfortably.
Recline the seat slightly one or two degrees from the upright position.
98
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Seating and Safety Restraints
Do not put anything on or
over the airbag cover (1). Placing objects on or over the airbag cover may cause those objects to be thrown by the airbag into your face and torso or may result in a failure of the airbag to inflate properly, both of which could result in serious injury.
Do not attempt to service, repair, or modify the airbag
supplemental restraint systems or its fuses. See your Ford or Lincoln Mercury dealer.
The front passenger airbag is not designed to offer protection to
an occupant in the center front seating position.
Modifying or adding equipment to the front end of the vehicle
(including frame, bumper, front end body structure and tow hooks) may affect the performance of the airbag system, increasing the risk of injury. Do not modify the front end of the vehicle.
Additional equipment may affect the performance of the airbag
sensors increasing the risk of injury. Please refer to the Body Builders Layout Book for instructions about the appropriate installation of additional equipment.
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
99
Seating and Safety Restraints

Children and airbags

For additional important safety information, read all information on safety restraints in this guide.
Children must always be properly restrained. Accident statistics suggest that children are safer when properly restrained in the rear seat than in the front seat. Failure to follow these instructions may increase the risk of injury in a collision.
Airbags can kill or injure a
child in a child seat. NEVER place a rear-facing child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the seat all the way back.

How does the airbag supplemental restraint system work?

The airbag SRS is designed to activate when the vehicle sustains sufficient longitudinal deceleration.
The fact that the airbags did not inflate in a collision does not mean that something is wrong with the system. Rather, it means the forces were not of the type sufficient to cause activation. Airbags are designed to inflate in frontal and near-frontal collisions, not rollover, side-impact, or rear-impacts.
100
2006 Mark LT (mlt) Owners Guide (post-2002-fmt) USA (fus)
Loading...
