Page 1

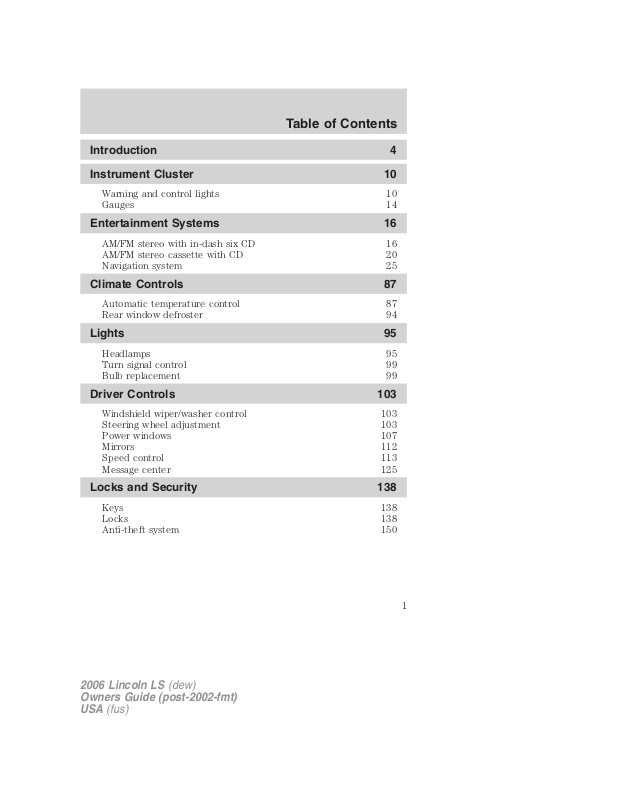

Introduction 4

Instrument Cluster 10

Warning and control lights 10 Gauges 14

Entertainment Systems 16

AM/FM stereo with in-dash six CD 16 AM/FM stereo cassette with CD 20 Navigation system 25

Climate Controls 87

Automatic temperature control 87 Rear window defroster 94

Lights 95

Headlamps 95 Turn signal control 99 Bulb replacement 99

Driver Controls 103

Windshield wiper/washer control 103 Steering wheel adjustment 103 Power windows 107 Mirrors 112 Speed control 113 Message center 125

Locks and Security 138

Keys 138 Locks 138 Anti-theft system 150

Page 2

Table of Contents

Seating and Safety Restraints 154

Seating 154 Safety restraints 162 Airbags 174 Child restraints 185

Tires, Wheels and Loading 197

Tire Information 197 Vehicle loading 211 Trailer towing 216 Recreational towing 216

Driving 218

Starting 218 Brakes 221 Traction control/AdvanceTrac 223 Transmission operation 227

Roadside Emergencies 236

Getting roadside assistance 236 Hazard flasher switch 238 Fuel pump shut-off switch 238 Fuses and relays 239 Changing tires 248 Lug Nut Torque 253 Jump starting 254 Wrecker towing 260

Customer Assistance 261

Reporting safety defects (U.S. only) 267

Cleaning 268

Page 3

Table of Contents

Maintenance and Specifications 275

Engine compartment 277 Engine oil 279 Battery 282 Engine Coolant 284 Fuel information 290 Air filter(s) 301 Part numbers 304 Refill capacities 304 Lubricant specifications 306

Accessories 312

Index 314

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

Page 4

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Lincoln. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Mexico: www.ford.com.mx

• In Australia: www.ford.com.au

Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available

and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

Fuel pump shut-off switch: In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

Page 5

Introduction

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.

Drive your new vehicle at least 500 miles (800 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.

Do not add friction modifier compounds or special break-in oils during the first few thousand miles (kilometers) of operation, since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

Page 6

Introduction

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Supplemental restraint system (SRS)

in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should

NEVER be placed in front of an active passenger airbag.

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were buckled;

• how far (if at all) the driver was depressing the accelerator and/or the

brake pedal;

• how fast the vehicle was traveling; and

• where the driver was positioning the steering wheel.

Page 7

Introduction

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Cell phone use

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

A driver’s first responsibility is the safe operation of the vehicle.

The most important thing you can do to prevent a crash is to avoid distractions and pay attention to the road. Wait until it is safe to operate Mobile Communications Equipment.

Middle East/North Africa vehicle specific information

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this

Owner’s Guide for all other required information and warnings.

Page 8

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Airbag - Front

Airbag - Side Child Seat

Child Seat Installation Warning

Child Seat Tether Anchor

Anti-Lock Brake System

Powertrain Malfunction Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Brake Fluid Non-Petroleum Based

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

Page 9

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Check Fuel Cap

Jack

Low Tire Pressure Warning

Page 10

Instrument Cluster

WARNING LIGHTS AND CHIMES

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

Note: Some Warning Lights will show in the cluster equipped with a Message Center as words.

Check engine: The Check Engine indicator light illuminates when the ignition is first turned to the ON position to check the bulb. Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Page 11

Instrument Cluster

Check fuel cap (if equipped):

Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Check engine warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter.

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.

Driving a vehicle with the brake system warning light on is

dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer.

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.

Airbag readiness: If this light fails to illuminate when ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected.

CHECK

FUEL

CAP

BRAKE

ABS

Page 12

Instrument Cluster

Safety belt: Reminds you to fasten your safety belt. A chime will also sound to remind you to fasten your safety belt.

Charging system: Illuminates when the battery is not charging properly.

Engine oil pressure: Illuminates when the oil pressure falls below the normal range, refer to Engine oil in the Maintenance and Specifications chapter.

Engine coolant temperature:

Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

Never remove the coolant reservoir cap while the engine is

running or hot.

Transmission PRNDL indicator:

Displays the gearshift positions. If an “E” character is displayed or flashing, this indicates a transmission malfunction, contact your authorized dealer immediately. Operating the transmission with the “E” character illuminated may cause additional damage to the transmission.

AdvanceTrac威 (if equipped):

Illuminates when the AdvanceTrac威 system is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information.

Traction Control娂 active:

Illuminates when the Traction Control娂 is active. If the light remains on, have the system serviced immediately, refer to the Driving chapter for more information.

Page 13

Instrument Cluster

Steering column lock (if equipped): Illuminates when the

steering column is locked. If the light stays on the vehicle will not start, make sure the key is the correct key, refer to Securilock娂 in the Locks and Security chapter.

Low fuel (if equipped):

Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).

Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

Low washer fluid (if equipped):

Illuminates when the windshield washer fluid is low.

Door ajar (if equipped):

Illuminates when the ignition is in the ON position and any door or trunk is ajar.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.

High beams: Illuminates when the high beam headlamps are turned on.

Electronic throttle control (if equipped): Illuminates when the

engine has defaulted to a ’limp-home’ operation. Report the fault to a dealer at the earliest opportunity.

Page 14

Instrument Cluster

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

GAUGES

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant

temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section,

the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is

running or hot.

Page 15

Instrument Cluster

Odometer: Registers the total miles (kilometers) of the vehicle.

• Standard instrument cluster

• Optional instrument cluster

Trip odometer: Registers the miles (kilometers) of individual journeys. To reset, depress the RESET control. To switch the display from Trip A to the Trip B, depress the A/B control.

• Standard instrument cluster

• Optional instrument cluster

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

Refer to Filling the tank in the Maintenance and Specifications chapter for more information.

Page 16

Entertainment Systems

AUDIO SYSTEMS

Audiophile Satellite Ready AM/FM Stereo In-Dash Six CD Radio (if equipped)

1. Seek: Press and release SEEK strong station or track.

2. Rewind: In CD mode, press until desired selection is reached.

/ for previous/next

Fast forward: In CD mode, press until desired selection is reached. TEXT: TEXT is only available when equipped with Satellite radio. Your

Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your Lincoln dealer. Detailed Satellite instructions are included with the dealer installed kit.

Dealer installed satellite kit available only in the continental United States.

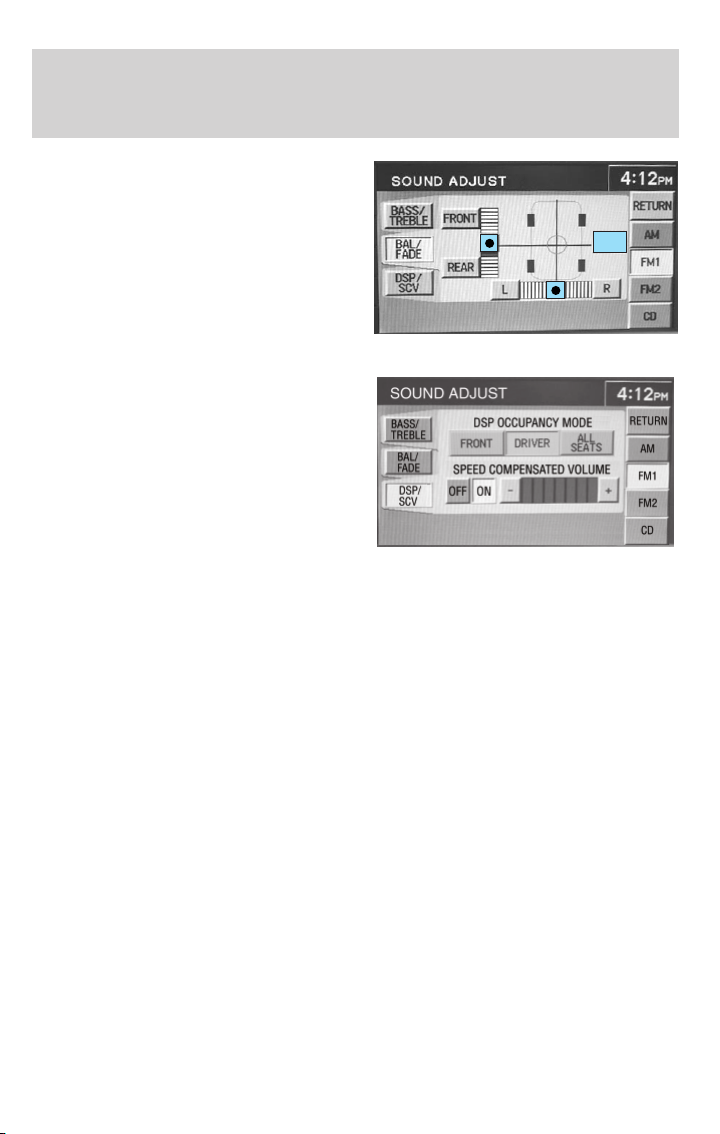

3. DSP (Digital Signal Processing): Press DSP to access

the Ambiance menu. Ambiance gives the feeling of “being there” to your music, creating increased clarity as well as an open and spacious feel to

Page 17

Entertainment Systems

the music. Press SEL to engage/disengage. Turn the volume control to increase/decrease the level of ambiance.

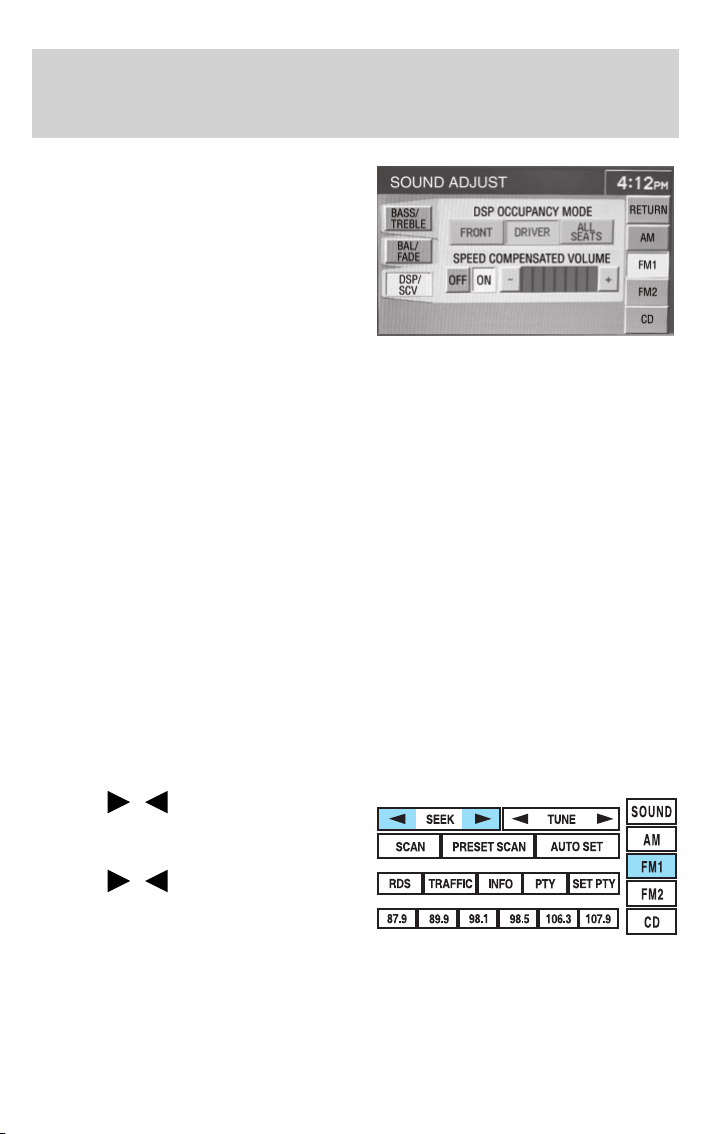

Occupancy: Press DSP again to change the occupancy mode to optimize sound for ALL SEATS, DRIVER SEAT or REAR SEATS. Press SEL to scroll through settings.

4. Mute: Press to MUTE playing media; press again to return to playing media

5. Eject: Press to eject a CD. Press and hold to eject all loaded discs.

6. Bass: Press BASS; then press SEL the bass output.

Treble: Press TREB; then press SEL the treble output.

7. Select: Use with Bass, Treble, Balance and Fade controls to adjust levels and set the clock.

8. Balance: Press BAL; then press SEL left/right speakers.

Fade: Press FADE; then press SEL rear/front speakers.

9. Menu: Press MENU and SEL to access clock mode, RDS on/off, Traffic announcement mode, Program type mode, and Shuffle mode.

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC) recommend that FM radio broadcasters use RDS technology to transmit information. FM radio stations are independently operated and individually elect to use RDS technology to transmit station ID and program type as desired.

/ to decrease/increase

/ to shift sound to the

Page 18

Entertainment Systems

RDS on/off (Radio Data System) : Allows traffic, program type and station information from RDS-equipped FM stations.

Traffic: In FM mode with RDS ON, this feature allows you to hear traffic broadcasts. With the feature ON, press SEEK or SCAN to find a station broadcasting a traffic report (if it is broadcasting RDS data).Traffic

information is not available in most U.S. markets.

FIND Program type: In FM mode and with RDS ON, this feature allows you to search RDS-equipped stations for a certain category of music format: Classic, Country, Info, Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40. Select type them press SEEK or SCAN.

Show TYPE: In FM mode with RDS ON, this feature displays the station’s call letters and format.

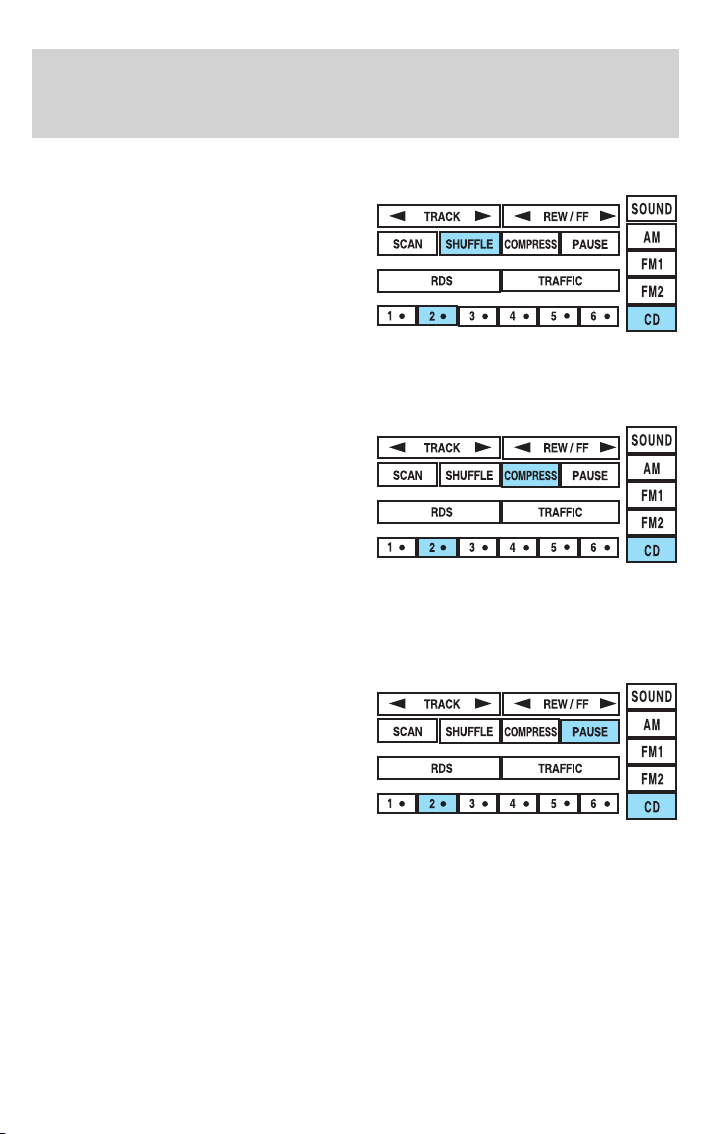

Shuffle: With a CD playing, press to play tracks in a random order. Press MENU until SHUF appears in the display. Use SEL to select SHUF DISC, SHUF TRAC or SHUF OFF.

Compression: With a CD playing, this feature brings soft and loud CD passages together for a more consistent listening level. Press MENU until compression status is displayed. Press the SEL control to enable the compression feature when COMP OFF is displayed. Press the SEL control again to disable the feature when COMP ON is displayed.

Setting the clock: Press MENU until SELECT HOUR or SELECT MINS is displayed. Use SEL to manually increase ( hours/minutes. Press MENU again to disengage clock mode.

10. Memory presets: To set a station: Select frequency band AM/FM1/FM2; tune to a station, press and hold a preset button until sound returns.

11. SAT (if equipped): Your Audiophile radio comes equipped with Satellite Ready capability. The kit to enable the Satellite reception is available through your Lincoln dealer. Detailed satellite instructions are included with the dealer installed kit. Dealer installed satellite kit available only in the

continental United States.

12. AM/FM: Press to select AM/FM1/FM2 frequency band.

Autoset: Allows you to set the strongest local radio stations without losing your original manually set

) or decrease ( )the

Page 19

Entertainment Systems

preset stations for AM/FM1/FM2 . Press and momentarily hold AM/FM. AUTOSET will flash on the display. When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press again to disengage.

13. Power/volume: Press to turn ON/OFF; turn to increase or decrease volume levels.

Speed sensitive volume: Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Recommended level is 1–3. Level 0 turns the feature off and level 7 is the maximum setting. Press and hold the volume control for five seconds. Then press SEL to

increase ( appear in the display.

14. Load: Press to load a CD. Press and hold to load up to six discs.

15. CD AUX: Press to access CD or AUX mode.

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.

16. Scan: Press SCAN to hear a brief sampling of radio stations or CD tracks. Press again to stop.

17. Disc/Tune: Press manually tune down/up the radio

frequency band, or to listen to the previous/next CD.

) or decrease ( ) the volume setting. The level will

or to

Page 20

Entertainment Systems

CAT: CAT is only available when equipped with Satellite Radio. Your Audiophile radio comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your Lincoln dealer. Detailed Satellite instructions are included with the dealer installed kit.

Dealer installed satellite kit available only in the continental United States.

For information regarding SIRIUS Satellite Radio, please call toll-free 888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at www.siriusradio.com

Premium AM/FM Stereo/Cassette/Single CD (if equipped)

1. Eject: Press to eject a cassette.

2. Eject: Press to eject a CD.

3. Bass: Allows you to increase or decrease the audio system’s bass output. Press BASS then press SEL

to decrease

or increase the bass levels.

Page 21

Treble: Allows you to increase or decrease the audio system’s treble output. Press TREB then press SEL

to decrease

4. Balance: Allows you to shift speaker sound between the right and left speakers. Press BAL then

press SEL to shift sound to the left Fade: Allows you to shift speaker

sound between the front and rear speakers. Press FADE then press

SEL to shift the sound to the rear

5. COMP (Compression): In CD mode, press to bring soft and loud passages together for a more consistent listening level.

SHUF (Shuffle): Press to play CD tracks in random order.

6. Select: Use to adjust bass, treble, balance and fade levels.

7. Side 1–2: Press to change sides on the tape.

or increase the treble levels.

Entertainment Systems

or right .

or the front .

Dolby: reduction: Reduces tape noise and

hiss; press to activate/deactivate.

8. REW (Rewind): Worksintape and CD modes.

In tape mode, radio play continues until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

In CD mode, REW control reverses the CD within the current track. FF (fast forward): Works in tape

and CD modes. In the tape mode, tape direction

automatically reverses when the end of the tape is reached. In CD mode, FF advances the CD within the current track.

Dolby威 noise

Page 22

Entertainment Systems

9. Mute: Press to mute the playing media.

RDS: (Radio Data System): Allows you to access FM stations which are RDS- equipped. Press RDS then SEL to select from:

Traffic — Allows you to receive traffic announcements and control their volume level. Traffic information is not available in most U.S.

markets.

Program Type — Allows you to set your audio system to select from RDS-equipped stations for categories such as: Classic, Country, Info., Jazz, Oldies, R&B, Religious, Rock, Soft, Top 40.

Show — Allows you to view the frequency and program type of the chosen radio station.

Setting the clock: Press RDS until SELECT HOUR or SELECT MINS is displayed. Press SEL to increase (

10. Autoset: Press to set first six strong stations into AM, FM1 or FM2 memory buttons; press again to return to normal stations.

11. Scan: Works in radio, tape and CD modes. Press SCAN for a brief sampling of radio stations, tape selections or CD tracks.

12. Seek: Works in radio, tape and CD modes. Press to access the

previous radio station, tape selection or CD track.

13. Tune: Works in radio mode. Press to manually advance up or down the frequency band.

or next listenable

) or decrease ( ).

Page 23

Entertainment Systems

14. AM/FM/CD: Press AM/FM to select a radio frequency. Press while in tape or CD mode to return to radio mode. Press CD to enter CD mode and to play a CD already in the system.

15. Power/volume: Press to turn the system on/off. Turn to raise/lower the volume.

Speed sensitive volume: (if equipped) Radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise. Press and hold the volume control for five seconds. Then press SEL to

increase ( appear in the display.

16. TAPE: Press to play reverse side of the tape.

) or decrease ( ) the volume setting. The level will

17. CD door: Insert the disc with the playing side down and printed side up.

18. Tape door: Insert the tape facing the right.

Accessory delay

With accessory delay, the window switches, moon roof (if equipped) and audio system may be used for up to ten minutes after the ignition is turned off or either front door is opened.

Page 24

Entertainment Systems

GENERAL AUDIO INFORMATION

Radio frequencies: AM and FM frequencies are established by the Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission (CRTC). Those frequencies are:

AM - 530, 540–1700, 1710 kHz FM- 87.7, 87.9–107.7, 107.9 MHz Radio reception factors: There are three factors that can affect radio

reception:

• Distance/strength: The further you travel from a station, the weaker the signal and the weaker the reception.

• Terrain: Hills, mountains, tall buildings, power lines, electric fences, traffic lights and thunderstorms can interfere with your reception.

• Station overload: When you pass a broadcast tower, a stronger signal may overtake a weaker one and play while the weak station frequency is displayed.

Cassette/player care:

Do:

• Use only cassettes that are 90 minutes long or less.

• Tighten very loose tapes by inserting a finger or pencil into the hole

and turning the hub.

• Remove loose labels before inserting tapes.

• Allow tapes which have been subjected to extreme heat, humidity or

cold to reach a moderate temperature before playing.

• Clean the cassette player head with a cassette cleaning cartridge after 10–12 hours of play to maintain good sound/operation.

Don’t:

• Expose tapes to direct sunlight, extreme humidity, heat or cold.

• Leave tapes in the cassette player for a long time when not being

played.

CD/CD player care:

Do:

• Handle discs by their edges only. Never touch the playing surface.

• Inspect discs before playing. Clean only with an approved CD cleaner

and wipe from the center out.

Page 25

Entertainment Systems

Don’t:

• Expose discs to direct sunlight or heat sources for extended periods of time.

• Clean using a circular motion.

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Dirty, warped or damaged CDs, irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ballpoint pens may damage CDs. Please contact your authorized dealer for further information.

Audio system warranty and service: Refer to the Warranty Guide

for audio system warranty information. If service is necessary, see your dealer or qualified technician.

LINCOLN NAVIGATION SYSTEM (IF EQUIPPED)

Your vehicle may be equipped with a Lincoln Navigation System which allows you to listen to the radio, play CDs and also navigate the vehicle using a navigation DVD.

THX audio system (if equipped)

Your vehicle may be equipped with the THX威 certified premium audio system. This system creates optimal acoustic quality for all seating positions and road conditions.

The system offers an advanced speaker system, amplifier, subwoofer and equalizer.

Your Lincoln Navigation System has a large range of features, yet is easy to use. Guidance is shown on the display screen and is supplemented with voice prompts. The display screen provides full information for operating the system through use of menus, text screens and map displays. Screen selections are made by touching the desired selection on the screen.

Page 26

Entertainment Systems

1. VOL-PUSH: Press to turn the system ON/OFF. Turn to adjust the

audio volume level.

2. AUDIO: Press to enter audio mode and access radio, CD, CDDJ, DVD

(if equipped) settings.

3. MAP: Press to enter map mode and view your current vehicle position

on the map. Press and hold to obtain additional position information. This will not function without a map DVD loaded.

4. DEST: Press to enter Destination Entry mode. This allows you to

enter a destination and route to it. With an active route, pressing DEST allows the user to request a Detour, display entire route, select route preferences, or change or cancel the destination. This will not function without a map DVD loaded.

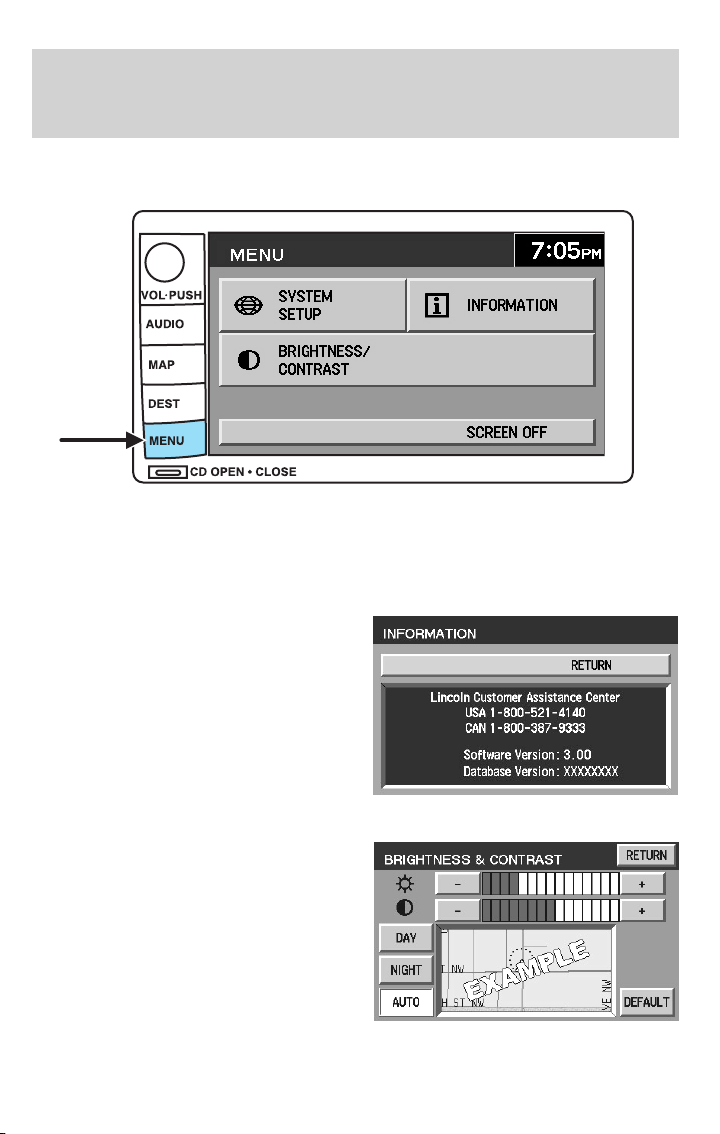

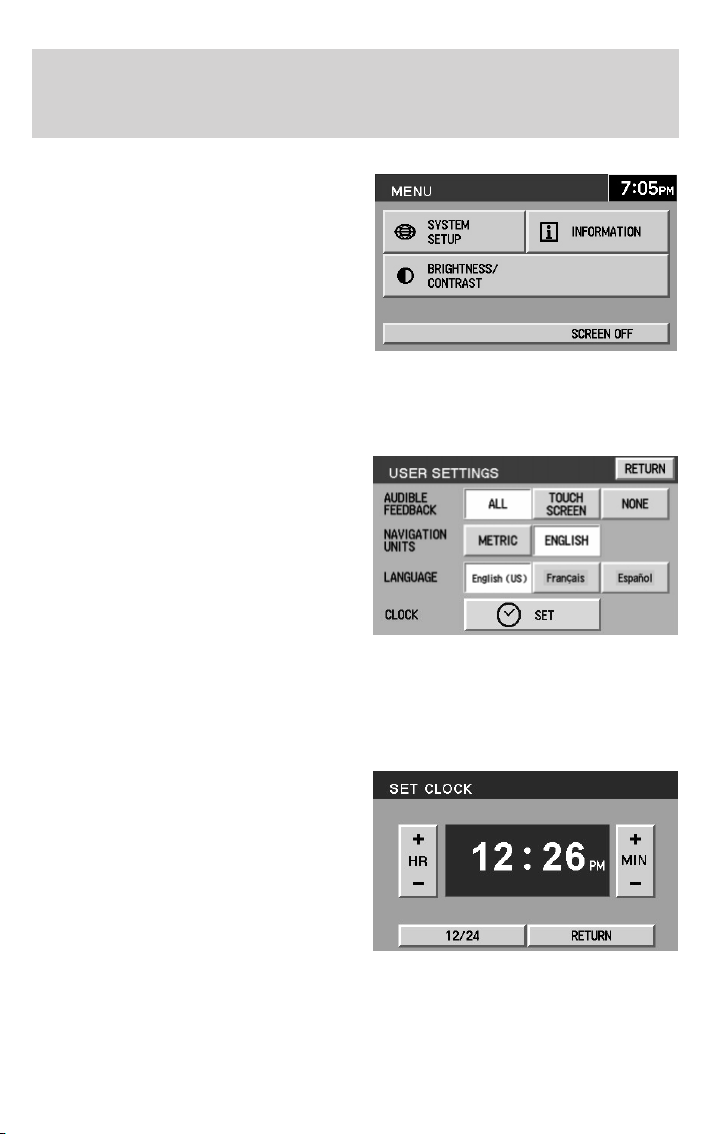

5. MENU: Press to access system settings such as display, brightness,

clock mode (if equipped), etc.

6. CD OPEN CLOSE: Press to open/close the display screen and access

the CD player.

Cold temperature advisory

When operating the system below 32° Fahrenheit (0° Celsius), the display screen requires 20–30 minutes warm-up to achieve maximum brightness. Ensure that the system display setting is set to DAY mode until maximum brightness is achieved (refer to Menu mode section). Once maximum brightness is achieved, revert to AUTO mode display setting.

Page 27

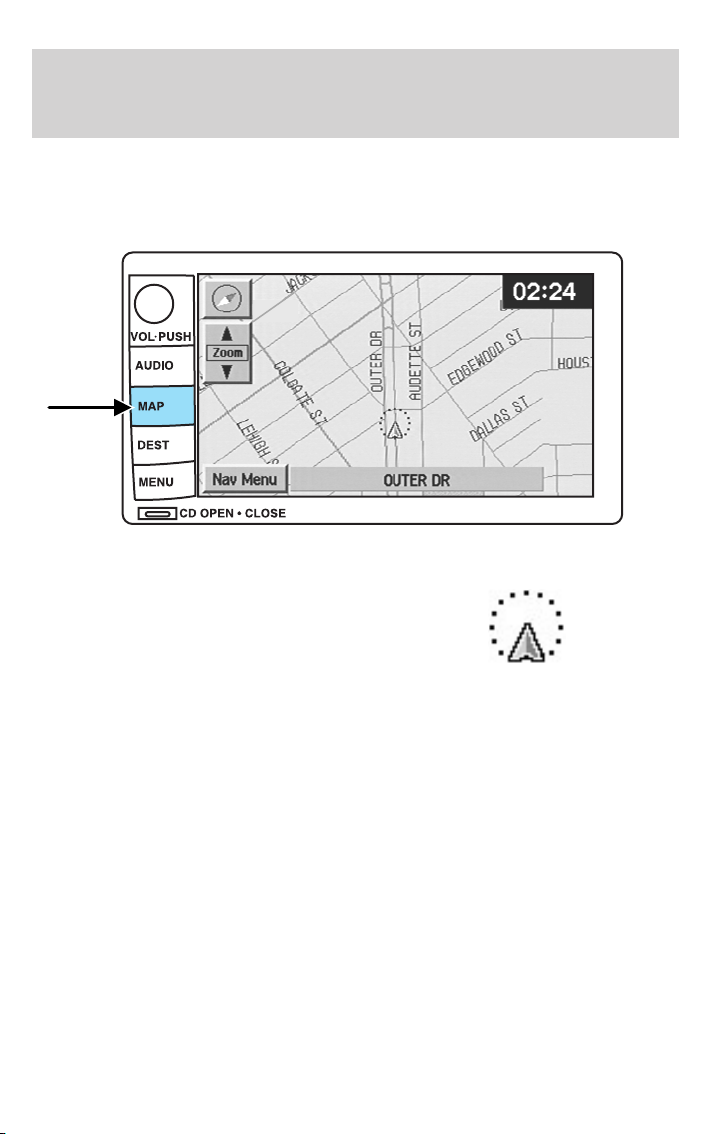

Initial map display

After pressing AGREE to the initial WARNING screen, you will move into the initial map screen which shows the current vehicle location. Pressing the globe icon will take you to the user settings — audible feedback, navigation units, language and clock (if equipped).

Quick Start — How to get going

To play a radio station:

1. Ensure that the vehicle ignition is on.

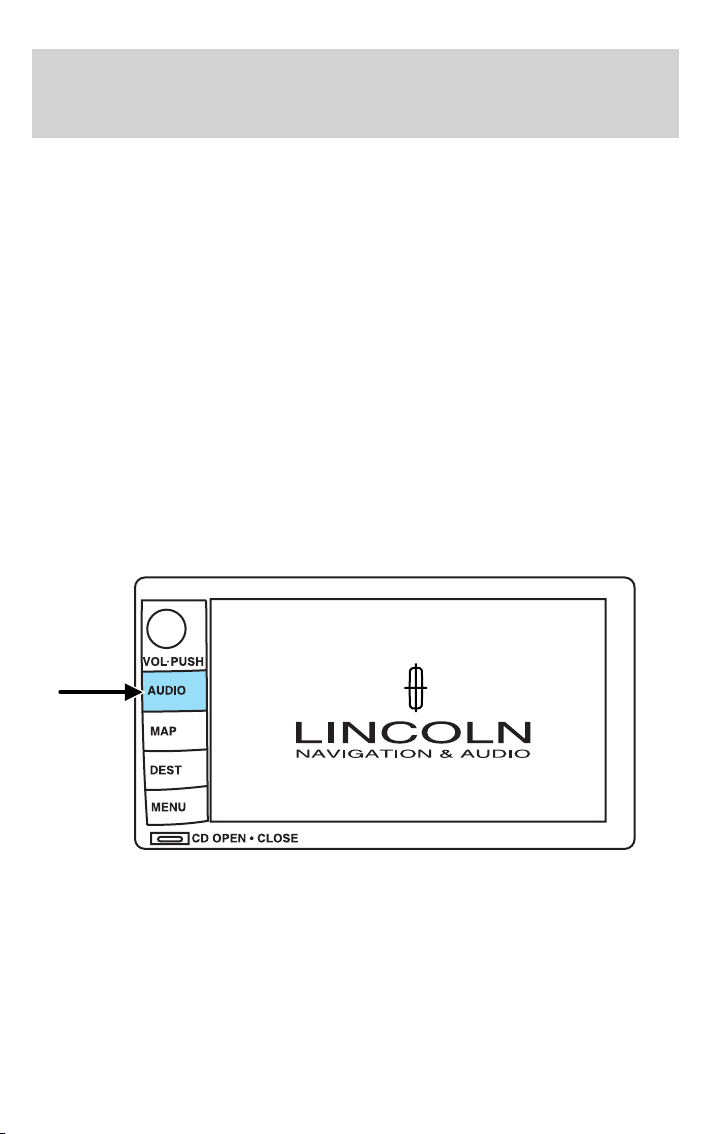

2. Press AUDIO.

Entertainment Systems

3. Select AM, FM1 or FM2.

4. Press TUNE to adjust manually up (

band.

5. Press SEEK to find the next strong station up (

Note: If PTY (program type) is selected, the station selection will be limited. Refer to Program Type (PTY) for further information.

) or down ( ) the frequency

) or down ( ).

Page 28

Entertainment Systems

To play a previously loaded CD:

1. Ensure that the vehicle ignition is on.

2. Press AUDIO.

3. Press CD to select a CD which is already loaded. (NO CD will appear

in the display if there are no CDs loaded into the system). Use the controls (1–6) to select the desired CD.

4. CD will begin to play.

To load CDs:

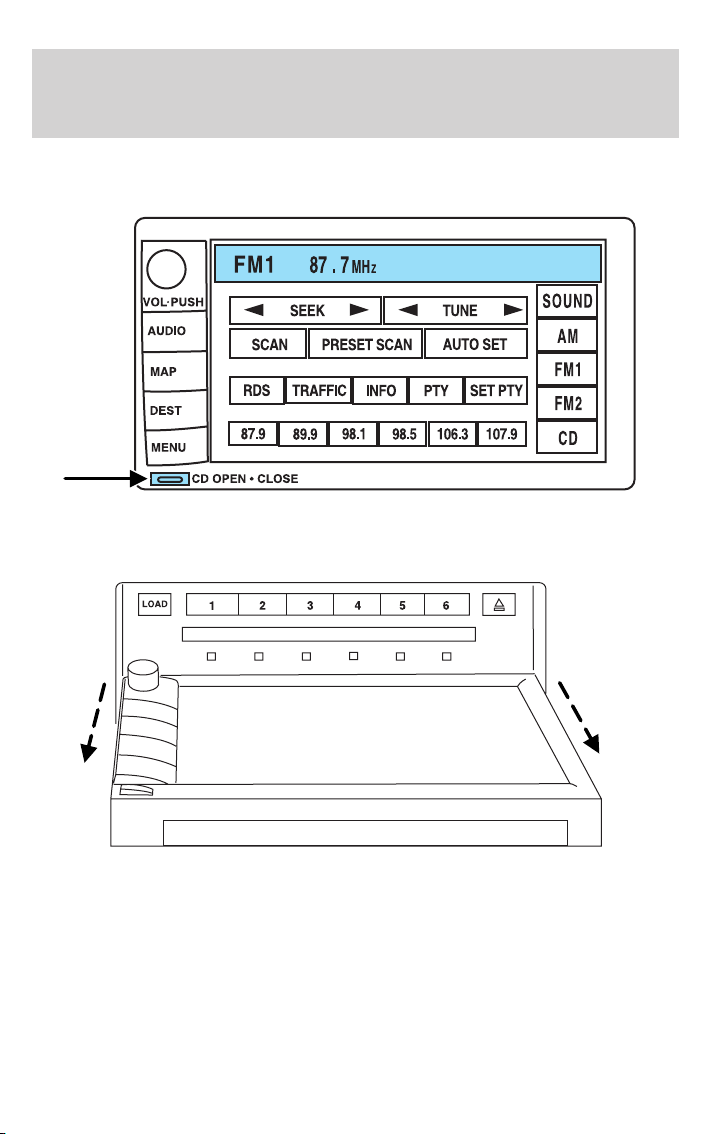

1. Press CD OPEN CLOSE at the bottom of the screen to load a CD.

(The screen will open).

2. Press LOAD and select the desired slot. Or, press and hold LOAD to

auto load all available slots. The slot indicator lights blink rate will increase when the system is ready to accept a disc. Push CD OPEN CLOSE to close the screen. Once closed, the CD will begin to play.

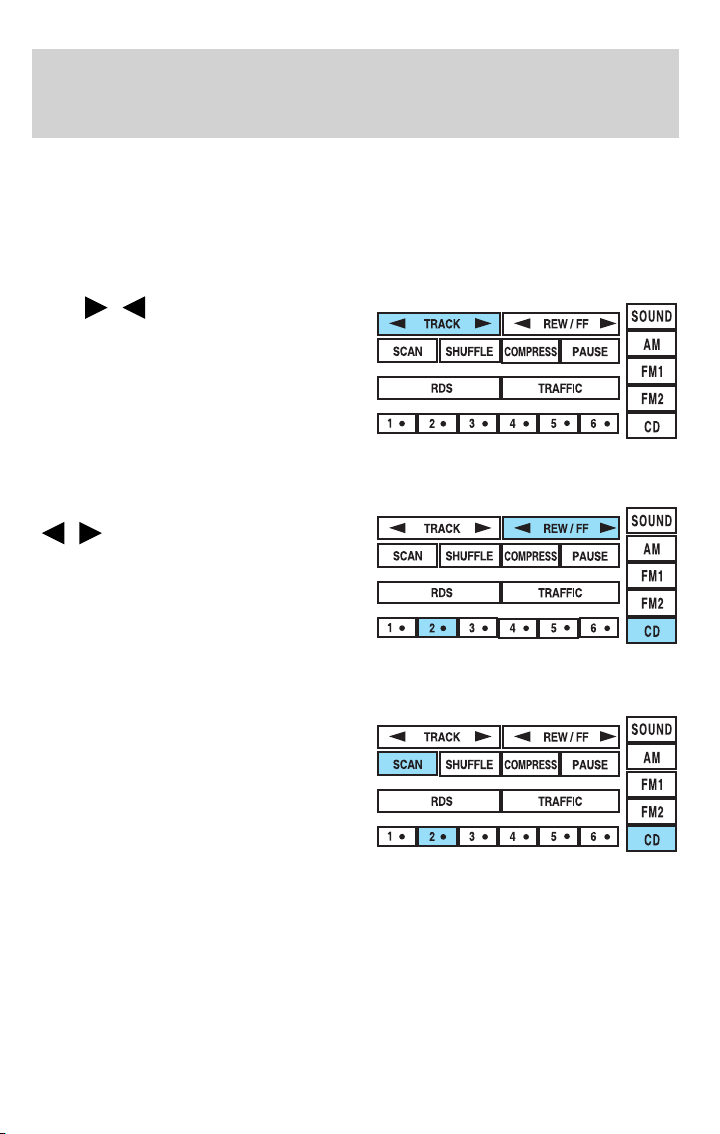

3. Use the touch controls to advance tracks, scan, pause, etc.

To use the Navigation system:

1. Ensure that the vehicle ignition is on, and the navigation DVD is

loaded into the navigation DVD player. Refer to Loading the map DVD or Navigation system — DVD location in the Index for your vehicle’s navigation DVD location.

Page 29

Entertainment Systems

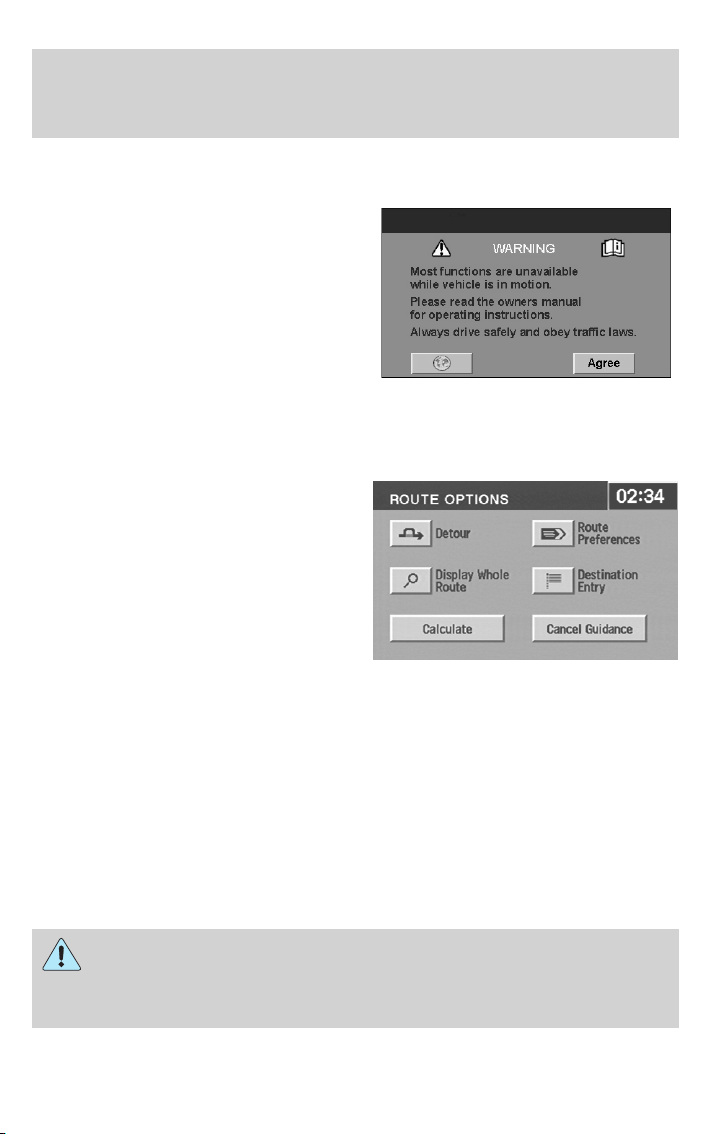

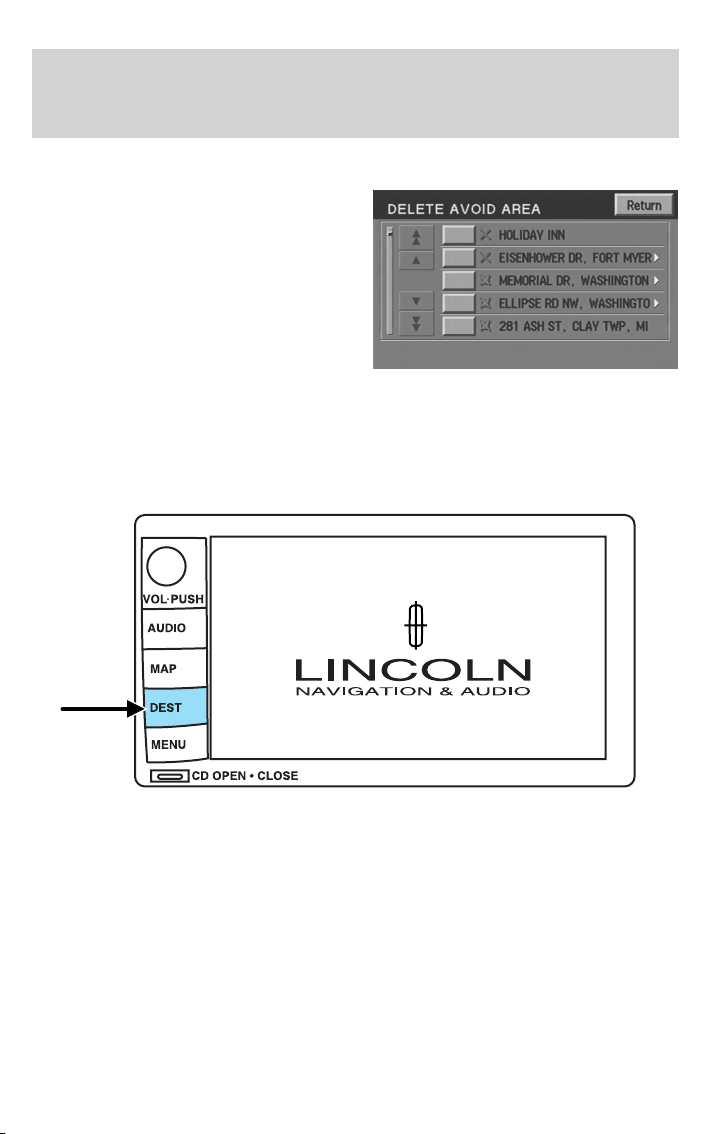

2. Press DEST. The warning screen will appear. After reading, press

AGREE. The screen will show a map with your current location. Press DEST again.

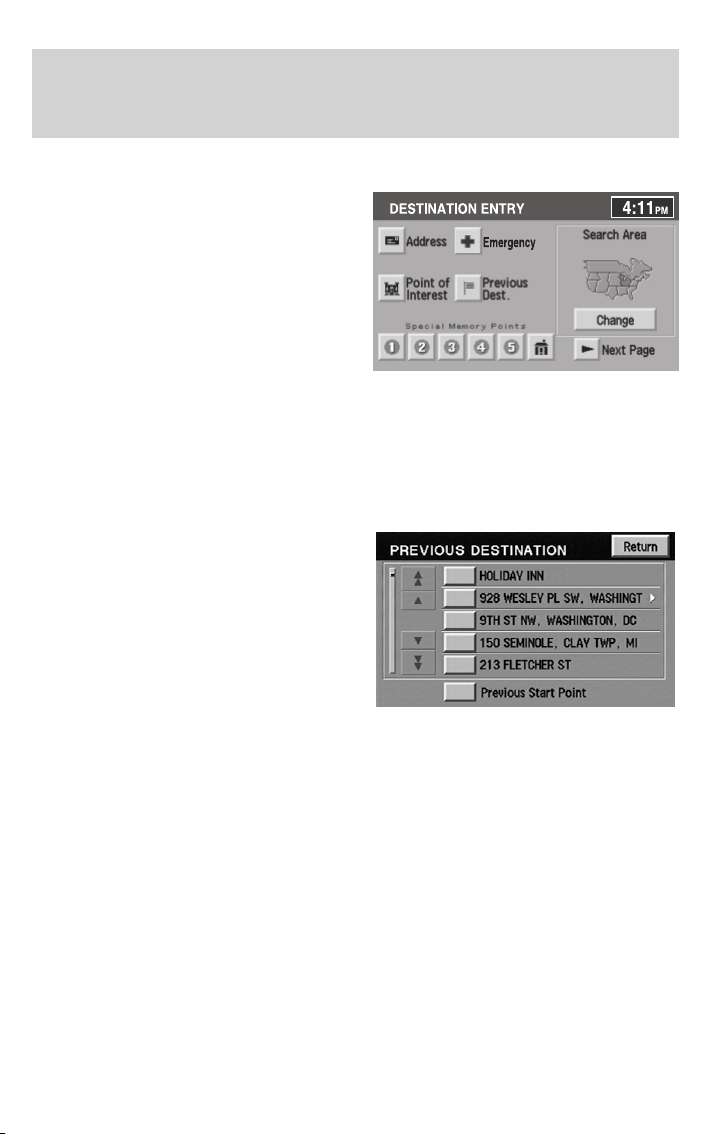

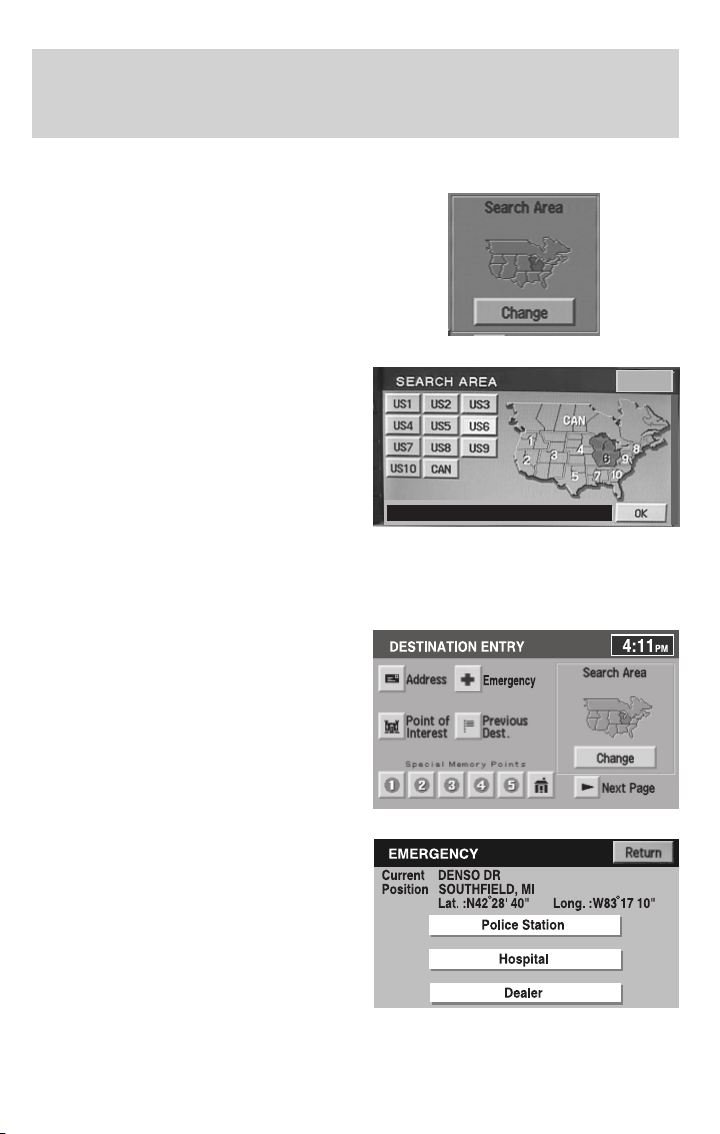

3. Select the desired type of

destination entry. You may select “Address”, “Point of Interest”, “Emergency” or “Previous Dest” from the first screen.

Or, press “ selections of “Memory Point”, “Select from map”, “Freeway Ent/Exit” and “Special Memory Points.” After making your selection, enter any required information.

Next Page” to access

Page 30

Entertainment Systems

4. Press DEST at the bottom of the

map screen.

5. Choose the desired route by

pressing the NEXT button (if it appears). There can be up to three alternative routes.

6. Press START to begin the

navigation guidance.

To adjust the voice guidance volume:

VOL PUSH

AUDIO

MAP

DEST

CD OPEN • CLOSE

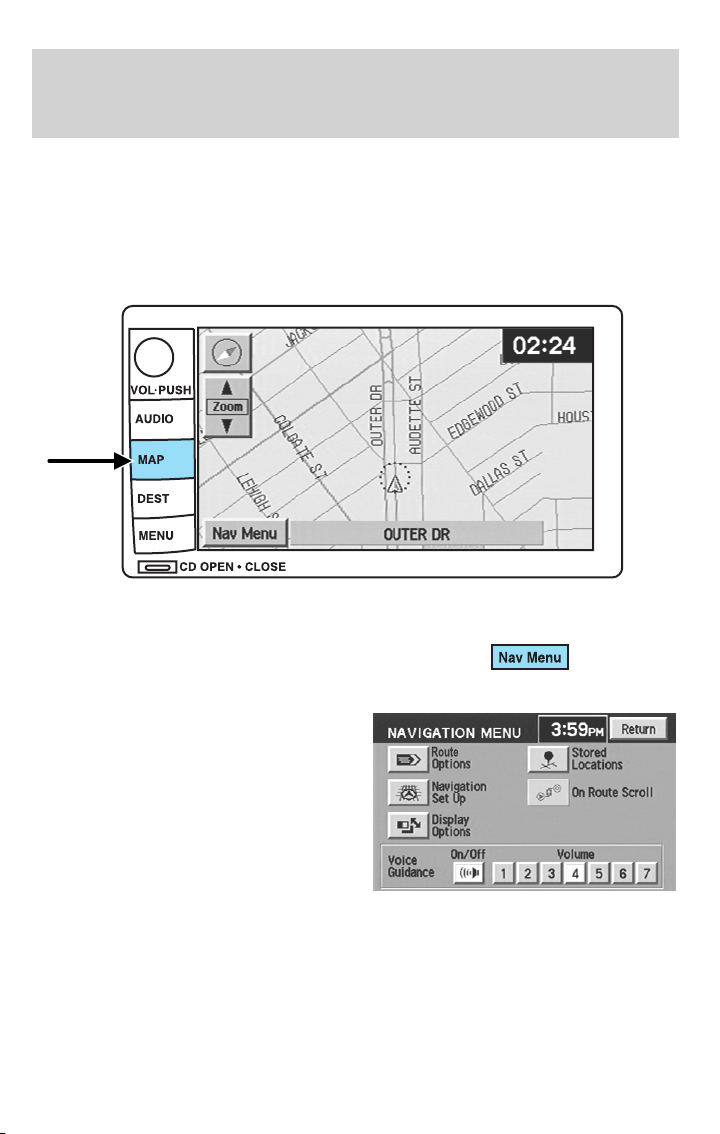

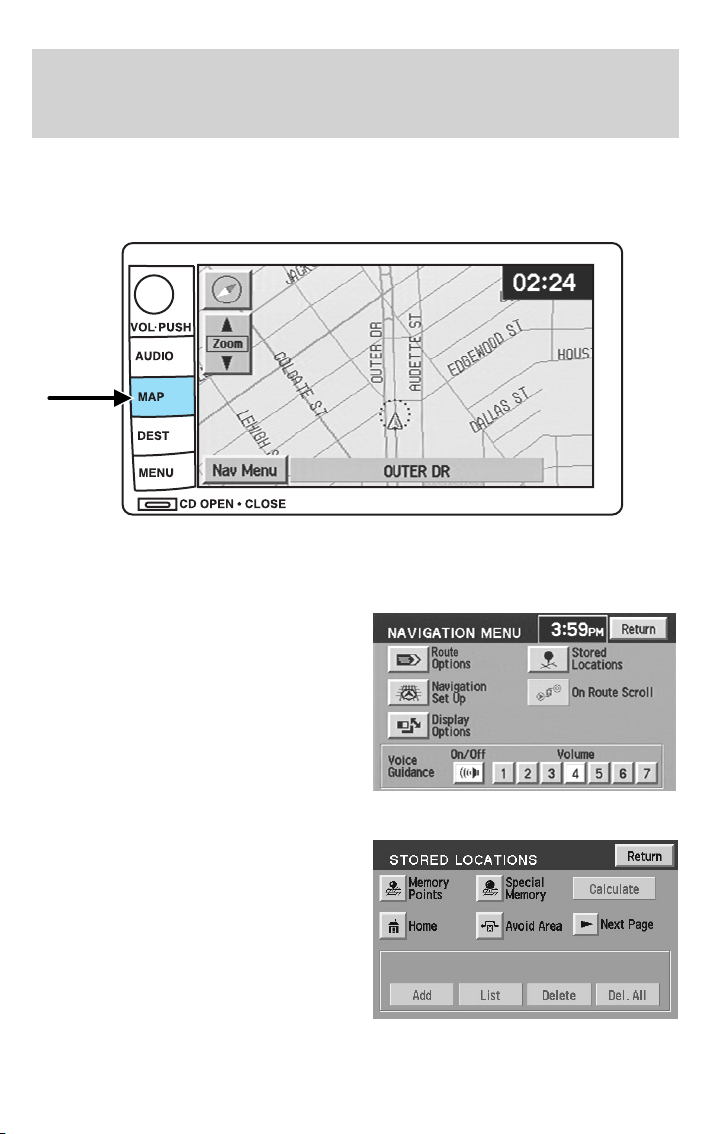

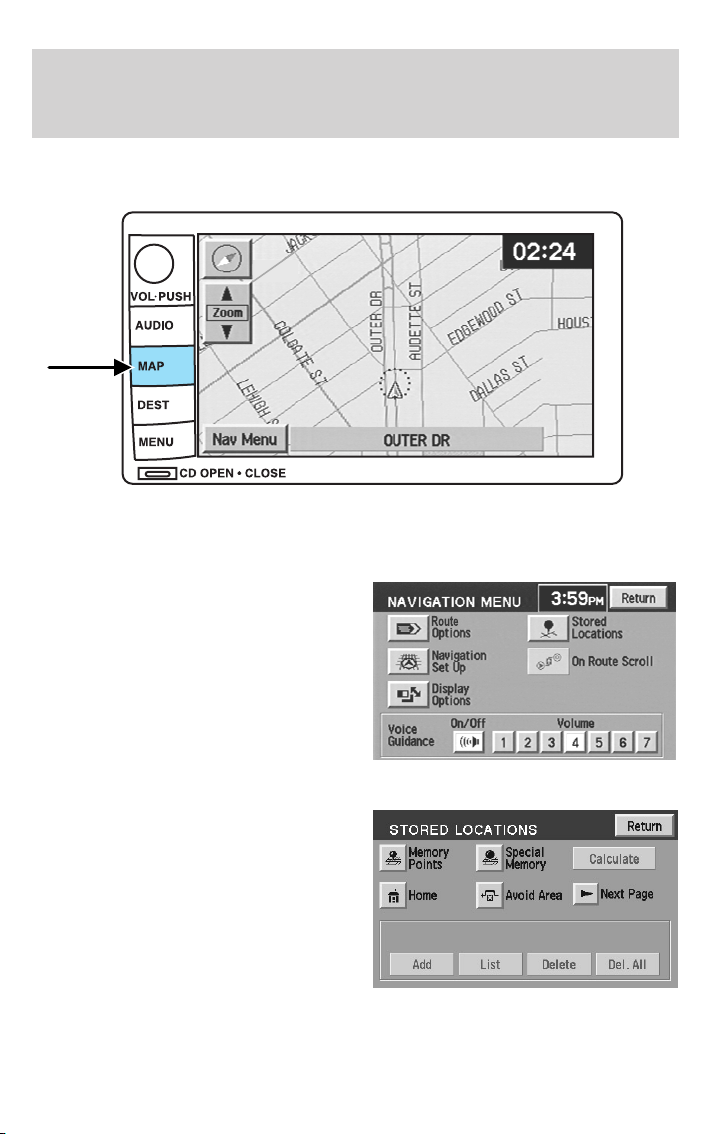

1. Press the MAP hard key.

2. Press “Nav Menu” at the bottom left hand corner of the screen.

3. Press On/Off to turn the voice

guidance option on/off. Use the numeric keys (1–7) to determine the volume level of the guidance voice prompts.

Voice activated commands (if equipped)

Your Lincoln Navigation System (LNS) may be equipped with a voice activated feature which allows you to “speak” certain commands to the system. Speaking clearly will help to ensure that the system correctly responds to your commands. Ensure that the commands are spoken in English (not any other language) and that they are spoken exactly as they are written, or they may not function.

Page 31

Entertainment Systems

Press VOICE briefly (on your steering wheel controls) and the voice icon previous command repeated from the navigation system.

The voice activated command feature will not operate if a map DVD is not inserted into the navigation DVD unit.

At any time, you may say these commands to change modes:

• Radio • Audio on

• AM • Audio off

• FM1 • Power off

• FM2 • CD Changer (if equipped)

• CD • DVD (if equipped)

• Power on

During normal radio operation, you may say:

• Seek up • Seek down

Disc operation commands you may say when using a rear seat DVD (if equipped):

• Track up • Track down

• Previous track • Disc up

• Disc down • Next disc

• Previous disc

During CDDJ or in-dash CD play, you may say:

• Track up • Track down

• Previous track • Disc up

• Next disc • Disc down

• Previous disc

To change the screen display, you may say the following commands:

• Screen off • Screen day mode

• Day mode on • Screen night mode

• Night mode on • Screen auto mode

• Auto mode on

Note: If you say “Screen off”, you must touch the screen in order to activate the screen again. The screen will not turn on again with a voice command.

appears on the Navigation display. Press REPEAT to hear the

Page 32

Entertainment Systems

Commands that jump over screens:

• Current position • Current location

• Map

While in navigation map mode, the following commands are available:

• Zoom in • Zoom out

• Minimum scale • Maximum scale

• North up • Change to North up

• Heading up • Change to heading up

• Map direction • Change map direction

• Mark this point • Mark

While in navigation POI mode, the following commands are available by voice activation:

• Automobile club • AAA (Triple A)

• Auto service & maintenance • Auto service

• Gas station • Gas

• Parking garage • Parking lot

• AT M • Bank

• City hall • Civic center

• Community center • Convention center

• Exhibition center • Court house

• Higher education • University

• College • Hospital

• Library • Police station

• School • Amusement park

• Casino • Golf course

• Marina • Museum

• Park & recreation • Parks & recreation

• Performing arts • Ski resort

• Skiing •

• Stadium • Tourist attraction

• Winery • Restaurant

• I’m hungry • American restaurant

• American food • Chinese restaurant

Sports complex

Page 33

Entertainment Systems

• Chinese food • Continental restaurant

• Continental food • French restaurant

• French food • Italian restaurant

• Italian food • Japanese restaurant

• Japanese food • Mexican restaurant

• Mexican food • Seafood restaurant

• Seafood • Other restaurant

• Other food • Shopping

• Shopping mall • Grocery store

• Airport • Bus station

• Ferry terminal • Historical monument

• Hotel • Park and ride

• Rental car agency • Rest area

• Rest stop • Tourist information

• Train station • Business facility

• City center • POI off

• Commuter rail station • City Center

While in navigation destination (DEST) mode, the following commands are available:

• Home • Go home

• Previous starting point • Go starting point

• Next way point map • First way point map

• Second way point map • Third way point map

• Fourth way point map • Fifth way point map

• Destination map • Delete destination

• Cancel destination

While in navigation guidance mode, the following commands are available by voice activation:

• Repeat guidance •

• Louder • Softer

• Voice guidance off • Voice guidance on

• Open guidance screen • Close guidance screen

• Arrow guidance • Arrow guide

Repeat voice

Page 34

Entertainment Systems

• Change to arrow guidance • Change to arrow guide

• Turn list guidance • Turn list guide

• Change to turn list guidance • Change to turn list guide

• Entire route map • Entire route

• Route overview • Reroute

• Detour • Detour entire route

Navigation help commands you may speak at any time:

• Help • Map

• Destination • Guidance

• Radio • Disc

• Map help • Destination help

• Guidance help • Radio help

• Disc help

Audio mode

Your Lincoln Navigation Audio System has many features including a full range of audio functions. To access these functions, press AUDIO on the main bezel. This will take you into audio mode.

Page 35

Entertainment Systems

Volume/power control

Press knob to turn the audio system on/off. Turn to raise or lower volume. The levels will be displayed on the screen.

To activate the navigation mode, press MAP or DEST.

To adjust the navigation voice output level, select the NAV MENU button via the map screen.

Speed compensated volume (SCV)

With this feature, radio volume changes automatically with vehicle speed to compensate for road and wind noise. To engage the SCV feature:

1. Press AUDIO.

2. Press SOUND.

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

INFO PTY

98.5

TUNE

AUTO SET

SET PTY

106.3 107.9

SOUND

FM1

FM2

Page 36

Entertainment Systems

3. SCV is located in the middle of

the screen. Press to turn on.

4. Select setting 1 to 7 or turn off.

The recommended level for the speed compensated volume is from level 1 through level 3. When activated, level 1 is the minimum setting and level 7 is the maximum setting.

AM/FM select

The AM/FM control works in radio, CD and navigation modes.

AM/FM select in radio mode

Press AM/FM1/FM2 to switch between AM/FM1/FM2 memory preset stations.

AM/FM select in CD mode

Press to stop CD play and begin radio play.

AM/FM select in navigation mode

The radio will continue to play in the background of the navigation screens. To access, press AUDIO then AM/FM1/FM2.

Seek

• Press listenable station up/down the

frequency band.

• Press next/previous track on a CD.

/ to find the next

/ to advance to the

Page 37

Tune adjust

Press TUNE to manually move down/up (

/ ) the frequency

band. In CD mode, press TRACK to select

the previous/next (

/ ).

Scan

Press SCAN for a brief sampling of all listenable stations and CD tracks. Press again to disable and remain on the current selection.

Preset scan

Press PRESET SCAN to scan the stations stored in the memory presets.

Entertainment Systems

SET PTY

SOUND

FM1

FM2

SOUND

FM1

FM2

SCAN

RDS

87.9

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

INFO PTY

98.5

INFO PTY

98.5

TUNE

AUTO SET

106.3 107.9

TUNE

AUTO SET

106.3 107.9

Autoset memory preset

Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Page 38

Entertainment Systems

Starting autoset memory preset

1. Select a frequency band using

AM/FM1/FM2.

2. Press AUTO SET.

3. When the first six strong stations

are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AUTO SET again.

Radio data system (RDS) feature

This feature allows your audio system to receive text information from RDS-equipped FM radio stations such as station call letters, program type, etc. When in FM mode, press RDS to activate/deactivate.

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

INFO PTY

98.5

TUNE

AUTO SET

SET PTY

106.3 107.9

SOUND

FM1

FM2

Page 39

Entertainment Systems

Traffic function

Select TRAFFIC for traffic information broadcast from certain stations which will automatically

SCAN

SEEK

PRESET SCAN

TUNE

AUTO SET

interrupt radio or CD playback at a

RDS

TRAFFIC

89.9

INFO PTY

98.1

98.5

106.3 107.9

preset volume level.

87.9

Traffic information not available in most U.S. markets.

Information feature

Press INFO to view the frequency, call letters and PTY category of the selected FM station.

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

INFO PTY

98.5

TUNE

AUTO SET

106.3 107.9

Note: Not all stations support INFO function.

Program type (PTY)

This feature allows you to search for Radio Data System (RDS) stations selectively by their program type.

Ensure that the RDS function is turned on. Press PTY to turn the feature on/off.

SET PTY

SOUND

FM1

FM2

SOUND

FM1

FM2

Page 40

Entertainment Systems

To set/change PTY:

Ensure that the RDS function is turned on. Press SET PTY to select from the following program types:

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

INFO PTY

98.5

TUNE

AUTO SET

106.3 107.9

SET PTY

SOUND

FM1

FM2

• All

• Classical

• Country

• Information

• Jazz

• Religious

• Rock

• Soft

• To p 40

Once PTY has been programmed, press SEEK (

/ ) or SCAN to

initiate a search up or down the frequency. Preset scan and Autoset also initiate PTY searches. The search will stop when the desired program type has been reached. If no program type is found, a message will display.

Note: Not all stations support PTY information.

Page 41

Entertainment Systems

Sound functions

To access settings for Bass, Treble, Balance, Fade, DSP (Digital Signal Programing), SCV (Speed Compensated Volume), and Occupancy modes:

VOL PUSH

AUDIO

MAP

DEST

FM1

SCAN

RDS

87.9

CD OPEN • CLOSE

SEEK

TRAFFIC

89.9

87 . 7

PRESET SCAN

INFO PTY

98.1

98.5 106.3 107.9

1. Press AUDIO.

2. Press SOUND.

3. Select from Bass/Treb; Bal/Fade; DSP/SCV.

4. Press +/— to increase/decrease the levels.

Bass : Allows you to increase or decrease the audio system’s bass output.

Treble : Allows you to raise or lower the audio system’s treble output.

TUNE

AUTO SET

SET PTY

4:17

SOUND

FM1

FM2

Page 42

Entertainment Systems

Fade : Allows you to adjust the amount of sound emitted from the front and rear speakers.

Balance : Allows you to adjust the sound distribution between the right and left speakers.

SCV (Speed Compensated Volume): Automatically compensates for road wind and noise. Refer to Speed compensated volume earlier in this chapter.

DSP Occupancy mode: Use to optimize the sound based upon the occupants in the vehicle. Select from ALL SEATS, REAR SEATS or DRIVER SEAT.

Setting memory preset stations

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

1. Select the frequency band with the AM/FM1/FM2 touch controls.

2. Select a station.

3. Press and hold a memory preset until the sound returns. The

frequency will appear in the preset.

CNTR

Page 43

Entertainment Systems

Satellite ready capability

Your Lincoln navigation system comes equipped with Satellite ready capability. The kit to enable Satellite reception is available through your Lincoln dealer. Detailed Satellite instructions are included with the dealer installed kit.

CD mode

CD units are designed to play commercially pressed 4.75 in (12 cm) audio compact discs only. Due to technical incompatibility, certain recordable and re-recordable compact discs may not function correctly when used in Ford CD players. Irregular shaped CDs, CDs with a scratch protection film attached, and CDs with homemade paper (adhesive) labels should not be inserted into the CD player. The label may peel and cause the CD to become jammed. It is recommended that homemade CDs be identified with permanent felt tip marker rather than adhesive labels. Ball point pens may damage CDs. Please contact your authorized dealer for further information.

Playing a previously loaded CD:

To begin CD play (if a CD is already loaded), press AUDIO hard button and then CD.

SCAN

RDS

87.9

SEEK

PRESET SCAN

TRAFFIC

98.1

89.9

INFO PTY

98.5

TUNE

AUTO SET

106.3 107.9

SET PTY

SOUND

FM1

FM2

Press CD. CD play will begin where it stopped last.

Page 44

Entertainment Systems

Loading a CD:

1. Press CD OPEN CLOSE on the bezel.

2. The navigation screen will fold down, allowing you access to the

in-dash six CD system.

3. Press LOAD and the desired CD slot number. The indicator light will

blink slowly at first, then quickly, signaling the system is ready.

4. Insert a disc.

5. To load more than one disc, press and hold LOAD. This will initiate

autoload and will allow you to load all open CD slots.

Page 45

Entertainment Systems

After an allotted time, the screen will close automatically or you may press CD OPEN CLOSE on the bezel again.

6. Once the screen closes, the system will start playing the last CD

loaded.

Track

Press next/previous track.

Rewind/fast forward in CD mode

Press to reverse or advance (

Scan feature in CD mode

Press SCAN to hear a brief sampling of all tracks on the current CD. Press again to disengage and remain with the current track.

/ to advance to the

/ ) in the current CD track.

Page 46

Entertainment Systems

Shuffle feature in CD mode

When in CD (or CDDJ mode), press SHUFFLE to engage the shuffle feature. Press to select from shuffling between tracks (SHUFFLE TRACK) on the current CD or between all tracks on all CDs (SHUFFLE DISC). All tracks will be played in random order. Press again to disengage (SHUFFLE OFF).

Compression feature

The compression feature works in CD mode and boosts more quiet music and lowers louder music to minimize the need for volume adjustments.

When in CD or CDDJ mode, press COMPRESS to engage or disengage the compression feature.

Pause

In CD mode, press PAUSE to pause the current track. Press again to continue playing.

Page 47

Entertainment Systems

Map mode

Map display information

To access the map display, press MAP on the bezel. Once pressed, the current map

display will appear on the screen showing the current vehicle location.

Zoom control

When ’Zoom’ is pressed, the scale indicator is shown on the screen. The scale markings are: 1/32, 1/16,1/4, 1/8, 1/2, 1, 2, 4, 8, 16, 32, 64, 128 miles. The control can be used in a number of ways:

• Touch and hold one of the arrow buttons for the map to be displayed again at each zoom level.

• Touch one of the arrow buttons repeatedly for the map to be displayed again at the final zoom level.

• Touch one of the segments of the scale indicator for the map to be displayed at the selected zoom level.

Page 48

Entertainment Systems

Additional map function buttons

To initiate the display of additional map function buttons, tap the map anywhere on the screen or press the MAP hard key. These additional features will disappear from the screen within five seconds unless pressed.

• STORE - stores current vehicle location as a memory point. Refer to Memory Points for further information.

• POI (Point of Interest)- brings up the Quick POI menu which allows the user to perform two functions: Display POI icons on the map for one category. Select local map area POIs as destinations or waypoints. The list of local area POIs can be sorted by distance, name, or icon. Refer to Points of Interest for further information.

If home has been previously programmed in the “Nav Menu”, the home icon (house) will appear on the screen and is able to be selected as a destination.

To delete POI icons from the map, touch the map again and press the POI off button.

Route preferences

After entering a destination, the Route preferences will appear on the screen showing what is currently selected. You may choose to activate/deactivate selections which the system will factor in when calculating your route. Those options are:

Page 49

• Minimize Time/Distance

• Use Major Roads

• Use Toll Roads

• Use Ferries

Information function

INFO will appear on the screen when you have calculated a destination. Press INFO for more information about the current destination, if available.

Youwillbeabletoviewthe information (if available) as well as choose to store the destination as a memory point by pressing OK.

Entertainment Systems

Screen symbols

Navigation symbol — Indicates the current vehicle position and points to the direction in which the vehicle is currently traveling.

Page 50

Entertainment Systems

Destination symbol — Indicates the current route destination.

Next turn symbol — Shows the next maneuver that will need to be taken on the current route.

North up button — Indicates that the map is displayed with north to the top of the screen. Press to toggle between “North up” and “Heading up” map display states.

Heading up button — Indicates that the map is displayed with the vehicle heading to the top of the screen. The position of the pointer indicates the direction of north on the map. Press to toggle between “North up” and “Heading up” map display states.

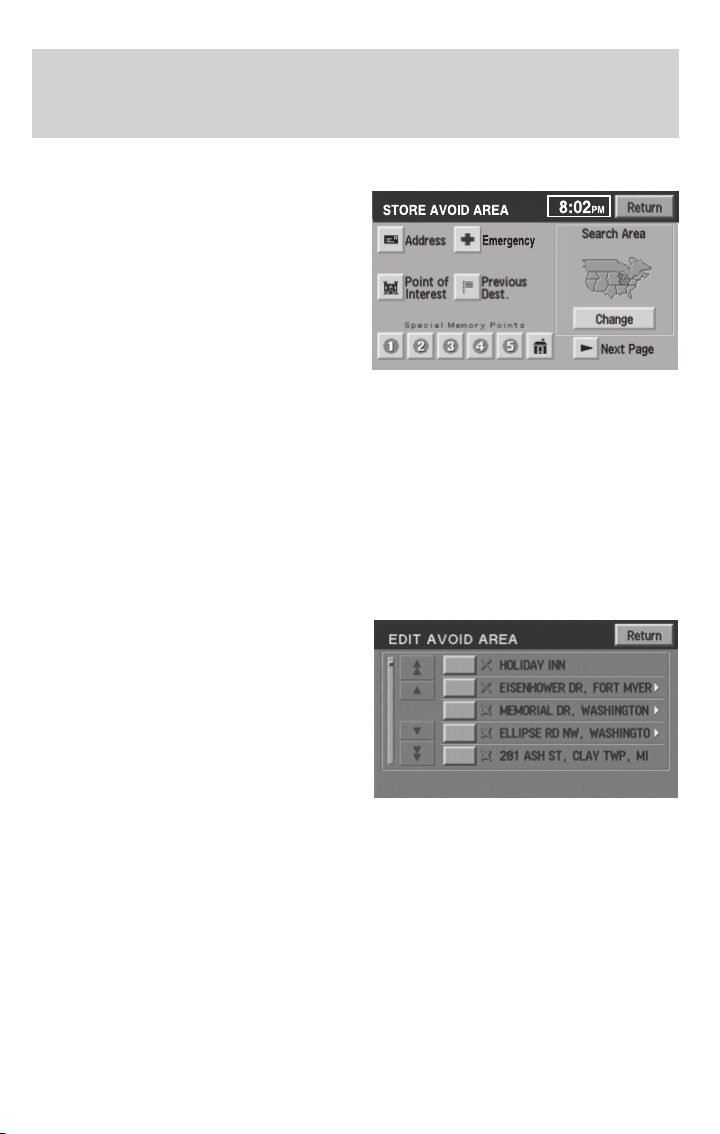

Avoid areas or points — The “X” symbol indicates a point. to be avoided in route calculations.

If the avoid point is enlarged to an avoid area, it will appear on the screen as a shaded box.

Way point symbol — Indicates the location of a way point (locations you wish to visit in route to your ultimate destination) on the map.

Page 51

Entertainment Systems

Home position symbol — Indicates the location on the map, currently stored as the home position.

Stored location symbol — Indicates the location of a memory point. This is the default symbol used when the point is stored. (If desired, an icon of your own choice can be selected from the 15 icons available.) Refer to Choosing from the icon list.

GPS symbol— Indicates that insufficient GPS satellite signals are being received for accurate map positioning. The symbol is not displayed under normal operation.

Speaker icon symbol— Press to turn voice guidance on/off.

Route options (destination entered)

Once in navigation mode and a route is currently active, press “Chng. route” to access the ROUTE OPTIONS screen. Choose from the following selections:

• Detour: Press to select a detour around the current route. Refer to Detour options later in this chapter for further information.

• Route Preferences: When creating a destination, select from: Minimize Time/Distance, Use Major Roads, Use Toll Roads, Use Ferries.

• Display Whole Route: Will enter MAP mode and display your entire chosen route.

Note: Route preference appears on the Nav menu when no destination is entered.

While driving under route guidance, only follow an instruction

when it is safe to do so as the system cannot be aware of changing conditions. Use voice guidance as much as possible, and only view the display when driving conditions permit.

Ensure that you follow highway code restrictions and do not

take any risks. For example, if you are unable to make a U-turn, continue on your journey. The navigation system will recalculate your route to get you back to an appropriate road to your destination.

Page 53

Navigation set up

The Navigation Set up screen will allow you to make adjustments to the navigation displays.

Average speed settings

Allows you to set approximate speeds you drive. These speeds enable the navigation system to aid in calculating timing for routes.

Quick POI (Point of Interest)

Allows you to change the Quick POI menu settings. Select the desired Quick POI (Gas, ATM, etc.) and then press ’List Categories’ for further categories, or ’Map Area POIs’ to show the desired POIs on your current map.

Entertainment Systems

Page 54

Entertainment Systems

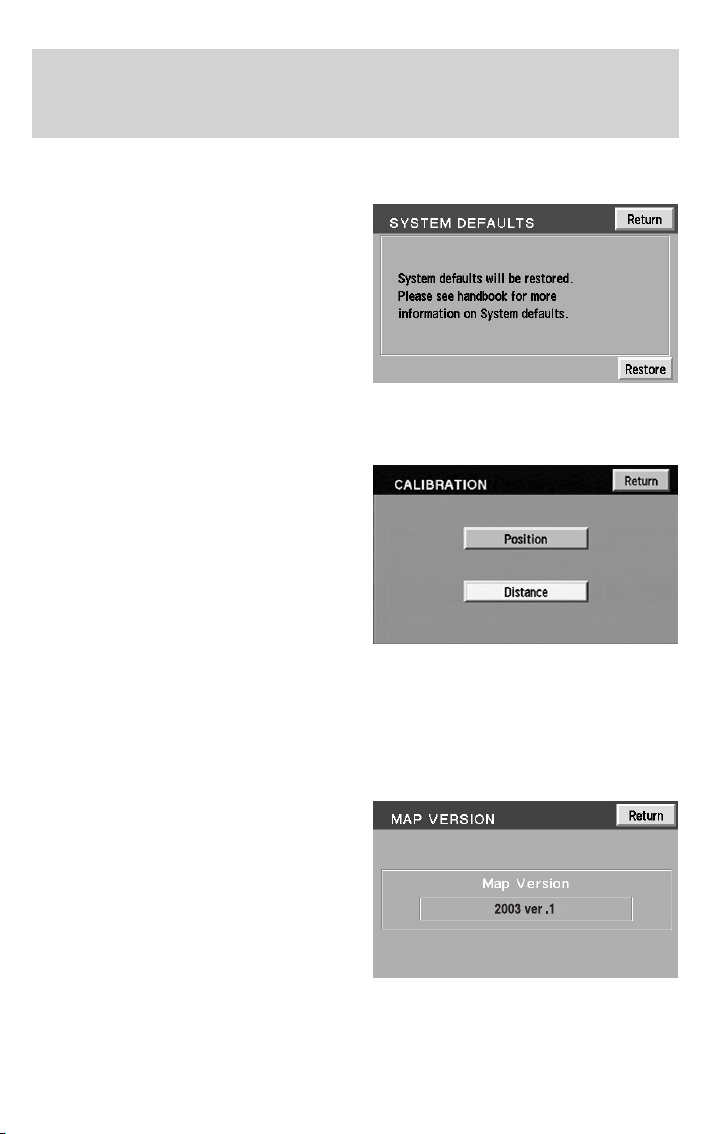

Restore system defaults

Resets all system user-selectable options to the default (automatic) values (i.e. guidance, voice, search area and route preferences).

Calibration

This feature is helpful if the car has been towed, or if you notice it is not registering at the correct vehicle location on the map. Press “Position” to reposition the vehicle location. Press the screen to scroll the map to the desired location and press OK to confirm. Press “Distance” to calibrate by distance and improve the navigation accuracy. It is recommended to activate this function after every tire replacement. When the button is highlighted, calibration is in process and will turn off automatically when complete.

DVD map version

Displays the version of the inserted navigation DVD. Refer to Ordering additional map DVDs for further information.

Page 55

Display Options

The Display Options screen will allow you make adjustments to the navigation display screen. You can choose from:

• Map Mode (Dual or Full)

• Guidance Mode (Arrows or Turn

list)

• Guidance Display (On or Off)

• Time to destination (Show or

Hide)

Stored locations

The Stored locations screen will allow you to choose from destinations that have been saved into the navigation system.

Entertainment Systems

In this screen, you can select from Memory Points, Special Memory Points, Home, Avoid Area, Destination and Way Point, or Previous Destination. Please refer to the Destination menu section for a complete description of the functions.

Page 56

Entertainment Systems

On route scroll

The system automatically scrolls through the entire planned navigation route either forwards or backwards. To activate, press the arrow buttons at the bottom left of the map screen.

Voice guidance/volume

Allows you to turn the voice guidance option on/off and to determine the volume level of the guidance voice prompts. To adjust:

1. Press the MAP hard key.

2. Press “Nav Menu” at the bottom left hand corner of the screen.

3. Press the speaker icon to turn the voice guidance option on/off. Press the desired number to select the volume level for the voice prompts.

Page 57

Home

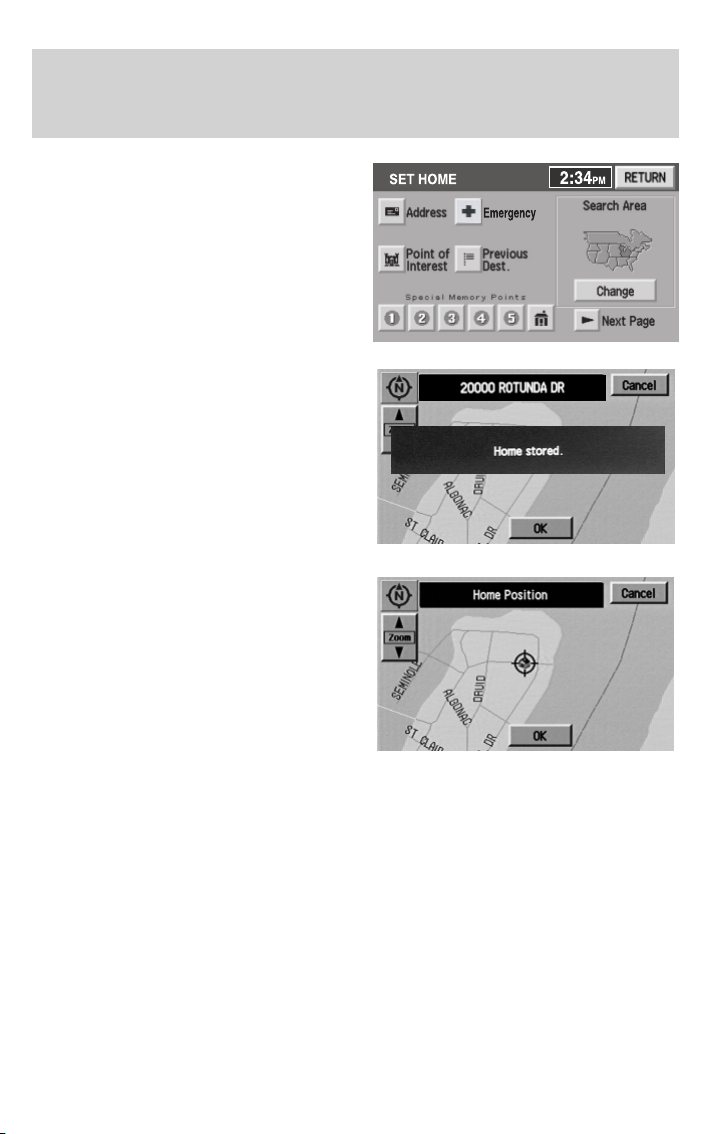

To set home for the first time:

1. Press MAP.

2. Press “Nav. Menu”.

3. Press “Stored Locations”.

Entertainment Systems

4. Press “Home”.

5. Press “Add”.

Page 58

Entertainment Systems

6. Select the desired menu item you wish to set as Home (Address, Memory Point, Point of Interest, Previous Destination).

7. Enter the required details.

8. Press OK to set the home position.

To view home, press the home icon (house) on the Destination Entry screen.

Page 59

To view the set home position

1. Press MAP.

2. Press “Nav. Menu”.

3. Press “Stored Locations”.

Entertainment Systems

4. Press “Home”.

5. Press “List”.

Page 60

Entertainment Systems

Deleting a home location

1. Press MAP.

2. Press “Nav. Menu”.

3. Press “Stored Locations”.

4. Press “Home”.

5. Press “Delete”.

Page 61

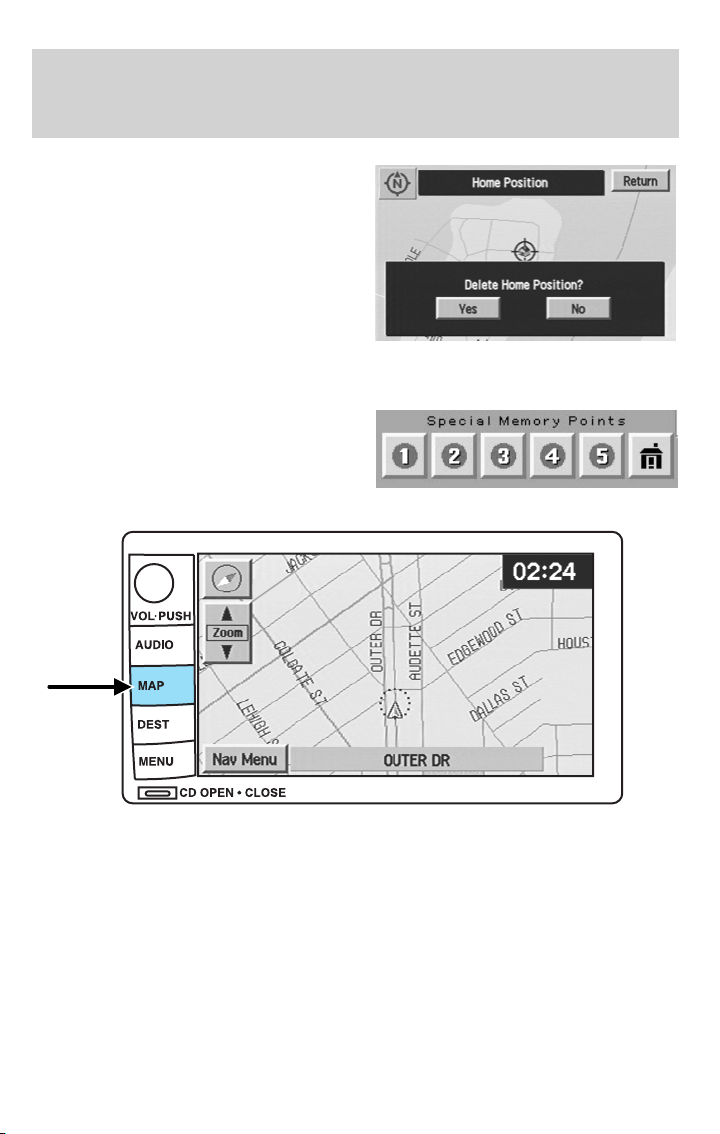

6. Press YES to confirm.

Special memory points

There are five possible special memory points that you can set.

To set a memory point:

Entertainment Systems

1. Press the MAP hard key.

2. Press “Nav. Menu”.

Page 62

Entertainment Systems

3. Press “Stored Locations”.

4. Press “Special Memory”.

5. Press “Add” and select a position.

6. Select point 1–5.

7. Input a destination.

8. Press OK.

Once all five special memory points are entered, the “Add” control will read as “Full”. You must delete points before more can be added.

To delete a memory point:

1. Press the MAP hard key.

2. Press “Nav. Menu”.

Page 63

Entertainment Systems

3. Press “Stored Locations”.

4. Press “Special Memory”.

5. Press “Delete”. The list will display.

6. Select the special memory point to delete.

7. Press “Del. all” to delete all entered special memory points.

8. Press “Yes” to confirm.

Detour options

You may engage the detour option once a route has already been calculated by the system. To access the detour option:

1. Press the MAP hard key

2. Press “Chg. Route”.

Page 64

Entertainment Systems

Press DETOUR to activate. Use the soft controls to select and enter the number of miles you want to deviate off of the current road.

Press DETOUR to confirm the selection and to activate the detour around the specified areas.

Press NEW ROUTE if you would like the system to plan a different route. The system may calculate an entirely new route, depending on what is available.

Route interruptions

In the course of your destination, you may decide to temporarily leave your planned route for gas, food, etc. If you turn off the ignition, the option to continue the route guidance will be displayed when the ignition is turned on again. The route can be accessed once again after you press “Agree” on the warning screen.

Route alterations or cancellations

To cancel or change your current route from the map, press DEST. You may then select from Detour, Display whole route, Route preferences, Destination Entry, Calculate or Cancel Guidance.

Page 65

Entertainment Systems

Avoiding an area while under guidance

For one reason or another, you may choose to avoid a certain area while in route to your destination. To select the area to avoid:

• From the MAP screen, press Nav Menu.

• Select Route Options, then Display Whole Route

• Press Turn List

• Press Avoid next to the street to be avoided

• Choose OK to confirm

• Press Reroute to activate

The new area is added to the list of stored avoid areas.

Note: In some circumstances, it may not be possible to avoid all selected areas.

Listing areas to avoid

You can list all areas noted as “avoid”.

• Press “Nav Menu”.

• Press “Stored locations”.

• Press “Avoid area”.

• Press LIST to view all previously

stored selections.

• Select the desired one. The map screen will be displayed, showing the location and address of the selected area.

Press Enlarge or Reduce to adjust the size of the visible area. Scroll the map as required.

Page 66

Entertainment Systems

Deleting areas to avoid

To delete a selection from the “Avoid area” list:

• From the stored locations menu, select “Avoid area”.

• Press DELETE

• Select the desired area to be

deleted.

• Press DEL. ALL to delete all stored areas.

• Press YES to confirm.

Destination menu

Press DEST on the main bezel to access the navigation mode.

Page 67

Initial map display

Note: There may be a slight time delay between the soft key and the hard key functions.

Route options

Once in navigation mode and a route is currently active, press the DEST hard key. The ROUTE OPTIONS screen will appear and allow you to choose from the following selections:

Entertainment Systems

• Detour — Press to select a detour around the current route.

• Route Preferences — When creating a destination, select from:

Minimize Time/Distance, Use Major Roads, Use Toll Roads, Use Ferries.

• Display Whole Route: Will enter MAP mode and display your entire chosen route.

• Destination Entry: Allows you to enter a new destination or select from entries in: Address book, Points of Interest or Previous Destinations.

While driving under route guidance, only follow an instruction

when it is safe to do so as the system cannot be aware of changing conditions. Use voice guidance as much as possible, and only view the display when driving conditions permit.

Page 68

Entertainment Systems

Ensure that you follow highway code restrictions and do not

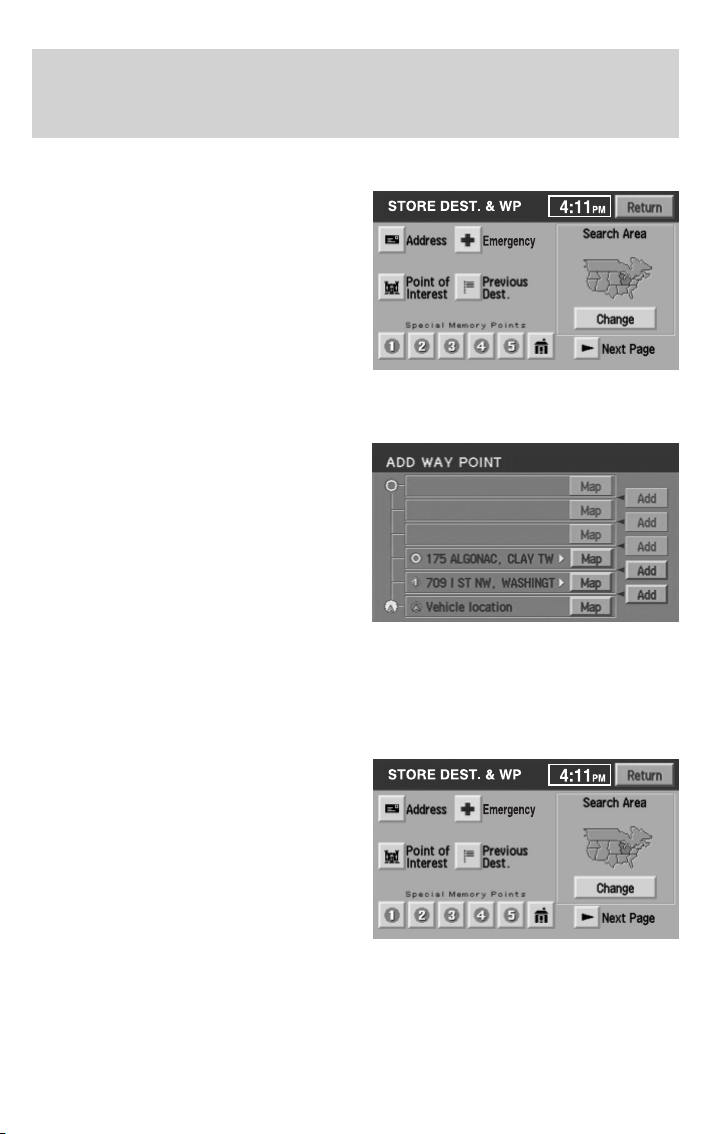

Destination entry

Selecting a destination

Press DEST to set a destination. From this menu, you may select from the following options:

• Address— Use to select a destination based on a known street address.

• Point of Interest— Use to select a destination that is a point of interest location (i.e., airport, restaurant, hospital).

• Previous Destination — Use to select a destination from among the last 20 entered destinations

• Emergency — Use to select the Emergency screen which will give you the location of the closest Hospital, Police Station and Dealer.

Press more selections:

• Memory point — Use to select from a memory point.

• Freeway exit/entrance — Use to select a certain freeway exit or entrance.

• Select from map —Use to select a place on the map.

• Special Memory Points — Use to select a destination from previously stored entries.

’Next Page’ to access

Page 69

Search area

The mapped areas covered by your map DVD are reflected in the Search Area map that is displayed on the Destination Entry screen. Your navigation system uses a regional search area. This area is the area from which navigational directions will be used.

To check your area or reset, press CHANGE under the search area listing. The map will open and allow you to select another regional area. Ensure that your search area is correct prior to setting your destination.

Emergency

Your navigation system is equipped with a separate Emergency screen. To access the Emergency screen, press “Emergency”.

Entertainment Systems

Cancel

IL , IN , KY , MI , OH , WI

This screen will list the closest police station, hospital and dealer to your current location.

Page 70

Entertainment Systems

Points of interest (POI)

Select “Point of Interest” from the Destination Entry Menu. In this next menu, you will have the following options:

• By Name— Enter POI name on the keyboard. Touch “List” to display the list of matching points of interest. If there are too many matches being listed, try entering the town name first.

• By Category — Press “Category”. Scroll down the list to select the category, then sub-category desired. Once you have selected a category, your entry of the POI will be restricted to that category.

Previous destination

Press “Previous Destination” on the Destination Entry Menu.

1. Select (touch) the desired item

from the list of destinations previously reached. The item details will be listed.

2. Confirm destination details.

Page 71

Entertainment Systems

Deleting stored locations

Your navigation system allows you to delete any stored locations (previous destinations, memory points, special memory points, home, avoid areas, destination and way points, etc.) To delete any of these stored locations:

1. Press the MAP hard key.

2. Press “Nav Menu” in the bottom

left hand corner of the screen.

3. Press “Stored locations”.

Page 72

Entertainment Systems

4. Select the desired item you wish

to delete (previous destination, memory point, etc.).

5. Press “Delete” at the bottom of

the screen.

6. The list of stored locations will be

displayed.

7. Select (touch) the entry to be

deleted. The item details will be listed.

8. Press YES to confirm the

deletion.

9. Press DELETE ALL to delete all

stored locations.

Memory point

Your navigation system allows you to go to special destinations you may wish to again visit. To view any of these “memory points” without a route calculated:

1. Press the DEST hard control.

2. Press “

Destination Entry screen.

3. Select “Memory Point”.

4. Select the desired item.

5. Confirm the details.

6. Press “Destination” to calculate a

route to that memory point. Note: The list can be sorted by date, name or icon by pressing the

appropriate button.

Next page” on the

Page 73

Entertainment Systems

Adding a memory point

You may add more memory points to be stored in the system.

1. With the map displayed, touch your finger to the screen to scroll to

the desired location. When you reach the desired location, remove your finger from the screen and the map will stop scrolling. STORE will appear on the screen.

2. Press STORE to add the location to the memory point list.

You may also add a memory point via the Navigation menu.

1. Press the MAP hard key.

2. Press “Nav Menu” in the bottom

left hand corner of the screen.

3. Press “Stored locations”.

Page 74

Entertainment Systems

4. Select “Memory Point”.

5. Press “Add” at the bottom of the

screen.

6. Select the desired menu item.

7. Enter/select any required details.

The new point will be added to the stored list of memory points.

8. Press OK. The new point will be

added to the list of stored memory points.

To give the new memory point a name:

1. Select it from the list.

2. Press NAME.

3. Enter the desired name.

Accessing memory point lists

1. Press the MAP hard key.

2. Press “Nav Menu” in the bottom left hand corner of the screen.

Page 75

3. Press “Stored locations”.

4. Press “Memory Point”.

5. Press LIST

6. Select the desired entry to view

its location details.

Entertainment Systems

Sorting memory point lists

1. Access the desired list.

2. Press the button to sort the list

as desired (i.e. date, name, or icon). When sorted by distance, the points

are ordered by distance from the

Page 76

Entertainment Systems

current vehicle location. When sorting by icon, the icons are listed in the order they appear on the icon selection screen.

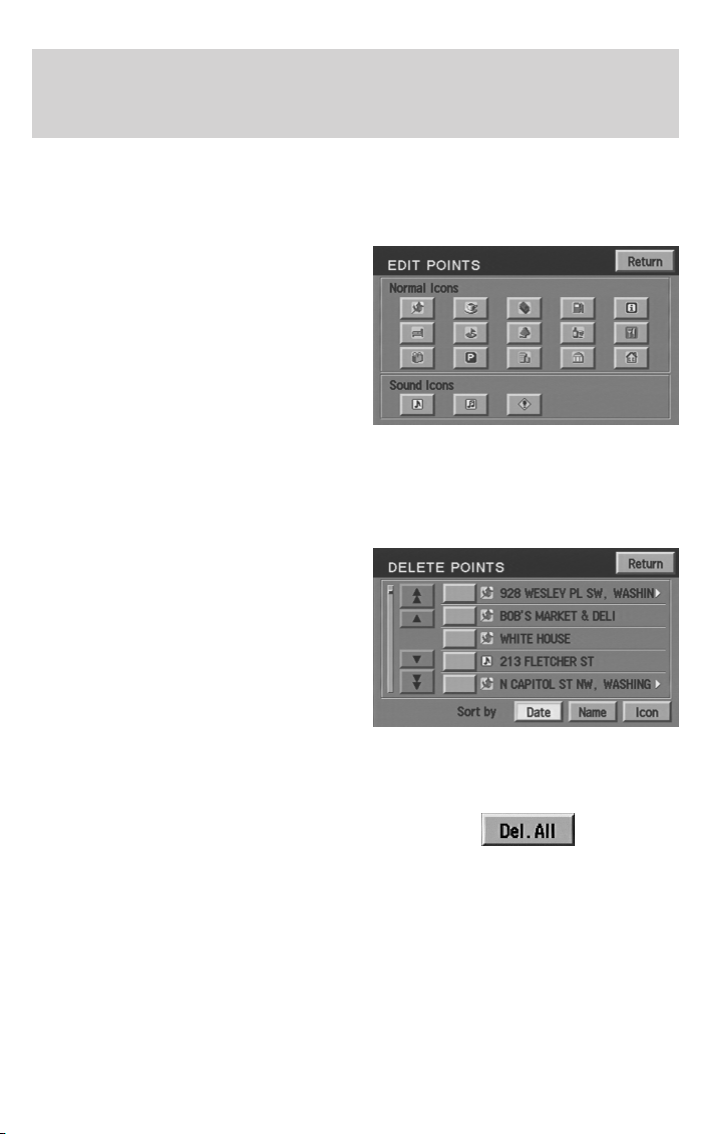

Choosing from the icon list

After selecting a location, press ICON to edit. There will be 15 normal and three sound icons displayed. Press the icon you wish to use.

The normal icons will be displayed on the map to indicate the map location identified with that icon. The audible icon will sound a distinctive chime when the vehicle is approaching the memory point associated with that icon.

Deleting a memory point

• In the Memory Point Menu, press DELETE.

• Select the entry to be deleted.

• The system will ask you to

confirm deletion. Press YES to confirm.

The screen will briefly show “Memory Point Deleted”.

Deleting all memory points

• In the Memory Point Menu, press DELETE ALL.

• The system will ask you to confirm deletion. Press YES to confirm.

The screen will briefly show “All Memory Points Deleted”.

Page 77

Entertainment Systems

Freeway Entrance/Exit

To set a freeway entrance or exit as a destination:

1. Press the DEST hard key.

2. Press “

the second page of the Destination Entry menu.

3. Select “Freeway Entrance/Exit”.

1. Enter freeway name— Enter

the freeway name using the keyboard. Press “List” to select a freeway from those displayed.

To enter numbers in the freeway name, press “Sym”.

2. Select entrance/exit— Press

“Entrance” if you wish to join the freeway at this junction. Press “Exit” if you wish to leave the freeway at this junction.

3. Select Junction— The screen

will display a list of junctions on the freeway. They can be listed either by distance, (from the current vehicle location), by pressing the “Dist” button or alphabetically by pressing the “A-Z” button. Select the desired entrance or exit.

The destination details are displayed for confirmation.

Next page” to access

Page 78

Entertainment Systems

Destination and way points

The Store Dest. & Way Point menu is used after a destination or way point has been entered for the first time using the Destination Entry menu. You can store and delete destinations and way points (locations you wish to visit in route to your ultimate destination). You can also select the order in which you visit them.

Adding (storing) a destination or way point

• Once a destination is entered, press ADD to store the location. The Store Dest. & Way Point menu is displayed.

• Select whether you want to store an Address, Point of Interest or Previous Destination.

• Enter the necessary details for the selection.

• If a destination was entered, it will be stored as the current location. If a way point was entered, it will be added to the list of way points.

Listing destinations and way points

Press LIST to display the stored way points and destination (if entered).

The first way point to be visited is at the bottom of the list and the destination is at the top.

You may view the map location of any entry. On the map, location details for the entry are displayed at the top of the screen.

To adjust the position of the way point (or destination), scroll the map as required.

Press OK.

Page 79

Entertainment Systems

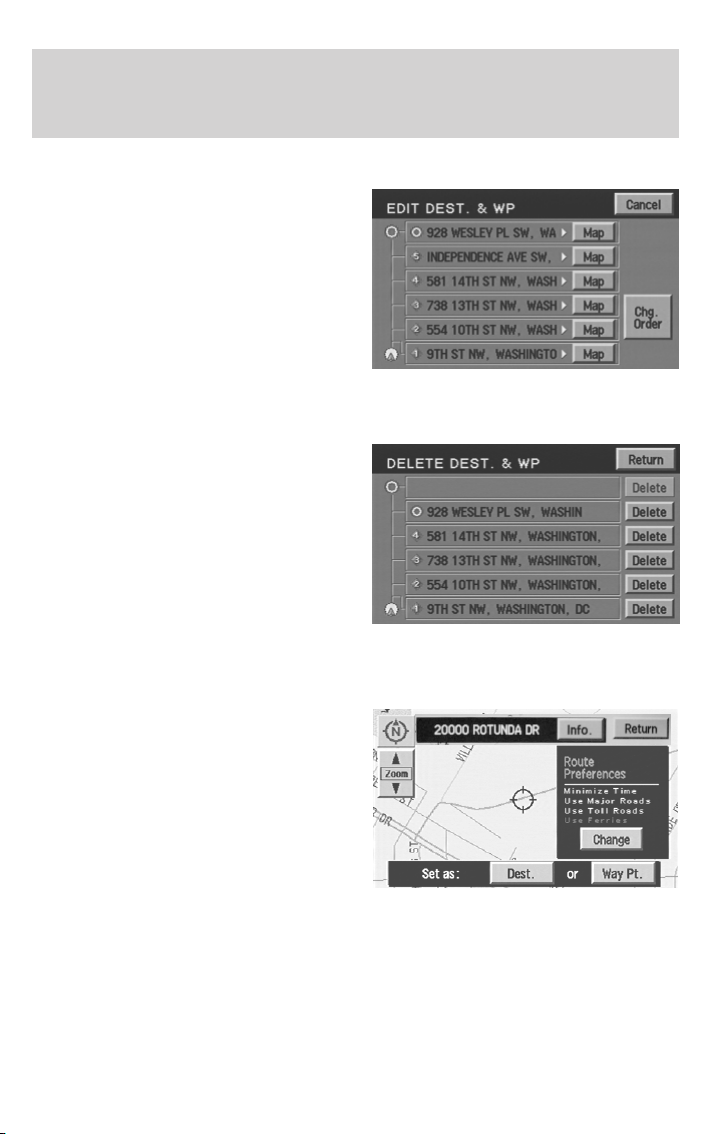

Editing and changing order of way points and destination

Press “Chg. Order” to change the order in which the way points are visited. The points are listed chronologically from bottom up, the destination being on the top.

Press the MAP button to edit the way point location on the map display.

Press OK to confirm.

Deleting way points and destination

After pressing DELETE, the list of way points and the destination (if entered) is displayed, showing the ’Delete Dest. &Way Pt.’ menu.

Select the entry to be deleted. Press YES to confirm.

Press DELETE ALL to delete all way points. Press YES to confirm.

Selecting route criteria

Once you have selected a destination, you may change the routing criteria by pressing “Change” in the route preferences screen. Refer to Route preferences for further information.

Page 80

Entertainment Systems

Route calculation

Once the route criteria is selected, the navigation system automatically calculates the selected destination. The route appears on the display screen and a voice prompt provides instructions.

The system may calculate up to four routes for the desired destination. Press “Next” to scroll through the various planned routes. Press “Start” to confirm the route selection and begin route guidance.

Next route

Your navigation system may map more than one route to the same destination. After the destination has been calculated, it will appear on the map screen. Press NEXT in the upper right hand corner to scroll through other possible routes to the same destination.

Page 81

Entertainment Systems

Menu mode

To access menu mode, press the MENU hard control.

Menu mode allows you to access:

• System Set-up

• Information — Gives you the

Lincoln Customer Assistance Center information.

• Brightness/Contrast — Allows you to adjust the brightness and contrast on the screen.

Page 82

Entertainment Systems

• Screen off — Allows you to turn off the navigation screen.

System setup

The system set up menu contains the following user settings:

• Audible Feedback — Press to activate audible voice navigation commands. Press again to deactivate.

• Navigation Units — Press to toggle between Metric/English units.

• Language — Press to toggle between English, French, or Spanish.

• Clock

Setting the clock

Once in Menu mode, press CLOCK to set the hours/minutes.

Page 83

Entertainment Systems

General information

Safety information

Please read and follow all stated safety precautions. Failure to do so may increase your risk of collision and personal injury. Ford Motor Company shall not be liable for any damages of any type arising from failure to follow these guidelines.

Do not attempt to service, repair or modify the system. See your Ford or Lincoln Mercury dealer.

The driver must not attempt to operate any detailed operation of

the navigation system while the vehicle is in motion. Give full attention to driving and to the road. Pull off the road and park in a safe place before performing detailed operations.

If the system is used for an extended period of time with the vehicle stationary, ensure that the engine is running to avoid draining the battery.

Do not apply pressure to the display screen. The navigation system is not a substitute for your personal judgement. Route suggestions should not supersede local traffic regulations or safe

driving practices. Do not follow route suggestions if they direct you to perform an unsafe

or illegal maneuver, would place you in an unsafe situation, or would route you into an area that you consider unsafe.

Drivers should not rely on screen displays while their vehicle is in motion. Let the voice guide you. If viewing is necessary, pull off the road to a safe location.

Do not use the navigation system to locate emergency services. For road safety reasons, the driver should program the system only when

the vehicle is stationary. Certain functions will therefore not operate while the vehicle is in motion.

The map database DVD does not reflect road detours, closures or construction, road characteristics such as rough road surface, slope or grade, weight or height restrictions, traffic congestion, weather or similar conditions.

To use the system as effectively and safely as possible, obtain an up-to-date map database DVD whenever they become available.

Set the volume level so that you can hear directions clearly.

Page 84

Entertainment Systems

Do not disassemble or modify the system as this may lead to damage and void your warranty. If a problem occurs, stop using the system immediately and contact your Ford or Lincoln Dealer.

Federal Communication Commission (FCC) Compliance

Changes or modifications not approved by Ford Lincoln Mercury could void user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experienced radio/TV technician for help.

The database reflects reality as existing before you received the database and it comprises data and information from government and other sources, which may contain errors and omissions. Accordingly, the database may contain inaccurate or incomplete information due to the passage of time, changing circumstances, and due to the nature of the sources used. The database does not include or reflect information on neighborhood safety, law enforcement, emergency assistance, construction work, road or lane closures, vehicle or speed restrictions, road slope or grade, bridge height, weight or other limits, road or traffic conditions, special events, traffic congestion, or travel time.

Radio reception factors

There are certain factors that may effect your radio reception.

• Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.

• Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences,

Page 85

Entertainment Systems

traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.

• Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.

Principles of GPS (global positioning system) operation

Your system directs you based on information derived from global positioning satellites, road maps stored on the DVD, sensors in your vehicle and the desired destination. The system compiles all necessary information to guide you to your selected destination. Space satellites determine the vehicle’s current location and transmit position and time signals to your car.

If the vehicle has been parked for a long period of time, the navigation function may be temporarily unresponsive. The navigation system will operate reliably again once GPS reception is available for a few minutes.

Limited GPS reception

System performance may be adversely affected if GPS reception is interrupted or interference occurs over a distance of several miles. The following are possible causes for GPS reception being interrupted. If the vehicle is:

• in multi-story parking garages

• in tunnels and under bridges

• inside or in between buildings

• by forests or tree-lined avenues

• in heavy rain showers and thunderstorms

• in valleys and in mountainous regions

• roads under cliffs

Ensure that you do not have any metal objects on the rear parcel shelf. If your windows are tinted, ensure that you use non-metal tinting instead of metal oxide tinting. Both of these factors can interrupt GPS reception.

Cleaning the display

Do not spray cleaning fluid directly onto the unit. Instead, spray onto a soft cloth and gently wipe the unit. Only recommended products should be used.

• Recommended products- Rubbing alcohol based cleaner (i.e., methyl alcohol) or a damp clean cloth.

Page 86

Entertainment Systems

• Not harmful but not recommended- ammonia cleaner, neutral detergent.

• Harmful to system and not recommended- acid cleaner, alkali cleaner, benzene cleaner.

Do not clean any part of the system with benzene, paint thinner or any other solvent.

Do not spill liquids of any kind onto the unit.

Loading the map DVD

• Your navigation DVD unit is located in the trunk.

• Ensure that the vehicle ignition is ON.

• If a DVD is already loaded in the Navigation unit, push the eject

button.

• Load the DVD with the printed side up. Do not allow moisture or foreign objects to enter the slot.

The navigation system utilizes a database stored in a special format on a DVD. It is recommended always to use the latest update of this map DVD.

• The navigation system will only work with DVDs specifically intended for your navigation system.

• Always store the map DVDs in their protective cases when not in use.

Ordering additional map DVDs

If you wish to order a replacement or additional map, please call 1–888–NAV-MAPS (1–888–628–6277) or to log onto www.navtech.com.

Latest map DVDs

The map content is constantly changing due to new roads, traffic restrictions, etc. . Therefore, it is not always possible to exactly match the DVD map with the current roadways. For best results, always use the latest version of the map DVD. Map information is regularly updated, but all areas are not necessarily covered to the same level of detail. Some areas, in particular private roads, may not be included on the database. To help with accuracy, always use the latest DVD version for navigation.

Customer service

If you need help operating your navigation/audio system, want to report a map database error or want to obtain a map DVD, please call 1 (888) 628–6277 (NAV-MAPS) or log onto www.navtech.com.

Page 87

Climate Controls

DUAL AUTOMATIC TEMPERATURE CONTROL (DATC) SYSTEM (IF EQUIPPED)

1. A/C control: Press to turn on

A/C

and manually control the air conditioning. Press again to disengage. Press AUTO for the system to automatically control the temperature.

2. Recirculation control: Press to

engage/disengage. Used to manually enable or disable recirculated air operation. When activated, recirculates air in the cabin thereby reducing the amount of time to cool down the interior of the vehicle. May also help reduce undesired odors from reaching the interior of the vehicle. Will work in all modes except defrost. Recirculation turns off automatically when floor, floor/defrost or defrost mode is selected. To reduce humidity inside the vehicle, turn recirculation off.

3. Passenger side temperature

control: Press to engage the dual zone feature of the DATC system. Allows the passenger to choose and control a different temperature than the driver, if desired.

4. Rear defroster: Press to defrost

the rear window. Refer to Rear

window defroster in this section for more information.

Page 88

Climate Controls

5. DUAL zone selector: Press to

DUAL

toggle the system between single zone and dual zone control.

(Defrost): Distributes outside air through the windshield defroster ducts and the demister outlets. Can be used to clear ice or fog from the windshield. The system will automatically provide outside air to reduce window fogging.

: Distributes air through the windshield defroster ducts, demister outlets, and the front and rear seat floor ducts. The system will automatically provide outside air to reduce window fogging.

: Distributes air through the floor and rear seat floor ducts. The

8. system will automatically provide outside air to reduce window fogging.

: Distributes air through the instrument panel, center console registers, and the front and rear seat floor ducts.

10.

: Distributes air through the instrument panel and center console

registers.

11. OFF: Outside air is shut out and

OFF

the fan will not operate.

12. AUTO: To engage automatic

AUTO

temperature control, press AUTO and select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

13. Manual override controls: Allows you to manually select where airflow is directed. To return to full automatic control, press AUTO.

14. Driver’s side temperature control: Controls the temperature on the driver side of the vehicle in dual zone and controls the temperature of the entire vehicle in single zone.

Page 89

Climate Controls

15. Fan Speed: Press to manually increase/decrease fan speed. In manual mode, the display will show indicate fan speed. Fan speed can be manually adjusted in AUTO mode. To allow the system to automatically control fan speed, press AUTO.

16. EXT control: Press to display the outside air temperature. Press again to return to interior temperature. Exterior readings are most accurate when the vehicle is moving.

17. Temperature conversion: Press to toggle between Fahrenheit and Celsius temperature on the DATC display only. The set point temperatures in Celsius will be displayed in half-degree increments.

Heated wiper rest: Heats the windshield wiper blades in order to reduce the chance of ice buildup and to aid in defrosting. This feature operates automatically when the outside temperature is near or below freezing.

Dual Automatic Temperature Control (DATC) system with heated and cooled seats (if equipped)

with a bar graph to

EXT

F C

Page 90

Climate Controls

1. A/C control: Press to turn on

A/C

and manually control the air conditioning. Press again to disengage. Press AUTO for the system to automatically control the temperature.

2. Recirculation control: Press to engage/disengage. Used to manually enable or disable recirculated air operation. When activated, recirculates air in the cabin thereby reducing the amount of time to cool down the interior of the vehicle. May also help reduce undesired odors from reaching the interior of the vehicle. Will work in all modes except defrost. Recirculation turns off automatically when floor, floor/defrost or defrost mode is selected. To reduce humidity inside the vehicle, turn recirculation off.

3. Passenger side temperature control: Press to engage the dual zone feature of the DATC system. Allows the passenger to choose and control a different temperature than the driver, if desired.

4. Passenger heated seat: Press to turn on the passenger side heated seat. Press once for full heat (three lights above passenger heated seat control will be illuminated). Press a second time to select medium heat (two lights). Press a third time to select low heat (one light). Press a fourth time to disengage the feature (all lights will be off).

(Rear defroster): Press to defrost the rear window. Refer to

Rear Window defroster for more information.

6. Passenger cooled seat: Press to turn on the passenger side cooled seat. Press once for full cool (three lights above passenger cooled seat control will be illuminated). Press a second time to select medium cool (two lights). Press a third time to select low cool (one light). Press a fourth time to disengage the feature (all lights will be off).

Automatic heated/cooled passenger seat: To engage, press the passenger side heat and cool seat controls simultaneously. The center light above the passenger side heated and cooled controls will illuminate

and the display will show

. This allows the seat to automatically heat or cool based on the climate control temperature selected. Press either control to disengage.

Page 91

Climate Controls

8. Airflow direction control: Press to toggle through the air distribution modes listed below. The selected mode will illuminate in the display.

: Distributes air through the windshield defroster ducts, demister outlets and the front and rear seat floor ducts. The system will automatically provide outside air to reduce window fogging.

: Distributes air through the floor and rear seat floor ducts. The

system will automatically provide outside air to reduce window fogging.

: Distributes air through the instrument panel, center console registers, and the front and rear seat floor ducts.

: Distributes air through the instrument panel and center console

registers.

9. Off: Outside air is shut out and the fan will not operate.

10. Manual override controls: Allows you to manually select where airflow is directed. To return to full automatic control, press AUTO.

11. AUTO: Press to engage automatic temperature control. Use the temperature control to select the desired temperature setting. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air to heat or cool the vehicle, allowing it to reach the desired temperature. Press and hold AUTO for about two seconds to toggle between single zone and dual zone temperature control.

12. Driver heated seat: Press to turn on the driver side heated seat. Press once for full heat (three lights above driver heated seat control will be illuminated). Press a second time to select medium heat (two lights). Press a third time to select low heat (one light). Press a fourth time to disengage the feature (all lights will be off).

13. Driver cooled seat: Press to turn on the driver side cooled seat. Press once for full cool (three lights above driver cooled seat control will be illuminated). Press a second time to select medium cool (two lights). Press a third time to select low cool (one light). Press a fourth time to disengage the feature (all lights will be off).

Automatic heated/cooled driver seat: To engage, press the driver side heat and cool seat controls simultaneously. The center light above the driver side heated and cooled controls will illuminate and the display will

OFF

AUTO

Page 92

Climate Controls

show .

This allows the seats to automatically heat or cool based on the

climate control temperature selected. Press either control to disengage.

14. Driver’s side temperature control: Controls the temperature on the driver side of the vehicle in dual zone and controls the temperature of the entire vehicle in single zone.

15. Fan speed: Press to manually increase/decrease fan speed. In manual mode, the display will show

with a bar graph to indicate fan speed. Fan speed can be manually adjusted in AUTO mode. To allow the system to automatically control fan speed, press AUTO.

16. EXT control:

Press to display

EXT

the outside air temperature. Press again to return to interior temperature. Exterior readings are most accurate when the vehicle is moving.

17. Temperature conversion:

F C

Press to toggle between Fahrenheit and Celsius temperature on the DATC display only. The set point temperatures in Celsius will be displayed in half-degree increments.

Operating tips

• To reduce fog build up on the windshield during humid weather, place

the air flow selector in the

(defrost) position.

• To reduce humidity build up inside the vehicle:

Do not drive with the air flow selector in the OFF position. Do not drive with recirculation engaged.

• In order to allow the vehicle to “breathe” using the outside air inlet

vents, do not leave the air flow selector in the OFF position when the vehicle is parked.

• For maximum cooling performance (MAX A/C) in AUTO : Press AUTO

control and set to desired temperature. Do not press A/C or the recirculation controls. In manual override control, press

(panel),

Page 93

Climate Controls

A/C, recirculation controls, set the temperature to 60 °F (16 °C) and the fan to highest blower setting.

• To improve the A/C cool down, drive with the windows slightly open

for 2-3 minutes after start up or until the vehicle has been “aired out.”

• Do not put objects under the front seats that will interfere with the

airflow.

• Remove any snow, ice or leaves from the air intake area at the base of

the windshield.

• With the ignition in the OFF position after operating the vehicle, some

vehicle sounds related to the climate control system may be heard.

• Approximately two minutes after key off, the air distribution doors

may adjust their positions as part of the normal operating process.

• Demisters, located at the far left and right sides of the dash, usually

blow out a small amount of airflow in order to reduce side window fogging.

• Outboard panel registers, located at the left and right sides of the

dash, blow out a small amount of airflow when in (floor/defrost), and

window fogging.

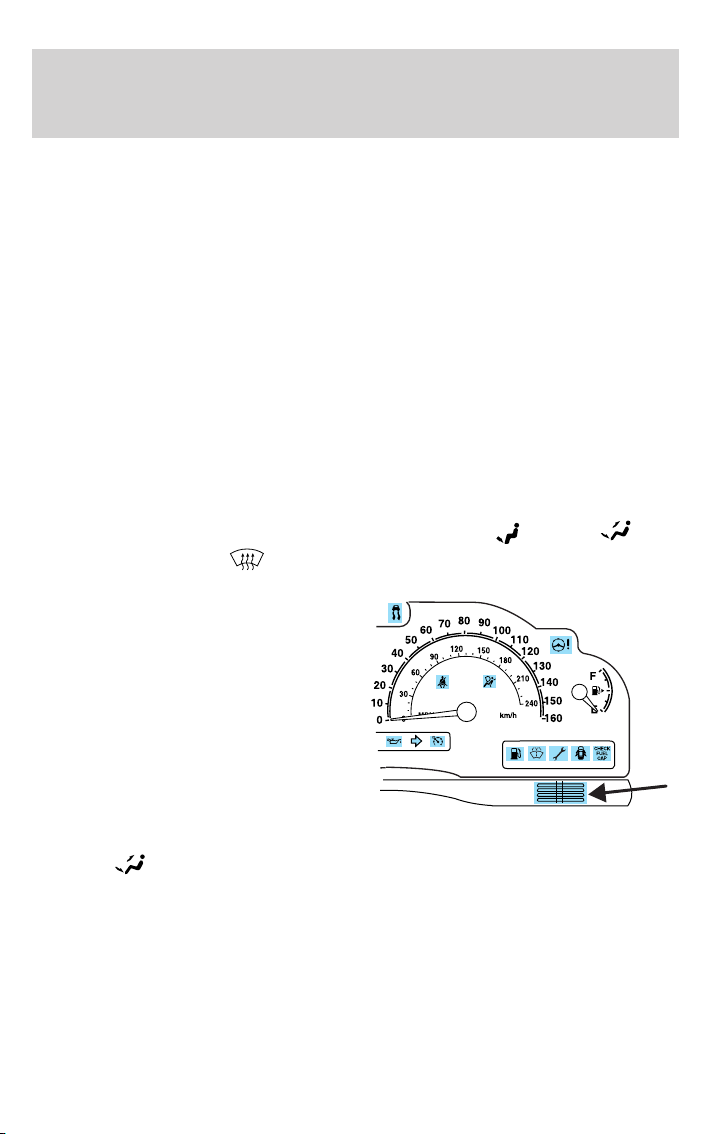

• Do not place items over the

climate temperature sensor grid. This may cause improper operation of the system.

(defrost) modes. This also reduces side

(floor),

To aid in side window defogging/demisting in cold weather:

1. Select

2. Ensure that recirculation is disengaged.

3. Set the temperature control to full heat.

4. Set the fan to the highest speed.

5. Direct the outer instrument panel vents towards the side windows. To increase airflow to the outer instrument panel vents, close the vents

located in the middle of the instrument panel.

Page 94

Climate Controls

Do not place objects on top of the instrument panel as these objects may become projectiles in a collision or sudden stop.

REAR WINDOW DEFROSTER

Press the rear window defroster control to clear the rear window and sideview mirrors of thin ice or fog. The light above the control will illuminate to indicate that the rear defrost is operating.

The ignition must be in the RUN position and the engine running in order to operate the rear window defroster.

The rear window defroster turns off automatically after a predetermined amount of time, if a low battery condition is detected, or if the ignition is turned to the OFF position. To manually turn off the rear window defroster at any time, press the control again.

Do not use razor blades or other sharp objects to clean the inside of the rear window or to remove decals from the inside of the rear window. This may cause damage to the heated grid lines and will not be covered by your warranty.

CABIN AIR FILTER

Your vehicle is equipped with a cabin air filter. The particulate air filtration system is designed to reduce the concentration of airborne particles such as dust, spores and pollen in the air being supplied to the interior of the vehicle. The particulate filtration system gives the following benefits to customers:

• Improves the customer’s driving comfort by reducing particle

concentration

• Improves the interior compartment cleanliness

• Protects the climate control components from particle deposits

The filter is located just in front of the windshield under the cowl grille on the passenger side of the vehicle.

For replacement intervals regarding your Cabin Air Filter, see your Scheduled Maintenance Guide. For more information regarding your filter, see your Ford or Lincoln Mercury dealer.

Page 95

Lights

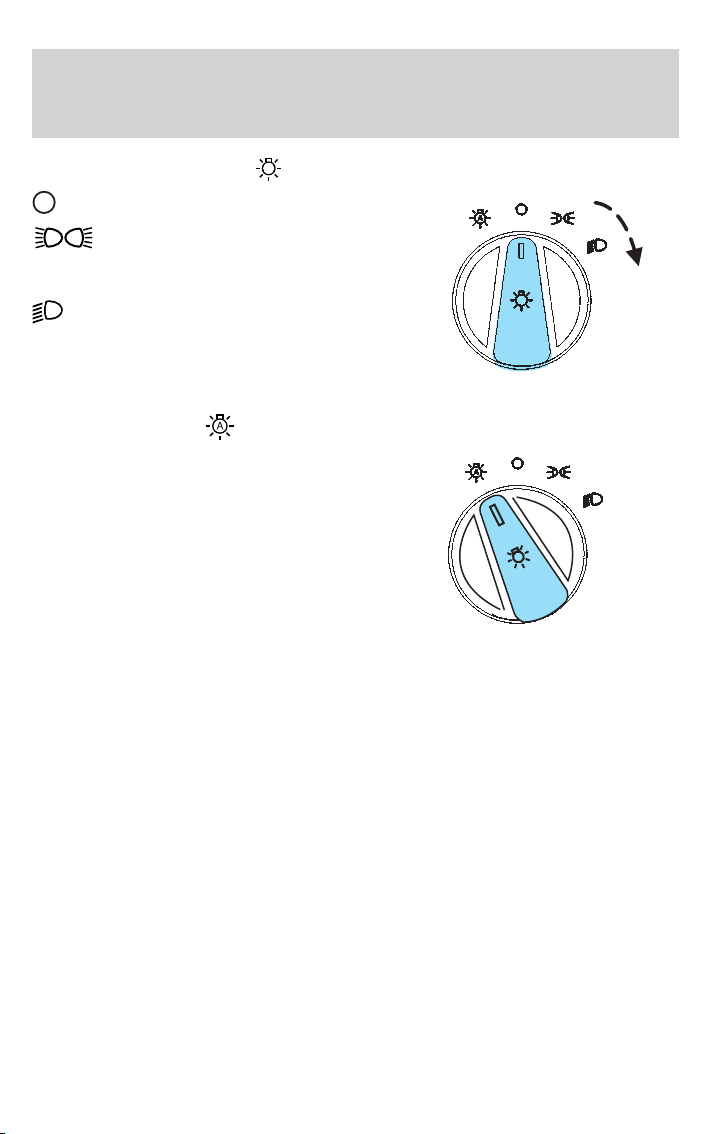

HEADLAMP CONTROL

Turns the lamps off.

Turns on the parking lamps, instrument panel lamps, license plate lamps and tail lamps.

Turns the headlamps on.

Autolamp control

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

• To turn autolamps on, rotate the

control counterclockwise to the auto position.

• To turn autolamps off, rotate the

control clockwise to the off position (O).

The autolamp system also keeps the lights on for a period of time after the ignition switch is turned to OFF. The period of time that the lights remain on is set at the factory but the time may be adjusted using the sequence below.

Exit delay programming sequence

1. Start with the ignition in the RUN position and autolamps selected on the headlight switch.

2. Turn the ignition to the OFF position. (This will start a 10 second timer during which steps 3 through 6 must be completed.)

3. Turn the autolamps OFF.

4. Turn the ignition to the RUN position.

5. Turn the ignition to the OFF position.

6. Turn the autolamps on (The park lamps and low beams will turn on.)

7. Turn the autolamps off after the desired delay time is reached. (The maximum programmable delay is 3 minutes. The lights that turned on in step 6 will turn off.)

Page 96

Lights

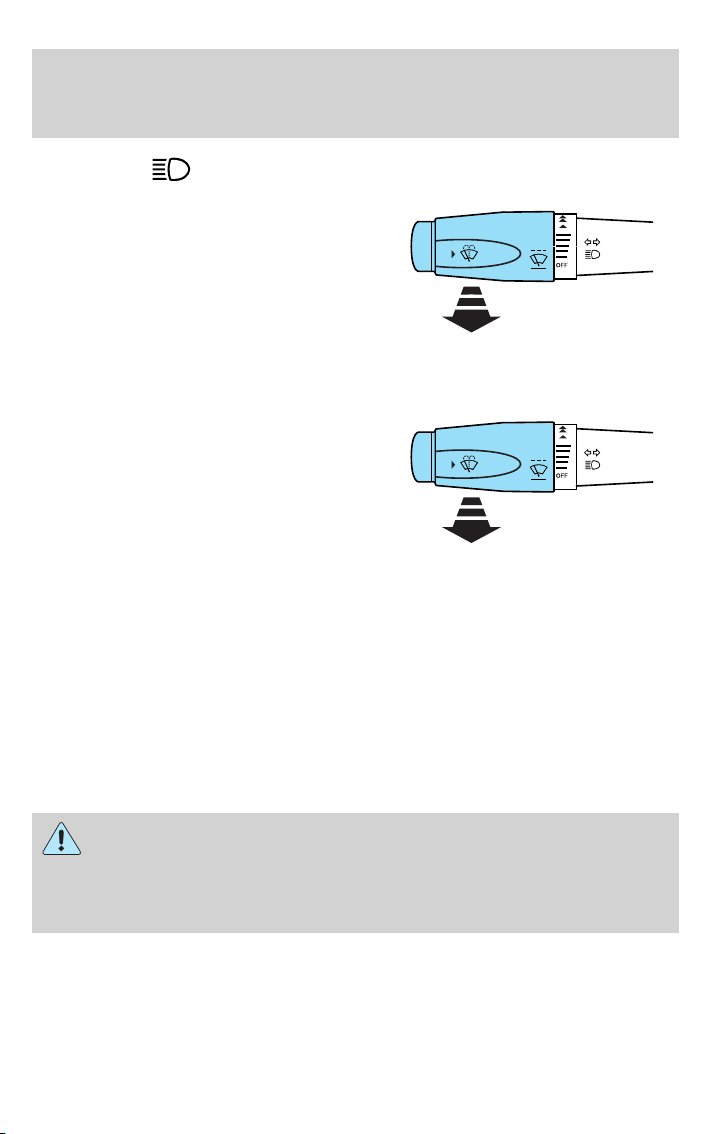

High beams

Pull toward you until control stops to activate. Repeat to deactivate.

Flash to pass

Pull toward you slightly to activate and release to deactivate.

Daytime running lamps (DRL) (if equipped)

Turns the highbeam headlamps on with a reduced output.

To activate with automatic transmission:

• the ignition must be in the RUN position;

• the headlamp control is in the OFF position, Parking lamps position,

or Autolamp position when the autolamp function has not turned on the headlamps (daytime); and

• the transmission is out of Park.

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Light (DRL) System does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

Page 97

Lights

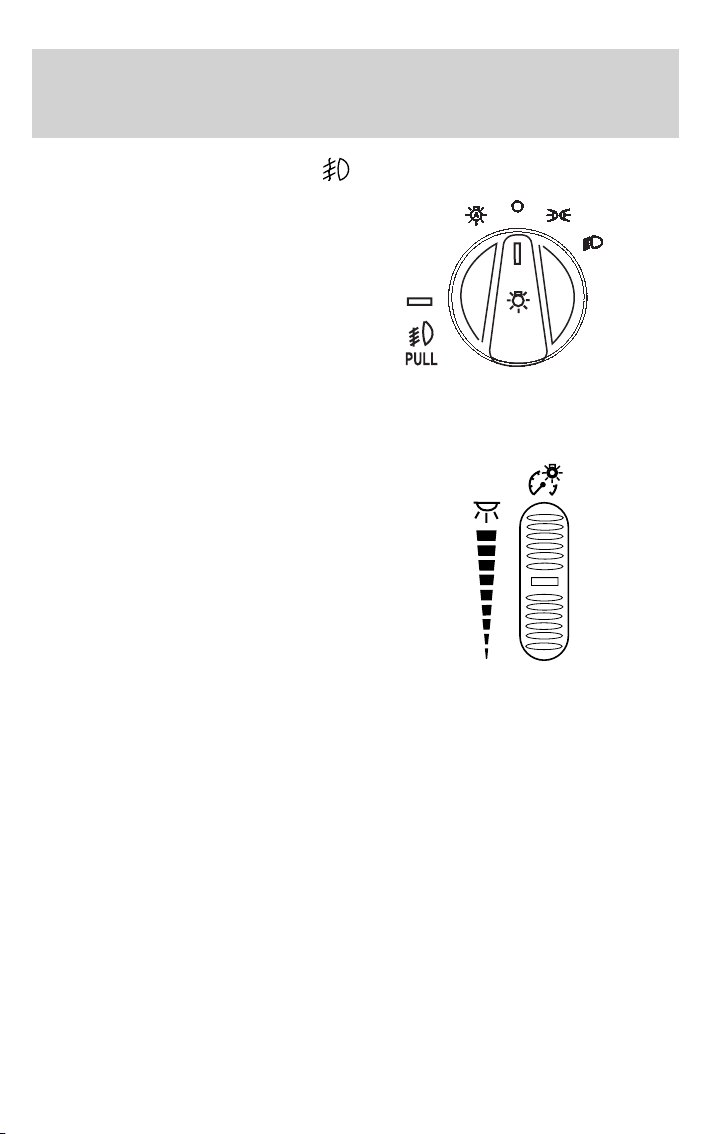

Foglamp control (if equipped)

The foglamps can be turned on when the headlamp control is pulled toward you and is in any of the following positions:

• Parking lamps

• Low beams

• Autolamps (when active)

Foglamps will turn off when the highbeams are activated.

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel during parklamp, headlamp and autolamp operation.

• Rotate up to brighten.

• Rotate down to dim.

• Rotate fully up to turn on the

interior lights.

Note: The panel dimmer control is not active when the autolamp system has determined that it is daytime.

Page 98

Lights

HEADLAMP VERTICAL AIM ADJUSTMENT

Your vehicle is equipped with VOL (Visual Optical Left) headlamps.

1. Park the vehicle directly in front of a wall or screen on a level surface, approximately 25 feet (7.6 meters) away.

• (1) 8 feet (2.4 meters)

• (2) VOL - subtract 2.1 inches

(50 mm) from the measurement of the center of the low beam lamp to the ground.

• (3) 25 feet (7.6 meters)

• (4) Horizontal reference line

2. Measure the height from the center of your headlamp to the ground and mark an 8 foot (2.4 meter) horizontal reference line on the vertical wall or screen 2.1 inches (50 mm) below this height (a piece of masking tape works well). The center of the lamp is marked by a 3.0 mm circle on the headlamp lens (use the low beam center mark).

3. Turn on the low beam headlamps to illuminate the wall or screen and open the hood.

4. On the wall or screen you will observe a light pattern with flat edges at the top of the beam pattern. If the flat edges are not at the horizontal reference line, the beam will need to be adjusted. To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other.

5. Remove the sight shield, locate the vertical adjuster on each headlamp, then usea6mmsocket wrench or screwdriver to adjust the headlamp up or down.

6. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS NON-ADJUSTABLE.

7. Close the hood and turn off the lamps.

Page 99

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

INTERIOR LAMPS

Map lamps

The map lamps and controls are located on the dome lamp. Press the controls in front of each map lamp to activate the lamps.

Rear courtesy/reading lamps

The courtesy lamp lights when:

• any door is opened.

• any of the remote entry controls

are pressed and the ignition is OFF.

Lights

To manually turn on the courtesy lamps, press the button next to the lamp.

BULB REPLACEMENT

Headlamp Condensation

The headlamps are vented to equalize pressure. When moist air enters the headlamp(s) through the vents, there is a possibility that condensation can occur. This condensation is normal and will clear within 45 minutes of headlamp operation.

Page 100

Lights

Replacing exterior bulbs

Check the operation of all the bulbs frequently.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to ensure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Trade Number

Headlamp low beam H11LL Headlamp low beam (HID) D2R Headlamp high beam 9005 Park and turn lamp (front) 3457 A/K (amber) Side marker lamp (front) LED* Foglamp 9145 Foglamp (LSE only) H11LL Tail lamp, brakelamp, side lamp 3157K Rear turn lamp 3157 A/K (amber) Backup lamp 921 License plate lamp 168 High-mount brakelamp LED* Map lamp (with moon roof) 906 Rail lamp (rear) 168 Map lamp (front) 906 Sun visor lighted mirror lamp E9SB-13465-BA Glove compartment 194 Ashtray 194 Luggage compartment lamp 212-2 All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your authorized dealer.

* See your dealer or a qualified technician for LED replacement.

Interior bulbs

Check the operation of all bulbs frequently.

100

Lincoln LS 2006 Owner Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Introduction

CONGRATULATIONS

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

Warning symbols on your vehicle

Protecting the environment

BREAKING-IN YOUR VEHICLE

SPECIAL NOTICES

New Vehicle Limited Warranty

Special instructions

Service Data Recording

Event Data Recording

Cell phone use

Middle East/North Africa vehicle specific information

Instrument Cluster

WARNING LIGHTS AND CHIMES

GAUGES

Entertainment Systems

AUDIO SYSTEMS

Audiophile Satellite Ready AM/FM Stereo In-Dash Six CD Radio (if equipped)

Premium AM/FM Stereo/Cassette/Single CD (if equipped)

Accessory delay

GENERAL AUDIO INFORMATION

LINCOLN NAVIGATION SYSTEM (IF EQUIPPED)

THX audio system (if equipped)

Cold temperature advisory

Initial map display

Quick Start — How to get going

Voice activated commands (if equipped)

Audio mode

Volume/power control

Speed compensated volume (SCV)

AM/FM select

AM/FM select in radio mode

AM/FM select in CD mode

AM/FM select in navigation mode

Seek

Tune adjust

Scan

Preset scan

Autoset memory preset

Starting autoset memory preset

Radio data system (RDS) feature

Traffic function

Information feature

Program type (PTY)

Sound functions

Setting memory preset stations

Satellite ready capability

CD mode

Track

Rewind/fast forward in CD mode

Scan feature in CD mode

Shuffle feature in CD mode

Compression feature

Pause

Map mode

Map display information

Zoom control

Additional map function buttons

Route preferences

Information function

Screen symbols

Navigation menu

Route options (destination entered)

Navigation set up

Average speed settings

Quick POI (Point of Interest)

Restore system defaults

Calibration

DVD map version

Display Options

Stored locations

On route scroll

Voice guidance/volume
