Introduction

The following warning may be required by California law:

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

CONGRATULATIONS

Congratulations on acquiring your new Lincoln. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

In the United States: www.ford.com In Canada: www.ford.ca In Mexico: www.ford.com.mx In Australia: www.ford.com.au Additional owner information is given in separate publications.

This Owner’s Guide describes every option and model variant

available and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on the Owner’s Guide when reselling the

vehicle. It is an integral part of the vehicle.

Introduction

Fuel pump shut-off switch In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

Introduction

BREAKING-IN YOUR VEHICLE

There are no particular guidelines for breaking-in your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is recommended to give the moving parts a chance to break in.

SPECIAL NOTICES Emission warranty

The New Vehicle Limited Warranty includes Bumper-to-Bumper Coverage, Safety Restraint Coverage, Corrosion Coverage, and 7.3L Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible for Emissions Defect and Emissions Performance Warranties. For a detailed description of what is covered and what is not covered, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions

For your safety, your vehicle is fitted with sophisticated electronic controls.

By operating other electronic equipment (e.g. mobile telephone

without exterior aerial) electromagnetic fields can occur which can cause malfunctions of the vehicle electronics. Therefore you should observe the instructions of the equipment manufacturers.

Please read the section Air bag in the Seating and safety

restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Rear facing child or baby seats should NEVER be used in front

of a passenger side air bag.

Introduction

MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner Guide; therefore, a supplement has been supplied that complements this book. By referring to the pages in the provided supplement, you can properly identify those features, recommendations and specifications that are unique to your vehicle. Refer to this Owner

Guide for all other required information and warnings.

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Air Bag-Front

Air Bag-Side Child Seat

Child Seat Installation Warning

Brake System Anti-Lock Brake System

Brake Fluid Non-Petroleum Based

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

Fuel Pump Reset Windshield Wash/Wipe

See Owner’s Guide

Child Seat Tether Anchorage

Traction Control

Windshield Defrost/Demist

Power Windows Front/Rear

Rear Window Defrost/Demist

Power Window Lockout

Vehicle Symbol Glossary

MAX

MIN

Introduction

Child Safety Door Lock/Unlock

Interior Luggage Compartment Release Symbol

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Emission System Engine Air Filter

Passenger Compartment Air Filter

Jack

Check fuel cap Low tire warning

Instrument Cluster

WARNING LIGHTS AND CHIMES

MPH

100

120

160

120

200

km/h

140

240

160

CHECK

FUEL

CAP

TRIP

RESET

BRAKE

A/B

RPMX1000

kmiles

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, have

the respective system inspected immediately.

Check engine

Illuminates briefly to ensure the system is functional. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted and will not require towing.

Light turns on solid:

Temporary malfunctions may cause your light to illuminate. Examples are:

• The vehicle has run out of fuel.

• Poor fuel quality or water in the fuel.

• The fuel cap may not have been properly installed and securely

tightened.

These temporary malfunctions can be corrected by filling the fuel tank with high quality fuel of the recommended octane and/or properly installing and securely tightening the fuel cap. After three driving cycles without these or any other temporary malfunctions present, the light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.

Instrument Cluster

If the light remains on, have your vehicle serviced at the first available opportunity.

Light is blinking:

Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.

Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Check fuel cap

Illuminates when the fuel cap is not installed correctly. Check the fuel cap for proper installation. When the fuel filler cap is properly re-installed, the light(s) will turn off after a period of normal driving. Continuing to operate the vehicle with the check fuel cap light on, can activate the Service Engine Soon/Check Engine warning light.

It may take a long period of time for the system to detect an improperly installed fuel filler cap.

For more information, refer to Fuel filler cap in the Maintenance and specifications chapter.

CHECK

FUEL

CAP

Brake system warning

Illuminates if the parking brake is engaged. Also momentarily illuminates at start up to ensure the circuit is functional. If the brake warning lamp does not illuminate at these times, or illuminates after releasing the parking brake, seek service immediately. Refer to Brakes in the Driving chapter for more information.

BRAKE

Instrument Cluster

Anti-lock brake system (ABS)

Momentarily illuminates at start up to ensure the circuit is functional. If the light does not illuminate, remains on or continues to flash, the ABS needs to be serviced (refer to Brakes in the Driving chapter for more information). With the ABS light on, the ABS is disabled and normal braking is still functional.

Safety belt

Illuminates to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.

Air bag readiness

Illuminates to confirm that the air bags (front and side) are operational. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.

Charging system

Illuminates when the battery is not charging properly.

ABS

Engine oil pressure

Illuminates when the oil pressure falls below the normal range. Check the oil level and add oil if needed. Refer to Engine oil in the

Maintenance and specifications

chapter.

Instrument Cluster

Engine coolant temperature

Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as safely possible, switch off the engine and let it cool.

Never remove the coolant

recovery cap while the engine is running or hot.

Refer to Engine coolant in the Maintenance and specifications chapter. If light stays on or continues to turn on after the vehicle warms up, have your vehicle serviced.

Transmission PRNDL indicator

Displays the gearshift positions. If an “E” character is displayed or flashing, this indicates a transmission malfunction, contact your dealer immediately. Operating the transmission with the “E” character illuminated may cause additional damage to the transmission.

AdvanceTracY (if equipped)

Flashes when the AdvanceTracy system is active. If the light remains on, have the system serviced immediately.

For more information, refer to the Driving chapter.

Traction ControlY active

Illuminates when the Traction Controly system is active. It will be lit for a minimum of four seconds or for the duration of the Traction Controly event.

For more information, refer to the Driving chapter.

Instrument Cluster

Steering column lock (manual transmission only)

Illuminates when the steering column is locked. If this light stays illuminated the vehicle will not start, have the vehicle serviced immediately.

Low fuel

Illuminates when the fuel level in the fuel tank is at or near empty, refer to Fuel gauge in this chapter for more information.

Speed control

Illuminates when the speed control is activated.

Low washer fluid

Illuminates when the windshield washer fluid is low.

Turn signal

Illuminates when the turn signals or the hazard lights are turned on. If the lights stay on continuously or flash faster, check for a burned-out bulb.

Bulb Warning

Illuminates when one of the exterior bulbs has burned out.

Instrument Cluster

High beams

Illuminates when the high beam headlamps are turned on.

Door ajar (if equipped)

Illuminates when any door or the trunk is open.

Safety belt warning chime

Sounds to remind you to fasten your safety belts.

BeltMinder chime

Sounds intermittently to remind you to fasten your safety belts.

Supplemental restraint system (SRS) warning chime

Sounds when a malfunction in the supplemental restraint system (front or side airbags) has been detected. Have the supplemental restraint system inspected immediately.

Headlamps on warning chime

Sounds when the headlamps or parking lamps are on, the key is removed from the ignition and the driver’s door is opened.

Turn signal chime

Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 0.8 km (1/2 mile).

Key-in-ignition warning chime

Sounds when the key is left in the ignition and the driver’s door is opened.

Instrument Cluster

GAUGES

MPH

100

120

160

120

200

km/h

140

240

160

CHECK

FUEL

CAP

TRIP

RESET

BRAKE

A/B

RPMX1000

kmiles

Engine coolant temperature gauge

Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains

within the normal area (the area between the “H” and “C”); if the needle goes above the normal range, the engine is overheating. Stop the vehicle as soon as safely possible,

switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and specifications chapter.

Never remove the coolant reservoir cap while the engine is

running or hot. Steam and scalding liquid from a hot cooling system can burn you badly.

This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate.

Fuel gauge

Displays approximately how much fuel is in the fuel tank. The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

When refueling the vehicle from an empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.

Speedometer

Indicates the current vehicle speed.

Odometer

Registers the total kilometers (miles) of the vehicle.

Instrument Cluster

TRIP

MPH

A B

miles

120

100

160

200

km/h

RESET

120

140

240

160

A/B

Trip odometer

Registers the kilometers (miles) of individual journeys. To reset, depress the control.

TRIP

A B

miles

RESET

To switch the display from Trip A to the Trip B feature, depress the A/B control.

A/B

Instrument Cluster

Tachometer

Indicates the engine speed in revolutions per minute.

Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

RPMX1000

BRAKE

Entertainment Systems

PREMIUM AM/FM STEREO/CASSETTE

VOL PUSH ON

CD TAPE

MUTE

AM FM

REW

SEEK

FF2SIDE 1-2

BASS

TREB

TUNE SCAN AUTO

COMP5SHUFF

BAL

SEL

FADE

RDS

ALPINE AUDIO SYSTEM WITH AM/FM STEREO/CASSETTE

VOLUME PUSH ON

AM FM

CD TAPE

MUTE

REW

SEEK

TUNE SCAN AUTO

FF2SIDE 1-2

BASS

TREB

BAL

SEL

FADE

DSPRDS

COMP5SHUFF

Your audio system is equipped with selective lighting, a unique lighting strategy. This lighting feature is operable when the headlamps are illuminated. During the operation of any selected mode, lighting for the individual function controls will either illuminate or turn off. Those controls which have a function for the specific mode of operation selected will be lit, while the controls which have no function for that mode will be turned off.

Entertainment Systems

Volume/power control

Press the control to turn the audio system on or off.

VOL PUSH ON

Turn the control to raise or lower volume.

VOL PUSH ON

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Speed sensitive volume

With this feature, radio volume changes automatically and slightly with vehicle speed to compensate for road and wind noise.

The recommended level for speed sensitive volume is from level 1 through level 3. Level 0 turns the speed sensitive volume off and level 7 is the maximum setting.

With the radio on, press and hold the volume control for five seconds, then press:

VOL PUSH ON

• to increase volume compensation

• to decrease or shut off the volume compensation

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Entertainment Systems

SEL

BASS

SEL

TREB

BASS

SEL

TREB

BAL

SEL

FADE

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

BAL

FADE

SEL

Entertainment Systems

Seek function

The seek function control works in radio, tape or CD mode (if equipped).

Seek function in radio mode

• Press to find the next listenable station down the frequency band.

• Press

to find the next listenable station up the frequency band.

Seek function in tape mode

• Press to listen to the previous selection on the tape or return to the beginning of the current selection.

• Press to listen to the next selection on the tape.

Seek function for CD changer (if equipped)

• Press to seek to the previous track of the current disc. If a selection has been playing for three seconds or more and you press

, the CD changer will

replay that selection from the beginning.

• Press to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

SEEK

Scan function

The scan function works in radio, tape or CD mode (if equipped).

SCAN

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.

Entertainment Systems

Scan function in tape mode

Press the SCAN control to hear a short sampling of all selections on the tape. (The tape scans in a forward direction. At the end of the tape’s first side, direction automatically reverses to the opposite side of the tape.) To stop on a particular selection, press the control again.

Scan function in CD mode (if equipped)

Press the SCAN control to hear a short sampling of all selections on the CD. (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.) To stop on a particular selection, press the control again.

AM/FM select

The AM/FM select control works in radio, tape and CD modes (if equipped).

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in tape mode

Press this control to stop tape play and begin radio play.

AM/FM select in CD mode (if equipped)

Press this control to stop CD play and begin radio play.

AM FM

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more

information on selecting a station.

3. Press and hold a memory preset control until the sound returns,

indicating the station is held in memory on the control you selected.

REW

SIDE 1-2

COMP5SHUFF

Entertainment Systems

Autoset memory preset

Autoset allows you to set strong radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Starting autoset memory preset

1. Select a frequency using the AM/FM select controls.

2. Press the control.

3. When the first six strong stations

are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

To deactivate autoset and return to your audio system’s manually set memory stations, press the control again.

Setting the clock with radio data system (RDS) feature

Press the RDS control until CLOCK HOUR or CLOCK MINUTE is displayed.

Use the SEL control to manually set the time.

• Press

to increase

hours/minutes.

• Press to decrease hours/minutes.

AUTO

DSPRDS

SEL

Tune adjust

The tune control works in radio or CD mode (if equipped).

Entertainment Systems

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

Tune adjust for CD changer (if equipped)

• Press to select the previous disc in the CD changer. (Play will begin on the first track of the disc unless the CD changer is in shuffle mode.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the disc.

• Press

to select the next disc in the CD changer. Hold the control

to fast-forward through the remaining discs.

Tape/CD select

• To begin tape play (with a tape loaded into the audio system) while in the radio or CD mode, press the TAPE control. Press the button during rewind or fast forward to stop the rewind or fast forward function.

• To begin CD play (if CD[s] are loaded), press the CD control. The first track of the disc will begin playing. After that, CD play will begin where it stopped last.

TUNE

CD TAPE

Entertainment Systems

Rewind

The rewind control works in tape and CD modes.

• In tape mode, radio play will continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached.

• In CD mode, pressing the REW control for less than three seconds results in slow rewind. Pressing the control for more than three seconds results in fast rewind.

Fast forward

The fast forward control works in tape and CD modes (if equipped).

• In the tape mode, tape direction will automatically reverse when the end of the tape is reached.

• In CD mode, pressing the control for less than three seconds results in slow forward action. Pressing the control for more than three seconds results in fast forward action.

Tape direction select

Press SIDE 1–2 to play the alternate side of a tape.

REW

SIDE 1-2

Eject function

Press the control to stop and eject a tape.

Entertainment Systems

DolbyT noise reduction

Dolbyt noise reduction operates only in tape mode. Dolbyt reduces the amount of hiss and static during tape playback.

Press the (and deactivate) Dolbyt noise reduction.

Dolbyt noise reduction is manufactured under license from Dolby Laboratories Licensing Corporation. “Dolbyt” and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation.

Compression feature

Compression adjust brings soft and loud CD passages together for a more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

Shuffle feature

The shuffle feature operates in CD mode and plays all tracks on the current disc in random order. If equipped with the CD changer, the shuffle feature continues to the next disc after all tracks are played.

Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again.

control to activate

COMP

SHUFF

Radio data system (RDS) feature

This feature allows your audio system to receive text information from RDS-equipped FM radio stations.

RDS

Entertainment Systems

Press the RDS control until the display reads RDS OFF. Press the SEL control to engage this feature (RDS ON). Once the RDS feauture is on, press the RDS control to scroll through the following selections:

Traffic

• Press the RDS control until TRAFFIC is displayed.

• Use the SEL control to select ON or OFF. With the feature on, use the SEEK or SCAN control to find a radio station broadcasting a traffic report (if it is broadcasting RDS data).

Traffic information is not available in most US markets.

Program type

• Press the RDS control until FIND program type is displayed.

• Use the SEL control to select the program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

• Classic

• Country

• Info

• Jazz

• Oldies

• R&B

• Religious

• Rock

• Soft

• Top 40

RDS

SEL

RDS

SEL

Entertainment Systems

Show

• With RDS activated, press the RDS control until SHOW is displayed.

• Use the SEL control to select TYPE, NAME or NONE.

Phone/mute mode

This feature allows you to control the factory-installed cellular phone (if equipped) through the radio controls.

• Press the phone/mute control to enter phone mode.

• Use SEEK or radio presets 1 through 6 to select a phone number.

• Press the phone/mute control again to send and end calls.

Press the control again to return to the playing media. This control will mute the playing media even if your vehicle is not

equipped with a factory-installed cellular phone.

RDS

SEL

MUTE

Digital signal processing (if equipped)

The digital signal processing (DSP) feature allows you to change the signal mode to suit your listening tastes.

Press the control to turn the feature on or off.

DSPRDS

Entertainment Systems

Use the SEL control to select the desired signal mode (the selected mode will appear in the display). The following signal modes can be selected:

• JAZZ CLUB—jazz club with clearly reflected sounds

• HALL—rectangular concert hall capacity of about 2 000

• CHURCH—church with a high vault

• STADIUM—outdoor stadium with a capacity of about 30 000

• NEWS—”voice-only” type of sound with a limited audio band

Press the DSP control until one of the following appears:

• ALL SEATS

• DRIVER SEAT

• REAR SEATS

Use the SEL control to change the equalization to the desired mode.

SEL

DSPRDS

SEL

Entertainment Systems

ALPINE AUDIOPHILE AM/FM STEREO IN-DASH SIX CD RADIO ALPINE SPORT AUDIO AM/FM STEREO IN-DASH SIX CD RADIO PREMIUM ALPINE AUDIO AM/FM STEREO IN-DASH SIX CD RADIO

PREMIUM AM/FM STEREO IN DASH SIX CD RADIO

Entertainment Systems

Volume/power control

Press the control to turn the audio system on or off.

PUSH ON

Turn the control to raise or lower volume.

If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.

Bass adjust

The bass adjust control allows you to increase or decrease the audio system’s bass output.

Press the BASS control. Use the SEL control to increase or decrease the amount of bass.

BASS

TREB

SEL

Treble adjust

The treble adjust control allows you to increase or decrease the audio system’s treble output.

Press the TREB control. Use the SEL control to increase or decrease the amount of treble.

BASS

TREB

SEL

Entertainment Systems

Speaker balance adjust

Speaker sound distribution can be adjusted between the right and left speakers.

Press the BAL control. Use the SEL control to adjust the sound between the speakers.

Speaker fade adjust

Speaker sound can be adjusted between the front and rear speakers.

Press the FADE control. Use the SEL control to adjust the sound between the front and rear speakers.

Seek function

The seek function works in radio or CD mode.

Seek function in radio mode

• Press to find the next listenable station down the frequency band. SEEK DOWN will display.

• Press

to find the next listenable station up the frequency band.

SEEK UP will display.

Seek function in CD mode

• Press to seek to the previous track of the current disc. If the beginning of the disc is reached, the CD player seeks to the beginning of the last track on the current disc and begins playing.

• Press

to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay.

BAL

FADE

BAL

FADE

SEL

Entertainment Systems

Scan function

The scan function works in radio or CD mode.

Scan function in radio mode

Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the SCAN control again to stop the scan mode.

Scan function in CD mode

AM/FM select

The AM/FM select control works in radio and CD modes.

AM FM

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in CD mode

Press this control to stop CD play and begin radio play.

Radio station memory preset

The radio is equipped with six station memory preset controls. These controls can be used to select up to six preset AM stations and twelve FM stations (six in FM1 and six in FM2).

Entertainment Systems

Setting memory preset stations

1. Select the frequency band with the AM/FM select control. Press the AM/FM control to toggle between AM, FM1, or FM2.

2. Press the SEEK control to access the next listenable station up or down the frequency band. Press the TUNE control to go up or down the listening band in individual increments.

3. Select a station. Refer to Seek function for more information on selecting a station.

4. Press and hold a memory preset control. The playing media will mute momentarily. When the sound returns, the station is held in memory on the control you selected. The display will read SAVED.

Autostore

Autostore allows you to set the strongest local radio stations without losing your original manually set preset stations. This feature is helpful on trips when you travel between cities with different radio stations.

Starting autostore

1. Press and momentarily hold the AM/FM control.

2. AUTOSET will flash in the display as the frequency band is scrolled through.

3. When the six strongest stations are filled, the station stored in memory preset control 1 will start playing.

If there are less than six strong stations available on the frequency band, the remaining memory preset controls will all store the last strong station available.

To deactivate autoset and return to your audio system’s manually set memory stations, press the AM/FM control again.

Entertainment Systems

Setting the clock

Press the MENU control until SELECT HOUR or SELECT MINUTE is displayed. (The menu mode must be engaged to enable clock mode).

Use the SEL control to manually set the time.

• Press hours/minutes.

• Press to decrease hours/minutes.

Press the MENU control again to disengage the clock mode.

Tune adjust

The tune control works in radio or CD mode.

to increase

Tune adjust in radio mode

• Press to move to the next frequency down the band (whether or not a listenable station is located there). Hold the control to move through the frequencies quickly.

• Press a listenable station is located there). Hold for quick movement.

to move to the next frequency up the band (whether or not

Tune adjust for CD mode

• Press to select the previous disc. (Play will begin on the first track of the disc unless shuffle mode is engaged.) Refer to Shuffle feature for more information. Hold the control to continue reversing through the discs.

• Press through the remaining discs.

to select the next disc. Hold the control to fast-forward

SEL

Entertainment Systems

CD select

CD mode may be entered by pressing the CD control and the LOAD control. Load the CD into the audio system. The first track of the disc will begin playing. After that, CD play will begin where it stopped last.

If an alternative CD is desired, press the corresponding preset control (1–6) of a loaded CD, or press the TUNE control to access the other loaded CDs.

NO CD will display if the CD control is activated when there is not a CD present in the audio system.

If the CD control is pressed followed by with a preset number and that particular slot is empty, NO CD will display and the system will begin the play the next available disc.

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

Display description

Six circles are always lit in the digital display. These signify the six CD slots in the audio system. When a disc is loaded into a particular slot (1–6), the number inside that specific circle lights. If the circle is empty, there is no CD in that particular slot.

Load

The load feature allows you to load single CDs into the player internal to the radio.

This six disc CD player is equipped with a CD door. Compact discs should only be inserted into the player after the door has been opened by the player. Do not attempt to force the door open. Compact discs should only be loaded by pressing the LOAD control.

Press the LOAD control. (You can choose which slot will be loaded by pressing the desired preset number. If you do not choose a slot, the system will choose the next available one.) Wait until the CD door opens. Load the CD into the player. LOADING CD# is displayed. When the CD

Entertainment Systems

has been loaded, the door will close and the CD will begin to play. For example, to load a CD into slot 2, press the LOAD control and then press preset 2.

Auto load

This feature allows you to autoload up to 6 discs into the multi disc CD player internal to the radio.

Press and hold the LOAD control until AUTOLOAD # is displayed. The CD door will open. Load the desired disc, one at a time. The CD is loaded into position and the audio system will display CD#. Each time the CD door opens, INSERT CD# is displayed. The door will close and the player will move to the next slot after each disc has been loaded. The process is repeated until all 6 slots are full. The audio system plays the last CD loaded and the display is updated. If some slots are already full and autoload is activated, the system will fill all empty slots.

Eject

Press the EJ control to stop and eject a CD. You can choose which CD will be ejected by pressing the EJ control and the desired preset number (1–6). For example, to eject CD 2, press the EJ control and then press the preset 2 control. If you do not choose a specific CD, the player will eject the current CD.

If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF.

Auto eject

Press and momentarily hold the EJ control to engage auto eject. All CDs which are present in the player will be ejected one at a time. If a CD is ejected and not removed from the door of the CD player, the player will automatically reload the CD. This feature may be used when the ignition is ON or OFF.

Entertainment Systems

Rewind

The rewind control works in CD modes.

Press and hold the REW control until the desired selection is reached. If the beginning of the disc is reached, the CD will begin play at the first track. Release the control to disengage rewind mode.

When in rewind mode, your audio system will automatically lower the volume level of the playing media.

Fast forward

The fast forward control works in CD modes.

Press and hold the FF control until the desired selection is reached. If the end of the disc is reached, the CD will return to the first track. Release the control to disengage fast forward mode.

When in fast forward mode, your audio system will automatically lower the volume level of the playing media.

Shuffle feature

Press the SHUF control until the desired shuffle mode is displayed. The audio system will then engage the desired shuffle mode.

When engaged, the shuffle feature has two different modes: SHUFFLE DISC and SHUFFLE TRK.

SHUFFLE DISC randomly plays tracks from all the discs presently in the audio system.

SHUFFLE TRK plays all the tracks on the current disc in random order.

Compression feature (if equipped)

The compression feature operates in CD mode and brings soft and loud CD passages together for a more consistent listening level.

SEL

Entertainment Systems

On Audiophile audios, press the MENU control until compression status is displayed. Press the SEL control to enable the compression feature when COMP OFF is displayed. Press the SEL control again to disable the feature when COMP ON is displayed.

On Premium audios, press the COMP control until COMP ON is displayed.

Menu mode

The MENU control allows you to access many different features within your audio system. There are three sets of menus available depending upon which mode or feature is activated.

While in FM mode, two menus are available. If RDS is turned OFF, you can access the following:

• SELECT HOURS — Refer to Setting the clock.

• SELECT MINUTES — Refer to Setting the clock.

• RDS OFF — Refer to Radio data system feature.

If RDS is turned ON, you can access the following:

• TRAFFIC ON/OFF-Refer to Traffic announcements.

• FIND type-Refer to Program type.

• SHOW (NAME, TYPE, NONE)- Refer to Radio data system feature.

• RDS ON— Refer to Radio data system feature.

• SELECT HOURS — Refer to Setting the clock.

• SELECT MINUTES —Refer to Setting the clock.

When in CD mode, you can access: SELECT HOURS, SELECT MINUTES or COMP ON/OFF.

SELECT HOURS, SELECT MINUTES— Allows you to adjust the hours and minutes. Refer to Setting the clock.

TRAFFIC ON/OFF— Traffic announcements can be programmed as local or distant. Refer to Traffic announcements.

Entertainment Systems

RDS ON/OFF— This feature allows your audio system to receive text information from RDS-equipped FM radio stations. Refer to Radio Data

System feature.

FIND type — Allows you to select your desired FM program type and search for that selection.

SHOW — Allows you to select from NAME (displays the name of the radio station), TYPE (displays the RDS program type: rock, jazz, etc.), or NONE (deactivates the RDS display).

Radio data system (RDS) feature

This feature allows your audio system to receive text information from RDS-equipped FM radio stations.

To activate RDS:

• When in FM mode, press the MENU control until RDS OFF displays.

• Press the SEL control to engage this feature (RDS ON).

RDS features:

Once the RDS feature is on, press the MENU control to scroll through the following selections:

Traffic announcements

This feature allows you to hear traffic announcements while in CD mode. These announcements are broadcast by traffic capable RDS stations.

When in this mode, traffic announcements will interrupt radio and CD play.

• Press the MENU control until TRAFFIC is displayed.

• Press the SEL control to engage the feature. The display will read

TRAFFIC ON.

This feature also allows you to control the volume of traffic announcements. With the display reading TRAFFIC ON, adjust the volume using the volume control to the desired level. The volume level will show at the bottom of the display. Interrupting traffic announcements will be at the selected volume level.

To disengage the feature, press the MENU control until TRAFFIC ON displays. Press the SEL control. The display will read TRAFFIC OFF.

Traffic announcements are not available in most U.S. markets.

SEL

Entertainment Systems

Program type

This feature allows you to search for RDS stations selectively by their program type.

Press the MENU control until FIND program type is displayed.

Use the SEL control to select the program type. With the feature on, use the SEEK or SCAN control to find the desired program type from the following selections:

• Classic

• Country

• Info

• Jazz

• Oldies

• R&B

• Religious

• Rock

• Soft

• Top 40

Show

This feature allows you to select the type of RDS broadcast information the radio will regularly show in the display.

SEL

With RDS activated, press the MENU control until SHOW is displayed.

SEL

Use the SEL control to select TYPE (displays the RDS program type: rock, jazz, etc), NAME (displays the name of the radio station) or NONE (deactivates the RDS display).

Entertainment Systems

Digital signal processing (if equipped)

The digital signal processing (DSP) feature allows you to change the signal mode to suit your listening tastes.

Press the DSP control to access the DSP menu. Press the SEL control to enter one of the following modes:

• DSP OFF

• SIGNAL MODE

• OCCUPANCY MODE

Use the SEL control to select the desired signal mode (the selected mode will appear in the display). The following signal modes can be selected:

• DSP OFF—disengages the feature

• NEWS—”voice-only” type of sound with a limited audio band

• JAZZ CLUB—jazz club with clearly reflected sounds

• HALL—rectangular concert hall capacity of about 2 000

• CHURCH—church with a high vault

• STADIUM—outdoor stadium with a capacity of about 30 000

Press the DSP control again to access the occupancy modes. Use the SEL control to optimize the sound based upon the occupants in the vehicle. The following occupancy modes can be selected:

• ALL SEATS

• DRIVER SEAT

• REAR SEATS

Phone mode

This feature allows you to control the factory-installed cellular phone (if equipped) through the radio controls.

• Press the phone/mute control to enter phone mode. The playing media will mute.

• Use SEEK, TUNE or radio presets 1 through 6 to select a phone number previously programmed in the phone.

DSP

SEL

Entertainment Systems

• Press the phone/mute control again to send and end calls.

This control will mute the playing media even if your vehicle is not equipped with a factory-installed cellular phone.

Press the control again to return to the playing media.

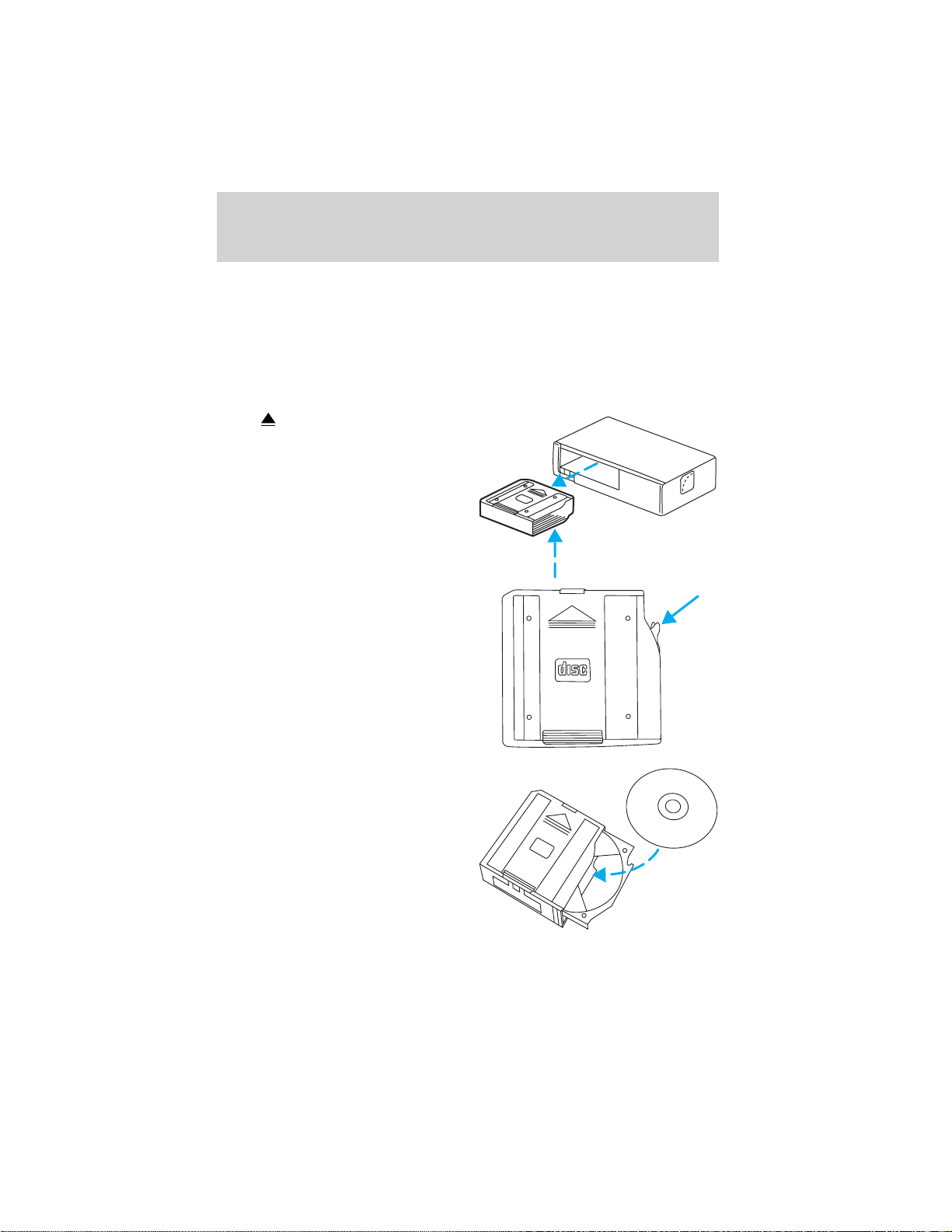

CD CHANGER (IF EQUIPPED)

The CD changer is located in the glove compartment. Press

1. Pull the lever to remove a CD

tray from the magazine.

to eject the magazine.

2. Insert one disc into each CD tray

of the magazine (up to 6 discs). Ensure that the label side is facing up.

If you pull too hard on the disc holder, the disc holder may come completely out of the magazine. If this happens, reinsert the disc holder back into the magazine.

Entertainment Systems

3. Insert each CD tray, with the disc

loaded, all the way into the CD magazine.

4. Insert the CD magazine into the

changer.

Use only compact discs containing this mark.

Ensure that the disc is inserted label side up. The magazine does not need to be full for the changer to operate. Radio power must be turned on to play the CDs in the changer. The

magazine may be stored in the glove compartment when not being used. The CD magazine may be inserted or ejected with the radio power off. If coins or foreign objects get inside your system, they will damage the

CD player and void your audio system warranty. Do not insert any damaged, or visibly contaminated discs into the

magazine as CD operation will be effected.

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

TROUBLESHOOTING THE CD CHANGER (IF EQUIPPED)

The laser beam used in the compact disc player is harmful to the eyes. Do not attempt to disassemble the case.

Entertainment Systems

If sound skips:

• You may be traveling on a rough road, playing badly scratched discs or the disc may be dirty. Skipping will not scratch the discs or damage the player.

If your changer does not work, it may be that:

• A disc is already loaded where you want to insert a disc.

• The disc is inserted with the label surface downward.

• The disc is dusty or defective.

• The player’s internal temperature is above 60°C (140°F). Allow the

player to cool down before operating.

• A disc with format and dimensions not within industry standards is inserted.

CLEANING COMPACT DISCS

Inspect all discs for contamination before playing. If necessary, clean discs only with an approved CD cleaner and wipe from the center out to the edge. Do not use circular motion.

CD AND CD CHANGER CARE

• Handle discs by their edges only. Never touch the playing surface.

• Do not expose discs to direct sunlight or heat sources for extended

periods of time.

• Do not insert more than one disc into each slot of the CD changer magazine.

Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.

CLEANING CASSETTE PLAYER (IF EQUIPPED)

Clean the tape player head with a cassette cleaning cartridge after 10 to 12 hours of play in order to maintain the best sound and operation.

CASSETTE AND CASSETTE PLAYER CARE

• Use only cassettes that are 90 minutes long or less.

• Do not expose tapes to direct sunlight, high humidity, extreme heat or

extreme cold. Allow tapes that may have been exposed to extreme temperatures to reach a moderate temperature before playing.

Entertainment Systems

• Tighten very loose tapes by inserting a finger or pencil into the hole and turning the hub.

• Remove loose labels before inserting tapes.

• Do not leave tapes in the cassette player for a long time when not

being played.

RADIO FREQUENCY INFORMATION

The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission(CRTC) establish the frequencies AM and FM stations may use for their broadcasts. Allowable frequencies are:

AM 530, 540–1600, 1610 kHz FM 87.7, 87.9–107.7, 107.9 MHz Not all frequencies are used in a given area.

RADIO RECEPTION FACTORS

Three factors can affect radio reception:

• Distance/strength. The further an FM signal travels, the weaker it is. The listenable range of the average FM station is approximately 40 km (24 miles). This range can be affected by “signal modulation.” Signal modulation is a process radio stations use to increase their strength/volume relative to other stations.

• Terrain. Hills, mountains and tall buildings between your vehicle’s antenna and the radio station signal can cause FM reception problems. Static can be caused on AM stations by power lines, electric fences, traffic lights and thunderstorms. Moving away from an interfering structure (out of its “shadow”) returns your reception to normal.

• Station overload. Weak signals are sometimes captured by stronger signals when you pass a broadcast tower. A stronger signal may temporarily overtake a weaker signal and play while the weak station frequency is displayed.

The audio system automatically switches to single channel reception if it will improve the reception of a station normally received in stereo.

AUDIO SYSTEM WARRANTIES AND SERVICE

Refer to the Warranty Guide for audio system warranty information. If service is necessary, see your dealer or a qualified technician.

Climate Controls

DUAL AUTOMATIC TEMPERATURE CONTROL (DATC) SYSTEM

AUTO

EXT

F F

F C

OFF

A/C

The Dual Automatic Temperature Control (DATC) system will maintain a selected temperature and automatically control air flow.

You can override the automatic operation with any of the override controls.

The dual temperature zone feature allows the driver and front passenger to set their own independent temperature set points for individual comfort. The system uses common controls for air distribution and fan speed for both driver and passenger.

Turning the system on

EXT

F F

F C

A/C

AUTO

OFF

Press AUTO, any of the override controls, the fan speed control, or either of the temperature selection controls. The DATC system will only operate when the ignition is in the RUN position.

Turning the system off

Press OFF. The outside temperature (EXT) function (if selected) will continue to operate until the ignition is turned off.

Climate Controls

EXT

F C

AUTO

OFF

DATC automatic operation

Press AUTO and select the desired temperature. The selected temperature will appear in the display window, and an indicator

EXT

F C

above the AUTO control will light. The DATC system will either heat or cool the vehicle to achieve the selected temperature. The system

AUTO

OFF

will automatically determine the fan speed, airflow location and whether outside or recirculated air is required.

When in AUTO and weather conditions require heat, the DATC directs the majority of the airflow to the floor area. The system will allow some airflow out of the defroster, demister outlets and outer instrument panel registers in order to reduce window fogging. Additionally, if the engine is not warm enough to provide heat, the fan will operate at a low speed and the airflow will be directed to the windshield or to the floor. In approximately 3

⁄2minutes or less, the fan speed will start to increase

and the airflow location will change to the floor area. When in AUTO mode, the DATC system automatically controls the air

conditioning operation, the fan speed, the airflow direction and determines whether outside or recirculated air is required. Manual control of the A/C, air recirculation and fan speed are available in auto mode.

If unusual conditions exist (i.e. window fogging), the manual override controls allow you to select airflow locations as necessary. To return to full automatic control, press the AUTO control.

Climate Controls

DATC system AUTO temperature balance

AUTO

EXT

F F

F C

OFF

A/C

Press and hold the AUTO control for about two seconds to equalize the passenger set temperature with the driver side temperature. This feature is useful when the driver is alone in the vehicle.

Driver side temperature selection

AUTO

EXT

F F

F C

OFF

A/C

The display window indicates the selected temperature and manual control of fan speed (

) if automatic fan speed is not desired.

To control the temperature, select any temperature between 19° C (65° F) and 29° C (85° F) by pressing the temperature control on the driver side of the system.

For continuous maximum cooling, press the temperature control until 16° C (60° F) is shown in the display window. The DATC will continue maximum cooling (disregarding the displayed temperature) until a warmer temperature is selected by pressing the temperature control. If maximum cooling is selected, the passenger set point is not displayed and the passenger temperature adjustments will be disabled.

Climate Controls

For continuous maximum heating, press the temperature control until 32° C (90° F) is shown in the display window. The DATC will continue maximum heating (disregarding the displayed temperature) until a cooler temperature is selected by pressing the temperature control. If maximum heating is selected, the passenger set point is not displayed and the passenger temperature adjustments will be disabled.

A change of the driver-selected temperature to a temperature other than 16° C (60° F) or 32° C (90° F) will display the passenger set point. The passenger side set point will increase or decrease along with the driver side temperature set point until a change is made using the passenger temperature control.

Passenger side temperature selection

To control the temperature, select any temperature between 19°C (65°F) and 29°C (85°F) by pressing the temperature control on the

passenger side of the system. If the driver side temperature

selection is set for maximum cooling (16°C (60°F)) or maximum heating (32°C (90°F)), the passenger side temperature adjustments will be disabled and the passenger set point will not be displayed.

A/C

Temperature conversion

Press the Fahrenheit/Celsius (°F°C)control to switch between Fahrenheit and Celsius temperature on the display only. The

EXT

F C

temperature in Celsius will be displayed in half-degree increments.

The English/Metric control on the

AUTO

OFF

trip computer and message center (if equipped) will not change the temperature display. Refer to Electronic message center in the Driver controls chapter.

Climate Controls

Fan speed ( )

AUTO

EXT

F F

F C

OFF

A/C

When AUTO is pressed, fan speed is adjusted automatically for existing conditions. You can override fan speed at any time. To control fan speed manually, press the fan control to cancel the automatic fan speed operation. Press the control up for higher fan speed or down for lower fan speed. The display will show

and a bar graph to indicate manual

fan speed operation and relative speed. When the fan is adjusted in the AUTO mode, the AUTO indicator will

remain lit and the system will remain in auto operation. To return to automatic fan operation, press AUTO. The fan icon and bars

will disappear from the display, and the DATC system will return to full automatic operation.

EXT

F F

F C

A/C

AUTO

OFF

• A/C control

A/C

(air conditioning) — Used to manually enable or disable the operation of the air conditioning in all modes except defrost. In all modes, the air conditioning will only function if the outside temperature is about 2° C (35° F) or higher. When manual A/C is selected (ON) the indicator will be lit. When manual A/C is selected (OFF) the indicator will not be lit.

Climate Controls

In defrost mode, if the outside temperature is about 2° C (35° F) or higher, the air conditioner will automatically dehumidify the air to reduce window fogging. However, the A/C indicator will be off and the A/C override control cannot be selected.

When AUTO is selected, the A/C operates automatically for existing conditions. With automatic A/C operation, the A/C indicator will be lit if the outside temperature is about 2° C (35° F) or higher. You may override the automatic A/C operation at any time. To manually control the A/C operation and cancel automatic A/C operation, press the A/C control. When the A/C is manually controlled in the AUTO mode, the AUTO indicator will remain lit. To return to automatic A/C operation, press AUTO.

AUTO

EXT

F F

F C

OFF

A/C

• Recirculation control

(air recirculation) — Used to manually enable or disable the operation of the recirculated air operation in all modes except defrost. The use of recirculated air when the air conditioning is operating helps to reduce the amount of time to cool down the interior of the vehicle in very hot conditions. Recirculated air may also help to keep undesired outside odors from reaching the vehicle interior. It is recommended to allow the DATC system to automatically control the selection of outside or recirculated air.

The recirculation control cannot be selected in the defrost mode, as interior fogging may occur.

In floor and floor/defrost modes, the DATC system will automatically return to outside air to help reduce window fogging. When the recirculation air control is selected, the amount of time in manual recirculated air depends on the ambient temperature.

Climate Controls

When AUTO is selected, the recirculated air feature operates automatically for existing conditions. You may override the automatic recirculated air operation at any time. To manually control the recirculated air operation and cancel automatic recirculated air operation, press the recirculated air control. When the recirculated air is manually controlled in the AUTO mode, the AUTO indicator light will remain lit. To return to full automatic recirculated air operation, press AUTO.

Do not leave the DATC system in recirculated air operation for extended periods of time while the system is in a heating mode or in cold/damp conditions as this may cause interior fogging of the front, side and rear windows.

Manual override controls

AUTO

EXT

F F

F C

OFF

A/C

The manual override controls allow you to manually determine where airflow is directed. To return to fully automatic control, press AUTO.

When a manual airflow override control is selected, the DATC system will turn off the AUTO indicator and display the indicators of all operating override controls. More than one override control indicator may turn on when an override control is selected.

The air conditioning compressor can operate in all modes except OFF. However, the air conditioning will only function if the outside temperature is about 2° C (35° F) or higher.

Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle.

• Airflow direction control

(panel) — Distributes air through the instrument panel and center

console registers.

Climate Controls

(panel/floor) — Distributes air through the instrument panel and center console registers, and the front and rear seat floor ducts. For added customer comfort, the air distributed through the floor ducts may be slightly warmer than the air sent to the instrument panel registers.

(floor) — Distributes air through the front and rear seat floor ducts. The system will allow some airflow out the defroster ducts, the demister outlets and outer instrument panel registers.

(floor/defrost) — Distributes air through the windshield defroster ducts, the demister outlets and the front and rear seat floor ducts. The system will allow some airflow out the outer instrument panel registers. When floor/defrost is selected, if the outside temperature is about 2° C (35° F) or higher, the air conditioner will automatically dehumidify the air to reduce window fogging. For added customer comfort, the air distributed through the floor ducts may be slightly warmer than the air sent to the windshield defroster ducts. When floor/defrost is selected, the system will automatically provide outside air to reduce window fogging. Recirculation and A/C override controls can be selected.

(defrost) — Distributes outside air through the windshield defroster ducts and the demister outlets. It can be used to clear ice or fog from the windshield. The system will allow some airflow out the outer instrument panel registers. If the outside temperature is about 2° C (35° F) or higher, the air conditioner will automatically dehumidify the air to reduce window fogging. (Note that the A/C indicator does not illuminate when this mode is selected.) Recirculation and A/C override controls cannot be selected.

• Turn DATC off

OFF-Outside air is shut out. The fan, heating and air conditioning will not operate. The outside temperature will still display when selected with the ignition in the RUN position.

Heated wiper rest

(heated wiper rest) — Located at the base of the windshield, this feature heats the front glass area below the area heated by the front defroster where the windshield wipers sit in their parked position. When activated, the feature keeps the wiper blades warm and reduces the chance of ice build up on the blades. The indicator will light when the feature is in operation.

Climate Controls

With the ignition in RUN and the engine running, the feature will be automatically enabled if the temperature is below 5°C (40°F). The feature can be manually selected or deselected at any time. However, the automatic feature will be enabled each time the engine is started.

In cold, dry conditions where wet snow or ice is not present it is acceptable to manually deselect the operation of this feature.

The feature will run continuously unless a low battery condition is detected, or unless the feature is manually deselected, and will only activate when the vehicle engine is running (to prevent excessive drain of the vehicle battery).

(rear window defroster) — Refer to Rear Window Defroster.

Displaying outside temperature

AUTO

EXT

EXT TEMP

F C

OFF

A/C

Press EXT to display the outside air temperature. It will remain selected until the EXT control is pressed again.

If the driver or passenger temperature or the fan speed is changed, or the AUTO or

modes selected while the outside temperature is displayed, the driver and passenger temperature display will be displayed for 4 seconds. Following this, the outside temperature display will return to the window.

If the outside temperature is displayed while the DATC system is in the OFF mode and the DATC is turned on, the driver and passenger temperatures will be displayed for 4 seconds. Following this, the outside temperature display will return to the window.

The outside temperature reading is most accurate when the vehicle is moving. Higher readings may be obtained when the vehicle is not moving. The readings may not agree with temperatures given on the radio due to differences in vehicle and station locations.

Climate Controls

Operating tips

• In humid weather, select

and reduce fogging on your windshield. After a few minutes, select any desired position.

• To prevent humidity buildup inside the vehicle, don’t drive with the climate control system in the OFF position.

• DO NOT leave the DATC system in recirculated air mode for extended periods of time while the system is in a heating mode or in cold or damp conditions as this may cause interior fogging of the front, side and rear windows.

• Do not place objects under the front seat that will interfere with the airflow to the rear seats.

• Remove any snow, ice or leaves from the air intake area at the base of the windshield.

• If your vehicle has been parked with the windows closed during hot weather, the air conditioner will do a much faster job of cooling if you drive for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Then operate the air conditioner as you would normally.

• If the air conditioner works well with the recirculation feature on, but not in the outside air mode, this may indicate that the cabin air filter needs to be replaced.

• Do not place objects over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Also, avoid placing small objects on top of your instrument panel. These objects can fall down into the defroster outlets and block airflow and possibly damage your climate control system.

before driving. This will

Climate Controls

MPH

100

120

160

120

200

km/h

140

240

160

TRIP

RESET

BRAKE

A/B

RPMX1000

kmiles

D 5

• Do not place items over the climate temperature sensor grid. This may cause improper operation of the DATC system.

• With the ignition in the OFF position after operating the vehicle, some vehicle sounds related to the climate control system may be heard.

• Approximately two minutes after key off, the air distribution doors may adjust their positions as part of the normal operating process.

To aid in side window defogging:

1. Select

2. Set the temperature control to full heat

3. Select A/C

4. Set the fan speed to High

5. Direct the outer panel vents towards the side windows

6. In order to increase the airflow to the outer panel vents, close the

central panel vents.

Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

Climate Controls

REAR WINDOW DEFROSTER

Press the rear window defroster control to clear the rear window and sideview mirrors of thin ice or fog. The indicator will illuminate when the rear window defroster is selected.

The ignition must be in the RUN position and the engine running in order to operate the rear window defroster.

The rear window defroster turns off automatically after 10 minutes or sooner if a low battery condition is detected, or when the ignition is turned to the OFF position. To manually turn off the rear window defroster before 10 minutes have passed, push the control again.

CABIN AIR FILTER

Your vehicle is equipped with a Cabin air filter. The particulate air filtration system is designed to reduce the concentration of airborne particles such as dust, spores and pollen in the air being supplied to the interior of the vehicle. The particulate filtration system gives the following benefits to customers:

• Improves the customer’s driving comfort by reducing particle concentration

• Improves the interior compartment cleanliness

• Protects the climate control components from particle deposits

The filter is located just in front of the windshield under the cowl grille on the passenger side of the vehicle.

For more information, or to replace the filter, see your Ford, Lincoln or Mercury Dealer.

Lights

HEADLAMP CONTROL

Rotate the headlamp control to the first position to turn on the parking lamps. Rotate to the second position to also turn on the headlamps.

Autolamp control

The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.

The autolamp system also keeps the lights on for a preselected period of time after the ignition switch is turned to OFF.

• To turn autolamps on, rotate the control counterclockwise. The preselected time lapse is adjustable up to approximately three minutes by continuing to rotate the control counterclockwise.

• To turn autolamps off, rotate the control clockwise to the off position (O).

AUTO

Lights

Foglamp control

The headlamp control also operates the foglamps. The foglamps can be turned on when the headlamp control is in any of the following positions:

• Parking lamps

• Low beams

• Autolamps

Pull headlamp control towards you to turn foglamps on. The foglamp indicator light will illuminate.

Daytime running lamps (DRL) (if equipped)

Turns the highbeam headlamps on with a reduced output. To activate with automatic transmission:

• the ignition must be in the RUN position;

• the headlamp control is in the OFF position, Parking lamps position,

or Autolamp position when the autolamp function has not turned on the headlamps (daytime); and

• the transmission is out of Park.

To activate with manual transmission:

• the ignition must be in the RUN position;

• the headlamp control is in the OFF position, Parking lamps position,

or Autolamp position when the autolamp function has not turned on the headlamps (daytime); and

• the parking brake is released.

AUTO

PULL

Always remember to turn on your headlamps at dusk or during

inclement weather. The Daytime Running Light (DRL) System does not activate your tail lamps and generally may not provide adequate lighting during these conditions. Failure to activate your headlamps under these conditions may result in a collision.

Lights

High beams

Pull toward you until control stops to activate. Control will return to original position. Repeat to deactivate.

Flash to pass

Pull toward you to activate and release to deactivate.

PANEL DIMMER CONTROL

Use to adjust the brightness of the instrument panel during parklamp, headlamp, and autolamp operation.

• Rotate up to brighten.

• Rotate down to dim.

• Rotate fully up to turn on the

interior lights.

INT OFF

INT

AUTO

INT

AUTO

Lights

AIMING THE HEADLAMPS

Your vehicle is equipped with a Vehicle Headlamp Aim Device (VHAD) on each headlamp body. Each headlamp may be properly aimed in the horizontal direction (left/right) and the vertical position (up/down).

A non-zero bubble reading does not necessarily indicate out-of-aim headlamps. If your vehicle is not positioned on a level surface, the slope will be included in the level indicator. Therefore, vertical headlamp adjustment should be performed only when beam direction appears to be incorrect.

The horizontal aim must be adjusted first. You will need one 4 mm wrench or socket to make the adjustments.

If the vehicle has been in an accident, the vehicle’s front structure should be properly aligned before aiming the headlamps.

Horizontal aim adjustment

1. Park the vehicle on a level surface.

2. With the hood open, remove the protective cover, then locate the horizontal indicator and the adjusting screw.

3.Usea4mmwrench or socket to turn the horizontal adjusting screw until the end of the shaft within the clear tube lines up with the “0” reference mark on the indicator when viewed directly from above.

IN OUT

Lights

Vertical aim adjustment

1. Park the vehicle on a level surface.

2. With the hood open, remove protective cover, then locate the bubble level and the vertical adjustment screw.

3. The numbers shown on the vial indicate the directional change (up or down) of the vertical aim.

4.Usea4mmwrench or socket to turn the vertical adjusting screw until the bubble is below the “0” mark position when viewed directly from above.

5. Install protective cover.

When the horizontal and vertical indicators are set to the “0” mark, the headlamp has been properly aimed.

TURN SIGNAL CONTROL

• Push down to activate the left turn signal.

• Push up to activate the right turn signal.

INT OFF

INT

AUTO

Lights

INTERIOR LAMPS Map lamps (if equipped)

The map lamps and controls are located on the dome lamp. Press the controls in front of each map lamp to activate the lamps.

Rear dome lamp

The dome lamp lights when:

• any door is opened.

• the instrument panel dimmer

switch is rotated up until the courtesy lamps come on.

• the remote entry UNLOCK control is pressed and the ignition is OFF.

With the ignition key in the OFF, ACC or RUN position, the reading lamp on the dome lamp can be turned on by pressing the control.

BULBS Replacing exterior bulbs

Check the operation of the following lamps frequently:

• Headlamps

• Tail lamps

• Brakelamps

• High-mount brakelamp

• Turn signals

• Backup lamps

• License plate lamp

• Fog lamps

Lights

Do not remove lamp bulbs unless they will be replaced immediately. If a bulb is removed for an extended period of time, contaminants may enter the lamp housings and affect performance.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must be marked with an authorized “D.O.T.” for North America and an “E” for Europe to assure lamp performance, light brightness and pattern and safe visibility. The correct bulbs will not damage the lamp assembly or void the lamp assembly warranty and will provide quality bulb burn time.

Function Trade Number

Headlamp low beam 9006 Headlamp high beam 9005 Park and turn lamp (front) 3157K Side marker lamp (front) 168 Foglamp 9145 Tail lamp, brakelamp, side lamp 3157K Rear turn lamp 3156K Backup lamp 3157K Tail/body side 161 Tail/deck (trunk) lid 161 License plate lamp W5WL High-mount brakelamp 3156K Front door courtesy lamp 192 Map lamp (with moon roof) 212-2 Dome lamp (rear) 212-2 Map lamp (front) 212-2 Sun visor lighted mirror lamp Part # E9SB-13465-BA Glove compartment 194 Ashtray 194 Luggage compartment lamp 212-2 All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer.

Lights

Interior bulbs

Check the operation of the following interior bulbs frequently:

• front map lamps

• Rear dome/reading lamp

For bulb replacement, see a dealer or qualified technician.

Map lamps

For bulb replacement, see a qualified service technician or your dealer.

Replacing headlamp bulbs

To remove the high or low beam headlamp bulb:

1. Make sure headlamp switch is in

OFF position.

2. Lift the hood, push and release

four tabs and remove the protective cover from the headlamps.

3. Disconnect the electrical

connector from the bulb by pulling rearward.

4. Remove the old bulb from the

lamp assembly by turning to unlock and pulling it straight out of the lamp assembly.

To install the new bulb:

Handle a halogen headlamp bulb carefully and keep out of

children’s reach. Grasp the bulb only by its plastic base and do not touch the glass. The oil from your hand could cause the bulb to break the next time the headlamps are operated.

1. Install the new bulb in lamp assembly by pushing straight in and turning to lock in position. You may need to turn the bulb slightly to align the grooves in the plastic base with the tabs in the lamp assembly.

2. Connect the electrical connector to the bulb.

3. Install the protective cover and secure with four tabs.

Lights

4. Turn the headlamps on and make sure they work properly. If the headlamp was correctly aligned before you changed the bulb, you should not need to align it again.

Replacing foglamp bulbs

The halogen bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb carefully. Grasp the bulb only by its base. Avoid touching the glass envelope.

1. Disconnect the electrical connector from the foglamp bulb.

2. Rotate the foglamp bulb counterclockwise and remove from the foglamp (the rear side of the foglamp is shown).

3. Install the foglamp bulb in foglamp by rotating clockwise.

4. Connect the electrical connector to the new foglamp bulb.

Replacing front parking lamp/turn signal lamp bulbs

For bulb replacement, see a dealer or qualified technician.

Replacing high-mount brakelamp bulbs

For bulb replacement, see a dealer or qualified technician.

Replacing tail lamp/backup bulbs

For bulb replacement, see a dealer or qualified technician.

Replacing license plate lamp bulbs

For bulb replacement, see a dealer or qualified technician.

Driver Controls

WINDSHIELD WIPER/WASHER CONTROLS

Rotate the windshield wiper control to the desired interval, low or high speed position. The ignition must be in the ACC or RUN position to operate the windshield wiper.

The bars of varying length are for intermittent wipers. When in this position rotate the control upward for fast intervals and downward for slow intervals.

Push the control on the end of the stalk to activate washer. Push and hold for a longer wash cycle. The washer will automatically shut off after ten seconds of continuous use.

When the washer system senses low fluid in the washer bottle and the control is pushed to activate the system, washer fluid will spray onto the windshield (if the reservoir still has fluid in it), but the windshield wiper will not automatically cycle if low fluid is sensed. The wiper must be engaged by manually selecting a position on the wiper/washer control. This is to let you know that the washer fluid is low or empty and needs to be refilled. Refer to the Windshield washer fluid section of the Maintenance and specifications chapter.

INT OFF

INT

INT OFF

AUTO

INT

AUTO

Moisture sensitive wipers (if equipped)

When the windshield wiper control is set to INT and the intermittent position is AUTO, moisture sensitive front wipers automatically activate when moisture accumulates on the windshield. When the ignition is turned to Off and then back to Run

INT OFF

INT

and the wiper setting has remained in AUTO position, the wipers may cycle one time.

The moisture sensitive wiper feature should be turned off before entering a car wash.

AUTO

Driver Controls

WINDSHIELD WIPER BLADES

Check the wiper blades at least twice a year or when they seem less effective. Substances such as tree sap and some hot wax treatments used by commercial car washes reduce the effectiveness of wiper blades.

In cold weather conditions, the wiper blades need to be thawed before operating in order to prevent premature wear to the wiper blades. Before operating the wiper blades in cold weather, refer to the Electric window heaters in this chapter.

Checking the wiper blades

If the wiper blades do not wipe properly, clean both the windshield and wiper blades using undiluted windshield wiper solution or a mild detergent. Rinse thoroughly with clean water. To avoid damaging the blades, do not use fuel, kerosene, paint thinner or other solvents.

Changing the wiper blades

To replace the wiper blades:

1. Pull the passenger side wiper arm away from the windshield into the service position. Turn the blade at an angle from the wiper arm.

2. Firmly press the release tab to unlock wiper blade from wiper arm.

3. Pull the wiper blade down toward the windshield to remove it from the arm.

4. Attach the new wiper to the wiper arm and reposition the clip until it locks.

Repeat for driver’s side wiper arm.

Driver Controls

TILT/TELESCOPE STEERING COLUMN Power tilt/telescope steering column

Never adjust the steering wheel when the vehicle is moving.

The steering column can be adjusted manually by moving the four-way rocker adjustment control located on the multi-function control below the turn signal/wiper control stalk. The control will adjust the column as long as held or until the column reaches the end of travel.

The telescope function is adjusted by moving the control toward the driver to telescope out and moving the control toward the instrument panel to telescope in.

The tilt function is adjusted by moving the control up to tilt up and moving the control down to tilt down.

The steering column positions are automatically saved and can be recalled along with the vehicle personality features when a memory position is selected through the remote entry transmitter or memory switch on the driver’s door (if equipped with memory feature).

During easy exit (if activated through the Message Center) operation, the column will move to the full in and up position. When the key is inserted into the ignition switch, the column will return to the previous setting. When you remove the key, the column will move away.

If the steering column adjustment control is pressed during memory recall it will cancel the automatic operation and the column will respond to manual adjustment of the control.

Driver Controls

ILLUMINATED VISOR MIRROR

To turn on the visor mirror lamps, lift the mirror cover. Adjust the amount of light by sliding the control.

POWER WINDOWS

Press and pull the rocker switches to open and close windows.

• Press the top portion of the rocker switch to open.

AUTO

• Pull the top portion of the rocker switch to close.

AUTO

Driver Controls

Express down

To make the driver window open fully without holding the window control, press the top portion of the driver window control completely down to the second detent. Press or pull the control to stop window operation.

Window lock

The window lock feature allows only the driver to operate the rear power windows.

To lock out the rear window controls press the left side of the control. Press the right side to restore the window controls.

Accessory delay

With accessory delay, the window switches may be used for up to ten minutes after the ignition switch is turned to the OFF position or until either front door is opened.

MIRRORS Automatic dimming inside rear view mirror

Your vehicle is equipped with an inside rear view mirror which has an auto-dimming function. The electronic day/night mirror will change from the normal state to the non-glare state when bright lights (glare) reach the mirror. When the mirror detects bright light from front or behind, it will automatically adjust (darken) to minimize glare.

Do not block the sensor on the backside of the mirror since this may impair proper mirror performance.

AUTO

Driver Controls

Ensure the mirror is pulled down low enough to prevent visibility interference with the overhead console. The mirror support arm has two pivot points which lets you adjust the mirror UP or DOWN and from SIDE to SIDE.

Press the control to turn the mirror on or off.

The mirror will automatically return to the normal state whenever the vehicle is placed in R (Reverse)(when the mirror is on) to ensure a bright clear view when backing up.

Electronic compass (if equipped)

The compass reading will remain accurate during most driving conditions. Unknown to the driver, the compass is continuously recalibrating due to magnetic fields and subtle, slow changes in vehicle magnetics which can occur over the life of the vehicle.

The compass reading will remain fixed when significant levels are experienced (such as steel bridges). The compass will return to normal operation upon leaving the magnetized area.

If highly magnetized items (such as magnetic mount antennas) are placed very near the compass the display will change to “C” for 15 seconds, then display all segments until the magnetized item is removed. If a “C” is displayed, refer to Compass calibration adjustment.

Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass zone adjustment.

COMP MIRROR

Driver Controls

Compass zone adjustment

1. Determine which compass zone

you are in by referring to the zone map.

2. With the compass display turned

on, press and hold the COMP side of the control for no more than six seconds until the zone selection number appears in the mirror

COMP MIRROR

display window. If a “C” appears repeat this step.

3. Release the COMP side of the

control, then press it down again.

4. Continue to press until your zone number is shown in the mirror

display, then release.

5. The display will show all segments, then return to normal compass

mode within ten seconds.

Driver Controls

Compass calibration adjustment

Perform this adjustment in an open area free from steel structures and high voltage lines.

1. Start the vehicle.

2. Press and hold the COMP side of

the control for approximately six seconds until “C” appears in the mirror display.

3. Drive the vehicle slowly (less

than 5 km/h [3 mph]) in circles or on your everyday routine until the display reads a direction.

4. The compass is now calibrated.

Power side view mirrors

The power mirrors can be operated at any time. To adjust your mirrors:

1. Select L to adjust the left mirror

or R to adjust the right mirror.

COMP MIRROR

2. Move the control in the direction

you wish to tilt the mirror.

3. Return to the center position to lock mirrors in place.

Driver Controls

Heated outside mirrors

Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.

Do not remove ice from the mirrors with a scraper or attempt to readjust the mirror glass if it is frozen in place. These actions could cause damage to the glass and mirrors.

SPEED CONTROL To turn speed control on

• Press ON.

Vehicle speed cannot be controlled until the vehicle is traveling at or above 48 km/h (30 mph).

Do not shift the gearshift lever into N (Neutral) with the speed control on.

Do not use the speed

control in heavy traffic or on roads that are winding, slippery, or unpaved.

RESUME

O F

SET

CANCEL

To turn speed control off

• Press OFF or

• Turn off the vehicle ignition.

Once speed control is switched off, the previously programmed set speed will be erased.

To set a speed

• Press SET+ / SET−. For speed control to operate, the speed control must be ON and the vehicle speed must be greater than 48 km/h (30 mph).

Driver Controls

RESUME

SET

O F

CANCEL

RESUME

SET

CANCEL

If you drive up or down a steep hill, your vehicle speed may vary momentarily slower or faster than the set speed. This is normal.

Speed control cannot reduce the vehicle speed if it increases above the set speed on a downhill. If your vehicle speed is faster than the set speed while driving on a downhill, you may want to shift to the next lower gear or apply the brakes to reduce your vehicle speed.

Driver Controls

If your vehicle slows down more than 16 km/h (10 mph) below your set speed on an uphill, your speed control will disengage. This is normal. Pressing RESUME will re-engage it.

Do not use the speed control in heavy traffic or on roads that are winding, slippery, or unpaved.

To set a higher set speed

• Press and hold SET+. Release the control when the desired vehicle speed is reached or

• Press and release SET + to operate the Tap-Up function. Each press will increase the set speed by 1.6 km/h (1 mph) or

• Accelerate with your accelerator pedal. When the desired vehicle speed is reached, press and release SET +.

You can accelerate with the accelerator pedal at any time during speed control usage. Releasing the accelerator pedal will return your vehicle to the previously programmed set speed.

RESUME

SET

CANCEL

To set a lower set speed

• Press and hold SET −. Release the control when the desired speed is reached or

• Press and release SET − to operate the Tap-Down function. Each press will decrease the set speed by 1.6 km/h (1 mph) or

• Press CANCEL or depress the brake pedal. When the desired vehicle speed is reached, press SET + / SET −.

Driver Controls

RESUME

SET

CANCEL

RESUME

SET

CANCEL

Driver Controls

To disengage speed control

• Press CANCEL,

• depress the brake pedal, or

RESUME

SET

CANCEL

• depress the clutch pedal (if equipped).

Disengaging the speed control will not erase the previously programmed set speed.

Pressing OFF will erase the previously programmed set speed.

To return to a previously set speed

• Press RESUME. For RESUME to operate, the vehicle speed must be faster than 48 km/h (30 mph).

Driver Controls

RESUME

SET

O F

CANCEL

RESUME

SET

Indicator light

This light comes on when the vehicle speed control is engaged and actively controlling vehicle speed.

O F

CANCEL

Driver Controls

STEERING WHEEL CONTROLS

These controls allow you to operate some audio control features.

Audio control features

Press MEDIA to select AM, FM1, FM2, TAPE, or CD (if equipped).

MUTE

VOL

MEDIA

In AM, FM1, or FM2 mode:

• Press D or ¹ to select preset stations within the selected radio band.

In Tape mode:

• Press D or ¹ to select the next selection on the tape.

In CD mode:

• Press D or ¹ to select the next selection on the CD.

MUTE

VOL

MEDIA

In any mode:

• Press VOL + or − to adjust volume.

Press the PHONE/MUTE control to mute the playing media. Press again to return to the playing media.

If your vehicle is equipped with a factory installed cellular phone, refer to the Phone/Mute Mode section of the Audio chapter.

Driver Controls

MUTE

VOL

MEDIA

MUTE

VOL

MEDIA

Driver Controls

MOON ROOF (IF EQUIPPED)

To open the moon roof:

• Push up on the control to raise the moon roof to the vent position (when the glass panel is closed).

• Push the front portion of the control rearward to open the moon roof.

• Press the rear portion of the control past the first detent to activate the Auto Open feature.

To close the moon roof:

• To close from the vent, intermediate and full open positions, push the rear portion of the control forward.

HOMELINKT UNIVERSAL TRANSCEIVER (IF EQUIPPED)

The HomeLinkt Universal Transceiver, located on the driver’s visor, provides a convenient way to replace up to three hand-held transmitters with a single built-in device. This feature will learn the radio frequency codes of most current transmitters to operate garage doors, entry gates, security systems, entry door locks, and home or office lighting.

When programming your HomeLinkt Universal Transceiver, to a garage door or gate be sure that people and objects are out of

the way to prevent potential harm or damage.

Do not use the HomeLinkt Universal Transceiver with any garage door opener that lacks safety stop and reverse features as required by U.S. federal safety standards (this includes any garage door opener model manufactured before April 1, 1982). A garage door which cannot detect an object, signaling the door to stop and reverse, does not meet current U.S. federal safety standards. For more information on this matter, call toll-free: 1–800–355–3515 or on the Internet at HomeLink.jci.com.

Driver Controls

Programming

Do not program the HomeLinkt Universal Transceiver with the vehicle parked in the garage.

1. Prepare for programming the

HomeLinkt Universal Transceiver by erasing the three factory default codes by holding down the two outside buttons until the red light begins to flash after 20 seconds. Release both buttons.

2. Hold the end of your hand-held

transmitter 5–14 cm (2–5 inches) away from the HomeLinkt Universal Transceiver surface (located on your visor) while keeping the red light in view.

3. Using both hands simultaneously

press and hold the hand-held transmitter button and the desired HomeLinkt button. Do not release the buttons until step 4 has been completed.

Some entry gates and garage door openers may require you to replace step 3 with the procedure in the “Canadian Programing” section.

4. The red light will flash slowly and then rapidly. Release both buttons

when the red light flashes rapidly.

5. Follow steps 2 through 4 to program the remaining two buttons.

If you do not successfully program the HomeLinkt Universal Transceiver after repeated attempts, refer to Rolling code programing which follows, or call toll-free customer assistance: 1–800–355–3515 or on the Internet at HomeLink.jci.com.

Canadian Programming

During programming, your hand-held transmitter may automatically stop transmitting after two seconds which may not be long enough to program the HomeLinkt Universal Transceiver.

Driver Controls

To program your hand-held transmitters:

• Continue to hold the button on the HomeLinkt Universal Transceiver.

• Press and re-press the hand-held transmitter button every two seconds until the red light changes from a slow to a fast flash.

Operating the HomeLinkT Universal Transceiver

Once programmed, the HomeLinkt Universal Transceiver can be used in place of hand-held transmitters. To operate, simply press and release the appropriate HomeLinkt button (the red light will illuminate, indicating the signal is being transmitted).

Rolling code programming

Rolling code garage door openers (or other rolling code devices) which are “code protected” and manufactured after 1996, may be determined by the following:

• Reference the device owner’s manual for verification

• The hand-held transmitter appears to program the HomeLinkt

Universal Transceiver but does not activate the device.

• Press and hold the trained HomeLinkt button. The device has the rolling code feature if the indicator light flashes rapidly and then turns solid after two seconds.

After completing the “Programming” functions, follow these steps to train a garage door opener with the rolling code feature:

1. Locate the training button on the garage door motor head unit.

Refer to the garage door opener manual or call 1–800–355–3515 or on the Internet at HomeLink.jci.com. if there is difficulty locating the training button.

2. Press the training button on the garage door motor head unit (which

will activate the “training” light).

Driver Controls

3. Press and release the

programmed HomeLinkt button. Press and release the HomeLinkt button a second time to complete the training process. (Some garage door openers may require this procedure to be done a third time to complete the training.)

The 2nd or 3rd press from step 3 will activate the door. The HomeLinkt Universal Transceiver has now been trained to the receiver. The remaining two buttons may now be programmed if this has not previously been done.

Erasing HomeLinkT buttons

Individual buttons cannot be erased, however, to erase the three programmed buttons:

1. Hold down the two outside

buttons until the red light begins to flash after 20 seconds.

2. Release both buttons.

Reprogramming a single HomeLinkTbutton

To program a device to HomeLinkt using a HomeLinkt button previously trained, follow these steps:

1. Press and hold the desired HomeLinkt button. Do NOT release until

step 4 has been completed.

2. When the indicator light begins to flash slowly (after 20 seconds),

position the hand-held transmitter 5–14 cm (2 to 5 inches) away from the HomeLinkt surface.

3. Press and hold the hand-held transmitter button.

4. The HomeLinkt indicator light will flash, first slowly and then rapidly.

When the indicator light begins to flash rapidly, release both buttons. The previous device has now been erased and the new device can be

activated by pushing the HomeLinkt button that has just been programmed.

Driver Controls

VEHICLE COMMUNICATION SYSTEM (IF EQUIPPED)

The Vehicle Communication System is designed to provide a variety of safety enhancing services and offers access to hands-free calling through the Vehicle Communication System wireless phone. The system includes and requires the use of an activated Vehicle Communication System wireless phone to operate. The wireless phone contains specialized software that integrates it with the vehicle systems. A more detailed owner’s manual on how to use the Vehicle Communication System and your wireless phone will be delivered to your home within 7 days of the original vehicle sale date. A detailed owner’s manual with terms and conditions for use is included. Contact the dealer if you have any questions or concerns about your Vehicle Communication System.

Using Vehicle Communication System

To use Vehicle Communication System properly, follow these three steps:

• Activate the wireless phone with Sprint PCS

• Dock the wireless phone in the docking station located in the center

console armrest (once the phone is docked, the armrest can be closed)

• Activate your Vehicle Communication System with the Lincoln Response Center by pressing the “i” Button

1. SOS BUTTON — In an

emergency situation or for roadside assistance, press this button to contact the Lincoln Response Center. A response center representative will locate your vehicle and dispatch assistance if needed. Once a connection is made to the Lincoln Response Center, only the response center representative will be able to disconnect the call.

Vehicle Communication System will redial for roadside assistance 3 times before showing on the audio display “CALL FAILED” because of network capacity or lack of analog coverage.

S O S

S. O. S.

Driver Controls

2. AUTOMATIC AIR BAG NOTIFICATION — If the air bag deploys, the

Vehicle Communication system automatically places a call to the Lincoln Response Center and a representative will dispatch help to your location immediately if requested. If the specialist is unable to reach you, the emergency service provider will be contacted and dispatched to your location.

Vehicle Communication System will redial for automatic airbag notification 5 times before showing on the audio display “CALL FAILED” because of network capacity or lack of analog coverage.

3. INFO BUTTON — Press this

button for route guidance and information regarding the points of interest such as ATM’s, restaurants, etc. The Lincoln Response Center will receive your request and help you find your way.

4. PHONE BUTTON — Place or

receive a call by pressing this button. When making or receiving a call the audio system will mute automatically. To make or receive a call, just press the phone button. Your Vehicle Communication System service includes the Sprint PCS Voice Command (SM) service. You can place voice-activated calls using names programmed in your web-address book or simply speak the phone number.

Volume Control — Volume can be controlled using the audio system controls.

MUTE

VOL PUSH ON

First Owner/First Time Activation

• After receiving the wireless phone and welcome kit, please contact Sprint PCS at 1–866–PCS-AUTO (1–866–727–2886) and select option “1” for activations. When calling Sprint PCS to activate your phone, please do not call from your new wireless phone.

Note: Following the three-month introductory period, you must continue to enroll in a Sprint PCS voice plan in order to enable any of the Vehicle Communication System features.

Driver Controls

• Turn the ignition to “ACC”. Open the center console armrest and fold the presenter arm out. Place the wireless phone in the docking station. If the phone is docked properly, the audio display should read “VCS ACTIVE”. The Vehicle Communication System will not function if the phone is not properly docked.

• Press the “ i” Button and when voice communication is established with the Lincoln Response Center, indicate that you are a new customer and the specialist will introduce you to the features. The purpose of this call is to verify that your Vehicle Communication System is active and functioning properly. In the event that the Vehicle Communication System does not function properly, please contact your Lincoln dealership for assistance.

Leased Vehicles

If the vehicle is leased, the wireless phone should be returned to the dealership at the end of the lease term. At the end of the lease term, you have the option to purchase the wireless phone for the price of its replacement. Please be sure to contact Sprint PCS at 1–866–PCS-AUTO (1–866–727–2886) for wireless service options if you keep the phone or call to deactivate your account prior to lease termination.

Second Owner/Re-Lessees

The Vehicle Communication System will not function without an activated wireless phone with Sprint PCS. The wireless phone may be purchased through Lincoln dealerships. Wireless service can be activated with Sprint PCS. Just following the steps in the “First Time Activation” section above.

Vehicle Communication System Limitations

• Vehicle Communication System services are available in the 48 contiguous states and Hawaii

• Vehicle Communication System services are not available in Alaska

• Only available within range of the cellular systems

• Connection limited by atmospheric and topographical conditions

• Connection limited by cellular network capabilities and infrastructure

• The wireless phone must have an active wireless service plan with

Sprint PCS and docked in the docking station located in the center console for Vehicle Communication System to function properly

Driver Controls

• The vehicle must be running or the ignition must be turned to either “ACC” or “RUN/ON” position

• May become inoperative if the vehicle is involved in an accident, damaging one or more components

• Sprint PCS Voice Command (SM) services are only available on the Sprint PCS network

Global Positioning Satellites are used to deliver location information (only at the request of the vehicle occupants or in the event an airbag deploys) and may not be available if signal is obstructed. (If a signal is unavailable, the last valid position obtained before the signal was obstructed will be sent.)

Vehicle Communication System is powered by the vehicle’s battery and will not operate if the battery is discharged or disconnected.

Vehicle Communication System specialist will make all reasonable efforts to contact the Public Safety service providers but cannot be held responsible for their response time or their activities.

Drivers have the responsibility to pay primary attention to the road and drive safely. A driver may want to pull over to a safe parking spot before using Vehicle Communication System services. Drivers who allow themselves to become distracted may cause an accident. Please use this technology responsibly.

Due to the specialized Lincoln software contained within the phone, your local Sprint PCS store is unable to provide service or replacement units. Issues or questions about equipment including the wireless phone should be directed to your Lincoln dealer.

Phone accessories can be purchased at Sprint PCS stores. Billing or services issues should be directed to Sprint PCS at 1–866–PCS-AUTO (1–866–727–2886). Select “2” for Client Services.

Driver Controls

MESSAGE CENTER (IF EQUIPPED)

With the ignition in the RUN position, the message center, located on your instrument cluster, displays important vehicle information by monitoring vehicle systems. When you change displays, a brief indicator chime will sound. The system will also notify you of potential vehicle problems with a system warnings display followed by a long indicator chime.

Operator selectable features

These features are controlled by the message center controls located above the radio.

FUEL

Press this control for the following displays:

• Distance to Empty

• Average Fuel Economy

FUEL

• Display On/Off

RESET

Press this control to select and reset functions shown in the FUEL, SETUP and STATUS controls.

SETUP

Press this control for the following displays:

• Language

• Units (English/Metric)

• Autolocks

• Easy Entry/Exit (if equipped)

• Lock Chirp (if equipped)

km/h

240

160

RESET

SETUP

STATUS

Driver Controls

STATUS

Selecting this function from the STATUS control causes the message center to cycle through each of the systems being monitored. For each of the monitored systems, the message center will indicate either an OK message or a warning message for four seconds.

The sequence of the status check report is as follows:

• oil life in XX%

• AC (cabin) filter XX%

• charging system

• engine temperature

• brake fluid level

• washer fluid level

• doors closed (driver and passenger side, front and rear). This message

can only be reset by closing the door(s). If the RESET control is pressed, PLEASE CLOSE DOOR will be displayed.

• trunk status

• exterior lamps (front and rear turn, brake, tail and side repeater lamp

(if equipped) status)

• Traction Controly or AdvanceTracy (if equipped)

Message center functions

Dist To Empty (DTE)

Selecting this function from the FUEL control will give you an estimate of how far you can drive with the remaining fuel in your tank under normal driving conditions. Remember to turn the ignition OFF when refueling your vehicle. Otherwise, the display will not show the addition of fuel for a few kilometers (miles).

The DTE function will display LOW FUEL LEVEL and sound a tone for one second when you have 80 km (50 miles) to empty. This tone will sound every 10 minutes until you refuel.

Driver Controls

Fuel Econ Avg

Select this function from the FUEL control to display your average fuel economy in liters/100 km or miles/gallon.

If you calculate your average fuel economy by dividing liters of fuel used by 100 kilometers traveled (miles traveled by gallons used), your figure may be different than displayed for the following reasons:

• your vehicle was not perfectly level during fill-up

• differences in the automatic shut-off points on the fuel pumps at

service stations

• variations in top-off procedure from one fill-up to another

• rounding of the displayed values to the nearest 0.1 liter (gallon)

Checking your highway fuel economy using the electronic message center display

The following procedure will allow you to accurately monitor your actual highway fuel economy. Since this procedure requires the vehicle speed control system to be set to highway speeds, it must be run only on suitable roadways where long distance speed control can be safely maintained.

You may notice gradual improvement in fuel economy over the course of your vehicle’s break-in period (approximately 1 600 kilometers [1 000 miles]).

1. Press the FUEL control to display

miles to empty. Press again to display average fuel economy.

2. Set the speed control. Refer to

Speed control in this chapter.

3. Press the RESET control to clear the system memory.

• Actual highway fuel economy is now displayed. This current average measure will change as the speed control system changes the engine speed to maintain a constant vehicle speed. This is most noticeable in hilly environments.

4. Drive the vehicle at least 8 km (5 miles) with the speed control

system engaged to display a stabilized average.

Driver Controls

5. Record the highway fuel economy for future reference.

It is important to press the RESET control after setting the speed control to get accurate highway fuel economy readings.

Display On/Off

Select this function from the FUEL control to turn your message center display OFF or ON.

Language

1. Select this function from the

SETUP control for the current language to be displayed.

2. Pressing the RESET control

cycles the message center through each of the language choices.

3. Press and hold the RESET

control to set the language choice.

Units (English/Metric)

1. Select this function from the

SETUP control for the current units to be displayed.

2. Press the RESET control to

change from English to Metric.

Autolocks

1. Select this function from the

SETUP control for the current display mode.

2. Press the RESET control to turn

the autolocks ON or OFF.

Driver Controls

Easy entry/exit (if equipped)

1. Select this function from the

SETUP control for the current display mode.

2. Press the RESET control to turn

the easy entry/exit ON or OFF.

Lock chirp (if equipped)

1. Select this function from the

SETUP control for the current display mode.

2. Press the RESET control to turn

the lock chirp ON or OFF.

System warnings

System warnings alert you to possible problems or malfunctions in your vehicle’s operating systems.

In the event of a multiple warning situation, the message center will cycle the display to show all warnings by displaying each one for 4 seconds.

The message center will display the last selected feature if there are no more warning messages. This allows you to use the full functionality of the message center after you acknowledge the warning by pressing the RESET control and clearing the warning message.

Warning messages that have been reset are divided into two categories:

• They will reappear on the display ten minutes from the reset.

• They will not reappear until an ignition OFF-RUN cycle has been

completed.

This acts as a reminder that these warning conditions still exist within the vehicle.

Driver Controls

Warnings Status

Engine power reduced Warning cannot be reset Pull off road safely Turn off ignition Driver’s door ajar Passenger door ajar Driver rear door ajar Passenger rear door ajar Check engine temp Warning returns after 10 minutes Check charging system Transmission overheated Check transmission Low fuel level Check fuel cap Low brake fluid level Warning returns after the ignition key Check tail lamps Check brake lamps Check front turn lamps Check side repeater lamps (if

equipped) Check rear turn lamps Check Traction Control (if

equipped) Check AdvanceTrac (if

equipped) Trunk ajar Low washer fluid Check AC (cabin) filter Change oil soon Oil change required Data error

is turned from OFF to RUN

Driver Controls

ENGINE POWER REDUCED. Displayed when the engine is overheating. Stop the vehicle as soon as safely possible and turn off the engine. If this warning stays on, contact your dealer as soon as possible.

PULL OFF ROAD SAFELY. Displayed when the engine is overheating. Stop the vehicle as soon as safely possible and turn off the engine. If this warning stays on, contact your dealer as soon as possible.

TURN OFF IGNITION. Displayed when the engine is overheating. Turn off the engine. If this warning stays on, contact your dealer as soon as possible.

DRIVER’S DOOR AJAR. Displayed when the driver’s door is not completely closed.

PASSENGER DOOR AJAR. Displayed when the passenger side door is not completely closed.

DRIVER’S REAR DOOR AJAR. Displayed when the driver’s rear door is not completely closed.

PASSENGER REAR DOOR AJAR. Displayed when the passenger side rear door is not completely closed.

CHECK ENGINE TEMP. Displayed when the engine coolant is overheating. Stop the vehicle as soon as safely possible, turn off the engine and let it cool. Check the coolant and coolant level. Refer to Engine coolant in the Maintenance and specifications chapter. If the warning stays on or continues to come on, contact your dealer as soon as possible.

CHECK CHARGING SYSTEM. Displayed when the electrical system is not maintaining proper voltage. If you are operating electrical accessories when the engine is idling at a low speed, turn off as many of the electrical loads as soon as possible. If the warning stays on or comes on when the engine is operating at normal speeds, have the electrical system checked as soon as possible.

TRANSMISSION OVERHEATED. Indicates the transmission is overheating. This warning may appear when towing heavy loads or when driving in a low gear at a high speed for an extended period of time. Stop the vehicle as soon as safely possible, turn off the engine and let it cool. Check the transmission fluid and level. Refer to Transmission fluid in the Maintenance and specifications chapter. If the warning stays on or continues to come on, contact your dealer for transmission service as soon as possible.

100

Lincoln LS 2002 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
