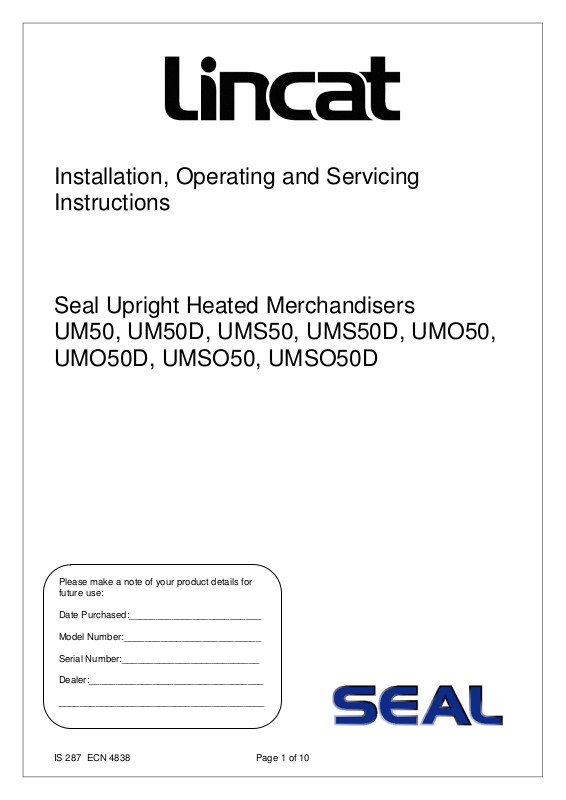

Page 1
Installation, Operating and Servicing
Instructions
Seal Upright Heated Merchandisers
UM50, UM50D, UMS50, UMS50D, UMO50,
UMO50D, UMSO50, UMSO50D
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 287 ECN 4838 Page 1 of 10
Page 2
CONTENTS
Important Information 2
Warnings and Precautions 3
Technical Data 3
Checklist of Enclosures 3
Installation and Commissioning 4-5
Operating Instructions 5-7
Cleaning 7
Servicing, Maintenance and Component Replacement 8
Fault Finding 8
Spare Parts List 8-9
Service Information and Guarantee 10
IMPORTANT INFORMATION
Read these instructions carefully before using this product, paying particular
attention to all sections that carry warning symbols, caution symbols and notices.
Ensure that these are understood at all times
WARNING!
This symbol is used whenever there is a risk of personal injury.
CAUTION!
This symbol is used whenever there is a risk of damaging your Lincat product.
NOTE:
This symbol is used to provide additional information, hints and tips.
KEEP THIS MANUAL FOR FUTURE REFERENCE
.
IS 287 ECN 4838 Page 2 of 10
Page 3
WARNINGS AND PRECAUTIONS
Model
Height (mm)
Width (mm)
Depth (mm)
Weight (
kg)
This appliance must be Installed, Commissioned and Serviced by a qualified
person in accordance with national and local regulations in force in the country of
installation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified person.
Ensure that the plug/socket is accessible at all times.
Strip plastic coating and clean the appliance before use.
During operation parts may become hot - avoid accidental contact.
Disconnect this appliance before servicing, maintenance or cleaning.
In use, these appliances have hot interior panels. It is important that provision is
provided for the placing and removal of food products when using the appliance.
TECHNICAL DATA
UM50, UM50D
UMS50, UMS50D
UMO50, UMO50D
UMS050, UMSO50D
CHECK LIST OF ENCLOSURES
Warranty card
Instructions manual
Rotary or static rack
Water bath
Door handle kit
Oven shelf (oven models only)
780
565 565
925 55.0
37.0
IS 287 ECN 4838 Page 3 of 10
Page 4
INSTALLATION AND COMMISSIONING
This appliance must be earthed.
An equipotential bonding terminal is provided to allow cross bonding with other
equipment.
If replacing the plug connect the terminals as follows:
Green and Yellow wire Earth E
Blue wire Neutral N
Brown wire Live L
Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary
polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)
Install this appliance on a level surface ensuring all vents are unobstructed. Any
partitions, walls or furniture must be of non-combustible material. Minimum

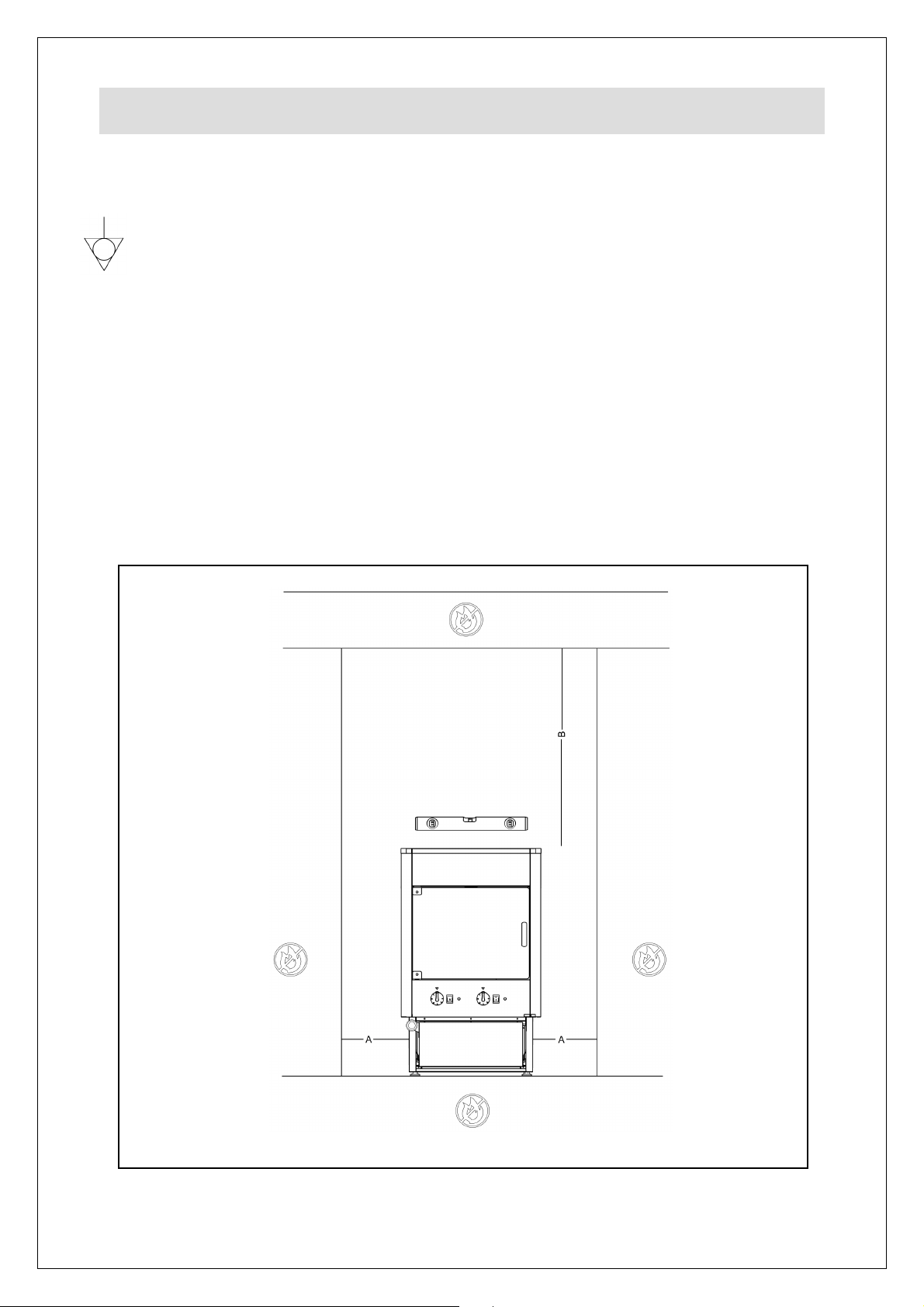

distances A 100mm B 500mm – see Fig 1.
Fig 1
IS 287 ECN 4838 Page 4 of 10
Page 5
Power Ratings
Model
kW
Amps
UM50, UM50D, UMS50, UMS50D 1.5 6.5
UMO50, UMO50D, UMSO50, UMSO50D 2.9 12.6

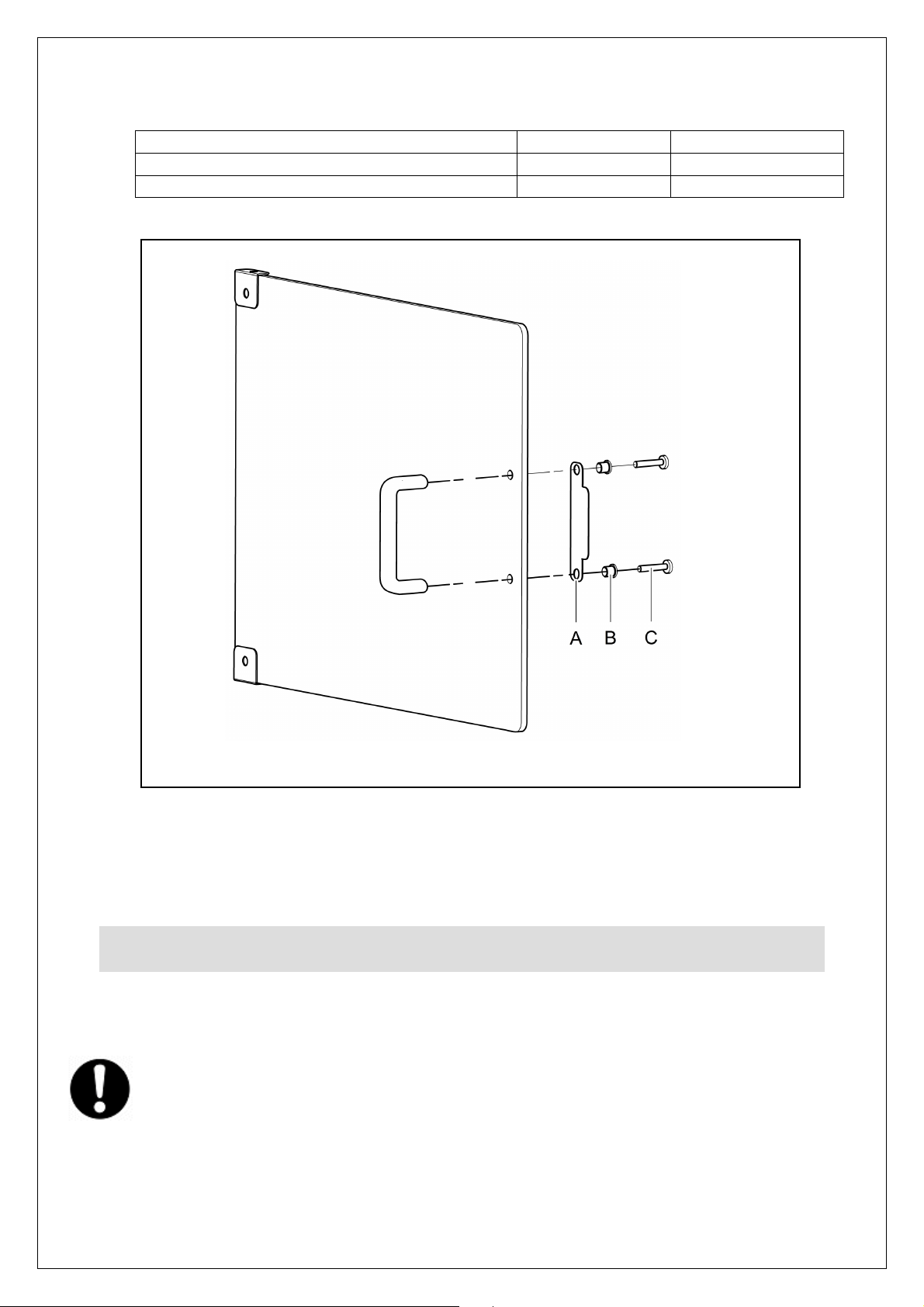

Fig 2
Assemble the door handle as shown in Fig 2, with the grommet (B) passing through
the plate (A) to protect the glass from the bolts (C).
OPERATING INSTRUCTIONS
Only qualified or trained personnel should use this appliance.
Operating efficiency relies on the circulation of warm air passing through and
around the shelves. Ensure circulation is not compromised either by overloading or
the use of aluminium foil.
To operate, refer to Fig 3.
IS 287 ECN 4838 Page 5 of 10
Page 6

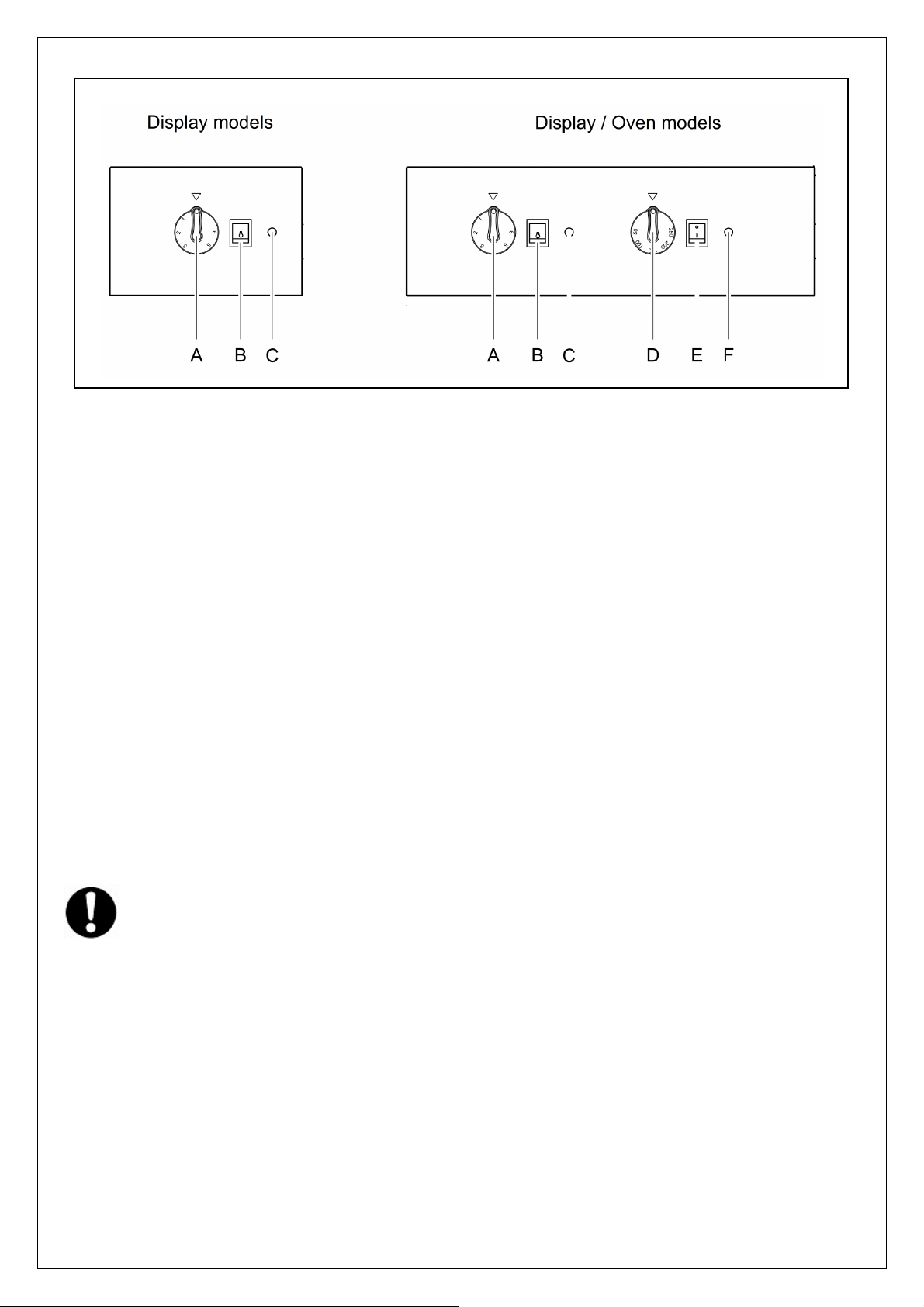

Fig 3
Display models
Connect the appliance to an electrical supply and switch on the light (B). Turn the
thermostat (A) to 5 and wait until the amber neon (C) extinguishes before loading with
pre-heated product.
Display/Oven models
Operate the display as detailed above.
To operate the oven, press the switch (E) and turn the thermostat (D) to the required
setting. Wait until the amber neon (F) extinguishes before loading with product.
For best results, cook and display product on appropriately sized trays.
Humidity feature

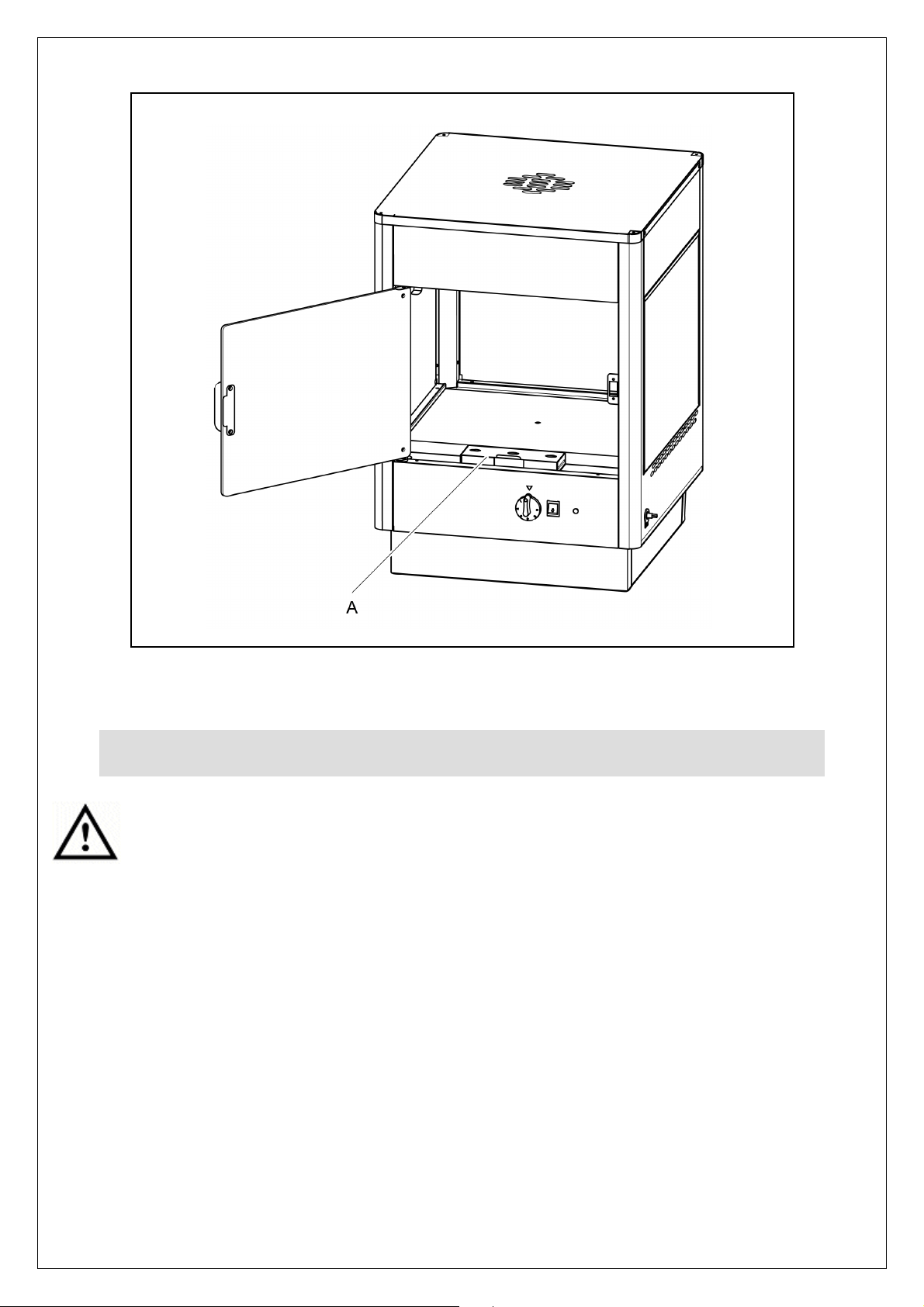

The integral water bath - Fig 4 (A) is intended to keep food such as pastry, moist. Fill
with warm water to the indicated level. Do not overfill. Check and maintain the water
level.
The water bath will be hot when operating – take care when removing or filling.
IS 287 ECN 4838 Page 6 of 10
Page 7
Fig 4
CLEANING
Do not use a water jet or steam cleaner, and do not immerse this appliance.
Clean all panels with warm water and mild detergent, do not use abrasive materials.
Dry with a soft cloth.
The racks, base plate and water tray may be removed for cleaning. To remove the
rotary rack, push upwards against the spring loaded pin and carefully rotate
outwards from the bottom. Reverse to replace. The static rack simply lifts out.
To remove the oven shelf, pull forward until it stops and then lift out. Lift and
remove the oven base panel.
All racks, shelves, base plates and water baths may be washed in a dishwasher.
IS 287 ECN 4838 Page 7 of 10
Page 8
SERVICING, MAINTENANCE AND
Part Number
Description
Used on
COMPONENT REPLACEMENT
To replace a light bulb in the display case, disconnect the appliance. Lever off the
light cover and remove the bulb by unscrewing anticlockwise. Reverse the
procedure to fit a new bulb.
All other servicing, maintenance and component replacement on this appliance
should be carried out by one of our recommended service engineers.
FAULT FINDING
Please refer to the Service Help Desk number on the final page of this manual.
SPARE PARTS LIST
BU72 Door bush All
CA111 Door catch All
CM02 Corner moulding All
CP12 Rotary coupling UM50, UM50D, UMO50, UMO50D
EL174 Element – oven & display All
FE10 Foot UMO50, UMO50D, UMSO50, UMSO50D
GL203 Side glass All
GL510 Door glass All
HA50 Oven handle UMO50, UMO50D, UMSO50, UMSO50D
HA78 Display handle All
KN203 Display knob All
KN220 Oven knob UMO50, UMO50D, UMSO50, UMSO50D
LA10 Light All
MO11 Motor UM50, UM50D, UMO50, UMO50D
NE42 Amber neon All
PL202 Mains cable All
RD23/S Rotary rack UM50, UM50D, UMO50, UMO50D
SD24 Static rack UMS50, UMS50D, UMSO50, UMSO50D
SH101 Oven shelf UMO50, UMO50D, UMSO50, UMSO50D
SP38 Rotary rack spring UM50, UM50D, UMO50, UMO50D
SW64 Rotary microswitch UM50, UM50D, UMO50, UMO50D
SW69 Oven switch UMO50, UMO50D, UMSO50, UMSO50D
SW70 Light switch All
IS 287 ECN 4838 Page 8 of 10
Page 9
TH106 Thermostat - display All
TH46 Thermostat - oven UMO50, UMO50D, UMSO50, UMSO50D
TH80 Cut out thermostat UMO50, UMO50D, UMSO50, UMSO50D
IS 287 ECN 4838 Page 9 of 10
Page 10
•
•
•
SERVICE INFORMATION
For help with the installation, maintenance and use of your Lincat equipment,
please contact our service department:
UK: 01522 875520
For non-UK customers, please contact your local Lincat dealer
All service work, other than routine cleaning should be carried out by one of our
authorised service agents. We cannot accept responsibility for work carried out by
other persons.
To ensure your service enquiry is handled as efficiently as possible, please tell us:
• Brief details of the problem
Product code
Type number
All available on serial plate
Serial number
Lincat reserve the right to carry out any work under warranty, given reasonable
access to the appliance, during normal working hours, Monday to Friday, 08:30 to
17:00.
GUARANTEE
This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is
in addition to, and does not diminish your statutory or legal rights.
The guarantee does not cover:
• Accidental damage, misuse or use not in accordance with the manufacturer’s
instructions
• Consumable items (such as filters, glass, bulbs, slot toaster elements and door
seals.)
• Damage due to incorrect installation, modification, unauthorised service work or
damage due to scale, food debris build-up, etc.
The manufacturer disclaims any liability for incidental, or consequential damages.
Attendance is based on reasonable access to the appliance to allow the authorised
technician to carry out the warranty work.
Service calls to equipment under warranty will be carried out in accordance with the
conditions of sale. Unless otherwise specified, a maximum of 15 minutes of
administrative time, not spent directly carrying out servicing work, is provided for
within the warranty. Any requirement for staff attending the call to spend greater time
than 15 minutes due to administrative requirements, such as on health and safety risk
assessments, will be chargeable at the prevailing rate.
IS 287 ECN 4838 Page 10 of 10
